Presentation Transcript

  1. Microsoft Exchange Server 2007 אייל רגב מנהל תחום מיקרוסופט בחברת אומניטק

  2. Agenda • 09:00 חידושים מרכזיים ב-Exchange 2007 • 10:15 הצגת פתרונות של Disaster Recoveryבאמצעות Exchange 2007 • 10:45 הפסקה • 11:00 מאיר ג'ורגי חברת MTS סיפור לקוח • 11:20 הדרך לשדרוג ל- Exchange 2007 – המלצותמעשיות מהשטח • 12:30 סיום משוער

  3. Built-in Protection Anywhere Access Exchange Server 2007 Investment Themes • Unified Messaging integrated with Office Communicator • Outlook experience from desktop to mobile devices • Efficient collaboration: meetings and sharing • Enterprise-class availability at lower cost • Protection from internal and external threats • Simplified compliance for the organization • Optimized for performance and scalability • Easier and more flexible deployment • Greater administrator productivity Operational Efficiency

  4. Hardware and Infrastructure Requirements

  5. Windows Server Exchange 2007 Windows Server Client Access HubTransport Exchange 2007 Edge Transport Unified Messaging Mailbox Server Roles Exchange 2007 Exchange 2007 Edge Server Intranet DMZ

  6. Hub Transport Edge Transport Hygiene Routing Policy Routing Unified Messaging OWA, Outlook Anywhere Voice Messaging Mailbox EAS, POP, IMAP, Outlook Anywhere Fax Web services, Web parts Mailbox Public Folders Client Access Exchange 2007 Enterprise Topology Enterprise Network PBX or IP-PBX OtherSMTPServers I N T E R N E T

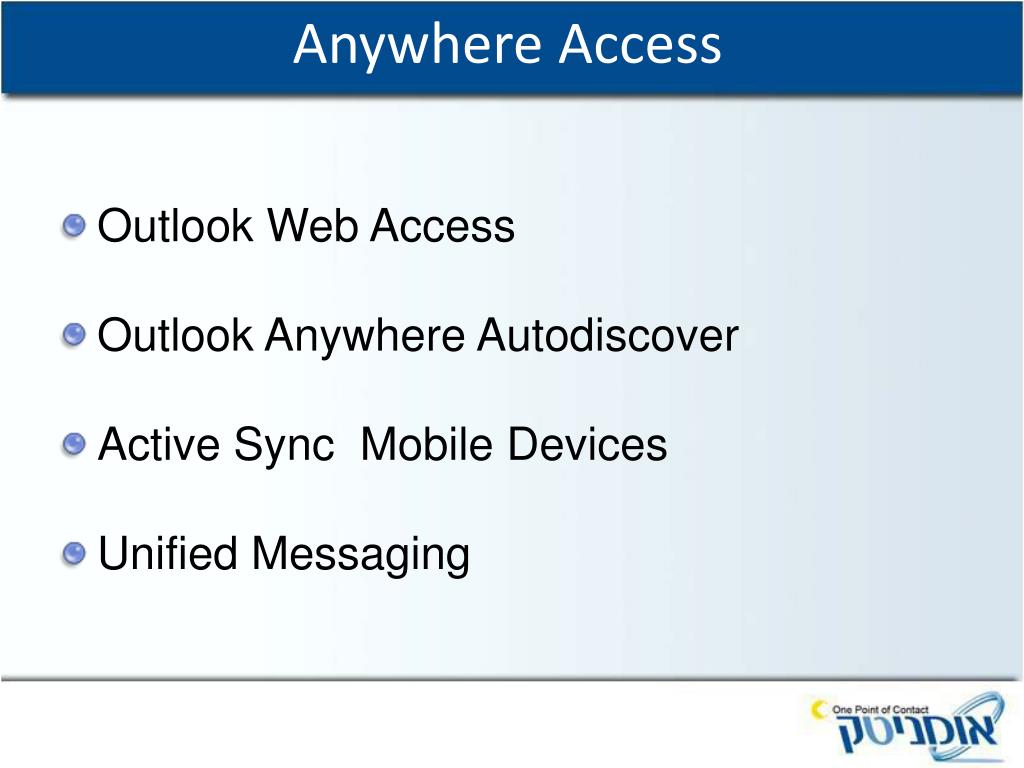

  7. Anywhere Access • Outlook Web Access • Outlook Anywhere Autodiscover • Active Sync Mobile Devices • Unified Messaging

  8. Outlook Web Access (OWA) • Access corporate file shares & SharePoint sites without VPN • Quickly find people, resources and best times for meetings • Resource management • Rules limit increased from 32k to 256k

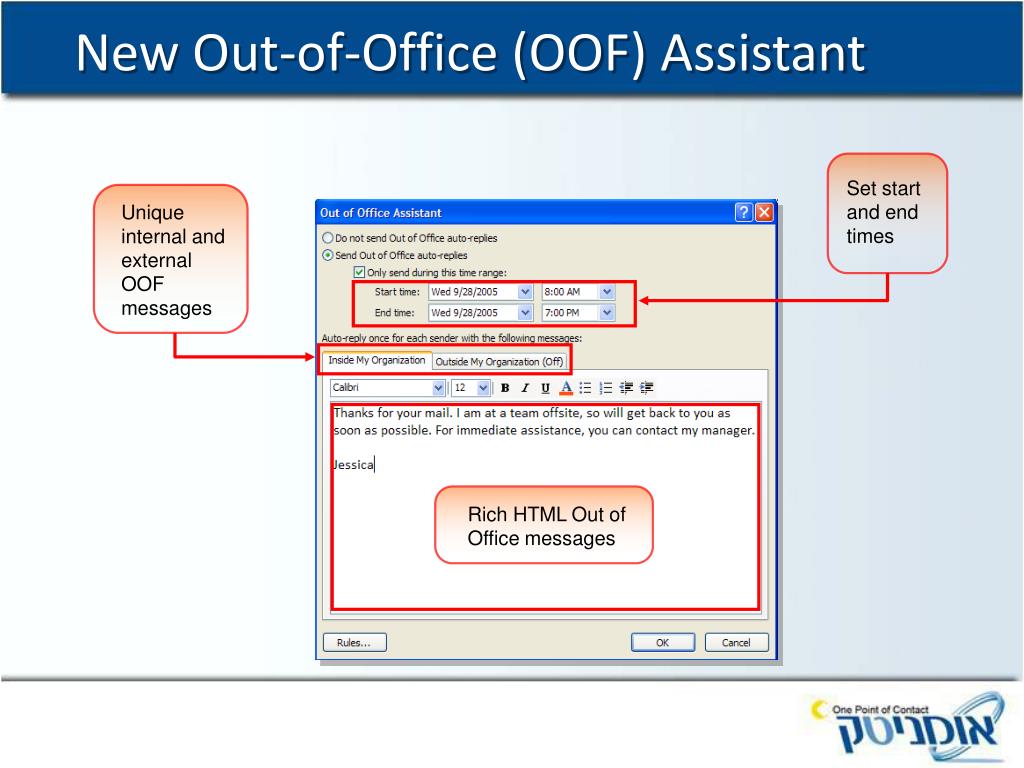

  9. Set start and end times Unique internal and external OOF messages Rich HTML Out of Office messages New Out-of-Office (OOF) Assistant

  10. Outlook Anywhere Client Autodiscover and Go… • RPC over HTTP lets you enjoy the full Microsoft Office Outlook 2003/2007 • Client Autodiscover • Exchange and Outlook automatically setup profile • Transparent Move, even cross-forest • Reduces help desk calls

  11. Exchange 2007 Mobility Overview • Better e-mail on the go • More complete Outlook e-mail experience • Access to the information you need • Improved Manageability • Self-service model reduces helpdesk burden, user can perform remote wipe • More comprehensive policy support • Ability to search items on the device and the server • Exchange 2007 supports searching all item types: contacts, tasks, mail, etc. • Convenient access to your entire mailbox from any device!

  12. Unified Messaging Server Roles • Voice Messaging and Fax Services • Call Answering • Fax Receiving • Outlook Voice Access • Automated Attendant

  13. Anywhere Access - UM “7 out of 10 phone calls go direct to voicemail“ - Gartner (“The Knowledge Worker Investment Paradox”, 2002) • Single inbox for e-mail, voicemail, and fax • Voice access from regular phone • Speech-enabled auto attendant

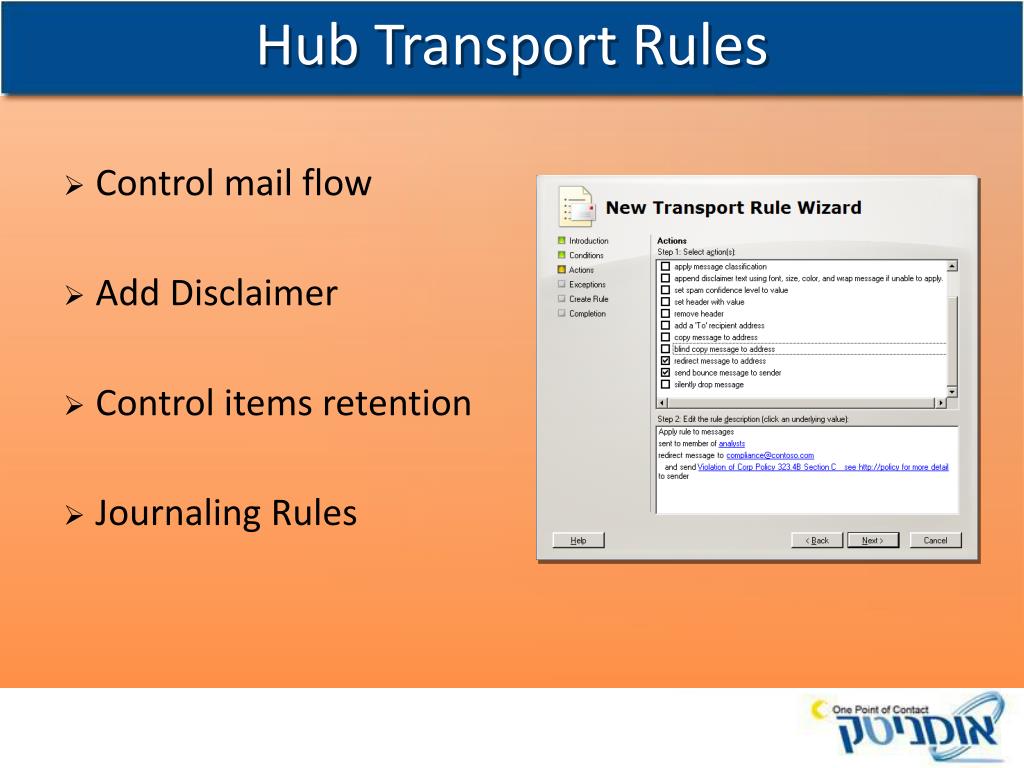

  14. Hub Transport Rules • Control mail flow • Add Disclaimer • Control items retention • Journaling Rules

  15. New Exchange Management Shell • Set the send quota for ALL mail enabled users in the DL called “RemoteUsers” to1000 KB • Remove only storage groups that contain the word “temp”, with confirmation support • Move ALL users from server PORTLAND to the TUCSON server, database “DB1” • Get-DistributionGroup “RemoteUsers” | Get-DistributionGroupMember | • Set-Mailbox –ProhibitSendQuota 1000 • Get-StorageGroup | where { $_.Name –imatch “temp” } | Remove-StorageGroup –confirm • Get-Mailbox –server PORTLAND | move-mailbox –targetDatabase “TUCSON\DB1”

  16. Exchange Server 2007 Built-In Protection • High Availability through Continuous Replication • Local Continuous Replication • Standby Continuous Replication • Cluster Continuous Replication • Single Copy Cluster

  17. Session Objectives After this session, you will… Understand the value of Exchange Server 2007 High Availability Learn about new Built-In High Availability features of Exchange 2007 See demo of Local Continuous Replication See demo of Standby Continuous Replication

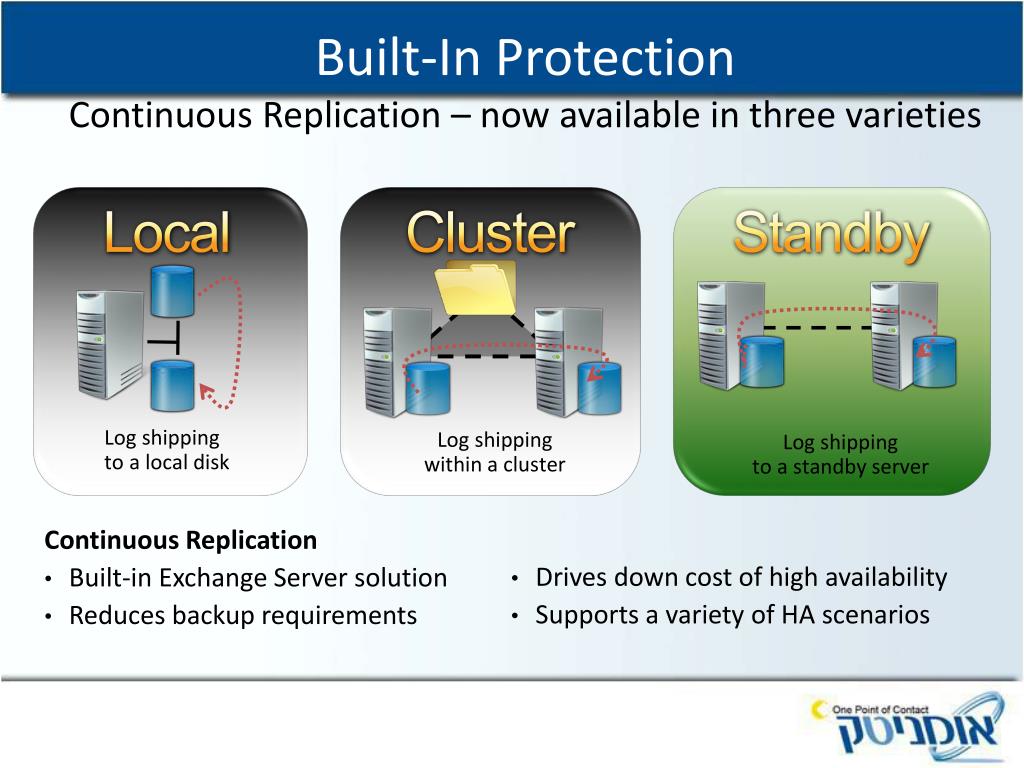

  18. Built-In ProtectionContinuous Replication – now available in three varieties Local Cluster Standby Log shipping to a local disk Log shipping within a cluster Log shipping to a standby server • Continuous Replication • Built-in Exchange Server solution • Reduces backup requirements • Drives down cost of high availability • Supports a variety of HA scenarios

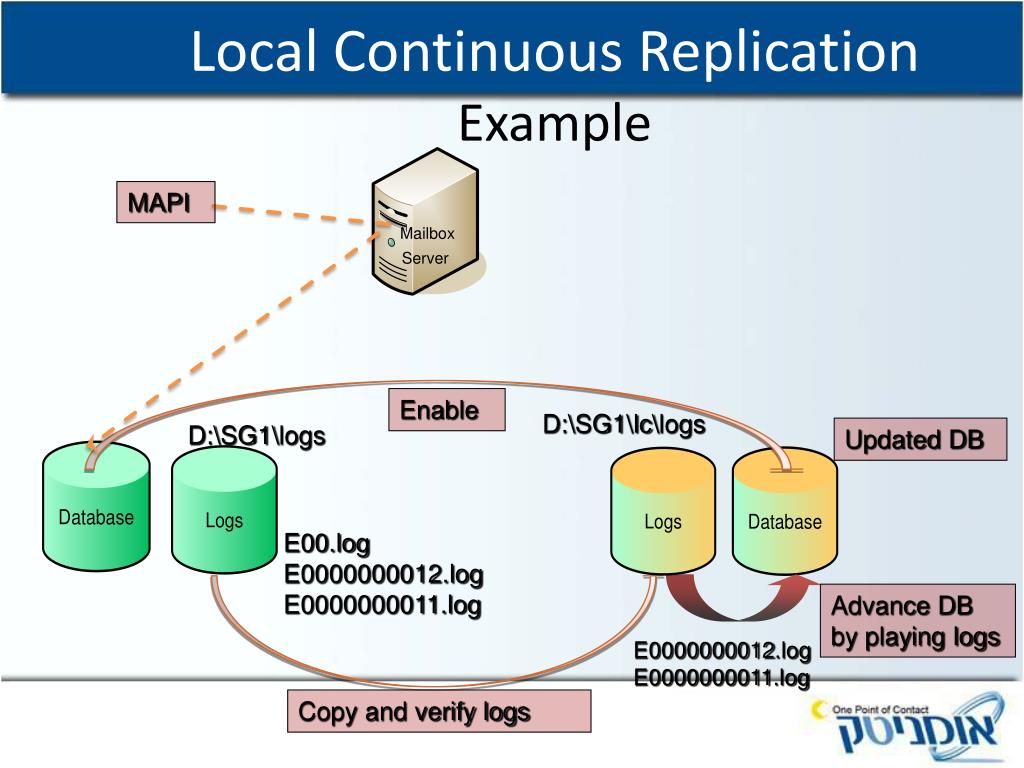

  19. Local Continuous Replication Example MAPI Enable D:\SG1\lc\logs D:\SG1\logs Updated DB E00.log E0000000012.log E0000000011.log Advance DB by playing logs E0000000012.log E0000000011.log Copy and verify logs

  20. Live Demo Local Continuous Replication

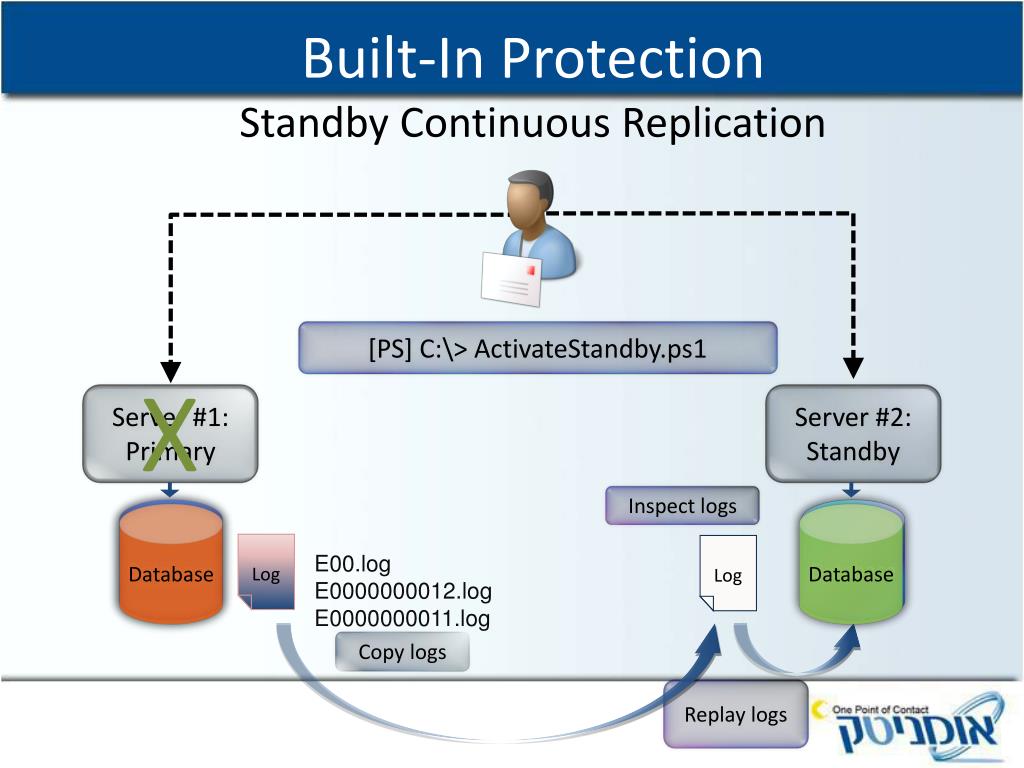

  21. Built-In ProtectionStandby Continuous Replication • [PS] C:\> ActivateStandby.ps1 X Server #1: Primary Server #2: Standby Inspect logs Database Database Database Database Database Log Log E00.log E0000000012.log E0000000011.log Copy logs Replay logs

  22. Live Demo Standby Continuous Replication

  23. Q SMTPMBOWA Logs DB Exchange Server 2003 Clustering • Transport, OWA, and Mailbox cluster aware • 2 Node active/active • Up to 8 node active/passive • Required shared storage • Single copy of mailbox data

  24. q KB 921181 FileShare Q Q Logs DB Logs DB Cluster Continuous Replication • Two node cluster • Witness on Hub Transport • Two copies • Clustered • Automatic recovery • Server HCL • Full redundancy • Replay • 1 or 2 datacenters

  25. Cluster Continuous Replication Example Passive Active Active Passive Online seed Incremental Reseed Updated DB Updated DB \\node2\GUID \\node1\GUID E00.log E0000000012.log E0000000011.log E00.log E0000000014.log E0000000013.log E0000000014.log E0000000013.log E0000000012.log E0000000011.log Advance DB by playing logs Advance DB by playing logs Copy and verify logs

  26. Exchange Server 2007 High Availability Goals • Deliver data and service availability solutions • Decrease deployment and operational costs • Enable options for more Exchange customers • Enable large low cost mailboxes (1GB+)

  27. Coffee Break

  28. Customer Success Story מאיר ג'ורגי מנהל ה System חברת MTS

  29. Microsoft Exchange Server 2007 Migration

  30. Exchange Server Interoperability Requirements • Legacy Exchange Organization in Exchange Native Mode • Can upgrade organization from: • Exchange 2000 Server • Exchange Server 2003 • Cannot upgrade org from Exchange 5.5 • No in-place server upgrades • Routing Group Connector is required between 2003 and 2007 • Exchange 2003 Front-ends cannot talk to Exchange Server 2007 Mailbox Servers • Verify recipients meet new validation requirements

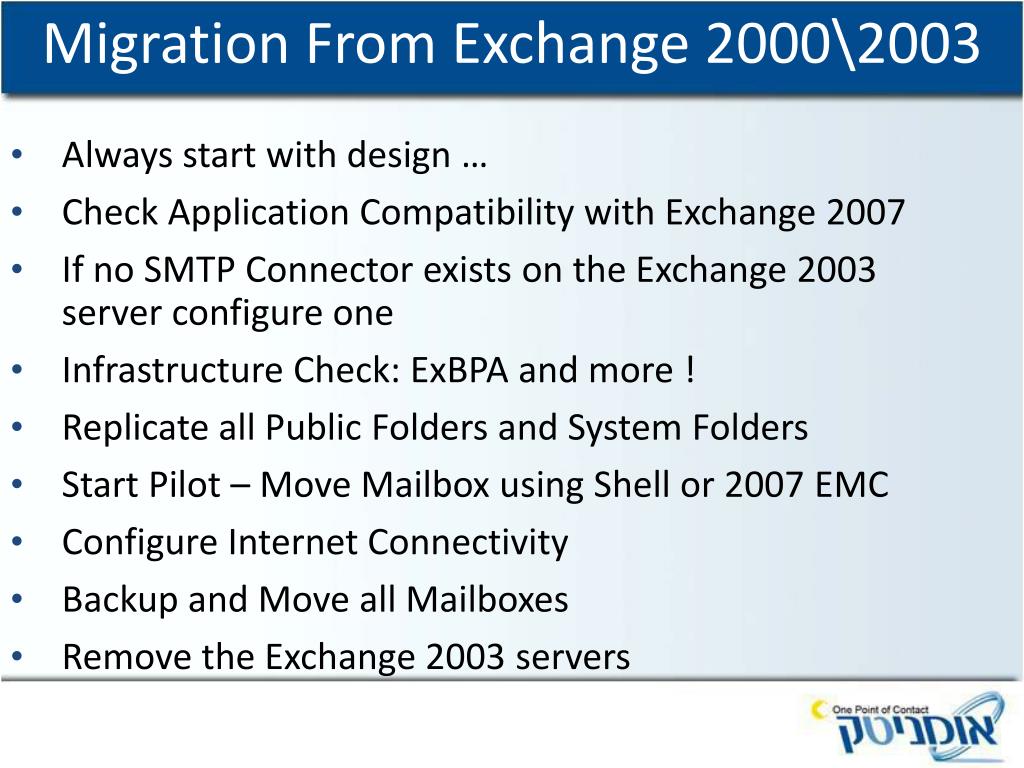

  31. Migration From Exchange 2000\2003 • Always start with design … • Check Application Compatibility with Exchange 2007 • If no SMTP Connector exists on the Exchange 2003 server configure one • Infrastructure Check: ExBPA and more ! • Replicate all Public Folders and System Folders • Start Pilot – Move Mailbox using Shell or 2007 EMC • Configure Internet Connectivity • Backup and Move all Mailboxes • Remove the Exchange 2003 servers

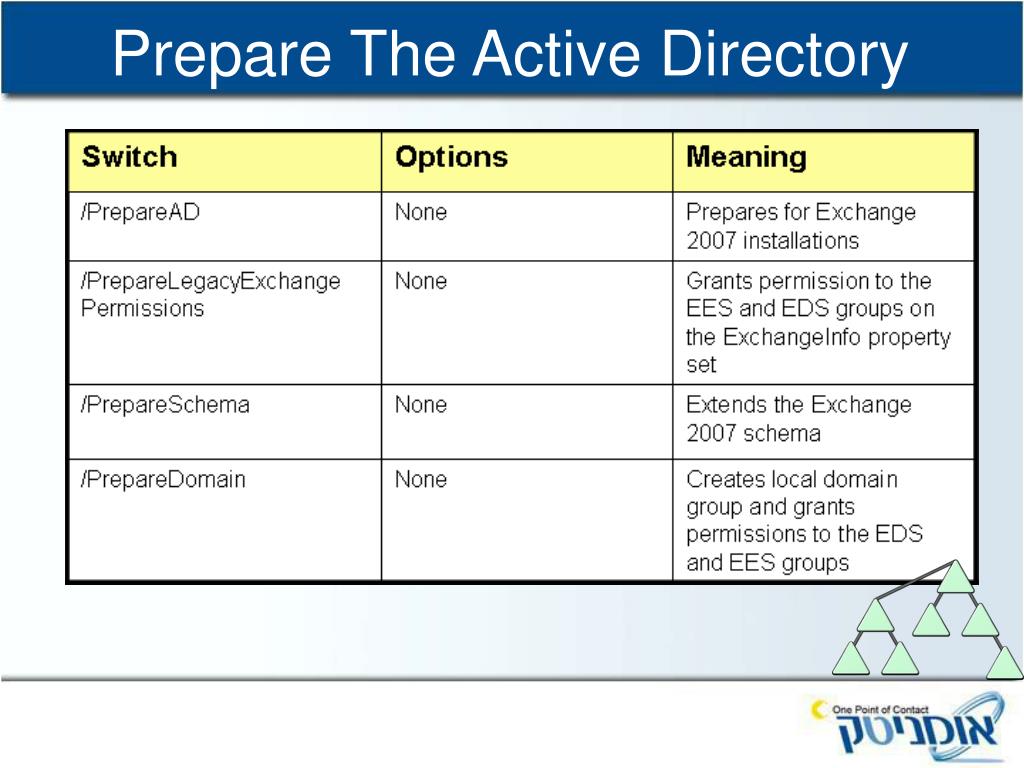

  32. Prepare The Active Directory

  33. Choosing the Server Roles

  34. Why upgrade to Exchange 2007 ?? • More scalable • Greatly improved OWA • Consistent scripting interface • Auto-discovery for Outlook 2007 • Customizable over-quota and NDR messages • Per-Recipient Journaling • Schedule-able OOF • Local Continuous Replication • Standby Continuous Replication • Clustered Continuous Replication • Message routing based on Active Directory sites • No more Administrative Groups! • Restore databases to any server • Unified messaging (voice mail, faxing, Outlook Voice Access) • Per-User Safe Sender and Blocked Sender lists • Transport rules (disclaimers, message security, attachment filtering) • E-mail Lifecycle Management • OWA SharePoint document access • Improved message transport security • Simplified Exchange Management Console • Improved anti-spam features • 32KB rules limit gone!

  35. Thank You Eyal Regev eyalr@omnitech.co.il 0507779721
