  1. SPPA 4030Speech Science Stephen M. Tasko Ph.D. CCC-SLP

  2. Topic 1: The Speech Chain Learning Objectives • Outline the general sequence of biological/physical events that occur from speech formulation to speech perception. • Describe the different types of information content embedded within the speech signal. • Know and describe the different branches of physics and biology used to inform basic mechanisms of speech production and perception.

  3. The Speech Chain (Denes & Pinson, 1993)

  4. What information is embedded in the speech signal? • Phonetic information • Affective information • Personal information • Transmittal information • Diagnostic Information

  5. Physics Acoustics Aerodynamics Kinematics Dynamics Biology Anatomy Gross anatomy Microscopic anatomy Molecular biology Neuroimaging Physiology Electrophysiology Branches of science employed to understand speech communication

  6. Physical Quantities ReviewAn Independent Learning Activity Learning Objectives • Distinguish between basic and derived units • Distinguish between scalar and vector quantities • Define a range of derived quantities with special emphasis on displacement, velocity, acceleration, force, pressure, intensity, resistance and their physical relationship

  7. Assignment 1 • See Assignments section of course website • Due September 12, 2013

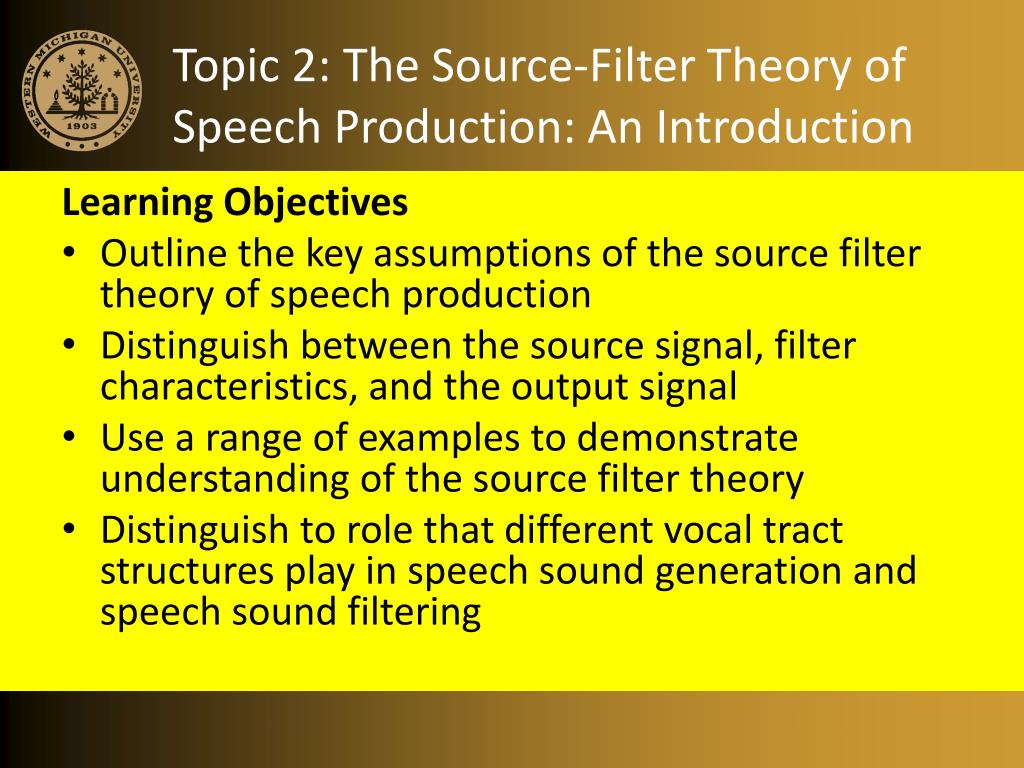

  8. Topic 2: The Source-Filter Theory of Speech Production: An Introduction Learning Objectives • Outline the key assumptions of the source filter theory of speech production • Distinguish between the source signal, filter characteristics, and the output signal • Use a range of examples to demonstrate understanding of the source filter theory • Distinguish to role that different vocal tract structures play in speech sound generation and speech sound filtering

  9. Producing Speech • The vocal tract can be conceived as a set of interconnecting tubes and valves. • Speech production is achieved through the systematic regulation of air pressures and flows within the vocal tract.

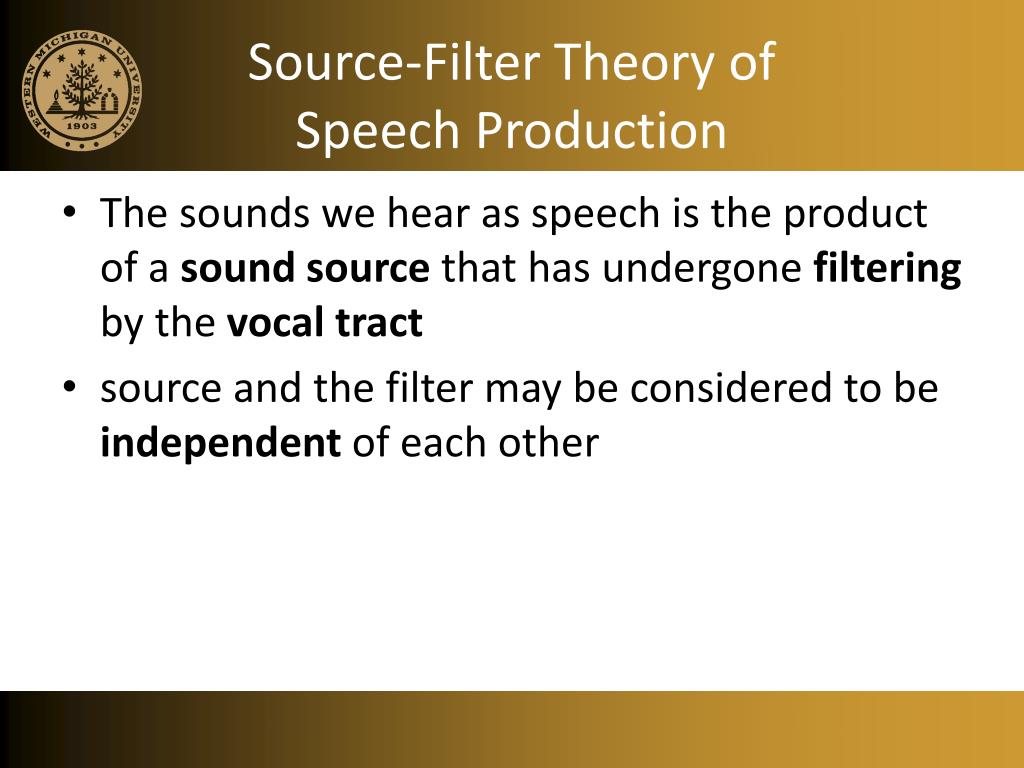

  10. Source-Filter Theory of Speech Production • The sounds we hear as speech is the product of a sound source that has undergone filtering by the vocal tract • source and the filter may be considered to be independent of each other

  11. Vocal tract is a tube that can vary its shape From Titze (1994)

  12. Source Filter Theory Speech (What We Hear) Filter (Resonator) Source (Phonation) Frequency Response Curve Input Spectrum Output Spectrum

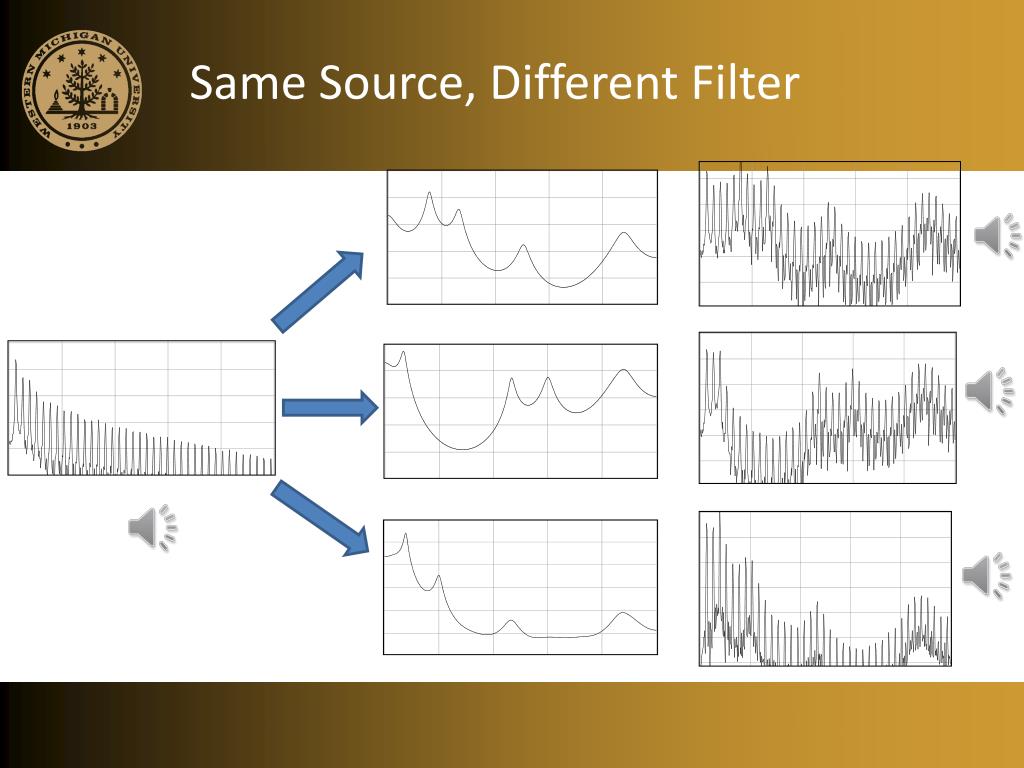

  13. Same Source, Different Filter

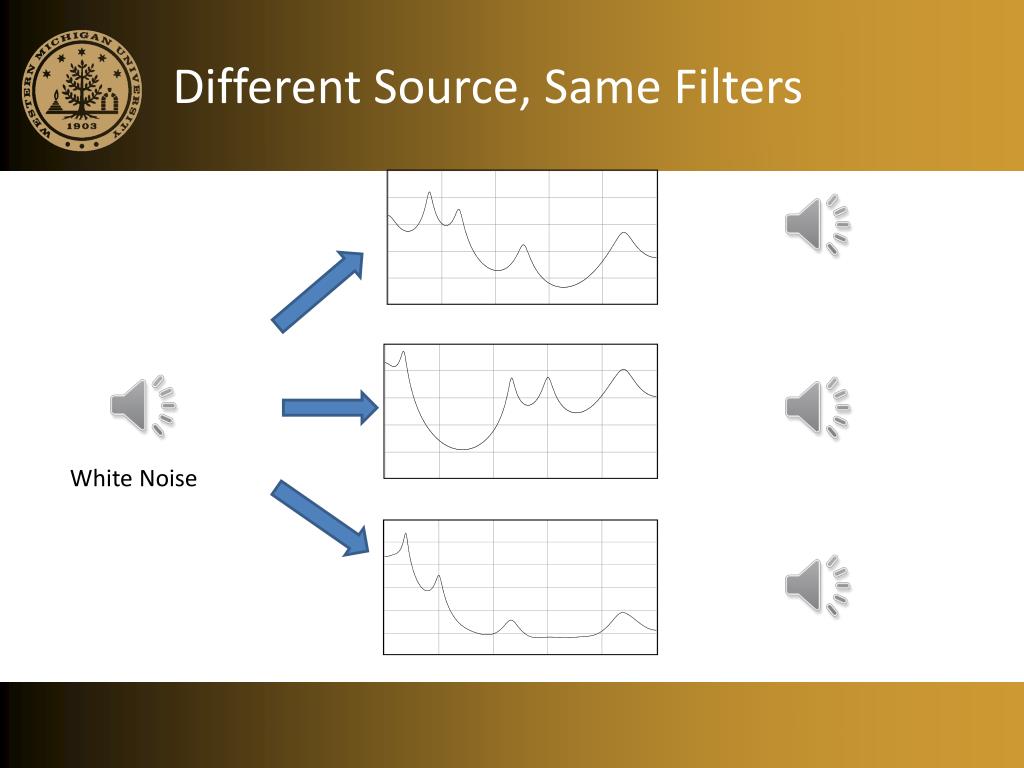

  14. Different Source, Same Filters White Noise

  15. Different Source, Same Filters (Human) burp

  16. Different Source, Same Filters (Human) snore

  17. Different Source, Same Filters (Human) Lip buzz

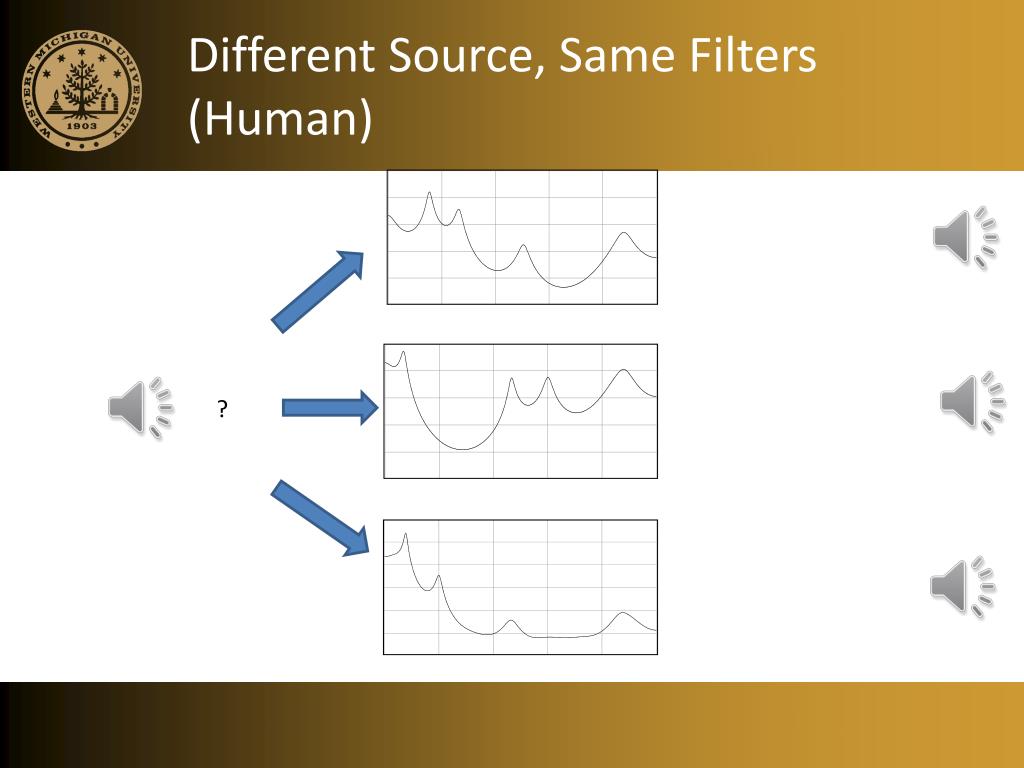

  18. Different Source, Same Filters (Human) ?

  19. Different Source, Same Filters (Non-Human) sheep

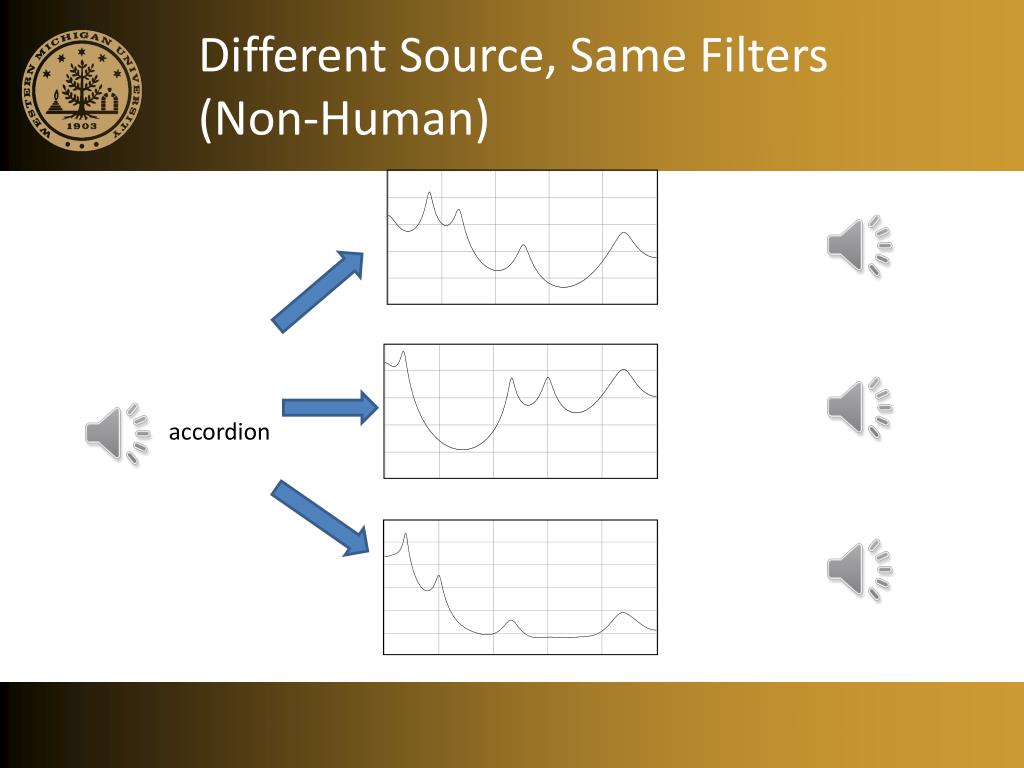

  20. Different Source, Same Filters (Non-Human) accordion

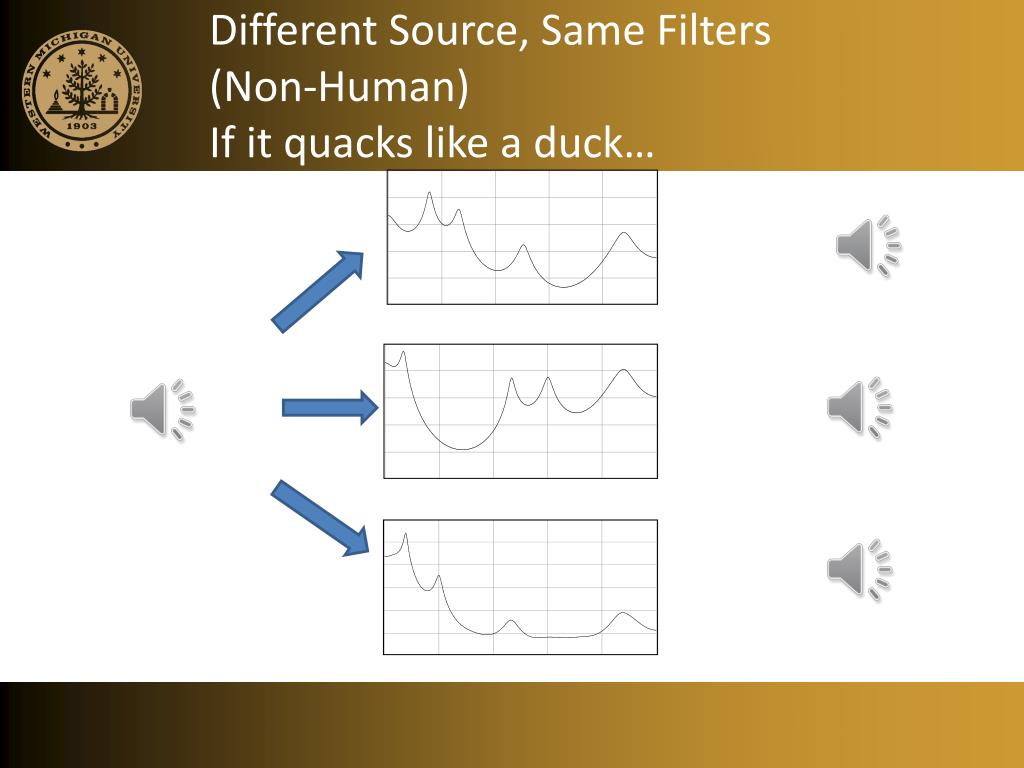

  21. Different Source, Same Filters (Non-Human)If it quacks like a duck…

  22. Source Filter Theory Applied: Alaryngeal Speech

  23. Source-Filter Theory Applied:Esophageal Insufflation Test

  24. Source-Filter Theory Applied:Tracheoesophageal (TE) Speech

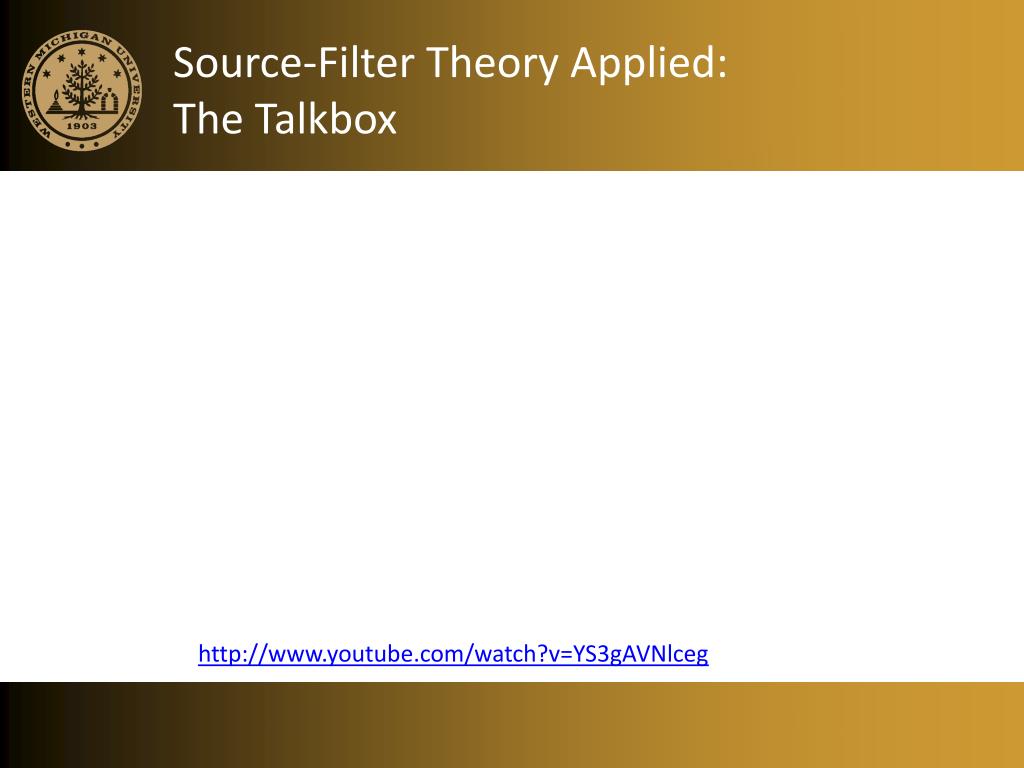

  25. Source Filter Theory Applied: The Talkbox

  26. Source-Filter Theory Applied: The Talkbox http://www.youtube.com/watch?v=YS3gAVNlceg

  27. Topic 3: A Brief Review of Physical Acoustics Learning Objectives • Outline the physical processes underlying simple harmonic motion using the mass-spring model • Describe the molecular basis of sound wave propagation • Define the key characteristics of sinusoidal motion including • Amplitude: instantaneous, peak, peak-to-peak, root-mean-square (RMS), the decibel scale • Frequency/period including units of measure • Phase • Wavelength • Briefly describe the relation between the sine wave and uniform circular motion • Outline the relationship between the frequency and wavelength of a sound wave

  28. Mass (inertia) Newton’s first law of motion Opposition to acceleration/deceleration Elasticity Opposition to displacement Rest position Recoil force Friction Spring Mass Model http://phet.colorado.edu/en/simulation/mass-spring-lab

  29. What is sound? • It may be defined as the propagation of a pressure wave in space and time. • Sound must propagate through a medium

  30. Medium is composed of molecules Molecules have “wiggle room” Molecules exhibit random motion Molecules can exert pressure A B Sound-conducting media

  31. Model of air molecule vibration (Time 1) Air molecules sitting side by side Rest positions

  32. Model of air molecule vibration (Time 2)

  33. Model of air molecule vibration (Time 3)

  34. Model of air molecule vibration(Time 4)

  35. Model of air molecule vibration (Time 5)

  36. a b c d Time 1 2 3 4 5 Distance Model of air molecule vibration

  37. Time 1 2 3 4 5 Distance Wave action of molecular motion

  38. Amplitude waveform Position Time

  39. Amplitude waveform Amplitude Time

  40. Where is pressure in this model? Time 1 2 3 4 5 Pressure measuring device at a specific location

  41. Pressure waveform + 0 Ambient Pressure Sound Pressure - Time

  42. Measuring Sound • Amplitude • Frequency • Phase • Wavelength

  43. Measuring Sound: Signal Amplitude Ways to measure it • Instantaneous • Peak • Peak-to-peak • Root mean square (RMS) • Decibel –see later + 0 Sound Pressure - Time

  44. Measuring Sound: Signal Amplitude • Root mean square (RMS)

  45. What units do we use to measure signal amplitude? • Pressure: Force/area • Intensity = Power/area where power=work/time & work=Force*distance • Intensity is proportionate to Pressure2
