SECCHI Flight Software

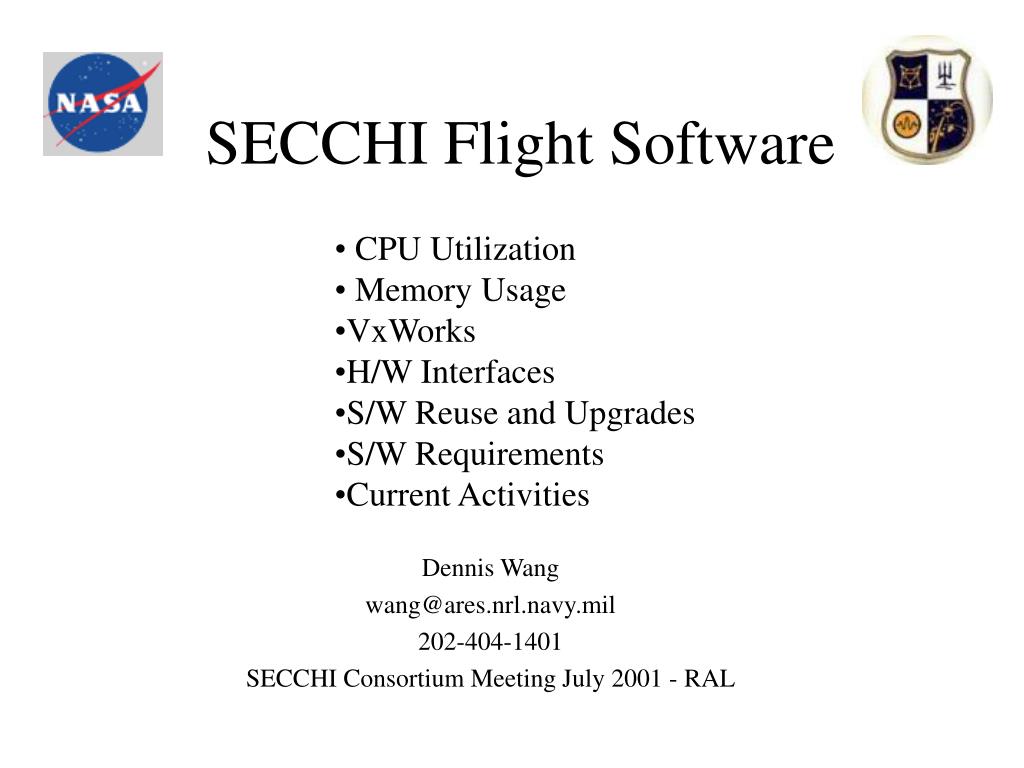

1. SECCHI Flight Software • CPU Utilization • Memory Usage • VxWorks • H/W Interfaces • S/W Reuse and Upgrades • S/W Requirements • Current Activities Dennis Wang wang@ares.nrl.navy.mil 202-404-1401 SECCHI Consortium Meeting July 2001 - RAL

2. RAD 750 • 240 MIPS, 133 MHz clock speed, 33 MHz CPCI Bus speed, PowerPC = 10 W • 166 MHz version may be available • Clock speed can be reduced to save power 60 MIPS, 33 MHz clock = 6.1 W • Sleep modes with rapid wake can also be used to save power

3. LASCO CPU Utilization • LASCO used 0.6 MIPS for 15 kbits/s • LASCO Used 1 MIPS for control of heaters, mechs and housekeeping functions • LASCO used 0.8 MIPS for Image Processing

4. CPU Utilization • Image processing and compression for COR1, COR2, EUVI, HI-1 and HI-2 scales with the ratio of STEREO/LASCO TM • Guide scope and Space Weather equal to 1 MIP • HI requires additional processing for cosmic ray scrubbing and summing of images • HI-1 cadence is 222 images/hr • HI-2 cadence is 56 images/hr

5. CPU Operations • PCI Memory get/copy 1 pixel/33 MHZ clock • Add, compare, subtract (2 clocks @ 133MHz) • Multiply, Divide (20 clocks @ 133 MHz) • Processor pipeline typically gets >1 operations/clock

6. HI Image Processing • Bias subtraction – 1 subtract, 1 get/copy • 2 Image Cosmic Ray Scrub – 2 compare, 1 get/copy • 3 Image Cosmic Ray Scrub – 3 compare, 1 get/copy • Summing – 1 add/sub, 1 get/copy

7. CPU Utilization

8. Memory Usage

9. Memory Map • Buffers for each instrument allow rapid image taking for PB and B images for COR 1 and COR 2, EUVI color sequence • Near independent timeline for each instrument – no sharing of image buffers • Only CCD readout needs to be managed • Important for HI-1 and HI-2

10. Memory and CPU Tradeoffs • Additional memory is used to increase image cadence for short periods (TM Buffer) or to take and store interesting images (CME detect buffer) • Additional MIPS used for additional image processing beyond what was done for LASCO e.g. JPEG 2000, MPEG movies, CME detection

11. VxWorks • Real-Time multitasking operating system used for SMEX, Triana, SXI and others • C or C++ • Code size for Triana ~800kB, SXI ~ 500kB • SECCHI should be ~1 MB • SXI code heritage for mechanisms and heaters, housekeeping, LASCO – Image Acquisition and Processing

12. Triana ? Hammers Co. has Triana code on PowerPC 750 and will have code on RAD750 by the end of the year • Familiarity with Triana S/C code and docs • Infrastructure routines such as VxWorks, EEPROM, watchdog should be 100% applicable • Other routines may be applicable (messaging, task management)

13. H/W Interfaces • MIL-STD 1553 to spacecraft for HK and SC TM – 40-80 kbits/s SCI TM (SWIFT) • IEEE 1355 High Speed Serial Camera Interface (similar to SWIFT 1355) • RS-422 to HI/SCIP Mechanism Electronics • HK board to photodiodes of Guide Telescope

15. VxWorks and SXI Software • Fixed priority task scheduling • Multiple task threads • Interrupt control and vector setup • Intertask communications using message queues, signals and semaphores • SXI uses message queues for intertask communications

17. SECCHI Upgrades • Scheduling and timeline, schedule macros • Multiple SECCHI instruments vs single SXI telescope • Observing programs • Image Processing • Image Compression

18. S/W Req – Instruments • Observing programs handle complete observation acquisition • Normal, dark, cal lamps, EUVI color sequence, polarizer sequence, continuous readout • HI image acquisition and summing • 2048x2048 pixels @ 1 or 2 (dual port CCD) Mpixels/s • Observations synced to 1 sec UTC (0.5 sec requirement/spacecraft)

19. S/W Req - Command • S/W Modular design for uplink - 100kB/day • Bit packed command sequences • Table driven camera setup and image proc. • On-board schedule sequences and default observing sequence • Real-time commanding for diagnostics and I&T

20. S/W Req – Schedule & Ops • Independent operation of each telescope’s mechanisms and lamps • Scheduled camera readout (1 HI camera and 1 SCIP camera simultaneously) • Schedule items can be modified/deleted • Schedule is based on daily uplink • Schedule is to be repeated if no ground contact or default sequence

21. S/W Req – Data Handling • Image compression lossless (Rice) and lossy (H-compress, SQRT, divide by 2) • ROI, occulter and F.O.V masks • Diagnostics (Test, None, Debug, Header) • Summing and Cosmic Ray Scrub for HI • Space Weather channel – JPEG • Data Volume = 3.5 –7 Gbits/day/spacecraft

22. S/W Req - Spacecraft • Time Sync Message 1 per sec to 1/256 sec resolution with additional 64 microsec offsets • Status Bits - Fine pointing, thruster firing, power off warning • Watchdog • Guide Telescope attitude data for ACS • Dual SSR partitions (overwrite or block when full) – priority of downlink ?

23. Software Development Plan • Software Code Management (SCCS) and problem reporting and tracking software (GNATS or Teamwork) will be used to control the code, documentation and data • Snapshots of each build • Software Reviews will be used to validate requirements and design • Software Tests with well defined criteria for success will verify quality

24. S/W Schedule • 5/16/01 S/W, Ops, Data Sys Peer Review • 6/01/01 Flight Software Req Draft 1 • 7/23/01 Flight Software Req Draft 2 • 1/15/02 Build 1 – low level infrastructure • 5/31/02 Build 2 – driver level tests • 7/01/02 MOC-S/C Simulator Tests

25. Recent Activities • Software Development and GSE Lab Setup • Test setup for working with flight and non-flight hardware – commercial RAD750 • 4links Space Wire tests • Software Requirements Draft 2 release • Software Development Plan • Study SXI and Triana flight software

26. SECCHI Software Lab (NRL)

27. SECCHI Software Lab (NRL)
