  1. Chlorine & Chlorine Dioxide Overview File Name: Chlorine.ppt

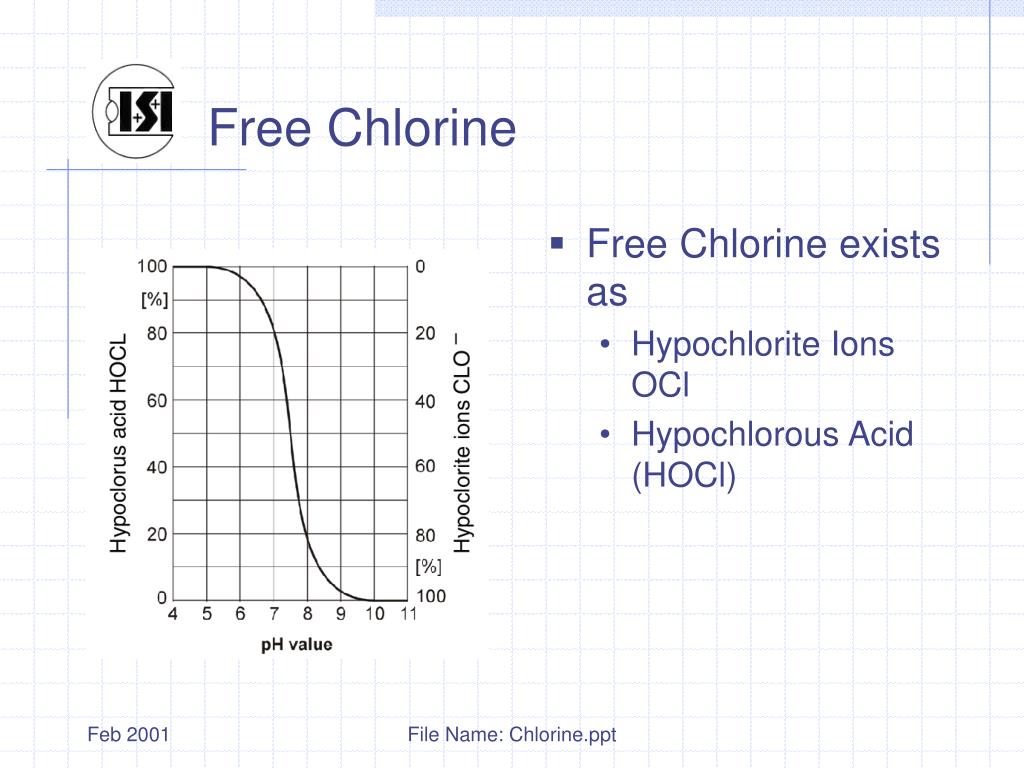

  2. Free Chlorine • Free Chlorine exists as • Hypochlorite Ions OCl • Hypochlorous Acid (HOCl) File Name: Chlorine.ppt

  3. Free Chlorine Sensor • ORP Reaction • HOCl diffuses through the membrane and is reduced at the gold cathode to chloride ions and hydroxide ions. • Silver is oxidized to silver chloride at the anode. • The current flow is directly proportional to the free chlorine concentration. File Name: Chlorine.ppt

  4. Guide to Chlorine Requirements File Name: Chlorine.ppt

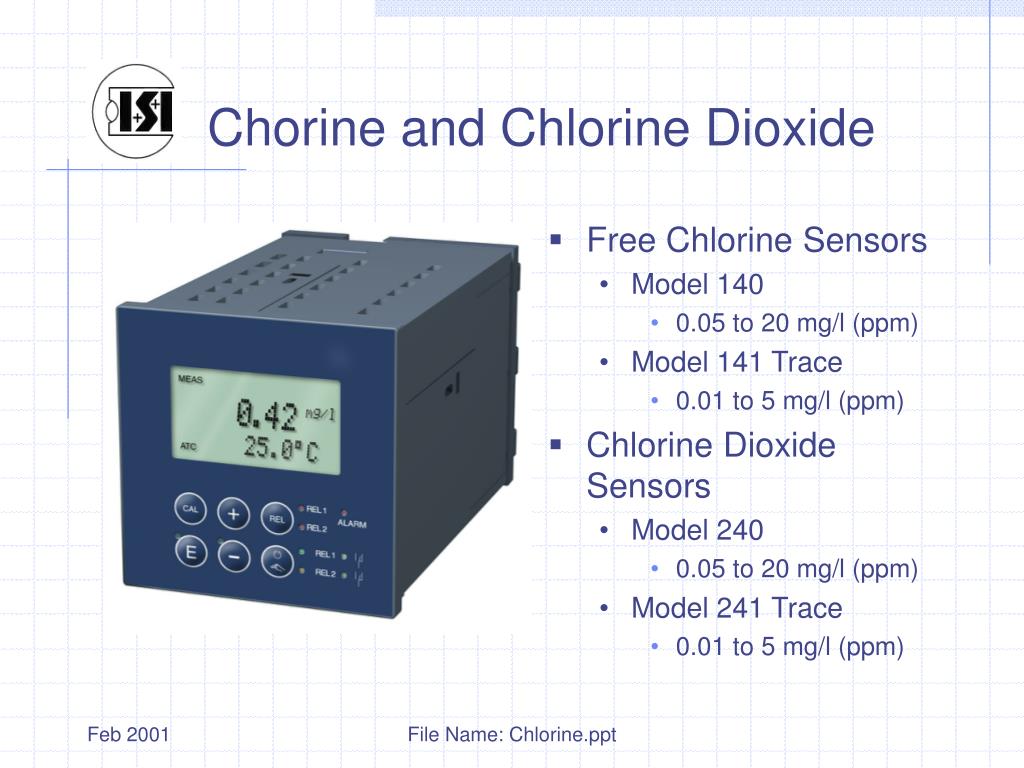

  5. Chorine and Chlorine Dioxide • Free Chlorine Sensors • Model 140 • 0.05 to 20 mg/l (ppm) • Model 141 Trace • 0.01 to 5 mg/l (ppm) • Chlorine Dioxide Sensors • Model 240 • 0.05 to 20 mg/l (ppm) • Model 241 Trace • 0.01 to 5 mg/l (ppm) File Name: Chlorine.ppt
