Compositions of Reflections

Given points R (–1, 1), S (–4, 3), and T (–2, 5), draw RST and its reflection image in each line. 1. the y -axis 2. the x -axis 3. y = 1. Draw RST described above and its translation image for each translation vector. 4.  0, –3  5.  4, 0  6.  2, –5 .

zeph-ruiz
Télécharger la présentation

Compositions of Reflections

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Given points R(–1, 1), S(–4, 3), and T(–2, 5), draw RST and its reflection image in each line. 1. the y-axis 2. the x-axis 3.y = 1 Draw RST described above and its translation image for each translation vector. 4.0, –35.4, 06.2, –5 7. Copy the figure. Draw images of the figure for a reflection in DG and for the translation vector FG. GEOMETRY LESSON 12-4 Compositions of Reflections (For help, go to Lessons 12-1 and 12-2.) 12-4

  2. 1. 4. 5. 6. 2. 3. GEOMETRY LESSON 12-4 Compositions of Reflections Solutions 7. 12-4

  3. 12.4 Composition of Functions Another way to define translations and rotations: A translation or rotation is a composition of reflections.

  4. Translation: A reflection across two parallel lines. The length of translation is equal to TWICE the distance between the parallel line.

  5. Rotation: A reflection across two intersecting lines. The angle of rotation is equal to TWICE the measure of the angle of intersection.

  6. GEOMETRY LESSON 12-4 Compositions of Reflections Judging by appearances, is one figure a translation image or rotation image of the other? Explain. The figures appear to be congruent, and their orientations are the same. Corresponding sides of the figures appear to be parallel. This suggests that one figure is a translation image of the other and not a rotation image. 12-4

  7. What is the most amount of reflections required to create an isometry? The Fundamental Theorem of Isometries: In a plane, one of two congruent figures can be mapped onto the other by AT MOST a composition of three reflections.

  8. First, find the reflection image in line . It no longer looks like a 4. The arrow is perpendicular to lines and m with length equal to twice the distance from to m. GEOMETRY LESSON 12-4 Compositions of Reflections Find the image of the figure for a reflection in line and then in line m. Then, find the image of the first reflection in line m. The final image is a translation of the original figure. The arrow shows the direction and distance of the translation. 12-4

  9. Find the image of D through a reflection in line x. Find the image of the reflection through another reflection in line y. GEOMETRY LESSON 12-4 The letter D is reflected in line x and then in line y. Describe the resulting rotation. Compositions of Reflections The composition of two reflections in intersecting lines is a rotation. The center of rotation is the point where the lines intersect, and the angle is twice the angle formed by the intersecting lines. So the letter D is rotated 86° clockwise, or 274° counterclockwise, with the center of rotation at point A. 12-4

  10. A B D C C’ B’ D’ A’ A glide reflection is a composition of a translation and a reflection in a line parallel to the translation vector.

  11. First, translate ABC by 0, 2. (–4, 5) (–4 + 0, 5 + 2), or (–4, 7) (6, 2) (6 + 0, 2 + 2), or (6, 4) (0, 0) (0 + 0, 0 + 2), or (0, 2) GEOMETRY LESSON 12-4 Compositions of Reflections ABC has vertices A(–4, 5), B(6, 2), and C(0, 0). Find the image of ABC for a glide reflection where the glide is 0, 2 and the reflection line is x = 1. 12-4

  12. Then, reflect the translated image in the line x = 1. The glide reflection image A B C has vertices A (6, 7), B (–4, 4), and C (2, 2). GEOMETRY LESSON 12-4 Compositions of Reflections (continued) 12-4

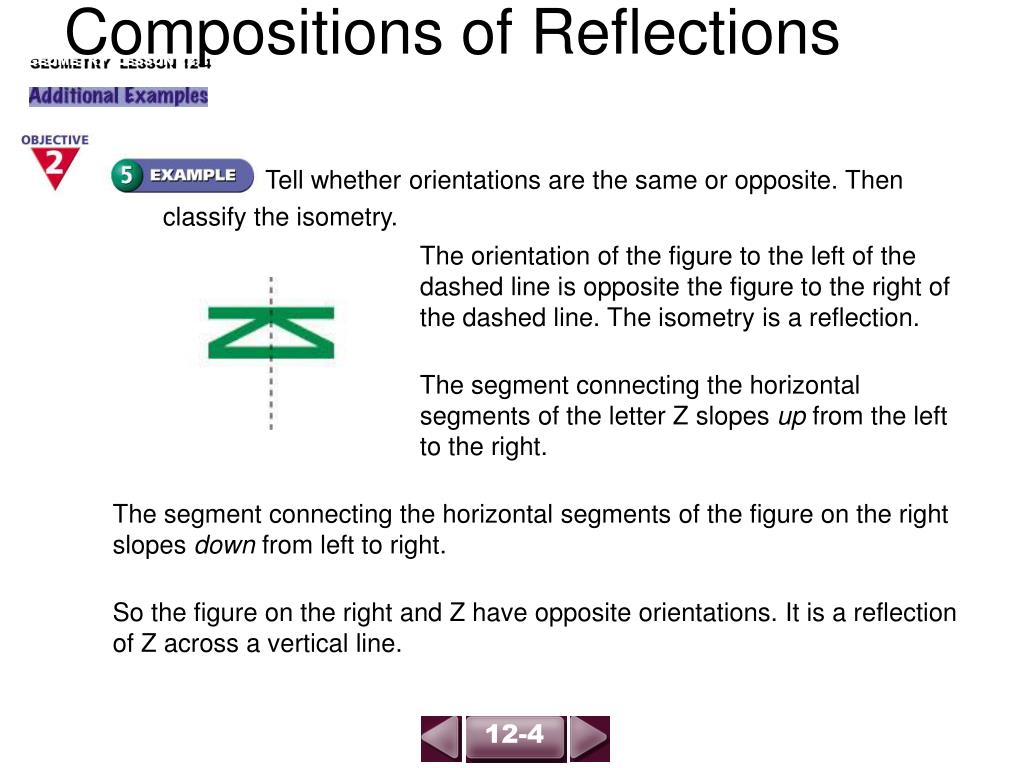

  13. GEOMETRY LESSON 12-4 Compositions of Reflections Tell whether orientations are the same or opposite. Then classify the isometry. The orientation of the figure to the left of the dashed line is opposite the figure to the right of the dashed line. The isometry is a reflection. The segment connecting the horizontal segments of the letter Z slopes up from the left to the right. The segment connecting the horizontal segments of the figure on the right slopes down from left to right. So the figure on the right and Z have opposite orientations. It is a reflection of Z across a vertical line. 12-4

  14. 4.PQ has endpoints P(4, 15) and Q(–6, 10). Find the image of PQ for a glide reflection where the glide is 0,–8 and the reflection line is x = 0. GEOMETRY LESSON 12-4 Compositions of Reflections Use the diagram for Exercises 1–3. 1. Find the image of L for a reflection in line a and then in line b. 2. Find the image of L for a reflection in line a and then in line c. 3. Describe the rotation in Exercise 2. 180° rotation with center of rotation at the intersection of lines a and c Check that students’ images have endpoints P (–4, 7) and Q (6, 2). 5. Name the four types of isometries. glide reflection, reflection, rotation, translation 12-4

  15. Pages 657-660 Exercises 1. rotation 2. translation 3. Neither; the figures do not have the same orientation. 4. F is translated down twice the distance between and m. 5. M is translated across line m twice the distance between and m. 6.       T is translated across line m twice the distance between and m. GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  16. 7. L is rotated clockwise about 180°. 8. V is rotated clockwise about 145°. 9. N is rotated clockwise about 160°. 10. 11. 12. GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  17. 13. 14. 15. 16. 17. 18. opp.; reflection 19. opp.; glide reflection 20. same; translation 21. same; rotation 22. same; rotation 23. same; translation 24. opp.; reflection 25. opp.; glide reflection GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  18. 29. rotation; 180° about the pt. 0, , to map the black figure to blue figure 30. Odd isometries can be expressed as the composition of an odd number of reflections. Even isometries are the composition of an even number of reflections. 31. Check students’ work. 26. glide reflection; glide –2, –2, refl. in y = x – 1 to map black figure to blue figure 27. reflection; refl. in y = – 28. glide reflection; glide 0, 4, refl. in y = 0 to map black figure to blue figure 32. Yes; a rotation of x° followed by a rotation of y° is equivalent to a rotation of (x + y)°. 33. No; explanations may vary. 34. 60° 35. 60° 36. 51 ° 37. 30° 1 2 1 2 3 7 GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  19. GEOMETRY LESSON 12-4 Compositions of Reflections 38. rotation; center C, of rotation 180° 39. glide reflection; 11, 0, y = 0 40. translation; –9, 0 41. reflection; y = 0 42. reflection; x = 4 43. reflection; x = – 44. rotation; center (3, 0), of rotation 180° 45. glide reflection; 0, 4, x = 4 46. translation; –11, –4 47. rotation; center (0, 2), of rotation 180° 48. The glide involves a translation to the right and the reflection is in a line with a positive slope passing between each R. 49–52.Answers may vary. Samples are given. 49. If XY is reflected in line , then is the bis. of XX and YY , so XX || YY and XXYY is an isosc. trap. Therefore XYX Y . 50.XX || YY and XXYY , so XXY Y is a . Therefore, XYX Y . 1 2 12-4

  20. 51. If XY is rotated x° about pt. R, then RXRX and RY RY . Also, mXRY + mYRX = mYRX + mXRY = x, so XRYXRY . So XRYX RY by SAS and XYX Y by CPCTC. 52. Answers may vary. Sample: Since a reflection moves a pt. in the direction to the translation, the order does not matter. 53. No; explanations may vary. Sample: If (1, 1) is reflected over the line y = x and then the x-axis, the image is (1, –1). If the reflections are reversed, the image is (–1, 1). 54. (6, 5) 55. (1, 2) 56. (2, 6) 57. (–3, 1) 58. A 59. H 60.[2]V(–5, 2), T(–4, 0), Y(–1, 3) glided give V (–2, –1), T (–1, –3), Y (2, 0). These vertices reflected over y = –x give V (1, 2), T (3, 1), Y (0, –2). [1] incorrect method or incorrect answer GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  21. 61.[4]a. b. Suppose pt. A in F is x units from s. Thus, A reflected across s gives A , x units right of s. A is then PQ – x units left of t. Thus, A reflected across t gives A , PQ – x units right of t. Thus, the total distance traveled is PQ – x + PQ + x = 2PQ. [3] correct composition, vague explanation [2] part (a) only 61 (continued) [1] composition is partially correct 62.H-180; I-180, O-any rotation; X-180; N-180; S-180; Z-180 63. 123 64. 90 65. 87 GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  22. 66. a. 6 b. 84, 96, 180, 180, 264, 276 67. 15 cm 68. 185 m 69. 5.5 m GEOMETRY LESSON 12-4 Compositions of Reflections 12-4

  23. 4.PQ has endpoints P(4, 15) and Q(–6, 10). Find the image of PQ for a glide reflection where the glide is 0,–8 and the reflection line is x = 0. GEOMETRY LESSON 12-4 Compositions of Reflections Use the diagram for Exercises 1–3. 1. Find the image of L for a reflection in line a and then in line b. 2. Find the image of L for a reflection in line a and then in line c. 3. Describe the rotation in Exercise 2. 180° rotation with center of rotation at the intersection of lines a and c Check that students’ images have endpoints P (–4, 7) and Q (6, 2). 5. Name the four types of isometries. glide reflection, reflection, rotation, translation 12-4
