  1. Job Repository Oscar Koeroo JRA3

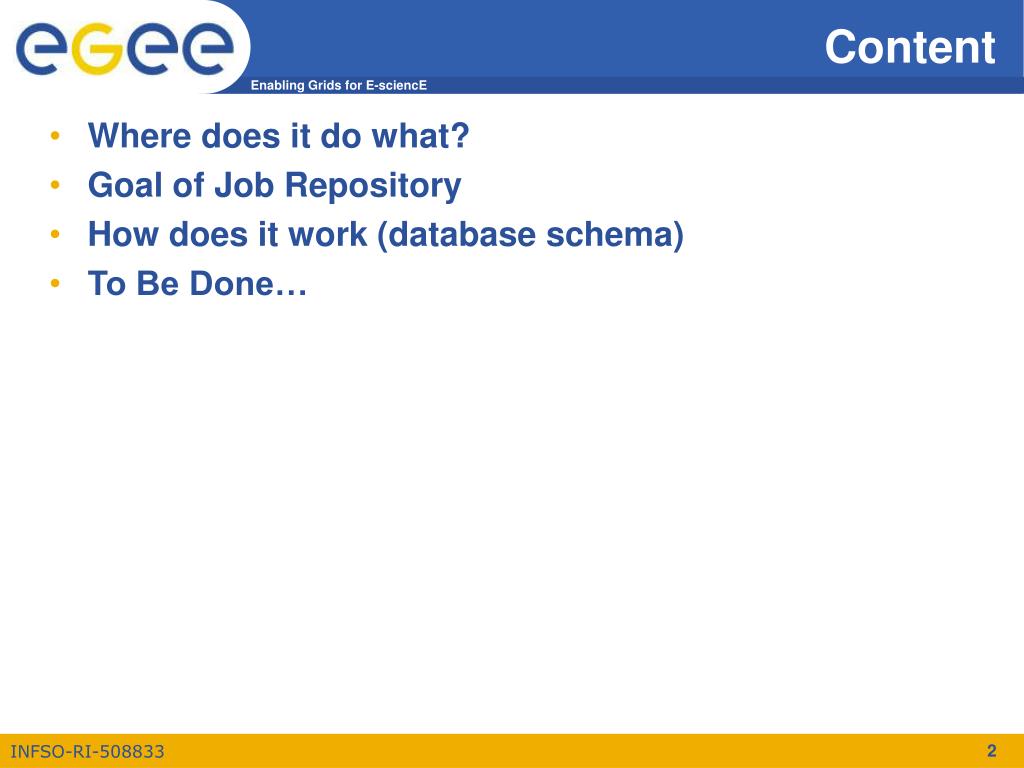

  2. Content • Where does it do what? • Goal of Job Repository • How does it work (database schema) • To Be Done…

  3. Where does it do what? • The glite-gatekeeper uses the LCMAPS framework for its enhanced usermapping capabilities • The LCMAPS framework provides usermapping from DN + VOMS attributes to Unix UIDs and GIDs • Job Repository is primarily a LCMAPS plug-in # LCMAPS Policies: voms: localaccount -> posix_enf | vomsextract vomsextract -> vomslocalgroup vomslocalgroup -> vomspoolgroup vomspoolgroup -> vomspoolaccount vomspoolaccount -> jobrep jobrep -> posix_enf standaard: localaccount -> jobrep | poolaccount poolaccount -> jobrep jobrep -> posix_enf | posix_enf

  4. Goal of Job Repository • Its goal is to log all the mapping information into a relational database • Which user (identified with a DN) submitted what kind of job (based on the RSL) • Which certificate chain has been used per job (linked to this user) • Which set of VOMS Attributes did the user use this time and which jobs have been executed with them • Which VOMS attribute mapped into which primary GID • Which VOMS attributes mapped into which secundary GIDs • Keep hold of the job status through the batch system’s unique identifier (batch system independent) • Using any kind of database with the same code • Done though ‘iodbc’ (starting with a MySQL database)

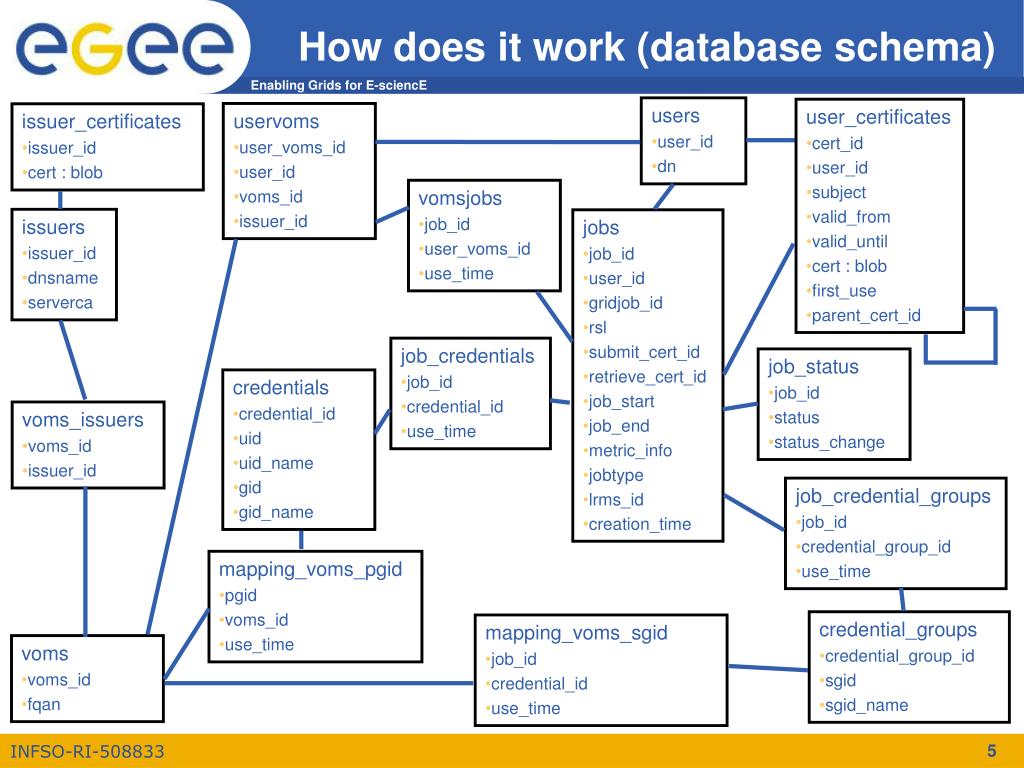

  5. users • user_id • dn user_certificates • cert_id • user_id • subject • valid_from • valid_until • cert : blob • first_use • parent_cert_id How does it work (database schema) uservoms • user_voms_id • user_id • voms_id • issuer_id issuer_certificates • issuer_id • cert : blob vomsjobs • job_id • user_voms_id • use_time issuers • issuer_id • dnsname • serverca jobs • job_id • user_id • gridjob_id • rsl • submit_cert_id • retrieve_cert_id • job_start • job_end • metric_info • jobtype • lrms_id • creation_time job_credentials • job_id • credential_id • use_time job_status • job_id • status • status_change credentials • credential_id • uid • uid_name • gid • gid_name voms_issuers • voms_id • issuer_id job_credential_groups • job_id • credential_group_id • use_time mapping_voms_pgid • pgid • voms_id • use_time credential_groups • credential_group_id • sgid • sgid_name mapping_voms_sgid • job_id • credential_id • use_time voms • voms_id • fqan

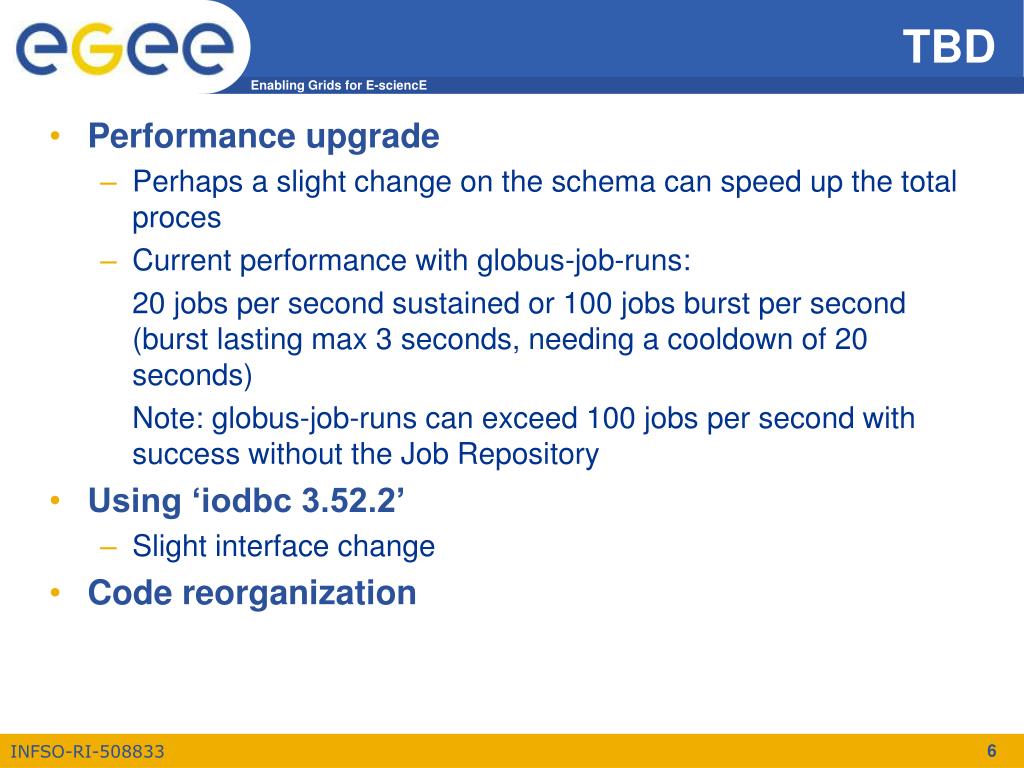

  6. TBD • Performance upgrade • Perhaps a slight change on the schema can speed up the total proces • Current performance with globus-job-runs: 20 jobs per second sustained or 100 jobs burst per second (burst lasting max 3 seconds, needing a cooldown of 20 seconds) Note: globus-job-runs can exceed 100 jobs per second with success without the Job Repository • Using ‘iodbc 3.52.2’ • Slight interface change • Code reorganization
