  1. Perspectives onGrid Technology Ian Foster Argonne National Laboratory The University of Chicago

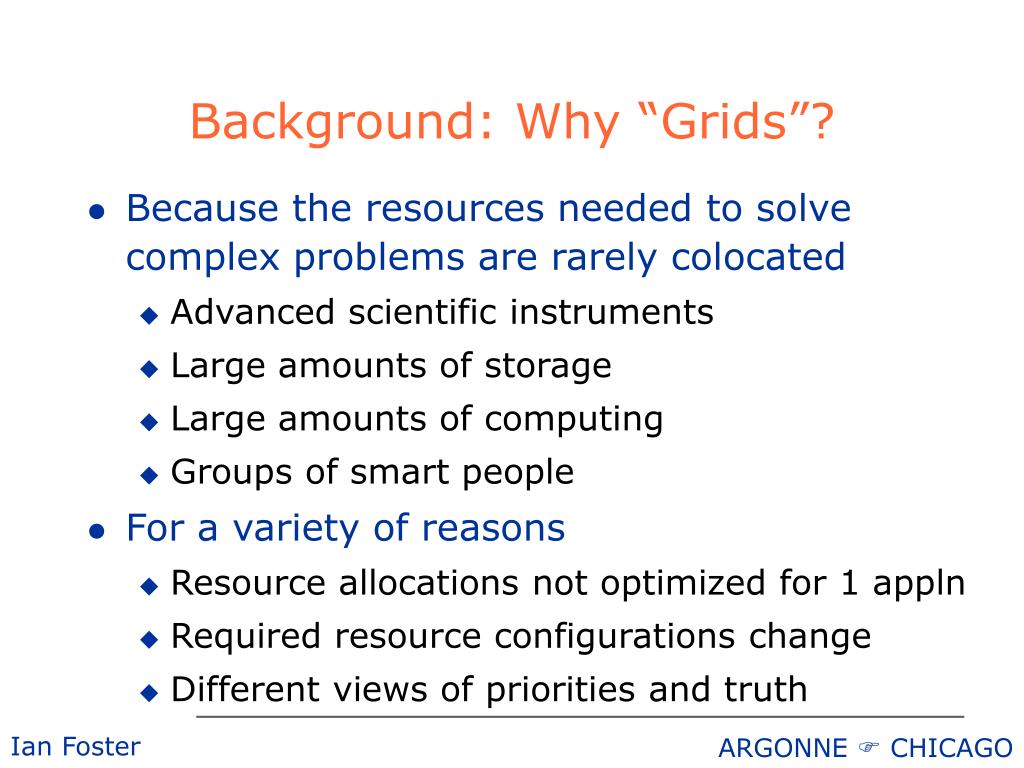

  2. Background: Why “Grids”? • Because the resources needed to solve complex problems are rarely colocated • Advanced scientific instruments • Large amounts of storage • Large amounts of computing • Groups of smart people • For a variety of reasons • Resource allocations not optimized for 1 appln • Required resource configurations change • Different views of priorities and truth

  3. Online analysis of instrument data Teleimmersion/distance collaboration TransAtlantic remote visualization/steering Record-setting distributed supercomputing Parameter studies with deadline scheduling GridApplicationExamples

  4. Hence, Grids • Next-gen infrastructure • Advanced network services • Computers, storage, etc. • New tools, methodologies • Foundation for advanced network applications, e.g. • Data-intensive (Data Grid) • Collaborative (Access Grid) • Compute-intensive • Online instrumentation Akamai’s server network (Jan 2000)

  5. Grid R&D: A Brief History • Late 80s/early 90s: Isolated experiments • Gigabit testbeds, metacomputing expts • Mid 90s: first attempts at integration • E.g., 1995 I-WAY and I-Soft software • Late 90s: emergence of infrastructure and identification of new usage modalities • Globus toolkit, Access Grid, Data Grid • Grid Forum, production Grid infrastructures • 2000+: Grids go mainstream • “Grid services” integrated into network

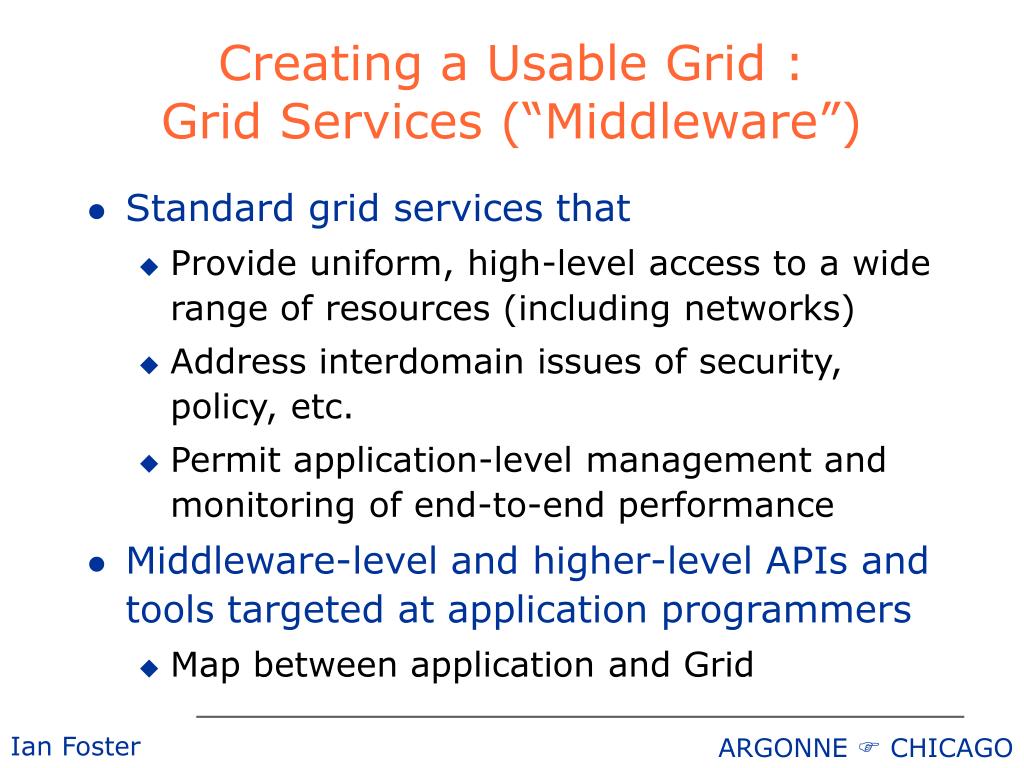

  6. Creating a Usable Grid :Grid Services (“Middleware”) • Standard grid services that • Provide uniform, high-level access to a wide range of resources (including networks) • Address interdomain issues of security, policy, etc. • Permit application-level management and monitoring of end-to-end performance • Middleware-level and higher-level APIs and tools targeted at application programmers • Map between application and Grid

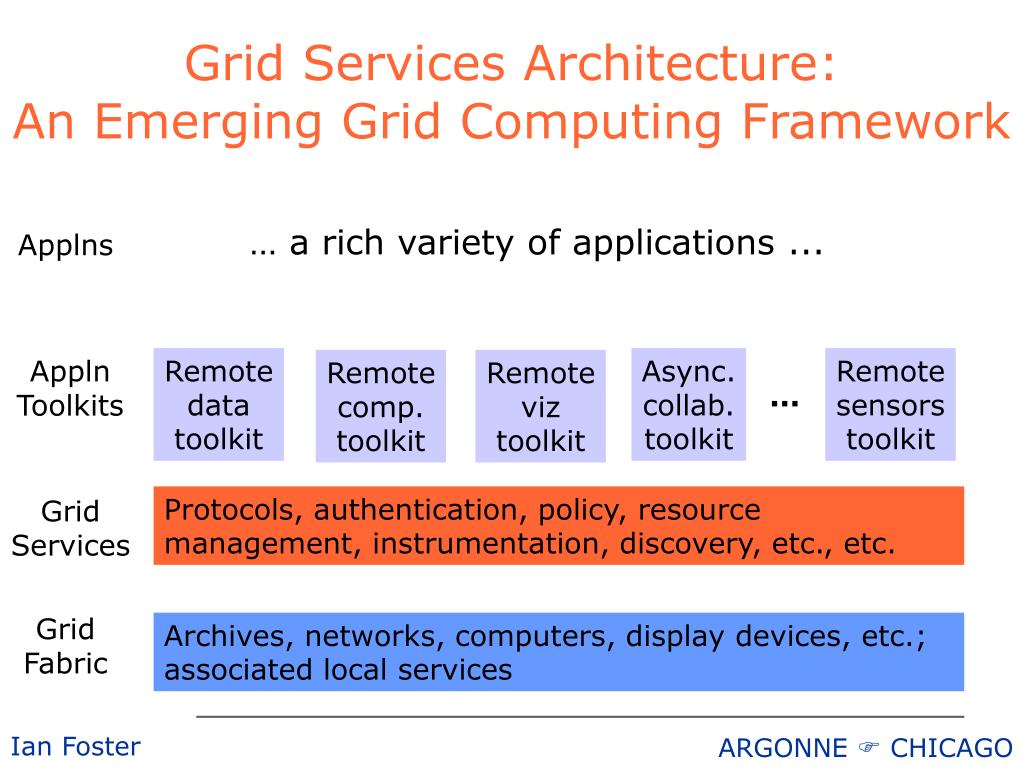

  7. Grid Services Architecture:An Emerging Grid Computing Framework … a rich variety of applications ... Applns Appln Toolkits Remote data toolkit Async. collab. toolkit Remote sensors toolkit Remote comp. toolkit Remote viz toolkit ... Protocols, authentication, policy, resource management, instrumentation, discovery, etc., etc. Grid Services Grid Fabric Archives, networks, computers, display devices, etc.; associated local services

  8. Remote data for climate Remote viz for CFD Grid MPI Data Grid Toolkit Co-allocator Advantages of GSA • Single infrastructure • Avoid redundant development • Encourage code sharing Applns Appln Toolkits Remote data toolkit Async. collab. toolkit Remote sensors toolkit Remote comp. toolkit Remote viz toolkit ... Authentication Information Reservation Fault detection Protocols, authentication, policy, resource management, instrumentation, discovery, etc., etc. Grid Services Res. mgmt Accounting Instrumentation ... Archives, networks, computers, display devices, etc.; associated local services Grid Fabric

  9. I-WAY NSF PACI’s National Technology Grid National and International Grid Testbeds NASA’s Information Power Grid

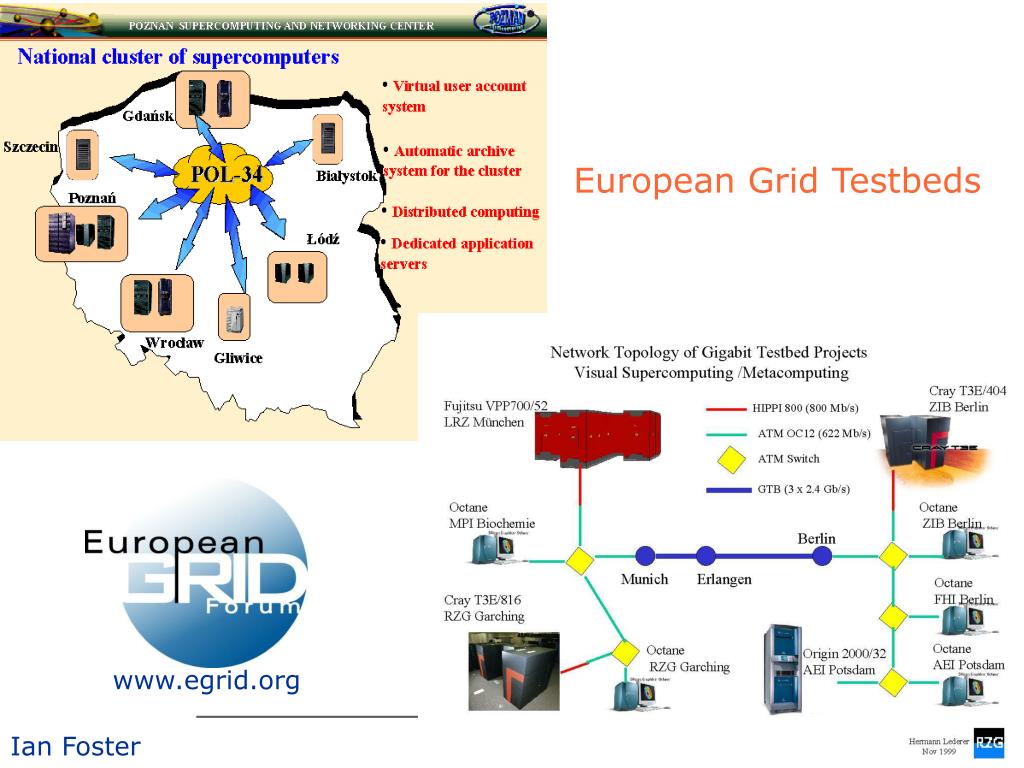

  10. European Grid Testbeds www.egrid.org

  11. http://www.globus.org

  12. A Current Focus: Data Grids • Integrate data archives & computers into a distributed data management & analysis “Grid” • More than storage, computing, network: also • Caching and mirroring to exploit locality • Intelligent scheduling to determine appropriate replica, site for (re)computation, etc. • Coordinated policy-driven resource management for performance guarantees • Embedded security, policy, agent technologies for effective distributed analysis

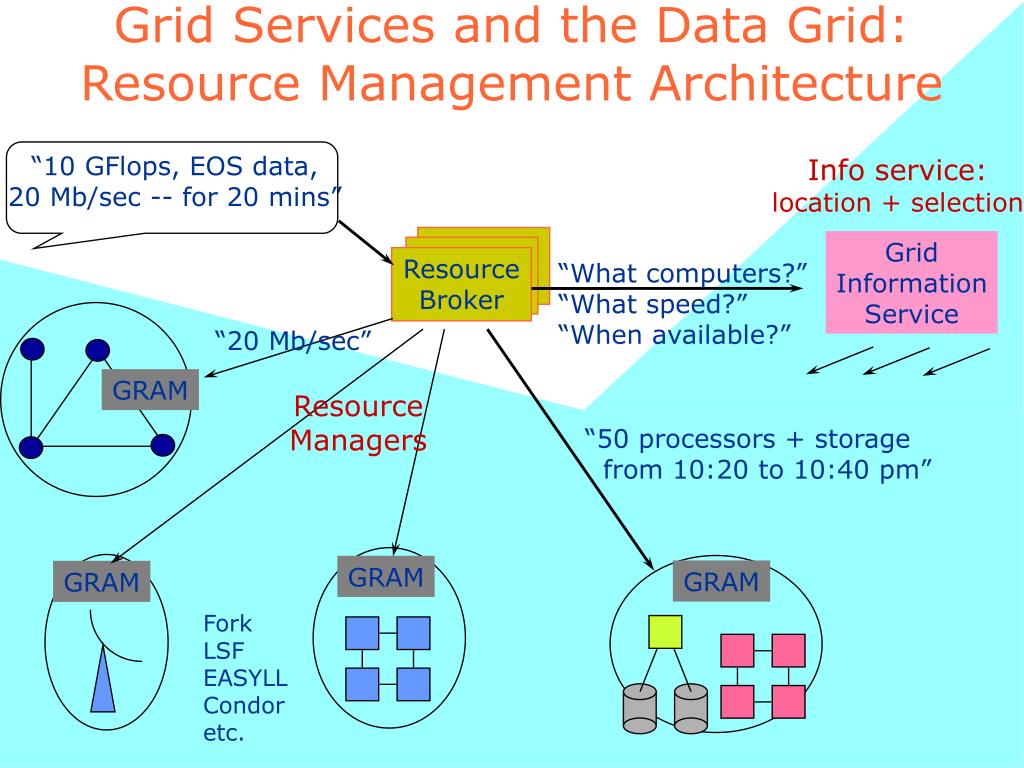

  13. “10 GFlops, EOS data, 20 Mb/sec -- for 20 mins” GRAM GRAM GRAM Grid Services and the Data Grid:Resource Management Architecture Info service: location + selection Grid Information Service Resource Broker “What computers?” “What speed?” “When available?” “20 Mb/sec” GRAM Resource Managers “50 processors + storage from 10:20 to 10:40 pm” Fork LSF EASYLL Condor etc.

  14. Scheduling Bulk Transferand High-Priority Transfers

  15. Grids and HEP Computing • HEP computing: a Grid project par excellence • Tight integration of computing, storage, networking; demanding requirements • Focus on services for a large community • HEP computing brings new problems, e.g. • Big increase in scale • Object database technology • Complex policy issues • HEP also contributes interesting technologies • E.g., MONARC simulator, NILE, GIOD

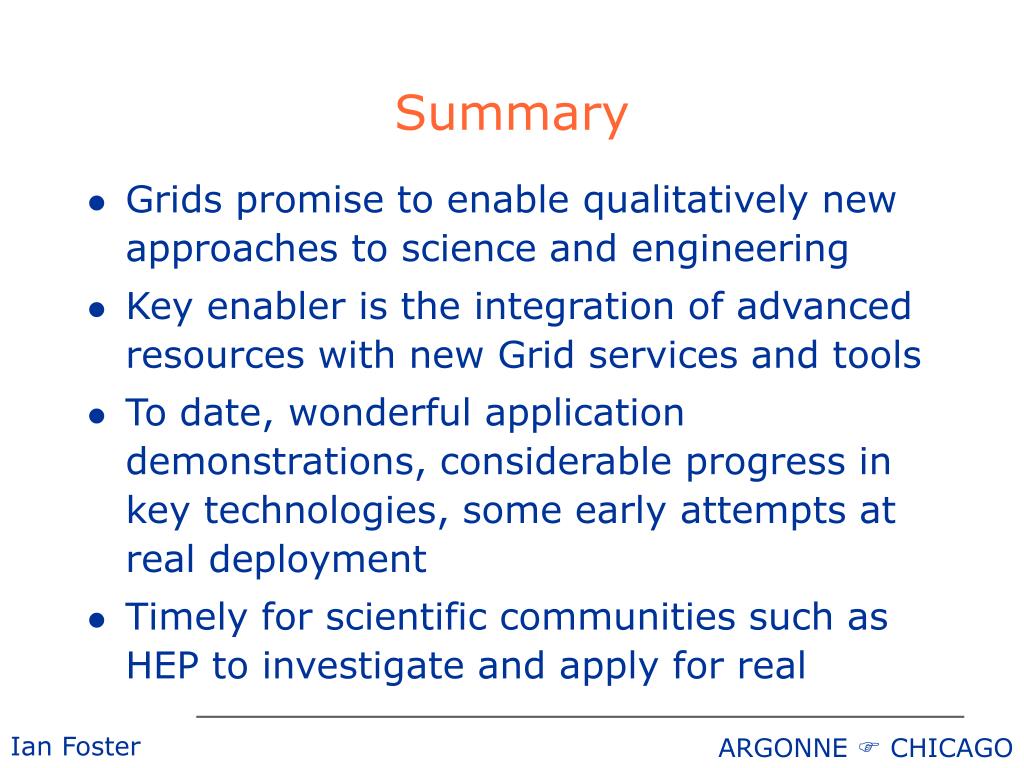

  16. Summary • Grids promise to enable qualitatively new approaches to science and engineering • Key enabler is the integration of advanced resources with new Grid services and tools • To date, wonderful application demonstrations, considerable progress in key technologies, some early attempts at real deployment • Timely for scientific communities such as HEP to investigate and apply for real

  17. For More Information ... • Globus: www.globus.org • (European) Grid Forum: www.gridforum.org www.egrid.org • Grid book “The Grid: Blueprint for a Future Computing Infrastructure,” I. Foster & C. Kesselman (Eds), Morgan-Kaufmann, 1999 http://www.mkp.com/grids
