  1. CMPE 421Parallel Computer Architecture Part 1 Pipeline: HAZARD

  2. Pipelining MIPS • Lets us examine why the pipeline can not run at full speed • There are some cases, though, where the next instruction can not begin executing immediately • This limits to pipeline are known as hazards • What makes it hard? • structural hazards: different instructions, at different stages, in the pipeline want to use the same hardware resource (resource conflict) • control hazards: • succeeding instruction, to put into pipeline, depends on the outcome of a previous branch instruction, already in pipeline • Control decision determines execution path, such as when the instruction changes the PC • data hazards: an instruction in the pipeline requires data to be computed by a previous instruction still in the pipeline • Before actually building the pipelined datapath and control we first briefly examine these potential hazards individually…

  3. P r o g r a m 1 4 2 4 6 8 1 0 1 2 e x e c u t i o n T i m e o r d e r ( i n i n s t r u c t i o n s ) I n s t r u c t i o n D a t a l w $ 1 , 1 0 0 ( $ 0 ) Pipelined R e g A L U R e g f e t c h a c c e s s I n s t r u c t i o n D a t a l w $ 2 , 2 0 0 ( $ 0 ) 2 n s R e g A L U R e g f e t c h a c c e s s I n s t r u c t i o n D a t a l w $ 3 , 3 0 0 ( $ 0 ) 2 n s R e g A L U R e g f e t c h a c c e s s I n s t r u c t i o n D a t a R e g A L U R e g l w $ 4 , 4 0 0 ( $ 0 ) f e t c h a c c e s s 2 n s 2 n s 2 n s 2 n s 2 n s 2 n s Structural Hazards • Structural hazard: inadequate hardware to simultaneously support all instructions in the pipeline in the same clock cycle • E.g., suppose single – not separate – instruction and data memory in pipeline below with one read port • then a structural hazard between first and fourthlw instructions • MIPS was designed to be pipelined: structural hazards are easy to avoid! Structural Hazards Hazard if single memory

  4. Structural HazardEx 1: Suppose we have one memory unit instead of separate instruction and data memory When a load or store word instruction is used the MEM stage tries to access the memory and because of single data memory a conflict occurs

  5. IF RF/ID EX WB IF RF/ID EX WBB IF RF/ID EX MEMM WB IF RF/ID EX WB IF RF/ID EX WB Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 Clock bubble R-type R-type Load R-type R-type Structural Hazard • Consider a load followed immediately by a store • Processor only has a single write port

  6. Structural Hazard • Solutions • Delay instruction until functional unit is ready • Hardware inserts a pipeline stall or a bubble that delays execution of all instructions that follow (previous instructions continue) • Increases CPI from the ideal value of 1 • Build more sophisticated functional units so that all combinations of instructions can be accommodated • Example: Allow two simultaneous writes to the register file

  7. IF RF/ID EX WB IF RF/ID EX IF RF/ID IF MEM WB WB EX Cycle 1 Cycle 2 Cycle 3 Cycle 4 Cycle 5 Cycle 6 Cycle 7 Cycle 8 Cycle 9 Clock R-type MEM WB 1 2 3 4 R-type MEM R-type MEM WB EX Load RF/ID EX WB R-type IF RF/ID MEM EX R-type IF RF/ID MEM Structural Hazard Solution Write Back Stall Solution: Delay R-type register write by one cycle

  8. b u b b l e Control Hazards • Control hazard: need to make a decision based on the result of a previous instruction still executing in pipeline • Solution 1Stall the pipeline P r o g r a m e x e c u t i o n 1 4 1 6 2 4 6 8 1 0 1 2 T i m e o r d e r ( i n i n s t r u c t i o n s ) Note that branch outcome is computed in ID stage with added hardware (later…) I n s t r u c t i o n D a t a R e g A L U R e g a d d $ 4 , $ 5 , $ 6 f e t c h a c c e s s I n s t r u c t i o n D a t a b e q $ 1 , $ 2 , 4 0 R e g A L U R e g f e t c h a c c e s s 2 n s I n s t r u c t i o n D a t a l w $ 3 , 3 0 0 ( $ 0 ) R e g A L U R e g f e t c h a c c e s s 2 n s 4 n s Pipeline stall

  9. Control Hazards • Solution 2Predict branch outcome • e.g., predict branch-not-taken : Prediction success Prediction failure: undo (=flush) lw

  10. Control Hazards • Solution 3Delayed branch: always execute the sequentially next statement with the branch executing after one instruction delay – compiler’s job to find a statement that can be put in the slot that is independent of branch outcome • MIPS does this – but it is an option in SPIM (Simulator -> Settings) P r o g r a m e x e c u t i o n 1 4 2 4 6 8 1 0 1 2 o r d e r T i m e ( i n i n s t r u c t i o n s ) I n s t r u c t i o n D a t a b e q $ 1 , $ 2 , 4 0 R e g A L U R e g f e t c h a c c e s s I n s t r u c t i o n D a t a a d d $ 4 , $ 5 , $ 6 R e g A L U R e g f e t c h a c c e s s 2 n s ( d e l a y e d b r a n c h s l o t ) I n s t r u c t i o n D a t a l w $ 3 , 3 0 0 ( $ 0 ) R e g A L U R e g f e t c h a c c e s s 2 n s 2 n s Delayed branch beq is followed by add that is independent of branch outcome

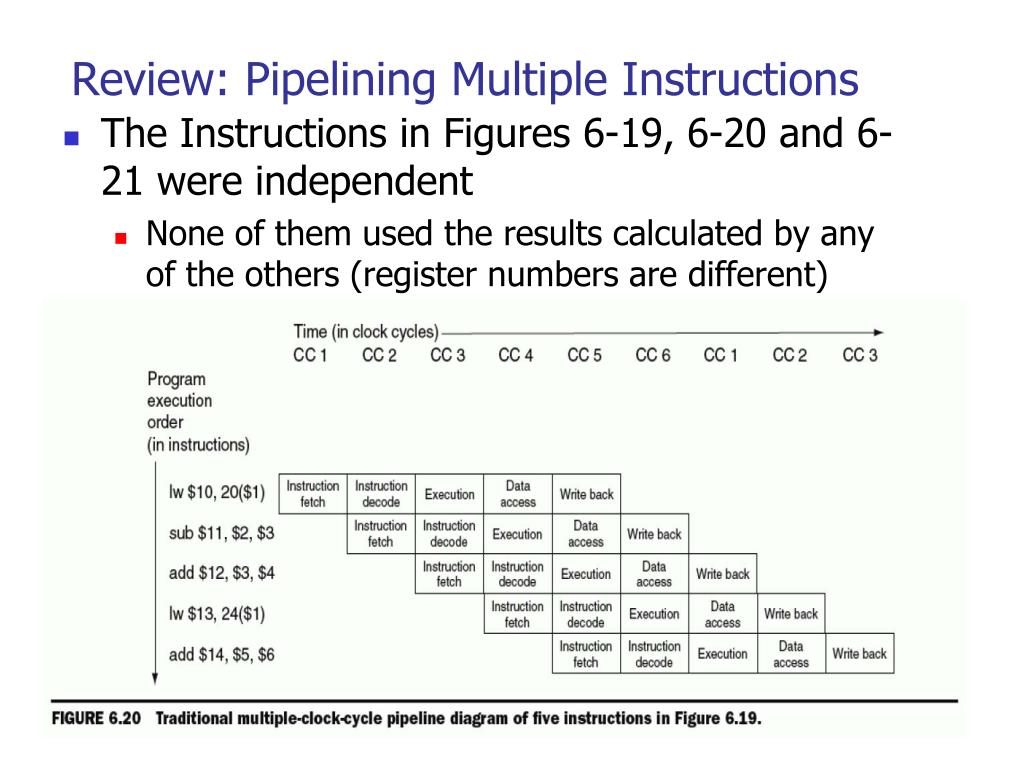

  11. Review: Pipelining Multiple Instructions • The Instructions in Figures 6-19, 6-20 and 6-21 were independent • None of them used the results calculated by any of the others (register numbers are different)

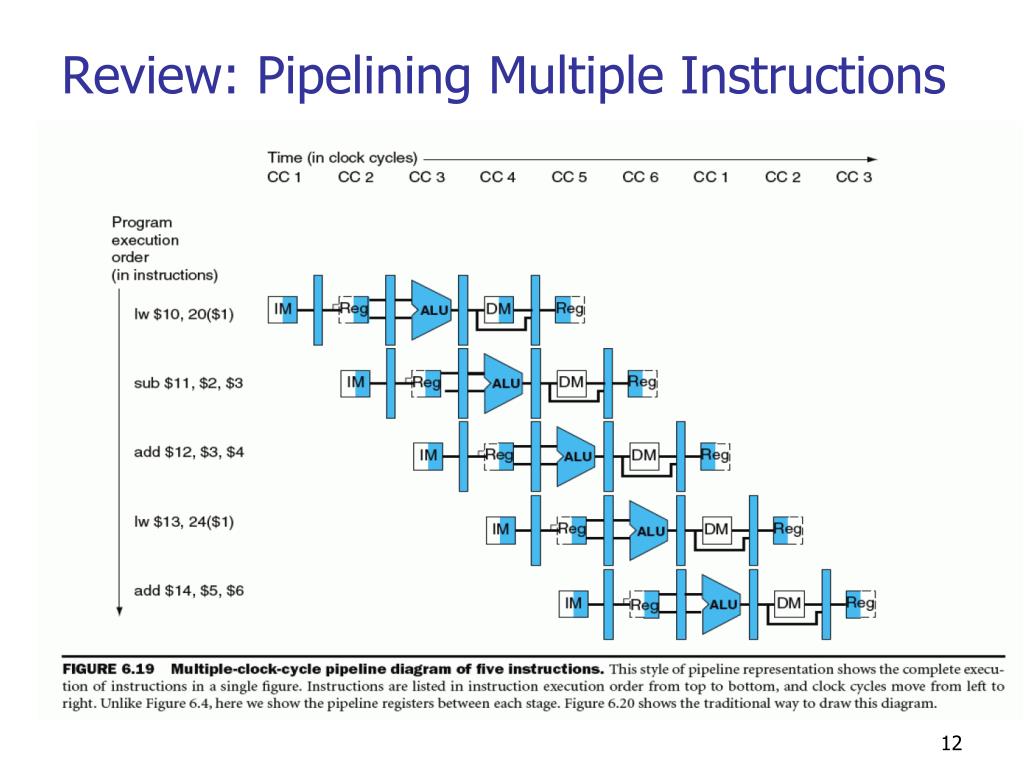

  12. Review: Pipelining Multiple Instructions

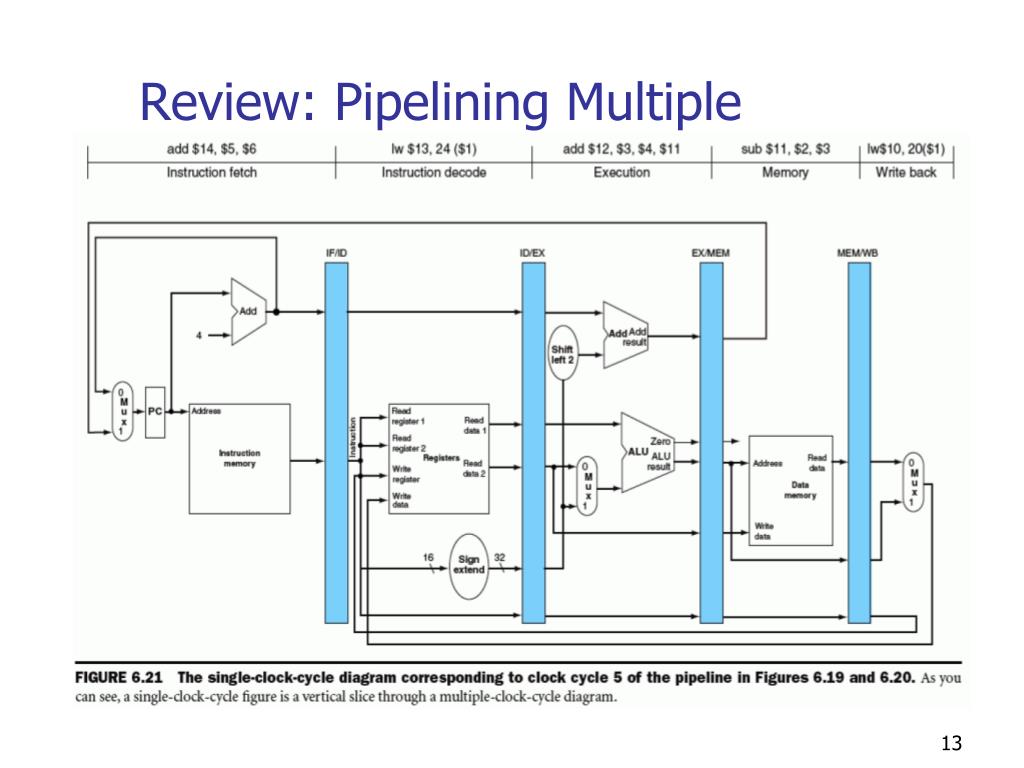

  13. Review: Pipelining Multiple Instructions

  14. Data Hazards • Problem with starting next instruction before first is finished • dependencies that “go backward in time” are data hazards

  15. Solution to Data Hazards • Data hazard: instruction needs data from the result of a previous instruction still executing in pipeline • Occur when pipeline changes the order of read/write access to operands so that the order differs from the order seen by sequentially executing instructions • Solution1Forward data if possible… • Solution 2 Or change the relative timing of instructions (insert stalls) Instruction pipeline diagram: shade indicates use – left=write, right=read P r o g r a m e x e c u t i o n 2 4 6 8 1 0 o r d e r T i m e ( i n i n s t r u c t i o n s ) Without forwarding – blue line – data has to go back in time; with forwarding – red line – data is available in time a d d $ s 0 , $ t 0 , $ t 1 I F I D E X M E M W B s u b $ t 2 , $ s 0 , $ t 3 M E M I F I D E X M E M W B • Caused by several different types of dependencies

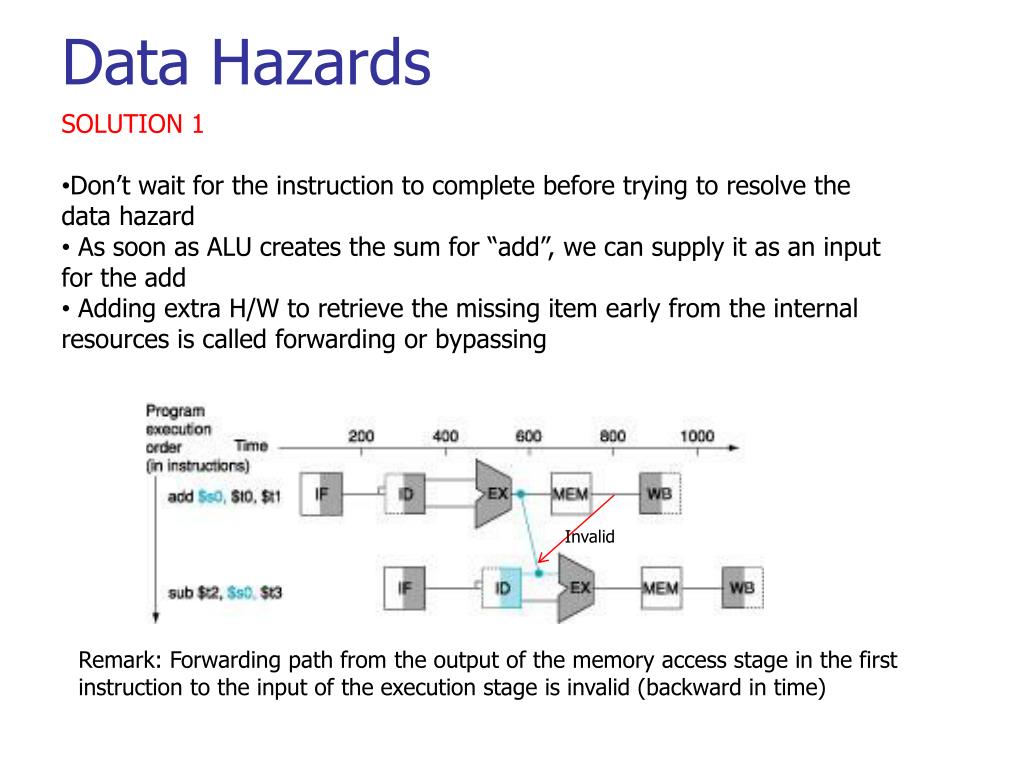

  16. Data Hazards • SOLUTION 1 • Don’t wait for the instruction to complete before trying to resolve the data hazard • As soon as ALU creates the sum for “add”, we can supply it as an input for the add • Adding extra H/W to retrieve the missing item early from the internal resources is called forwarding or bypassing Invalid Remark: Forwarding path from the output of the memory access stage in the first instruction to the input of the execution stage is invalid (backward in time)

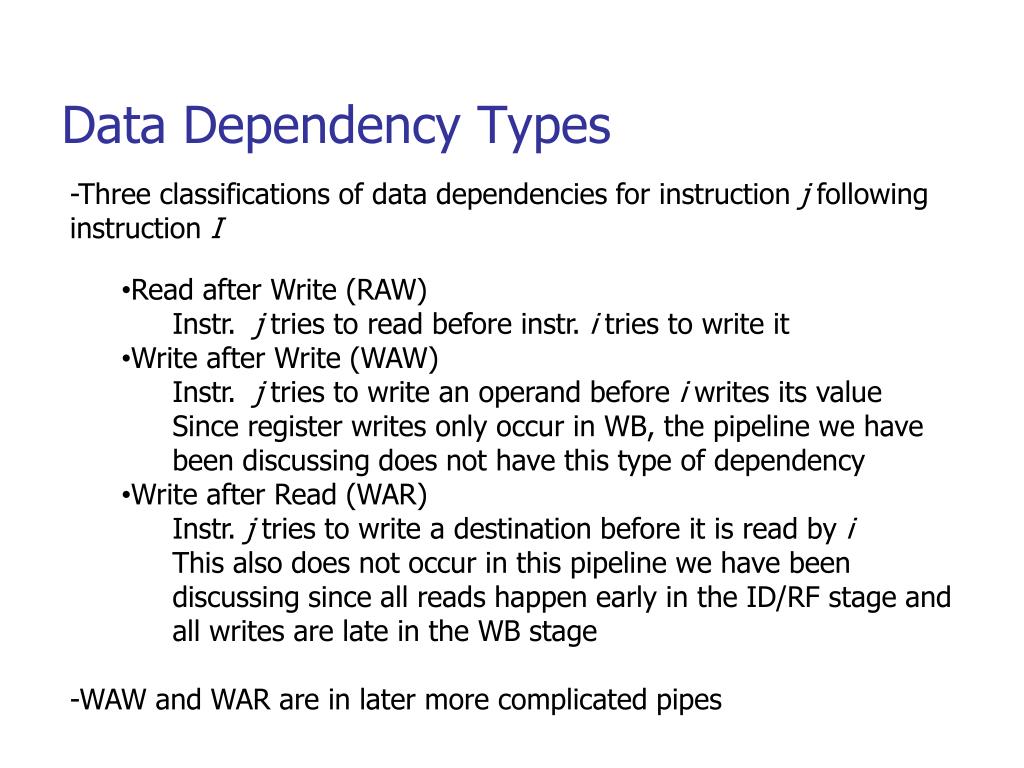

  17. Data Dependency Types • -Three classifications of data dependencies for instruction j following instruction I • Read after Write (RAW) • Instr. j tries to read before instr. i tries to write it • Write after Write (WAW) • Instr. j tries to write an operand before i writes its value • Since register writes only occur in WB, the pipeline we have been discussing does not have this type of dependency • Write after Read (WAR) • Instr. j tries to write a destination before it is read by i • This also does not occur in this pipeline we have been discussing since all reads happen early in the ID/RF stage and all writes are late in the WB stage • -WAW and WAR are in later more complicated pipes

  18. I F I D W B E X M E M Data Hazards • Forwarding may not be enough (Hybrid solution is required) • e.g., if an R-type instruction following a load uses the result of the load – called load-use data hazard 2 4 6 8 1 0 1 2 1 4 T i m e P r o g r a m e x e c u t i o n o r d e r ( i n i n s t r u c t i o n s ) Without a stall it is impossible to provide input to the sub instruction in time I F I D l w $ s 0 , 2 0 ( $ t 1 ) E X M E M W B s u b $ t 2 , $ s 0 , $ t 3 -With a one-stage stall (solution 2) -Forwarding can get the data to the sub instruction in time (solution 1)

  19. Reordering Code to Avoid Pipeline Stall (Alternative Software Solution) • Example: lw $t0, 0($t1) lw $t2, 4($t1) sw $t2, 0($t1) sw $t0, 4($t1) • Reordered code: lw $t0, 0($t1) lw $t2, 4($t1) sw $t0, 4($t1) sw $t2, 0($t1) Data hazard Interchanged

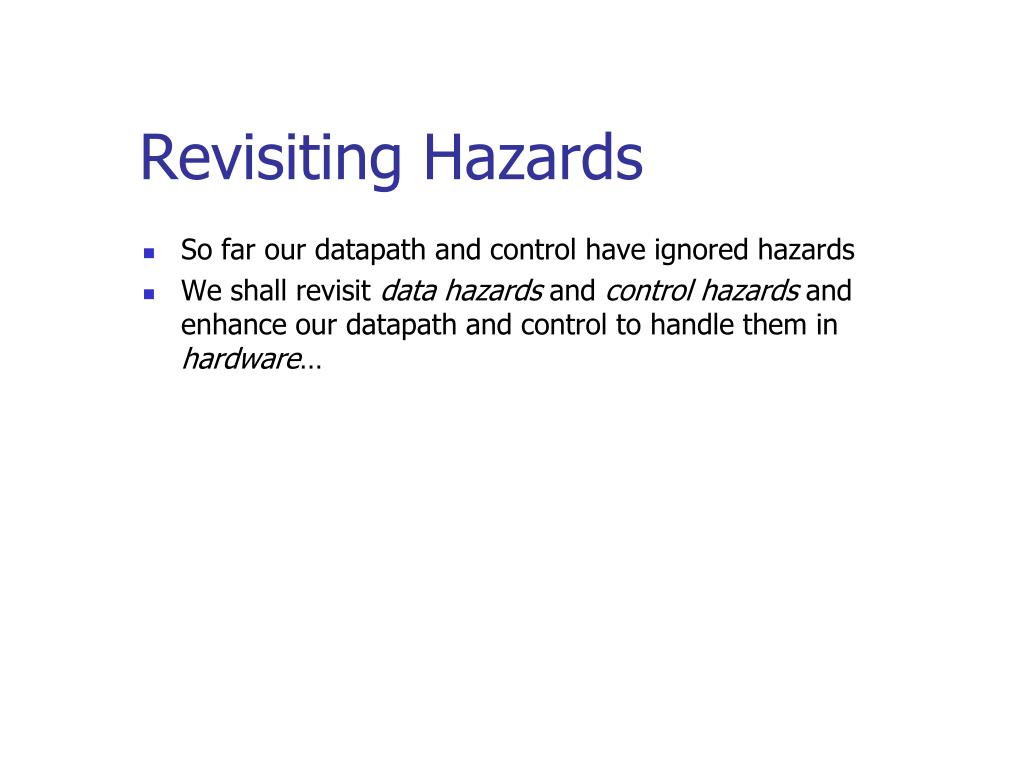

  20. Revisiting Hazards • So far our datapath and control have ignored hazards • We shall revisit data hazards and control hazards and enhance our datapath and control to handle them in hardware…

  21. Data Hazards and Forwarding • Problem with starting an instruction before previous are finished: • data dependencies that go backward in time – called data hazards $2 = 10 before sub; $2 = -20 after sub sub $2, $1, $3 and $12, $2, $5 or $13, $6, $2 add $14, $2, $2 sw $15, 100($2)

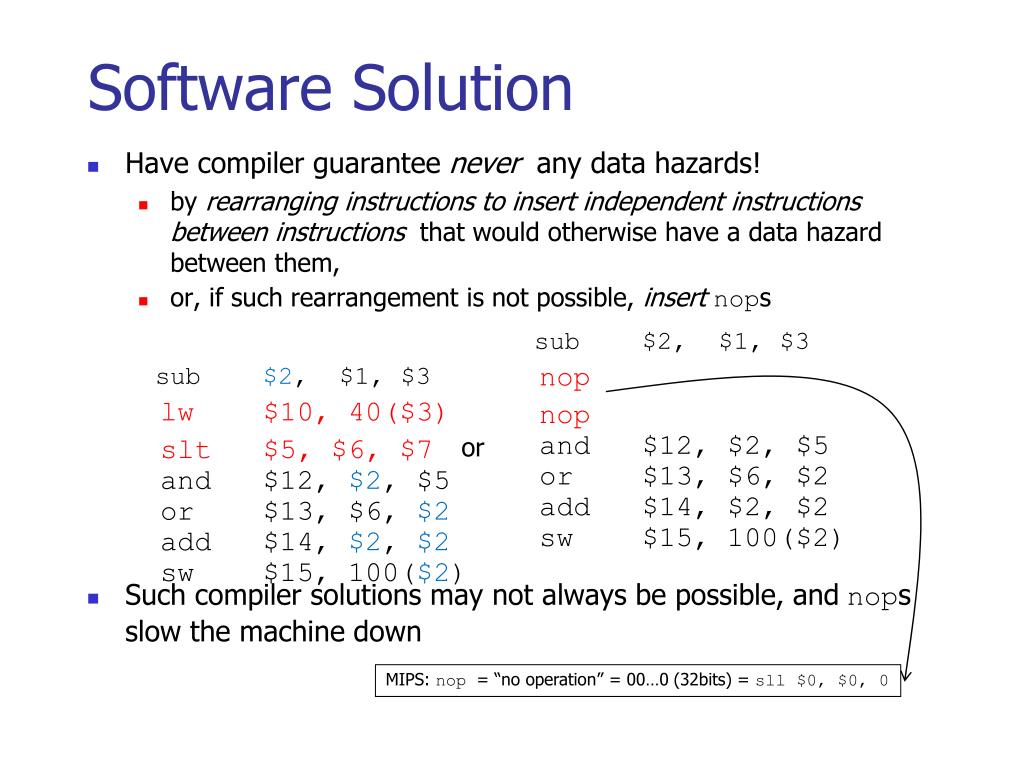

  22. Software Solution • Have compiler guarantee never any data hazards! • by rearranging instructions to insert independent instructionsbetween instructions that would otherwise have a data hazard between them, • or, if such rearrangement is not possible, insertnops • Such compiler solutions may not always be possible, and nops slow the machine down sub $2, $1, $3 nop nop and $12, $2, $5 or $13, $6, $2 add $14, $2, $2 sw $15, 100($2) sub $2, $1, $3 lw $10, 40($3) slt $5, $6, $7 and $12, $2, $5 or $13, $6, $2 add $14, $2, $2sw $15, 100($2) or MIPS: nop = “no operation” = 00…0 (32bits) = sll $0, $0, 0

  23. REVIEW: Solution to HAZARDS

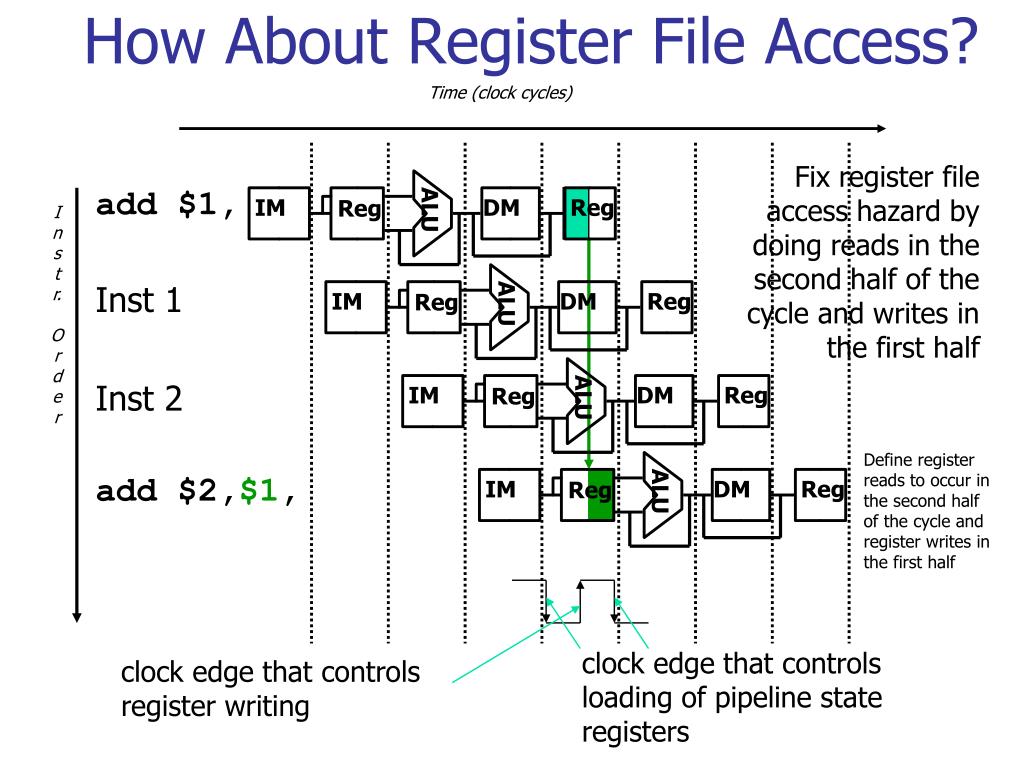

  24. DM DM DM DM Reg Reg Reg Reg Reg Reg Reg Reg IM IM IM IM ALU ALU ALU ALU clock edge that controls loading of pipeline state registers clock edge that controls register writing How About Register File Access? Time (clock cycles) Fix register file access hazard by doing reads in the second half of the cycle and writes in the first half add $1, I n s t r. O r d e r Inst 1 Inst 2 Define register reads to occur in the second half of the cycle and register writes in the first half add $2,$1,

  25. DM DM DM DM DM Reg Reg Reg Reg Reg Reg Reg Reg Reg Reg IM IM IM IM IM ALU ALU ALU ALU ALU Register Usage Can Cause Data Hazards add $1, • Dependencies backward in time cause hazards sub $4,$1,$5 and $6,$1,$7 or $8,$1,$9 xor $4,$1,$5 • Read before writedata hazard

  26. DM DM DM DM DM Reg Reg Reg Reg Reg Reg Reg Reg Reg Reg IM IM IM IM IM ALU ALU ALU ALU ALU Loads Can Cause Data Hazards lw $1,4($2) I n s t r. O r d e r • Dependencies backward in time cause hazards sub $4,$1,$5 and $6,$1,$7 or $8,$1,$9 xor $4,$1,$5 • Load-usedata hazard

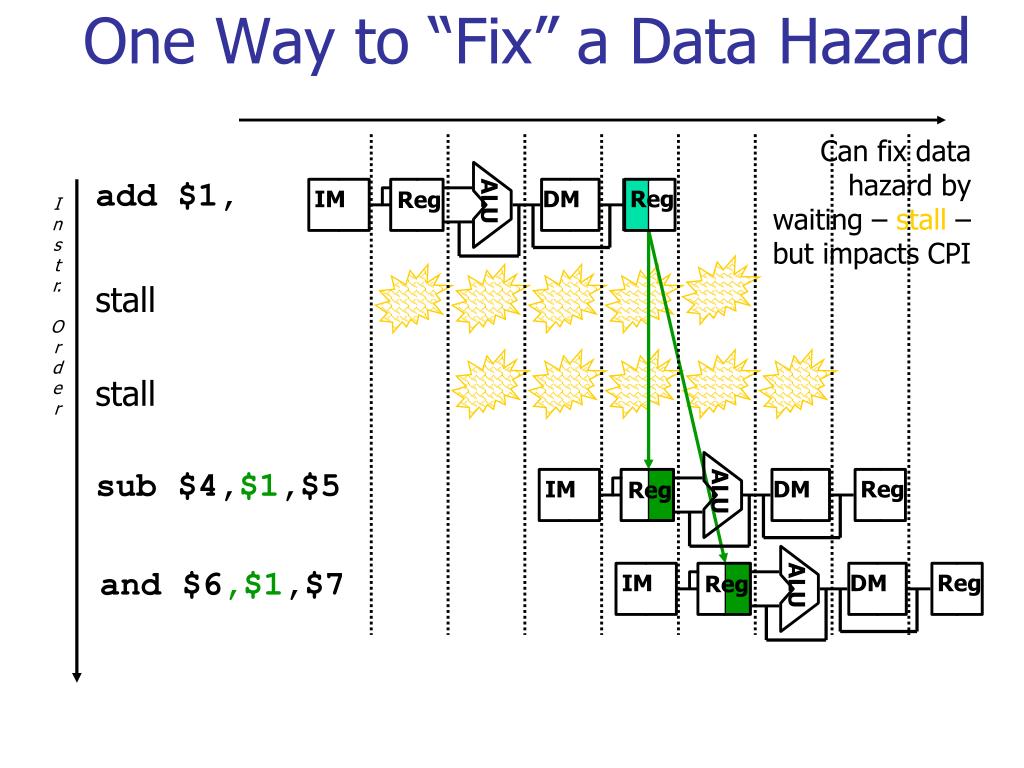

  27. DM DM DM Reg Reg Reg Reg Reg Reg stall IM IM IM ALU ALU ALU stall sub $4,$1,$5 and $6,$1,$7 One Way to “Fix” a Data Hazard Can fix data hazard by waiting – stall – but impacts CPI add $1, I n s t r. O r d e r

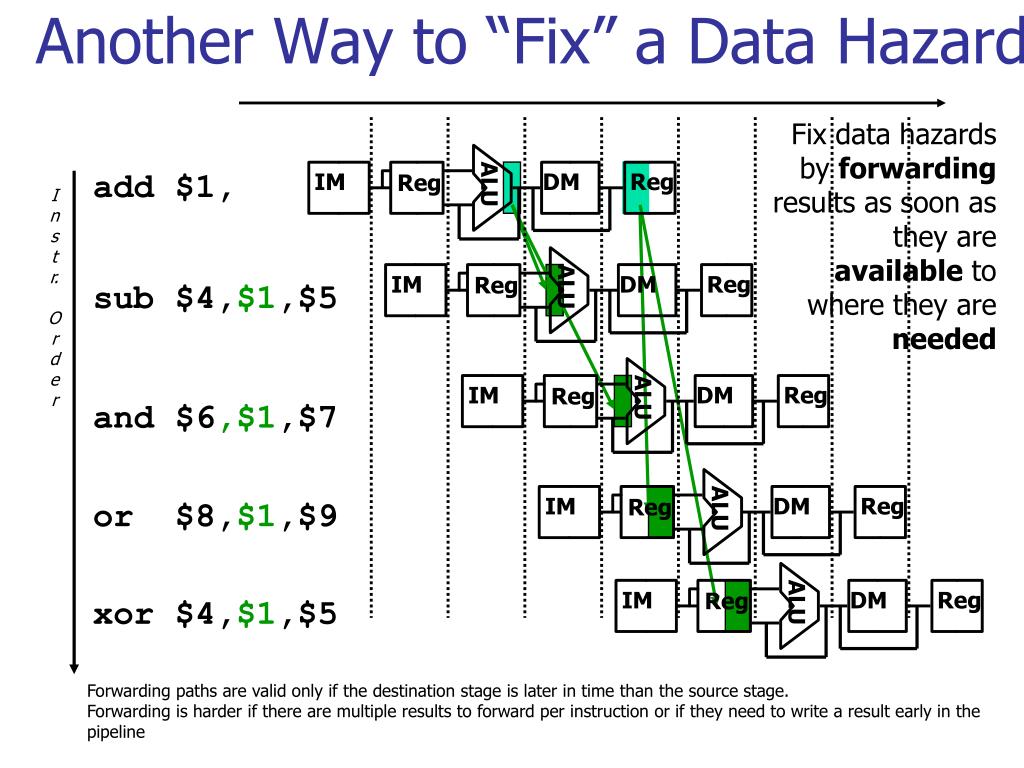

  28. DM DM DM DM DM Reg Reg Reg Reg Reg Reg Reg Reg Reg Reg IM IM IM IM IM ALU ALU ALU ALU ALU Another Way to “Fix” a Data Hazard Fix data hazards by forwarding results as soon as they are available to where they are needed add $1, I n s t r. O r d e r sub $4,$1,$5 and $6,$1,$7 or $8,$1,$9 xor $4,$1,$5 Forwarding paths are valid only if the destination stage is later in time than the source stage. Forwarding is harder if there are multiple results to forward per instruction or if they need to write a result early in the pipeline

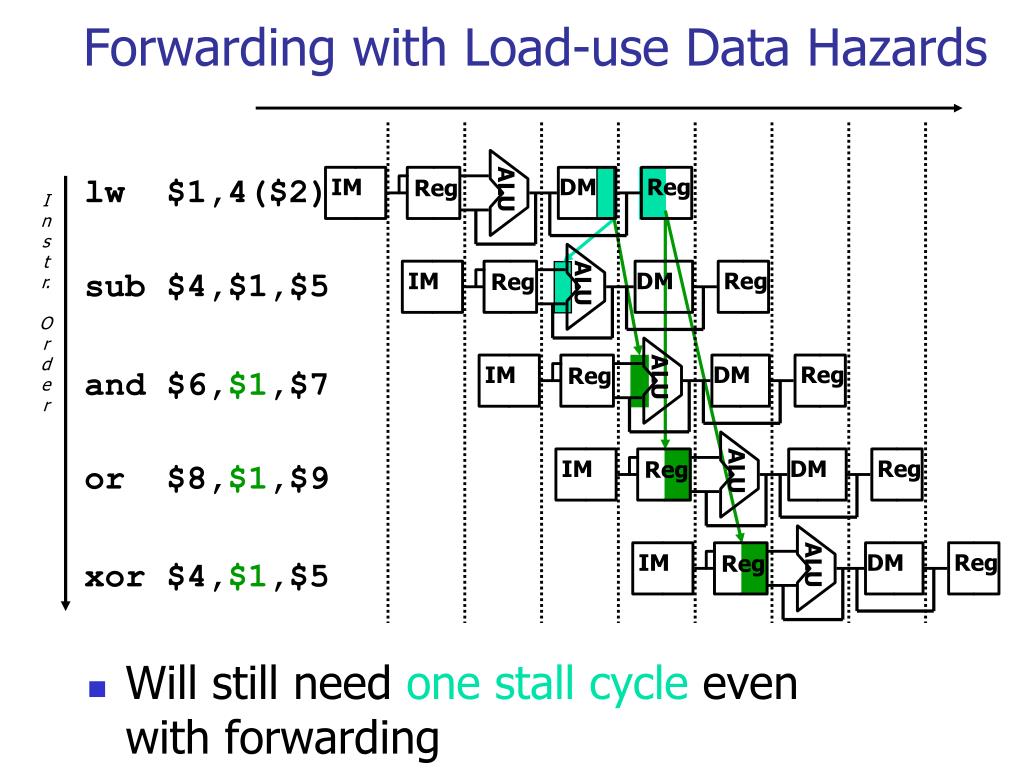

  29. DM DM DM DM DM Reg Reg Reg Reg Reg Reg Reg Reg Reg Reg IM IM IM IM IM ALU ALU ALU ALU ALU Forwarding with Load-use Data Hazards lw $1,4($2) I n s t r. O r d e r • Will still need one stall cycle even with forwarding sub $4,$1,$5 and $6,$1,$7 or $8,$1,$9 xor $4,$1,$5

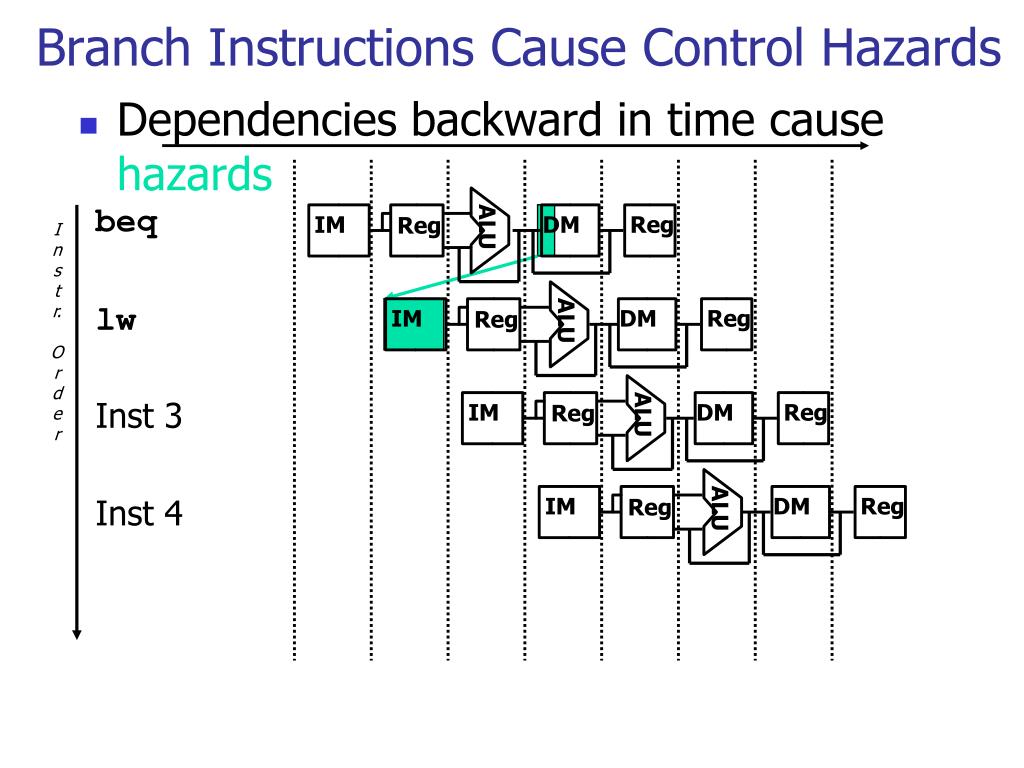

  30. DM DM DM Reg Reg Reg Reg Reg Reg IM IM IM IM ALU ALU ALU ALU beq DM Reg Reg Branch Instructions Cause Control Hazards I n s t r. O r d e r • Dependencies backward in time cause hazards lw Inst 3 Inst 4

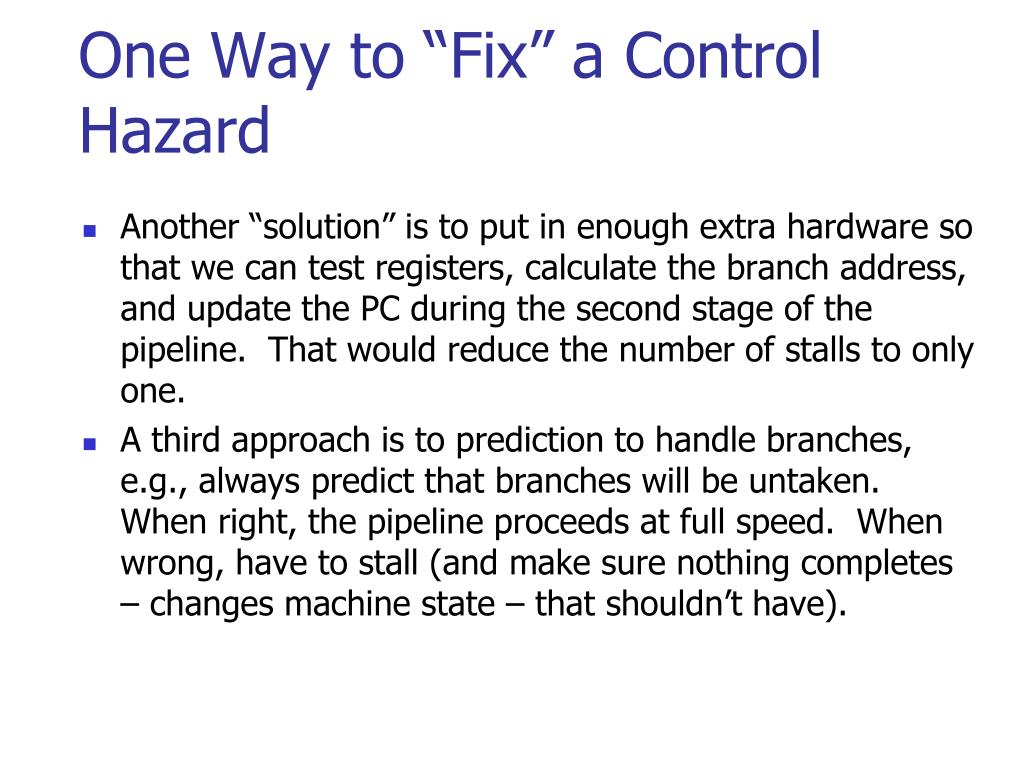

  31. One Way to “Fix” a Control Hazard • Another “solution” is to put in enough extra hardware so that we can test registers, calculate the branch address, and update the PC during the second stage of the pipeline. That would reduce the number of stalls to only one. • A third approach is to prediction to handle branches, e.g., always predict that branches will be untaken. When right, the pipeline proceeds at full speed. When wrong, have to stall (and make sure nothing completes – changes machine state – that shouldn’t have).

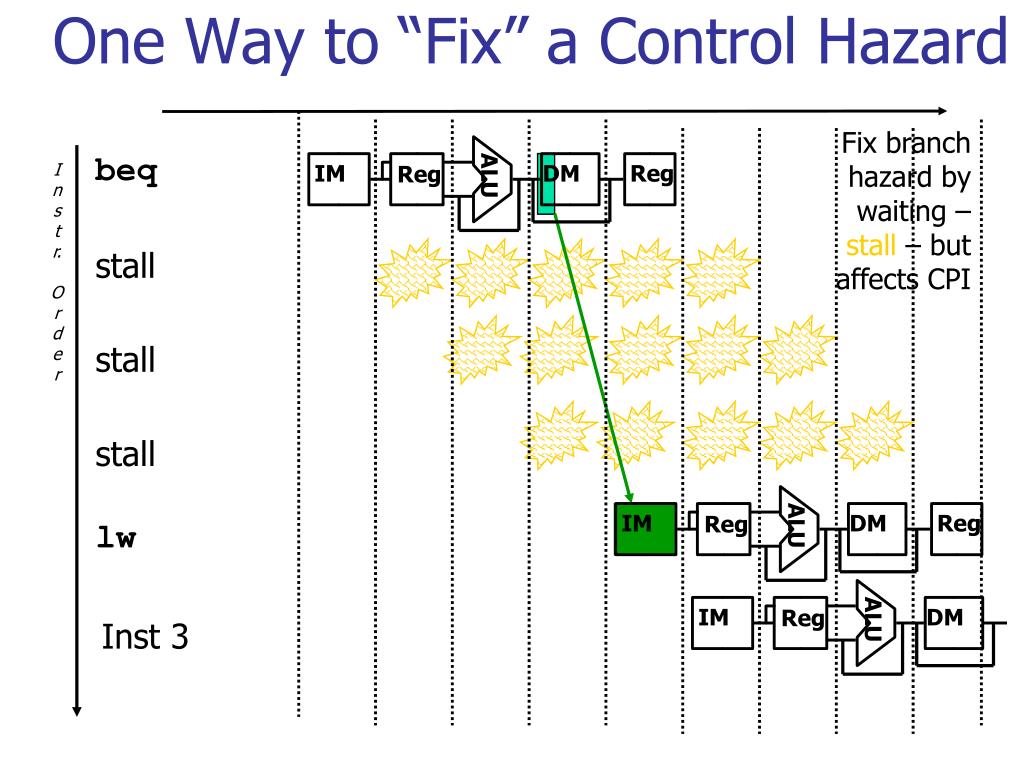

  32. DM DM Reg Reg Reg Reg IM IM IM ALU ALU ALU stall stall stall lw DM Reg Inst 3 One Way to “Fix” a Control Hazard Fix branch hazard by waiting – stall – but affects CPI beq I n s t r. O r d e r
