LESSON-9 DRAFTING OF TROUSER. FRONT 0-1=LENGTH-- BELT WIDTH 1-2 =6 C.M 0-3= ¼ HIP+ 1.5 C.M 4=MIDDLE OF 3-1 4-5=5 C.M UP 3-6 =1/3 HIP -2 C.M 7=MIDDLE OF 6-3 0-8 =3-7 5-8 =3-7. LESSON-9 DRAFTING OF TROUSER. 1-10=3-7 6-7=5C.M IN 0-12= 3-11 11-14=1/16 HIP JOINT 14-6 ROUND SHAPE

zita
Télécharger la présentation

LESSON-9 DRAFTING OF TROUSER

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

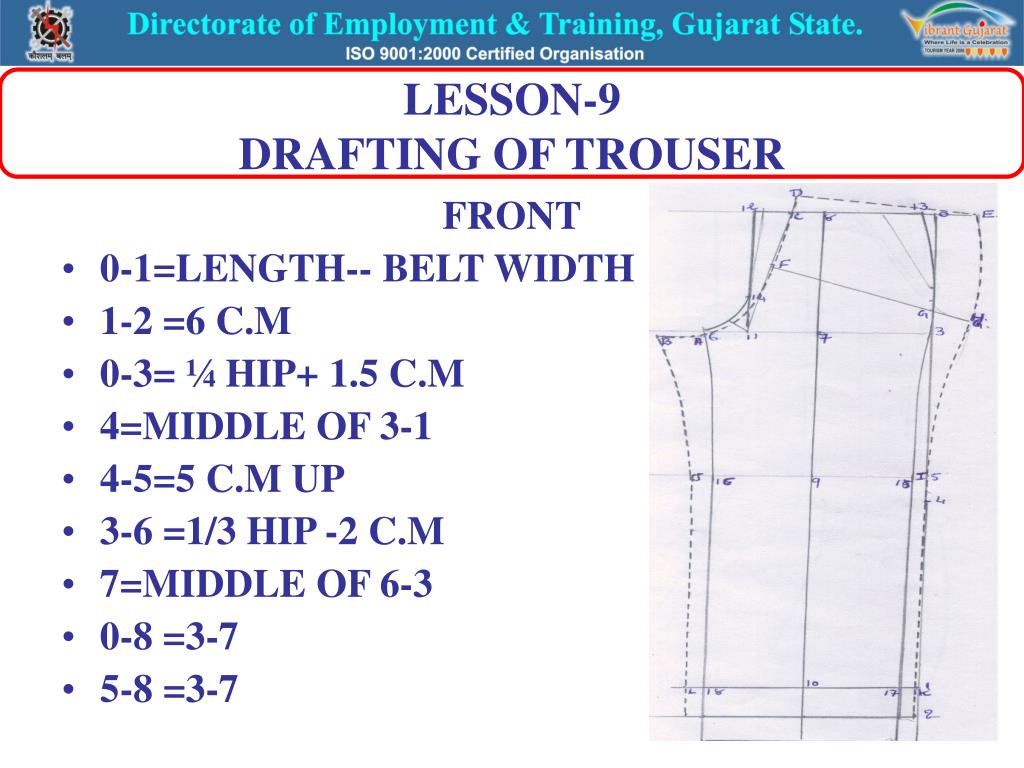

  1. LESSON-9 DRAFTING OF TROUSER FRONT • 0-1=LENGTH-- BELT WIDTH • 1-2 =6 C.M • 0-3= ¼ HIP+ 1.5 C.M • 4=MIDDLE OF 3-1 • 4-5=5 C.M UP • 3-6 =1/3 HIP -2 C.M • 7=MIDDLE OF 6-3 • 0-8 =3-7 • 5-8 =3-7

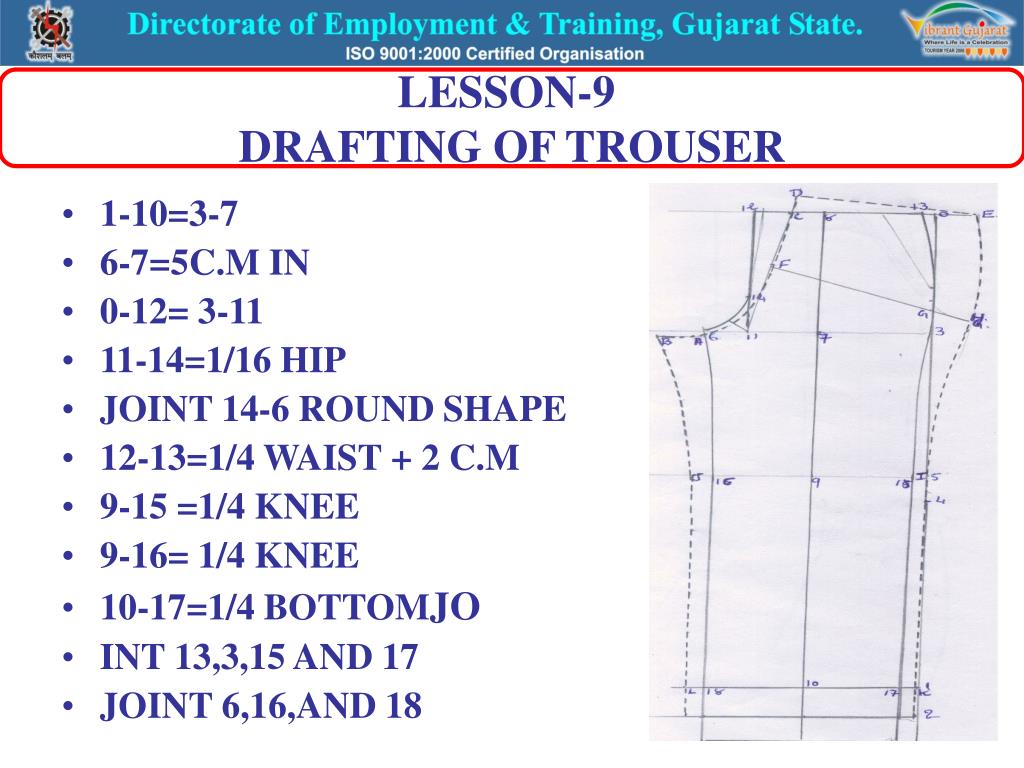

  2. LESSON-9 DRAFTING OF TROUSER • 1-10=3-7 • 6-7=5C.M IN • 0-12= 3-11 • 11-14=1/16 HIP • JOINT 14-6 ROUND SHAPE • 12-13=1/4 WAIST + 2 C.M • 9-15 =1/4 KNEE • 9-16= 1/4 KNEE • 10-17=1/4 BOTTOMJO • INT 13,3,15 AND 17 • JOINT 6,16,AND 18

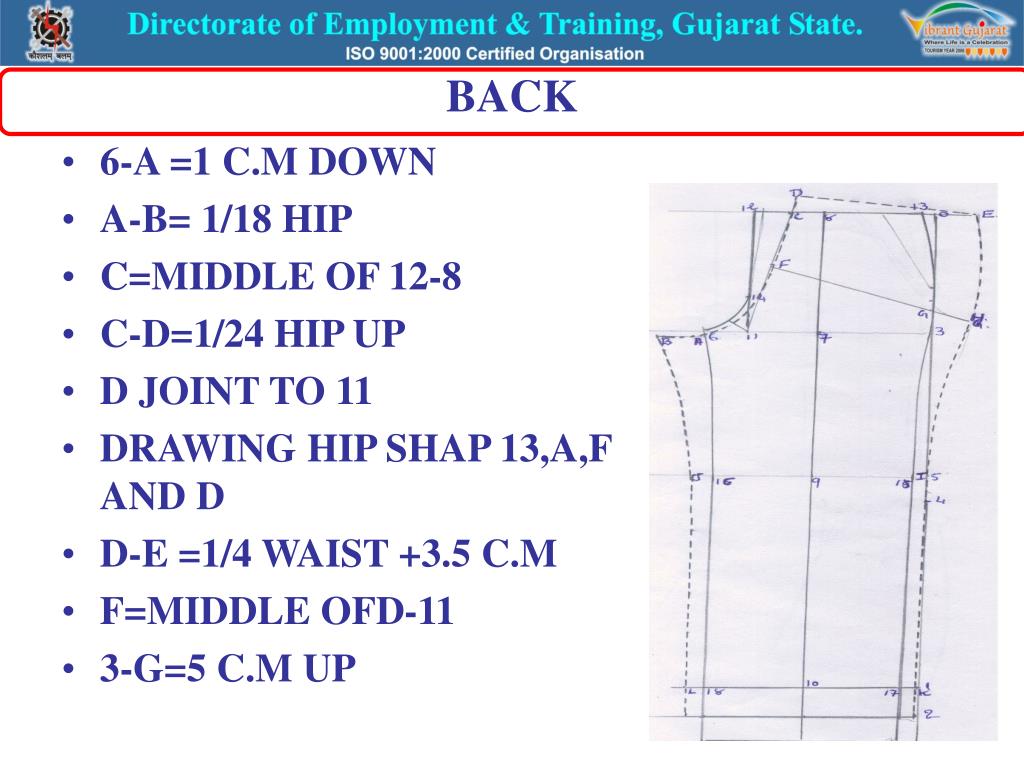

  3. BACK • 6-A =1 C.M DOWN • A-B= 1/18 HIP • C=MIDDLE OF 12-8 • C-D=1/24 HIP UP • D JOINT TO 11 • DRAWING HIP SHAP 13,A,F AND D • D-E =1/4 WAIST +3.5 C.M • F=MIDDLE OFD-11 • 3-G=5 C.M UP

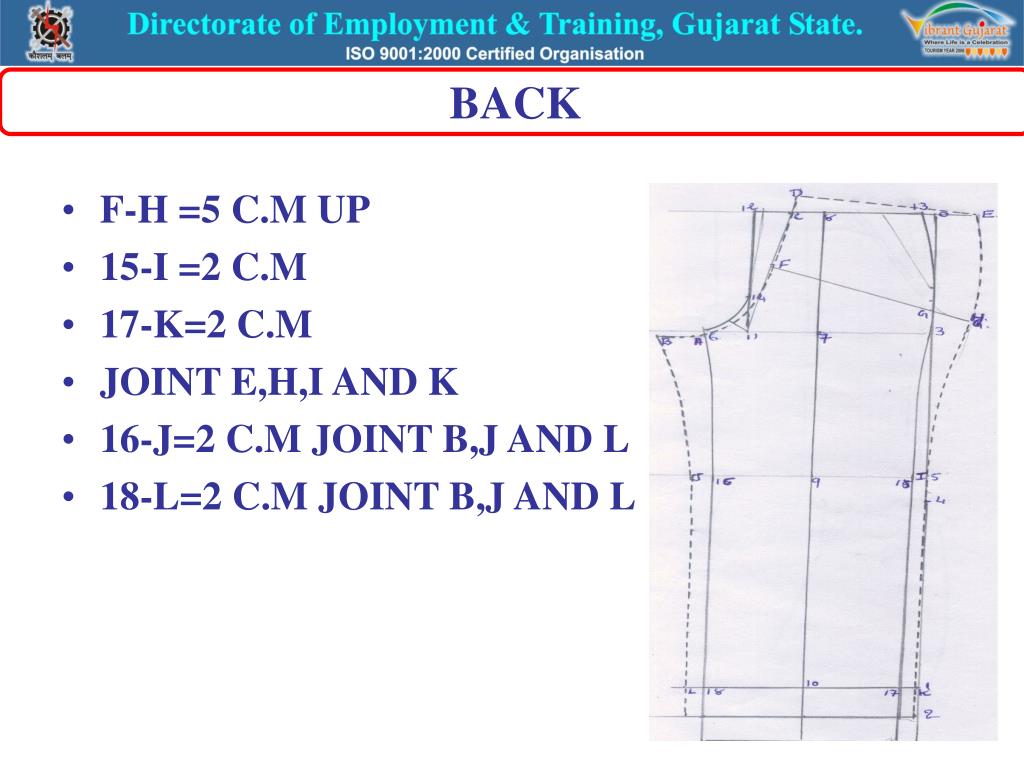

  4. BACK • F-H =5 C.M UP • 15-I =2 C.M • 17-K=2 C.M • JOINT E,H,I AND K • 16-J=2 C.M JOINT B,J AND L • 18-L=2 C.M JOINT B,J AND L

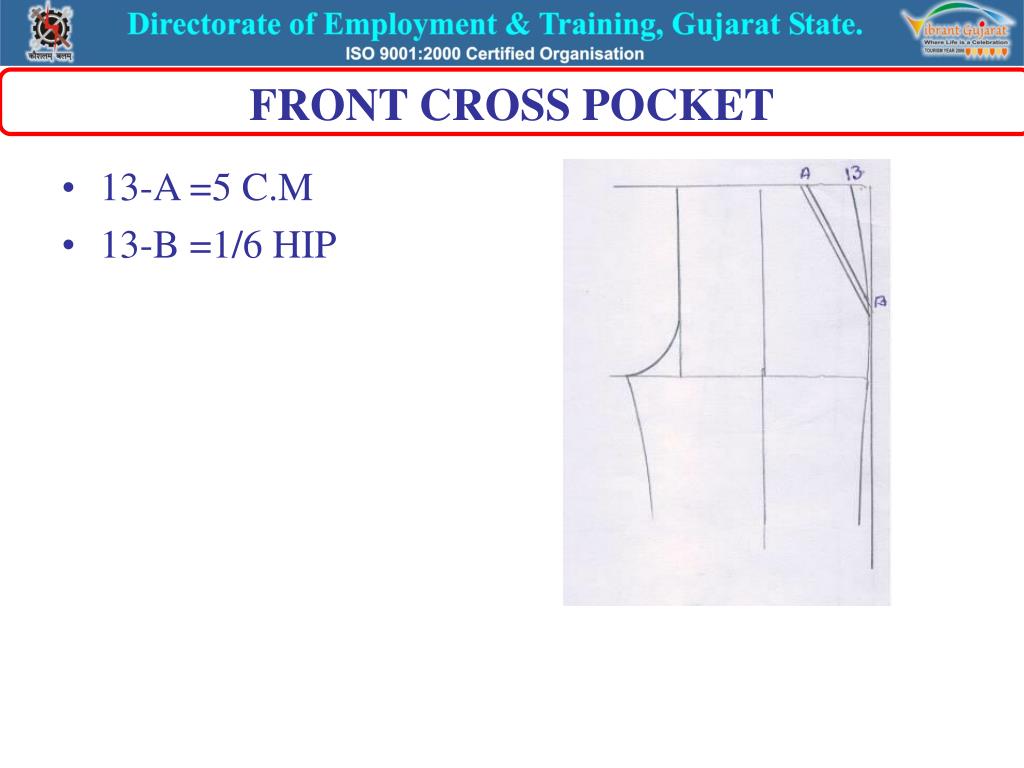

  5. FRONT CROSS POCKET • 13-A =5 C.M • 13-B =1/6 HIP

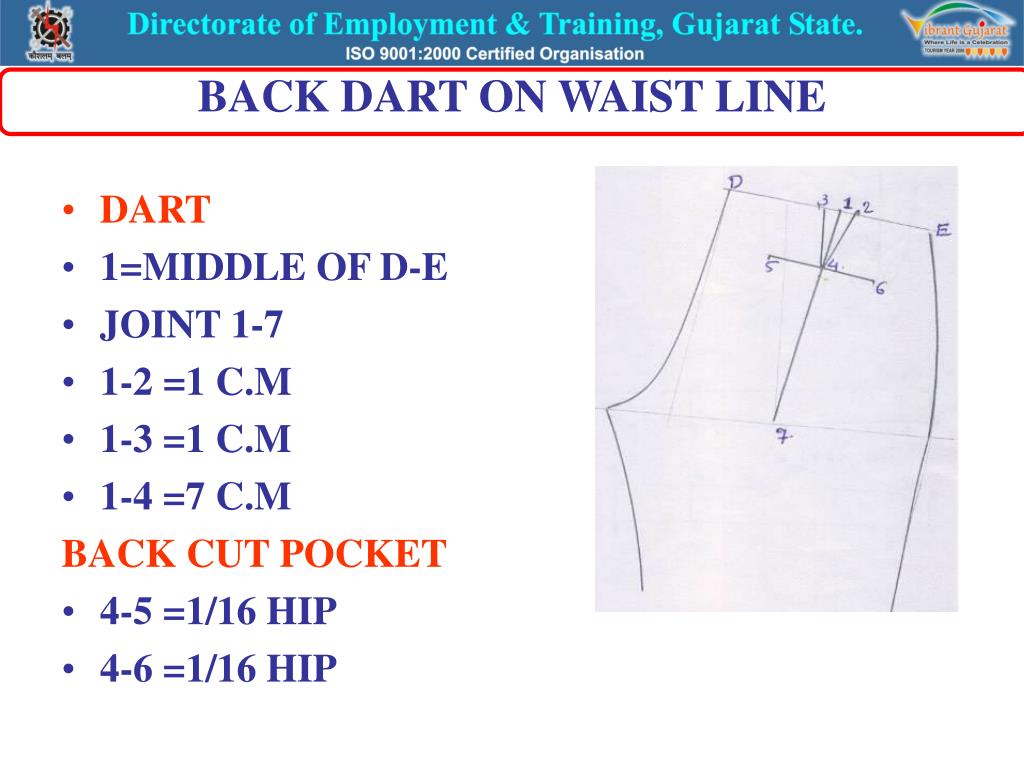

  6. BACK DART ON WAIST LINE • DART • 1=MIDDLE OF D-E • JOINT 1-7 • 1-2 =1 C.M • 1-3 =1 C.M • 1-4 =7 C.M BACK CUT POCKET • 4-5 =1/16 HIP • 4-6 =1/16 HIP

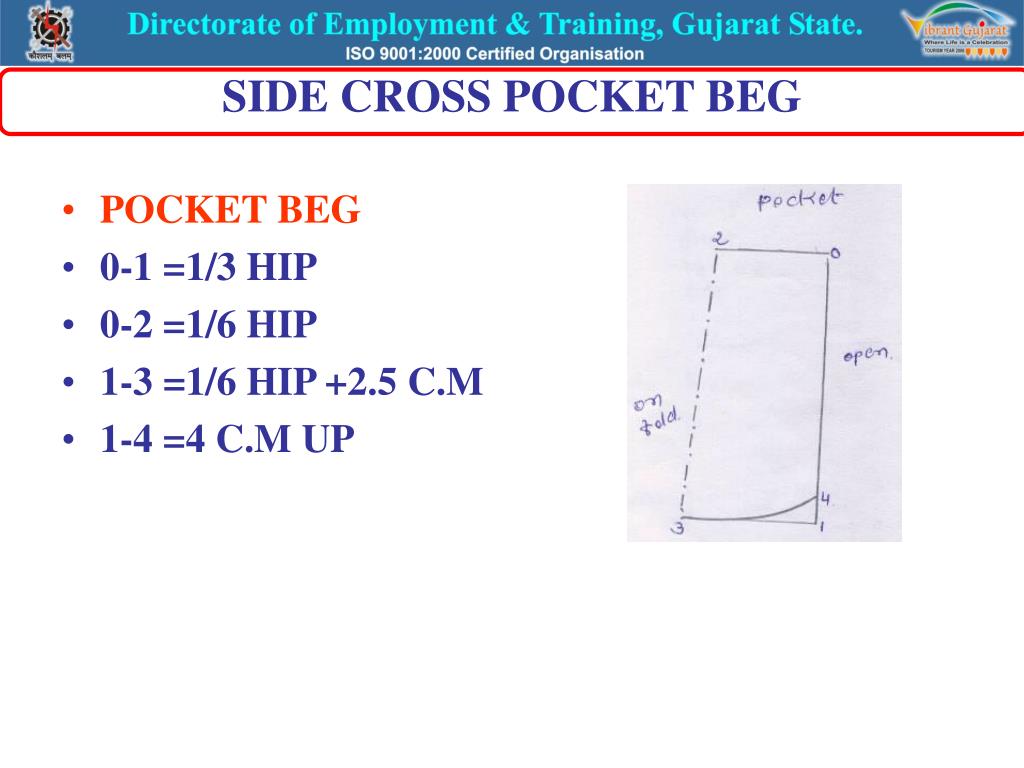

  7. SIDE CROSS POCKET BEG • POCKET BEG • 0-1 =1/3 HIP • 0-2 =1/6 HIP • 1-3 =1/6 HIP +2.5 C.M • 1-4 =4 C.M UP

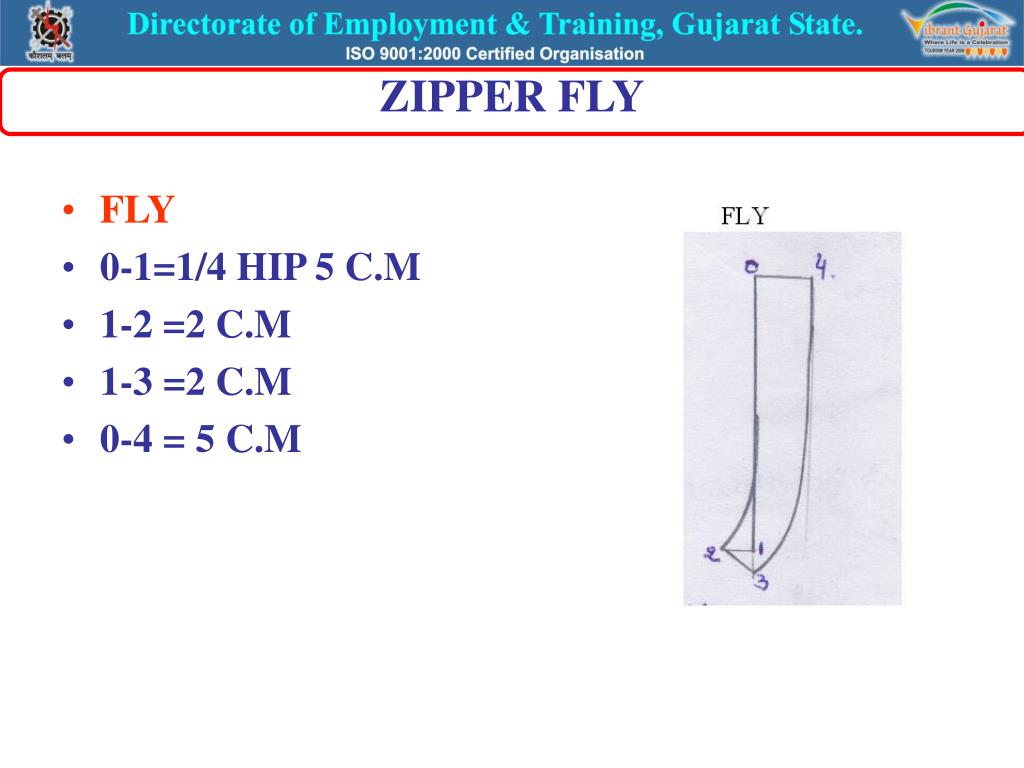

  8. ZIPPER FLY • FLY • 0-1=1/4 HIP 5 C.M • 1-2 =2 C.M • 1-3 =2 C.M • 0-4 = 5 C.M

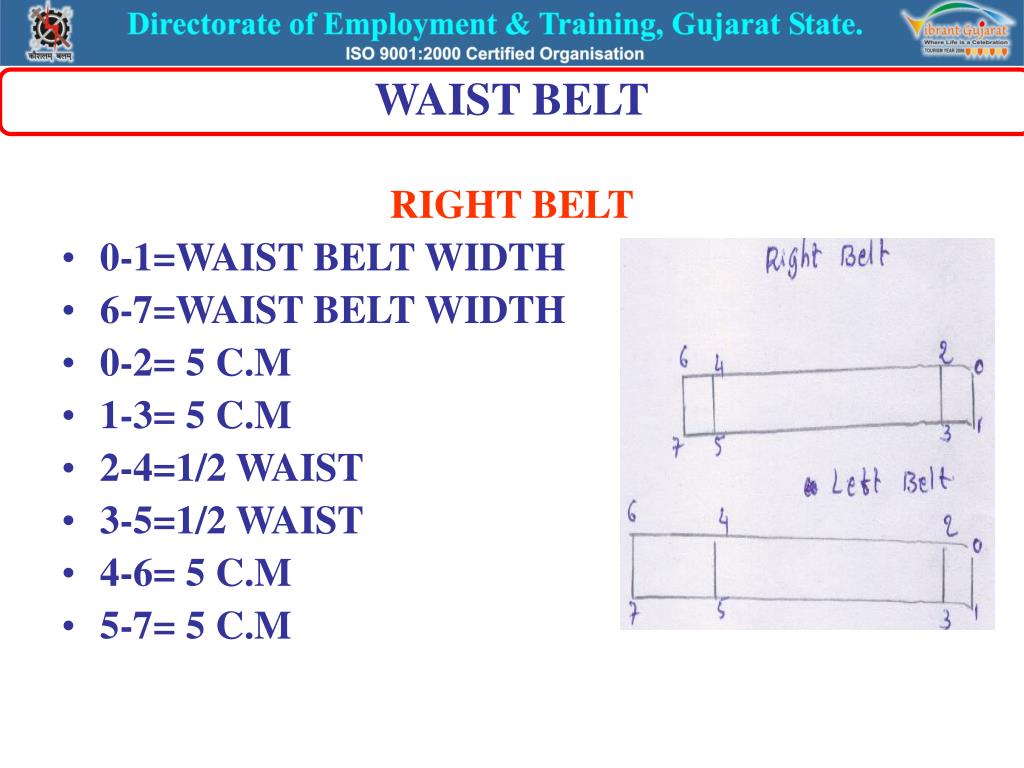

  9. WAIST BELT RIGHT BELT • 0-1=WAIST BELT WIDTH • 6-7=WAIST BELT WIDTH • 0-2= 5 C.M • 1-3= 5 C.M • 2-4=1/2 WAIST • 3-5=1/2 WAIST • 4-6= 5 C.M • 5-7= 5 C.M

  10. WAIST BELT LEFT BELT • 0-1=WAIST BELT WIDTH • 6-7=WAIST BELT WIDTH • 0-2= 5 C.M • 1-3= 5 C.M • 2-4= ½ WAIST • 3-5= ½ WAIST • 4-6=15 C.M FOR LONG BELT • 5-7=15 C.M FOR LONG BELT
