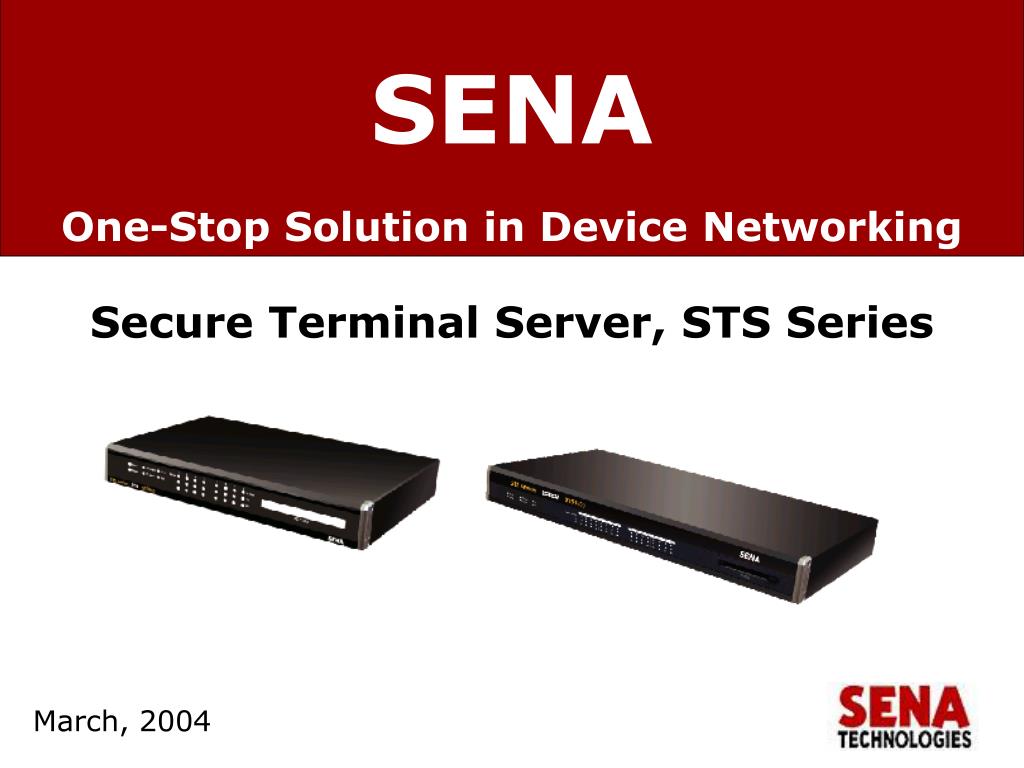

  1. SENA Secure Terminal Server, STS Series One-Stop Solution in Device Networking March, 2004 March, 2002

  2. Table of Contents • Overview • Functions & Features • Operation modes • Security • PC Card support • Event handling • Data logging

  3. Overview (1) • Linux-based Open platform (kernel 2.4.2) • Supports 8/16 serial port (RS232) • 1 PCMCIA slot • ATA flash memory, LAN/WLAN, PSTN/CDMA Modem • Flexible host mode mode • TCP/UDP single/multi-session support • Primary/Secondary host support • Powerful Security • Industry-standard encryption support • SSL, TLS • Encryption algorithm support • 3DES, RC4

  4. Overview (2) Connections Device Remote Host Host (STS) Any device with serial interface • RS-232 • LAN • Wireless (802.11b) • PSTN • Mobile (CDMA)

  5. Functions & Features • Operation modes • Data logging • Event handling • Security • PC Card support

  6. Operation modes (1) Addressing box IP STS • 210.205.197.172 or sts.sena.com Dynamic DNS ... Port #1 Port #2 7001 7002 TCP/UDP port • When access the box • Telnet 210.205.197.172 or sts.sena.com • http://210.205.197.172 or sts.sena.com • When access the serial port • 210.205.197.172, 7001 or • sts.sena.com, 7001

  7. Operation modes (2) Remote host • TCP/UDP Various operation modes device TCP/UDP socket Remote host • modem emulation DTE TCP socket • Dial-in/out mode Remote host modem TCP socket modem DTE

  8. Operation mode (3) • Multiple remote hosts Up to 16 Remote destinations • Total 32 connections per serial port • Total 16 outgoing connections allowed • If connection to the primary fails, STS tries to connect the secondary remote host. (TCP mode) • Most suitable for multiple remote device monitoring application (Bi-directional) Secondary (back up to the primary) Primary Device Secondary Primary

  9. Security • Serial data encryption • SSL v2 & v3, TLS • Supports encrypted key file • Option to authenticate clients using the client's certificate in server mode • Option to configure chain depth • Option to compare certificate common name with host • 3DES, RC4 • Static Key encryption • Secured Web interface • HTTPS • IP filtering • serial port based IP filtering • box based IP filtering • Secured file uploading • SCP

  10. PC Card support http://www.sena.com/products/by_name/sts/pc_card/

  11. Event handling • Event filtering and notification procedure STS Device SNMP trap reaction E-mail data stream message packaging filter (SMS)

  12. Data logging Data logging locations SYSLOG server Ethernet NFS server STS internal Memory (RAM) Storage PCMCIA card

  13. Point of Contact Sena Technologies, Inc. sales@sena.com Phone:+82-2-529-7025 Fax: +82-2-573-7710 Web Address: http://www.sena.com 210 Yangjae-dong Seocho-gu Seoul 137-130, South Korea
