Kashima 34m Antenna System: 8GHz Frequency Feed and Calibration Overview

DESCRIPTION

The Kashima 34m Antenna system features advanced frontend technology covering S/X bands with capabilities for both Right and Left Circular Polarization (RHCP/LHCP) across multiple frequency ranges. It includes a precise calibration setup involving a hot load and cold load to ensure accuracy. The system supports various filter types like HTS-BPF and LPF, optimizing the signal from 0 to 12.3GHz. This overview covers the antenna's capabilities, feed horn specifications, and its application in high-frequency experiments and communication.

Download

1 / 1

Feb 19, 2026

Télécharger la présentation

Kashima 34m Antenna System: 8GHz Frequency Feed and Calibration Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

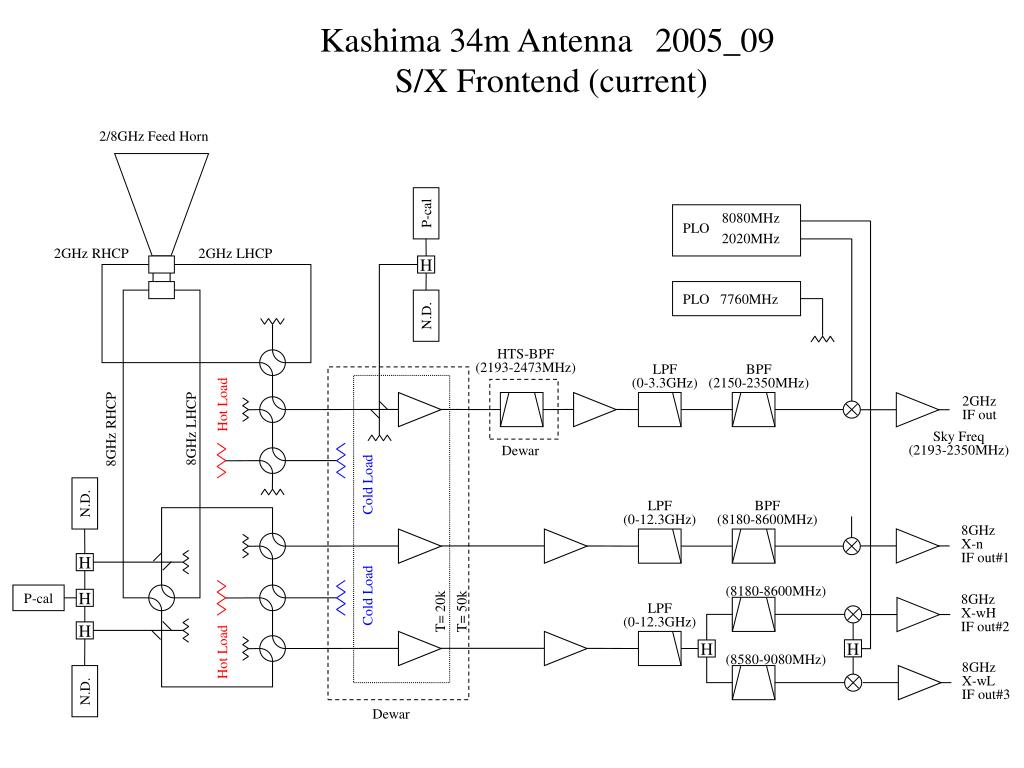

Kashima 34m Antenna2005_09 S/X Frontend (current) 2/8GHz Feed Horn P-cal 8080MHz PLO 2020MHz 2GHz RHCP 2GHz LHCP H PLO 7760MHz N.D. HTS-BPF (2193-2473MHz) LPF (0-3.3GHz) BPF (2150-2350MHz) 2GHz IF out Hot Load 8GHz LHCP 8GHz RHCP Sky Freq (2193-2350MHz) Dewar Cold Load N.D. LPF (0-12.3GHz) BPF (8180-8600MHz) 8GHz X-n IF out#1 H (8180-8600MHz) Cold Load P-cal 8GHz X-wH IF out#2 H LPF (0-12.3GHz) T= 20k T= 50k H Hot Load H H (8580-9080MHz) 8GHz X-wL IF out#3 N.D. Dewar
