Understanding ROC Curve Analysis: A Practical Example of AUC Calculation

This demonstration explores the concepts of Receiver Operating Characteristic (ROC) curves and Area Under the Curve (AUC) calculations in binary classification. Using a specific dataset, we calculate sensitivity and specificity while constructing the ROC curve. The analysis showcases how to derive concordant pairs and account for ties in predictions. With examples illustrating the conditions for Say 1 and Say 0, this guide breaks down the methodology to help understand performance indicators for classification models.

zohar
Télécharger la présentation

Understanding ROC Curve Analysis: A Practical Example of AUC Calculation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. ROC Curve Demo

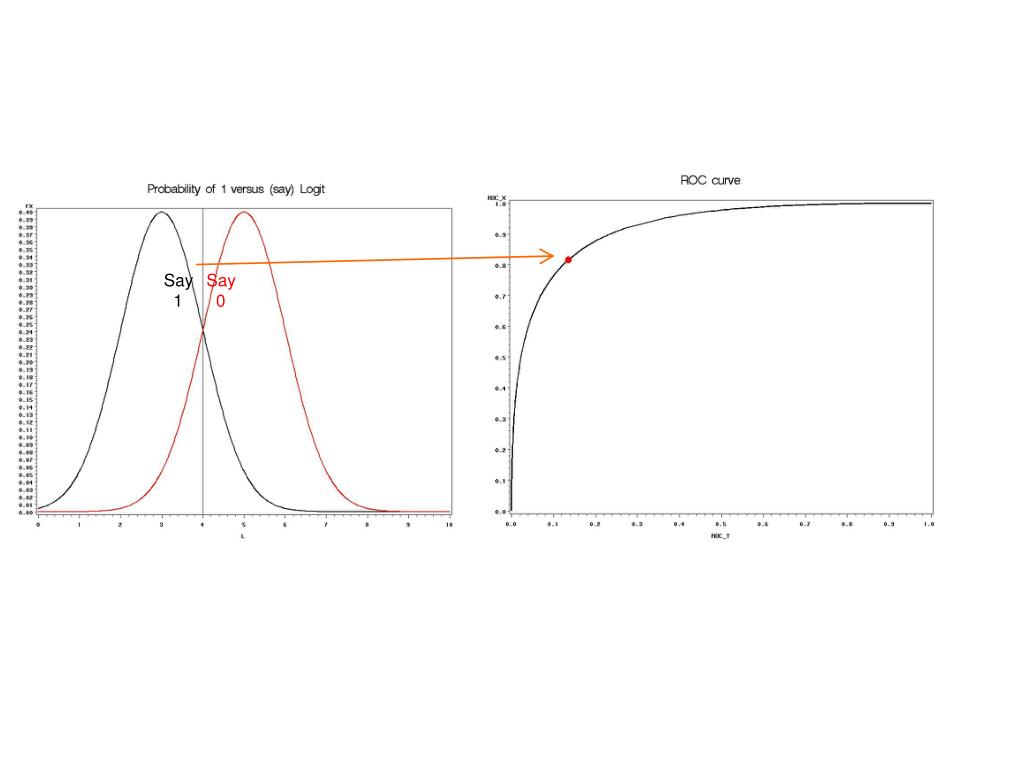

  2. Say 1 Say 0 %1s 1 0 | | %0s |<-logits of the 1s->| | |<-logits of the 0s->|

  3. Say 1 Say 0

  4. Say 1 Say 0

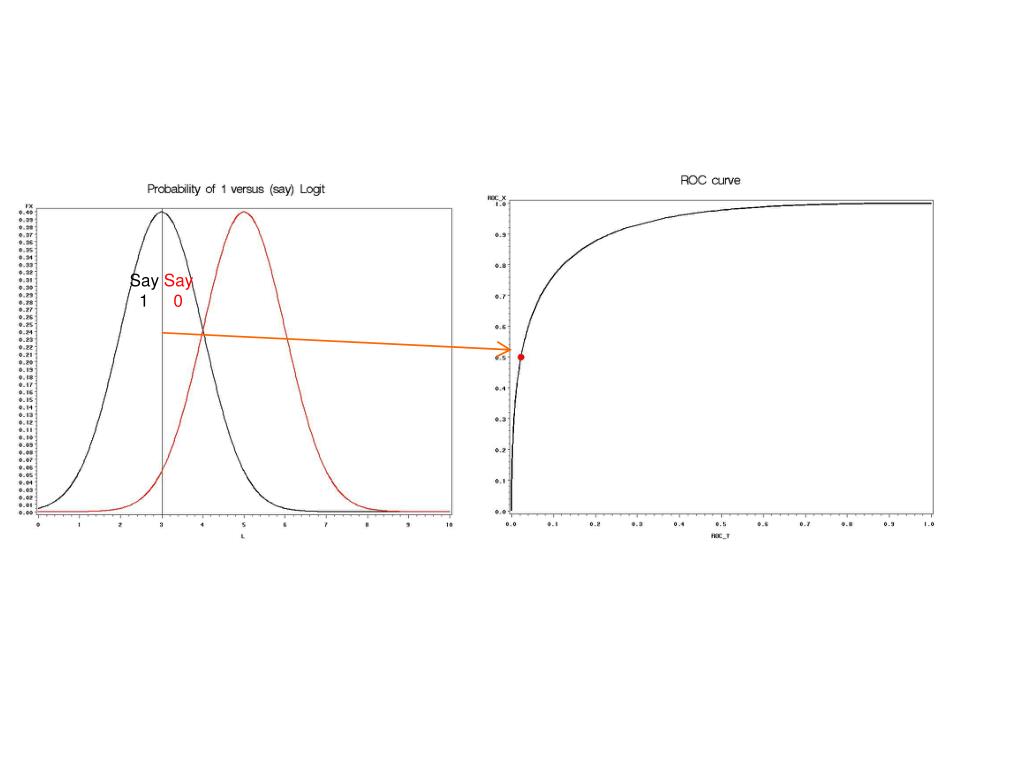

  5. Say 1 Say 0

  6. Say 1 Say 0

  7. Say 1 Say 0

  8. Say 1 Say 0

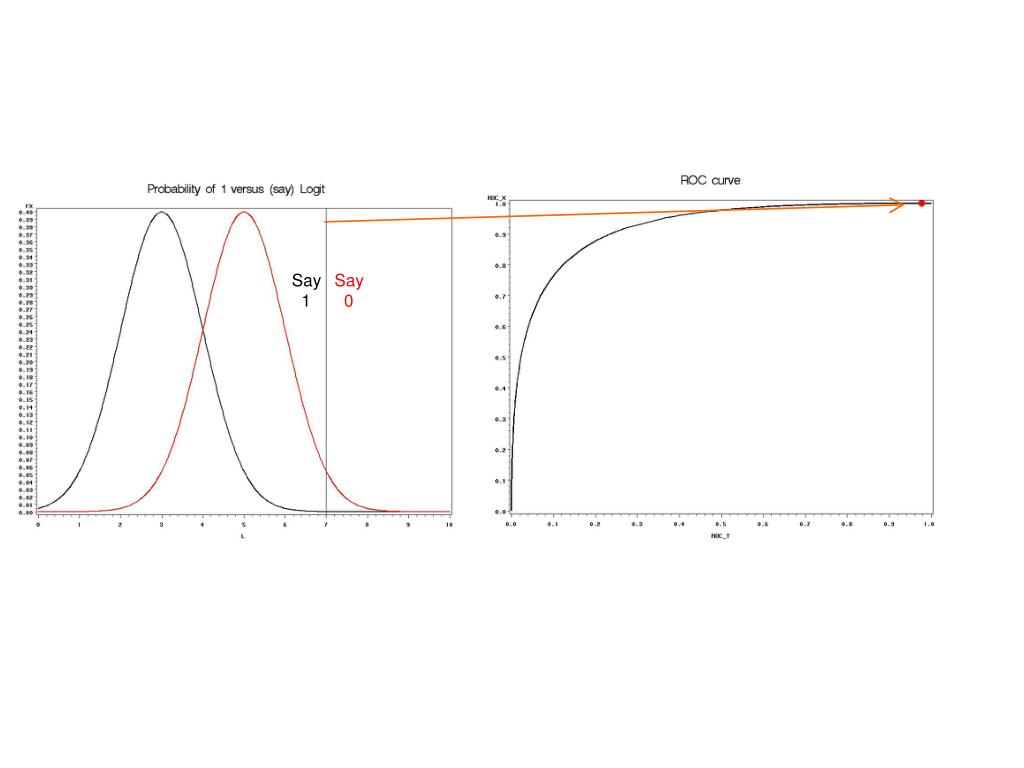

  9. Say 1 Say 0

  10. Example 2 0 1 Say 1 Say 0 X=10 X=13 X=16 1 - specificity

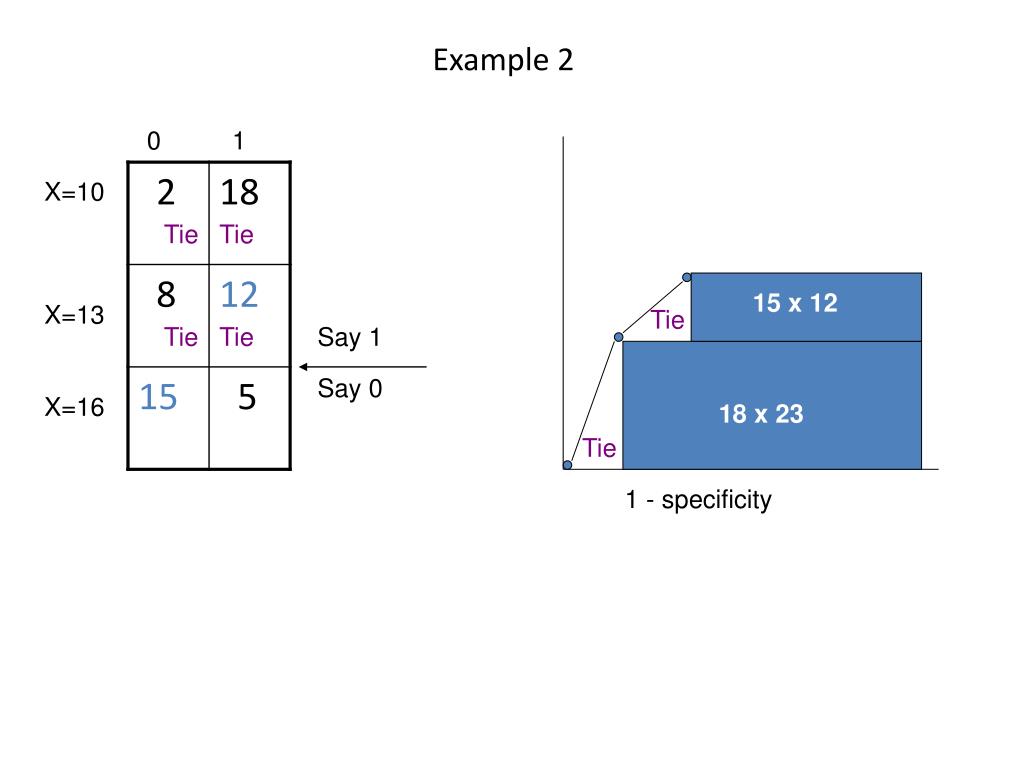

  11. Example 2 0 1 X=10 X=13 X=16 Say 1 Say 0 (2/25, 18/35) 1 - specificity

  12. Example 2 0 1 X=10 X=13 X=16 (10/25, 30/35) (2/25, 18/35) Say 1 Say 0 1 - specificity

  13. Example 2 0 1 X=10 X=13 X=16 (10/25, 30/35) (1, 1) (2/25, 18/35) Say 1 Say 0 1 - specificity

  14. Example 2 0 1 X=10 X=13 X=16 Tie Tie Say 1 Say 0 18 x 23 1 - specificity

  15. Example 2 0 1 X=10 X=13 X=16 Tie Tie 15 x 12 Tie Tie Tie Say 1 Say 0 18 x 23 Tie 1 - specificity

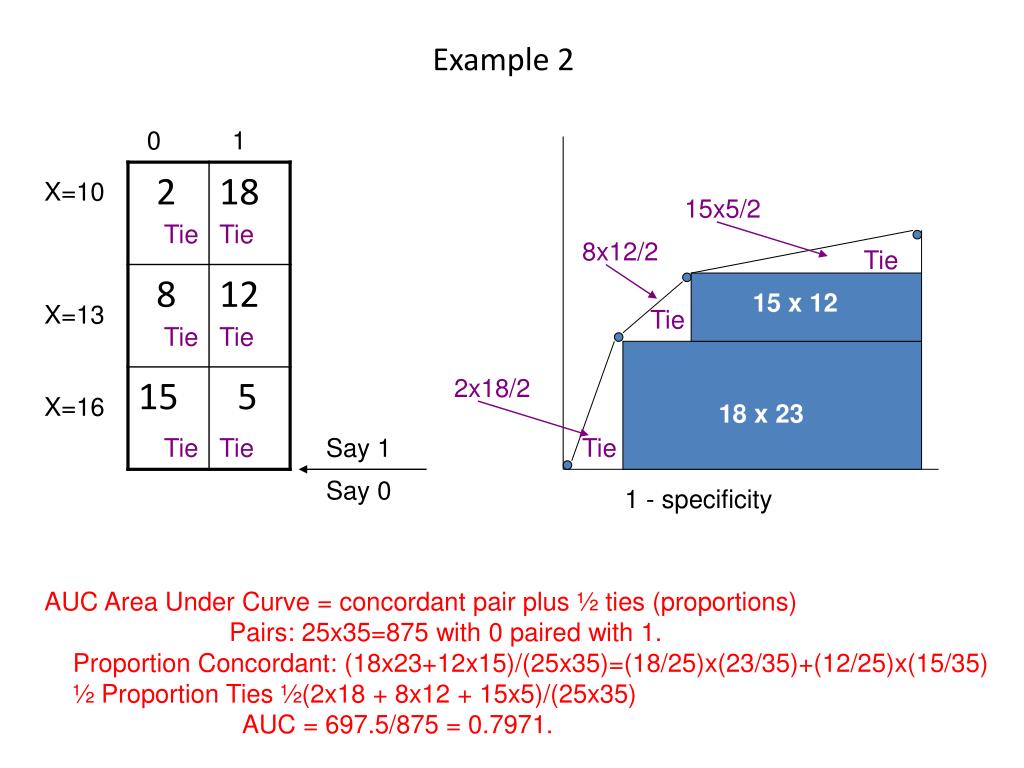

  16. Example 2 0 1 X=10 X=13 X=16 15x5/2 Tie Tie 8x12/2 Tie 15 x 12 Tie Tie Tie 2x18/2 18 x 23 Tie Tie Say 1 Tie Say 0 1 - specificity AUC Area Under Curve = concordant pair plus ½ ties (proportions) Pairs: 25x35=875 with 0 paired with 1. Proportion Concordant: (18x23+12x15)/(25x35)=(18/25)x(23/35)+(12/25)x(15/35) ½ Proportion Ties ½(2x18 + 8x12 + 15x5)/(25x35) AUC = 697.5/875 = 0.7971.
