Recirculating Chiller

DESCRIPTION

Recirculating Chiller is high performance circulating water pump with 0 to 1.5 bar pump capacity pressure. Its temperature ranges from <br>5u02daC to 40u02daC and offers PT100 temperature sensor. Designed with TECUMSEH compressor in order to ensure cooling efficiency and reduce noise <br>with PID temperature controlling technology. Equipped with Over-temperature protection, auto-alarm function and Color LCD screen display <br>for more running data and dynamic identifier.<br>

Télécharger la présentation

Recirculating Chiller

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

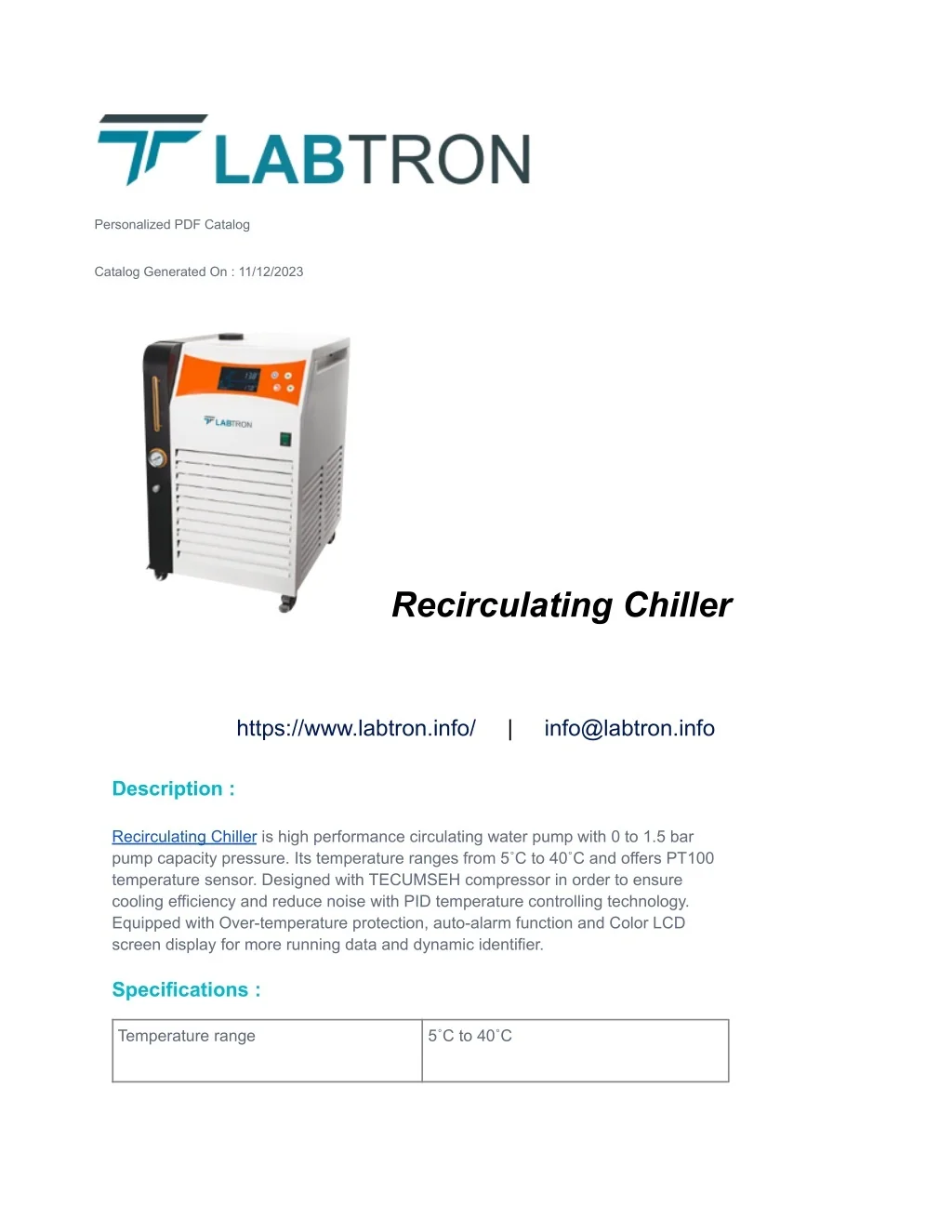

  1. Personalized PDF Catalog Catalog Generated On : 11/12/2023 Recirculating Chiller https://www.labtron.info/ | info@labtron.info Description : Recirculating Chiller is high performance circulating water pump with 0 to 1.5 bar pump capacity pressure. Its temperature ranges from 5˚C to 40˚C and offers PT100 temperature sensor. Designed with TECUMSEH compressor in order to ensure cooling efficiency and reduce noise with PID temperature controlling technology. Equipped with Over-temperature protection, auto-alarm function and Color LCD screen display for more running data and dynamic identifier. Specifications : Temperature range 5˚C to 40˚C

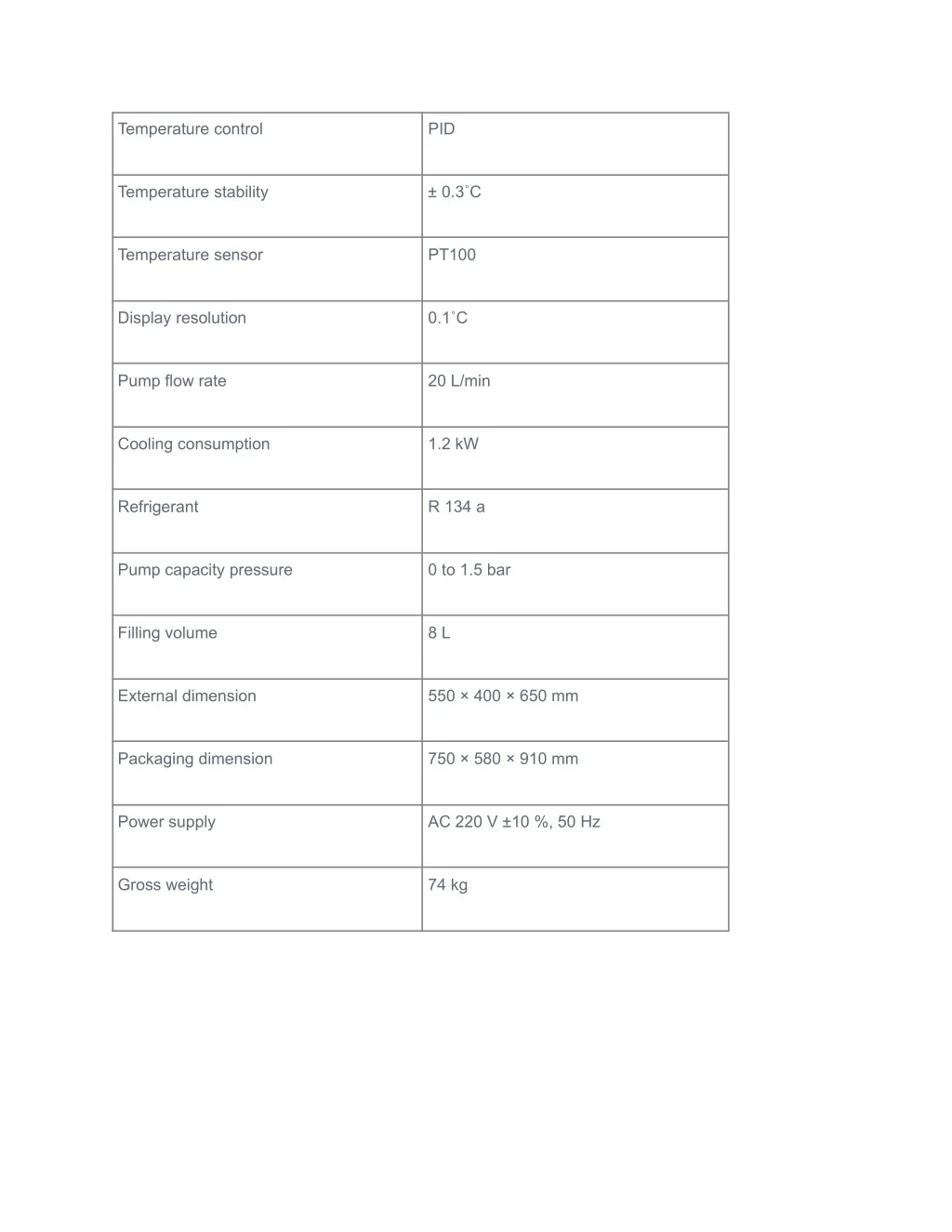

  2. Temperature control PID Temperature stability ± 0.3˚C Temperature sensor PT100 Display resolution 0.1˚C Pump flow rate 20 L/min Cooling consumption 1.2 kW Refrigerant R 134 a Pump capacity pressure 0 to 1.5 bar Filling volume 8 L External dimension 550 × 400 × 650 mm Packaging dimension 750 × 580 × 910 mm Power supply AC 220 V ±10 %, 50 Hz Gross weight 74 kg

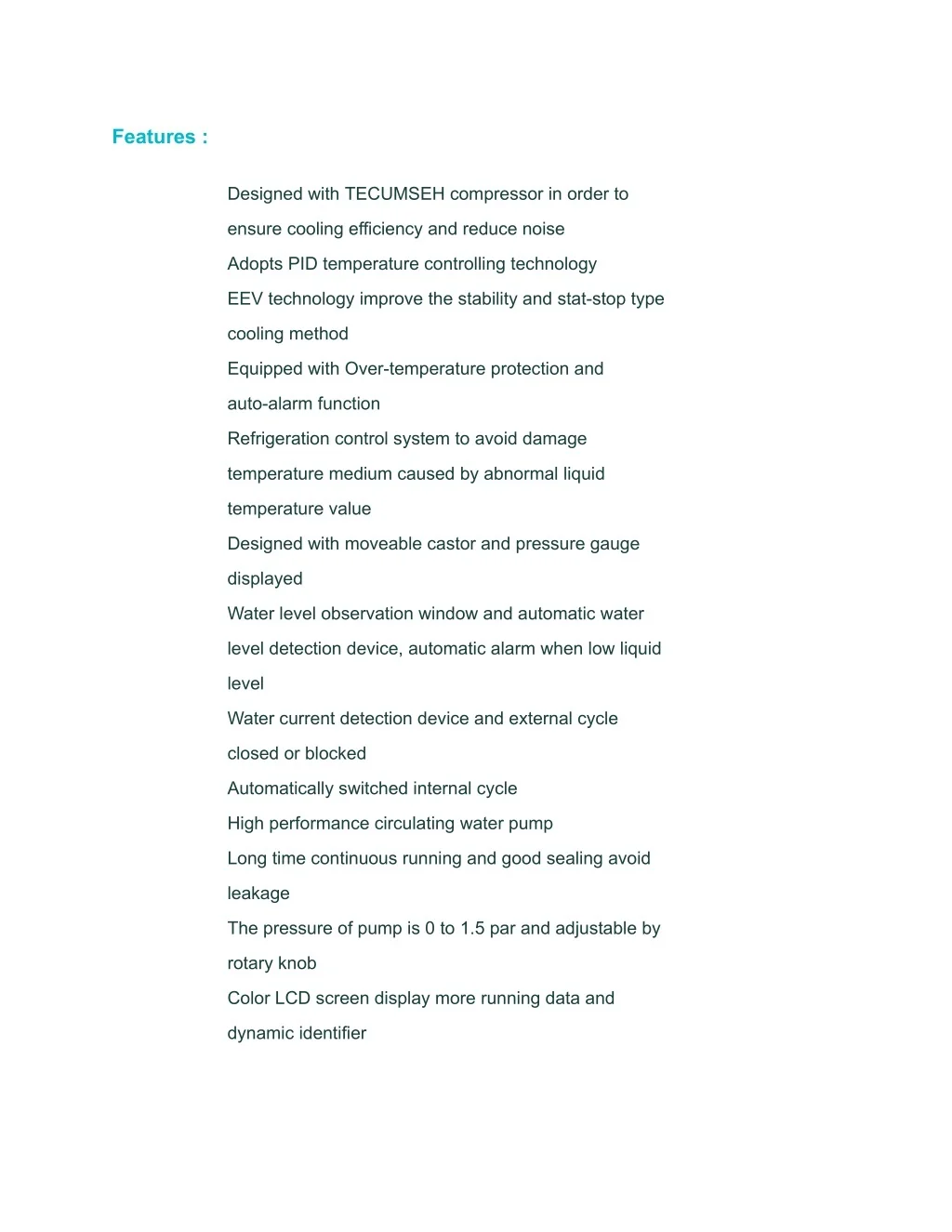

  3. Features : Designed with TECUMSEH compressor in order to ensure cooling efficiency and reduce noise Adopts PID temperature controlling technology EEV technology improve the stability and stat-stop type cooling method Equipped with Over-temperature protection and auto-alarm function Refrigeration control system to avoid damage temperature medium caused by abnormal liquid temperature value Designed with moveable castor and pressure gauge displayed Water level observation window and automatic water level detection device, automatic alarm when low liquid level Water current detection device and external cycle closed or blocked Automatically switched internal cycle High performance circulating water pump Long time continuous running and good sealing avoid leakage The pressure of pump is 0 to 1.5 par and adjustable by rotary knob Color LCD screen display more running data and dynamic identifier

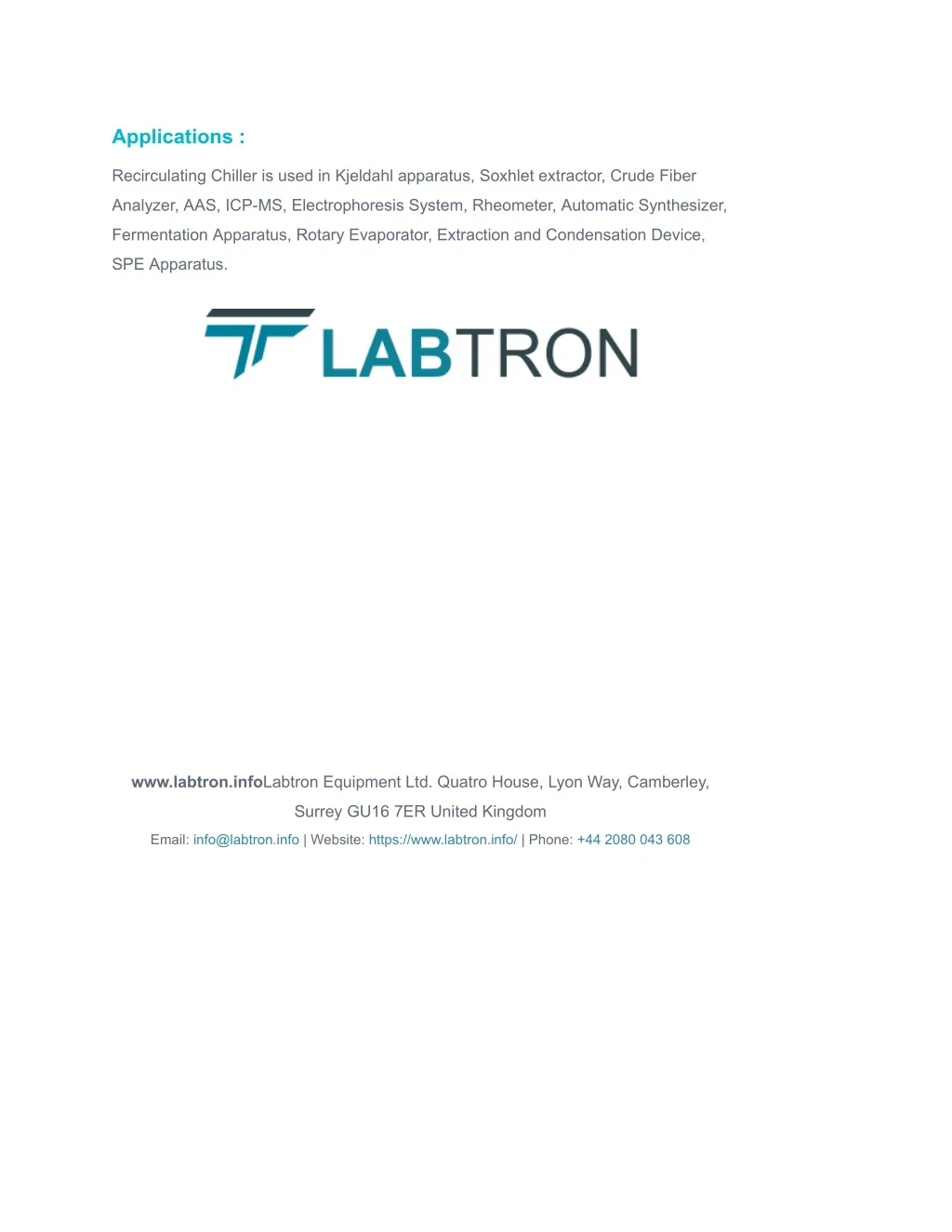

  4. Applications : Recirculating Chiller is used in Kjeldahl apparatus, Soxhlet extractor, Crude Fiber Analyzer, AAS, ICP-MS, Electrophoresis System, Rheometer, Automatic Synthesizer, Fermentation Apparatus, Rotary Evaporator, Extraction and Condensation Device, SPE Apparatus. www.labtron.infoLabtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
