V-shell Blender

DESCRIPTION

V-shell Blender is a V cone blender with a production rate of 15 kg at a time at a cylinder speed of 12 rpm. Features a mixing cylinder <br>with high even mixing effects with no dead angle. Deigned for intensive mixing action with a rotation height of 1000 mm and mixing time <br>of 3 to 10 mins.<br>

Télécharger la présentation

V-shell Blender

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

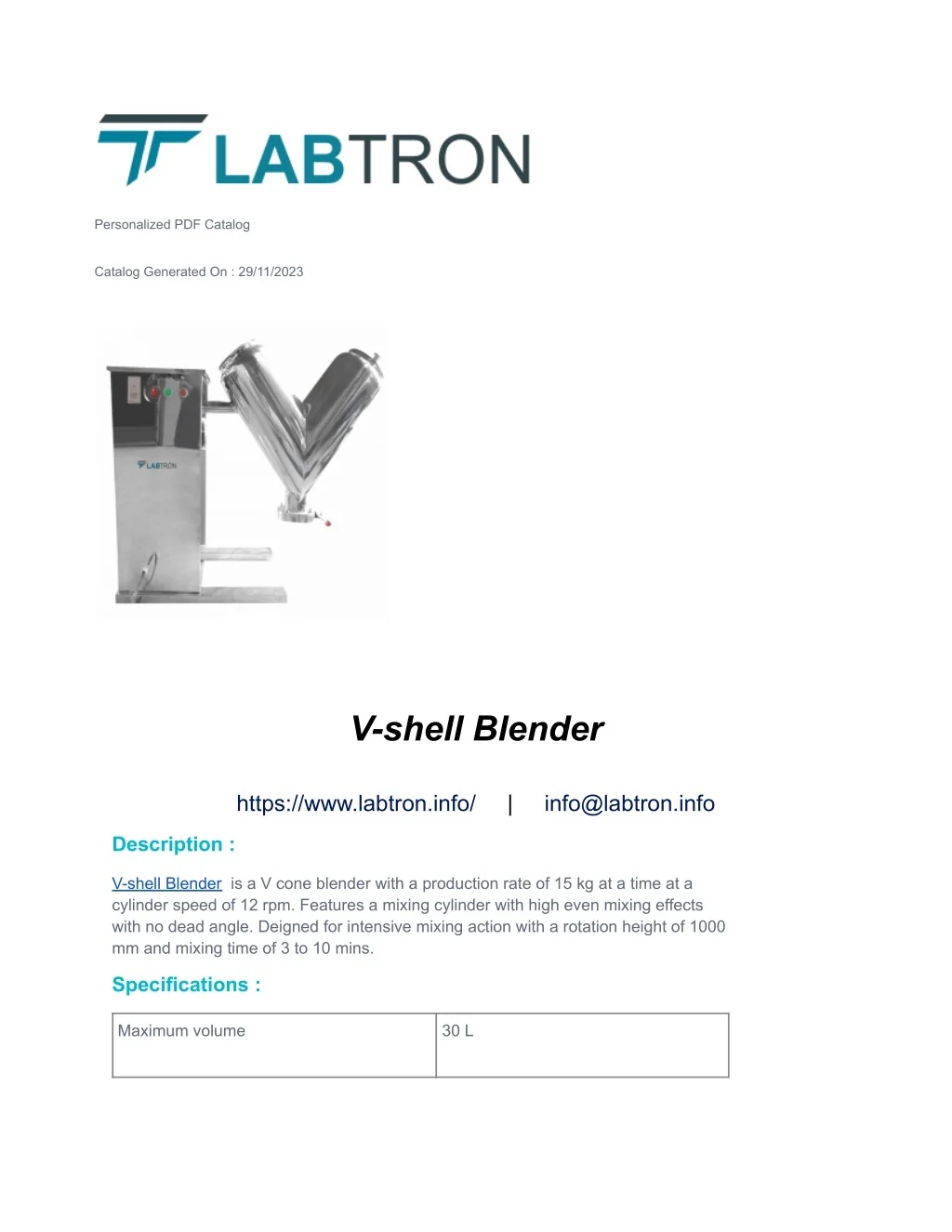

  1. Personalized PDF Catalog Catalog Generated On : 29/11/2023 V-shell Blender https://www.labtron.info/ | info@labtron.info Description : V-shell Blender is a V cone blender with a production rate of 15 kg at a time at a cylinder speed of 12 rpm. Features a mixing cylinder with high even mixing effects with no dead angle. Deigned for intensive mixing action with a rotation height of 1000 mm and mixing time of 3 to 10 mins. Specifications : Maximum volume 30 L

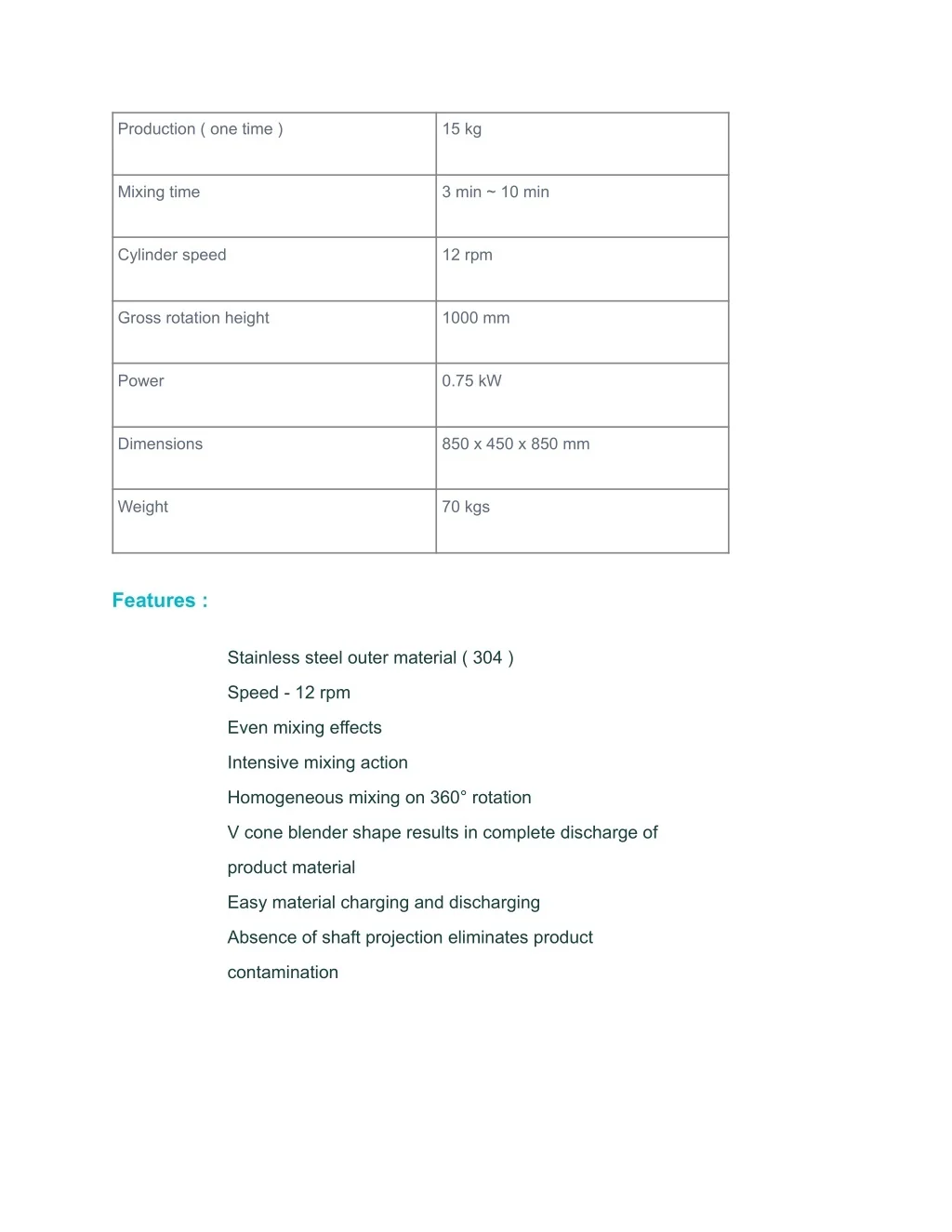

  2. Production ( one time ) 15 kg Mixing time 3 min ~ 10 min Cylinder speed 12 rpm Gross rotation height 1000 mm Power 0.75 kW Dimensions 850 x 450 x 850 mm Weight 70 kgs Features : Stainless steel outer material ( 304 ) Speed - 12 rpm Even mixing effects Intensive mixing action Homogeneous mixing on 360° rotation V cone blender shape results in complete discharge of product material Easy material charging and discharging Absence of shaft projection eliminates product contamination

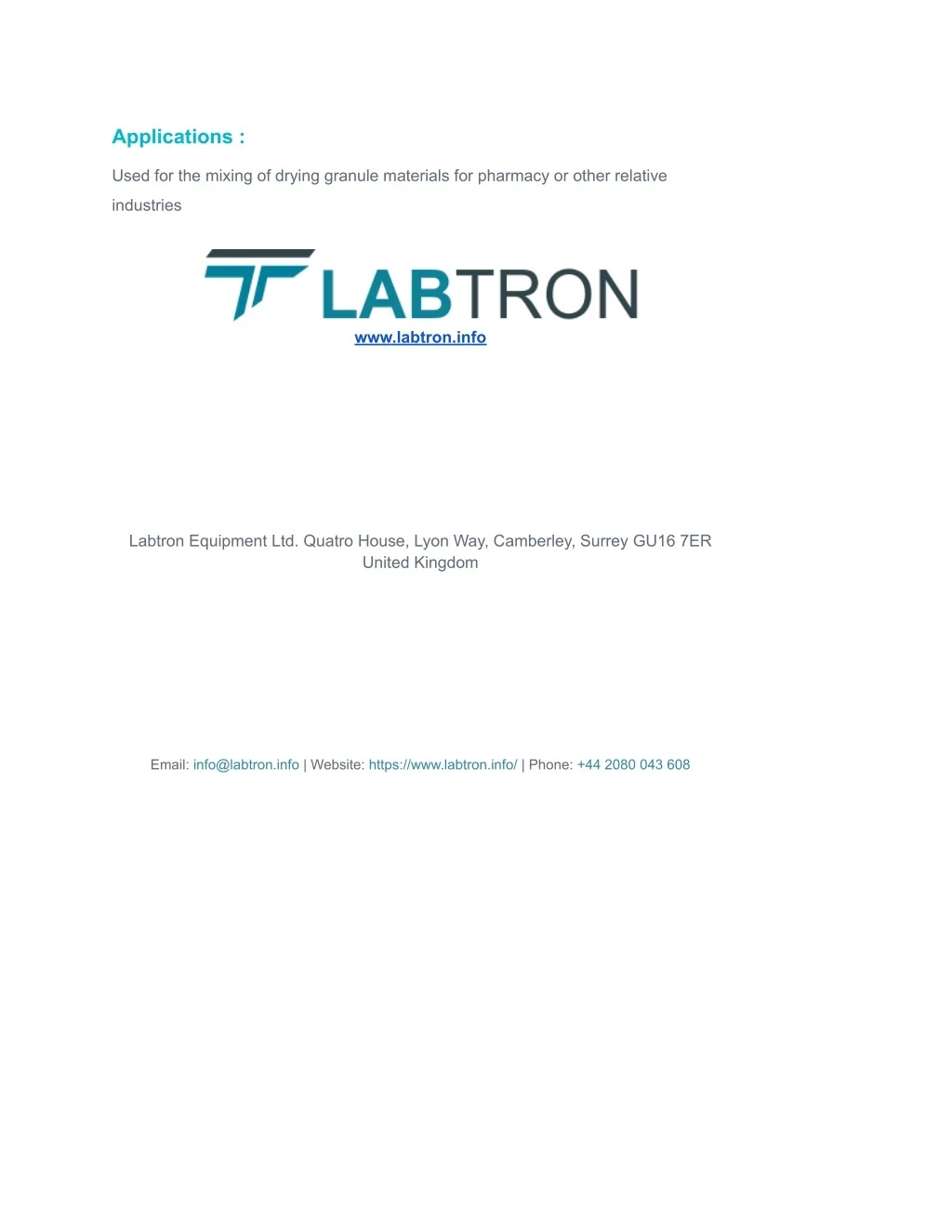

  3. Applications : Used for the mixing of drying granule materials for pharmacy or other relative industries www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
