  1. RMI and JDBC • Some Database terminology • Connecting a remote object to a database • Gary Alperson helped developed these slides and the • JDBC/RMI example.

  2. Database Terminology • Database: A shared collection of logically related data (and a description of this data) designed to meet the information needs of an organization • Relation: A table with columns and rows • Attribute: A named column of a relation • Tuple: A row in a relation Definitions from Database Systems by Connolly, Begg, and Strachan

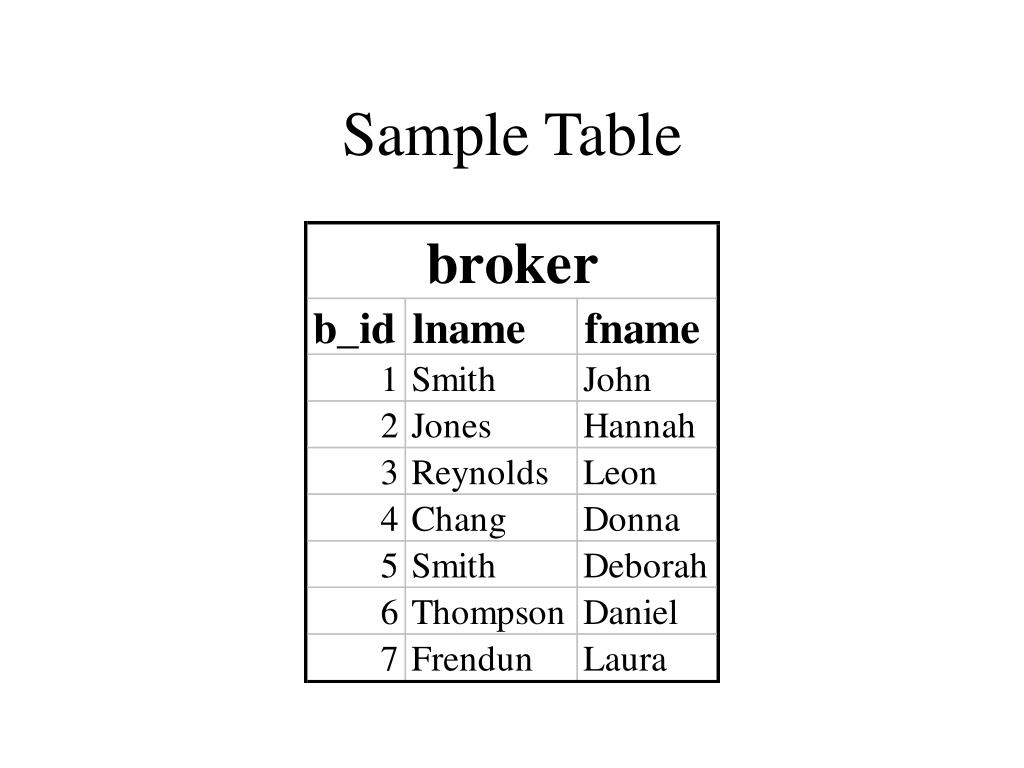

  3. Sample Table

  4. Attribute

  5. Tuple

  6. SQL • Data Definition Language (DDL) • Create tables • Modify tables • Delete (drop) tables • Data Manipulation Language (DML) • Insert data • Update data • Select data

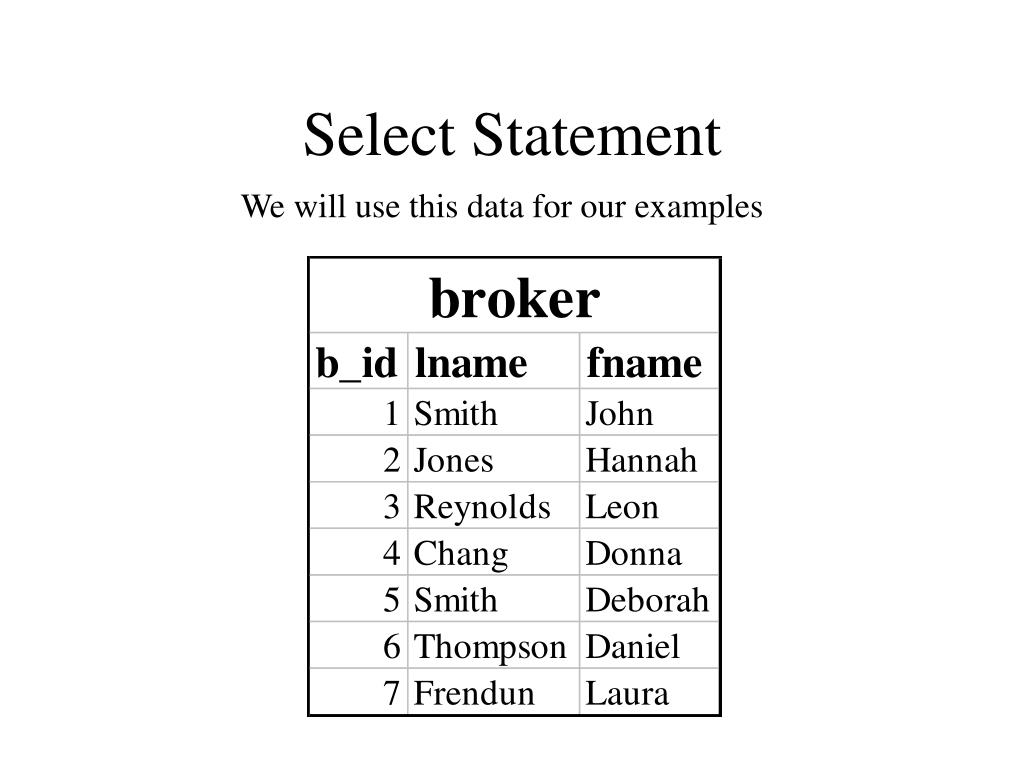

  7. Select Statement We will use this data for our examples

  8. From the broker table, select the contents of the last name attribute Query SELECT lname FROM broker; Results SQL is not case sensitive. Key SQL words are capitalized and line breaks are inserted by convention.

  9. From the broker table, select all attributes Query SELECT * FROM broker; Results * Acts as a wildcard

  10. From the broker table, select all attributes where the last name is Smith Query SELECT * FROM broker WHERE lname = ‘Smith’; Results • Note that the string is enclosed by single quotes • The contents of a string are case sensitive

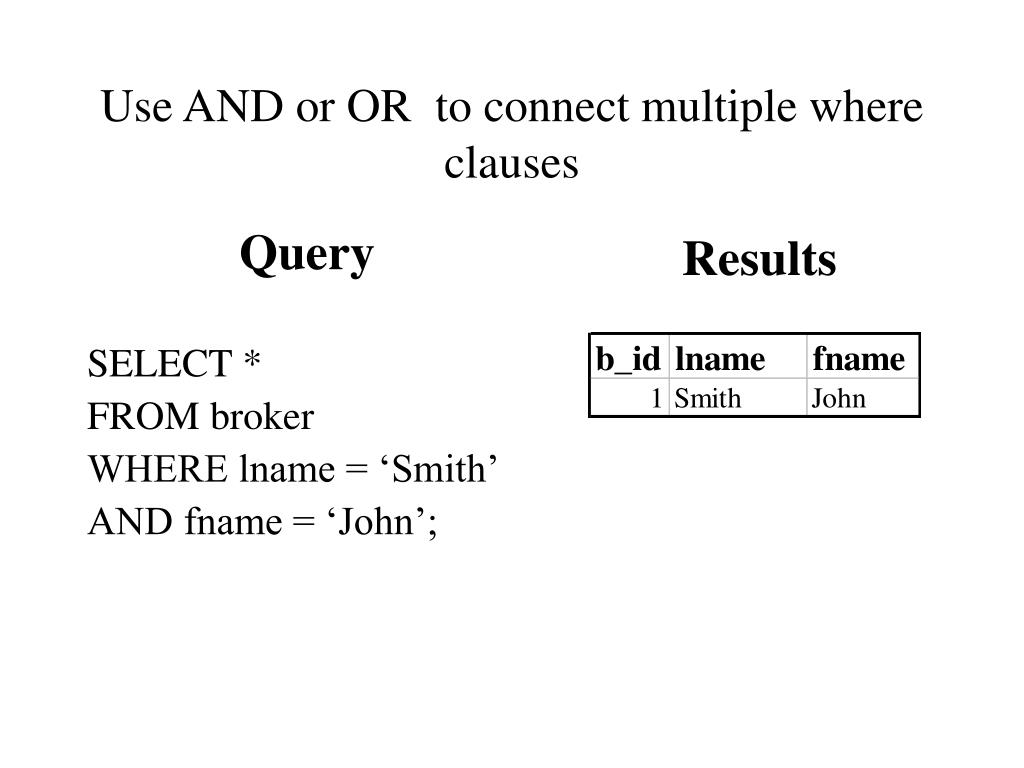

  11. Use AND or OR to connect multiple where clauses Query SELECT * FROM broker WHERE lname = ‘Smith’ AND fname = ‘John’; Results

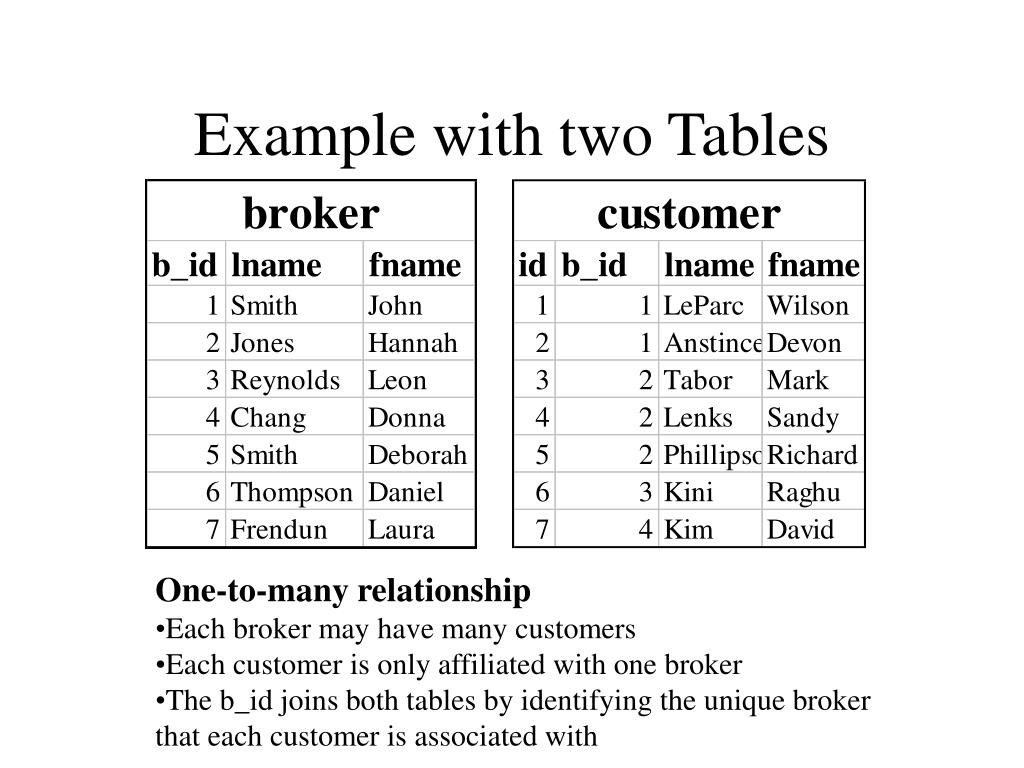

  12. Example with two Tables • One-to-many relationship • Each broker may have many customers • Each customer is only affiliated with one broker • The b_id joins both tables by identifying the unique broker that each customer is associated with

  13. Cartesian Product When you do a query on multiple tables, SQL begins by creating the Cartesian product, which combines each tuple from one relation from every tuple of the other relation. (Actual SQL implementations are free to compute the resulting table efficiently,i.e., the actual Cartesian product may not be generated at all.)

  14. Query SELECT * FROM customer, broker WHERE broker.b_id = 1; Results SQL does not realize that the b_id in the customer table is the same as the b_id in the broker table unless you join them in the where clause.

  15. Cartesian Product Query SELECT * FROM customer, broker WHERE broker.b_id = 1 AND broker.b_id = customer.b_id; Results

  16. ODBC ODBC is a programming interface that enables applications to access data in database systems that use Structured Query Language (SQL) as a data standard.

  17. Creating an ODBC Connection • Click on the Start button. • Choose Settings, Control Panel • Double-click on ODBC Data Sources • Choose the System DSN tab • Click Add

  18. Click on the desired driver (MSAccess) • Click on the Finish button

  19. Enter a Data Source Name • Click on the Select button • Locate the desired file or directory • Click OK

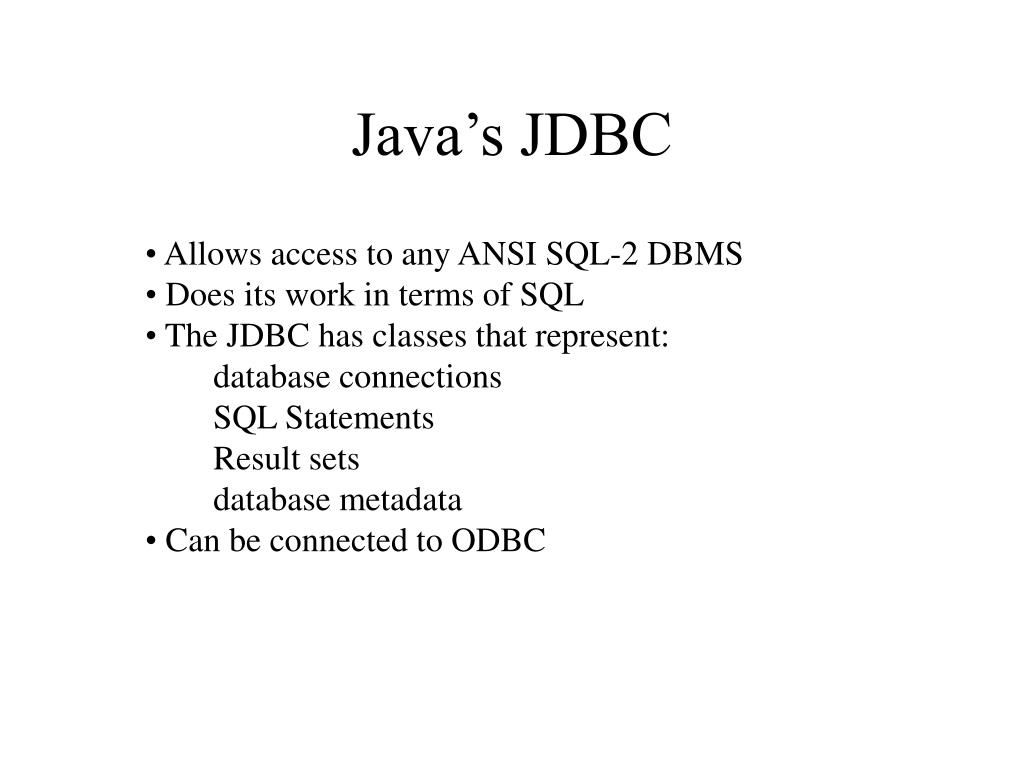

  20. Java’s JDBC • Allows access to any ANSI SQL-2 DBMS • Does its work in terms of SQL • The JDBC has classes that represent: • database connections • SQL Statements • Result sets • database metadata • Can be connected to ODBC

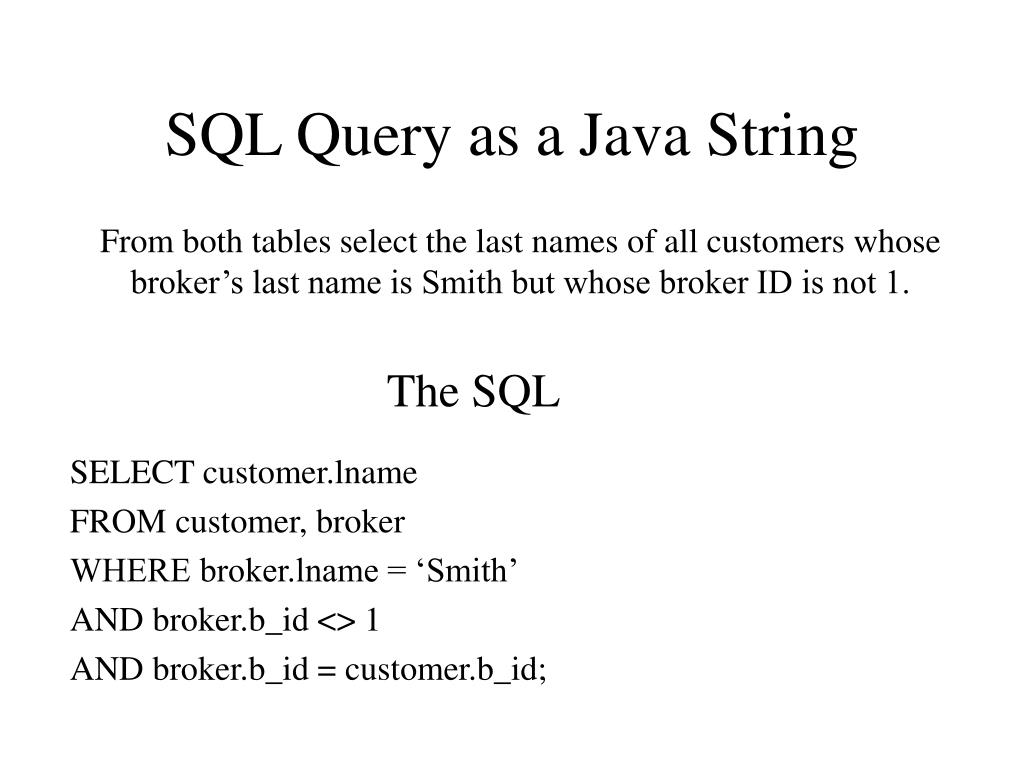

  21. SQL Query as a Java String From both tables select the last names of all customers whose broker’s last name is Smith but whose broker ID is not 1. The SQL SELECT customer.lname FROM customer, broker WHERE broker.lname = ‘Smith’ AND broker.b_id <> 1 AND broker.b_id = customer.b_id;

  22. Executing a query in Java // Statement aStatement = statement got from connection String last = “Smith”; int nonID = 1; String q = “SELECT customer.lname FROM customer, broker” + “WHERE broker.lname = \’” + last + “\’ AND broker.b_id” + “<>” + nonID + “AND broker.b_id = customer.b_id;”); ResultSet rs = aStatement.executeQuery(q); • The slash (\) is the escape character. It precedes the single quote to tell Java to include that quote in the String • The String last is outside of the double quotes, because it must be concatonated with the String sent to the database, but it falls within the single quotes so that SQL treats it as a string • nonID does not go within single quotes since it is numeric • Since the String is an SQL statement, it uses = and <> rather than == and !=

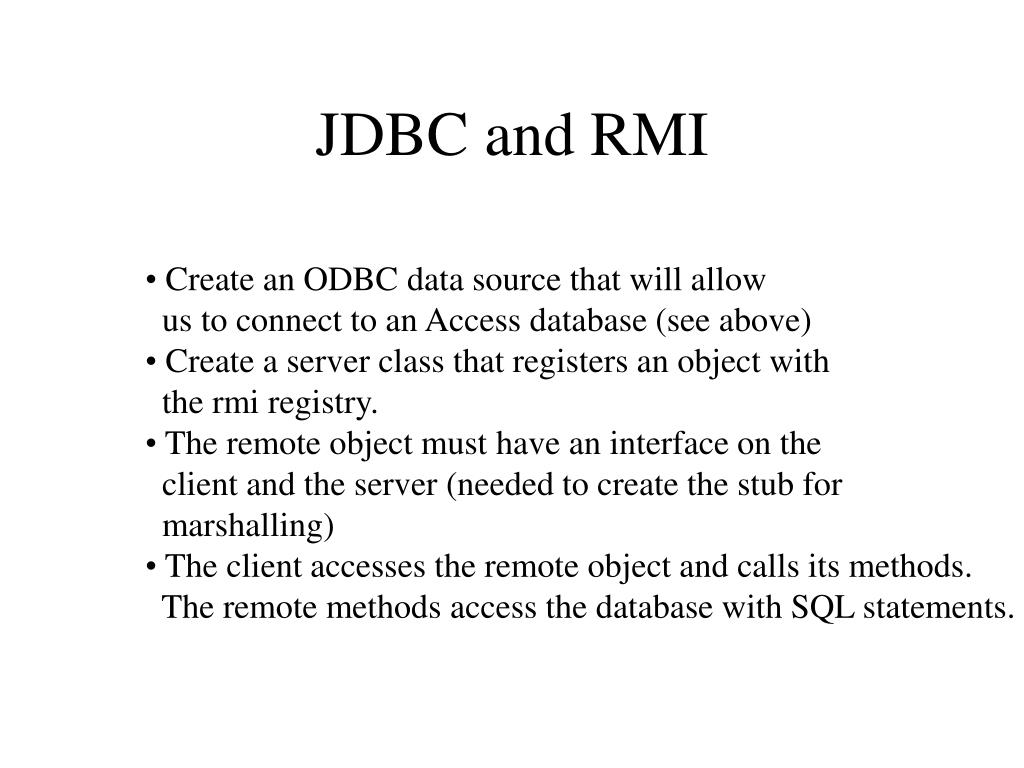

  23. JDBC and RMI • Create an ODBC data source that will allow • us to connect to an Access database (see above) • Create a server class that registers an object with • the rmi registry. • The remote object must have an interface on the • client and the server (needed to create the stub for • marshalling) • The client accesses the remote object and calls its methods. • The remote methods access the database with SQL statements.

  24. // On the server side DBServer.java import java.rmi.Naming; public class DBServer { public DBServer() { try { StockDB rc = new StockDBImpl(); Naming.rebind("stocks", rc); } catch(Exception e) { System.out.println("Trouble: " + e); } } public static void main(String args[]) { new DBServer(); System.out.println("Server Active"); } } Remote object Register With rmi registry

  25. Provide an interface for the client and the server // On the client and the server StockDB.java //This is the interface to the remote object SockDBImpl import java.sql.*; public interface StockDB extends java.rmi.Remote { public String getCustomers() throws java.rmi.RemoteException; public String getStocks() throws java.rmi.RemoteException; public String getPortfolio() throws java.rmi.RemoteException; }

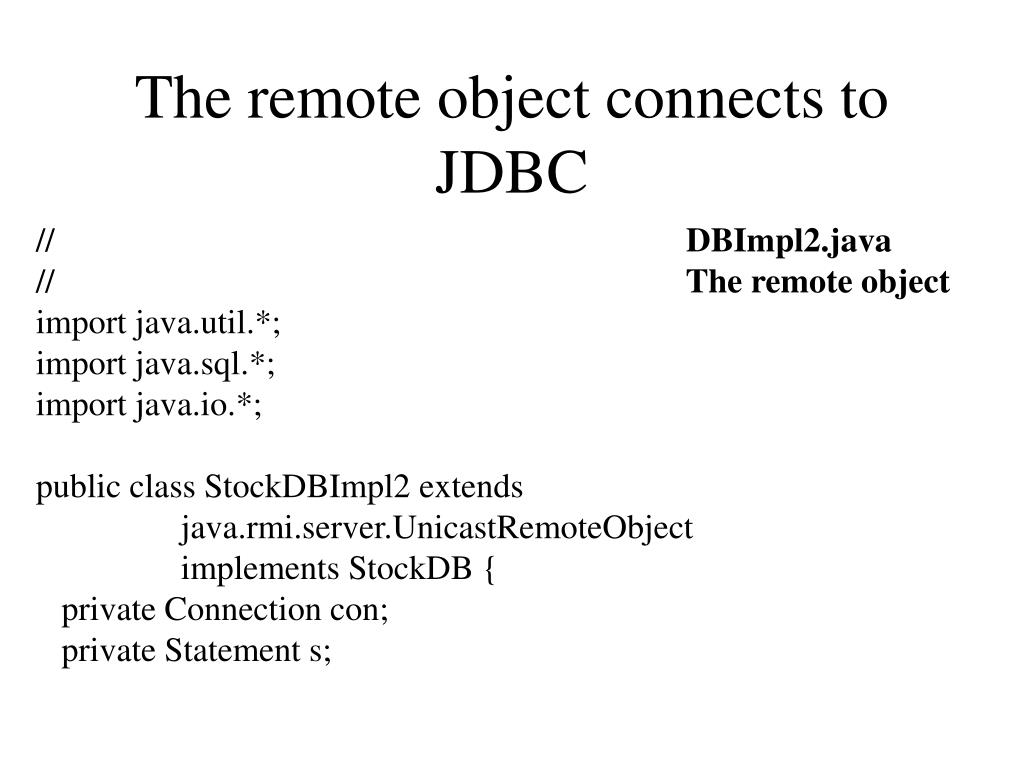

  26. The remote object connects to JDBC // DBImpl2.java // The remote object import java.util.*; import java.sql.*; import java.io.*; public class StockDBImpl2 extends java.rmi.server.UnicastRemoteObject implements StockDB { private Connection con; private Statement s;

  27. //The constructor runs the inherited constructor public StockDBImpl2() throws java.rmi.RemoteException { super(); } // This private method is called to connect to the database. private void connectToDB() throws SQLException { DriverManager.registerDriver(new sun.jdbc.odbc.JdbcOdbcDriver()); con = DriverManager.getConnection("jdbc:odbc:stocks"); } // This private method is called to disconnect from the database. private void disconnectFromDB() throws SQLException{ con.close(); }

  28. private String getXML(ResultSet rs, ResultSetMetaData rsm) throws SQLException { // Currently, this method only returns a non-xml String // representing the rows of the result set String answer; answer = ""; while(rs.next()) { for(int col = 1; col <= rsm.getColumnCount(); col++) { answer += rs.getString(col); } } return answer; }

  29. public String getCustomers() throws java.rmi.RemoteException { try { connectToDB(); Statement s = con.createStatement(); ResultSet rs; ResultSetMetaData rsm; rs = s.executeQuery("select * from customer"); rsm = rs.getMetaData(); String answer = getXML(rs,rsm); rs.close(); s.close(); disconnectFromDB(); return answer; } catch(SQLException sq) { System.out.println("SQLException: "+sq); } return null; }

  30. public String getStocks() throws java.rmi.RemoteException { return null; } public String getPortfolio() throws java.rmi.RemoteException { return null; } }

  31. The client makes requests on the remote object // StockDBClient.java import java.io.*; import java.rmi.*; import java.net.*; import java.sql.*; public class StockDBClient {

  32. public static StockDB stockDataBase; public static void main(String[] args) { try { stockDataBase = (StockDB)Naming.lookup( "rmi://mccarthy.heinz.cmu.edu/stocks"); String xml = stockDataBase.getCustomers(); System.out.println(xml); xml = stockDataBase.getPortfolio(); System.out.println(xml); xml = stockDataBase.getStocks(); System.out.println(xml); }

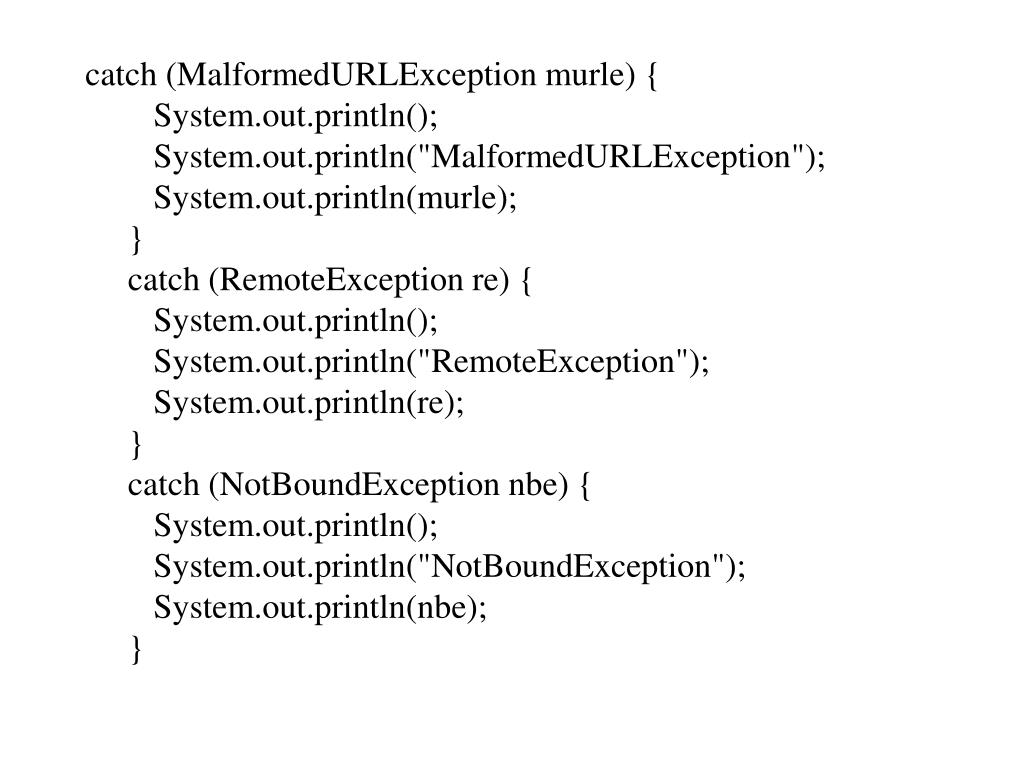

  33. catch (MalformedURLException murle) { System.out.println(); System.out.println("MalformedURLException"); System.out.println(murle); } catch (RemoteException re) { System.out.println(); System.out.println("RemoteException"); System.out.println(re); } catch (NotBoundException nbe) { System.out.println(); System.out.println("NotBoundException"); System.out.println(nbe); }

  34. catch (java.lang.ArithmeticException ae) { System.out.println(); System.out.println("ArithmeticException"); System.out.println(ae); } catch(IOException e) { System.out.println(); System.out.println("IOException"); System.out.println(e); } } }

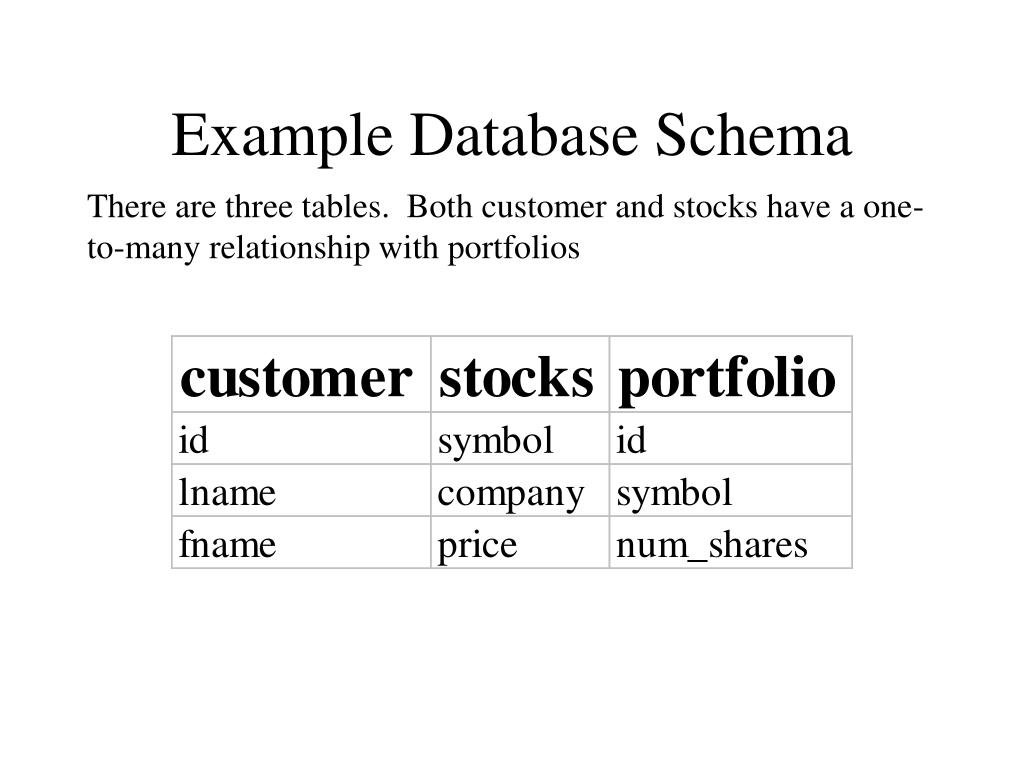

  35. Example Database Schema There are three tables. Both customer and stocks have a one-to-many relationship with portfolios

  36. Customer ---------------------------------------------------------------- | id | lname | fname | ---------------------------------------------------------------- | 1 | Jones | Robert | ---------------------------------------------------------------- | 2 | Smith | Elaine | ---------------------------------------------------------------- | 3 | Chan | Jane | ---------------------------------------------------------------- | 4 | Morales | Hector | ---------------------------------------------------------------- | 5 | Schwartz | Michael | ----------------------------------------------------------------

  37. Stocks ---------------------------------------------------------- | symbol | company | price | --------------------------------------------------------- | COMS | 3Com Corporation | 12.9375 | --------------------------------------------------------------------- | IBM | International Business Machines | 96.625 | --------------------------------------------------------------------- | INTC | Intel Corporation | 34.125 | --------------------------------------------------------------------- | ORCL | Oracle Corporation | 26.4375 | --------------------------------------------------------------------- | SE | 7Eleven Inc. | 8.0625 | ---------------------------------------------------------------------

  38. Portfolio ---------------------------------------------------------------- | id | symbol | num_shares | ---------------------------------------------------------------- | 1 | COMS | 1250 | ---------------------------------------------------------------- | 1 | INTC | 300 | ---------------------------------------------------------------- | 1 | ORCL | 450 | ---------------------------------------------------------------- | 2 | COMS | 750 | ---------------------------------------------------------------- | 2 | IBM | 900 |

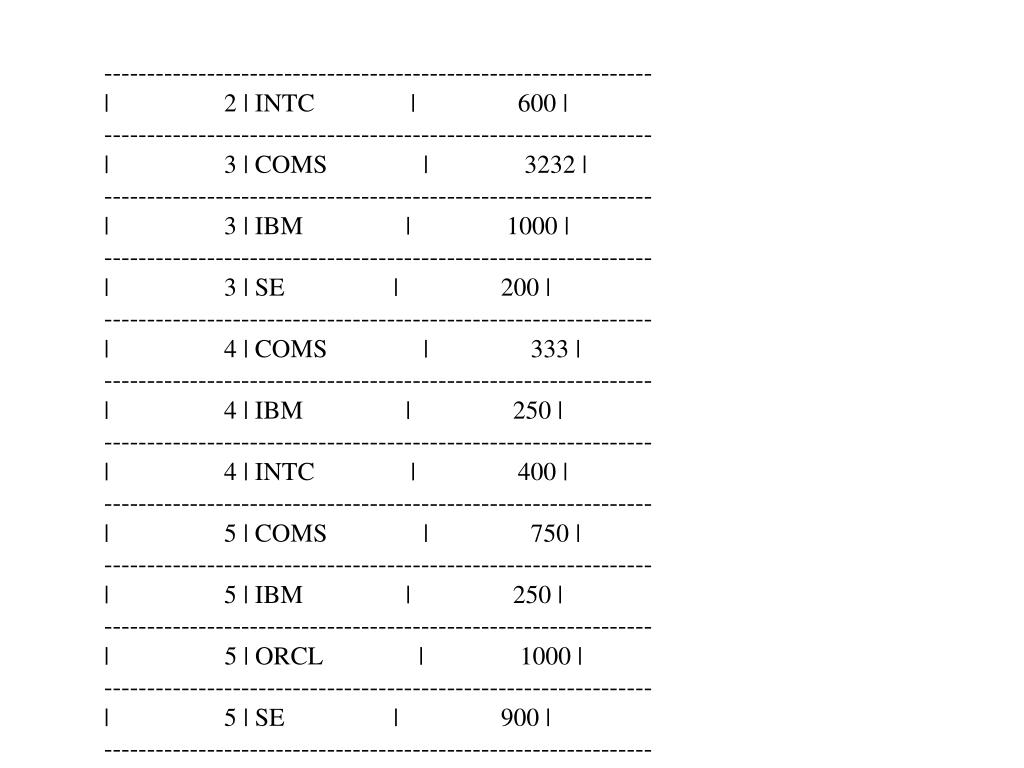

  39. -------------------------------------------------------------------------------------------------------------------------------- | 2 | INTC | 600 | ---------------------------------------------------------------- | 3 | COMS | 3232 | ---------------------------------------------------------------- | 3 | IBM | 1000 | ---------------------------------------------------------------- | 3 | SE | 200 | ---------------------------------------------------------------- | 4 | COMS | 333 | ---------------------------------------------------------------- | 4 | IBM | 250 | ---------------------------------------------------------------- | 4 | INTC | 400 | ---------------------------------------------------------------- | 5 | COMS | 750 | ---------------------------------------------------------------- | 5 | IBM | 250 | ---------------------------------------------------------------- | 5 | ORCL | 1000 | ---------------------------------------------------------------- | 5 | SE | 900 | ----------------------------------------------------------------
