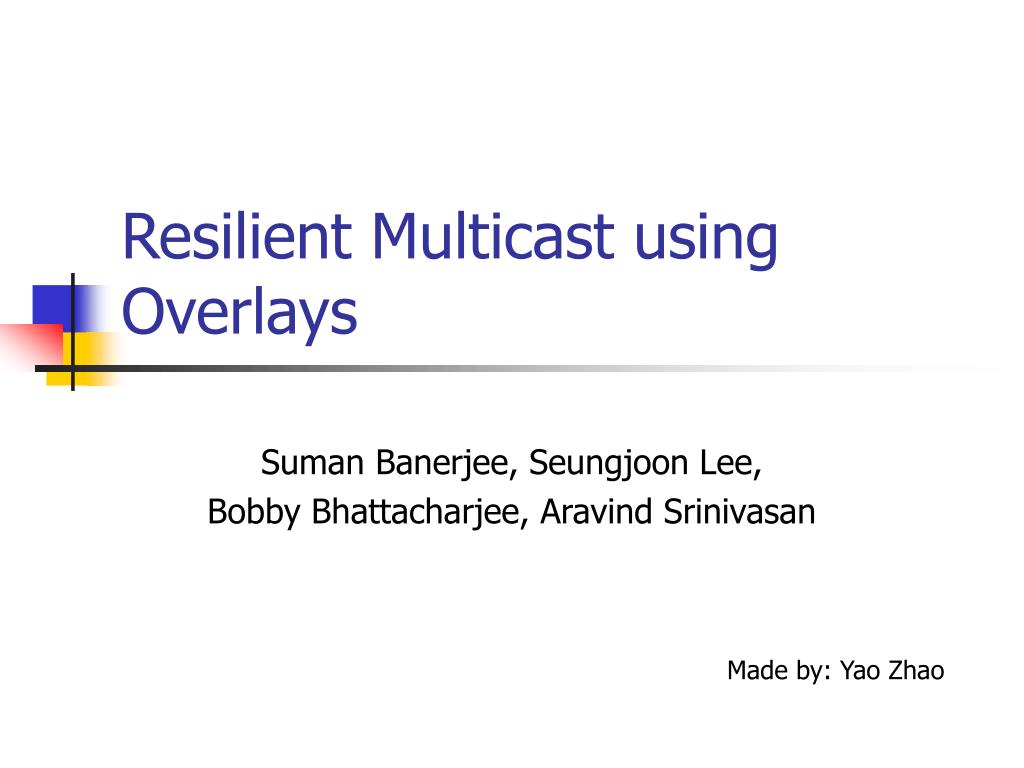

  1. Resilient Multicast using Overlays Suman Banerjee, Seungjoon Lee, Bobby Bhattacharjee, Aravind Srinivasan Made by: Yao Zhao

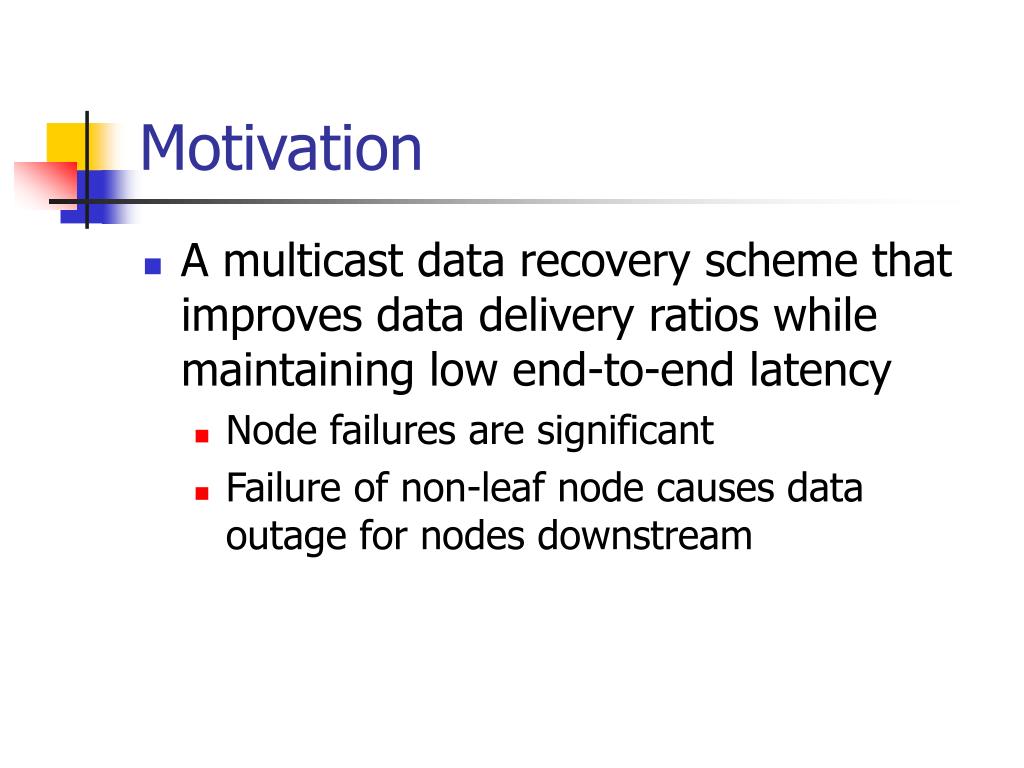

  2. Motivation • A multicast data recovery scheme that improves data delivery ratios while maintaining low end-to-end latency • Node failures are significant • Failure of non-leaf node causes data outage for nodes downstream

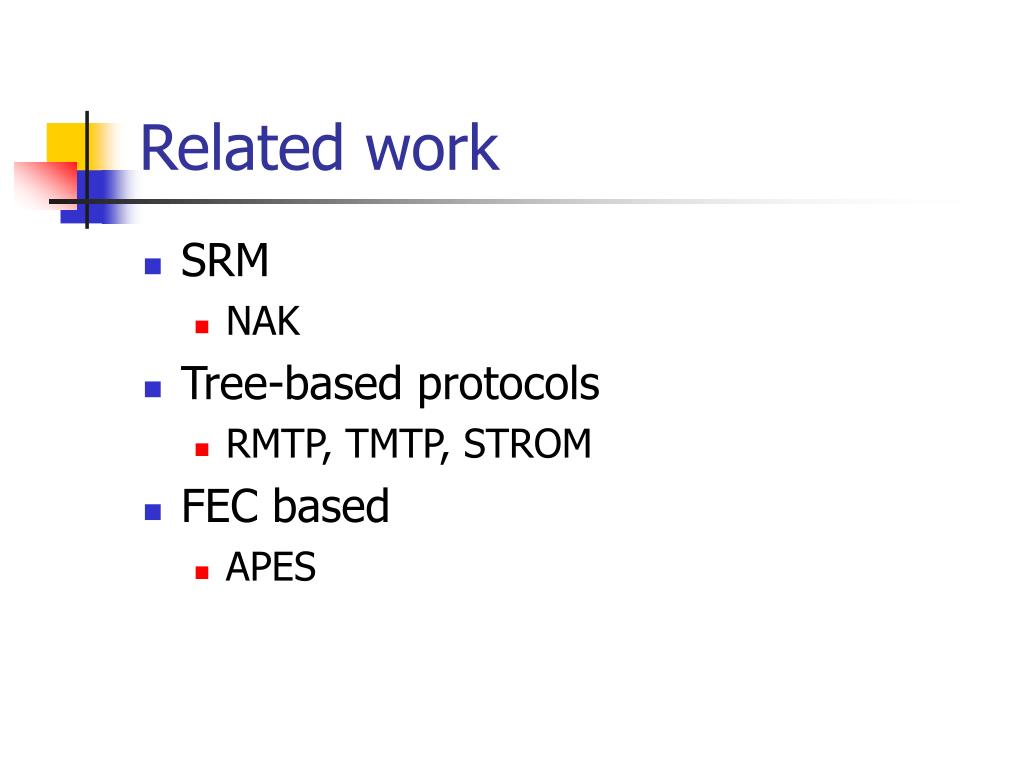

  3. Related work • SRM • NAK • Tree-based protocols • RMTP, TMTP, STROM • FEC based • APES

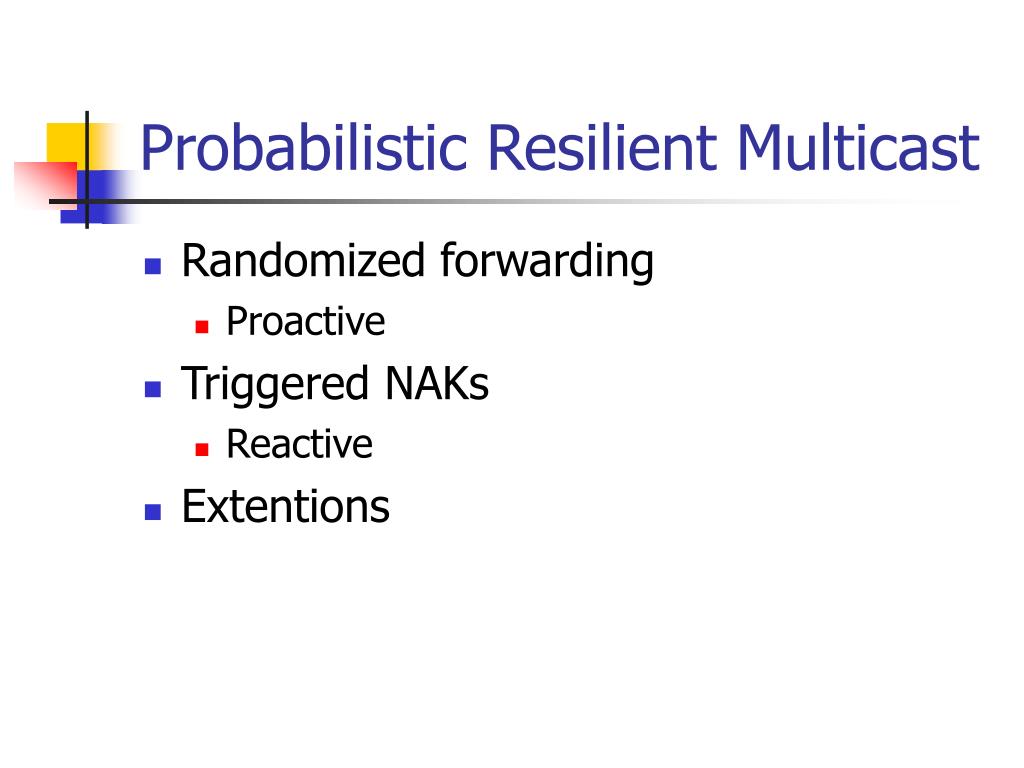

  4. Probabilistic Resilient Multicast • Randomized forwarding • Proactive • Triggered NAKs • Reactive • Extentions

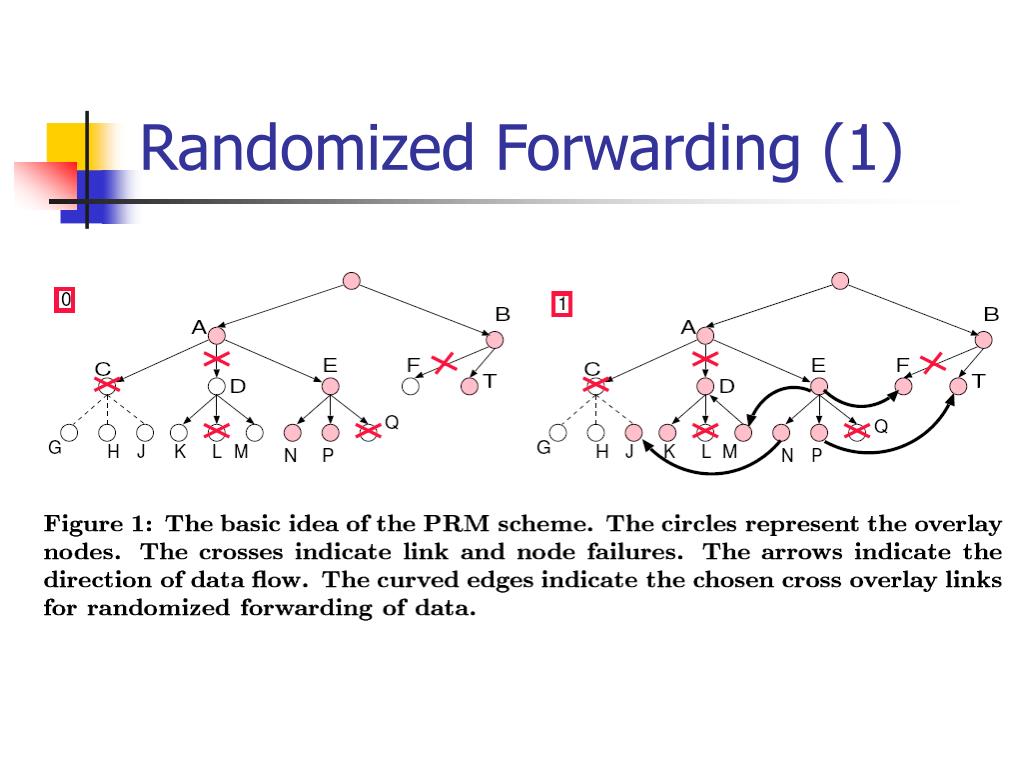

  5. Randomized Forwarding (1)

  6. Randomized Forwarding (2) • Each node randomly select small number (r) of other overlay nodes and forward data to them with a small probability β. • Overhead: rβduplicated data • Extensions • Loss correlation

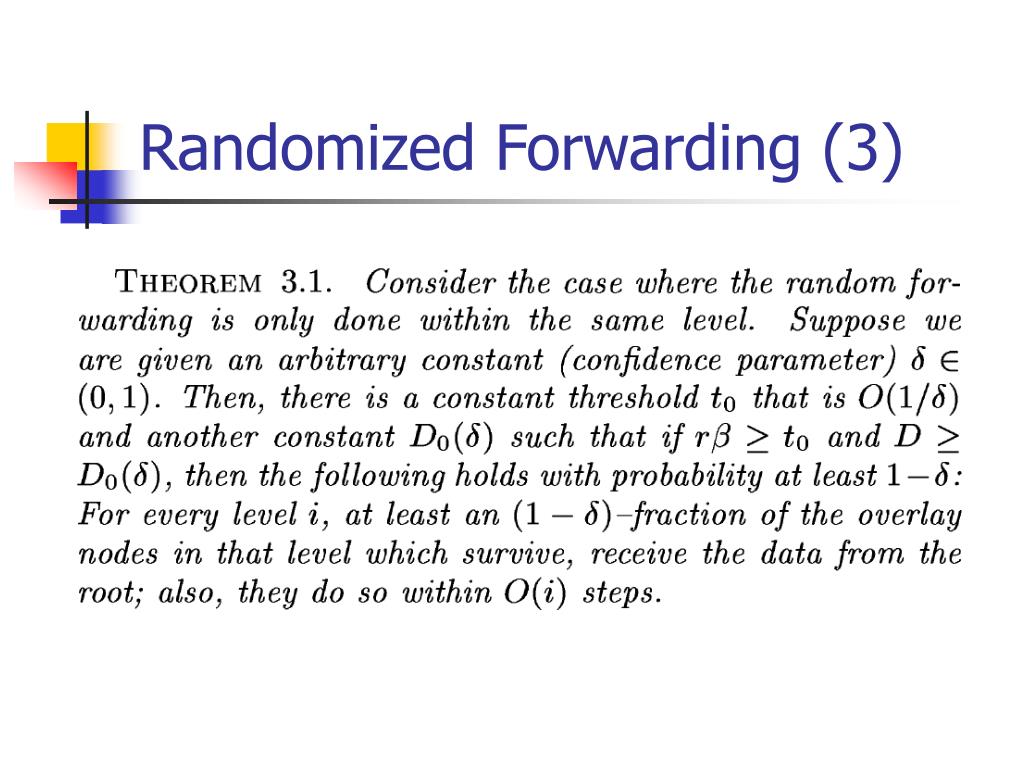

  7. Randomized Forwarding (3)

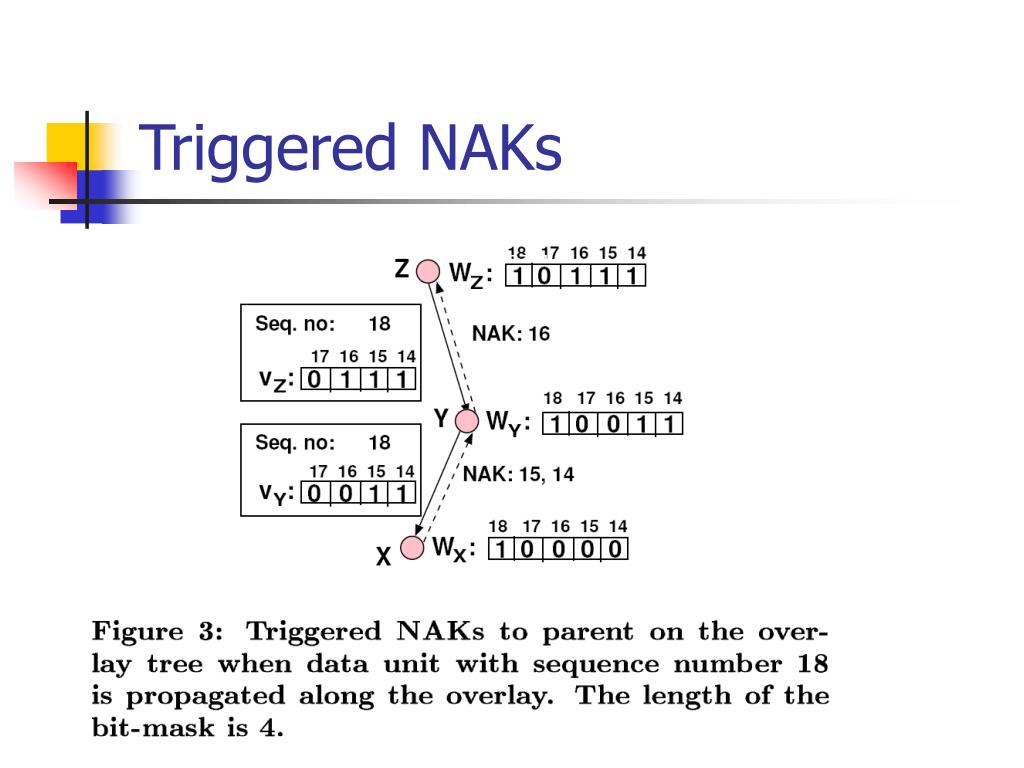

  8. Triggered NAKs

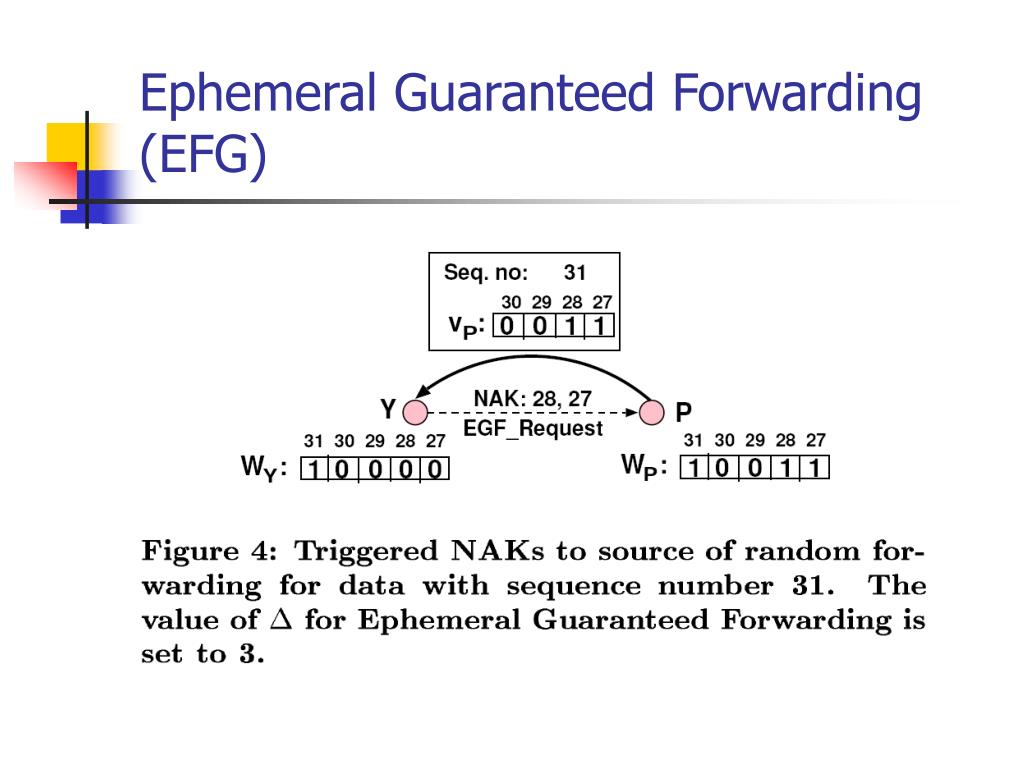

  9. Ephemeral Guaranteed Forwarding (EFG)
