Presentation Transcript

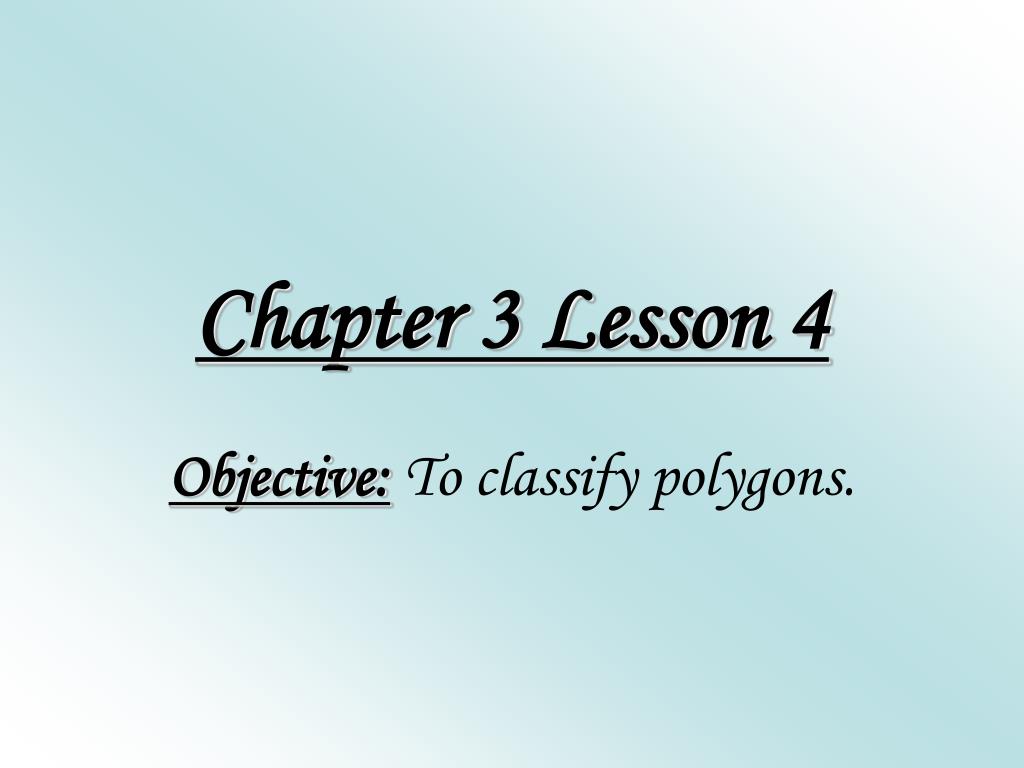

  1. Chapter 3 Lesson 4 Objective: To classify polygons.

  2. Polygon: a closed plane figure with at least three sides that are segments. The sides intersect only at their endpoints, and no adjacent sides are collinear. B B B A A A C C C D E D E D E Not a polygon; two sides intersect between endpoints Not a polygon; not a closed figure A polygon

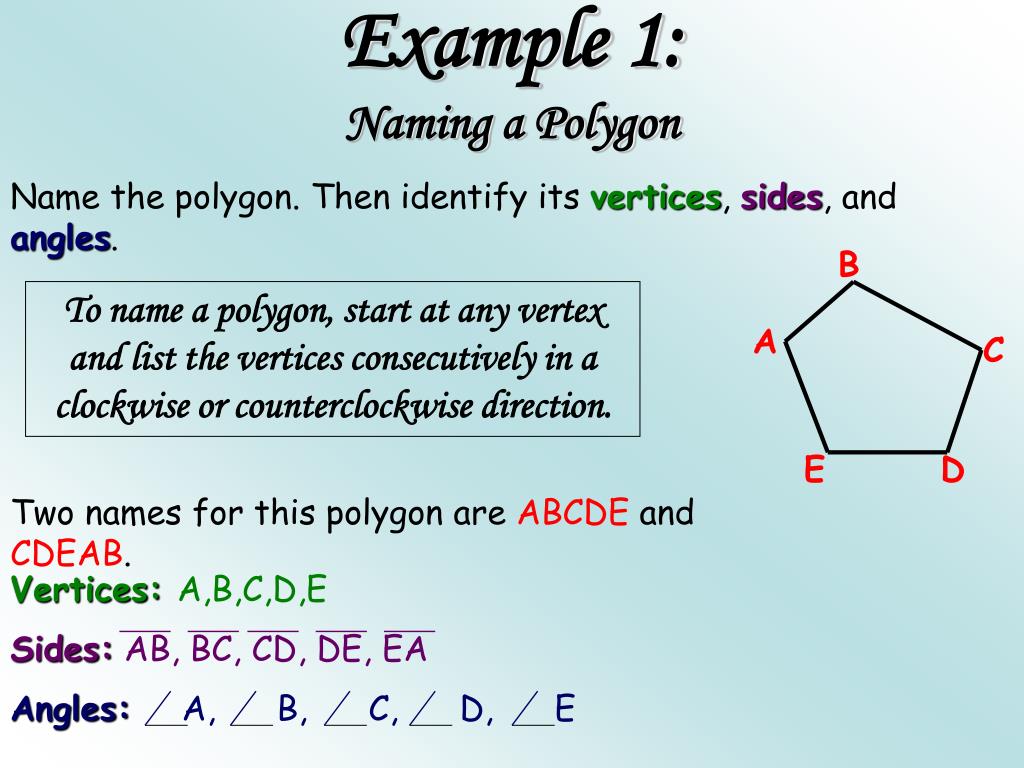

  3. B A C E D Example 1:Naming a Polygon Name the polygon. Then identify its vertices, sides, and angles. To name a polygon, start at any vertex and list the vertices consecutively in a clockwise or counterclockwise direction. Two names for this polygon are ABCDE and CDEAB. Vertices: A,B,C,D,E Sides: AB, BC, CD, DE, EA Angles: A, B, C, D, E

  4. Name: ABE Sides: AB, BE, EA Angles: A, B, E Name: BCDE Sides: BC, CD, DE, EB Angles: B, C, D, E Name: ABCDE Angles: A, B, C, D, E Sides: AB, BC, CD, CE, EA Example 2:Naming a Polygon Three polygons are pictured. Name each polygon, its sides and its angles. B C A D E

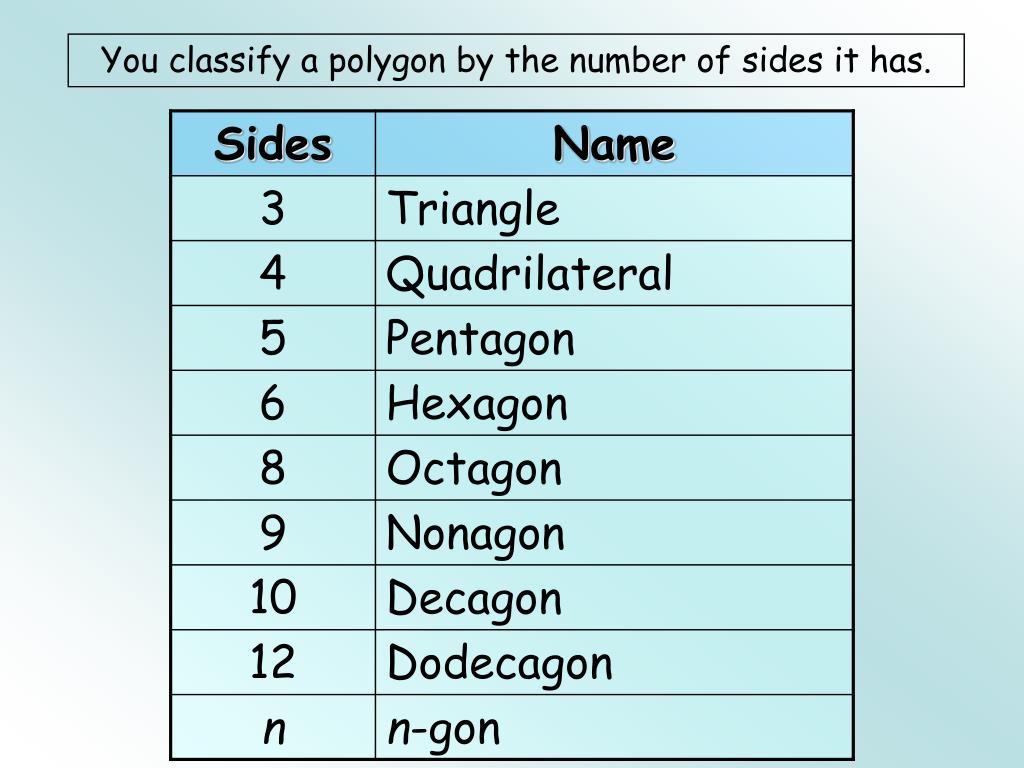

  5. You classify a polygon by the number of sides it has.

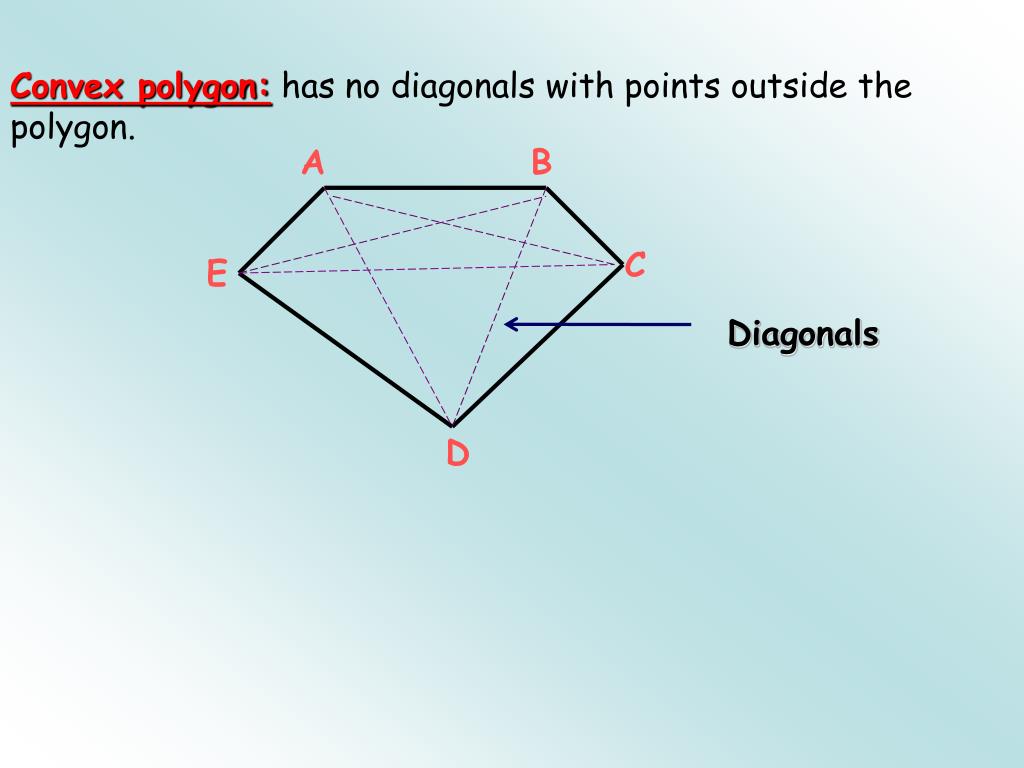

  6. Convex polygon:has no diagonals with points outside the polygon. A B C E Diagonals D

  7. Concave polygon:has at least one diagonal with points outside the polygon. C D B E F A G

  8. Example 3: Classify each polygon by its sides. Identify each as convex or concave. a. b. Hexagon; Convex Octagon; Concave

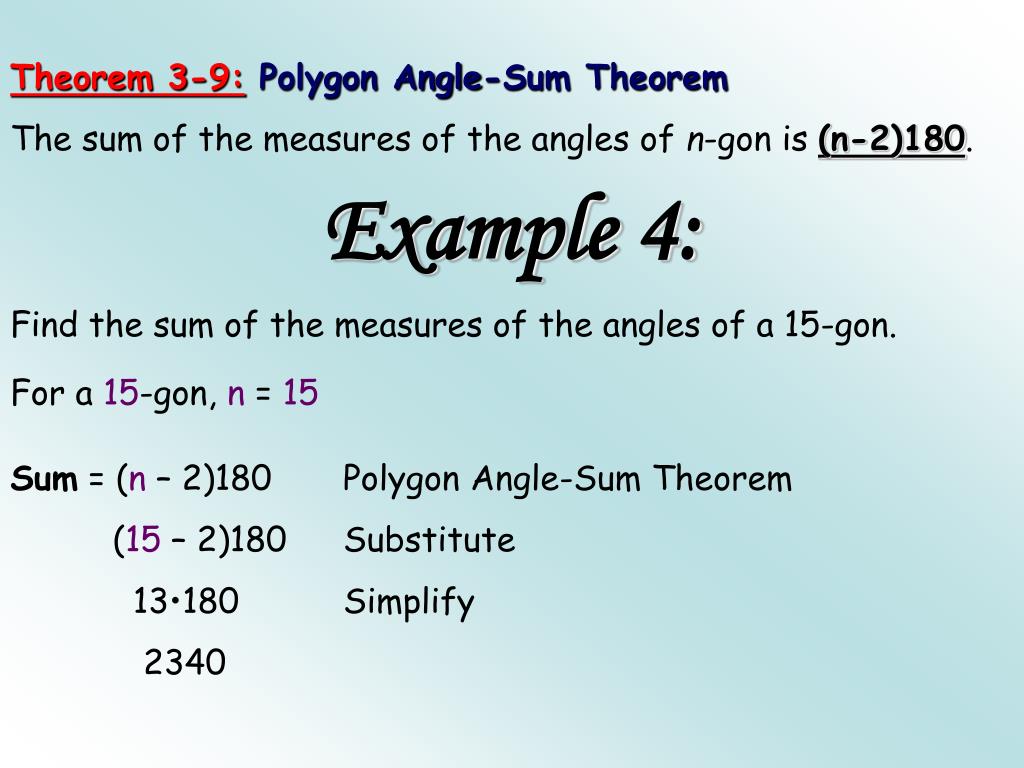

  9. Theorem 3-9:Polygon Angle-Sum Theorem The sum of the measures of the angles of n-gon is (n-2)180. Example 4: Find the sum of the measures of the angles of a 15-gon. For a 15-gon, n = 15 Sum = (n – 2)180 (15 – 2)180 13•180 2340 Polygon Angle-Sum Theorem Substitute Simplify

  10. Example 5:Finding a Polygon Angle Sum Find the sum of the measures of the angles of a decagon. Decagon = 10 (n-2)180 (10-2)180 8•180 1440

  11. 3 2 4 1 5 Theorem 3-10: Polygon Exterior Angle-Sum Theorem The sum of the measures of the exterior angles of a polygon, one at each vertex, is 360. For the pentagon, m 1 + m 2 + m 3 + m 4 + m 5 = 360.

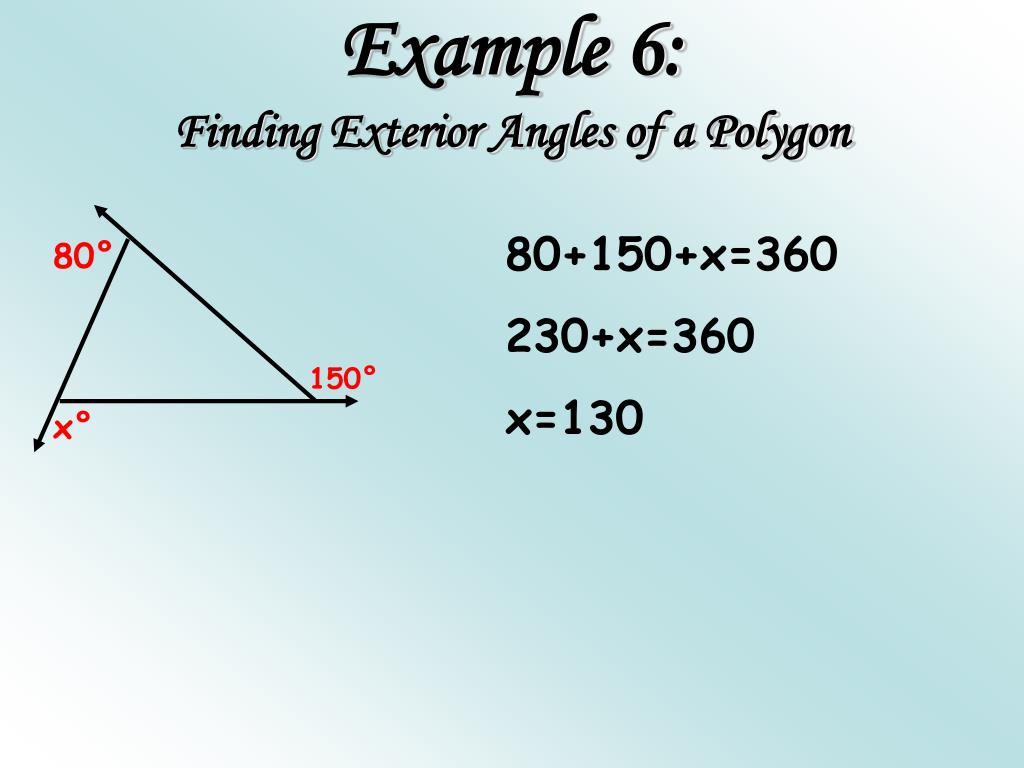

  12. Example 6:Finding Exterior Angles of a Polygon 80+150+x=360 230+x=360 x=130 80° 150° x°

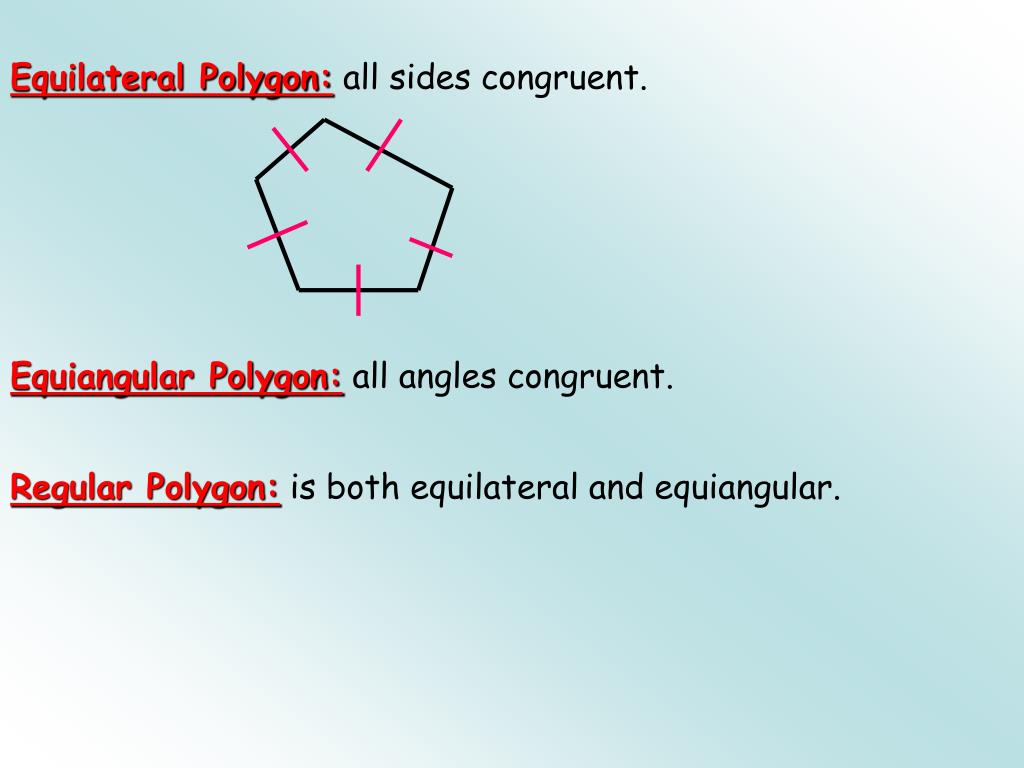

  13. Equilateral Polygon: all sides congruent. Equiangular Polygon: all angles congruent. Regular Polygon: is both equilateral and equiangular.

  14. Homework Page 147 – 149 #1-25; 32 – 35; 47 - 49
