  1. Hands-On Ethical Hacking and Network Defense Chapter 6 Enumeration

  2. Objectives • Describe the enumeration step of security testing • Enumerate Microsoft OS targets • Enumerate NetWare OS targets • Enumerate *NIX OS targets Hands-On Ethical Hacking and Network Defense

  3. Introduction to Enumeration • Enumeration extracts information about: • Resources or shares on the network • User names or groups assigned on the network • Last time user logged on • User’s password • Port scanning and footprinting • Determine OS being used • Intrusive process • NBT (NetBIOS over TCP/IP) • Tool for enumerating Microsoft OSs Hands-On Ethical Hacking and Network Defense

  4. Introduction to Enumeration (continued) • Linux application installation • Create a new directory • Gzip command • Tape archive (tar) file • Configure installation • Install application Hands-On Ethical Hacking and Network Defense

  5. Hands-On Ethical Hacking and Network Defense

  6. Hands-On Ethical Hacking and Network Defense

  7. Hands-On Ethical Hacking and Network Defense

  8. Introduction to Enumeration (continued) • Using NBTscan • Use nbtscan command to scan a range of IP addresses • Example: nbtscan 192.168.0.0./24 Hands-On Ethical Hacking and Network Defense

  9. Hands-On Ethical Hacking and Network Defense

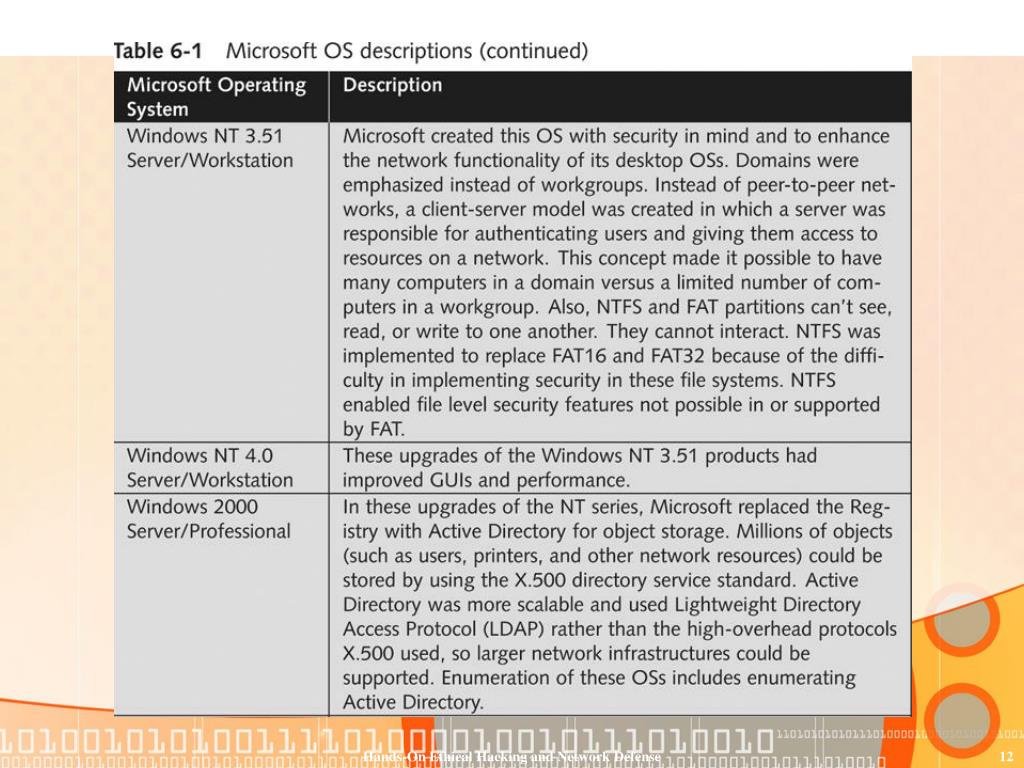

  10. Enumerating Microsoft Operating Systems • Study OS history • Knowing your target makes your job easier • Many attacks that work for older Windows OSs still work with newer versions Hands-On Ethical Hacking and Network Defense

  11. Hands-On Ethical Hacking and Network Defense

  12. Hands-On Ethical Hacking and Network Defense

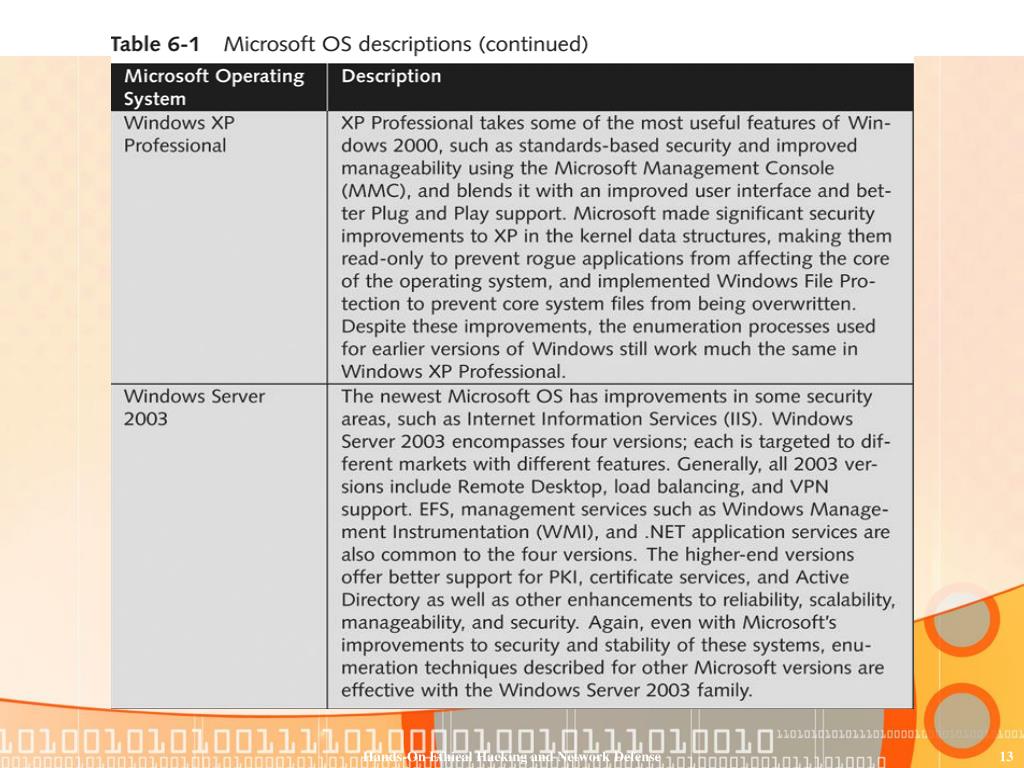

  13. Hands-On Ethical Hacking and Network Defense

  14. NetBIOS Basics • Network Basic Input Output System (NetBIOS) • Programming interface • Allows computer communication over a LAN • Used to share files and printers • NetBIOS names • Computer names on Windows systems • Limit of 16 characters • Last character identifies type of service running • Must be unique on a network Hands-On Ethical Hacking and Network Defense

  15. Hands-On Ethical Hacking and Network Defense

  16. Hands-On Ethical Hacking and Network Defense

  17. NetBIOS Null Sessions • Null session • Unauthenticated connection to a Windows computer • Does not use logon and passwords values • Around for over a decade • Still present on Windows XP Hands-On Ethical Hacking and Network Defense

  18. NetBIOS Enumeration Tools • Nbtstat command • Powerful enumeration tool included with the Microsoft OS • Displays NetBIOS table • Net view command • Shows whether there are any shared resources on a network host • Use information obtained from port scanning during enumeration • Use IP address obtained when port scanning to perform a NetBIOS enumeration Hands-On Ethical Hacking and Network Defense

  19. Hands-On Ethical Hacking and Network Defense

  20. Hands-On Ethical Hacking and Network Defense

  21. Hands-On Ethical Hacking and Network Defense

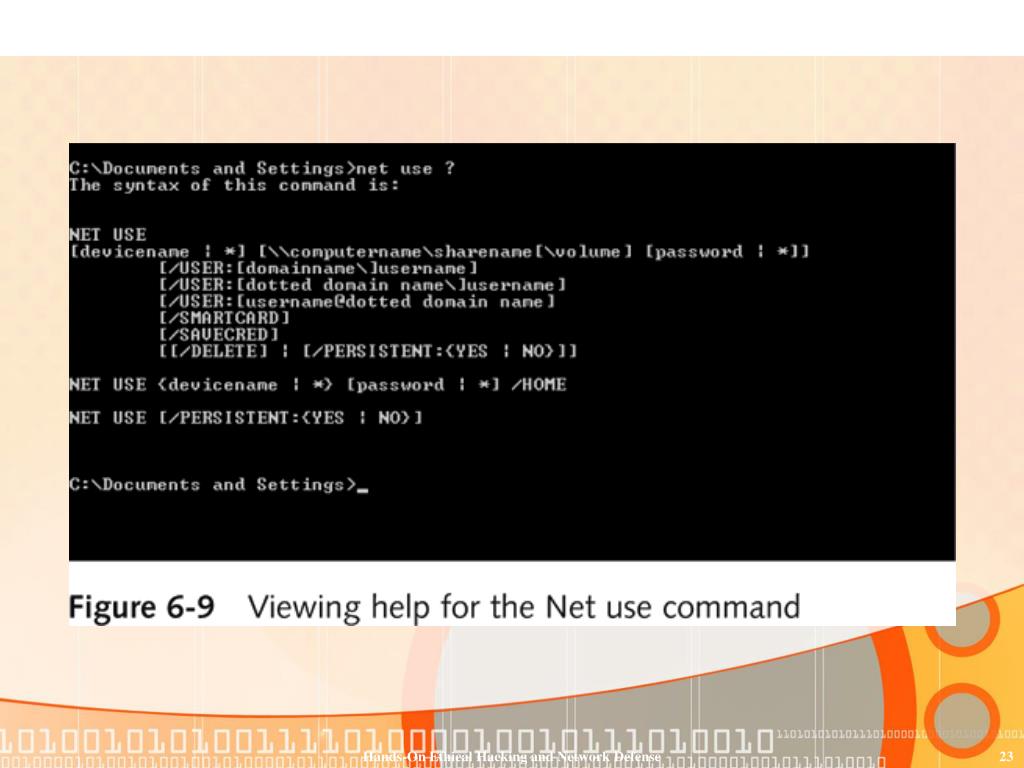

  22. NetBIOS Enumeration Tools (continued) • Net use command • Used to connect to a computer with shared folders or files Hands-On Ethical Hacking and Network Defense

  23. Hands-On Ethical Hacking and Network Defense

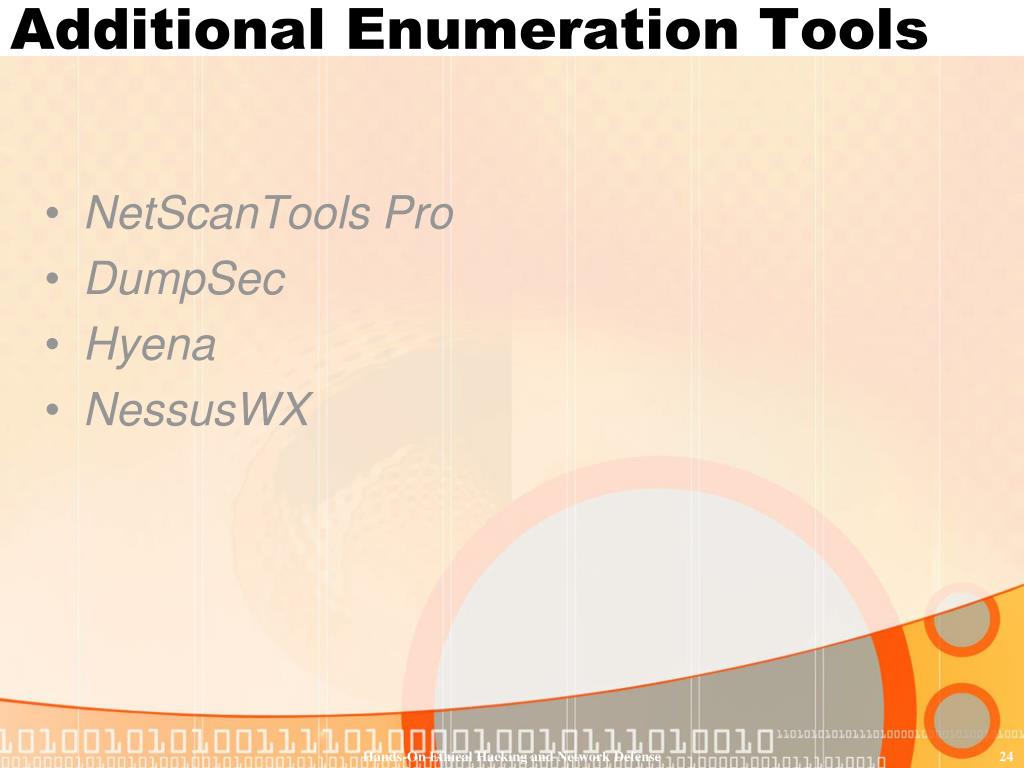

  24. Additional Enumeration Tools • NetScanTools Pro • DumpSec • Hyena • NessusWX Hands-On Ethical Hacking and Network Defense

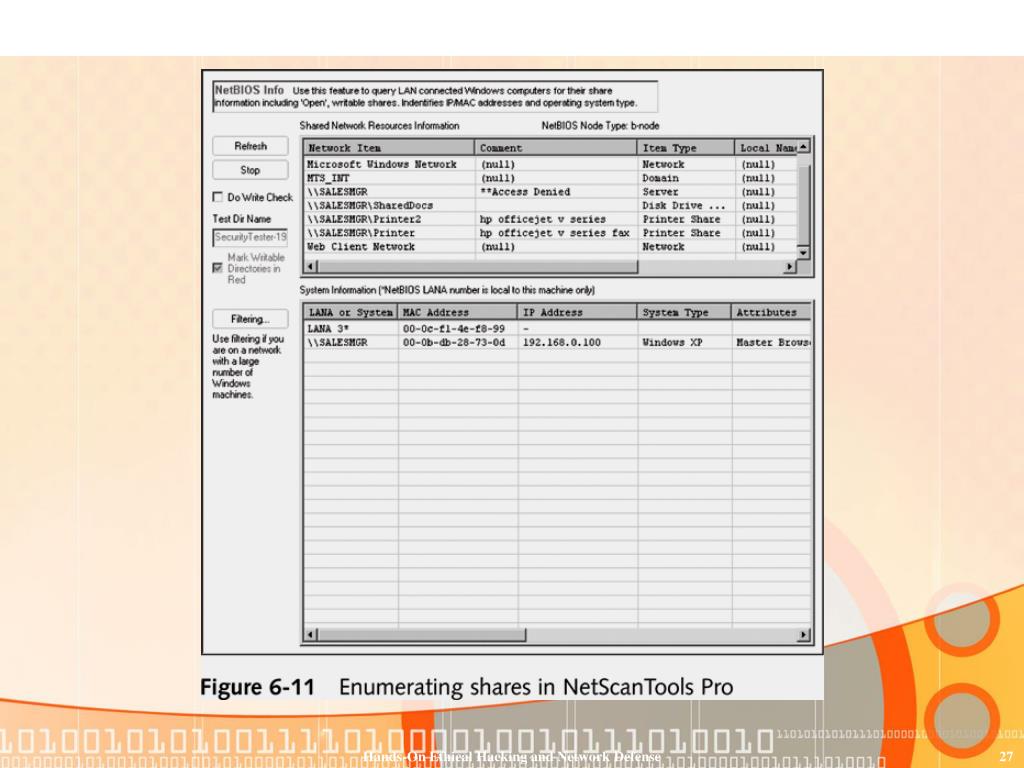

  25. NetScanTools Pro • Produces a graphical view of NetBIOS running on a network • Enumerates any shares running on the computer • Verifies whether access is available for shared resource using its Universal Naming Convention (UNC) name Hands-On Ethical Hacking and Network Defense

  26. Hands-On Ethical Hacking and Network Defense

  27. Hands-On Ethical Hacking and Network Defense

  28. DumpSec • Enumeration tool for Microsoft systems • Produced by Foundstone, Inc. • Allows user to connect to a server and “dump” the following information • Permissions for shares • Permissions for printers • Permissions for the Registry • Users in column or table format • Policies and rights • Services Hands-On Ethical Hacking and Network Defense

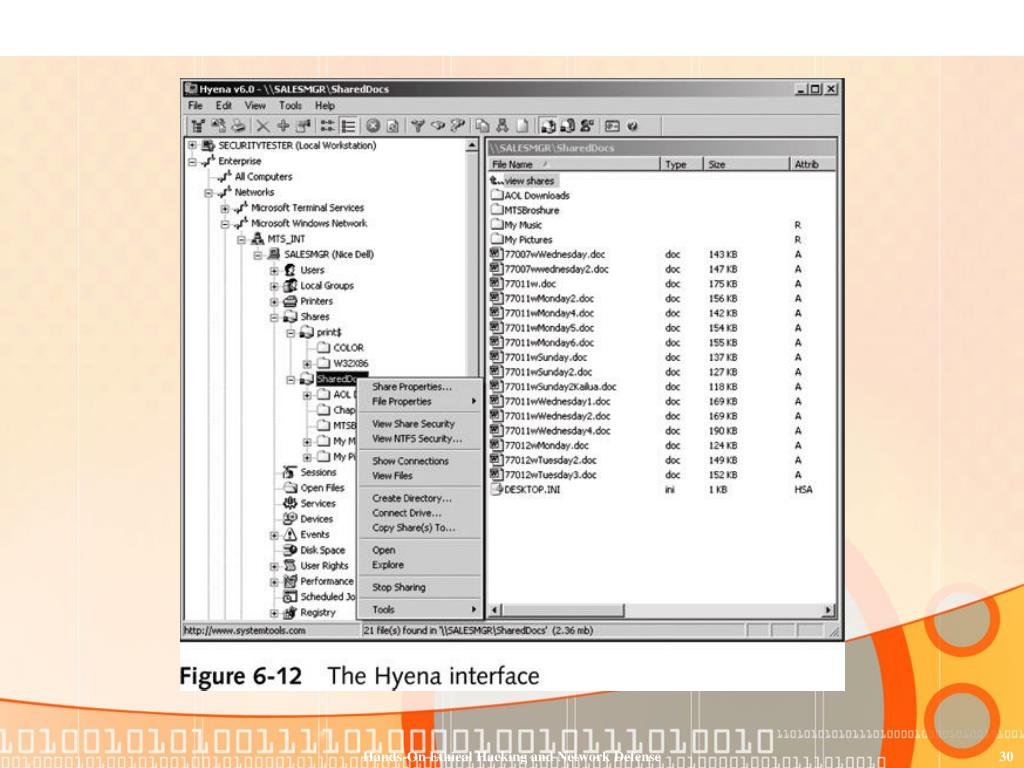

  29. Hyena • Excellent GUI product for managing and securing Microsoft OSs • Shows shares and user logon names for Windows servers and domain controllers • Displays graphical representation of: • Microsoft Terminal Services • Microsoft Windows Network • Web Client Network • Find User/Group Hands-On Ethical Hacking and Network Defense

  30. Hands-On Ethical Hacking and Network Defense

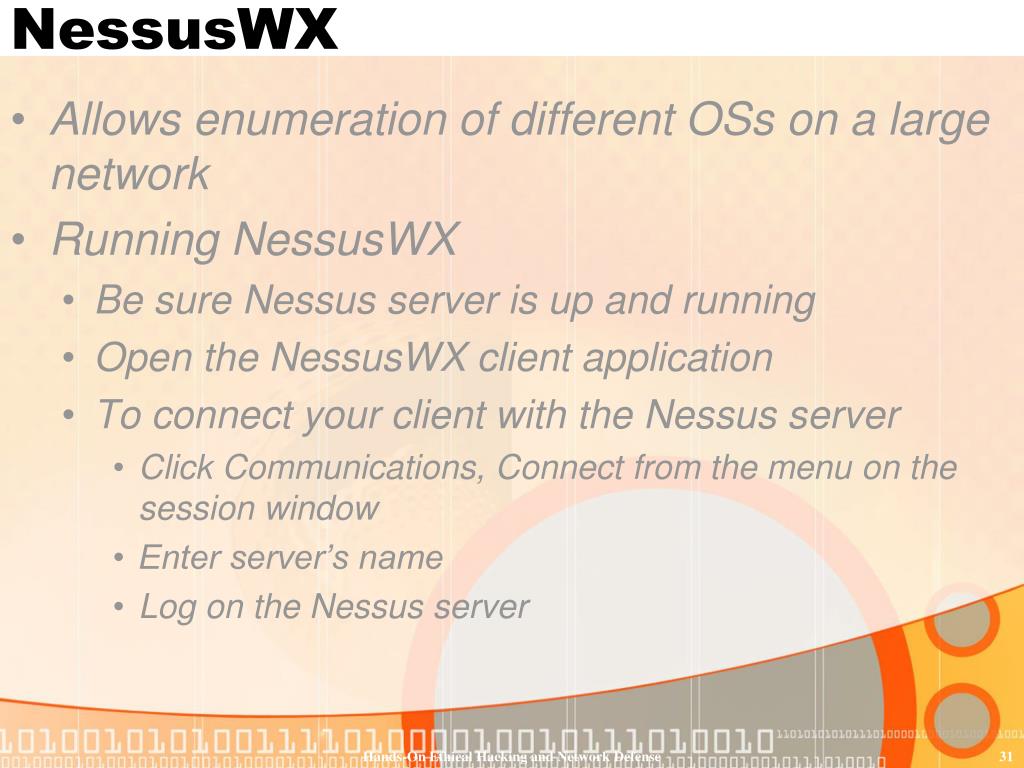

  31. NessusWX • Allows enumeration of different OSs on a large network • Running NessusWX • Be sure Nessus server is up and running • Open the NessusWX client application • To connect your client with the Nessus server • Click Communications, Connect from the menu on the session window • Enter server’s name • Log on the Nessus server Hands-On Ethical Hacking and Network Defense

  32. Hands-On Ethical Hacking and Network Defense

  33. Hands-On Ethical Hacking and Network Defense

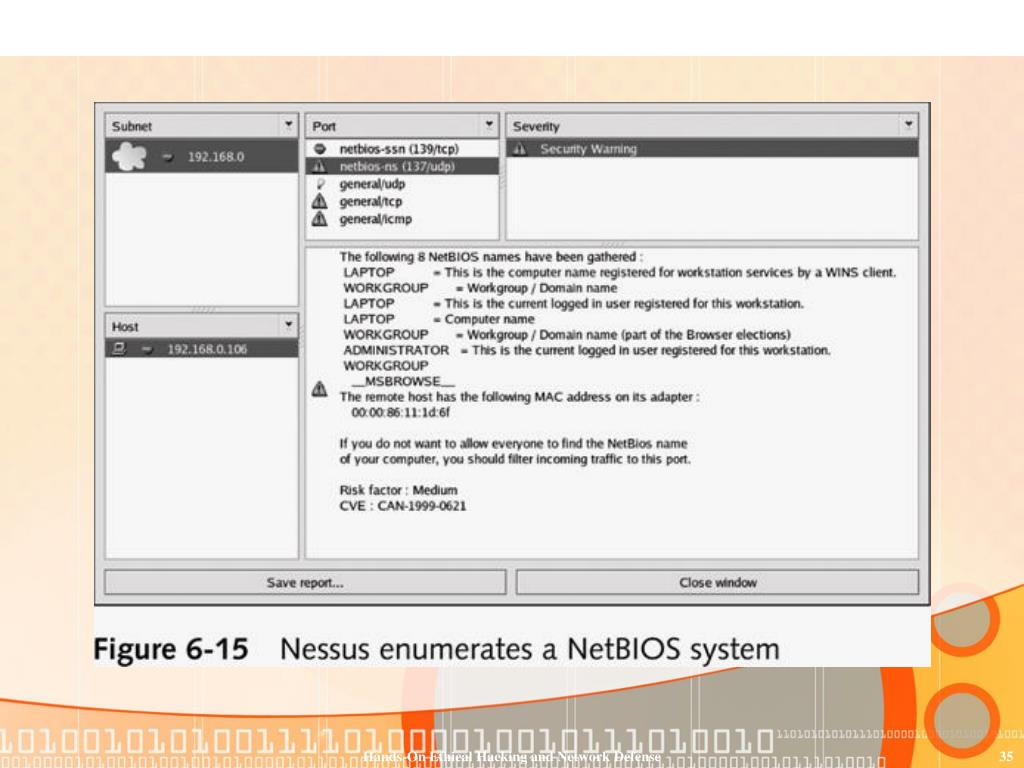

  34. NessusWX (continued) • Nessus identifies • NetBIOS names in use • Shared resources • Vulnerabilities with shared resources • Also offers solutions to those vulnerabilities Hands-On Ethical Hacking and Network Defense

  35. Hands-On Ethical Hacking and Network Defense

  36. Hands-On Ethical Hacking and Network Defense

  37. Hands-On Ethical Hacking and Network Defense

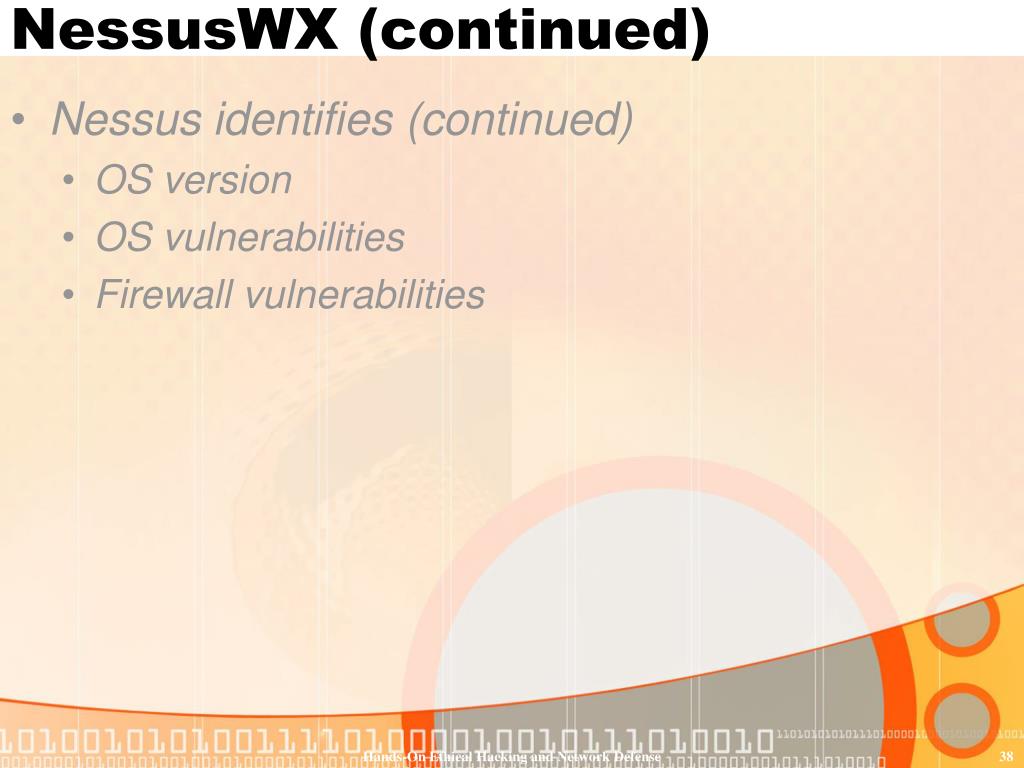

  38. NessusWX (continued) • Nessus identifies (continued) • OS version • OS vulnerabilities • Firewall vulnerabilities Hands-On Ethical Hacking and Network Defense

  39. Hands-On Ethical Hacking and Network Defense

  40. Hands-On Ethical Hacking and Network Defense

  41. Hands-On Ethical Hacking and Network Defense

  42. Enumerating the NetWare Operating System • Security professionals see Novell NetWare as a “dead horse” • Ignoring an OS can limit your career as a security professional • Novell NetWare version 4.11 • Novell does not offer any technical support for earlier versions Hands-On Ethical Hacking and Network Defense

  43. Hands-On Ethical Hacking and Network Defense

  44. NetWare Enumeration Tools • NetWare 5.1 is still used on many networks • New vulnerabilities are discovered daily • You need to be vigilant in checking vendor sites and security sites • Tool • Nessus Hands-On Ethical Hacking and Network Defense

  45. Hands-On Ethical Hacking and Network Defense

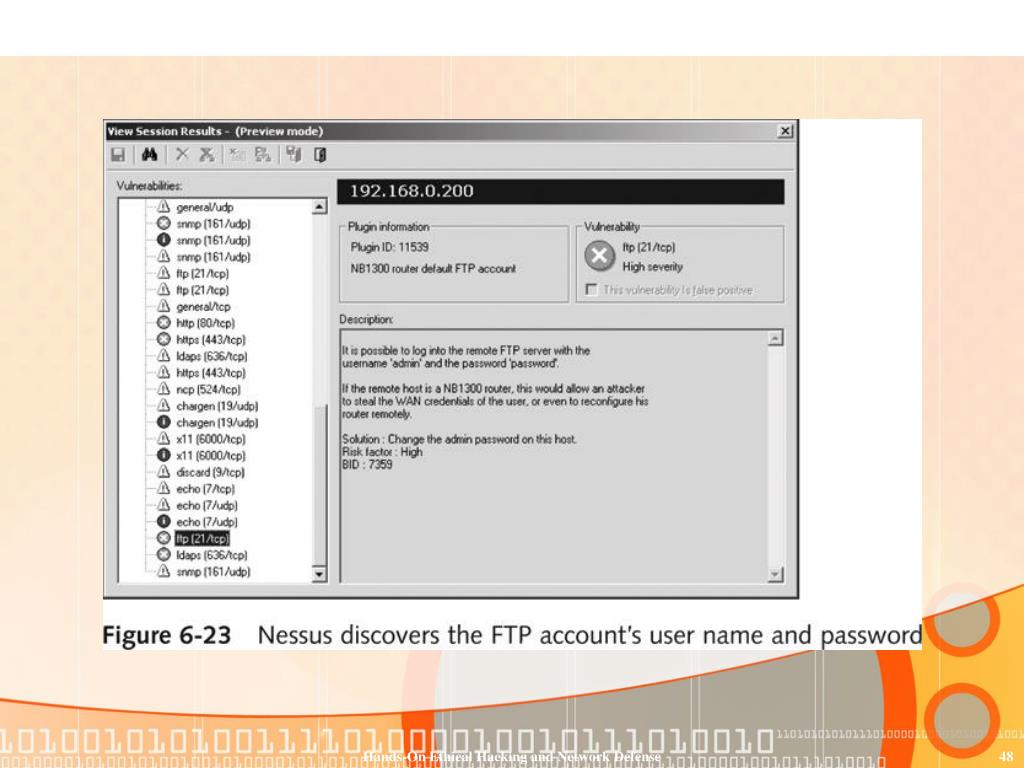

  46. NetWare Enumeration Tools (continued) • Nessus • Enumerates a NetWare server • Determines eDirectory information • Discovers the user name and password for the FTP account • Discovers names of several user accounts Hands-On Ethical Hacking and Network Defense

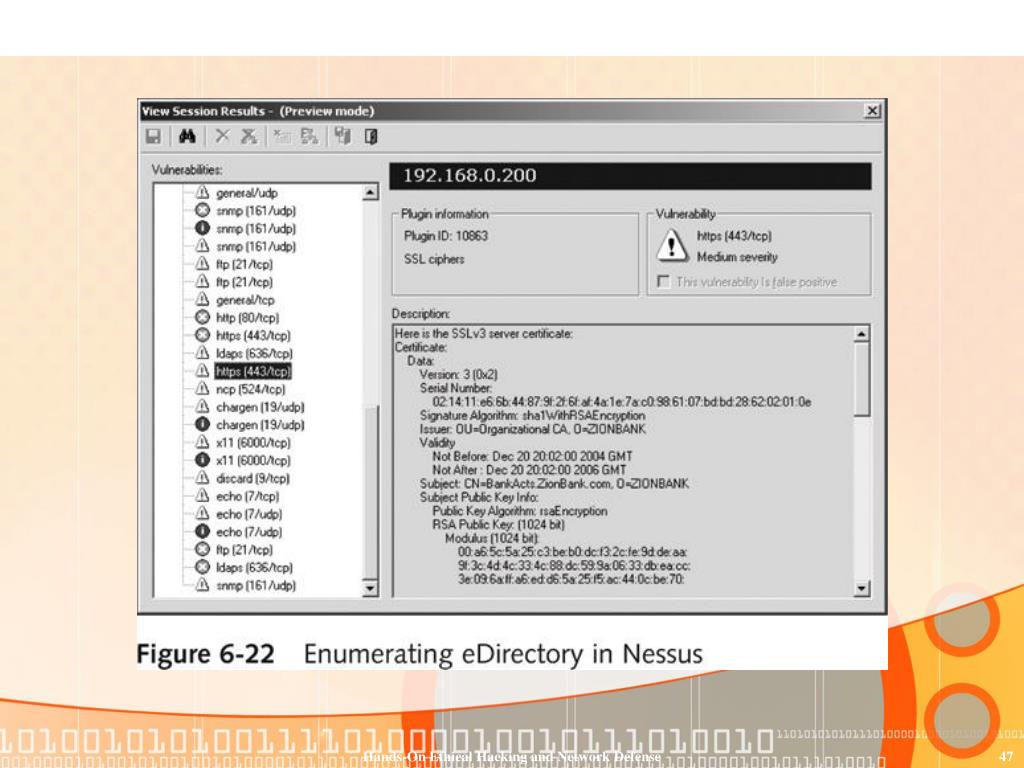

  47. Hands-On Ethical Hacking and Network Defense

  48. Hands-On Ethical Hacking and Network Defense

  49. Hands-On Ethical Hacking and Network Defense

  50. NetWare Enumeration Tools (continued) • Novell Client32 • Available at www.novell.com • Client available for several OSs • Specify information for • Tree • Content • Server Hands-On Ethical Hacking and Network Defense
