New, Ultra-Low Cost Fabrication Methods

1. New, Ultra-Low Cost Fabrication Methods By L. M. Waganer The Boeing Company With support from D. A. Deuser, K. T. Slattery, and G. W. Wille of The Boeing Company F. Arcella and B. Cleveland of AeroMet Corporation US/Japan Workshop on Fusion Power Plant Studies And Advanced Technologies San Diego 16 -17 March 2000

2. Background • Fusion power core hardware is estimated to be too expensive (e.g., experiments and commercial plants) • Boeing and other aerospace firms are currently funding advanced fabrication processes of titanium aircraft parts, which promise significant material and labor savings. • Boeing has evaluated the application of these innovative fabrication technologies to fusion components Laser or Plasma Arc Forming Specifically: Spray Casting

3. Elevation View of ARIES-ST Power Core This elevation view is the basis for the engineering cost estimate of the TF coil system. There are four distinct components: • Centerpost • Upper half section down to the bus bar connection • Middle section from bus bar to maintenance break • Lower section that is removed during maintenance actions

4. Key Engineering Decisions That Influenced the Fabrication Process • The copper centerpost will be cooled with single-pass, low-temperature, water cooling. • The TF return conductor will be a shell (as opposed to discrete legs) to minimize field ripple. • Aluminum was chosen as the outer shell conducting material to help reduce the weight and cost. The shell thickness is adjusted for proper coil resistance and recirculating power losses.

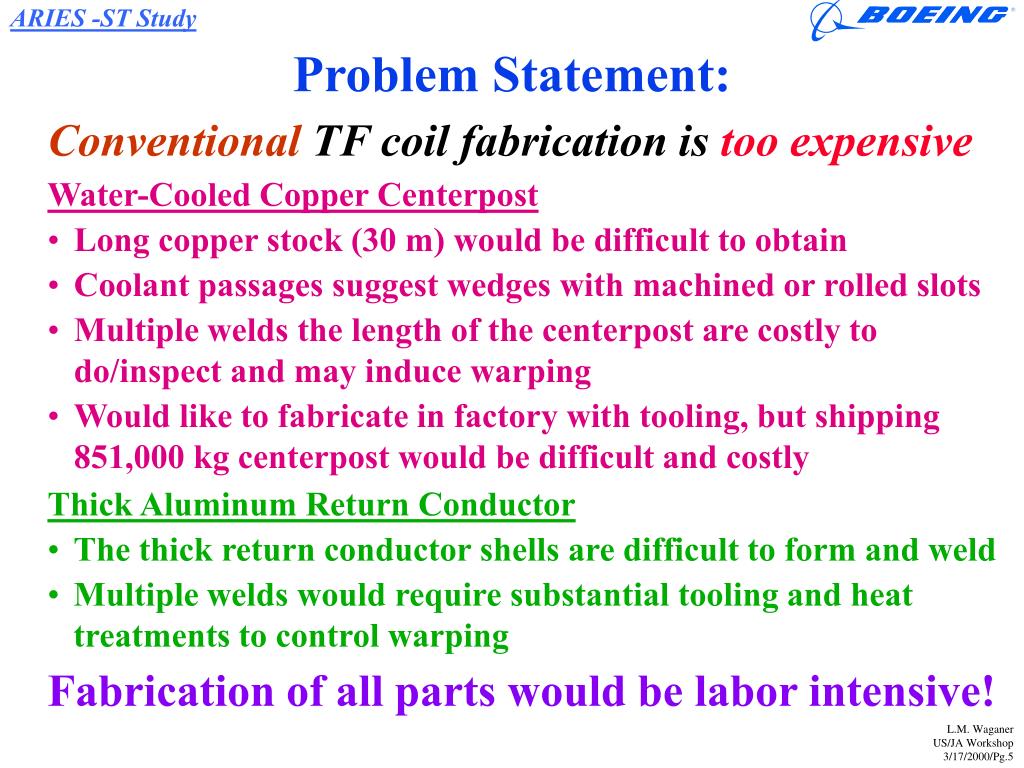

5. Problem Statement: Conventional TF coil fabrication is too expensive • Water-Cooled Copper Centerpost • Long copper stock (30 m) would be difficult to obtain • Coolant passages suggest wedges with machined or rolled slots • Multiple welds the length of the centerpost are costly to do/inspect and may induce warping • Would like to fabricate in factory with tooling, but shipping 851,000 kg centerpost would be difficult and costly Thick Aluminum Return Conductor • The thick return conductor shells are difficult to form and weld • Multiple welds would require substantial tooling and heat treatments to control warping Fabrication of all parts would be labor intensive!

6. Revolutionary Fabrication TechniquesMay Significantly Reduce Cost • To reduce airframe material and fabrication • costs, a laser lithography process is being • developed by AeroMet Corporation to • construct a part with “additive” machining. • Properties are equivalent to cast or wrought • Ideally suited to constant cross-section parts with nominal surface finish requirements • Process is highly automated, hence minimal labor cost • Fabrication of titanium components (at right) using this process is being evaluated for use on Boeing products Conventionally-Machined Ti-6Al-4V Part

7. Theory of Laser Forming • A laser or plasma arc deposits a layer of metal (from powder) on a blank to begin the material buildup • The laser head is directed to lay down the material in accordance with a CAD part specification like stereolithography • Rate of material fabrication is limited only by the power of the lasers and the number of laser heads used • Surface finish of the parts is typically 32 to 64 µin. and can be as good as 10 µin.

8. Examples of Fabricated Parts AeroMet Corporation has produced a variety of titanium parts. Some are in as-built condition and others are machined to final shape.

9. Growing Centerpost With Laser Forming • An initial blank or preform plate will be used to start the copper centerpost • Complex and multiple coolant channels can be enlarged or merged (15% void fraction) • Multiple heads can speed fabrication to meet schedule demands • Errors can be machined away and new material added during the fabrication

10. 1. Centerpost Cost Development • Completed centerpost weighs 0.85 x 106 kg • Part will be fabricated on site in vertical position • Includes process hardware and energy costs • Deposition rate is 200 kg/h with mutiple heads • Fabrication is entirely computer directed, 24 h/day for approximately 8 months • Cost is 10th of a kind, 1998$ • Material Cost = $2.56 M (Includes waste) • Labor Cost = $1.29 M (Includes overtime/off-site) • Energy Cost = $0.09 M • Process Hrdwr = $1.18 M • Contingency = $1.02 M • Fees = $0.74 M • Total Cost = $6.88 M • Unit Cost = $8.1/kg Compare to $80-$100M for conventional fabrication

11. Spray Casting Is Attractive Fabrication Process for Outer TF Shell • Molten alloy metals just above melting point are atomized and sprayed onto a preform to fabricate the part • Fast deposition rates (0.5 kg/s/head with 4 heads) • Minimal labor required with computer control • Detail is less than laser forming (probably will need final machining on mating parts) • Stainless steel coolant tubes can be embedded

12. Fabricating the TF Return Shell • TF shell has three parts: upper half, middle, and lower • Preform will be vacuum vessel - no cutouts or ports costed • Vacuum vessel will be 0.5 in. (1.25 cm) 5052 or 5002 aluminum plate for low resistance and ease of welding, and will serve as a form for spray casting • Individual vacuum vessel segments (e.g. 30 orange slices, 15 m x 2 m for upper half) will be bump formed into shape and welded 1.25 cm • Remainder of TF shell thickness (0.5 to 2.5 m) will be spray cast to final shape and thickness • Flanges and other features can be spray cast • Stainless steel coolant tubes will be embedded in spray cast material Typical 0.5-m thick shell cross-section

13. 2. Vacuum Vessel Cost Development • Conventional fabrication of “thin” aluminum shell • Bump-formed segments welded into full shells • Verify vacuum integrity • Fabrication Cost Material Cost = $0.29 M Labor Cost = $2.31 M Contingency = $0.50 M Fees= $0.36 M Total Cost = $3.39 M Unit Cost = $85.2/kg This unit cost is representative of conventional fabrication

14. Schematic of Spray Casting Process Molten Metal Furnace (Courtesy of SECO/WARWICK, Inc.)

15. 3. TF Return Shell Cost Development • Three TF return shells weigh 2.69 x 106 kg total • Shells will be fabricated on site • Costs includes process hardware and energy costs • Fabrication is entirely computer directed • Parts can be completed in six months (normal shifts) • Cost is 10th of a kind, 1998$ • Material Cost = $5.33 M (Includes waste) • Labor Cost = $0.31 M (Includes off-site rates) • Energy Cost = $0.04 M • Process Hwdr = $4.03 M (Vendor quotes) • Contingency = $1.94 M • Fees = $1.40 M • Total Cost = $13.05 M • Unit Cost = $4.85/kg Compare to $270 M for Conventional Fabrication
