  1. Milankovitch Cycle • Dr. E • LCHS APES

  2. Milutin Milankovitch • Serbian astrophysicist is best known for developing one of the most significant theories relating Earth motions and long-term climate change http://tpema.free.fr/Images%20TPE/milankovitch_portrait.jpg

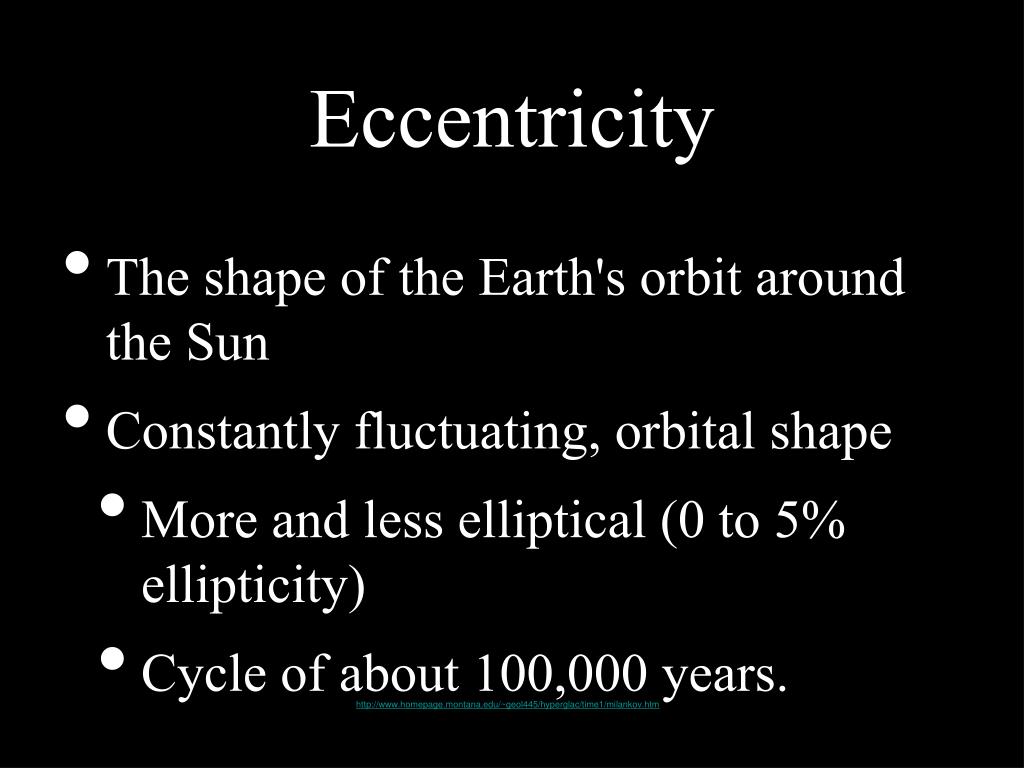

  3. Eccentricity • The shape of the Earth's orbit around the Sun • Constantly fluctuating, orbital shape • More and less elliptical (0 to 5% ellipticity) • Cycle of about 100,000 years. http://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htm

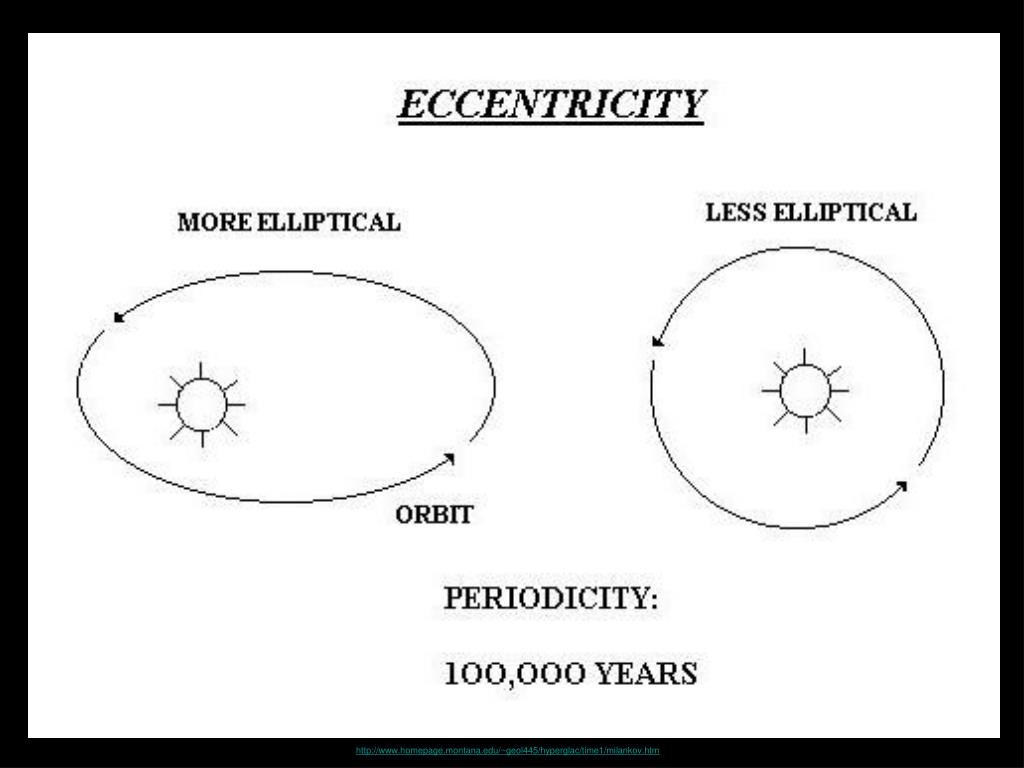

  4. http://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htmhttp://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htm

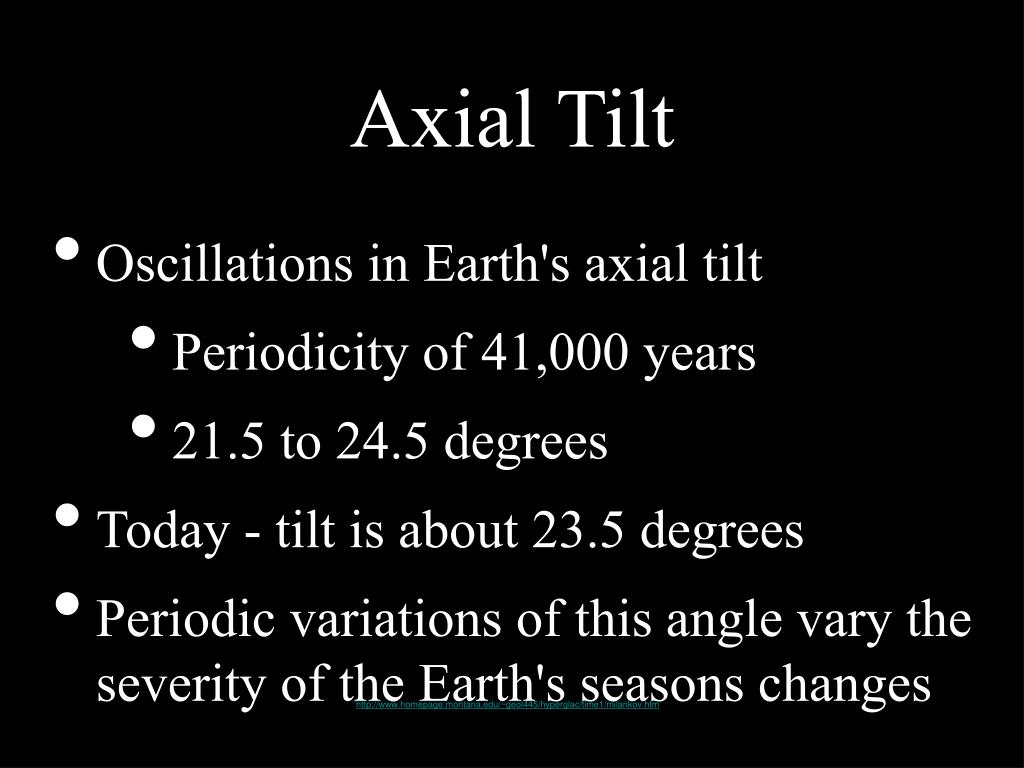

  5. Axial Tilt • Oscillations in Earth's axial tilt • Periodicity of 41,000 years • 21.5 to 24.5 degrees • Today - tilt is about 23.5 degrees • Periodic variations of this angle vary the severity of the Earth's seasons changes http://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htm

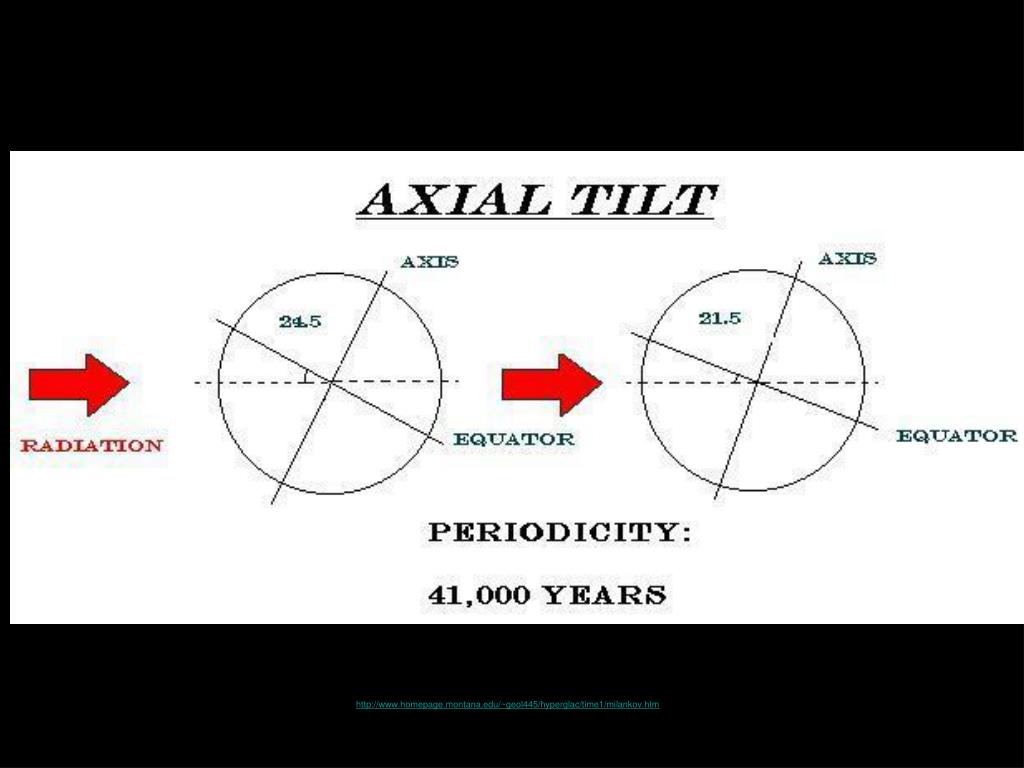

  6. http://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htmhttp://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htm

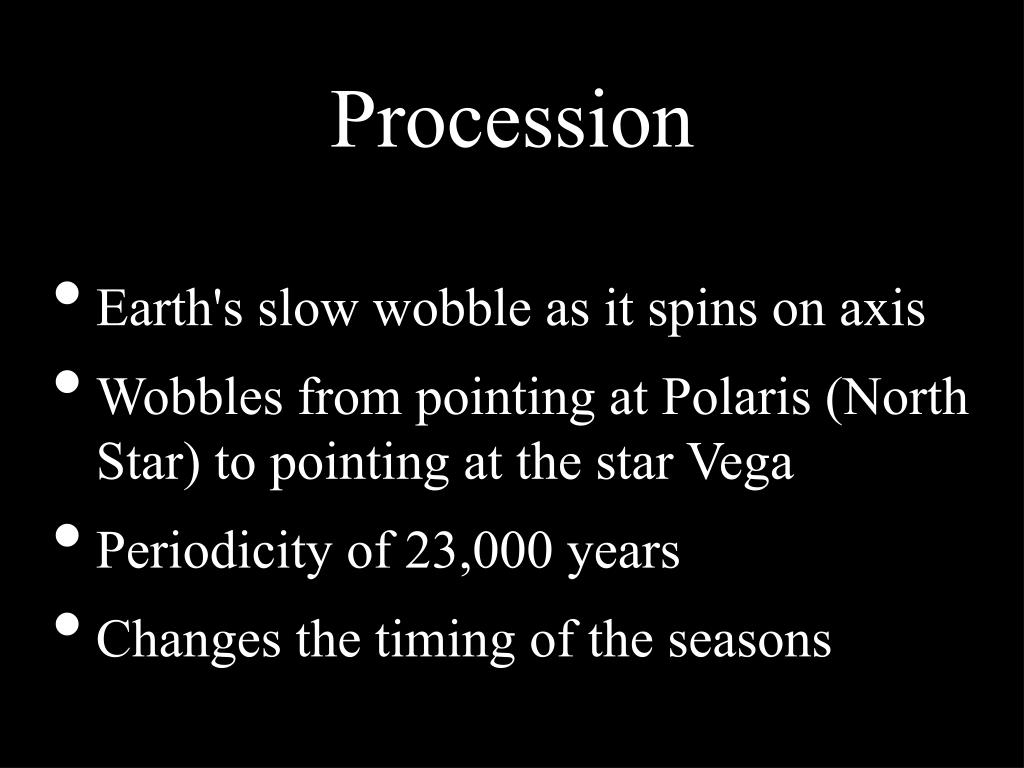

  7. Procession • Earth's slow wobble as it spins on axis • Wobbles from pointing at Polaris (North Star) to pointing at the star Vega • Periodicity of 23,000 years • Changes the timing of the seasons

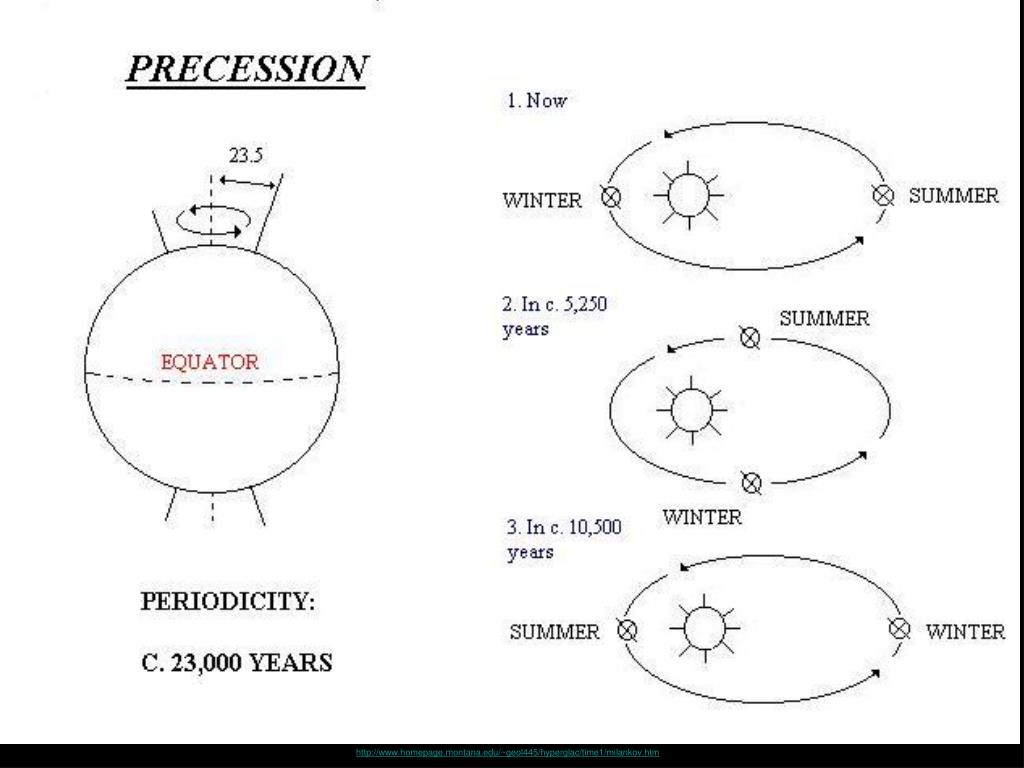

  8. http://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htmhttp://www.homepage.montana.edu/~geol445/hyperglac/time1/milankov.htm

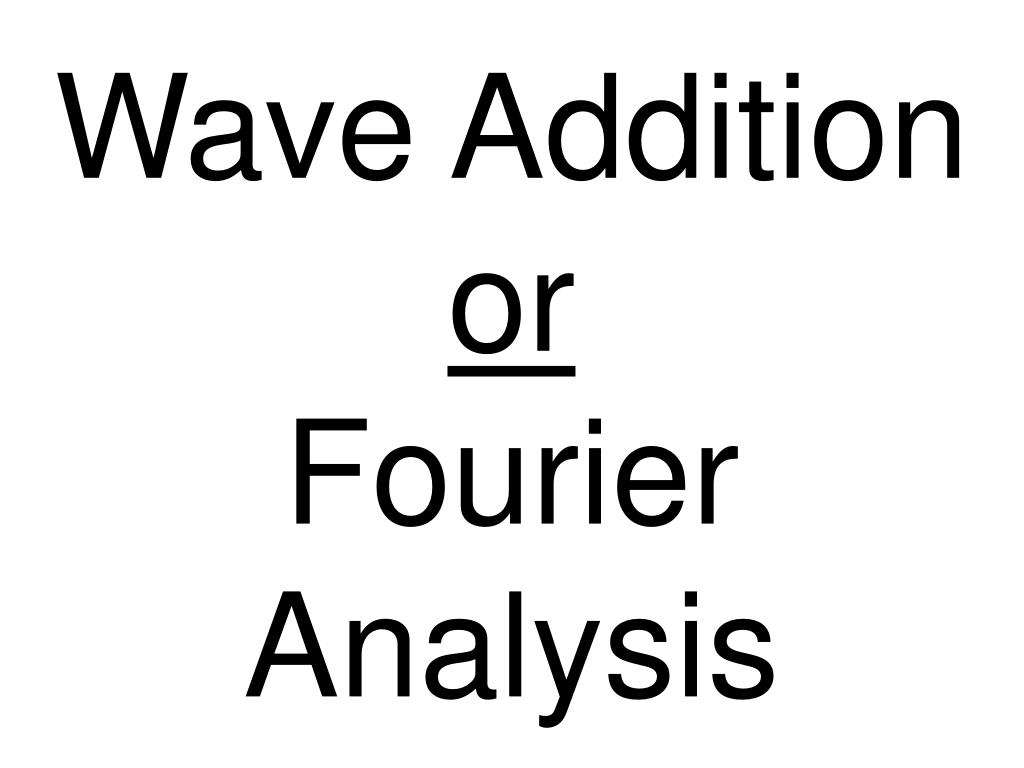

  9. Wave Addition or Fourier Analysis

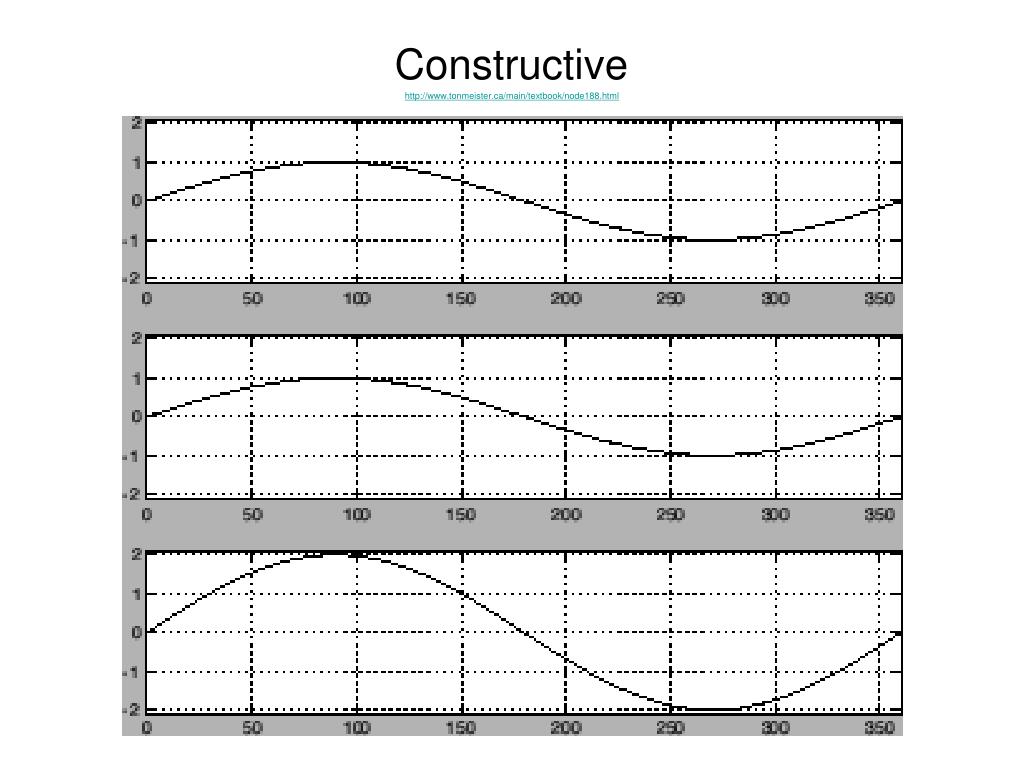

  10. Constructive http://www.tonmeister.ca/main/textbook/node188.html

  11. Constructive http://www.tonmeister.ca/main/textbook/node188.html

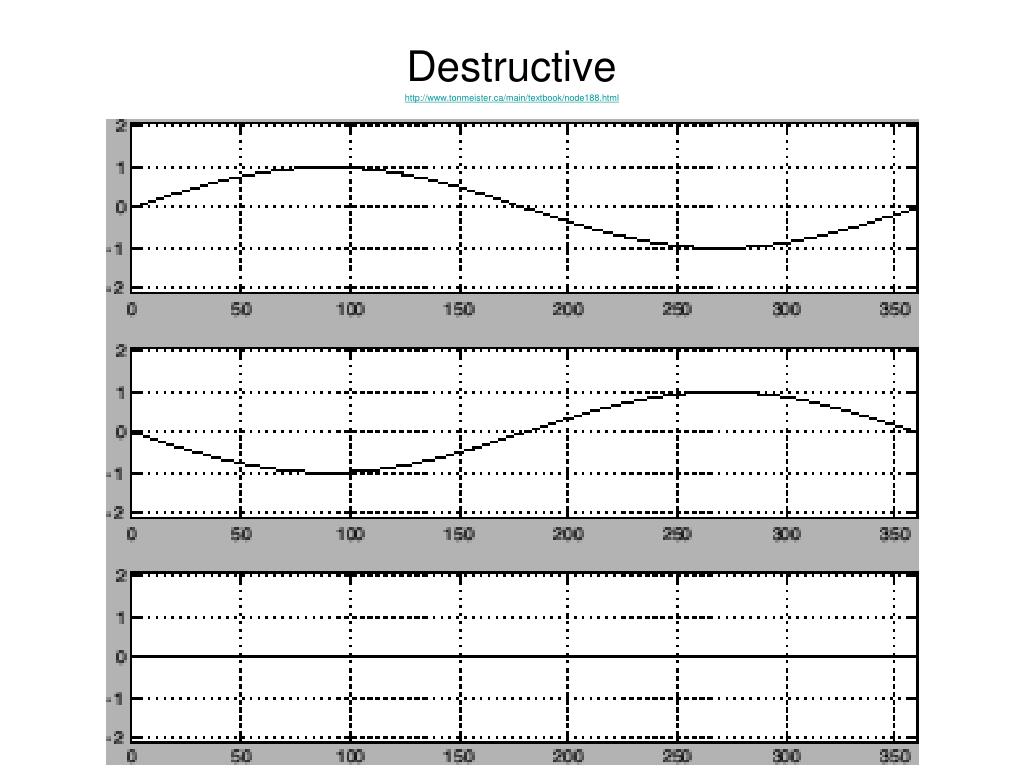

  12. Destructive http://www.tonmeister.ca/main/textbook/node188.html

  13. Destructive http://www.tonmeister.ca/main/textbook/node188.html
