  1. User Application-to-User PlaneVertical Interface(draft-ash-nsis-vertical-interface-00.txt) Jerry Ash gash@att.com Al Morton acmorton@att.com Martin Dolly mdolly@att.com Percy Tarapore tarapore@att.com Chuck Dvorak cdvorak@att.com

  2. Summary(draft-ash-nsis-vertical-interface-00.txt) • proposes requirements for communicating QoS parameters between user application layer & user plane layer • currently no vertical interface protocol (VIP) to do this • signaling protocol assumptions • SIP at user application layer • QoS-NSLP at user plane layer • illustrative example of high-priority, emergency telecommunications service (ETS) VoIP call flow • protocol extensions to meet VIP requirements TBD • adaptation of QoS-NSLP could be appropriate basis for VIP • RESERVE & RESPONSE messages satisfy requirements for VIP-request & VIP-response messages • QSPEC parameters already defined to convey necessary QoS parameter information • future versions of document will specify more details • next steps • gage interest within NSIS

  3. Example Call Flow(draft-ash-nsis-vertical-interface-00.txt)

  4. Example Call Flow(draft-ash-nsis-vertical-interface-00.txt) • ETS user dials 1-710-NCS-GETS to establish ETS VoIP call • call routed by local exchange carrier (LEC) access network to service provider's GW1 • GW1 recognizes ETS call based on dialed number or SS7 initial address message indicator • GW1 formulates SIP INVITE message marked with appropriate packet markings • SIP with pre-conditions used to negotiate codec bandwidth • RPH populated with ETS namespace, with priority set to "0" for highest priority (i.e., ets.0) • GW1 infers additional QoS parameter based on info available at access network interface (trunk group characteristics, dialed number, SS7 initial address message, etc.) • Y.1541 QoS class set to class 0 with stringent delay requirements • DiffServ PHB set to high-priority expedited forwarding (EF1) • Reservation Priority set to high • Restoration Priority set to high

  5. Example Call Flow(draft-ash-nsis-vertical-interface-00.txt) • GW1 communicates QoS parameter info via VIP to NSIS QoS-NSLP user-plane function • NSIS QoS-NSLP user-plane function sets upETS call flow withY.1541-QOSM & required attributes in the QSPEC • <Bandwidth> = negotiated bandwidth • <Y.1541 QoS Class> = class 0 • <DSTE Class Type> = class type 0 • <Reservation Priority> = high • <Restoration Priority> = high

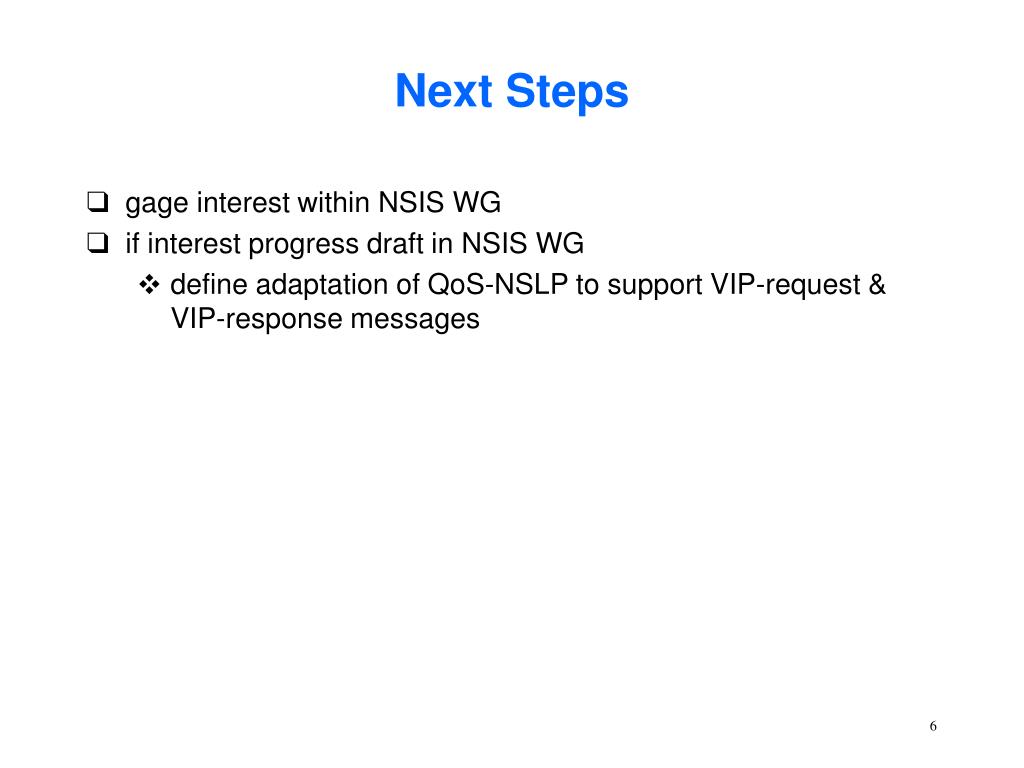

  6. Next Steps • gage interest within NSIS WG • if interest progress draft in NSIS WG • define adaptation of QoS-NSLP to support VIP-request & VIP-response messages
