  1. Air / Water Boiler

  2. Air / Water Boiler Splitt Line Up 8 Splitmodels 1.0 – 18.0 kW heatingcapacity PUHZ-RP 35, 50, 60, 71 VHA4 PUHZ-RP 100, 125, 140 YKA PUHZ-HRP 71 VHA2 PUHZ-HRP 100 YHA2

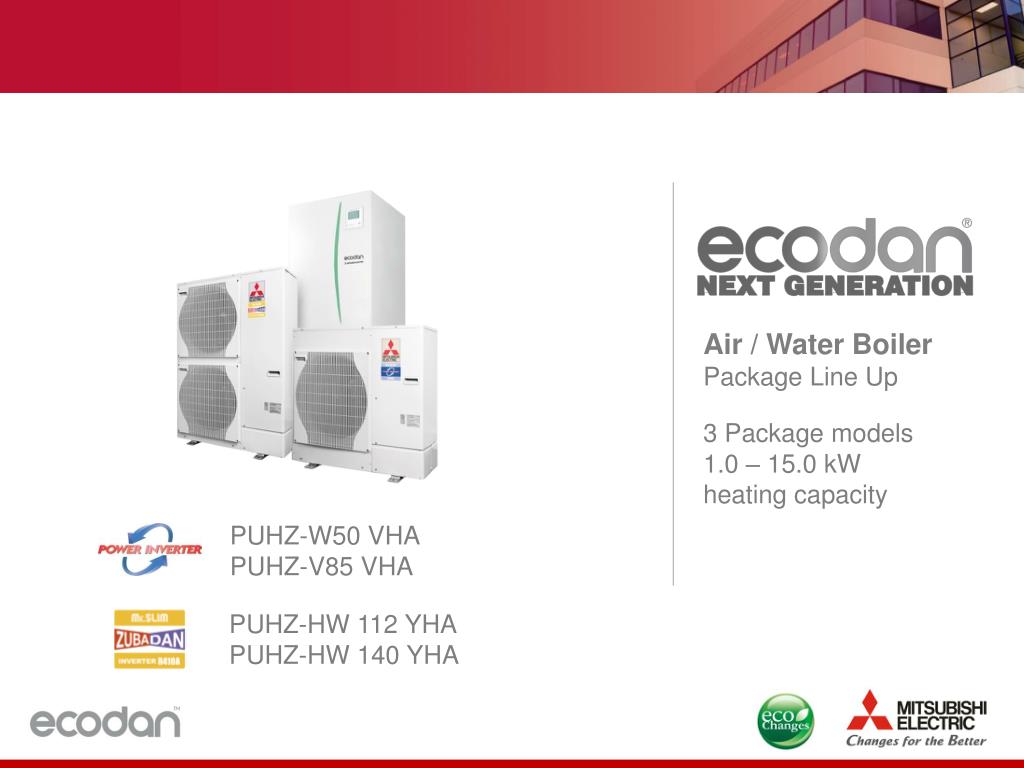

  3. Air / Water Boiler Package Line Up 3 Packagemodels 1.0 – 15.0 kW heatingcapacity PUHZ-W50 VHA PUHZ-V85 VHA PUHZ-HW 112 YHA PUHZ-HW 140 YHA

  4. Air / Water Boiler Boiler technology HW/CW 200 liters 2 separat coils 45 mm Thinsolate in 2 layers Same isolation as air plane Heatloss: 1.9 kWh / 24h Equalsa loss of1K / 3,5 hour Solar Possibility OutdoorUnit Splitt version

  5. Air / Water Boiler Boiler technology • Made by Mitsubishi Electric • Slimdesign • Stainless steelcoil in tank • Flare connections split model • New developed Display • Advanced Auto adaptation control • Handels for easy handling • 9 kW electricalbooster in 2 steg • Adjusteblefeets • Full Mitsubishi Electric control for • Best possible SCOP • Onesize fits all OutdoorUnits

  6. Hight 1600 + 100 mm • Width 595 mm • Deept 680 mm • Wight 132 kg (split) • Wight 114 kg (Package) • Hotwatervolume 200 liter • Flare connections 3/8”-5/8”(Split) • 10 bars Safetyvalve • Cu 22 mm freeshwaterside • 12 liters expvessel • Cirk pump Grunfoss 25/7 • 3 bars Safetyvalveheating • Cu 28 mm heatingside • Flowswitch and filter included • Boosterheater in 2 step with • Control, safety and overheatprotection Air / Water Boiler Boiler technology

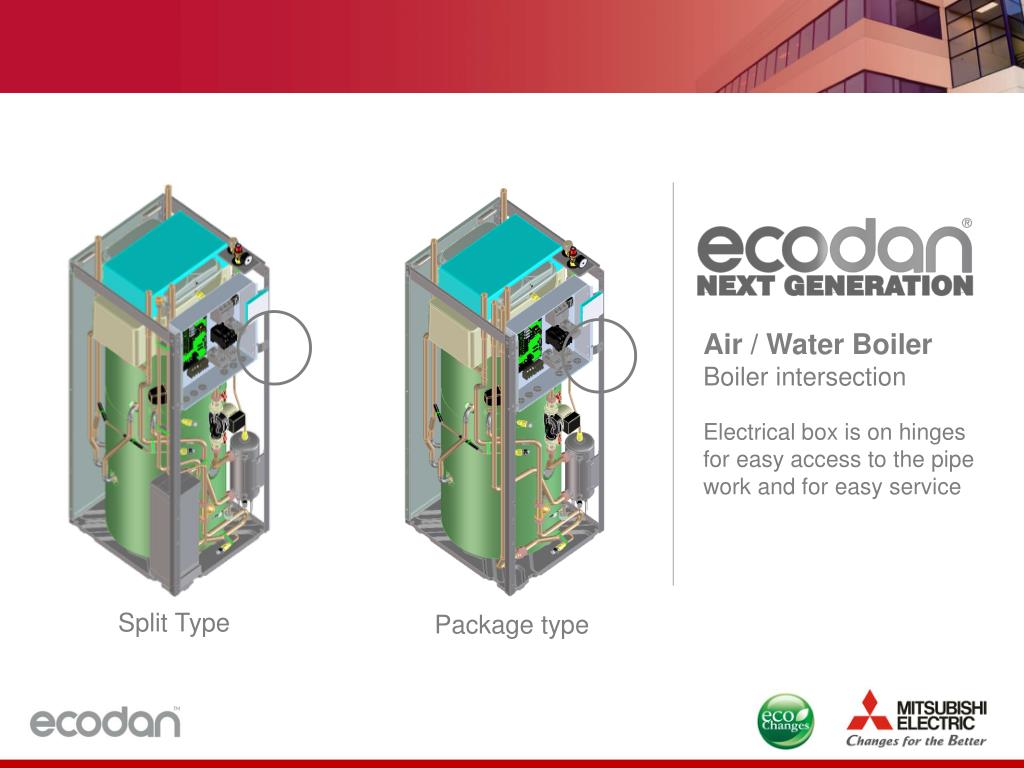

  7. BACK 30 TOP 795 30 655 FRONT Air / Water Boiler Boiler intersection Electrical box is on hinges for easy access to the pipe work and for easy service Split Type • Packagetype New developed filter withvalves

  8. Air / Water Boiler Control • 2. Egenskaper av 2011 MELCO system • Ny stil på Trådbunden fjärrkontroll • Anpassad för LV applikation • 11 språk tillgängliga • Lätt att se : Stor skärm & bakgrunds belysning • Ikoner: Lätt att förstå • Enkla knappar • Gömda funktioner för att undvika fel användning: långt-tryck & lösenord • Drift & alarm info kan kontrolleras på skärmen • Stylig & Pure white: Lätt att smälta in • Fjärr installation är också möjlig (RC locket som tillbehör.) • New developtcontroll • Backlight in display • 3 modes • Fixed temp • Curve setting • Auto adaptation New developed filter withvalves

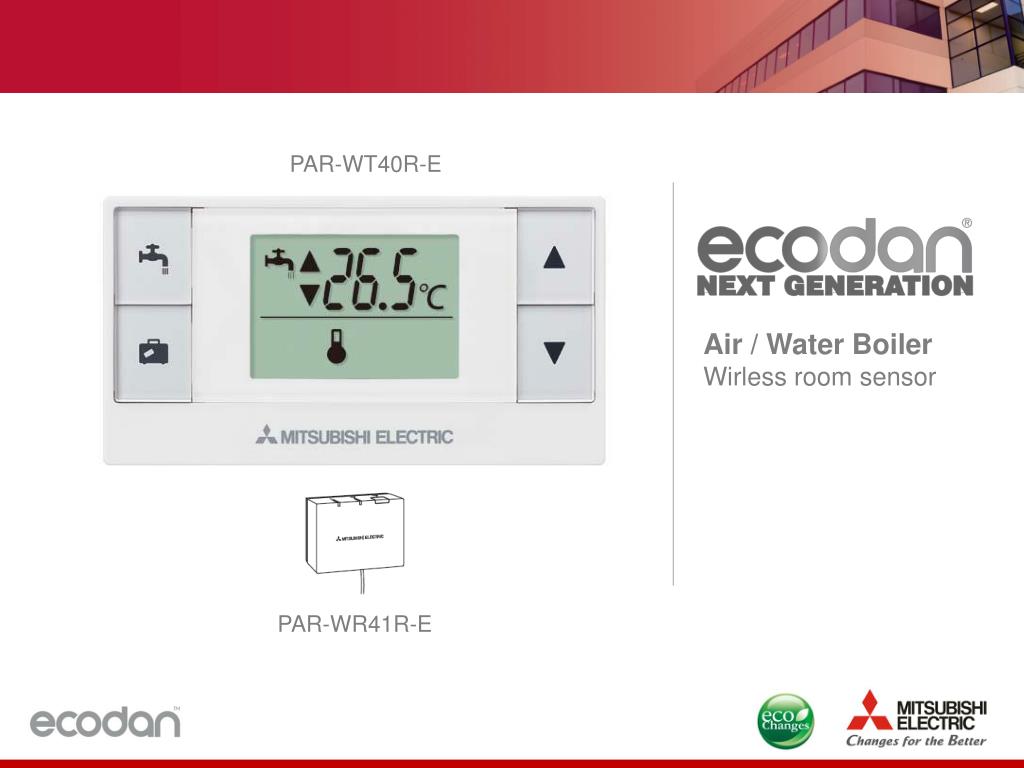

  9. PAR-WT40R-E Air / Water Boiler Wirlessroom sensor • Trådlös RC + Rums temp givare • Lätt installation & placering: Detbehövsingakablar • Möjligtattsättapåbästaställeattmäta rums temp. • Lättatthantera i bostaden • Enkel & lättattanvända: bara 4 knappar • Snygg • Pure white PAR-WR41R-E New developed filter withvalves

  10. Hollyday function Air / Water Boiler WirlessRoomsensorl Up and down buttons Set temp Extra tapwater • Trådlös RC + Rums temp givare • Lätt installation & placering: Detbehövsingakablar • Möjligtattsättapåbästaställeattmäta rums temp. • Lättatthantera i bostaden • Enkel & lättattanvända: bara 4 knappar • Snygg • Pure white Battery indicator Actual room temp Alarm indicator Actual sensor in use Setpointcan be adjustedwith 0,5 deg step New developed filter withvalves

  11. Trådlös RC + Rums temp givare • Lätt installation & placering: Detbehövsingakablar • Möjligtattsättapåbästaställeattmäta rums temp. • Lättatthantera i bostaden • Enkel & lättattanvända: bara 4 knappar • Snygg • Pure white Flow temp ? ??? deg C ??? deg C Ambient temp ??? deg C ??? deg C Auto-adaptation “self learning curve” Secure most beneficial flow temp to … Maximize comfort No complicated settings Avoid bad performance due to too high curve settings Secure good comfort Air / Water Boiler Auto Adaptation New developed filter withvalves

  12. Air / Water Boiler Accesoriesinternal Extra Immission Heater PAC – IH03V-E Capacity: 3 kW 230V

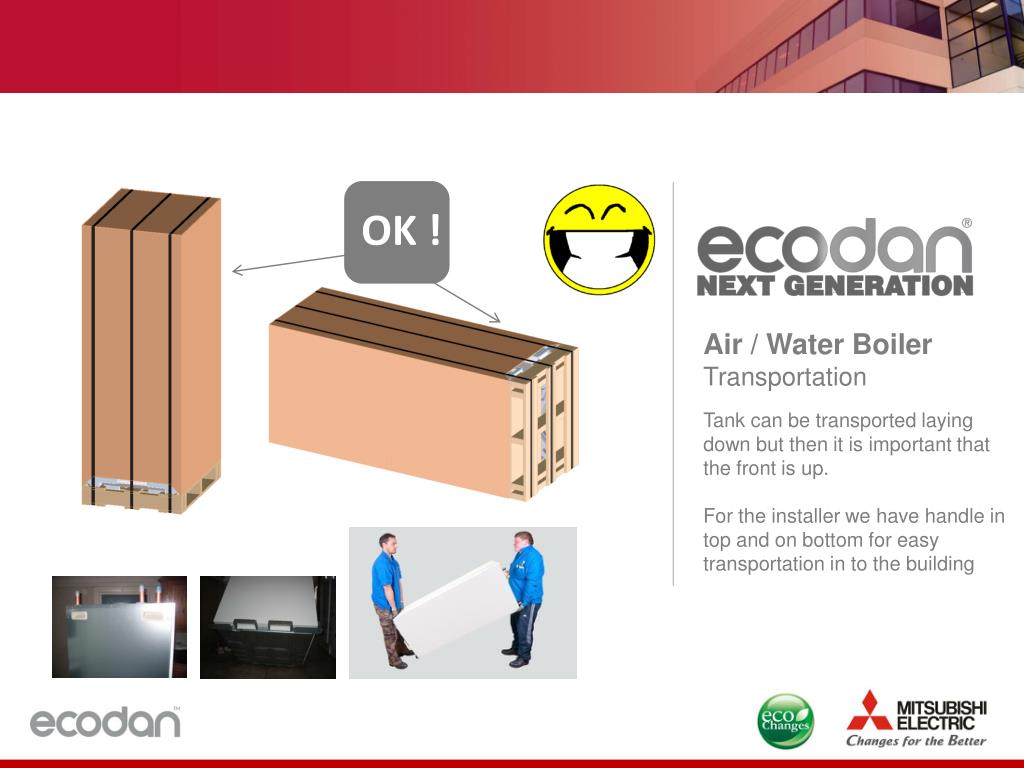

  13. Air / Water Boiler Transportation OK ! Tank can be transported laying down but then it is important that the front is up. For the installer we have handle in top and on bottom for easy transportation in to the building Possible to stack two

  14. Air / Water Boiler Accesoriesexternal Connection lining to ceiling When replacing existing tanks could sometimes pipe connections be under the tank. We have developed a stand for these installations Boiler stand

  15. Air / Water Boiler Accesoriesexternal We have produced equipment for the outdoor units. Stands gives correct installation height and drip tray so the ice formed during defrosting does not harm the outdoor unit Stands 950 / 1050 mm Drip Tray Light Stainless steel with heater Drip Tray Commercial Stainless steelwithheater In combinationwithstand 1050

  16. Air / Water Boiler Hydrobox • Expvessel 10 liter • Circ. pump 25/7 • ElectricalBooster9 kW • Flow switch • Filter • PAR-W31 MAA kontroll • Slimestin the market

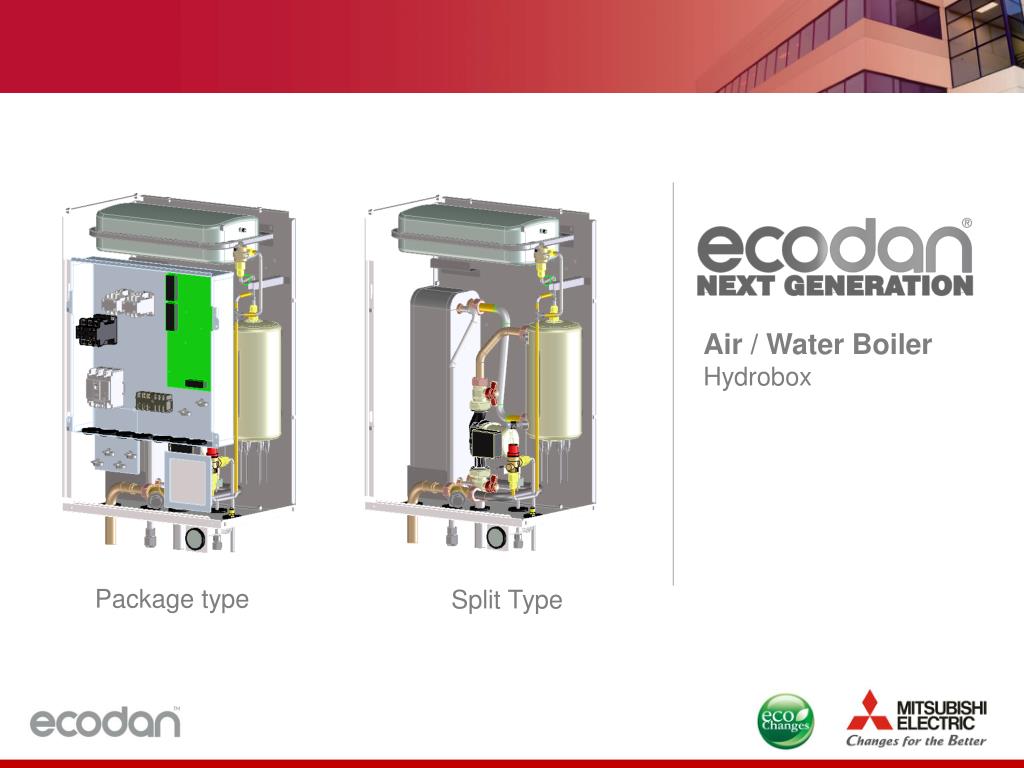

  17. Air / Water Boiler Hydrobox • Packagetype Split Type

  18. Air / Water Boiler Hydrobox
