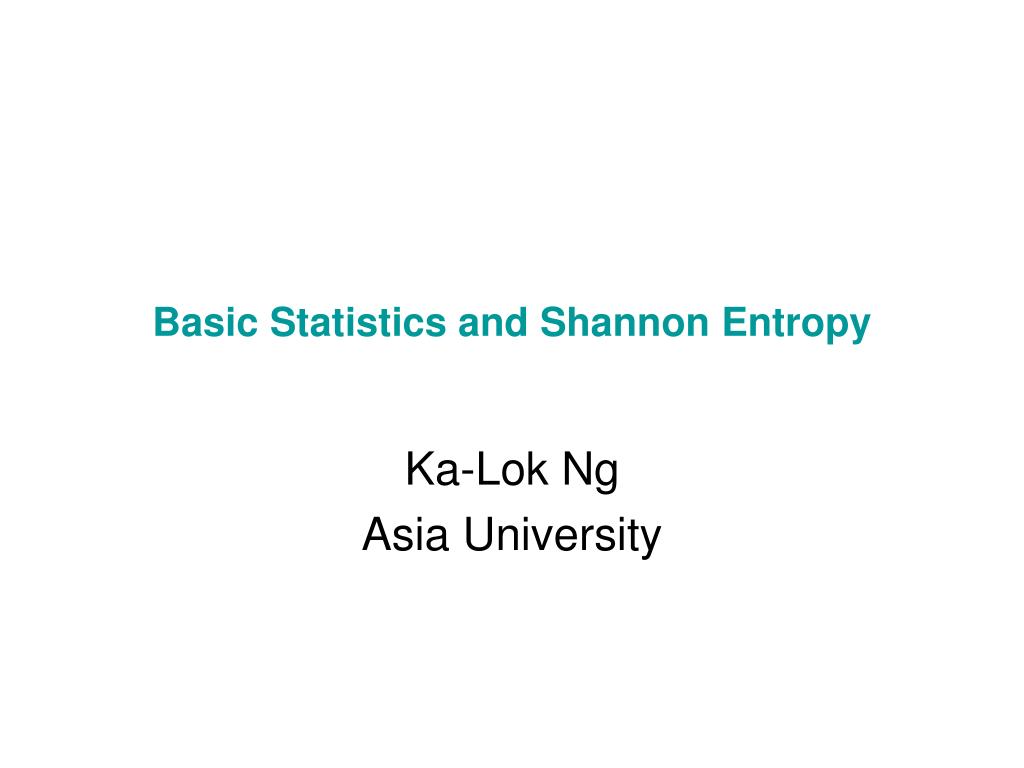

  1. Basic Statistics and Shannon Entropy Ka-Lok Ng Asia University

  2. Mean and Standard Deviation (SD) • Compare distributions having the same mean value • a small SD value  a narrow distribution • a large SD value  a wide distribution

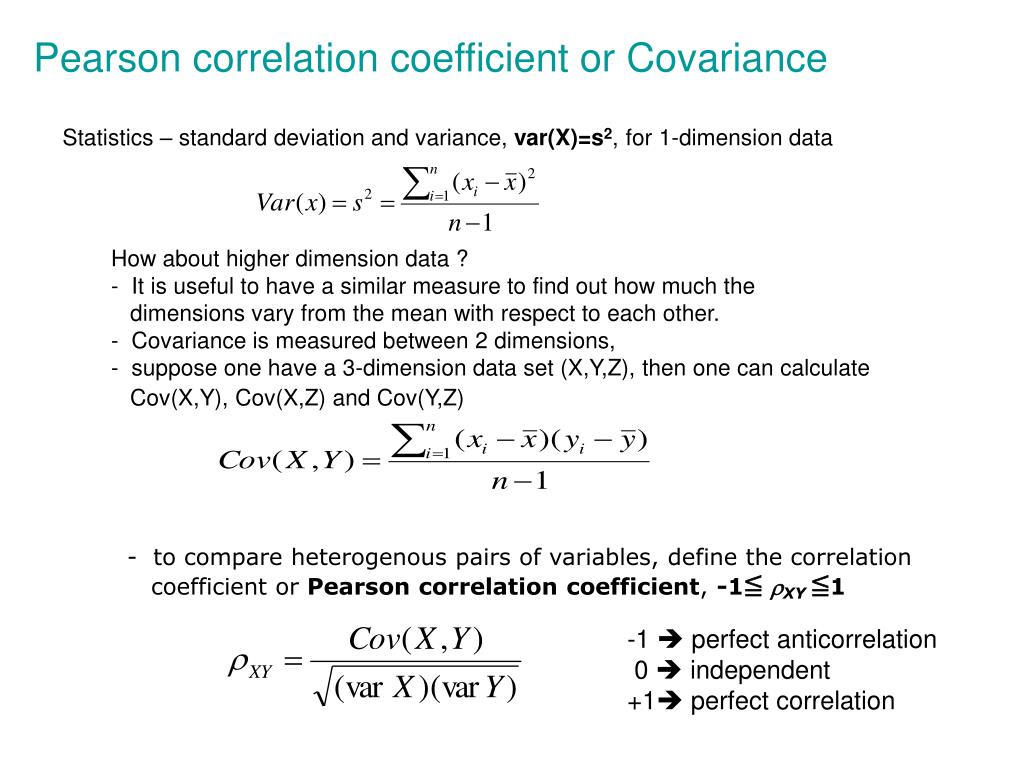

  3. Pearson correlation coefficient or Covariance Statistics – standard deviation and variance, var(X)=s2, for 1-dimension data • How about higher dimension data ? • It is useful to have a similar measure to find out how much the • dimensions vary from the mean with respect to each other. • Covariance is measured between 2 dimensions, • suppose one have a 3-dimension data set (X,Y,Z), then one can calculate • Cov(X,Y), Cov(X,Z) and Cov(Y,Z) - to compare heterogenous pairs of variables, define the correlation coefficient or Pearson correlation coefficient, -1≦rXY ≦1 -1  perfect anticorrelation 0  independent +1 perfect correlation

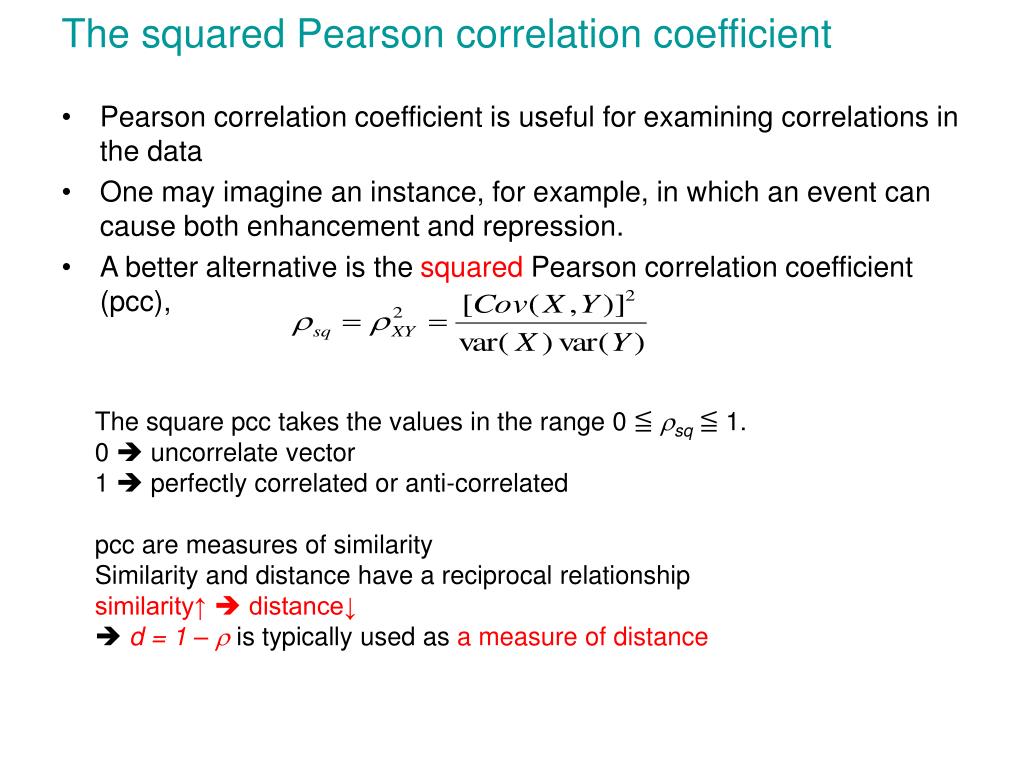

  4. The squared Pearson correlation coefficient • Pearson correlation coefficient is useful for examining correlations in the data • One may imagine an instance, for example, in which an event can cause both enhancement and repression. • A better alternative is the squared Pearson correlation coefficient (pcc), The square pcc takes the values in the range 0 ≦ rsq ≦ 1. 0  uncorrelate vector 1  perfectly correlated or anti-correlated pcc are measures of similarity Similarity and distance have a reciprocal relationship similarity↑  distance↓  d = 1 – r is typically used as a measure of distance

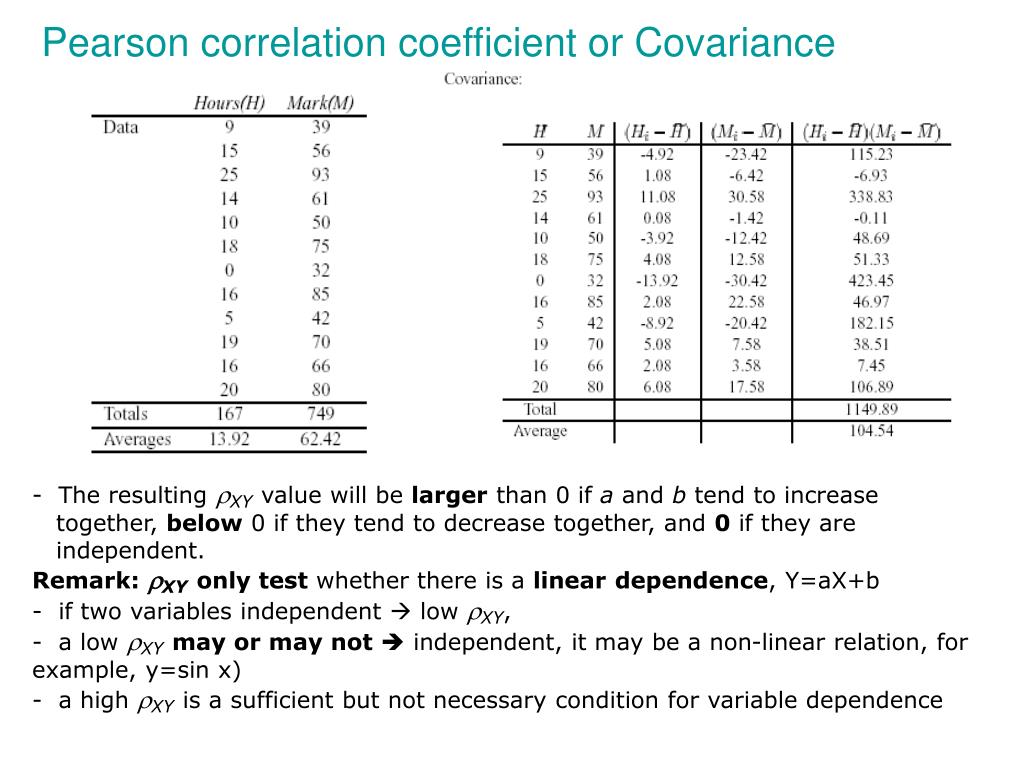

  5. Pearson correlation coefficient or Covariance • The resulting rXYvalue will be larger than 0 if a and b tend to increase • together, below 0 if they tend to decrease together, and 0 if they are • independent. • Remark:rXYonly test whether there is a lineardependence, Y=aX+b • if two variables independent  low rXY, • a low rXYmay or may not independent, it may be a non-linear relation, for example, y=sin x) • a high rXYis a sufficient but not necessary condition for variable dependence

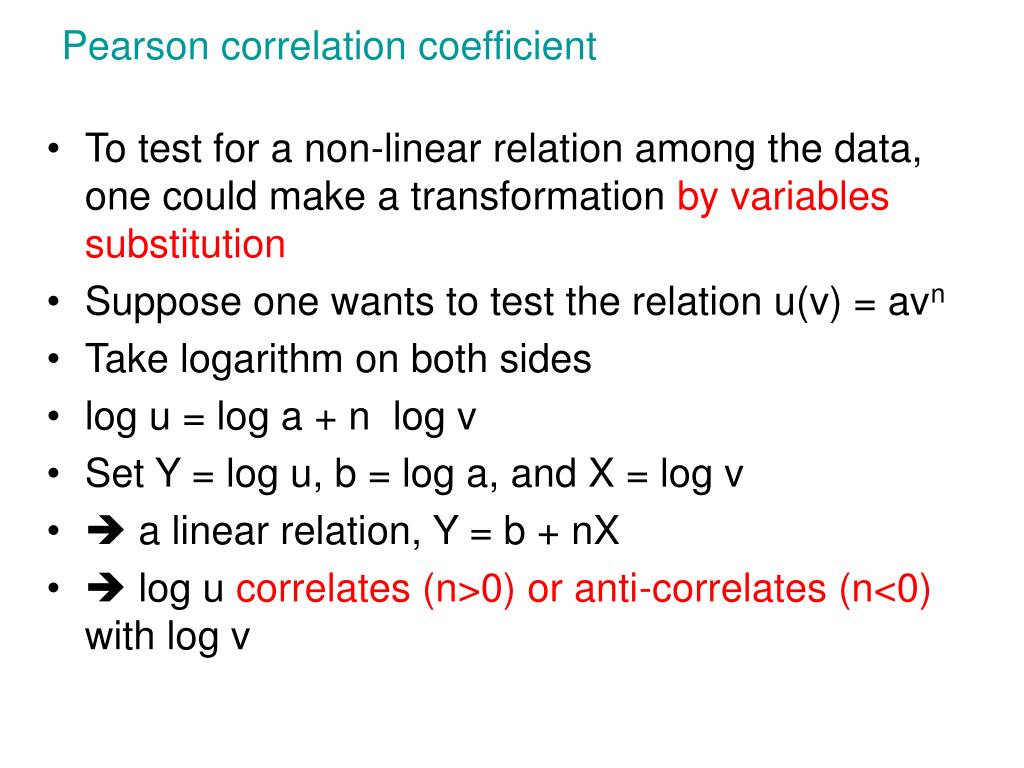

  6. Pearson correlation coefficient • To test for a non-linear relation among the data, one could make a transformation by variables substitution • Suppose one wants to test the relation u(v) = avn • Take logarithm on both sides • log u = log a + n log v • Set Y = log u, b = log a, and X = log v •  a linear relation, Y = b + nX •  log u correlates (n>0) or anti-correlates (n<0) with log v

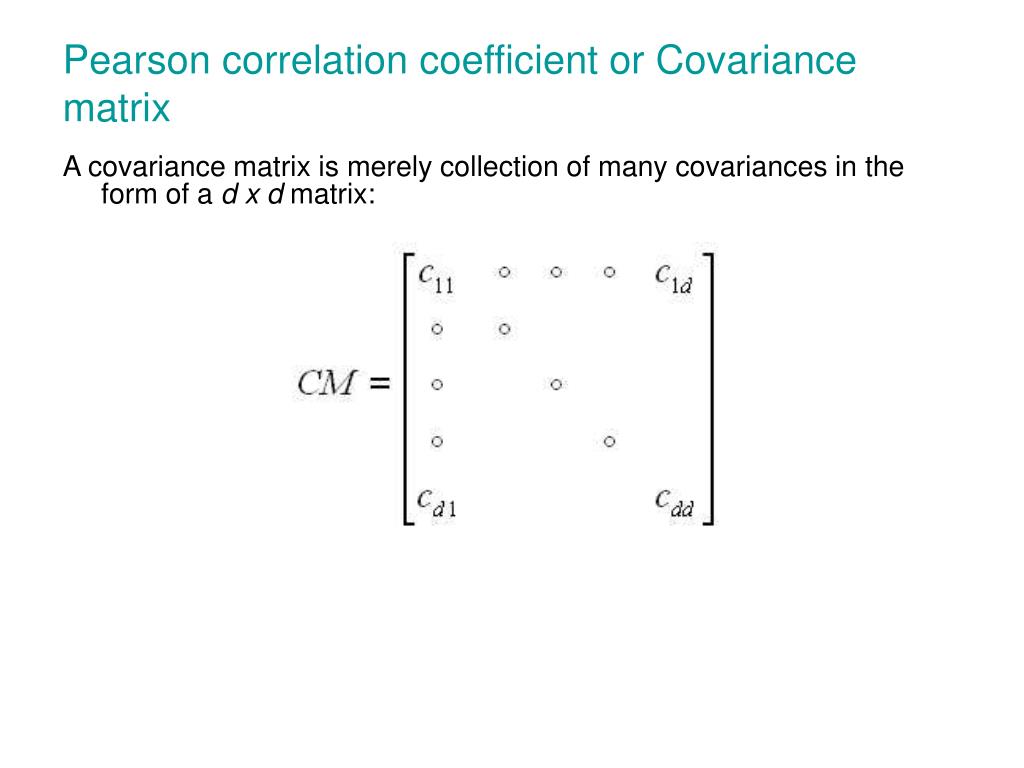

  7. Pearson correlation coefficient or Covariance matrix A covariance matrix is merely collection of many covariances in the form of a d x d matrix:

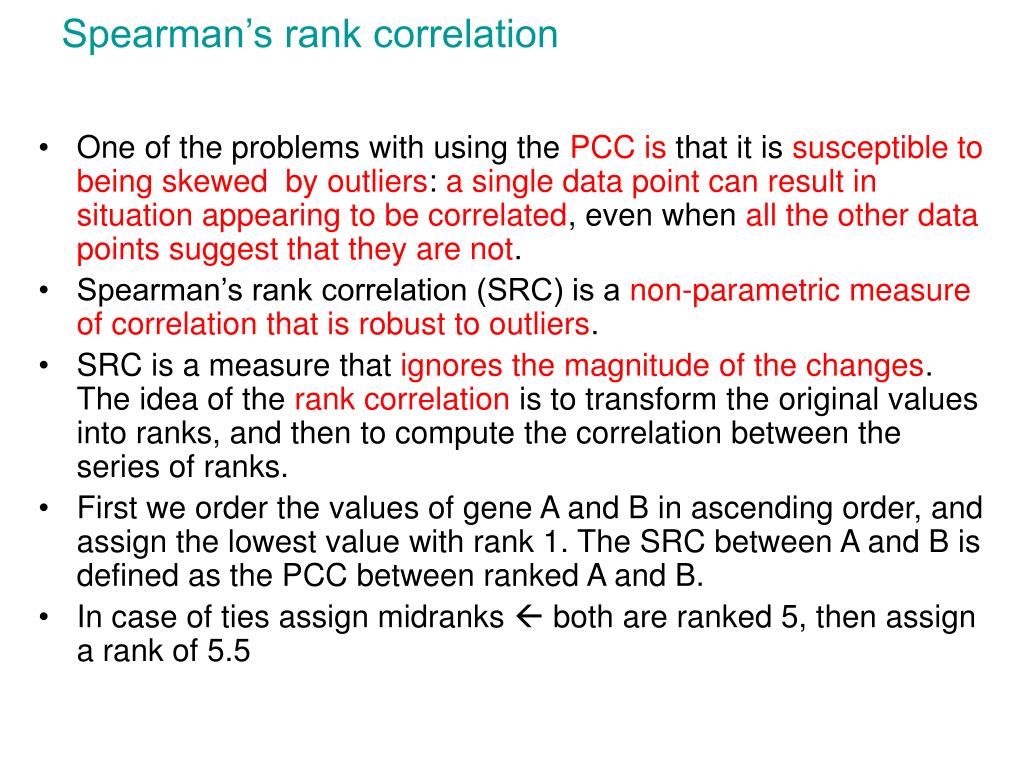

  8. Spearman’s rank correlation • One of the problems with using the PCC is that it is susceptible to being skewed by outliers: a single data point can result in situation appearing to be correlated, even when all the other data points suggest that they are not. • Spearman’s rank correlation (SRC) is a non-parametric measure of correlation that is robust to outliers. • SRC is a measure that ignores the magnitude of the changes. The idea of the rank correlation is to transform the original values into ranks, and then to compute the correlation between the series of ranks. • First we order the values of gene A and B in ascending order, and assign the lowest value with rank 1. The SRC between A and B is defined as the PCC between ranked A and B. • In case of ties assign midranks  both are ranked 5, then assign a rank of 5.5

  9. Spearman’s rank correlation The SRC can be calculated by the following formula, where xi and yi denote the rank of the x and y respectively. An approximate formula in case of ties is given by

  10. Distances in discretized space • Sometimes one has to due with discreteized values • The similarity between two discretized vectors can be measured by the notion of Shannon entropy.

  11. Entropy and the Second Law of Thermodynamics: Disorder and the Unavailability of energy Entropy always increase Ice melts, it becomes more disordered and less structured.

  12. Statistical Interpretation of Entropy and the Second Law S = k ln W S = entropy, k = Boltzmann constant, ln W = natural logarithm of the number of microstates Wcorresponding to the given macrostate. L. Boltzmann (1844-1906) http://automatix.physik.uos.de/~jgemmer/hintergrund_en.html

  13. Entropy and the Second Law of Thermodynamics: Disorder and the Unavailability of energy

  14. Concept of entropy Toss 5 coins, outcome 5H0T 1 4H1T 5 3H2T 10 2H3T 10 1H4T 5 0H5T 1 A total of 32 microstates. Propose entropy, S ~ no. of microstates, W, i.e. S ~ W Generate coin toss with Excel The most probable microstates

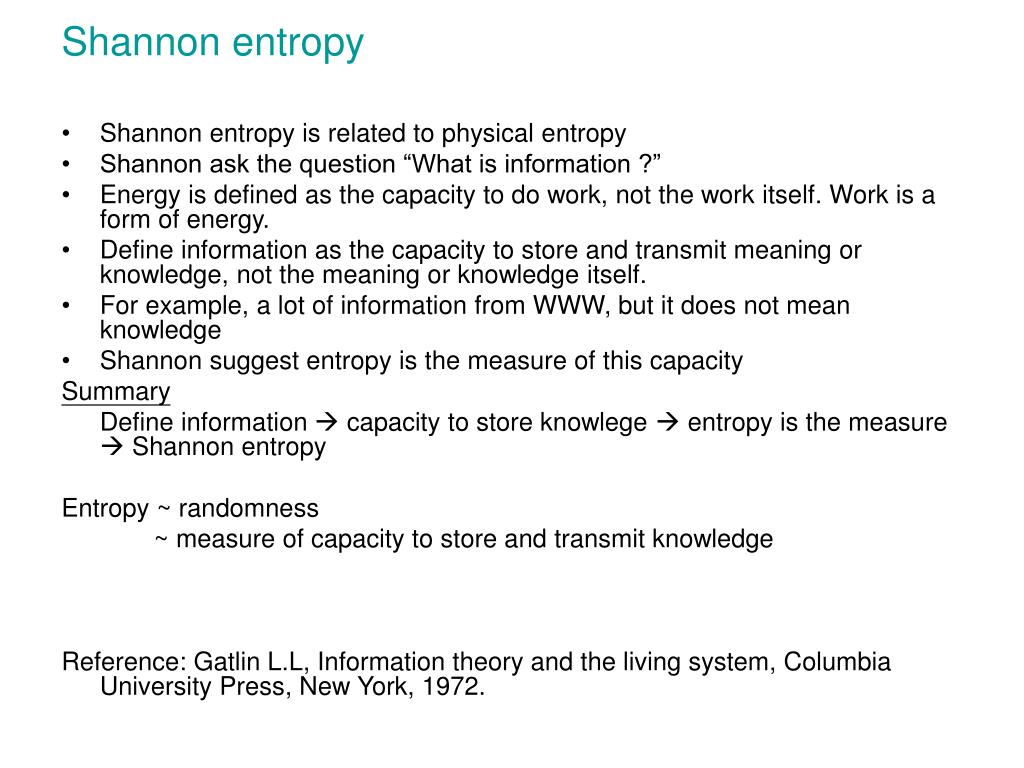

  15. Shannon entropy • Shannon entropy is related to physical entropy • Shannon ask the question “What is information ?” • Energy is defined as the capacity to do work, not the work itself. Work is a form of energy. • Define information as the capacity to store and transmit meaning or knowledge, not the meaning or knowledge itself. • For example, a lot of information from WWW, but it does not mean knowledge • Shannon suggest entropy is the measure of this capacity Summary Define information  capacity to store knowlege  entropy is the measure  Shannon entropy Entropy ~ randomness ~ measure of capacity to store and transmit knowledge Reference: Gatlin L.L, Information theory and the living system, Columbia University Press, New York, 1972.

  16. Shannon entropy • How to relate randomness and measure of this capacity ? Microstates 5H0T 1 4H1T 5 3H2T 10 2H3T 10 1H4T 5 0H5T 1 Physical entropy S = k ln W Shannon entropy Assuming equal probability of each individual microstate, pi pi = 1/W S = - k ln pi Information ~ 1/pi = W If pi = 1  there is no information, because it means certainty If pi<< 1  there are more information, that is information is a decrease in uncertainty

  17. Distances in discretized space • Sometimes it is advantageous to use a discretized expression matrix as the starting point, e.g. to assign values 0 (expression unchanged, 1 (expression increased) and -1 (expression decreased). • The similarity between two discretized vectors can be measured by the notion of Shannon entropy. • Shannon entropy, H1 • Probability of observing a particular symbol or event, pi, with in a given sequence Consider a binary system, an element X has two states, 0 or 1 Claude Shannon - father of information theory and • H1 measure the “uncertainty” of a probability • distribution • - Expectation (average) value of information References: 1.http://www.cs.unm.edu/~patrik/networks/PSB99/genetutorial.pdf 2. http://www.smi.stanford.edu/projects/helix/psb98/liang.pdf 3. plus.maths.org/issue23/ features/data/ base 2

  18. Shannon Entropy certain No information Maximal value Uniform probability DNA seq.  n = 4 states, maximum H1 = - 4*(1/4)* log(1/4) = 2 bits Protein seq.  n = 20 states,  maximum = - 20*(1/20)*log(1/20) = 4.322 bits, which is between 4 and 5 bits.

  19. Hmax1 H1 = log2 (n) The Divergence from equi-probability D1 • When all letter are equi-probable, pi = 1/n • H1 = log2 (n)  the maximum value H1 can take • Define Hmax1 = log2 (n) • Define the divergence from this equi-probable state, D1 • D1 = Hmax1 - H1 • D1 tells us how much of the total divergence from the maximum entropy state is due to the divergence of the base composition from a uniform distribution For example, E. coli genome has no divergence from equi-probability because H1Ec= 2 bits, but, for M. lysodeikticus genome, H1Ml = 1.87, then D1 = 2.00 – 1.87 = 0.13 bit Divergence from independence Single-letter events  which contains no information about how these letters are arranged in a linear sequence

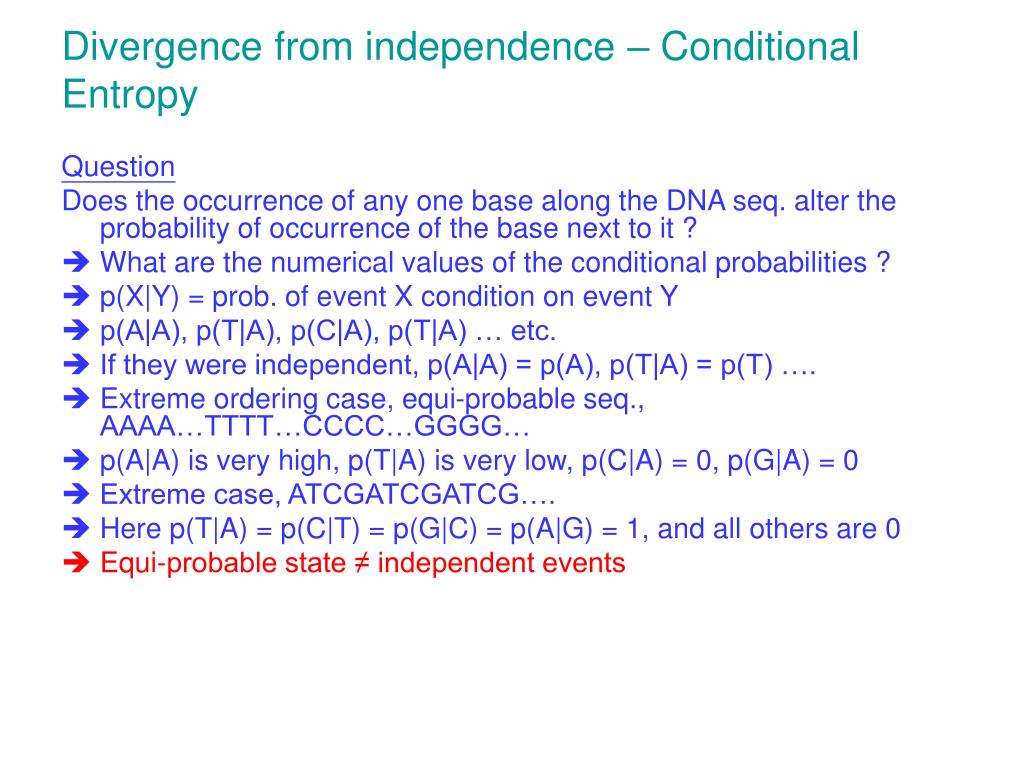

  20. Divergence from independence – Conditional Entropy Question Does the occurrence of any one base along the DNA seq. alter the probability of occurrence of the base next to it ? • What are the numerical values of the conditional probabilities ? • p(X|Y) = prob. of event X condition on event Y • p(A|A), p(T|A), p(C|A), p(T|A) … etc. • If they were independent, p(A|A) = p(A), p(T|A) = p(T) …. • Extreme ordering case, equi-probable seq., AAAA…TTTT…CCCC…GGGG… • p(A|A) is very high, p(T|A) is very low, p(C|A) = 0, p(G|A) = 0 • Extreme case, ATCGATCGATCG…. • Here p(T|A) = p(C|T) = p(G|C) = p(A|G) = 1, and all others are 0 • Equi-probable state ≠ independent events

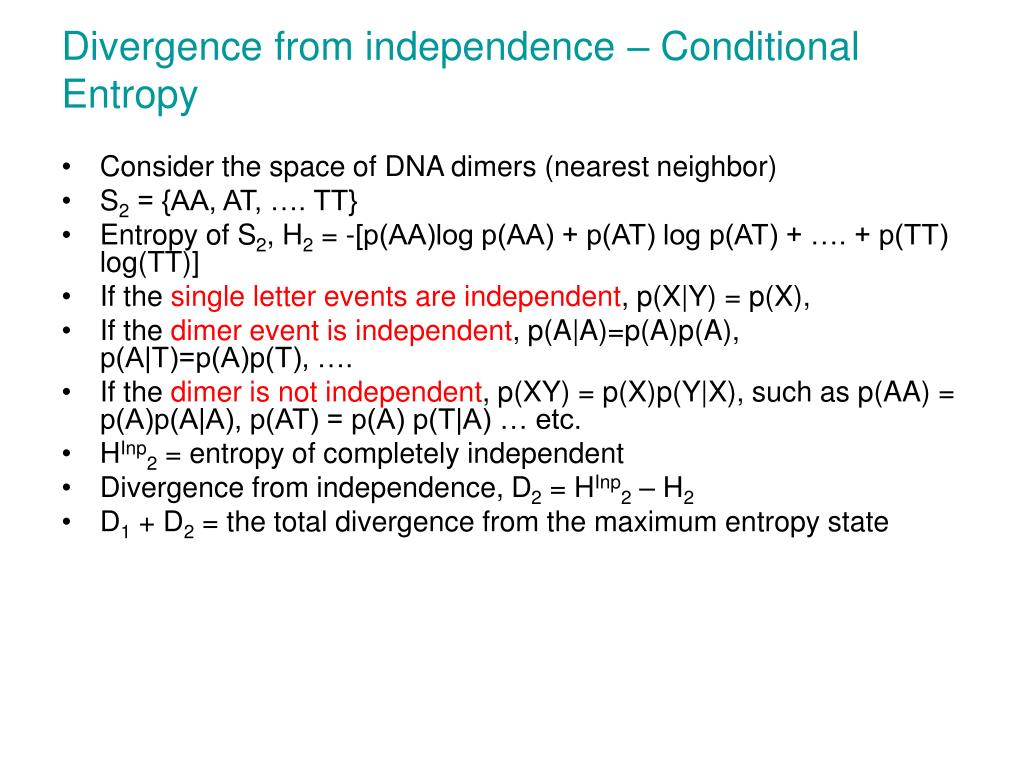

  21. Divergence from independence – Conditional Entropy • Consider the space of DNA dimers (nearest neighbor) • S2 = {AA, AT, …. TT} • Entropy of S2, H2 = -[p(AA)log p(AA) + p(AT) log p(AT) + …. + p(TT) log(TT)] • If the single letter events are independent, p(X|Y) = p(X), • If the dimer event is independent, p(A|A)=p(A)p(A), p(A|T)=p(A)p(T), …. • If the dimer isnot independent, p(XY) = p(X)p(Y|X), such as p(AA) = p(A)p(A|A), p(AT) = p(A) p(T|A) … etc. • HInp2 = entropy of completely independent • Divergence from independence, D2 = HInp2 – H2 • D1 + D2 = the total divergence from the maximum entropy state

  22. Divergence from independence – Conditional Entropy • Calculate D1 and D2 for M. phlei DNA, where p(A)=0.164, p(T)=0.162, p(C)=0.337, p(G)=0.337. • H1= -(0.164 log 0.164 + 0.162 log 0.162 + ..) = 1.910 bits • D1 = 2.000 – 1.910 = 0.090 bit • See the Excel file • D2 = HInp2 – H2 • = 3.8216 – 3.7943 = 0.0273 bit • Total divergence, D1 + D2 = 0.090 + 0.0273 = 0.1173 bit

  23. Divergence from independence – Conditional Entropy • Compare different sequences using H • to establish relationships where • Given the knowledge of one sequence, say X, can we estimate the uncertainty of Y relative to X ? • Relation between X, Y, and the conditional entropy, H(X|Y) and H(Y|X) • conditional entropy is the uncertainty relative to • known information • H(X,Y) = H(Y|X) + H(X) • = uncertainty of Y given • knowledge of X, H(Y|X) + uncertainty of X, • sum to the entropy of X and Y • = H(X|Y) + H(Y) Y=2x log10Y=xlog102 X=log10Y/log102 H(Y|X) = H(X,Y) – H(X) = 1.85 – 0.97 = 0.88 bit

  24. Shannon Entropy – Mutual Information Joint entropy H(X,Y) where pij is the joint probability of finding xi and yj • probability of finding (X,Y) • p00 = 0.1, p01 = 0.3, p10 = 0.4, p11 = 0.2 Mutual information entropy, M(X,Y) • Information shared by X and Y, or it can be used as a similarity measure between X and Y • H(X,Y)= H(X) + H(Y) – M(X,Y) like in set theory, A∪B = A + B – (A∩B) • M(X,Y)= H(X) + H(Y) - H(X,Y) • = H(X) – H(X|Y) • = H(Y) – H(Y|X) • = 1.00 – 0.88 • M(X,Y)= H(X) + H(Y) – H(X,Y) = 0.97 + 1.00 – 1.85 = 0.12 bit and

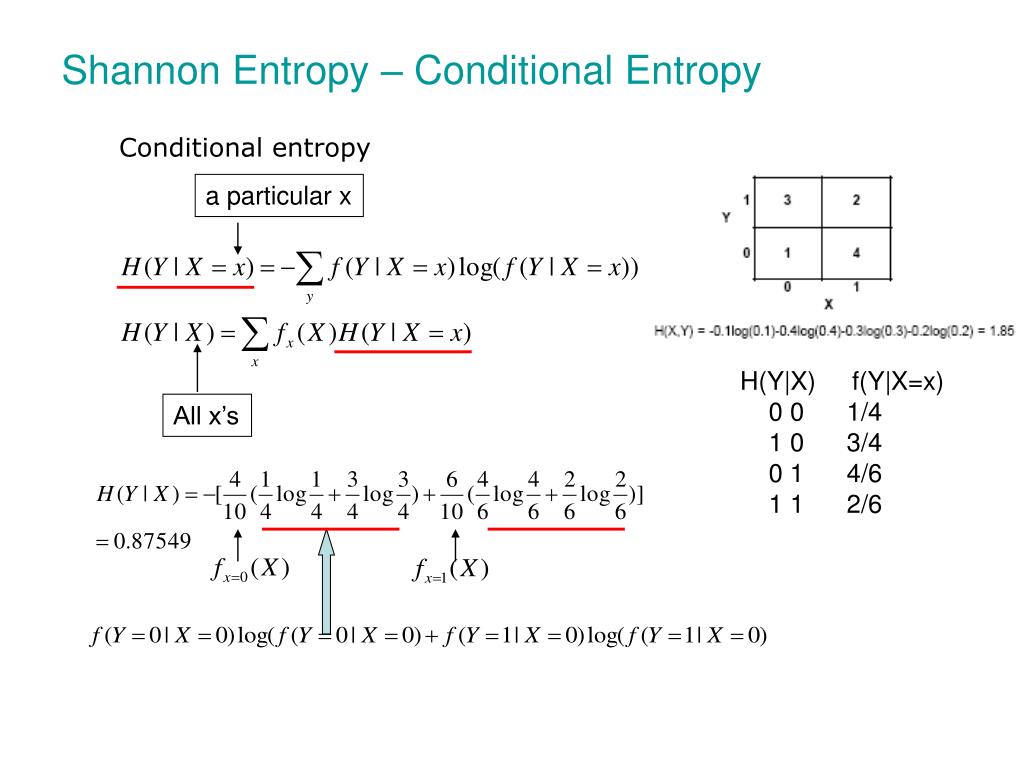

  25. Shannon Entropy – Conditional Entropy Conditional entropy a particular x H(Y|X) f(Y|X=x) 0 0 1/4 1 0 3/4 0 1 4/6 1 1 2/6 All x’s
