  1. Lecture 13PicoBlaze I/O & Interrupt InterfaceExample ofAssembly Language Routine ECE 448 – FPGA and ASIC Design with VHDL

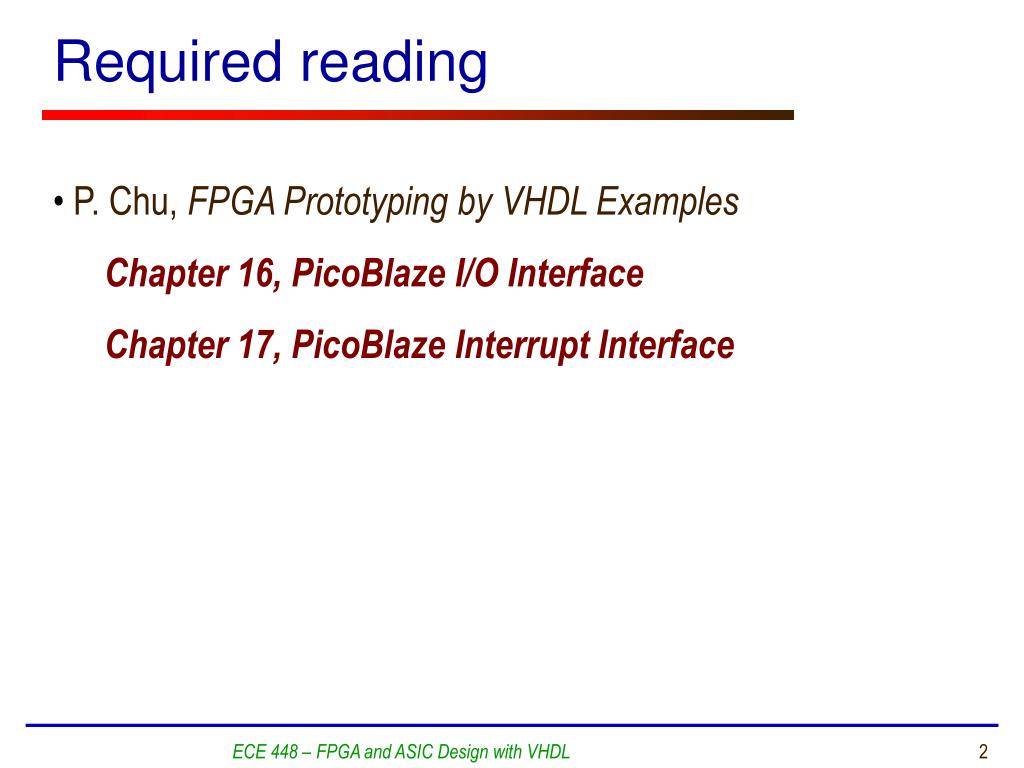

  2. Required reading • P. Chu, FPGA Prototyping by VHDL Examples • Chapter 16, PicoBlaze I/O Interface • Chapter 17, PicoBlaze Interrupt Interface ECE 448 – FPGA and ASIC Design with VHDL

  3. Output Decoding of Four Output Registers ECE 448 – FPGA and ASIC Design with VHDL

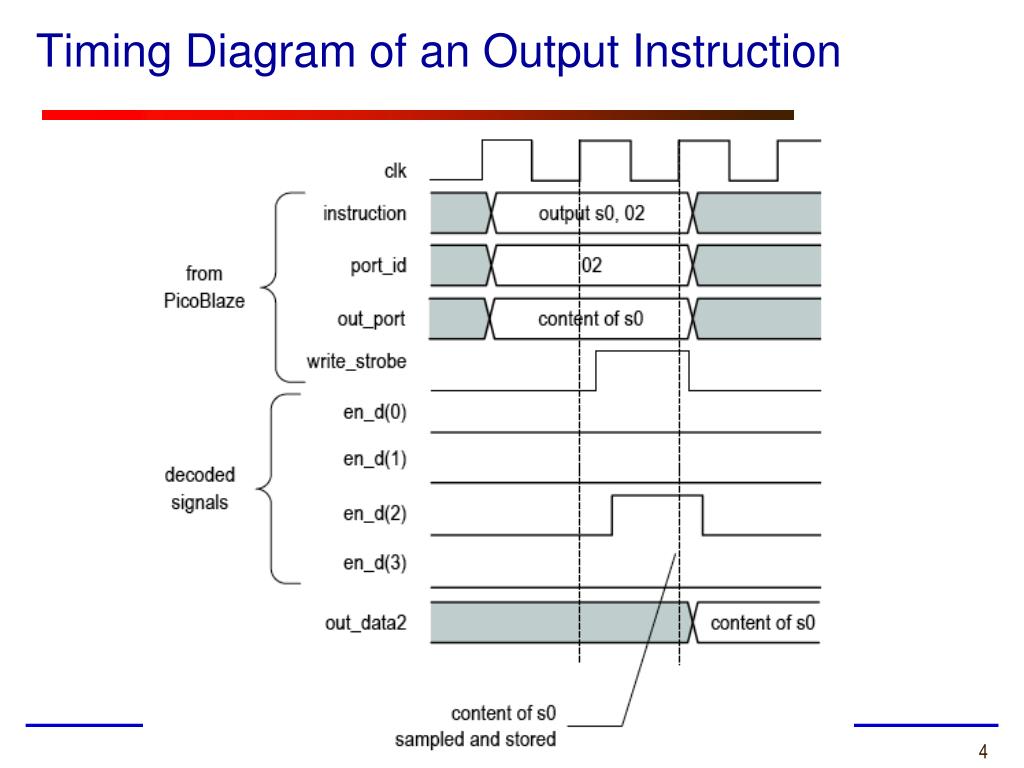

  4. Timing Diagram of an Output Instruction ECE 448 – FPGA and ASIC Design with VHDL

  5. Truth Table of a Decoding Circuit ECE 448 – FPGA and ASIC Design with VHDL

  6. Block Diagram of Four Continuous-Access Ports ECE 448 – FPGA and ASIC Design with VHDL

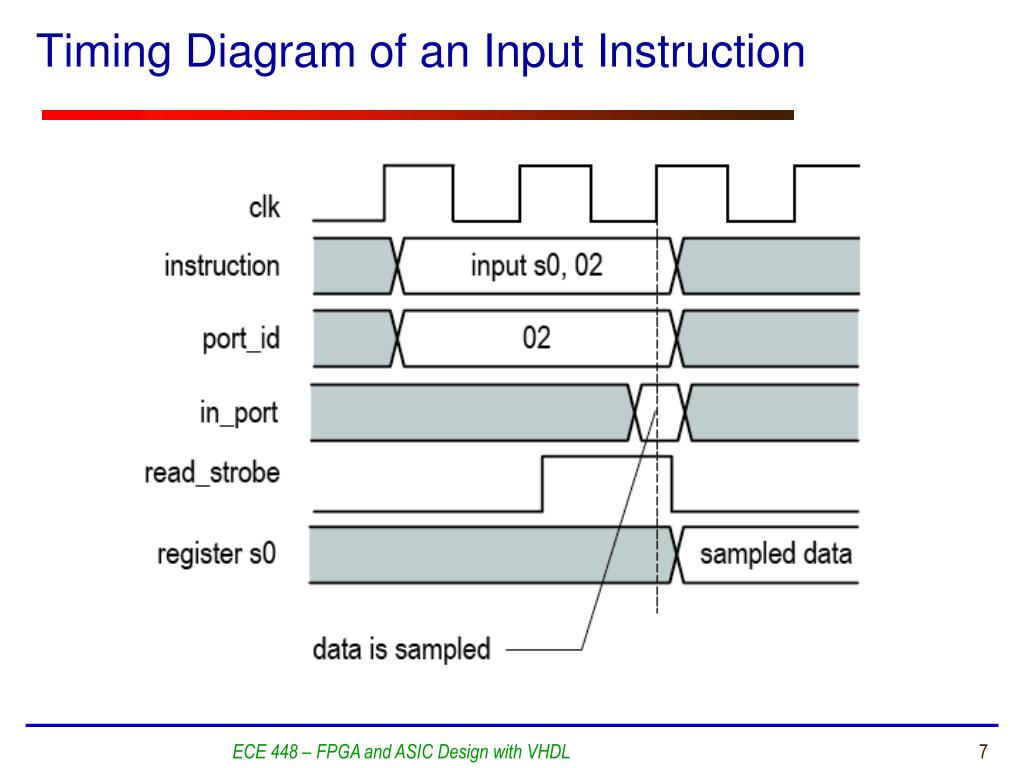

  7. Timing Diagram of an Input Instruction ECE 448 – FPGA and ASIC Design with VHDL

  8. Block Diagram of Four Single-Access Ports ECE 448 – FPGA and ASIC Design with VHDL

  9. FIFO Interface clk rst rst clk FIFO dout din 8 8 empty full write read ECE 448 – FPGA and ASIC Design with VHDL

  10. Operation of FIFO ECE 448 – FPGA and ASIC Design with VHDL

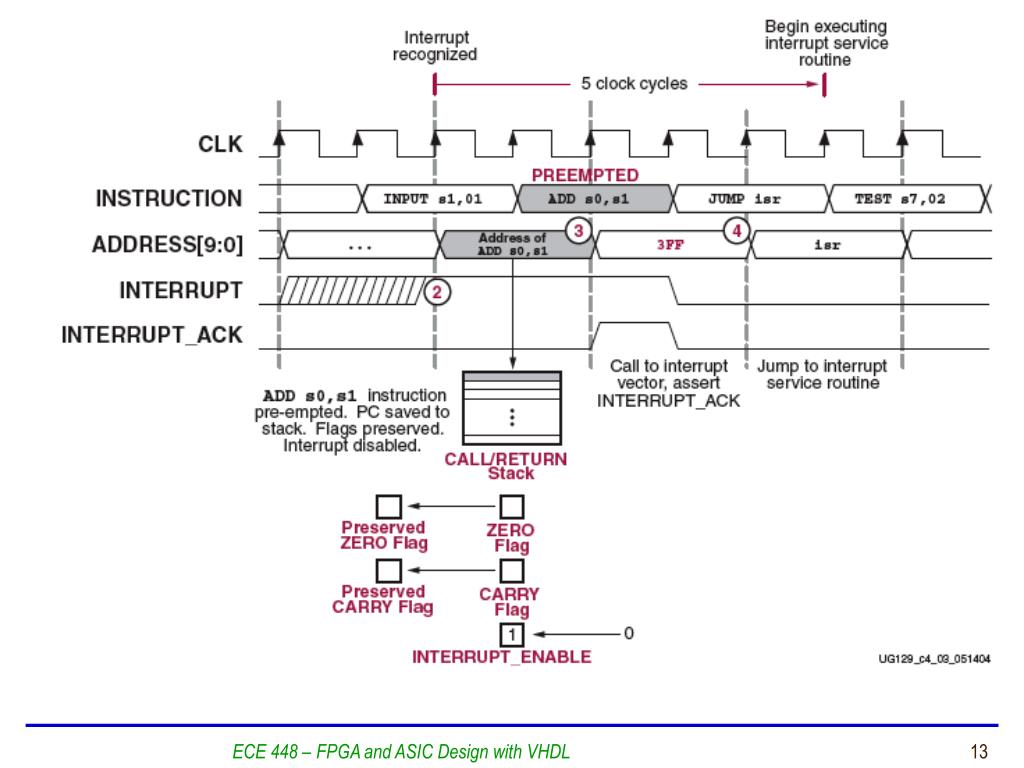

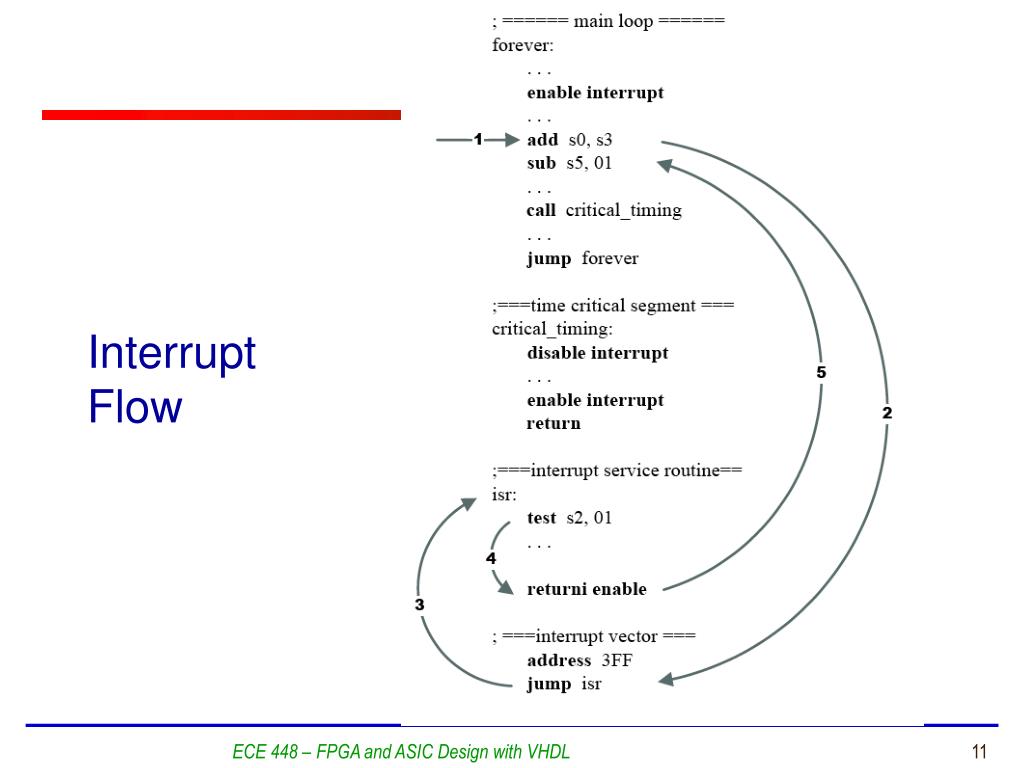

  11. Interrupt Flow ECE 448 – FPGA and ASIC Design with VHDL

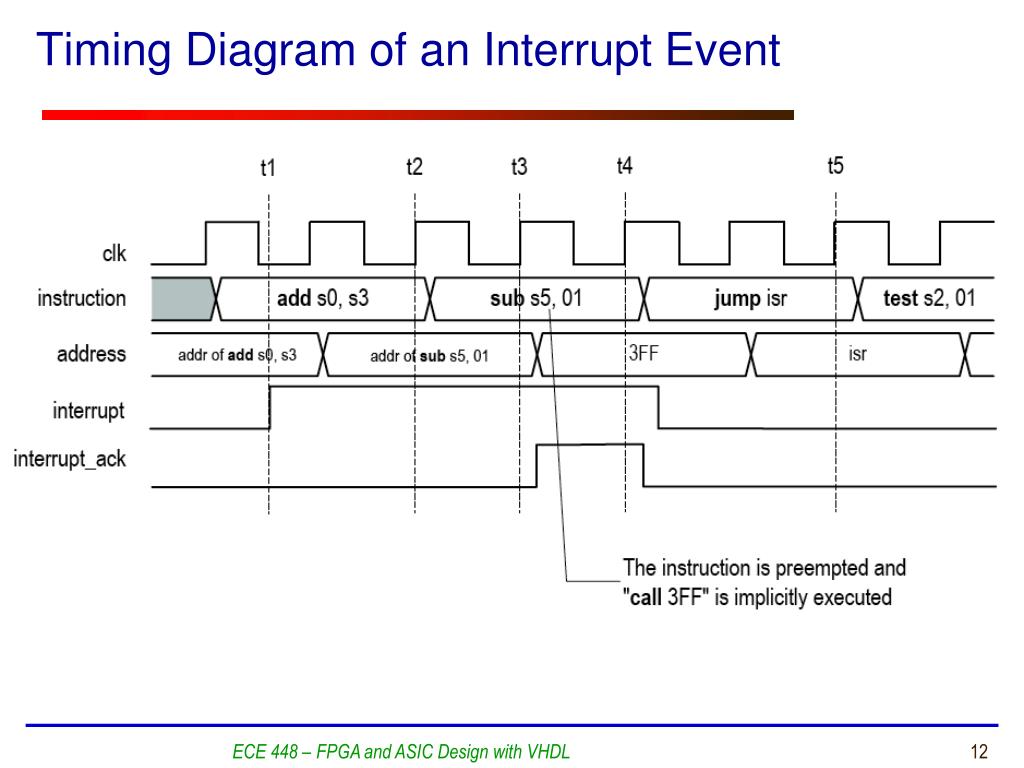

  12. Timing Diagram of an Interrupt Event ECE 448 – FPGA and ASIC Design with VHDL

  13. ECE 448 – FPGA and ASIC Design with VHDL

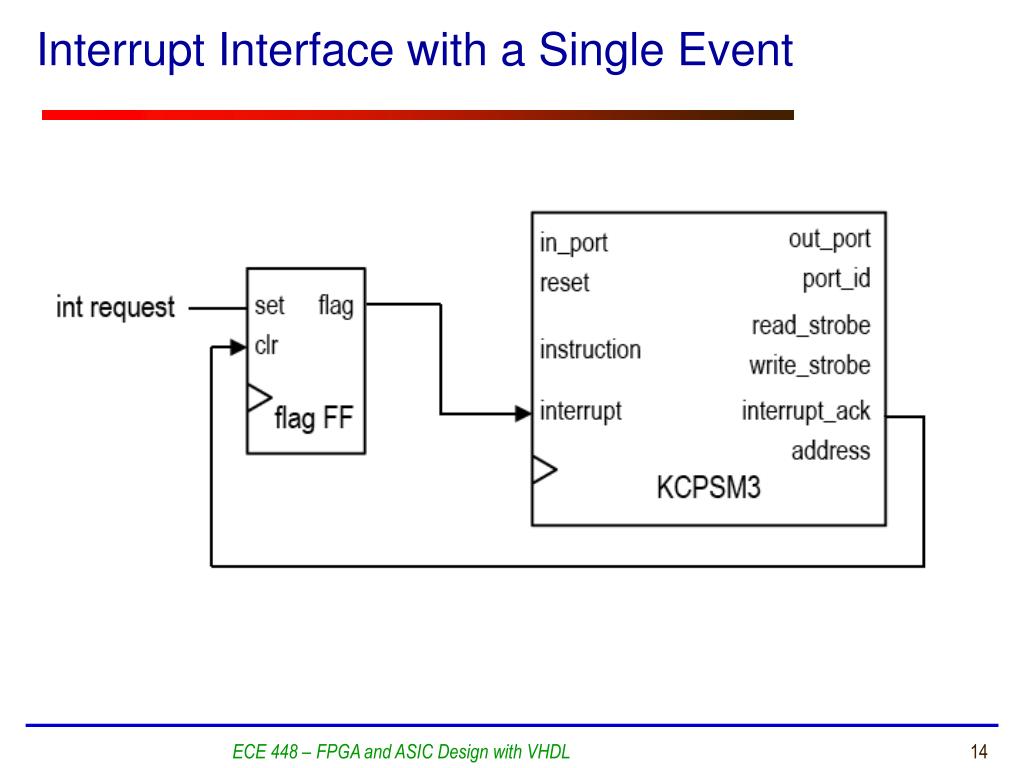

  14. Interrupt Interface with a Single Event ECE 448 – FPGA and ASIC Design with VHDL

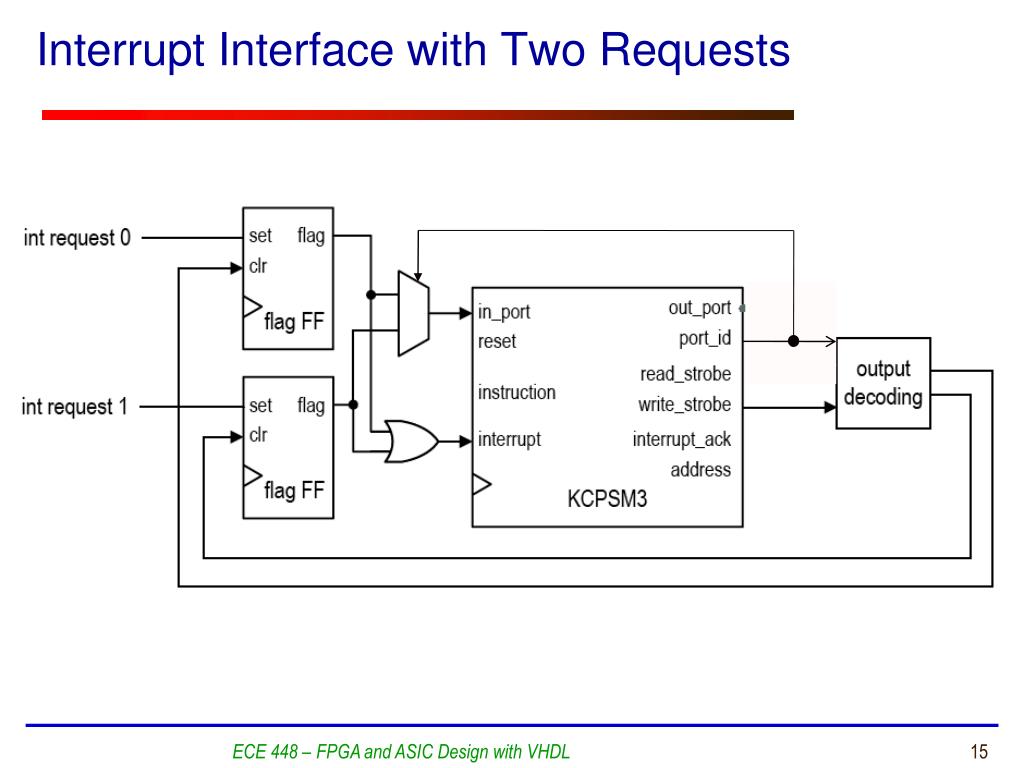

  15. Interrupt Interface with Two Requests ECE 448 – FPGA and ASIC Design with VHDL

  16. Time-Multiplexed Seven Segment Display ECE 448 – FPGA and ASIC Design with VHDL

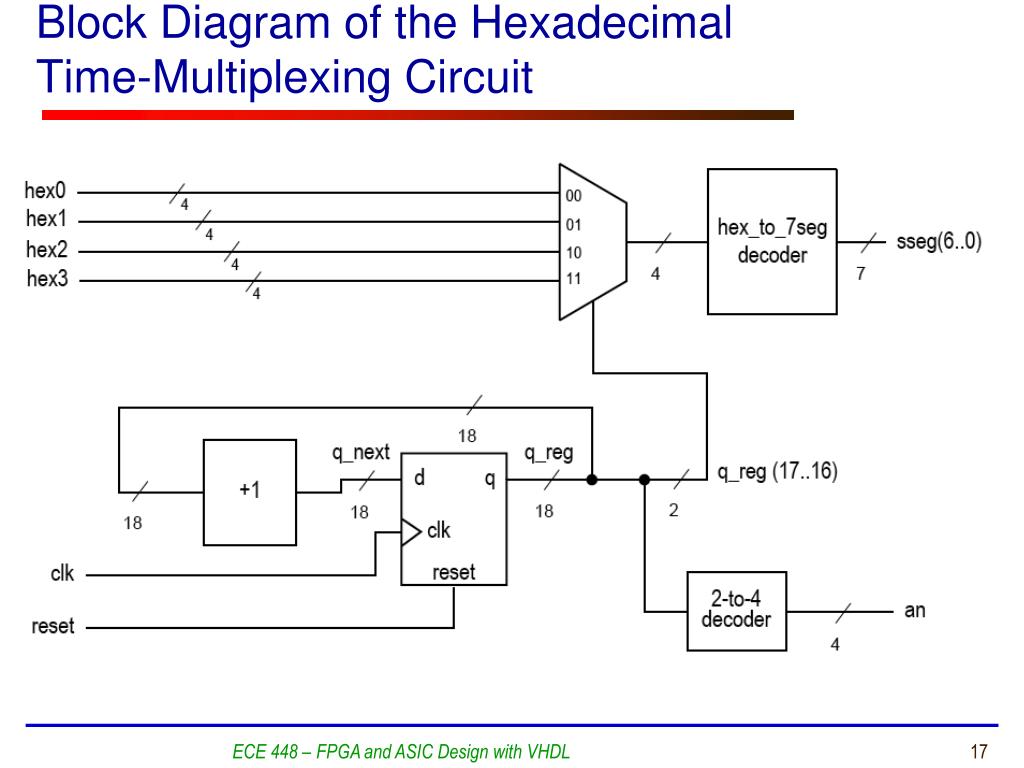

  17. Block Diagram of the Hexadecimal Time-Multiplexing Circuit ECE 448 – FPGA and ASIC Design with VHDL

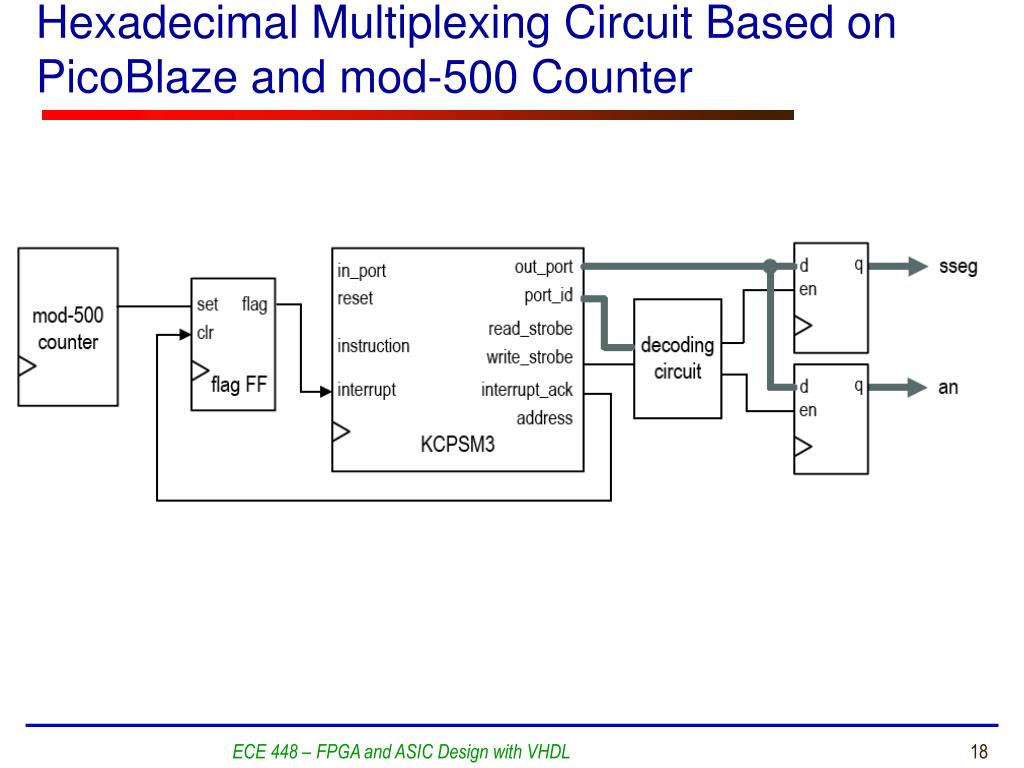

  18. Hexadecimal Multiplexing Circuit Based on PicoBlaze and mod-500 Counter ECE 448 – FPGA and ASIC Design with VHDL

  19. Example ofa function in the PicoBlazeassembly language ECE 448 – FPGA and ASIC Design with VHDL

  20. Notation a Multiplicand ak-1ak-2 . . . a1 a0 x Multiplier xk-1xk-2 . . . x1 x0 p Product (a  x) p2k-1p2k-2 . . . p2 p1 p0

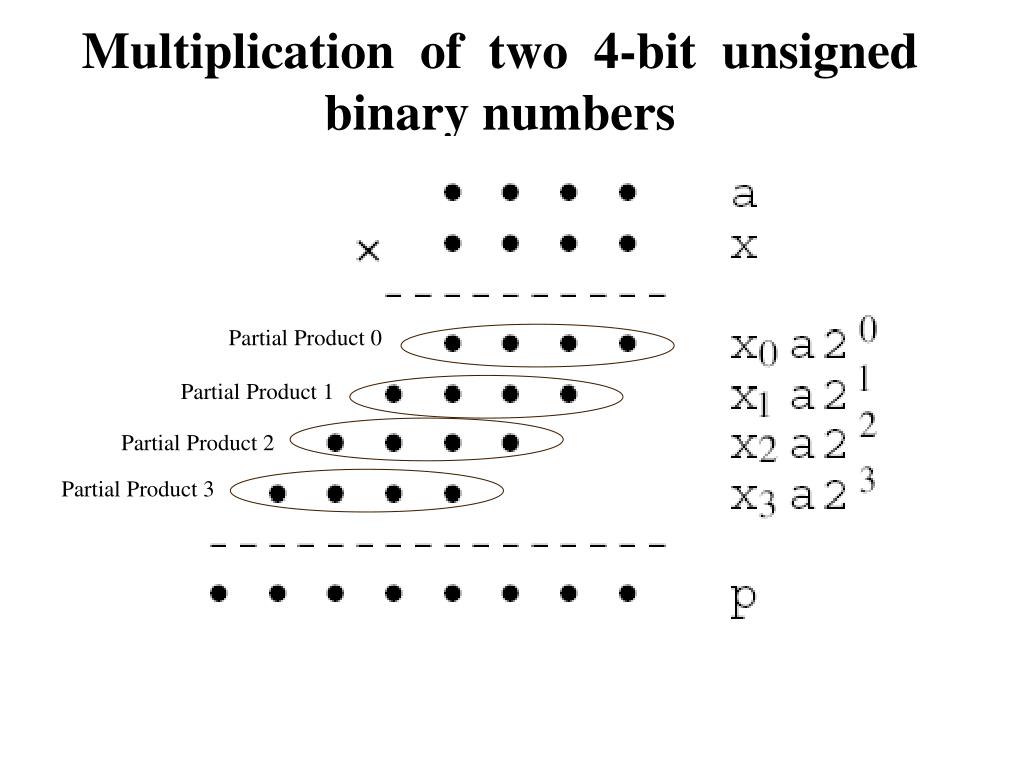

  21. Multiplication of two 4-bit unsigned binarynumbers Partial Product 0 Partial Product 1 Partial Product 2 Partial Product 3

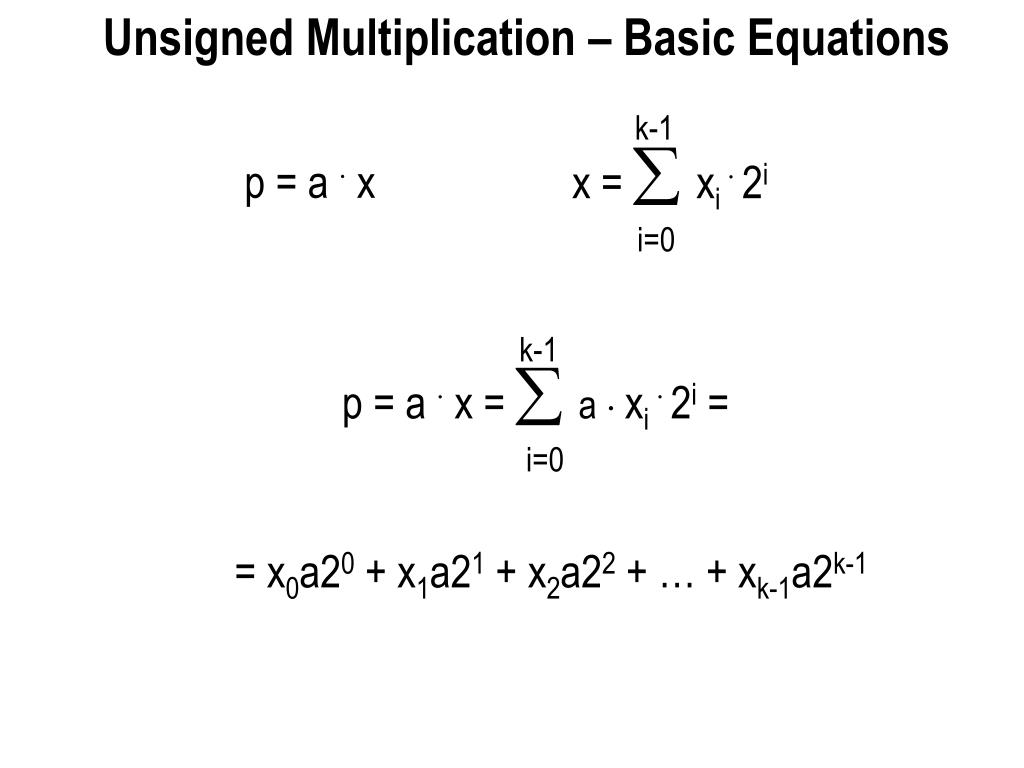

  22. Unsigned Multiplication – Basic Equations k-1 x = xi  2i p = a  x i=0 k-1 p = a  x = a  xi  2i = = x0a20 + x1a21 + x2a22 + … + xk-1a2k-1 i=0

  23. Iterative Algorithm for Unsigned Multiplication Shift/Add Algorithm p = a  x = x0a20 + x1a21 + x2a22 + … + xk-1a2k-1 = = (...((0 + x0a2k)/2 + x1a2k)/2 + ... + xk-1a2k)/2 = k times p(0) = 0 j=0..k-1 p(j+1) = (p(j) + xj a 2k) / 2 p = p(k)

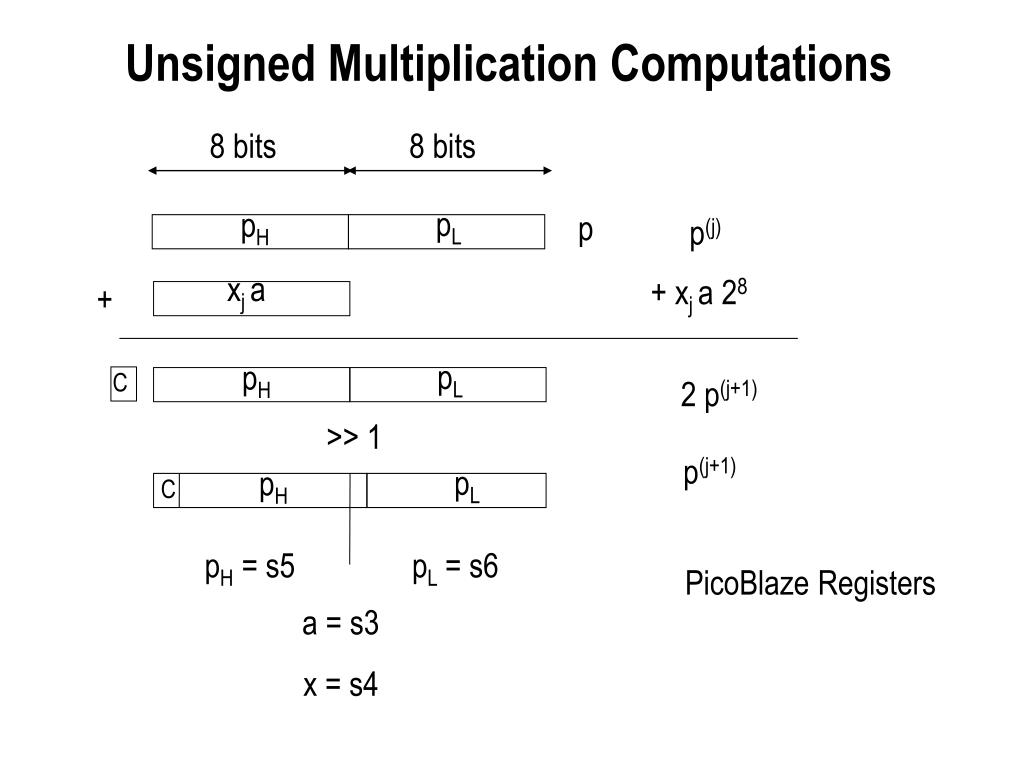

  24. Unsigned Multiplication Computations 8 bits 8 bits pL pH p p(j) xj a + xj a 28 + pL pH C 2 p(j+1) >> 1 p(j+1) pL pH C pH = s5 pL = s6 PicoBlaze Registers a = s3 x = s4

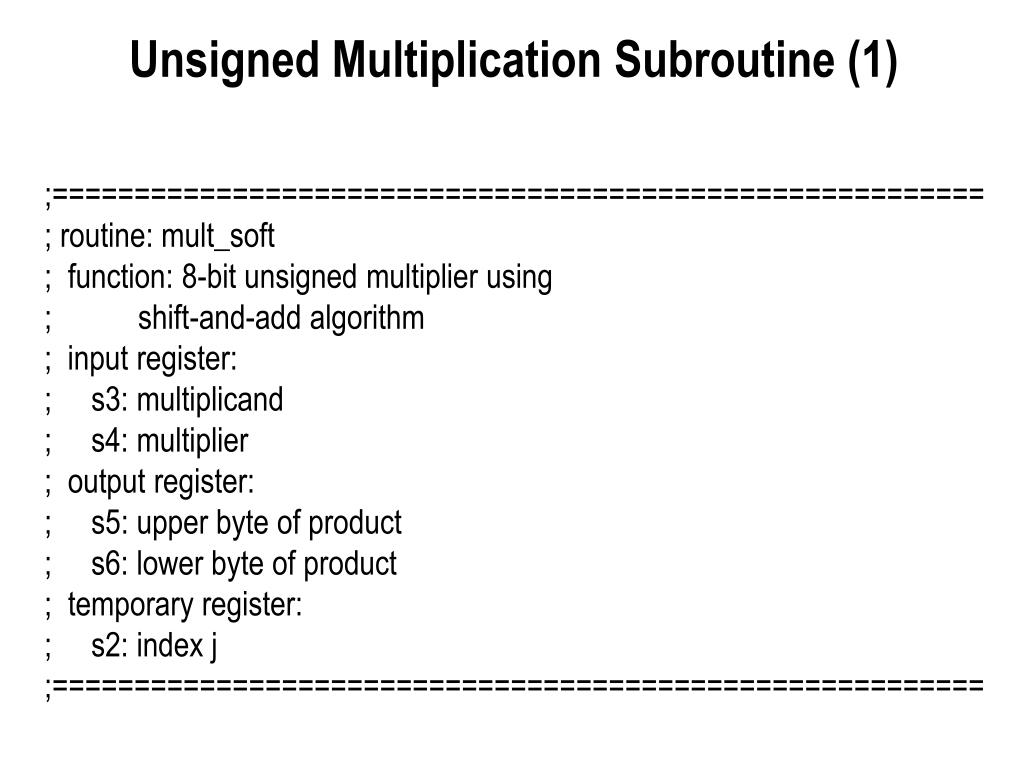

  25. Unsigned Multiplication Subroutine (1) ;========================================================= ; routine: mult_soft ; function: 8-bit unsigned multiplier using ; shift-and-add algorithm ; input register: ; s3: multiplicand ; s4: multiplier ; output register: ; s5: upper byte of product ; s6: lower byte of product ; temporary register: ; s2: index j ;=========================================================

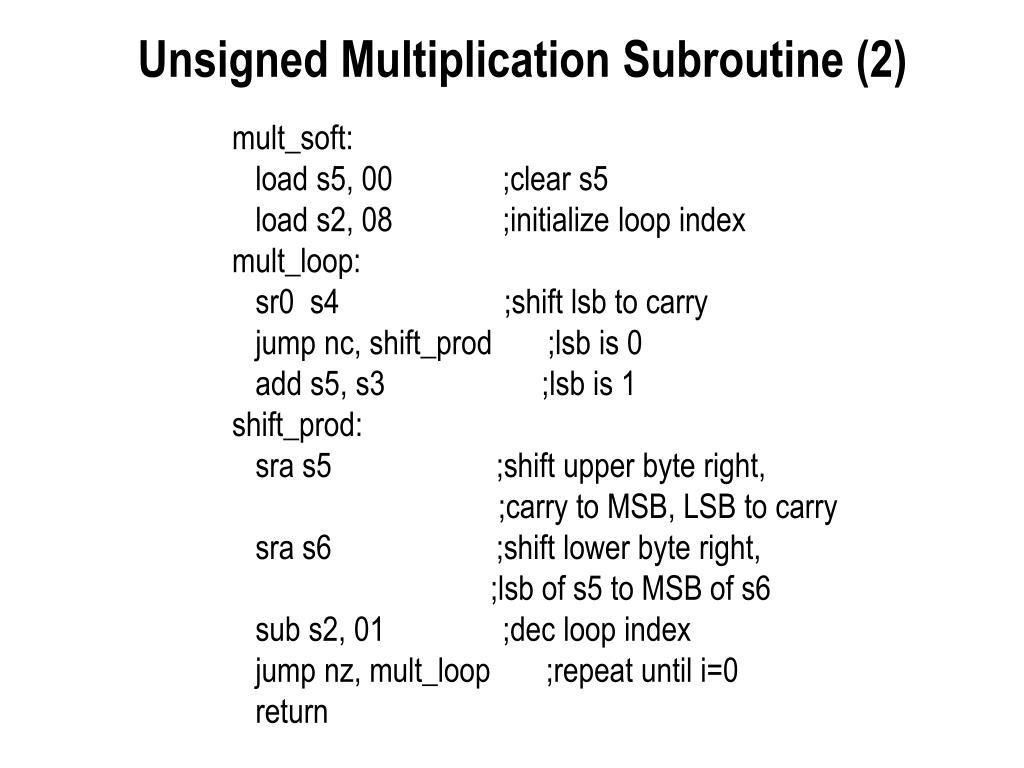

  26. Unsigned Multiplication Subroutine (2) mult_soft: load s5, 00 ;clear s5 load s2, 08 ;initialize loop index mult_loop: sr0 s4 ;shift lsb to carry jump nc, shift_prod ;lsb is 0 add s5, s3 ;lsb is 1 shift_prod: sra s5 ;shift upper byte right, ;carry to MSB, LSB to carry sra s6 ;shift lower byte right, ;lsb of s5 to MSB of s6 sub s2, 01 ;dec loop index jump nz, mult_loop ;repeat until i=0 return

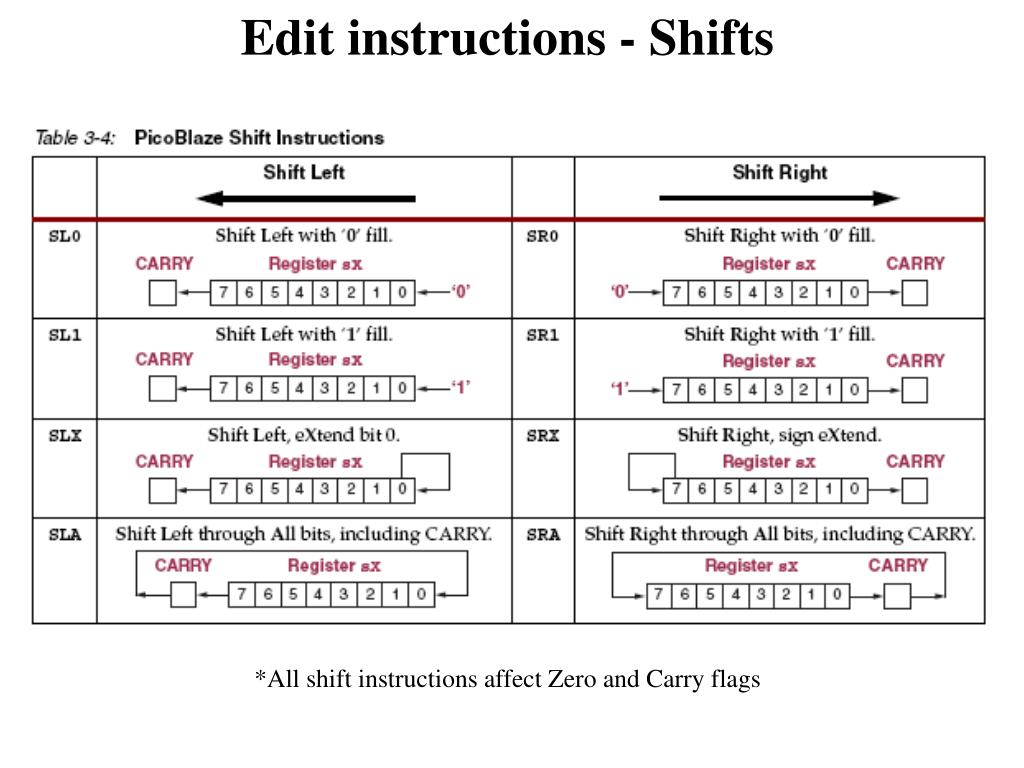

  27. Edit instructions - Shifts *All shift instructions affect Zero and Carry flags
