  1. ATCA Systems Technology Meeting 10.2.2009CERN Genève

  2. AdvancedTCA Systems Platformsaccording to PICMG 3.0currently produced byElma Electronic, Inc.44350 Grimmer Blvd.Fremont, CA 94538, USA

  3. Table of Contents • 2U ATCA Systems Platforms • CAP002002 • CAP002021 • CAP002034 • 4U ATCA Systems Platforms • CAP001638 • CAP002030 • 5U ATCA Systems Platforms • CAP001476 • 12U ATCA Systems Platforms • CAP001279 • CAP001800 • CAP001861 • 13U ATCA Systems Platforms • CAP002014

  4. ATCA Systems Platform 2U, CAP0020022 slot with RTM, 1 Shelf Manager fix mount, 2 Fan Trays pluggable with 3 Fans each, Air Filter, 1 PSU 115VAC / 250W fix mount Front View

  5. ATCA Systems Platform 2U, CAP0020022 slot with RTM, 1 Shelf Manager fix mount, 2 Fan Trays pluggable with 3 Fans each, Air Filter, 1 PSU 115VAC / 250W fix mountRear View

  6. ATCA Systems Platform 2U, CAP0020212 slot without RTM, 2 Shelf Manager pluggable, 2 Fan Trays pluggable with 4 Fans each, Air Filter, 1 PSU 115VAC / 500W fix mountFront View

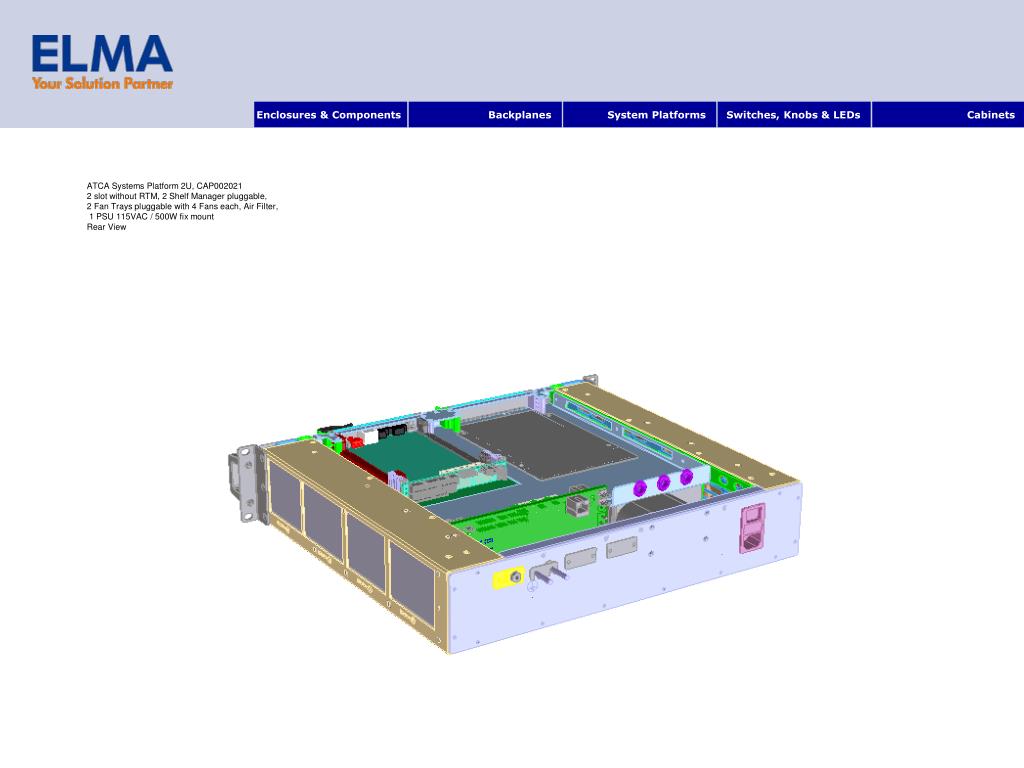

  7. ATCA Systems Platform 2U, CAP0020212 slot without RTM, 2 Shelf Manager pluggable, 2 Fan Trays pluggable with 4 Fans each, Air Filter, 1 PSU 115VAC / 500W fix mountRear View

  8. ATCA Systems Platform 2U, CAP0020342 slot with RTM, 1 Shelf Manager fix mount, 2 Fan trays pluggable with 3 Fans each, Air Filter, Dual, redundant -48VDC FeedsFront View

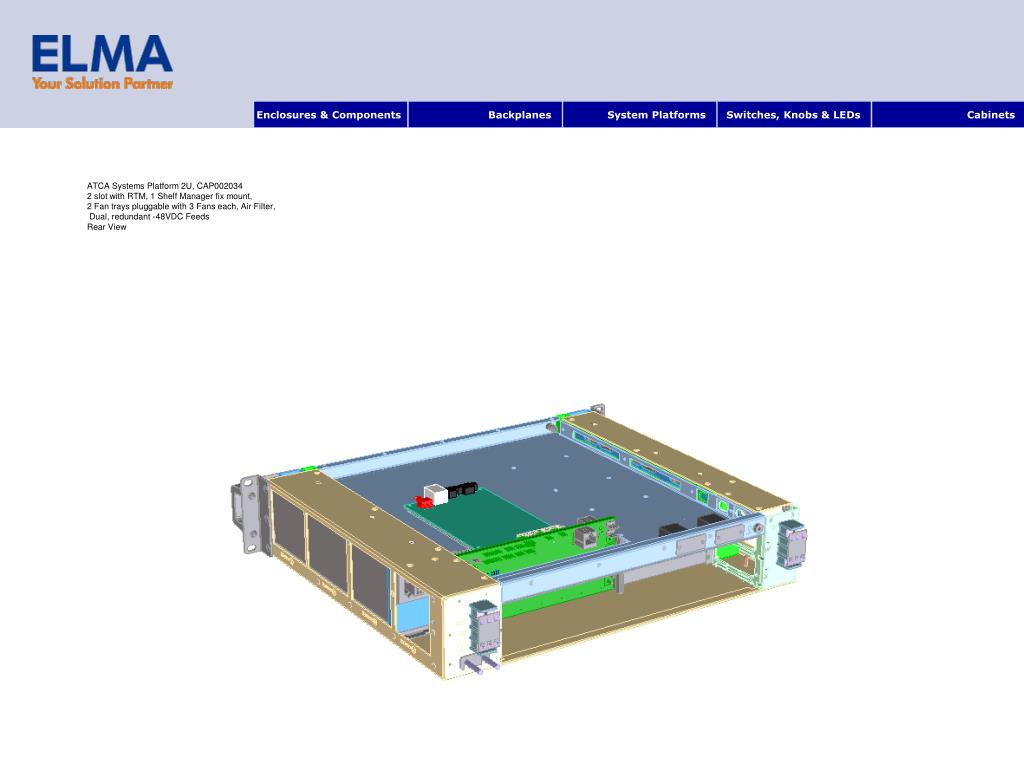

  9. ATCA Systems Platform 2U, CAP0020342 slot with RTM, 1 Shelf Manager fix mount, 2 Fan trays pluggable with 3 Fans each, Air Filter, Dual, redundant -48VDC FeedsRear View

  10. ATCA Systems Platform 4U, CAP0016385 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, Single -48VDC FeedFront View

  11. ATCA Systems Platform 4U, CAP0016385 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, Single -48VDC Feed Rear View

  12. ATCA Systems Platform 4U, CAP0020305 slot with RTM, 2 Shelf Managers fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, Dual, redundant -48VDC FeedsFront View

  13. ATCA Systems Platform 4U, CAP0020305 slot with RTM, 2 Shelf Managers fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, Dual, redundant -48VDC FeedsRear View

  14. ATCA Systems Platform 5U, CAP0014765 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Front View

  15. ATCA Systems Platform 5U, CAP0014765 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Rear View

  16. 5U ATCA with Rear I/O DCA0 • Dual Shelf Manager • Push Pull Fan Configuration • Filter Tray removable from the Front • Dual 48V input • Easy Conversion to AC Version • Carrying Handles for Lab transportation

  17. Easy removable Fan Tray left and right. No Tools required. Right Fan Tray with integrated Filter. Left side 8 Fans 80mm al the way to the back for rear I/O cooling. Right fan tray 6 Fans 80mm.

  18. Filter Tray extended to cover Rear I/O Area. • Removable from the Front. No Tools required. • Filter Mesh washable fixed with Velcro to the Filter tray. • Fan Tray stays in Place.

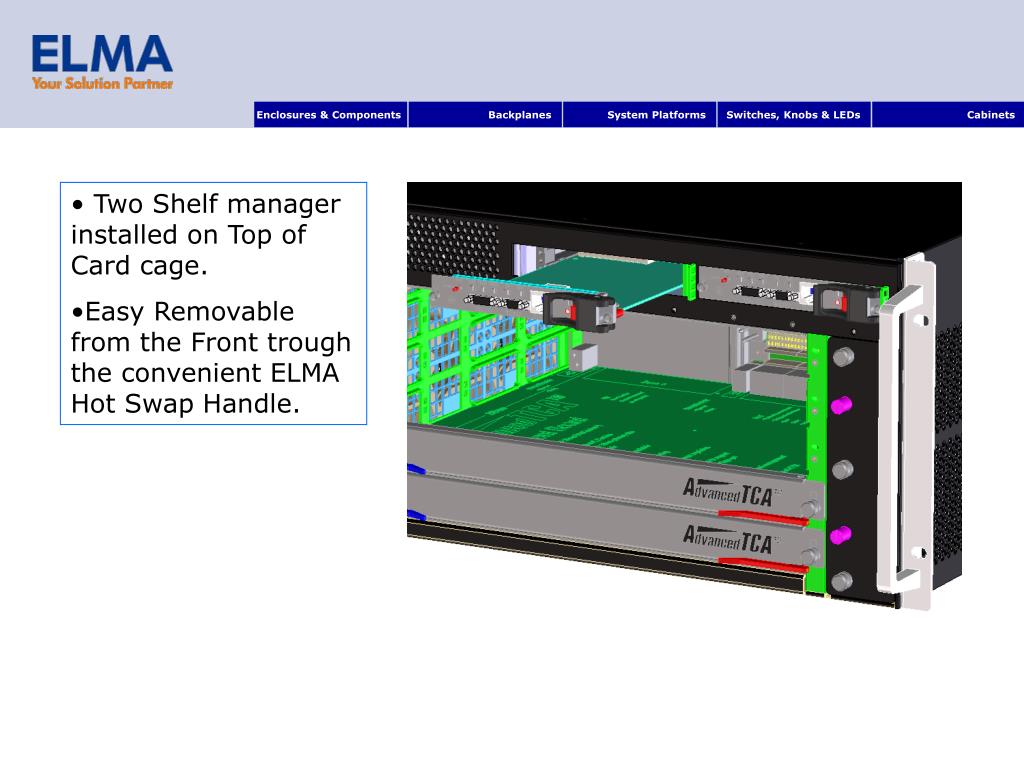

  19. Two Shelf manager installed on Top of Card cage. • Easy Removable from the Front trough the convenient ELMA Hot Swap Handle.

  20. ON/OFF Switch located above left Fan Tray, for easy Start or shut down. • ESD Jack located in Front for easy plug in. Marked with Yellow Plate to get attention.

  21. For Easy Transportation additional Carrying Handle on each Side. • Integrated to stay in the 19 Inch Width.

  22. DC-Version • DC Version with two Filtered Terminal Blocks including Safety cover. • DC Hole Arrangement cover with Patch-Panel. • ESD Jack on the left Top for easy Access. Marked with Yellow Silkscreen Plate to get Attention. • Grounding Feature with Bridge to connect Logic Ground to Chassis Ground if needed. AC-Version

  23. Easy update to AC Version with ELMA AC-Update-Kit, including PSU 1000W and all necessary Components like Fuse holders and Plugs. Assembly provisions and already included in Sheet metal Parts.

  24. Height: 5U 221.4mm Width Front: 19” 482.6mm Width Rear: 17.5” 444.5mm Depth: 16.5” 419.1mm Overall Depth Flange to Terminal Block 17” 431.8mm

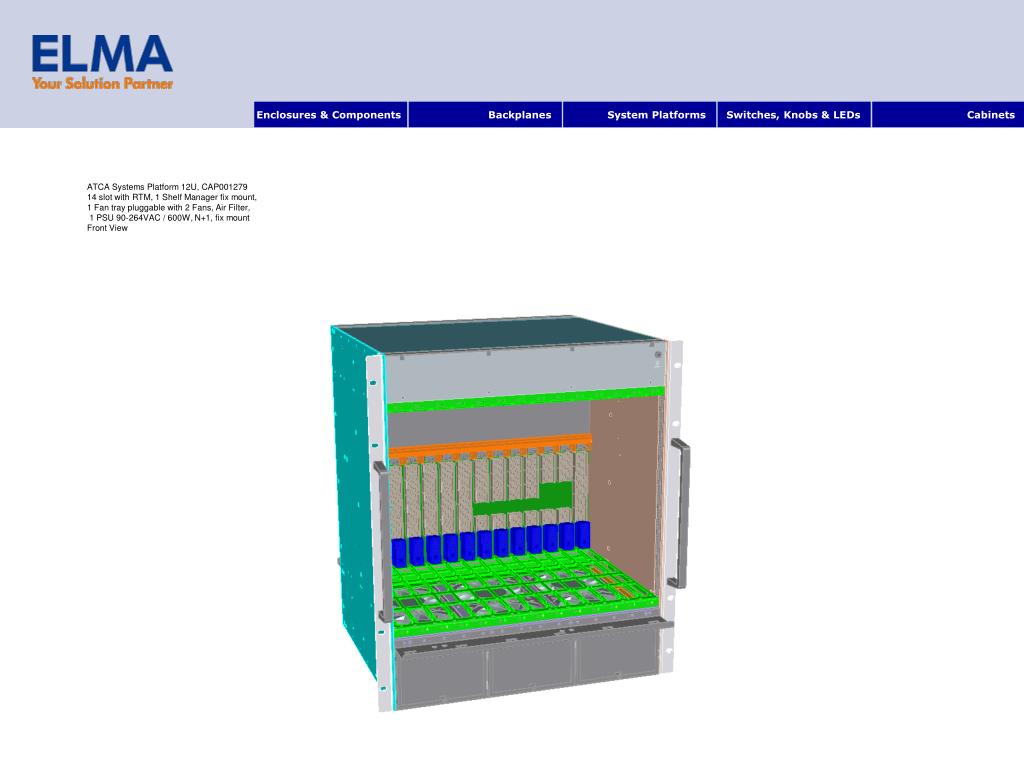

  25. ATCA Systems Platform 12U, CAP00127914 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Front View

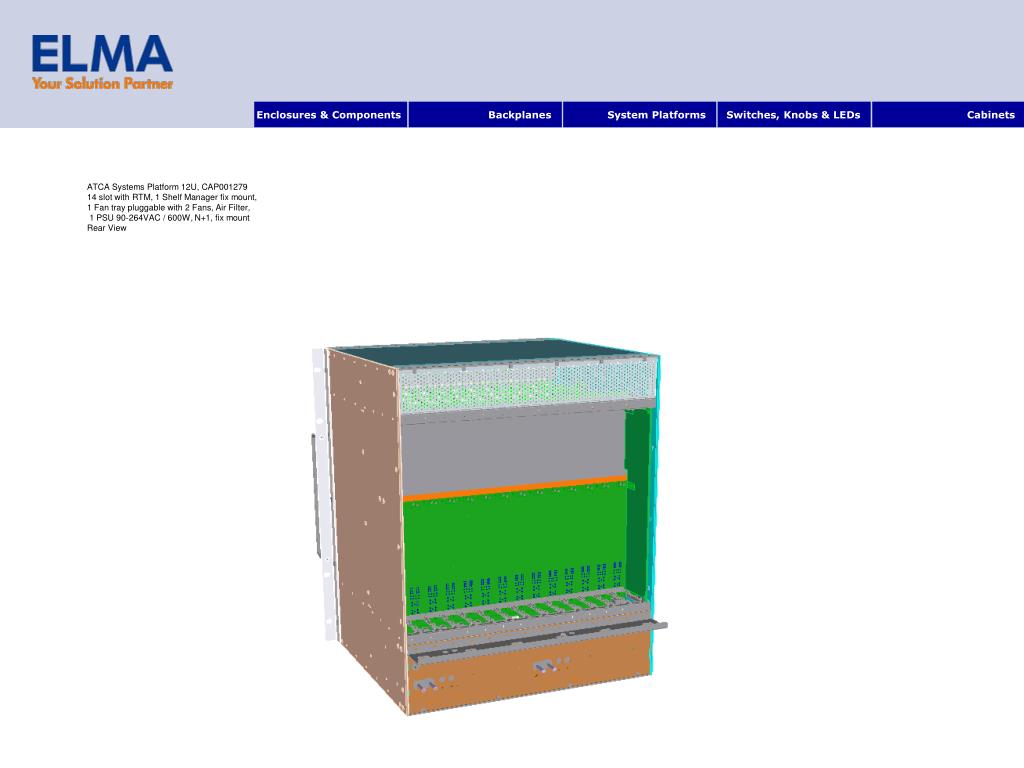

  26. ATCA Systems Platform 12U, CAP00127914 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Rear View

  27. ATCA Systems Platform 12U, CAP001800 / CAP00186114 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Front View

  28. ATCA Systems Platform 12U, CAP001800 / 186014 slot with RTM, 1 Shelf Manager fix mount, 1 Fan tray pluggable with 2 Fans, Air Filter, 1 PSU 90-264VAC / 600W, N+1, fix mount Rear View

  29. ATCA Custom Design -Dust ProtectedATCA SystemProposal for XFEL Tunnel Application DESY Hamburg

  30. Dust Protected Special:Cross flowheat exchanger 4 U System with 2 Slots 1 Shelfmanager1 Powersupply

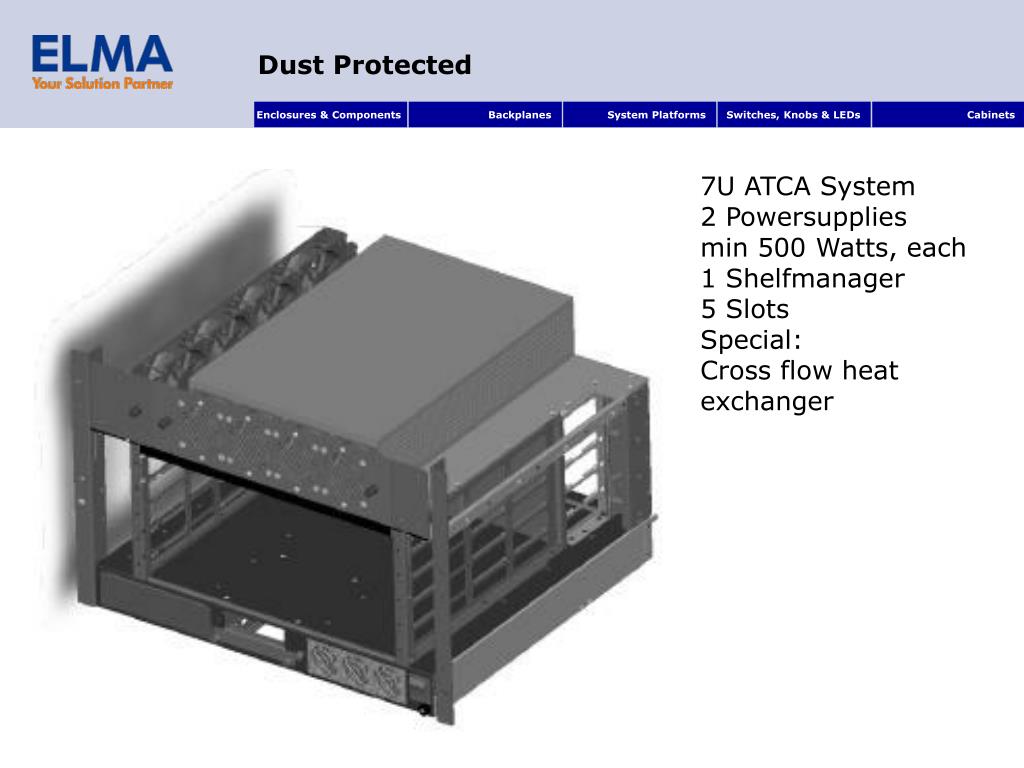

  31. Dust Protected 7U ATCA System2 Powersuppliesmin 500 Watts, each 1 Shelfmanager5 SlotsSpecial:Cross flow heatexchanger

  32. Dust Protected • Design Features: • Top bottom hinged front door • Screw mounted frontpanels • The screws are locked with 90° rotation • Special design for robot handling • Total closed cardgage • Cooling via heat exchanger • AC Input redundance (7U System) • Space for a special zone 3 Backplane • Horizontal Form factor • Fan Blocks in front and on side of heat exchanger

  33. Laboratory Systems

  34. ATCA CPU Board (Example) More Details on :www.powerbridge.de

  35. ATCA I/O Carrier Supported by: ATCA Carrier Board with four AMC Slots, each Slot with four 10GbE Channels

  36. Elma Electronic offers Solutions for the future
