Integrated Tool Suite for Post Synthesis FPGA Power Consumption Analysis

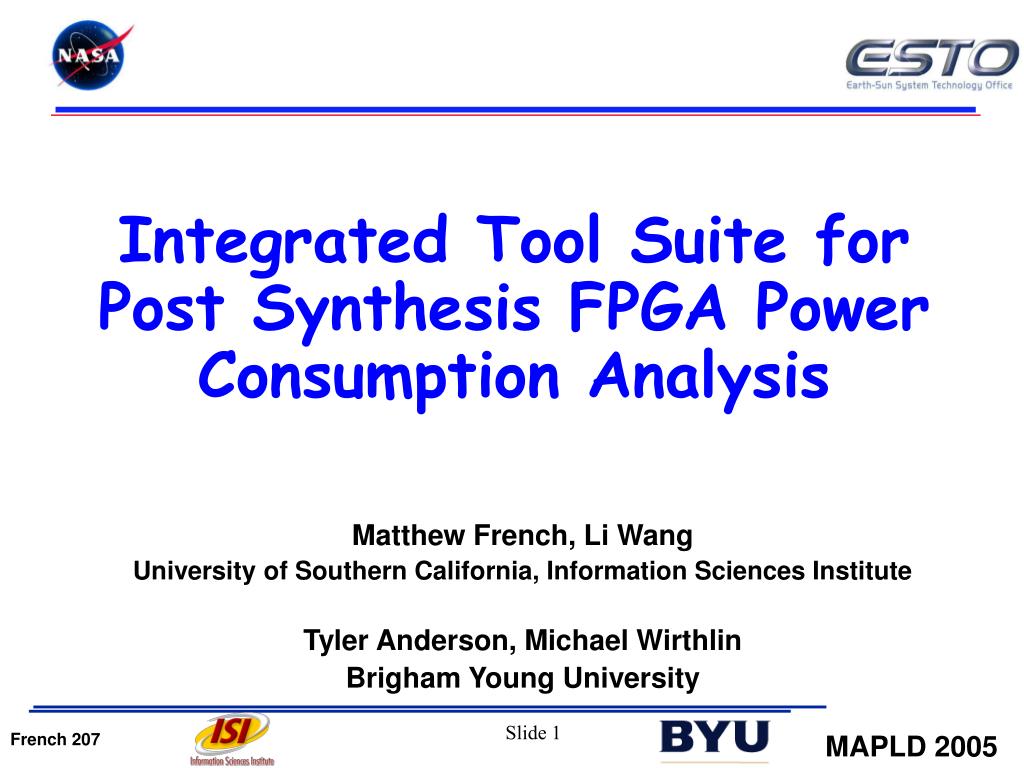

1. Integrated Tool Suite for Post Synthesis FPGA Power Consumption Analysis Matthew French, Li Wang University of Southern California, Information Sciences Institute Tyler Anderson, Michael Wirthlin Brigham Young University

2. Power Tools: Goals • Push power analysis, visualization, and optimization to front of the tools chain: • Analyze power consumption at logic simulation with two levels of accuracy • Pre-place-and-route, using heuristic estimates based on fanout • Back-annotated with precise post-place-and-route RC data • Visualize by providing intuitive views to help the designer rapidly find and correct inefficient circuits, operating modes, data patterns, etc. • Optimize systems by automatically identifying problem paths and suggesting improvements • Benefits • Closer to logical level and design entry • Power profiling during functional simulation • Early estimation before place and route • Automatic specific resource utilization power details • Facilitates high level design alternative exploration FPGA Tool Flow Proposed Power Tool Entry Point Current Power Tool Entry Point

3. 3rd Party Tools JHDL Data Structure EDIF Netlist EDIF Data Structure EDIF Parser Manipulation Tools Tool Backbone: JHDL & EDIF Parser • Leverage JHDL simulation Environment with EDIF Parser circuit manipulation • JHDL • Java-based structural design tool for FPGAs • Circuits described by creating Java Classes • Design libraries provided for several FPGA families • http://www.jhdl.org • JHDL design aides • Logic simulator & waveform viewer • Circuit schematic & hierarchy browser • Module Generators • Circuit designer does not need to know Java! • EDIF Parser • Supports multiple EDIF files • Virtex2 libraries and memory initialization • Support for “black boxes” • No JHDL wrapper required • http://splish.ee.byu.edu/reliability/edif/ • Verified: Synplicity, Synplcity Pro, Coregen, System Generator, Chipscope JHDL Environment EDIF Parser

4. Power Visualization Tool • Two views: • Instantaneous vs. cumulative power consumption over time • Sorted tree view of “worst offenders” • Integrated “cross-probing” with existing JHDL tools • Unified Environment • Allows Experimentation • Smart Re-use of CPU Memory • Help rapidly identify inefficient circuits and operating modes • Per-cell / per-bit granularity • Simulation trigger on power specification Cross Probing

5. Post Synthesis Level Power Modeling • Power Modeling • Quiescent power based on total circuit size • Dynamic Power • Toggle Rates (Data Dependant) • Components Used • Routing Interconnect • Actual quiescent and dynamic power not known until circuit is placed and routed • Leverage existing JHDL tool environment • Toggling rates derived from simulator • Will lose glitching information • Components known from EDIF or JHDL primitives • Component capacitance imported from Xpower • How to model routing interconnect? • Do not have exact routing information at synthesis • Routing tools can pick different route each iteration • Interconnect length and combinations vary Xpower Component Capacitance Xpower Interconnect Capacitance

6. Placement Macros Capacitance vs Fanout • Fanout model well correlated • Secondary fit line corresponds to Macros • High variance at low fanout • Achieving 4.3% average error, 16% variance • Explored device utilization models as well

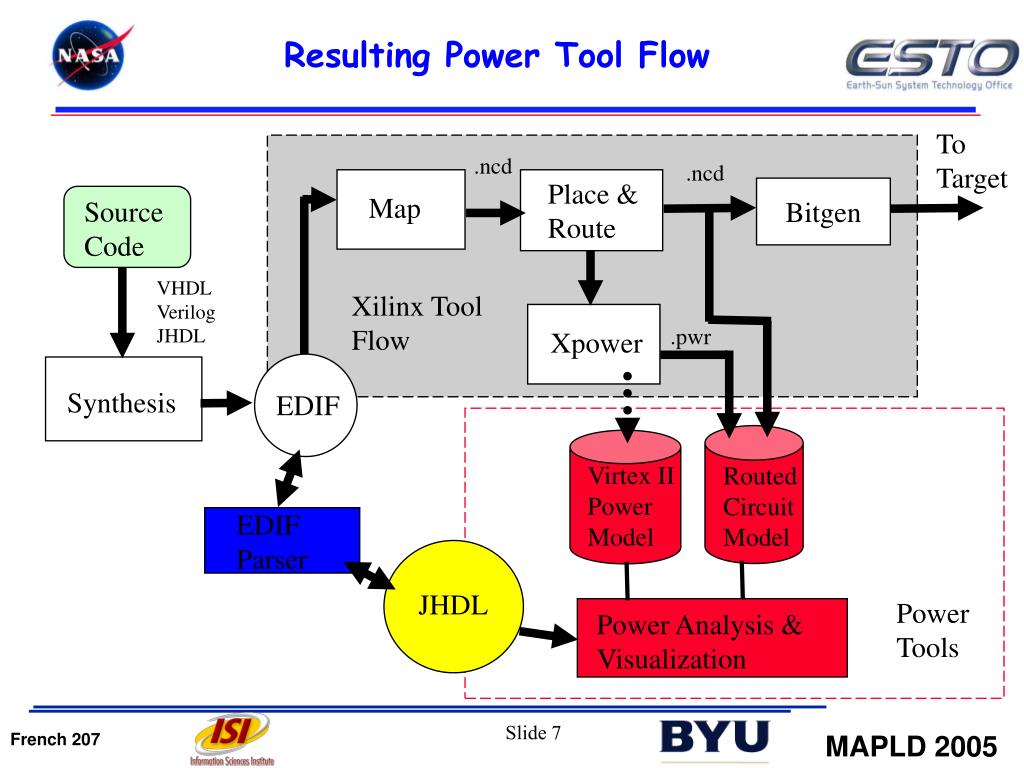

7. Place & Route Map Xpower Bitgen Synthesis EDIF JHDL Resulting Power Tool Flow To Target .ncd .ncd Source Code VHDL Verilog JHDL Xilinx Tool Flow .pwr Virtex II Power Model Routed Circuit Model EDIF Parser Power Tools Power Analysis & Visualization

8. Power Optimization Approach • Influence Xilinx Place&Route tools for power efficiency • Minimize clock/wire lengths of high power nets • Use power analysis tools to identify hot-spots and generate constraints • Timing constraints on non-clock signals • Location constraints on sink flip-flops of clock signals • Timing Constraints • Over-constrain timing for power • Achieving up to 12% power reduction • Location Constraints • Pares clock tree • Achieving up to 23% power reduction • Several placement strategies • Not violating original circuit timing specifications Timing Constraint (ns) Placement Constraint (X,Y) Unconstrained Constrained

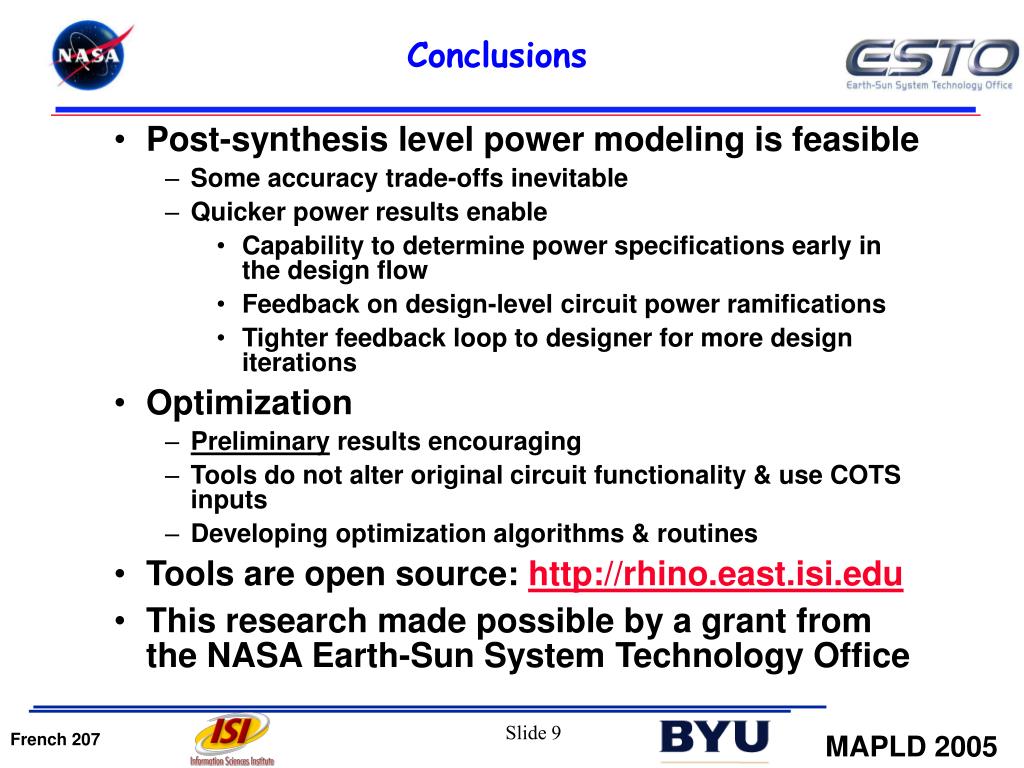

9. Conclusions • Post-synthesis level power modeling is feasible • Some accuracy trade-offs inevitable • Quicker power results enable • Capability to determine power specifications early in the design flow • Feedback on design-level circuit power ramifications • Tighter feedback loop to designer for more design iterations • Optimization • Preliminary results encouraging • Tools do not alter original circuit functionality & use COTS inputs • Developing optimization algorithms & routines • Tools are open source: http://rhino.east.isi.edu • This research made possible by a grant from the NASA Earth-Sun System Technology Office
