Using the ti 83, ti 83 plus, or ti 84 to graph quadratic inequalities

Using the ti 83, ti 83 plus, or ti 84 to graph quadratic inequalities. The graphing calculator can be a great checking tool or a fast way to answer a multiple choice question. . Example – suppose you graphed the following and wanted to check your answer: .

amora
Télécharger la présentation

Using the ti 83, ti 83 plus, or ti 84 to graph quadratic inequalities

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Using the ti 83, ti 83 plus, or ti 84 to graph quadratic inequalities

  2. The graphing calculator can be a great checking tool or a fast way to answer a multiple choice question. Example – suppose you graphed the following and wanted to check your answer: Turn on your calculator and input the expression into the Y= menu

  3. To enter an inequality symbol, press the 2nd key and then the MATH button: Scroll down to option 3 “>” and press enter

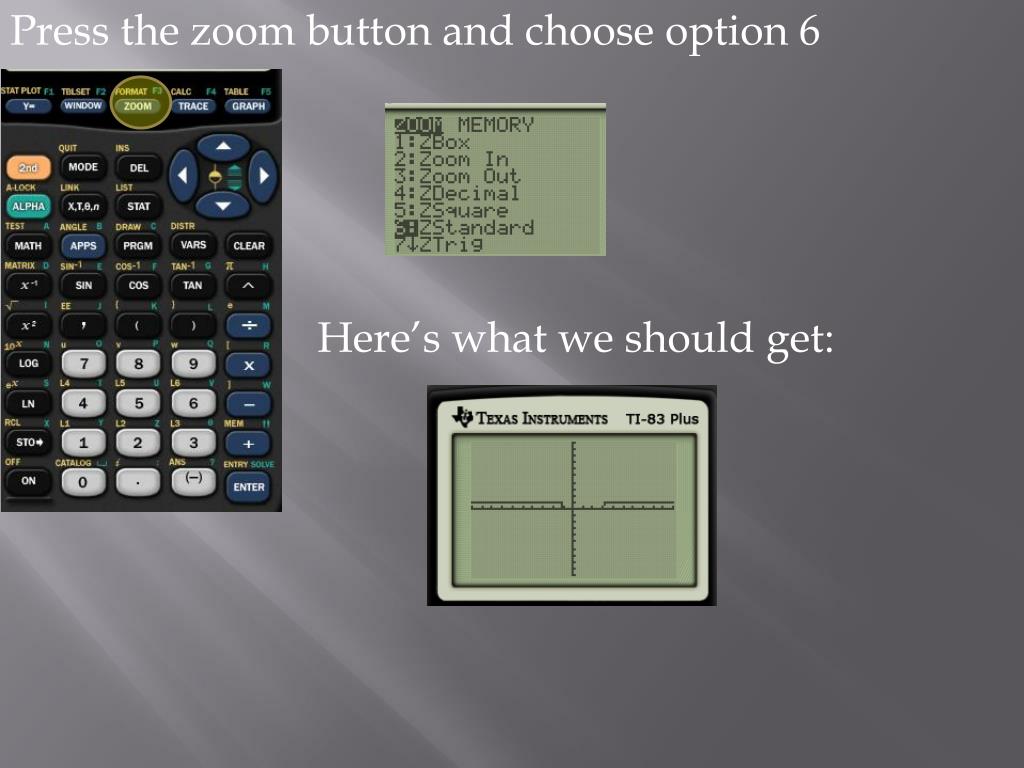

  4. Press the zoom button and choose option 6 Here’s what we should get:

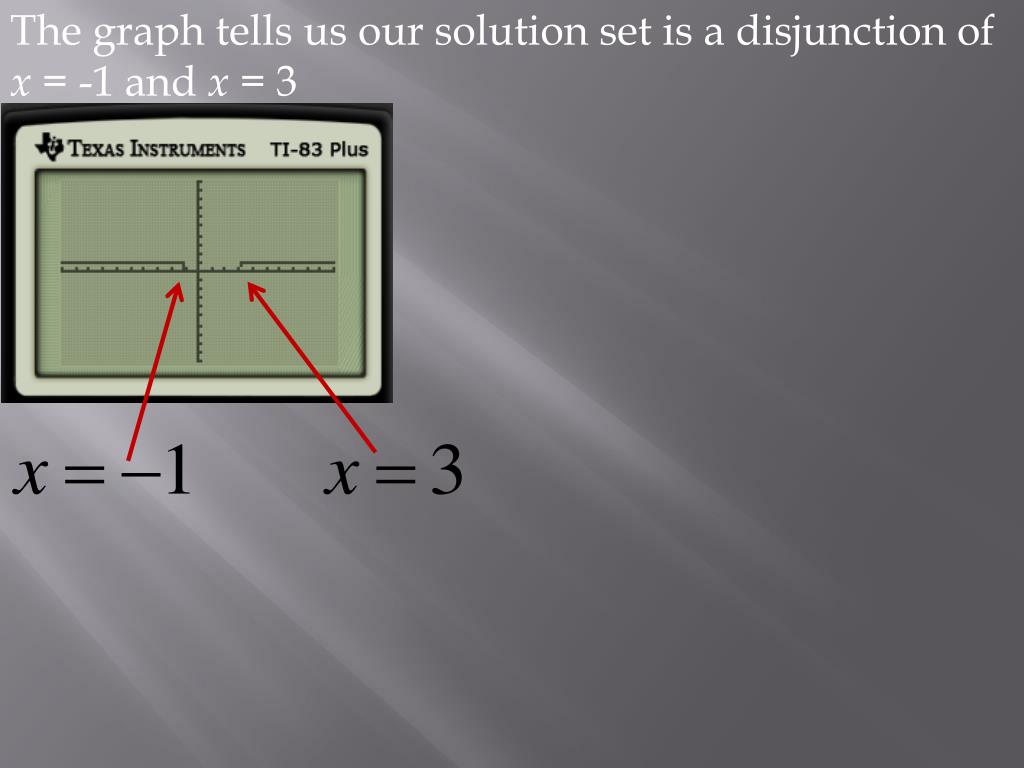

  5. The graph tells us our solution set is a disjunction of x = -1 and x = 3

  6. Limitiations The calculator does not tell us whether or not to use open or shaded circles. We have to look at the inequality to determine this. Another problem might be that you see nothing after you press the graph button. Try changing the window.

  7. Trouble shooting Are you getting the following error message? This means that your calculator is trying to plot something that is not defined. This is a simple fix. Go back to the Y= menu

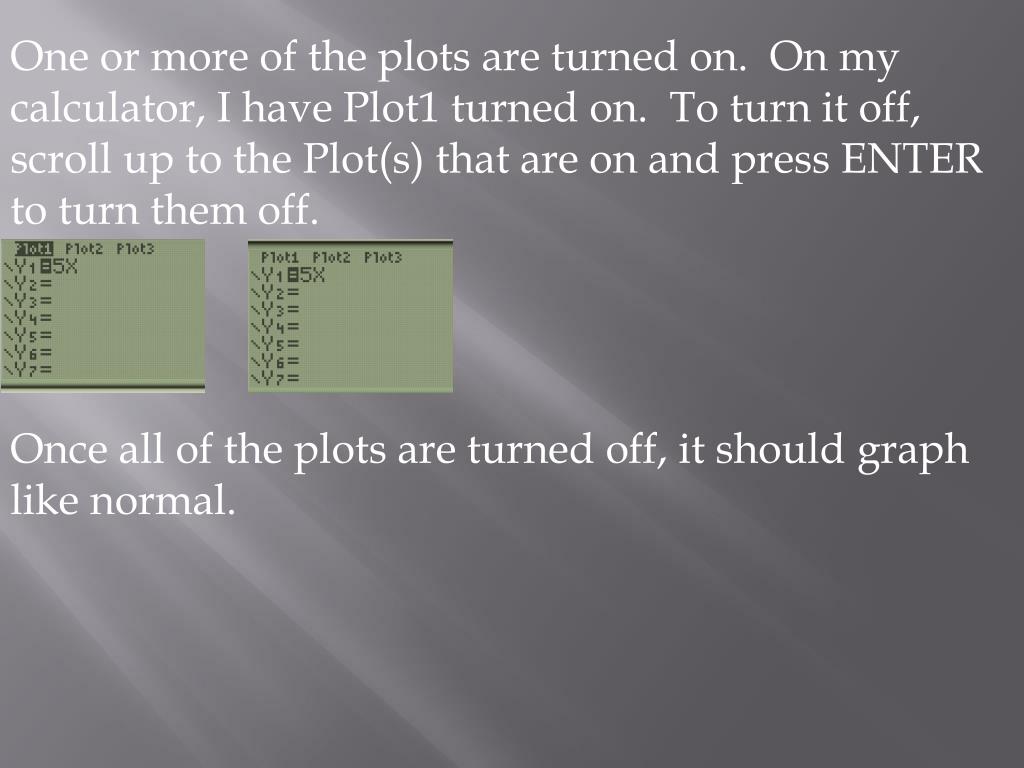

  8. One or more of the plots are turned on. On my calculator, I have Plot1 turned on. To turn it off, scroll up to the Plot(s) that are on and press ENTER to turn them off. Once all of the plots are turned off, it should graph like normal.

  9. Are you getting this error message? Easiest way to fix this is to press the ZOOM button the choose option 6 and it should graph normally

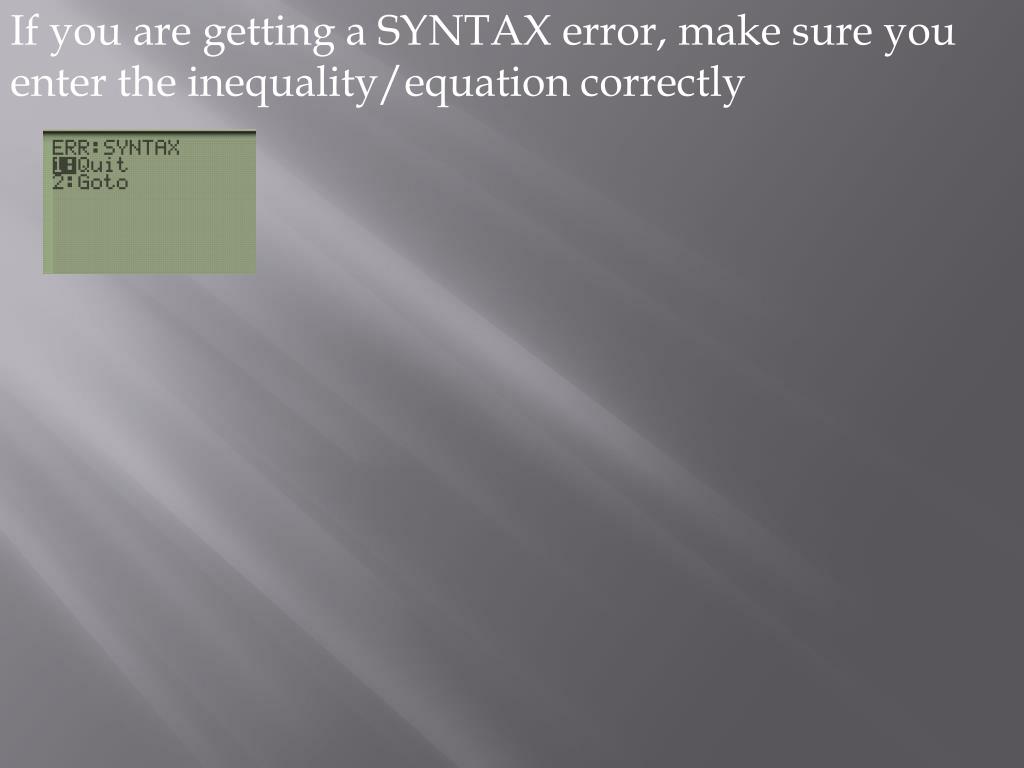

  10. If you are getting a SYNTAX error, make sure you enter the inequality/equation correctly
