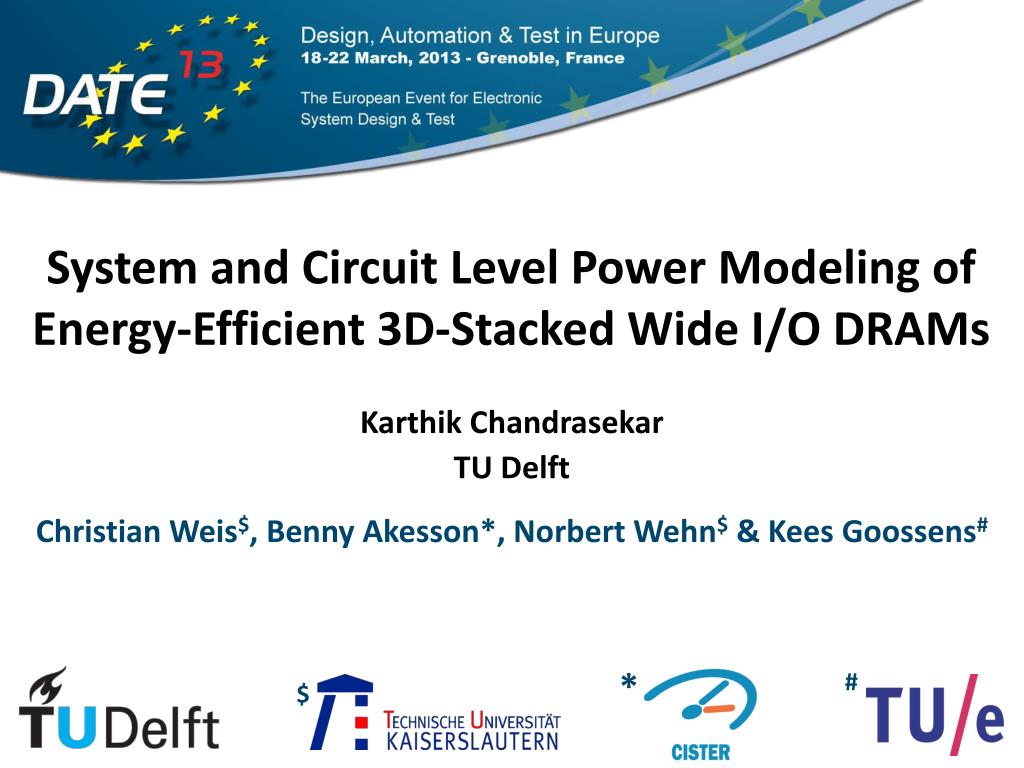

  1. System and Circuit Level Power Modeling of Energy-Efficient 3D-Stacked Wide I/O DRAMs Karthik Chandrasekar TU Delft Christian Weis$, Benny Akesson*, Norbert Wehn$ & Kees Goossens# * $ #

  2. Overview • Motivation for 3D-stacking of DRAMs • Problem Statement - Power Modeling • Circuit-level DRAM architecture & power model • System-level DRAM power model (DRAMPower) • Comparison: Results and Analysis • Summary Karthik Chandrasekar / TU Delft

  3. Motivation: Why 3D-Stacked DRAMs? [I/O power per bit: 0.7mW in TSV vs 2.3mW in PoP vs 4.6mW in Off-Chip – Samsung] The Performance Vs. Power Factor   We want 3D-Stacking! Images & Data Courtesy: HMC, JEDEC 42.6, FineTech, Nvidia, Samsung Karthik Chandrasekar / TU Delft

  4. What’s missing? [Problem Statement] An accurate 3D-DRAM Power Model to design DRAM-stacked SoCs Karthik Chandrasekar / TU Delft

  5. Approaches to power modeling • Circuit-level Power Model • Modeling the DRAM architecture at the circuit-level in SPICE • Pros: Accurate and detailed • Cons: Slow, requires circuit-level understanding of DRAM architecture & technology specifications for DRAMs are publicly unavailable • System-level Power Model (like Micron’s) • Based on vendor provided datasheet measures and JEDEC specifications • Pros: Fast, easy to integrate & employs simple models for memory operations • Cons: Accuracy is unclear. Not directly applicable for 3D-DRAMs and is not verified against circuit-level models or hardware measurements. Need: Fast, Simple & Accurate Model Karthik Chandrasekar / TU Delft

  6. What’s the solution? Develop A System-Level 3D-DRAM Power Model i.e. as accurate as A Circuit-Level 3D-DRAM Power Model Karthik Chandrasekar / TU Delft

  7. Circuit-Level DRAM Modeling Baseline DRAM Model • (Weis) DATE‘11 and DAC‘13 • NGSPICE - PTM/BSIM • 1T1C Cell to Banks 2D to 3D (New) • Based on DATE ‘11 & JEDEC Wide IO – x512 • 4 Banks/Channel • 4 Channels • TSV Routing • Data, Cmd & Addr • Control, Clock & Power • No ODT (On Die Termination) • Low Freq. & IO Capacitance • No DLL (Delay Locked Loop) • TSV model from IMEC/GaTech Karthik Chandrasekar / TU Delft

  8. System-Level Power Model (DRAMPower) Comparison to Micron model • Problem with Micron’s model: • Not directly applicable for 3D-DRAMs (Multiple voltage domains and IO) • Accuracy is unclear (State transitions not addressed & Approx. workload used) • Not verified against circuit-level models or hardware power measurements. • Adapting to 3D-DRAMs: • Considers multiple voltage domains: (a) Core (b) Derived (Wordline) • Includes IO power consumption (Incl. I/O Pads, Buffers, Bumps, Drivers & Pins) • RD operation Energy (Generic equation): • Modeling for Accuracy: • Models memory state transitions – from active to power-down • Models self-refresh accurately (functional correctness & timing difference) • Most importantly: Is almost as accurate as the circuit-level model Karthik Chandrasekar / TU Delft

  9. Self-Refresh Operation - Accuracy • Actual • Internal Refresh • No DLL We furnish new equations in the system-level power model to address such accuracy issues Karthik Chandrasekar / TU Delft

  10. Comparison: Results & Analysis • Experiment I: • Different Operations • Different Granularity • Results: • Less than 2% difference • Adapted Micron SR (200): 72% diff. • Experiment II: • H.263 Encoder & EPIC Encoder • JPEG Encoder & MPEG2 Decoder • Different Loads and Power Modes • Results: • Less than 2% difference • Adapted Micron: 12% diff. (SR 500MHz) • The 2% difference is due to the use of JEDEC-specified averaged IDD currents. Shows the accuracy of the system-level power model Karthik Chandrasekar / TU Delft

  11. Summary Key Highlights: • Presented an accurate datasheet-based system-level power model for Wide I/O 3D-stacked DRAMs. • Verified the system-level model for accuracy against as a detailed SPICE-based circuit-level 3D-DRAM architecture and power model. • Observed < 2% difference in power and energy estimates for different memory operations and for any variations in memory load. Other Important Contributions: • Provided estimates for IDD current measures for different JEDEC 3D-DRAM configurations, in place of the as yet unavailable datasheets (in the paper). • The system-level power model (DRAMPower) has been released online as an open-source 3D-DRAM power estimation tool. Download link: www.drampower.info Karthik Chandrasekar / TU Delft
