Presentation Transcript

  1. Inmeta Crayon AS Resource management in WinRT Jonny Bekkum .NET Architect and Developer at Inmeta Core developer CSLA.NET

  2. .NET Code • Resx – filetype • Codegen Resources.designer.cs • Translation is convention based on filename, Resources.<cultureName>.resx for translated resources • Default resource file in project properties.

  3. .NET Deployment • Default resources.resx embedded in assembly. • Translated resources compiled into satellite assemblies <cultureName>\<assembly>.resources.dll

  4. .NET • DEMO

  5. WinRT Code • New filetype .resw (same XML specification as resx) • No codegen, no default resource file • Convention based on file structure and files must have identical filename.

  6. WinRT Compile • Resw files is compiled into pri files by makepri.exe • Resources per project is compiled into <AssemblyName>.pri

  7. WinRT Deploy Application • ALL language resources for application and libraries is merged into a common tree (ResourceMap) and placed in resources.pri • Resouces.pri must be deployed with your application

  8. Package Resource Index (.pri) • The PRI contains actual string resources, and an indexed set of file paths that refer to the files in the package. • Packages typically contain a single PRI file named resources.pri. • PRI files are data-only and are not of the PE format. They are specifically designed to be data-only as the resource format for Windows. They replace resources contained within DLLs in the Win32 app model. • Use makepri.exe /dump to see the content of the .pri file.

  9. Load resources by ResourceLoader • Application varrl = new ResourceLoader(); // default is “Resources” var stringVal = rl.GetString(<resourceName>); • In an assembly varrl = new ResourceLoader("<AssemblyName>/Resources"); var stringVal = rl.GetString(<resourceName>); • In a custom resource tree varrl = new ResourceLoader("<AssemblyName>//<Custom>"); var stringVal = rl.GetString(<resourceName>);

  10. Load resources by ResourceManager • Windows.ApplicationModel.Resources.Core.ResourceManager • Requires more knowledge of the ResourceMap • Can retrive other types than string (=> StorageFile) • Can enumerate through/inspect all possible values

  11. WinRT - resources • DEMO

  12. Image localization in Xaml • If you are referencing the image from XAML, localizing an image is as simple as creating folders for the locals you need to support and put localized versions of the image file into the local folder • And referencing the image in XAML is the normal relative URL without the culture code as shown in the following example.

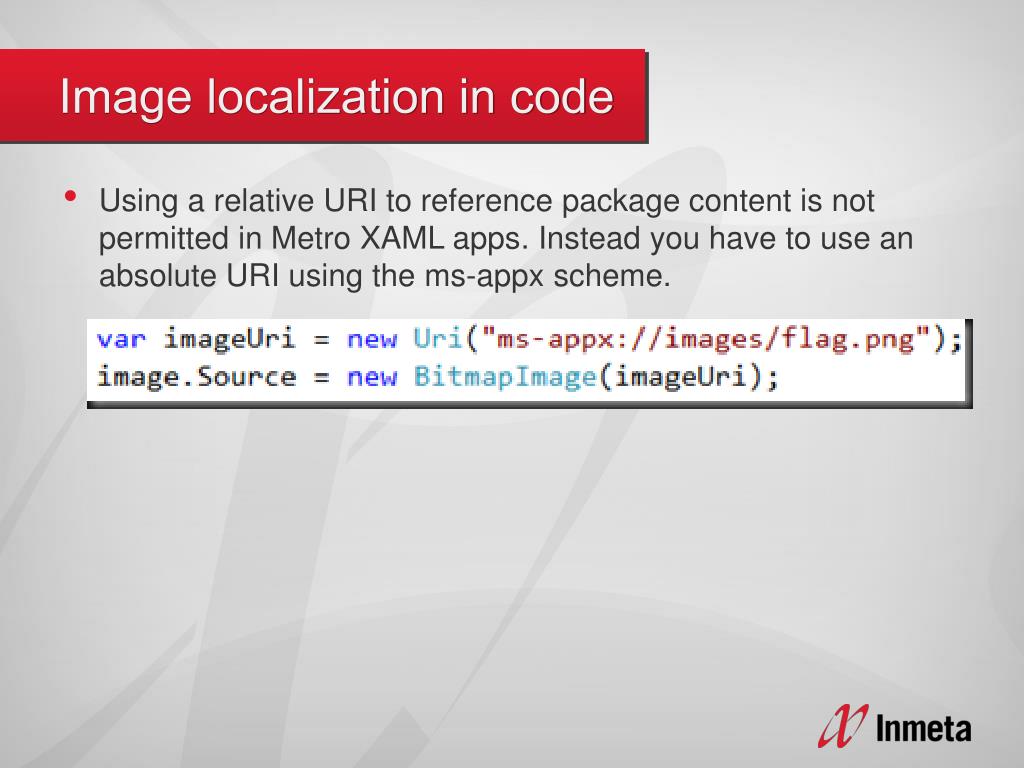

  13. Image localization in code • Using a relative URI to reference package content is not permitted in Metro XAML apps. Instead you have to use an absolute URI using the ms-appxscheme.

  14. Contrast and scale conventions • High Contrast : • contrast-black • contrast-white • Pixel Density: • scale-80 (start screen only) • scale-100 (normal DPI, no scaling) • scale-140 (1920*1080, minimum DPI 174) • scale-180 (2560*1440, minimum DPI 240)

  15. Image scaling conventions Use scalable vector graphics - SVG Or use resource loading for bitmap images: • Option #1 - File naming convention: • \test.scale-100.jpg • \test.scale-140.jpg • \test.scale-180.jpg • Option #2 - Folder naming convention: • \scale-100\test.jpg • \scale-140\test.jpg • \scale-180\test.jpg

  16. WinRT – image localization • DEMO

  17. .NET and WinRT side by side • So you have business / framework code in NET that you want to share into WinRT projects? • Code can be linked into other project • Then there’s the case of resource strings • Copy .resx files to new folder structure and name .resw • Create your own Resources.Designer.cs so you can use resource strings as in .NET. • Use ResEx to update your resource files. • Only one master set of resx – files

  18. NET and winRT • Makepri.exe has better checks than .NET compiler • Allowed languages (not supprort for legacy languages) • Invalid language name causes duplicate name causes errors • Resources in localized languages only causes warnings • Start wth default language and add languages one by one.

  19. Net and WinRT • DEMO

  20. Summary • Understand resources and assets is handled in WinRT • Understand how to localize and style your Windows Store App • Understand ResourceMAP and PRI files. • Share code between .NET and WinRT.

  21. Resources MSDN • Guidelines for scaling to pixel density • Resource Management System • Choosing your languages Windows 8 Recipes • Building Global Windows 8 Metro XAML Apps Part 1 • Building Global Windows 8 Metro XAML Apps Part 2 • Building Global Windows 8 Metro XAML Apps Part 3

  22. Resources • ResEx - the composite, translation friendly .NET Resource editor. • ILSpy - the open-source .NET assembly browser and decompiler.

  23. Thank you • Mail: jonny.bekkum@gmail.com • Blog: http://jonnybekkum.wordpress.com
