Spatial Data Infrastructure: Concepts and Components

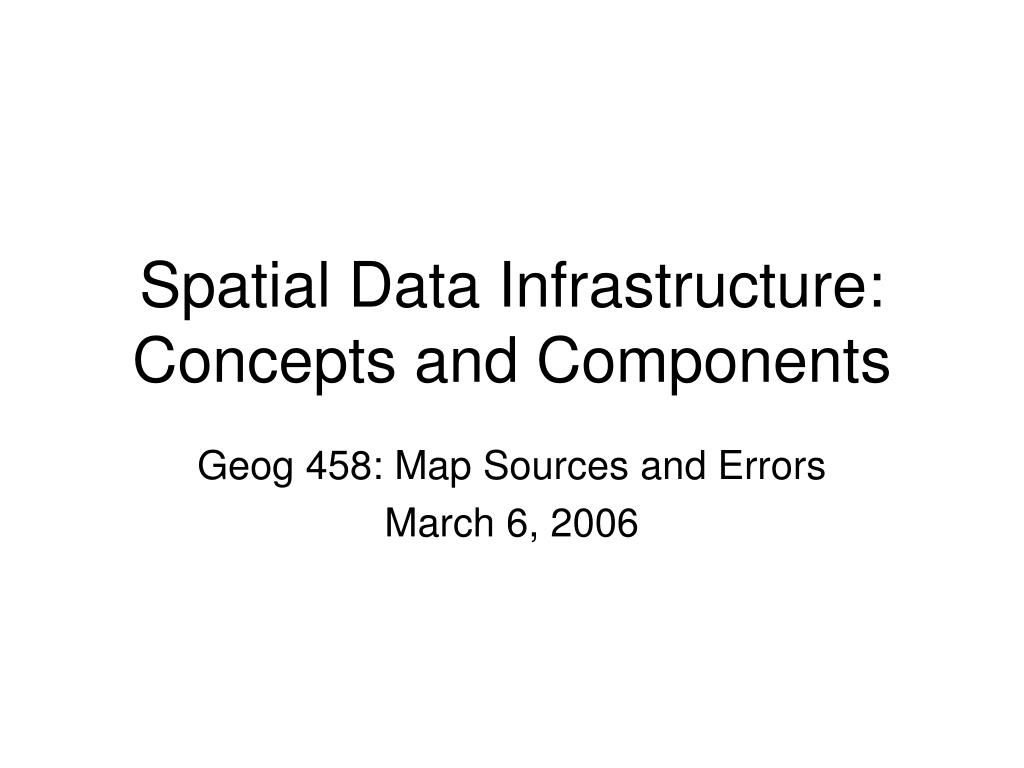

1. Spatial Data Infrastructure: Concepts and Components Geog 458: Map Sources and Errors March 6, 2006

2. What is a Spatial Data Infrastructure (SDI)? • Functions • “The SDI provides a basis for spatial data discovery, evaluation, and application for users and providers within all levels of government, the commercial sector, the non-profit sector, academia and by citizens in general” • Components • Denotes “base collection of technologies, policies and institutional arrangements that facilitate the availability of and access to spatial data” – GSDI Cookbook v2

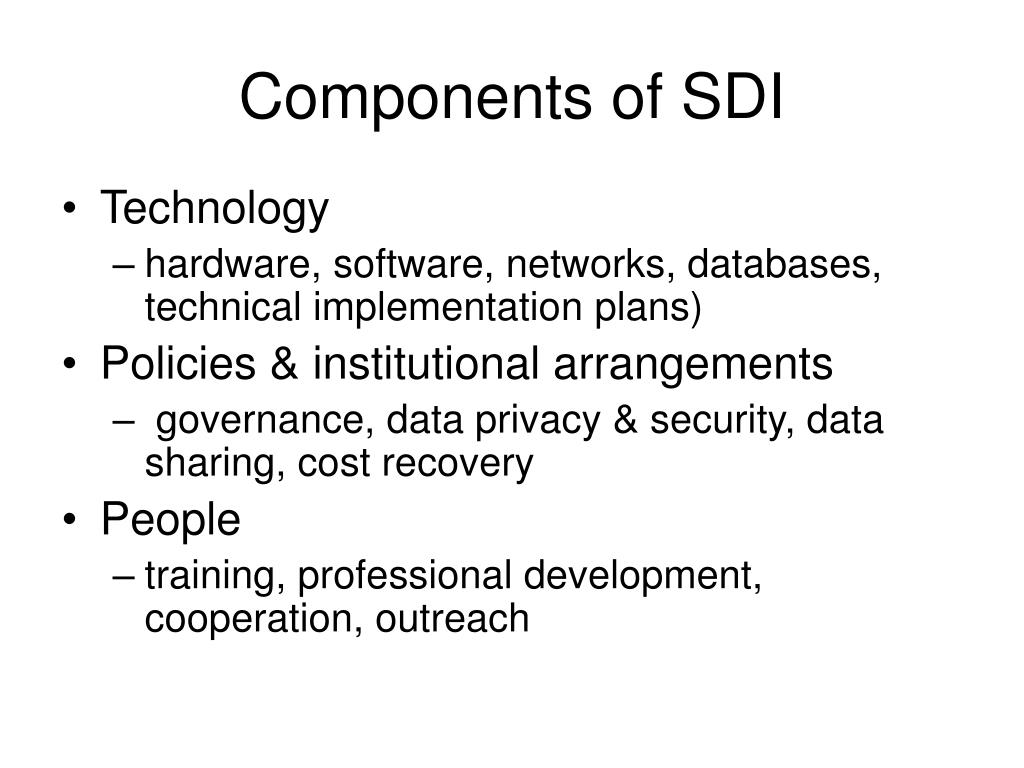

3. Components of SDI • Technology • hardware, software, networks, databases, technical implementation plans) • Policies & institutional arrangements • governance, data privacy & security, data sharing, cost recovery • People • training, professional development, cooperation, outreach

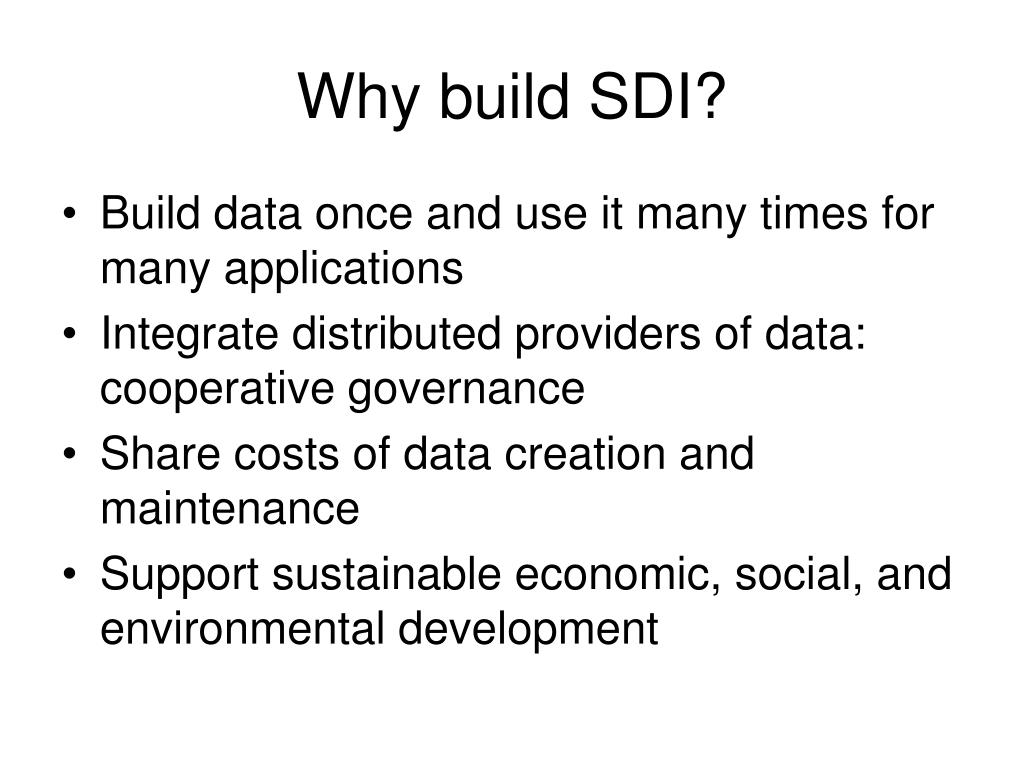

4. Why build SDI? • Build data once and use it many times for many applications • Integrate distributed providers of data: cooperative governance • Share costs of data creation and maintenance • Support sustainable economic, social, and environmental development

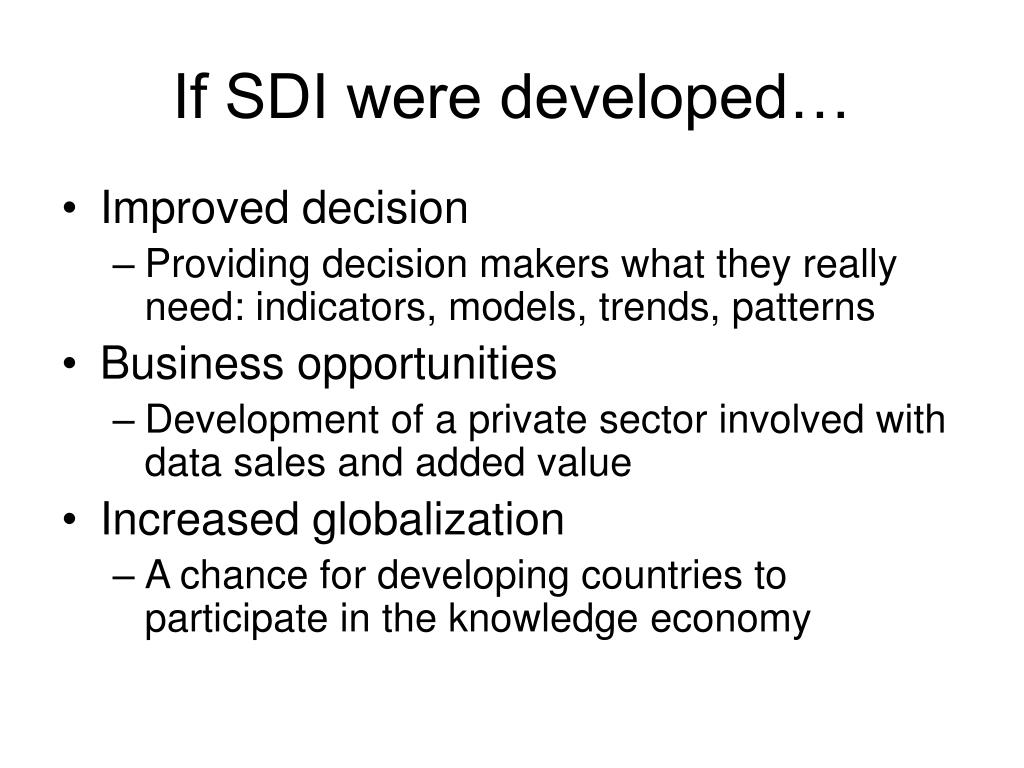

5. If SDI were developed… • Improved decision • Providing decision makers what they really need: indicators, models, trends, patterns • Business opportunities • Development of a private sector involved with data sales and added value • Increased globalization • A chance for developing countries to participate in the knowledge economy

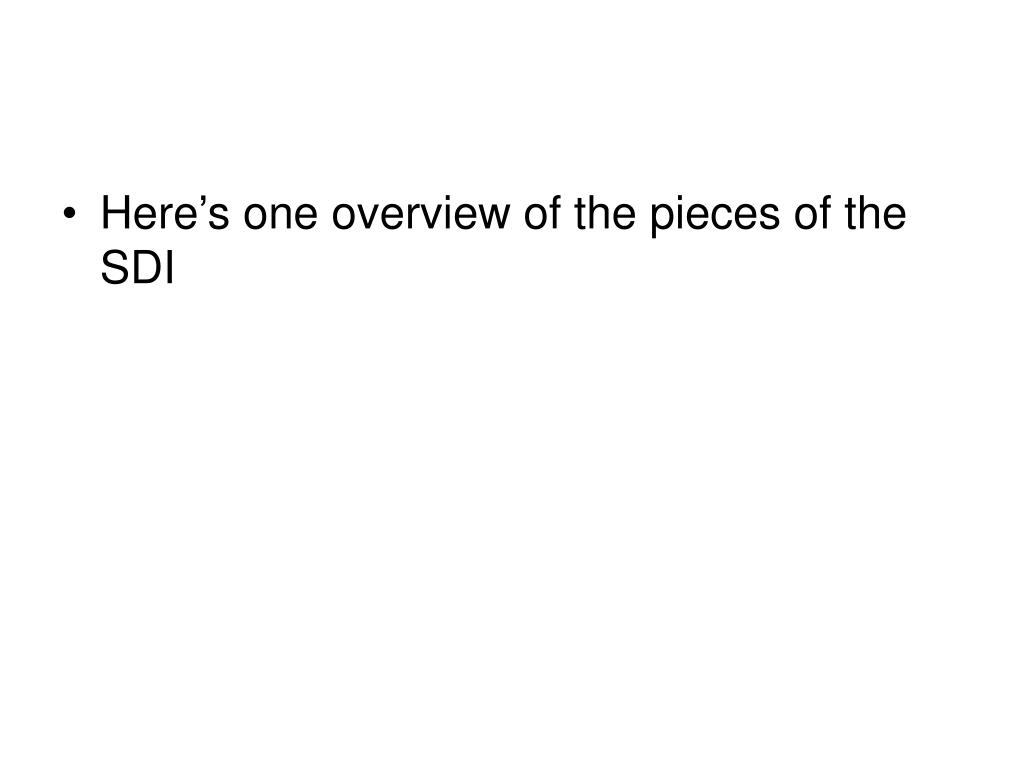

6. Here’s one overview of the pieces of the SDI

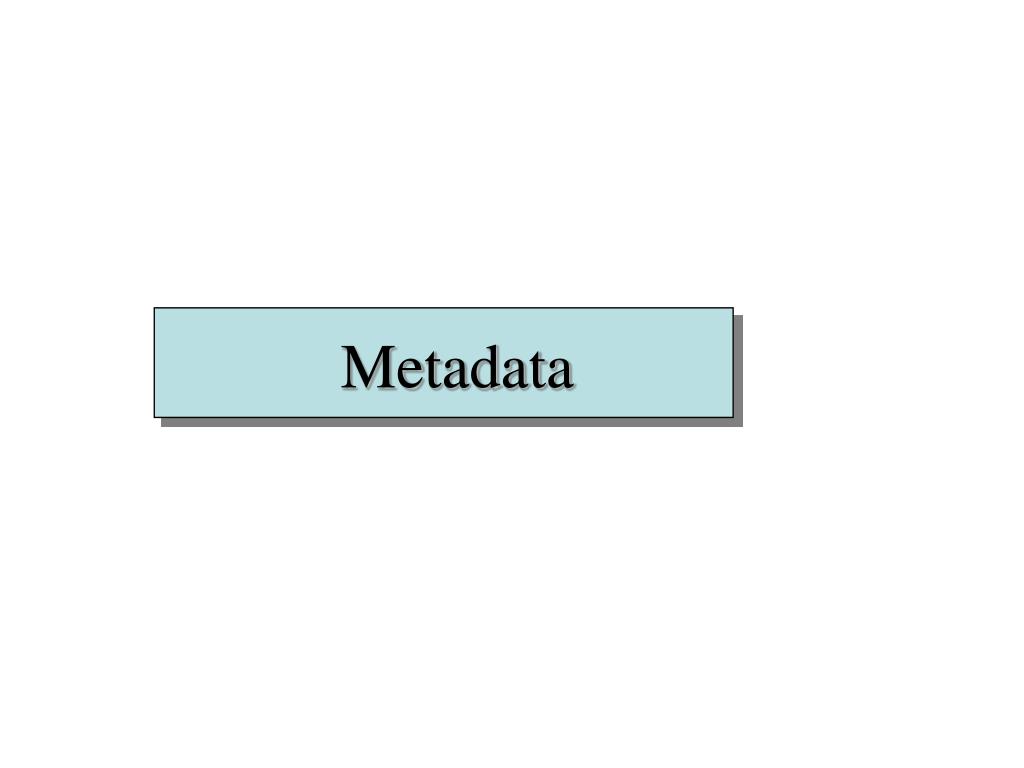

7. Metadata

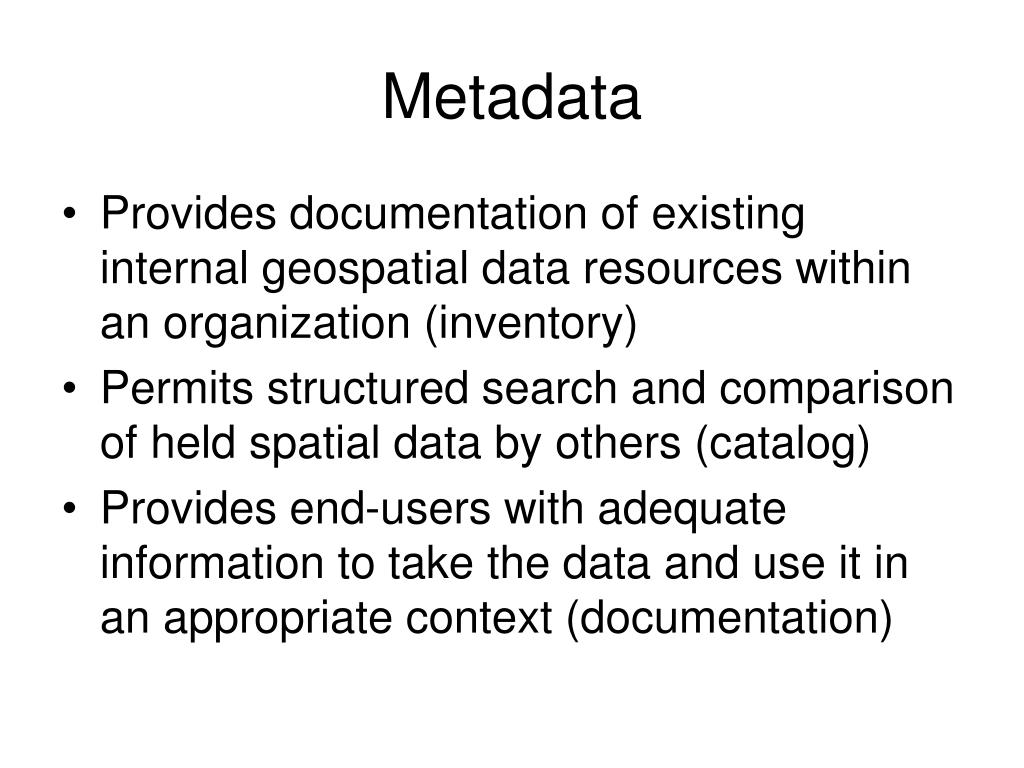

8. Metadata • Provides documentation of existing internal geospatial data resources within an organization (inventory) • Permits structured search and comparison of held spatial data by others (catalog) • Provides end-users with adequate information to take the data and use it in an appropriate context (documentation)

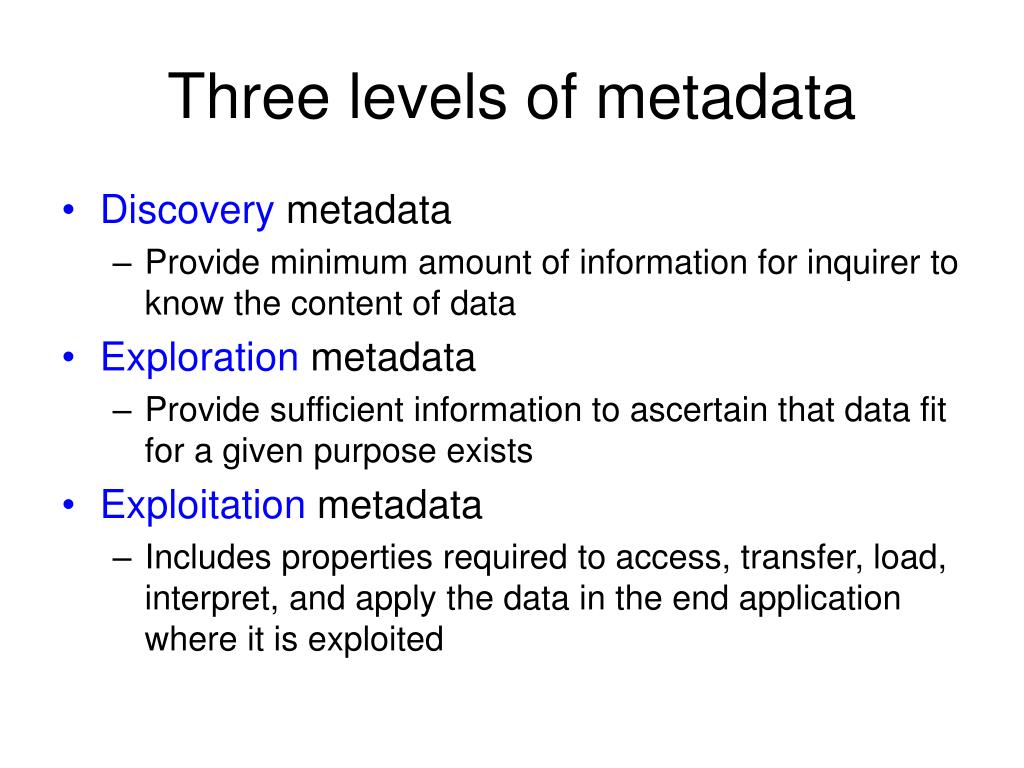

9. Three levels of metadata • Discovery metadata • Provide minimum amount of information for inquirer to know the content of data • Exploration metadata • Provide sufficient information to ascertain that data fit for a given purpose exists • Exploitation metadata • Includes properties required to access, transfer, load, interpret, and apply the data in the end application where it is exploited

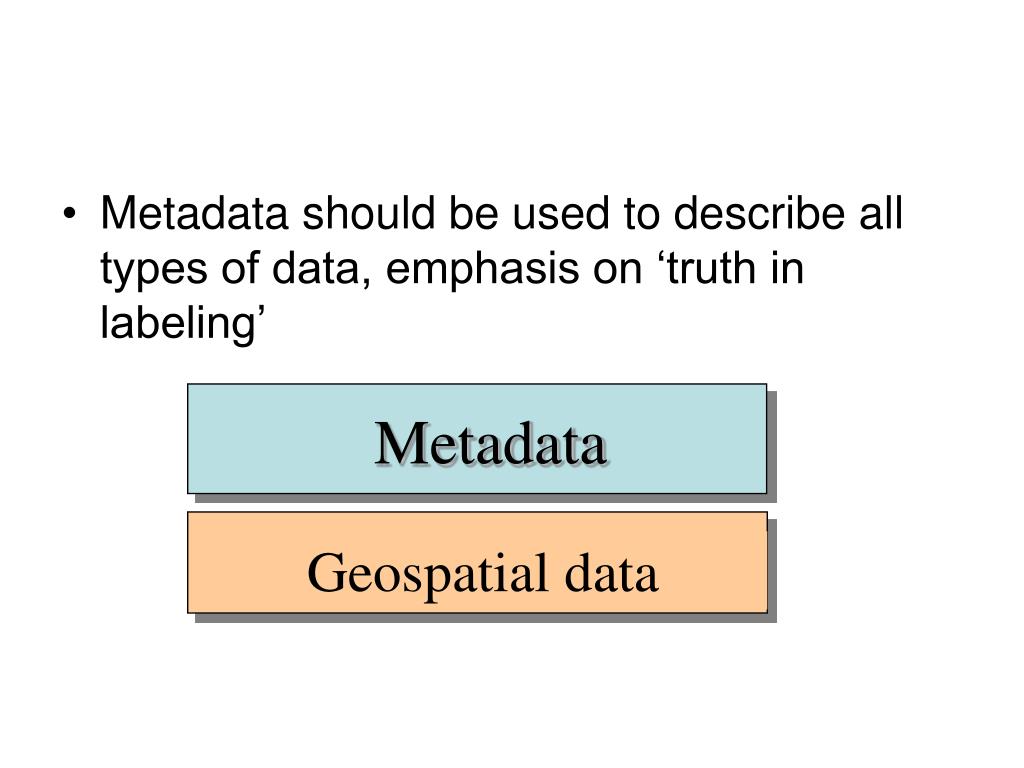

10. Metadata Geospatial data • Metadata should be used to describe all types of data, emphasis on ‘truth in labeling’

11. Metadata GEOdata Framework • Special-use thematic layers are built and described as available geospatial data • Common data layers are being defined in the Framework activity

12. Framework supports • Community development of sets of spatial features, feature representation, and attribution to a lowest common denominator • Participant collecting, converting, or associating information to common Framework feature specifications • Multiple representations of real-world features at different scales and times by feature identifier and generalization

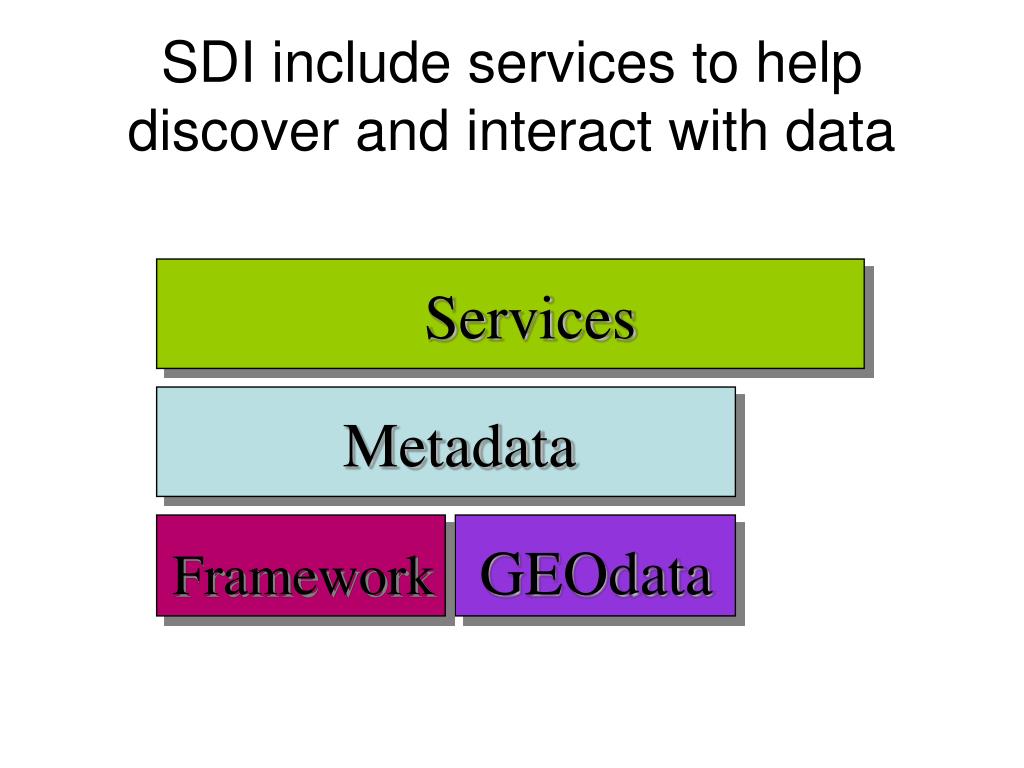

13. Services Metadata GEOdata Framework SDI include services to help discover and interact with data

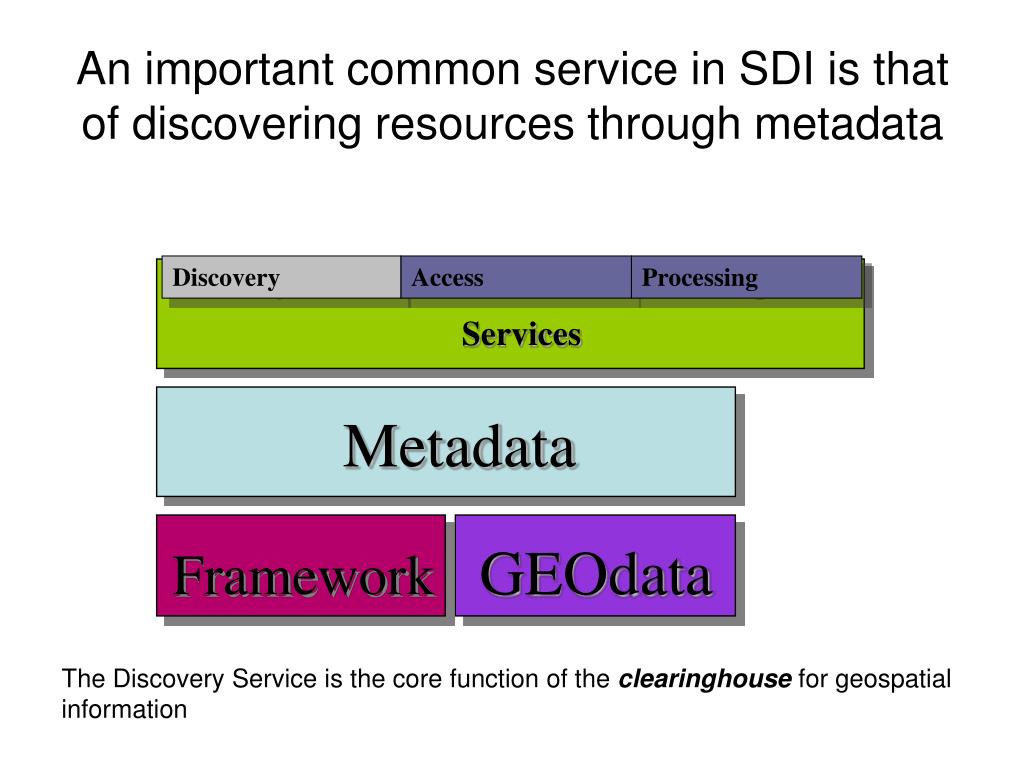

14. Discovery Access Processing Services Metadata GEOdata Framework An important common service in SDI is that of discovering resources through metadata The Discovery Service is the core function of the clearinghouse for geospatial information

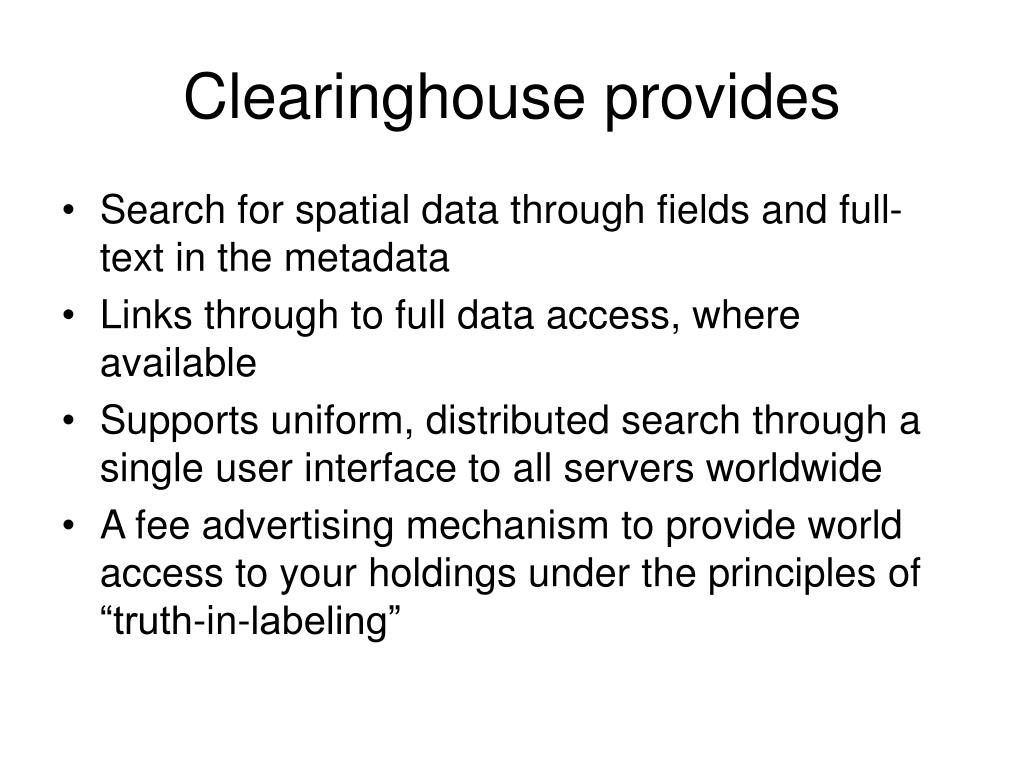

15. Clearinghouse provides • Search for spatial data through fields and full-text in the metadata • Links through to full data access, where available • Supports uniform, distributed search through a single user interface to all servers worldwide • A fee advertising mechanism to provide world access to your holdings under the principles of “truth-in-labeling”

16. Discovery Access Processing Metadata Services GEOdata Framework A second class of services provides standardized access to geospatial information This may be made via static files on ftp or via online data streaming services. These services deliver ‘raw’ data, not maps

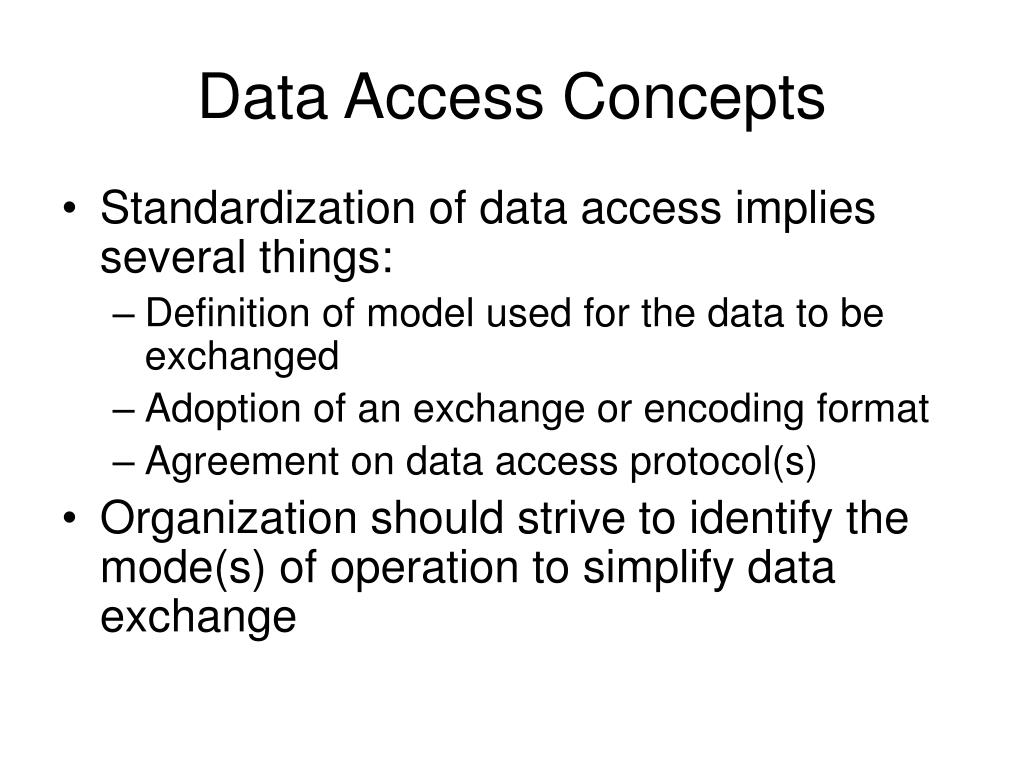

17. Data Access Concepts • Standardization of data access implies several things: • Definition of model used for the data to be exchanged • Adoption of an exchange or encoding format • Agreement on data access protocol(s) • Organization should strive to identify the mode(s) of operation to simplify data exchange

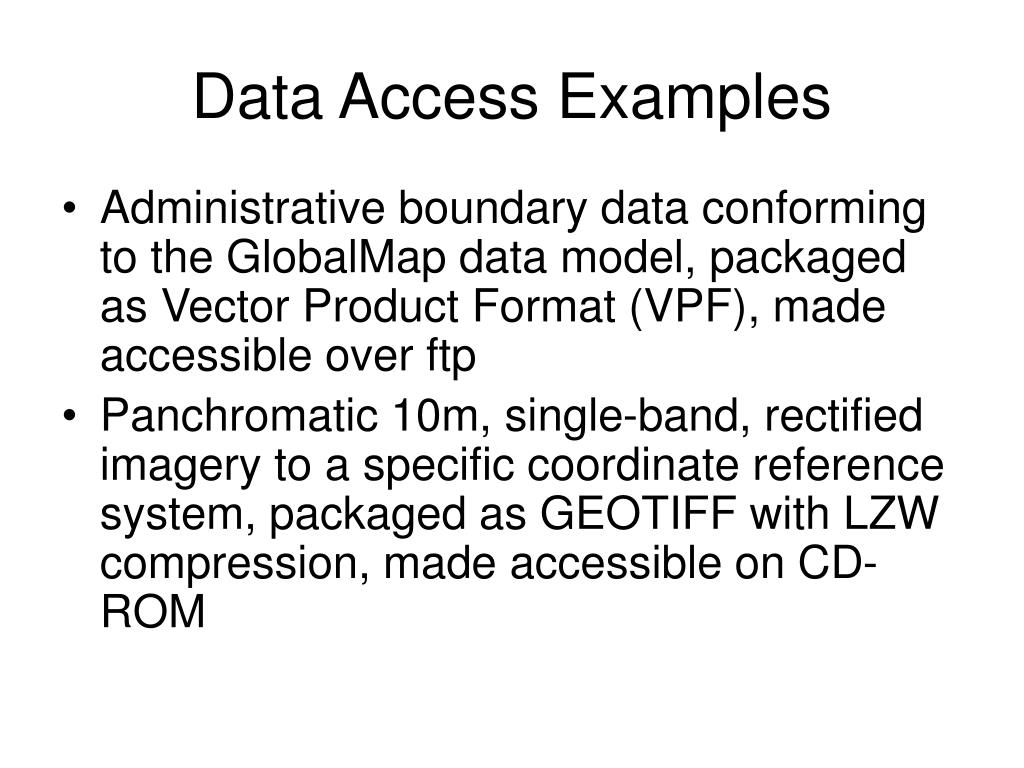

18. Data Access Examples • Administrative boundary data conforming to the GlobalMap data model, packaged as Vector Product Format (VPF), made accessible over ftp • Panchromatic 10m, single-band, rectified imagery to a specific coordinate reference system, packaged as GEOTIFF with LZW compression, made accessible on CD-ROM

19. Discovery Access Processing Metadata Services GEOdata Framework A third class of services provides additional processing on geospatial information

20. Processing Services • These include capabilities that extend and enhance the delivery of data through processes applied to raw data: • Web mapping services • Symbolization • Coordinate transformation • Analysis or topologic overlay services

21. Metadata GEOdata Framework Standards Standardization makes SDI workStandardizations touch every SDI activity Service Standards include specifications (OGC), formal standards (ISO), and documented practices

22. Metadata GEOdata Framework Standards Partnerships SDI is built upon partnerships Service

23. Roles of standards bodies OGC Software interfaces (Implementation Specifications) Other NSDI Endorsed practices and specifications NSDI ISO TC 211 National Standards Foundations for implementation (Abstract standards) Content standards, Authority for data

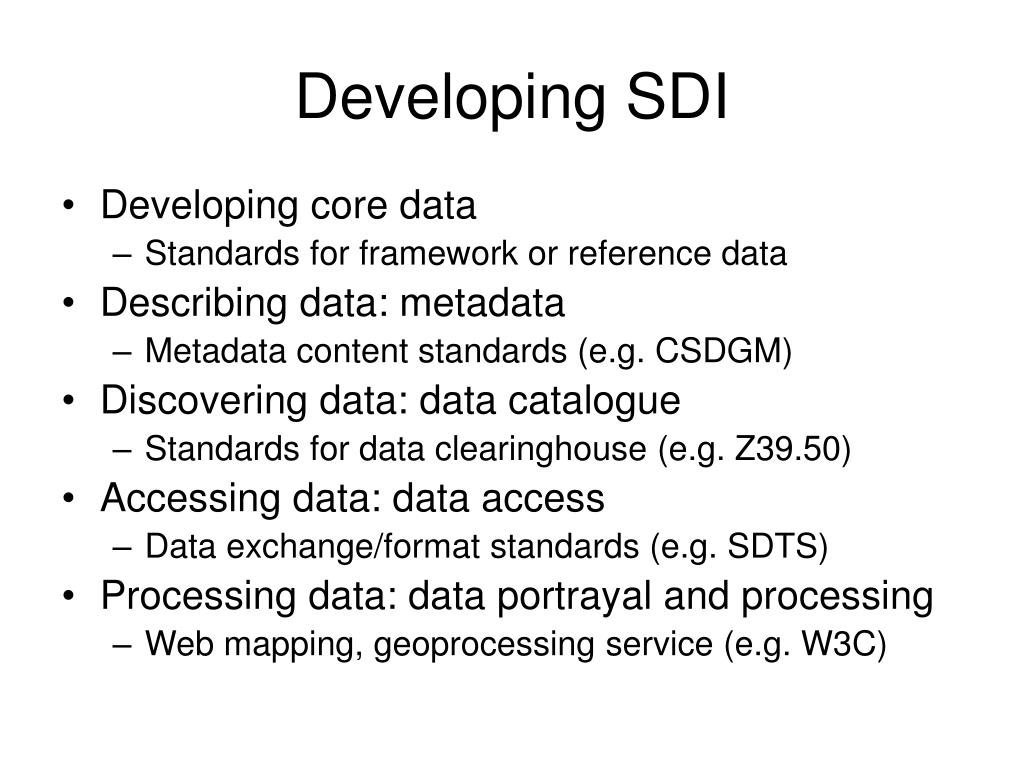

24. Developing SDI • Developing core data • Standards for framework or reference data • Describing data: metadata • Metadata content standards (e.g. CSDGM) • Discovering data: data catalogue • Standards for data clearinghouse (e.g. Z39.50) • Accessing data: data access • Data exchange/format standards (e.g. SDTS) • Processing data: data portrayal and processing • Web mapping, geoprocessing service (e.g. W3C)
