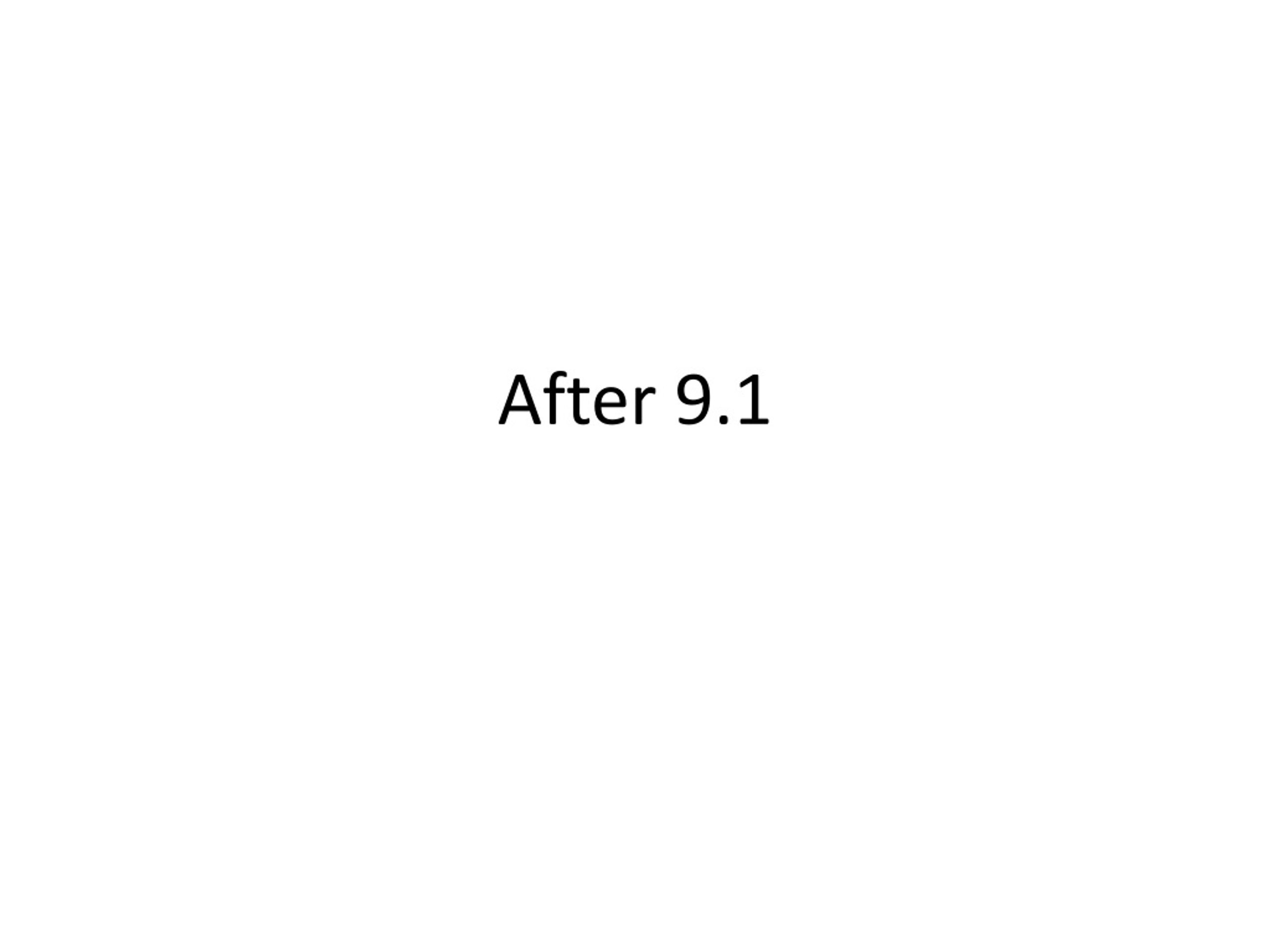

  1. After 9.1

  2. Which item correctly describes EIGRP? • Distance-vector and classless • Link-state and classless • Distance-vector and classful • Link-state and classful • Path-vector 1 of 9

  3. By default, which items are used to compute EIGRP metrics ? • Bandwidth and Reliability • Delay and Load • Reliability and Load • Load and Bandwidth • Bandwidth and Delay 3 of 9

  4. Which packets are used by EIGRP to discover neighbors? 4 of 9 Update ACK Query Reply Hello

  5. What is the Administrative Distance for a static route? 5 of 9 0 1 90 110 120

  6. What is the Administrative Distance for a route found by EIGRP (internally)? 6 of 9 5 90 110 120 170

  7. EIGRP updates are sent to IP address 224.0.0.10. What class is this address in? • Class A • Class B • Class C • Class D • Class E 7 of 9

  8. Which of these addresses is in the 10.172.192.128/26 subnet? 8 of 9 10.172.192.1 10.172.192.127 10.172.192.191 More than one of the above None of the above

  9. Which of these addresses is in the 10.172.192.0/20 subnet? 9 of 9 10.172.191.254 10.172.208.1 10.172.224.1 More than one of the above None of the above

  10. After 9.4

  11. Which of these commands turns on EIGRP? 1 of 5 Router>router eigrp Router#router eigrp Router(config)#router eigrp Router(config)#router eigrp 2 Router(config-if)#router eigrp 2

  12. Which network command correctly enables EIGRP for adapters in this address range: 192.168.1.1 through 192.168.1.62? • Router(config)#network 192.168.1.0 • Router(config-router)#network 192.168.1.0 • Router(config-router)#network 192.168.1.0/26 • Router(config-router)#network 192.168.1.0 255.255.255.192 • Router(config-router)#network 192.168.1.0 0.0.0.63 2 of 5

  13. What command produces this output? • show ip route • show run • show ip eigrp database • show ip eigrp topology • show ip int brief P 209.165.202.132/30, 2 successors, FD is 2681856 via 209.165.202.129 (2681856/2169856), Serial0/0/0 via 209.165.202.138 (2681856/2169856), Serial0/0/1 P 172.18.64.0/18, 1 successors, FD is 2172416 via 209.165.202.129 (2172416/28160), Serial0/0/0 3 of 5

  14. What is the feasible distance from this router to the 172.18.64.0 network? • 2681856 • 2169856 • 2172416 • 28160 • Something else P 209.165.202.132/30, 2 successors, FD is 2681856 via 209.165.202.129 (2681856/2169856), Serial0/0/0 via 209.165.202.138 (2681856/2169856), Serial0/0/1 P 172.18.64.0/18, 1 successors, FD is 2172416 via 209.165.202.129 (2172416/28160), Serial0/0/0 4 of 5

  15. What is the reported distance from the successor to the 172.18.64.0 network? • 2681856 • 2169856 • 2172416 • 28160 • Something else P 209.165.202.132/30, 2 successors, FD is 2681856 via 209.165.202.129 (2681856/2169856), Serial0/0/0 via 209.165.202.138 (2681856/2169856), Serial0/0/1 P 172.18.64.0/18, 1 successors, FD is 2172416 via 209.165.202.129 (2172416/28160), Serial0/0/0 5 of 5

  16. Hands-On Final Exam • Will be very similar to Lab 9.6.1 • Practice that lab with real routers to prepare for the final
