Bridge to the Future Beyond Third Generation Cellular Networks:The Integration of Internet and Telephony TechnologyProf. Randy H. KatzUC Berkeley S. S. 7 AT&T Cambridge Laboratory 10 September 1999 http://iceberg.cs.berkeley.edu Cellular “Core” Network

Outline • Motivation • It’s all about Services • The ICEBERG Project • Summary and Conclusions • New Project: Endeavour Expedition

Mobile Telephone & Internet Users Millions Mobile Telephone Users Internet Users Year Source: Ericsson Radio Systems, Inc.

Shift Toward Digital Mobile Access Network Millions ofSubscribers Provides a ubiquitous infrastructure for wireless data as well as voice Digital Analog Year Source: Ericsson Radio Systems, Inc.

Data Dominates United States Network Traffic Growth (gigabits, bn) Source: Nortel in The Economist, 13 Mar 99

High Latencies/Dropped Packets being solved Short term: circuit-switched local infrastructure plus packet-switched wide-area infrastructure Longer term: migration towards “always on” digital broadband data connections Internet Telephony Packet Data to Analog Voice Analog Voice to Packet Data Internet Local Call Local Call Gateway Gateway

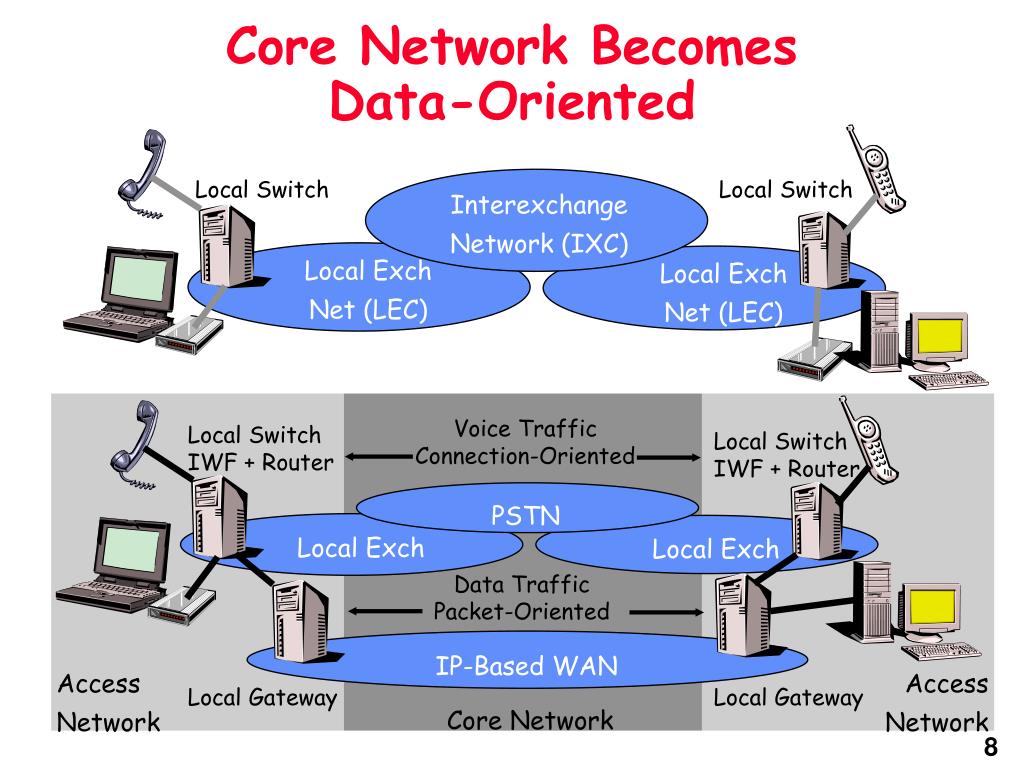

Local Switch Local Switch Interexchange Network (IXC) PSTN Voice Traffic Connection-Oriented Local Switch IWF + Router Local Switch IWF + Router Local Exch Net (LEC) Local Exch Net (LEC) Local Exch Local Exch Data Traffic Packet-Oriented IP-Based WAN Access Network Access Network Local Gateway Local Gateway Core Network Core Network BecomesData-Oriented

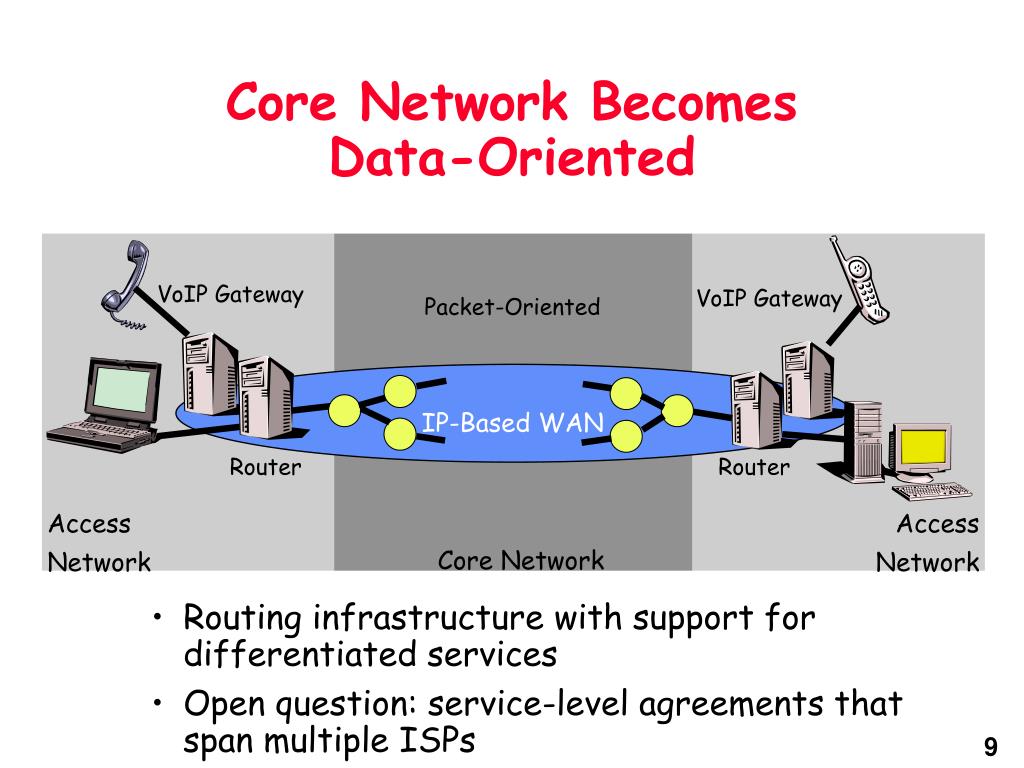

Core Network BecomesData-Oriented • Routing infrastructure with support for differentiated services • Open question: service-level agreements that span multiple ISPs VoIP Gateway VoIP Gateway Packet-Oriented IP-Based WAN Router Router Access Network Access Network Core Network

PDA PCS Qualcomm PDQ Phone Smart Appliances/Thin Clients

Top Gun MediaBoard • Participates as a reliable multicast client via proxy in wireline network • Top Gun Wingman • “Thin” presentation layer in PDA with full rendering engine in wireline proxy

Important Trends Revisted • Multimedia / Voice over IP networks • Lower cost, more flexible packet-switching core network • Simultaneous support for delay sensitive and delay insensitive flows via differentiated services • Intelligence shifts to the network edges • Third-party functionality downloaded into Information Appliances like PalmPilots • Programmable intelligence inside the network • Proxy servers intermixed with switching infrastructure • Mobile/extensible code, e.g., JAVA: “write once, run anywhere” • Rapid new service development • Speech-based services

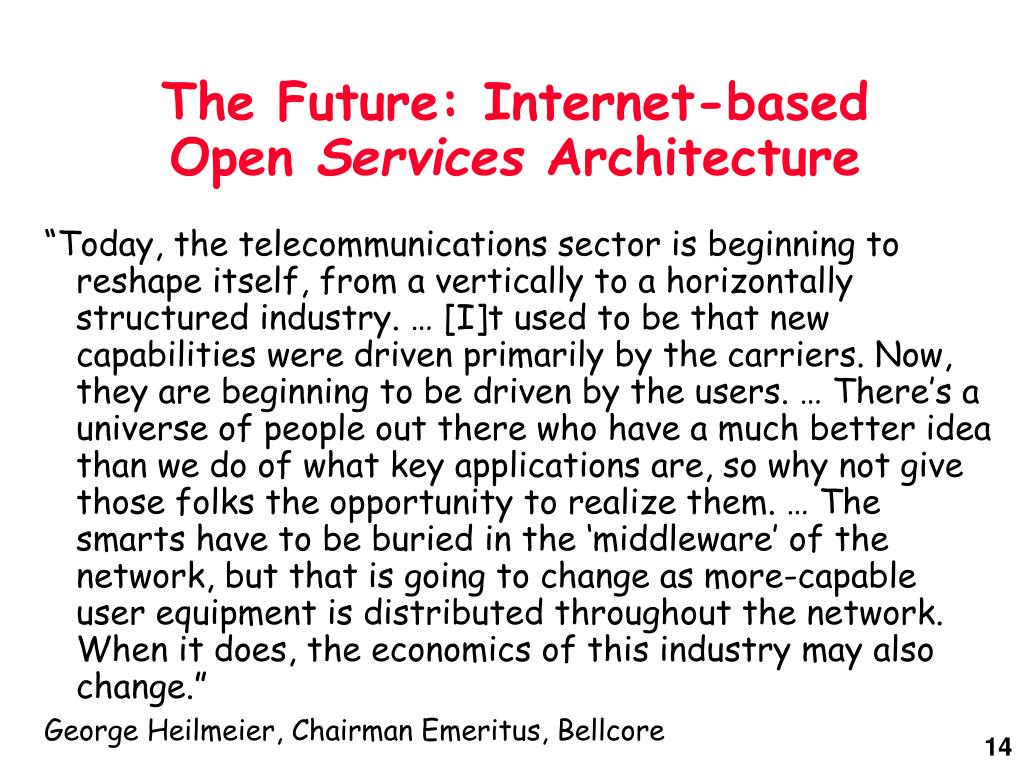

The Future: Internet-basedOpen Services Architecture “Today, the telecommunications sector is beginning to reshape itself, from a vertically to a horizontally structured industry. … [I]t used to be that new capabilities were driven primarily by the carriers. Now, they are beginning to be driven by the users. … There’s a universe of people out there who have a much better idea than we do of what key applications are, so why not give those folks the opportunity to realize them. … The smarts have to be buried in the ‘middleware’ of the network, but that is going to change as more-capable user equipment is distributed throughout the network. When it does, the economics of this industry may also change.” George Heilmeier, Chairman Emeritus, Bellcore

Universal In-box Transparent Information Access Speech-to-Text Speech-to-Voice Attached-Email Call-to-Pager/Email Notification Email-to-Speech All compositions of the above! Policy-based Location-based Activity-based

A/V Devices Path ICSI Speech Recognizer Text to Command Room Entity Audio Text Cmd Microphone Cell phone Response to Client Composable Services • E.g., voice control of A/V devices in a “Smart Room” • Multistage processing transformation • Strongly typed connectors • Service discovery service • Automated path generation

ICEBERG: Internet-based CorE BEyond the thRid Generation • The Challenge • Developing service intensive, network-based, real-time applications • Securely embedding computational resources in the switching fabric • Providing an open, extensible network environment: heterogeneity • Computing • Encapsulating legacy servers & partitioning “thin” client functionality • Scalability: 100,000s of simultaneous users in the SF Bay Area • High BW IP backbones + diverse access networks • Different coverage, bandwidth, latency, and cost characteristics • Third generation cellular systems: UMTS/IMT2000 • Next gen WLANs (Bluetooth) & broadband access nets (DSL/cable) • Diverse appliances beyond the handset or PC • Communicator devices plus servers in the infrastructure

Project Goals • Demonstrate ease of new service deployment • Packet voice for computer-telephony integration • Speech- and location-enabled applications • Complete interoperation of speech, text, fax/image across the four P’s: PDAs, pads, pagers, phones) • Mobility and generalized routing redirection • Demonstrate new system architecture to support innovative applications • Personal Information Management • Universal In-box: e-mail, news, fax, voice mail • Notification redirection: e.g., e-mail, pager • Home networking and control of “smart” spaces, sensor/actuator integration • Build on experience with A/V equipped rooms in Soda Hall

SimMillennium Network Infrastructure Experimental Testbed IBM WorkPad Velo Nino MC-16 Motorola Pagewriter 2000 CF788 Pager WLAN / Bluetooth 306 Soda 405 Soda H.323 GW 326 Soda “Colab” GSM BTS TCI @Home Millennium Cluster Smart Spaces Personal Information Management Millennium Cluster

Speech and Location Aware Applications ICEBERG Computer-Telephony Services Internet-Scale Systems Research Group Personal Information Management and “Smart Spaces” Distributed Videoconferencing & Room-scale Collaboration Speech and Location Aware Applications ICEBERG Computer-Telephony Services TranSend Extensible Proxy Services MASH Media Processing Services Active Services Architecture Distributed Computing Services: NINJA Computing and Communications Platform: Millennium/NOW

Bases (1M’s) • scalable, highly available • persistent state (safe) • databases, agents • “home” base per user • service programmingenvironment Wide-Area Path • Active Proxies (100M’s) • not packet routers, may be AN nodes • bootstrap thin devices into infrastructure • soft-state and well-connected • Units (1B’s) • sensors / actuators • PDAs / smartphones / PCs • heterogeneous • Minimal functionality: “Smart Clients” Jini devices NINJA Distributed Computing Platform

ICEBERG Principles ... • Potentially Any Network Services (PANS) • Any service can from any network by any device; network/device independence in system design • Personal Mobility • Person as communication endpoint with single identity • Service Mobility • Retain services across networks • Easy Service Creation and Customization • Allow callee control & filtering • Scalability, Availability, Fault Tolerance • Security, Authentication, Privacy

ICEBERG Architectural Elements • ICEBERG Access Point (IAP) • Encapsulates network specific gateway (control and data) • ICEBERG Point of Presence (iPOP) • Performs detailed signaling • Call Agent: per communication device per call party • Call Agent Dispatcher: deploy call agent • Name Mapping Service • Mapping between iUID (Iceberg Unique ID) and service end point • Preference Registry • Contains user profile:service subscription, configuration. customization • Person Activity Tracker (PAT) • Tracks dynamic information about user of interest • Automatic Path Creation Service • Creates datapath among participants’ communications devices

Transducer Agent IAP IAP IAP IAP IAP Redirection Agent Transformation and Redirection Pager IP Core GW Cellular Network WLAN GW GW H.323 GW PSTN

ICEBERG Signaling System • Signaling System • Distributed system w/agents communicating via signaling protocol for call setup, routing, & control • ICEBERG Basic Call Service • Communication of two or more call participants using any number of communication devices via any kind of media • If call participant uses more than one devices, must be used synchronously • Basic Approach • Loosely coupled, soft state-based signaling protocol w/group communication • Call Session: a collection of call agents that communicate with each other

iPOP iPOP Call Agent Dispatcher Call Agent Dispatcher 4 2 3 5 8 9 1 Call Agent Call Agent 7 3 IAP IAP 10 12 11 iPOP Call Agent Dispatcher 6 13 16 Call Agent 15 14 IAP Signaling: Call Session Establishment Bob Alice Carol Name Mapping Service Preference Registry

Signaling: Call Control • Call Control • Refers to control protocol in an established call session • Involves altering & propagating call states in the call session, and modifying the datapath correspondingly • Call States • Call party identities, communication devices in use & their call status, and datapath information on data streams involved • Challenge • Reliable propagation of call state changes to call agents, given highly dynamic call session environment • Adapt as session membership changes • New member must be able obtain current session state

Light Weight Sessions ICEBERG Approach for Call Control • Call Session • Abstraction of shared communication channel • Level of indirection to hide identity and location of call session members (I.e., call agents) • Adapt to membership change • Call State • Soft state-based • Maintained by each call agent in a session

Announce Announce Data Path Table Listen Listen Add or remove path Create/tear down data path Create/tear down data path Call Agent Light-Weight Call Session Call Session Call Agent Call Agent Call State Table Auto Path Creation

Datapath Simplification • Separate data from control • Isolate datapath creation from signaling • Encapsulates media negotiation • Powerful enabler for any-to-any communication in ICEBERG due to its flexible composability • Current use immature and ad-hoc • Operator with reference count • Operator description: what and where to run or cleanup • Who gets to create path

Signaling: Fault Detection and Recovery • Ninja Distributed Service Environment • Run all Iceberg components on Ninja Base • Advantageous separation of iPOP and IAP • IAP: network specific gateways likely maintain hard state;Gateways are responsible for maintenance • iPOP: light-weight call session is the key • Detection • IAP and iPOP send heartbeats to each other • Loss of heartbeat implies loss of life

Conference Call: First Class Service • Redefining conference call • Call between at least two call parties with at least three communication devices • Conference call operations are building blocks for services • Add a communication endpoint • Remove a communication endpoint • Simplify implementation of services that require communication endpoint changes • Change an endpoint = remove + add

Example: Service Handoff • Service handoff occurs when users switch communication devices in midst of call session • Enables service mobility • Service handoff is: • Generalized call transfer • Special case of conference call • User uses one device to invite another device • Then hangs up the first device

handoff from cell phone to VAT Cell phone turned off announce announce Listen Listen Start new IAP announce Listen Service Handoff Scenario:Cell Phone to Laptop Caller IAP Callee IAP Multicast Session Caller IAP2

handoff from cell phone to VAT Cell phone turned off announce Listen Start new IAP announce Listen Service Handoff Scenario Caller IAP Callee IAP Multicast Session Caller IAP2 • Simple reliability scheme • IAP fault tolerant • Simultaneous service handoff • Multiparty calls trivial • Security through encryption

SIP Differences Group vs. pairwise communication for signaling Light-weight session vs. tightly coupled session Our Advantages Adaptive to dynamic call session (i.e., call session membership change, protocol agent fault recovery) Simplicity in service implementation H.323 Problems Complexity: no clean separation of component protocols; many options for doing a single task Extensibility: requires full backward compatibility; each codec is centrally registered and standardized; not modular Scalability: stateful (depends on TCP); central control for conference call Services: cannot express preferences Comparison with SIP, H.323

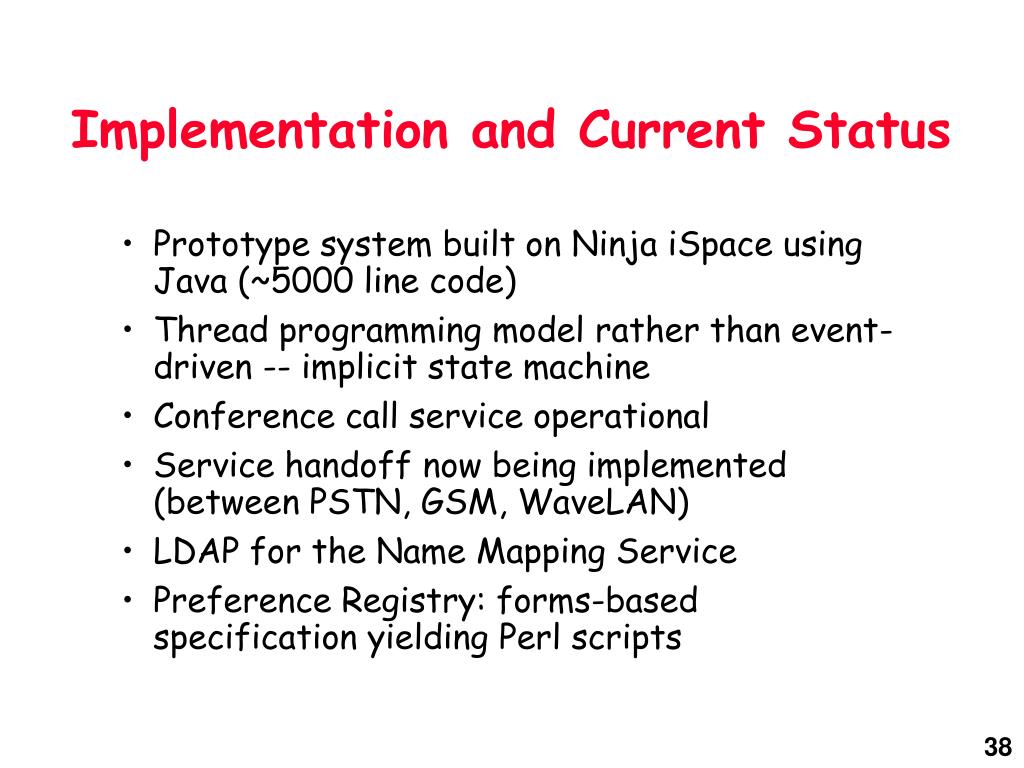

Implementation and Current Status • Prototype system built on Ninja iSpace using Java (~5000 line code) • Thread programming model rather than event-driven -- implicit state machine • Conference call service operational • Service handoff now being implemented (between PSTN, GSM, WaveLAN) • LDAP for the Name Mapping Service • Preference Registry: forms-based specification yielding Perl scripts

Connectors Data Plane Operators APC Paths IAP PRLS PAT Pref Reg ActiveProxies Name Svc Bases Control Plane Ninja Execution Environment Units Summary

Conclusions • Emerging Network-centric Distributed Architecture spanning processing and access • Open, composable services architecture--the wide-area “operating system” of the 21st Century • Beyond the desktop PC: information appliances supported by infrastructure services--multicast real-time media plus proxies for any-to-any format translation and delivery to diverse devices • Common network core: optimized for data, based on IP, enabling packetized voice, supporting user, terminal, and service mobility

Why “Endeavour”? • DARPA BAA 99-07: Information Technology Expeditions • To strive or reach; a serious determined effort (Webster’s 7th New Collegiate Dictionary); British spelling • Captain Cook’s ship from his first voyage of exploration of the great unknown of his day: the southern Pacific Ocean (1768-1771). • These voyages brought brought more land and wealth to the British Empire than any military campaign • Cook’s lasting contribution: comprehensive knowledge of the people, customs, and ideas that lay across the sea • “He left nothing to his successors other than to marvel at the completeness of his work”

Expedition Goals • Enhancing human understanding through information technology • Dramatically more convenient for people to interact with information, devices, and other people • Supported by a “planetary-scale” Information Utility • Stress tested by challenging applications in decision making and learning • New methodologies for design, construction, and administration of systems of unprecedented scale and complexity • Figure of merit: how effectively we amplify and leverage human intellect • A pervasive Information Utility, based on “fluid systems technology” to enable new approaches for problem solving & learning

Expedition Assumptions • Human time and attention, not processing or storage, are the limiting factors • Givens: • Vast diversity of computing devices (PDAs, cameras, displays, sensors, actuators, mobile robots, vehicles); No such thing as an “average” device • Unlimited storage: everything that can be captured, digitized, and stored, will be • Every computing device is connected in proportion to its capacity • Devices are predominately compatible rather than incompatible (plug-and-play enabled by on-the-fly translation/adaptation)

Expedition Challenges • Personal Information Mgmt is the Killer App • Not corporate processing but management, analysis, aggregation, dissemination, filtering for the individual • People Create Knowledge, not Data • Not management/retrieval of explicitly entered information, but automated extraction and organization of daily activities • Information Technology as a Utility • Continuous service delivery, on a planetary-scale, on top of a highly dynamic information base • Beyond the Desktop • Community computing: infer relationships among information, delegate control, establish authority

Alex Aiken, PL Eric Brewer, OS John Canny, AI David Culler, OS/Arch Joseph Hellerstein, DB Michael Jordan, Learning Anthony Joseph, OS Randy Katz, Nets John Kubiatowicz, Arch James Landay, UI Jitendra Malik, Vision George Necula, PL Christos Papadimitriou, Theory David Patterson, Arch Kris Pister, Mems Larry Rowe, MM Alberto Sangiovanni-Vincentelli, CAD Doug Tygar, Security Robert Wilensky, DL/AI Interdisciplinary, Technology-Centered Expedition Team

Information Devices Beyond desktop computers to MEMS-sensors/actuators with capture/display to yield enhanced activity spaces InformationUtility InformationApplications High Speed/Collaborative Decision Making and Learning Augmented “Smart” Spaces: Rooms and Vehicles Design Methodology User-centric Design withHW/SW Co-design; Formal methods for safe and trustworthy decomposable and reusable components “Fluid”, Network-Centric System Software Partitioning and management of state between soft and persistent state Data processing placement and movement Component discovery and negotiation Flexible capture, self-organization, and re-use of information Expedition Approach

High Speed Decision Making Learning Classroom E-Book Vehicles Applications Collaboration Spaces Info Appliances Human Activity Capture Generalized UI Support Event Modeling Transcoding, Filtering, Aggregating Statistical Processing/Inference Proxy Agents Negotiated APIs Self-Organizing Data Information Utility Interface Contracts Wide-area Search & Index Nomadic Data & Processing Wide-Area Data & Processing Automated Duplication Movement & Positioning Distributed Cache Management Stream- and Path-Oriented Processing & Data Mgmt Non-Blocking RMI Soft-/Hard-State Partitioning Laptop PDA Wallmount Display Camera Information Devices Smartboard MEMS Sensor/Actuator/Locator Handset

D e s I g n M e t h o d o l o g y Applications Rapid Decision Making, Learning, Smart Spaces: Collaboration Rooms, Classrooms, Vehicles Information Utility Fluid Software, Cooperating Components, Diverse Device Support, Sensor-Centric Data Mgmt, Always Available, Tacit Information Exploitation (event modeling) Base Program Information Devices Option 1: Sys Arch for Diverse Devices MEMS Sensors/Actuators, Smart Dust, Radio Tags, Cameras, Displays, Communicators, PDAs Option 2: Oceanic Data Utility Option 3: Capture and Re-Use Option 4: Negotiation Arch for Cooperation Option 5: Tacit Knowledge Infrastructure Option 6: Classroom Testbed Option 7: Scalable Heterogeneous Component-Based Design Organization: The Expedition Cube
