  1. Database Application Auditing – Ch. 8

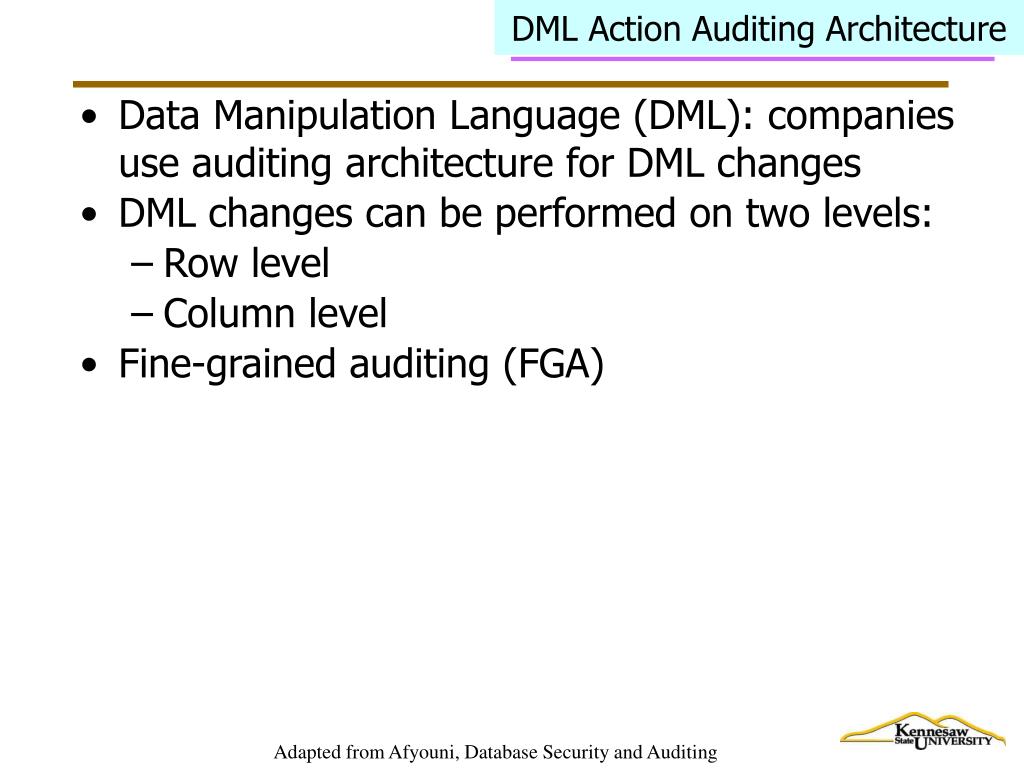

  2. DML Action Auditing Architecture • Data Manipulation Language (DML): companies use auditing architecture for DML changes • DML changes can be performed on two levels: • Row level • Column level • Fine-grained auditing (FGA)

  3. DML Action Auditing (cont.)

  4. DML Action Auditing (cont.)

  5. Oracle Triggers • Stored PL/SQL procedure executed whenever: • DML operation occurs • Specific database event occurs • DML events (trigger timings): INSERT, UPDATE, and DELETE • Purposes: • Audits, controlling invalid data • Implementing business rules, generating values

  6. Oracle Triggers (continued)

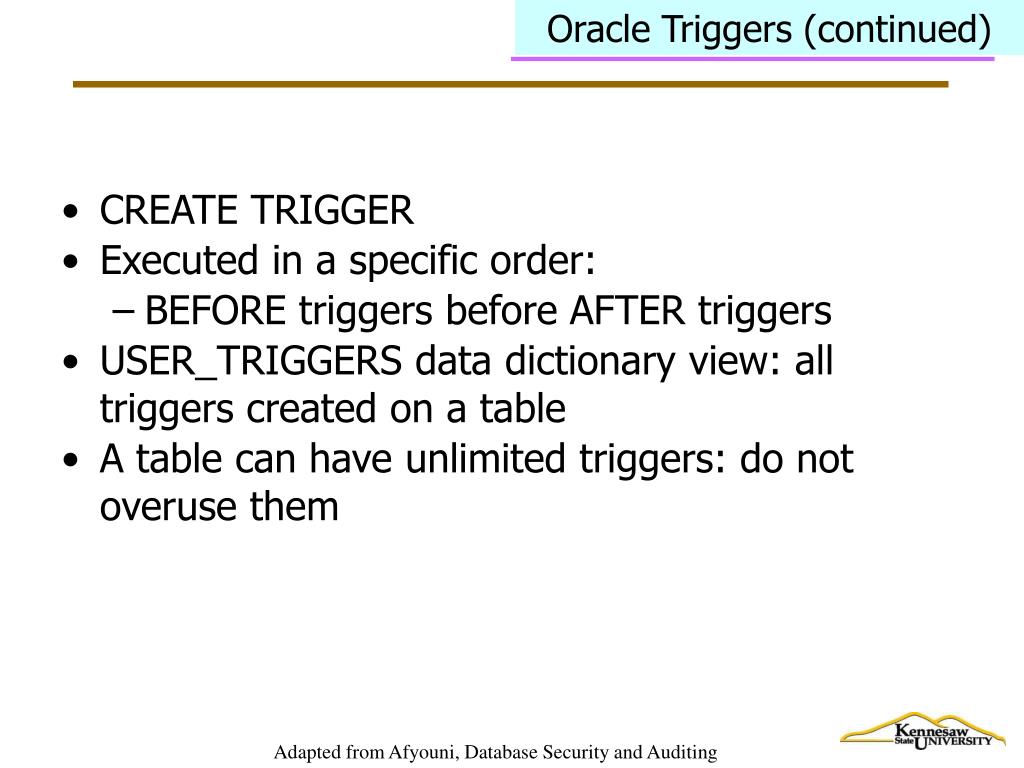

  7. Oracle Triggers (continued) • CREATE TRIGGER • Executed in a specific order: • BEFORE triggers before AFTER triggers • USER_TRIGGERS data dictionary view: all triggers created on a table • A table can have unlimited triggers: do not overuse them

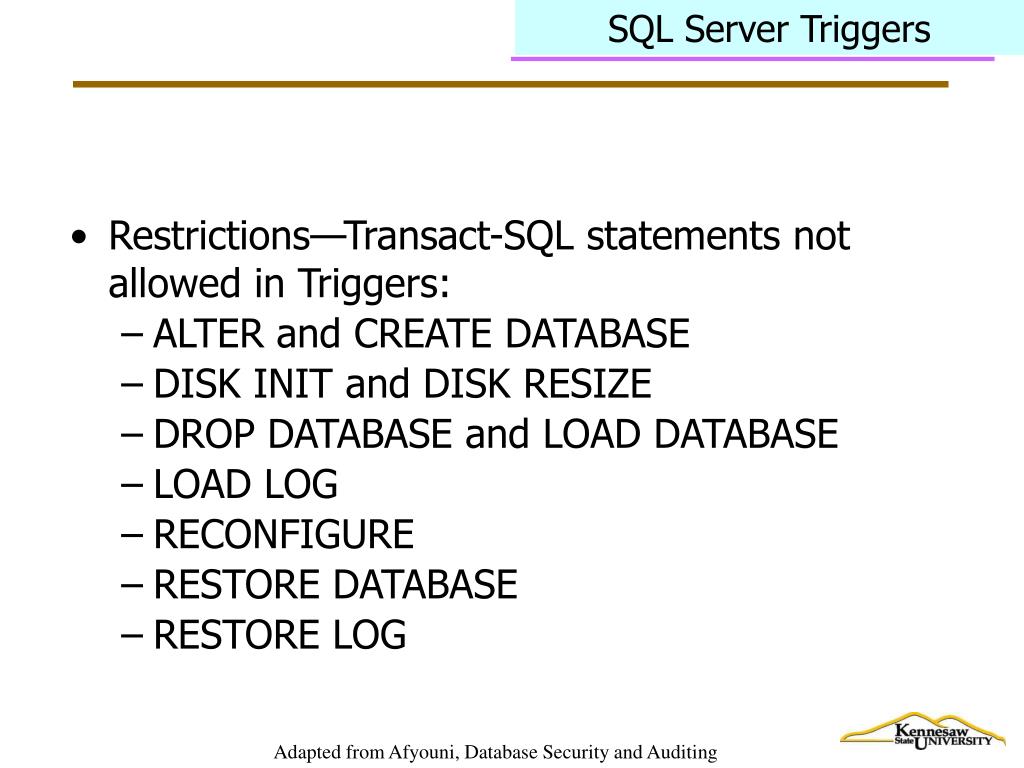

  8. SQL Server Triggers • Restrictions—Transact-SQL statements not allowed in Triggers: • ALTER and CREATE DATABASE • DISK INIT and DISK RESIZE • DROP DATABASE and LOAD DATABASE • LOAD LOG • RECONFIGURE • RESTORE DATABASE • RESTORE LOG

  9. Historical Model with SQL Server • Create a history table: • Same structure as original table • HISTORY_ID column • Create a trigger: inserts original row into the HISTORY table

  10. Oracle Fine-grained Auditing (FGA) • Oracle provides column-level auditing: Oracle PL/SQL-supplied package DBMS_FGA • DBMS_FGA procedures: • ADD_POLICY • DISABLE_POLICY • DROP_POLICY • ENABLE_POLICY

  11. Oracle Fine-grained Auditing (FGA) • ADD_POLICY parameters: • OBJECT_SCHEMA • OBJECT_NAME • POLICY_NAME • AUDIT_CONDITION • AUDIT_COLUMN • HANDLER_SCHEMA (user name that owns the procedure that is used as the event handler. NULL indicates current schema).

  12. Oracle Fine-grained Auditing (FGA) • ADD_POLICY parameters (continued): • HANDLER_MODULE • ENABLE • STATEMENT_TYPES • DBA_FGA_AUDIT_TRAIL: view the audit trail of the DML activities

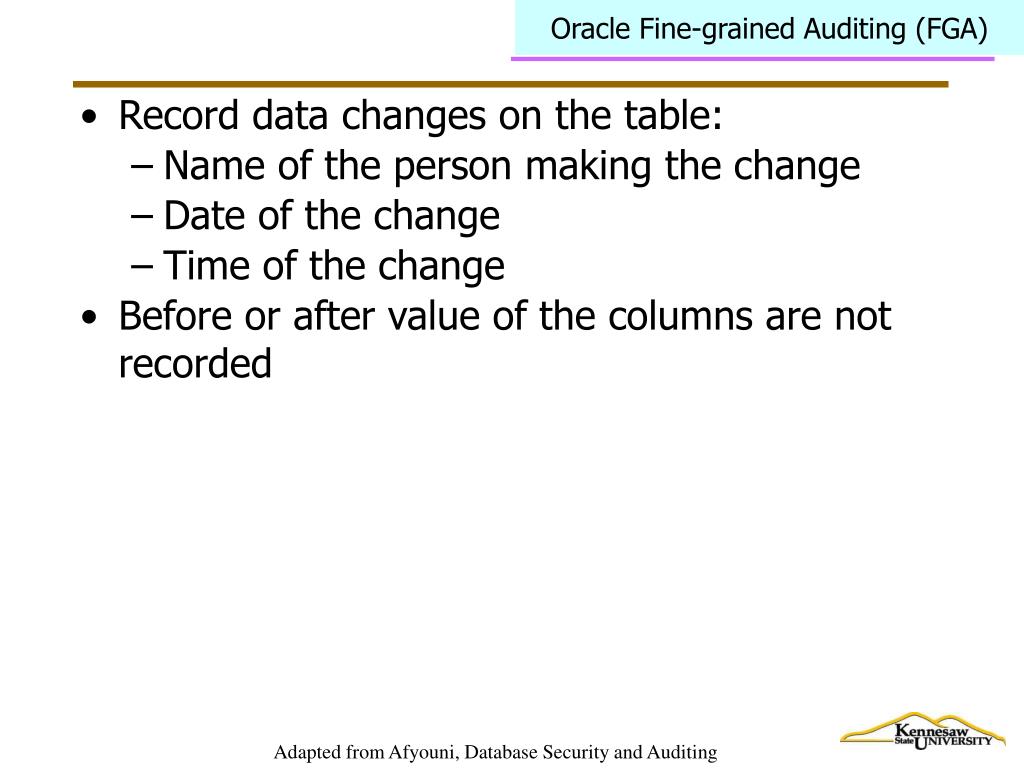

  13. Oracle Fine-grained Auditing (FGA) • Record data changes on the table: • Name of the person making the change • Date of the change • Time of the change • Before or after value of the columns are not recorded

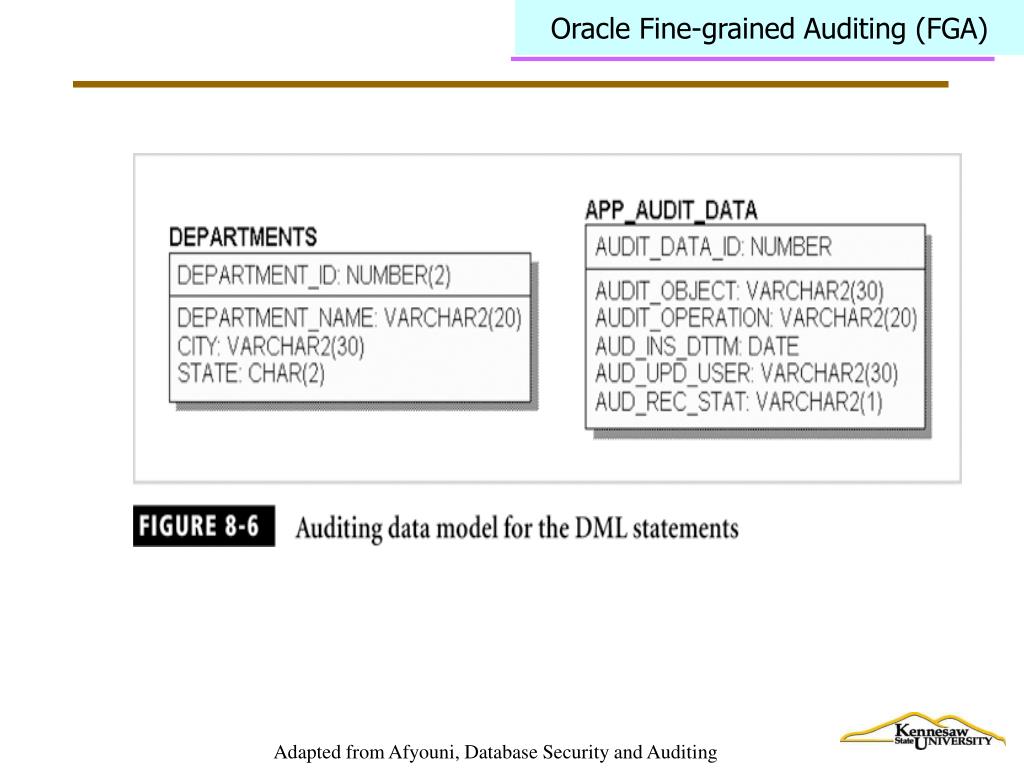

  14. Oracle Fine-grained Auditing (FGA)

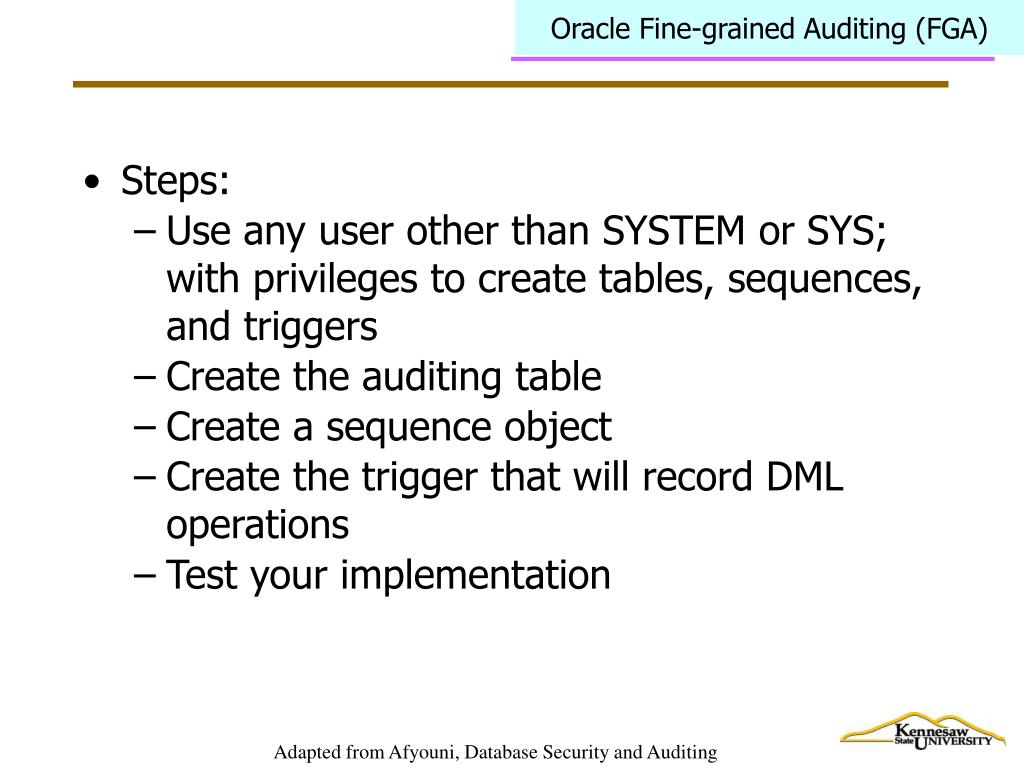

  15. Oracle Fine-grained Auditing (FGA) • Steps: • Use any user other than SYSTEM or SYS; with privileges to create tables, sequences, and triggers • Create the auditing table • Create a sequence object • Create the trigger that will record DML operations • Test your implementation

  16. History Auditing Model w/ Oracle • Historical data auditing is simple to implement; main components are TRIGGER objects and TABLE objects • Keeps record of: • Date and time the copy of the record was captured • Type of operation applied to the record

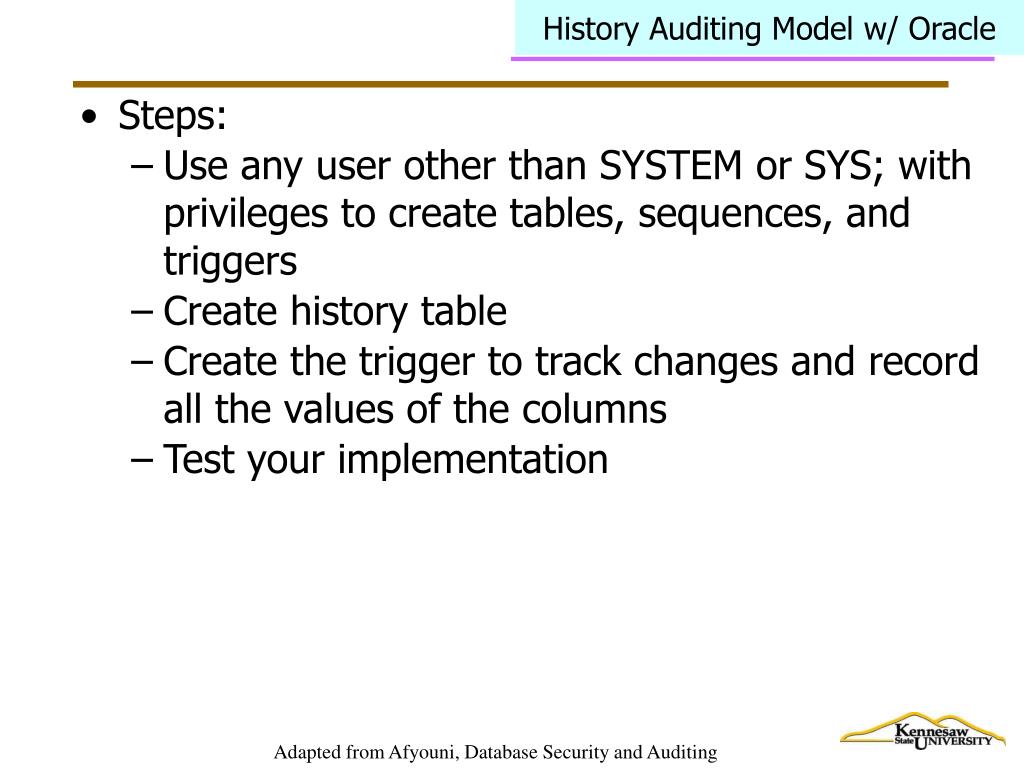

  17. History Auditing Model w/ Oracle • Steps: • Use any user other than SYSTEM or SYS; with privileges to create tables, sequences, and triggers • Create history table • Create the trigger to track changes and record all the values of the columns • Test your implementation

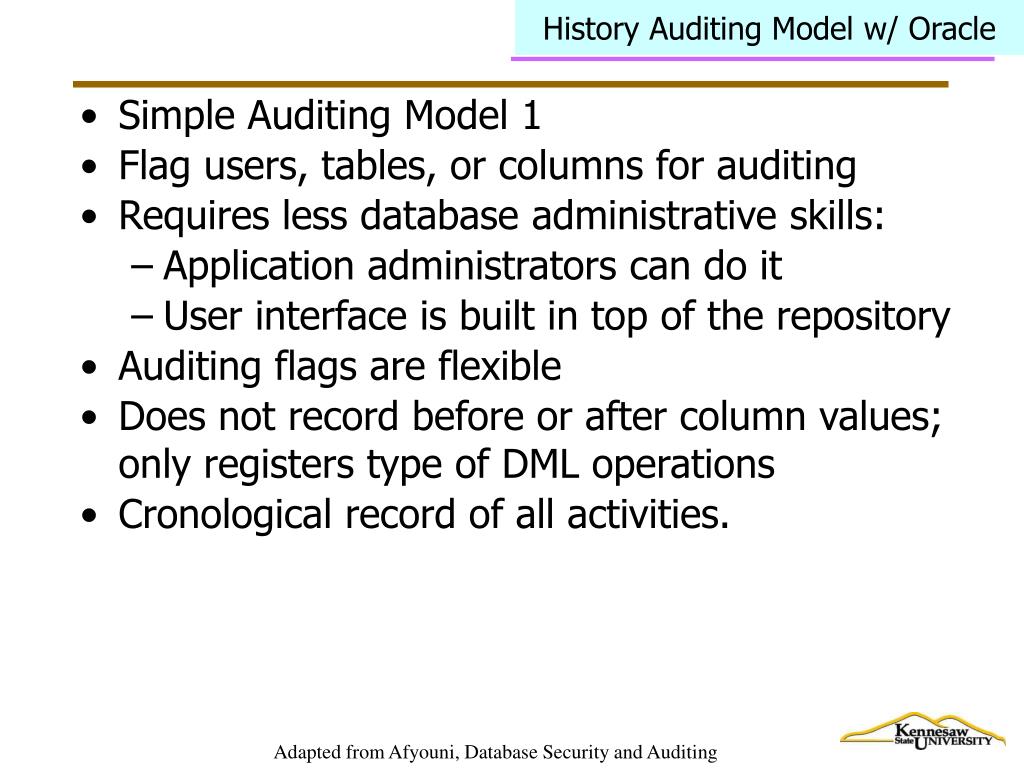

  18. History Auditing Model w/ Oracle • Simple Auditing Model 1 • Flag users, tables, or columns for auditing • Requires less database administrative skills: • Application administrators can do it • User interface is built in top of the repository • Auditing flags are flexible • Does not record before or after column values; only registers type of DML operations • Cronological record of all activities.

  19. DML Auditing Using Repository with Oracle (Simple 1) • Steps: • Use any user other than SYSTEM or SYS • Create triggers • Create sequence object • Build tables to use for applications • Populate application tables • Populate auditing repository with metadata • Create the stored package to be used with the trigger • Create triggers for application tables • Test your implementation

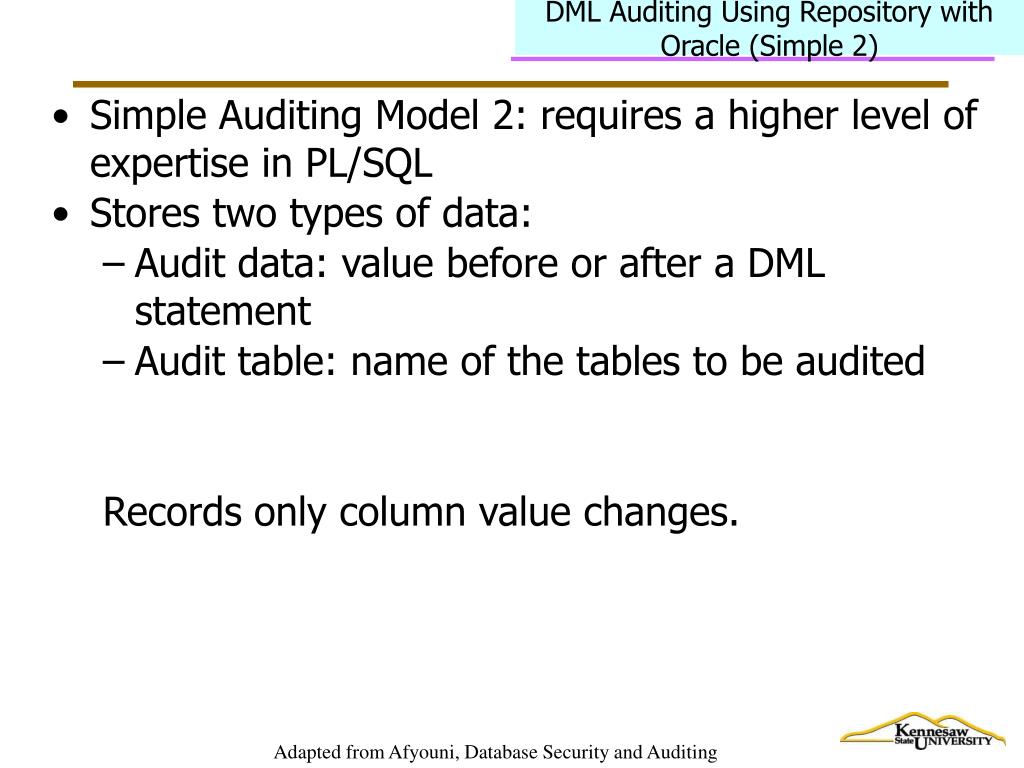

  20. DML Auditing Using Repository with Oracle (Simple 2) • Simple Auditing Model 2: requires a higher level of expertise in PL/SQL • Stores two types of data: • Audit data: value before or after a DML statement • Audit table: name of the tables to be audited Records only column value changes.

  21. DML Auditing Using Repository with Oracle (Simple 2) • Steps: • Use any user other than SYSTEM or SYS; with privileges to create tables, and triggers • Create the auditing repository • Establish a foreign key in AUDIT_DATA table referencing AUDIT_TABLE table • Create a sequence object • Create the application schema

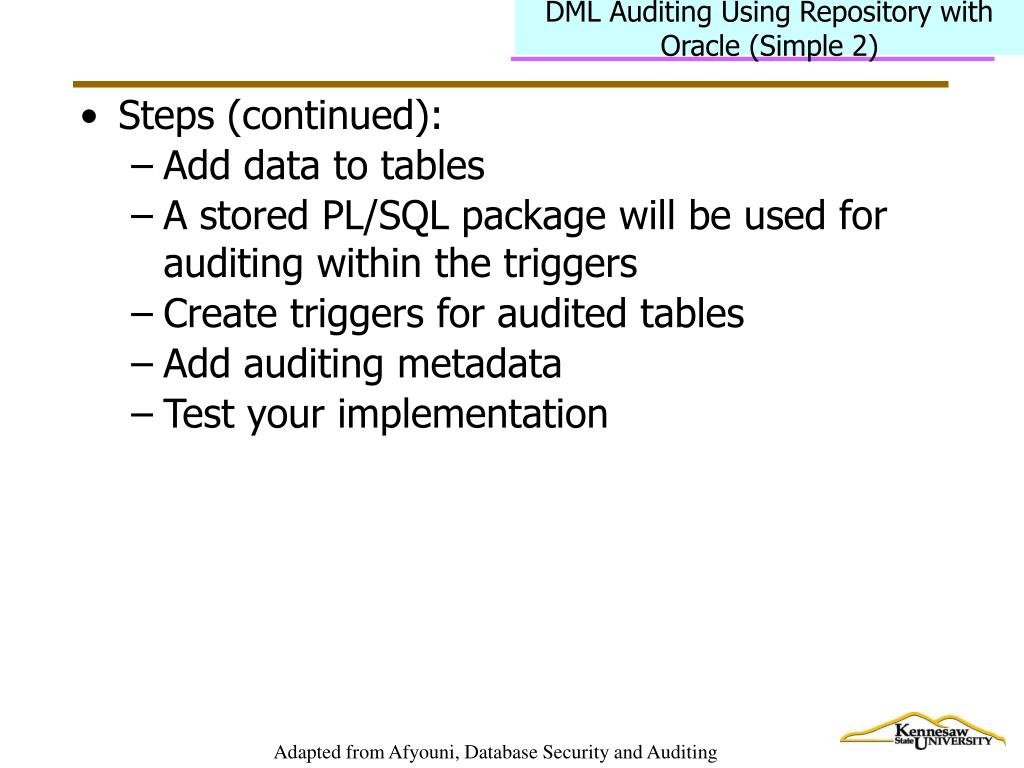

  22. DML Auditing Using Repository with Oracle (Simple 2) • Steps (continued): • Add data to tables • A stored PL/SQL package will be used for auditing within the triggers • Create triggers for audited tables • Add auditing metadata • Test your implementation

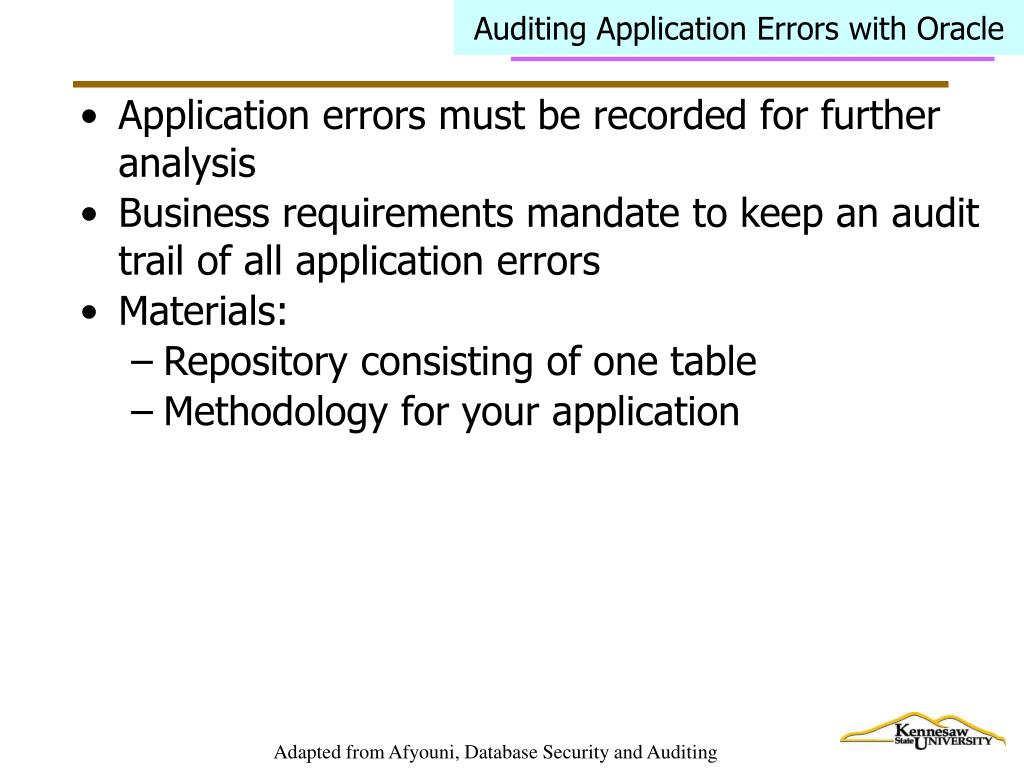

  23. Auditing Application Errors with Oracle • Application errors must be recorded for further analysis • Business requirements mandate to keep an audit trail of all application errors • Materials: • Repository consisting of one table • Methodology for your application

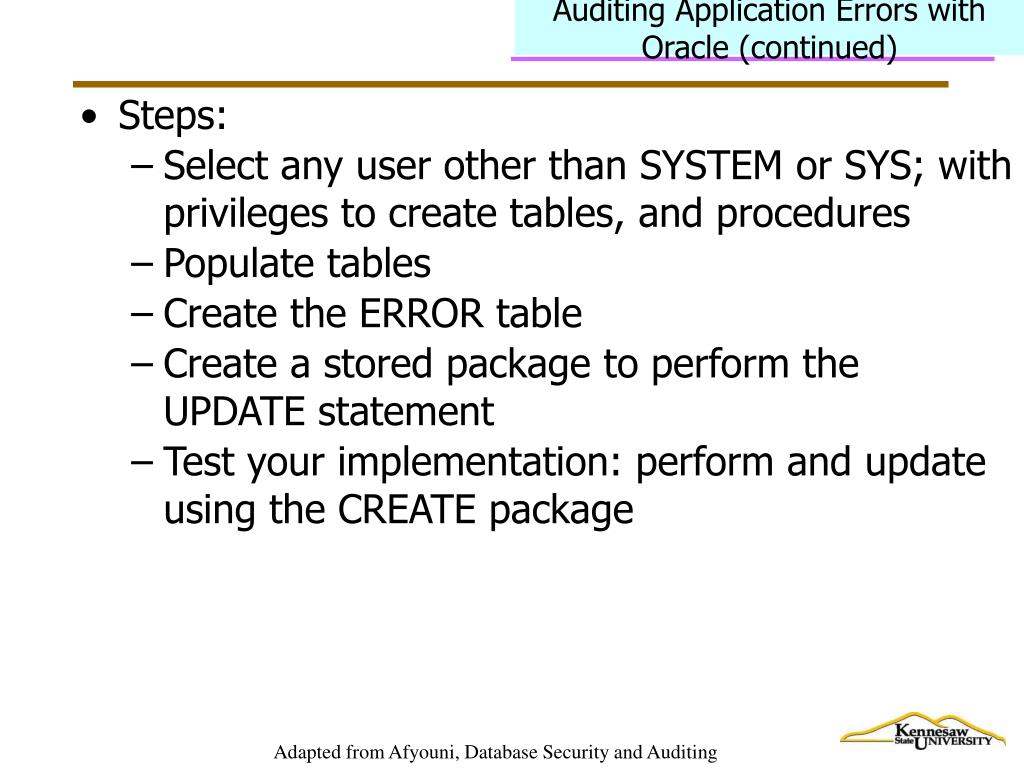

  24. Auditing Application Errors with Oracle (continued) • Steps: • Select any user other than SYSTEM or SYS; with privileges to create tables, and procedures • Populate tables • Create the ERROR table • Create a stored package to perform the UPDATE statement • Test your implementation: perform and update using the CREATE package

  25. Oracle PL/SQL Procedure Authorization • Oracle PL/SQL stored procedures are the mainstay of implementing business rules • Security modes: • Invoker rights: procedure is executed using security credentials of the caller • Definer rights: procedure is executed using security credentials of the owner

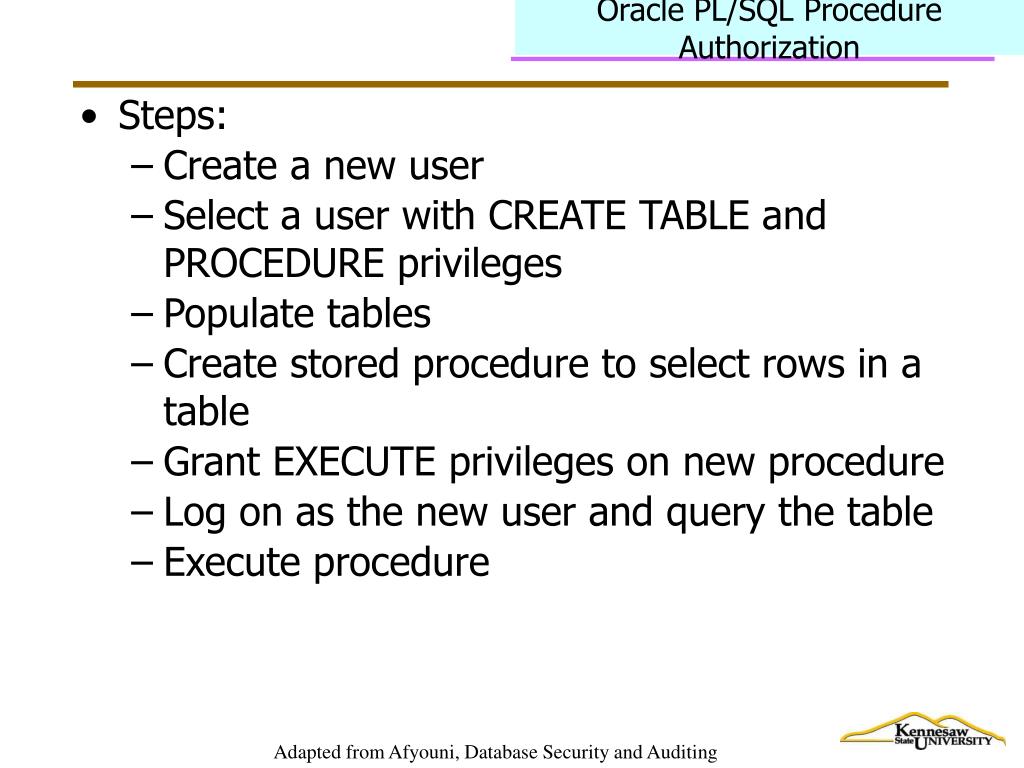

  26. Oracle PL/SQL Procedure Authorization • Steps: • Create a new user • Select a user with CREATE TABLE and PROCEDURE privileges • Populate tables • Create stored procedure to select rows in a table • Grant EXECUTE privileges on new procedure • Log on as the new user and query the table • Execute procedure

  27. Summary • Primary purposes: validate authorization and authentication • Two approaches for DML auditing: • Set up an audit trail for DML activities • Register all column values before or after the DML statement (column-level auditing) • Fine-grained auditing (Oracle) • Triggers: • Stored PL/SQL procedure automatically executed • USER_TRIGGERS data dictionary view: shows all triggers • FGA allows generation of audit trail of DML activities

  28. Summary • Server Security • Database Connections • Table Access Control • Restricting Database Access

  29. Summary (continued) • FGA is capable of auditing columns or tables; Oracle PL/SQL-supplied package DBMS_FGA • PL/SQL stored procedures security modes: • Invoker rights • Definer rights • SQL Server 2000: • CREATE TRIGGER DDL statement • Conditional functions: UPDATE() and COLUMNS_UPDATED()

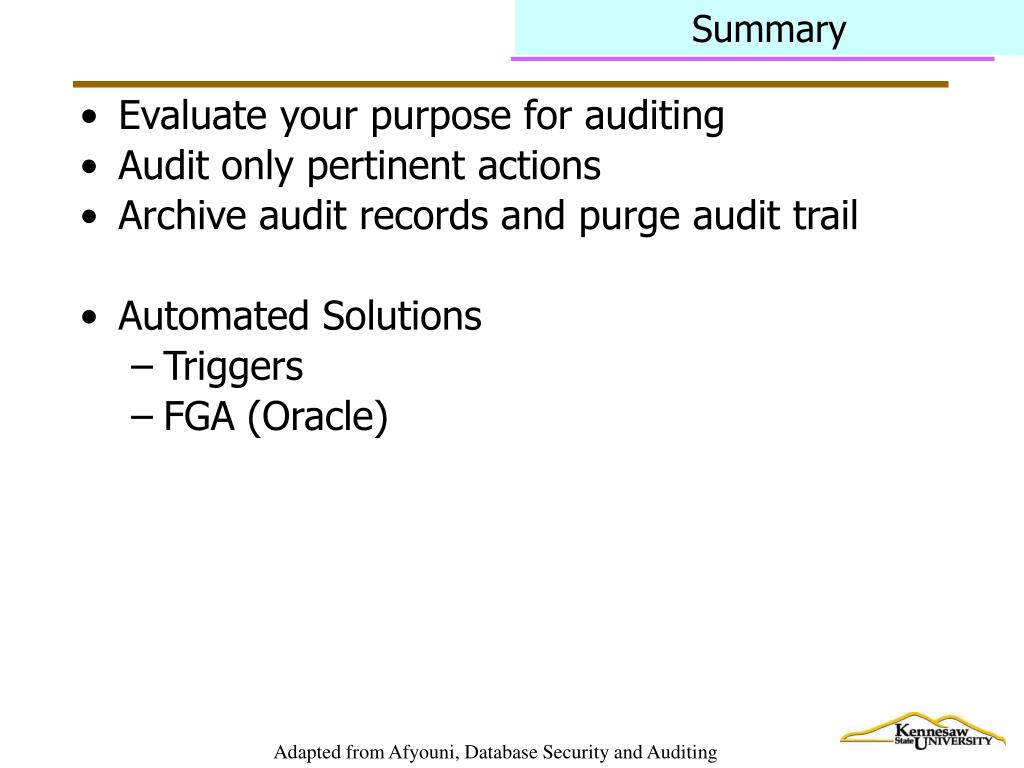

  30. Summary • Evaluate your purpose for auditing • Audit only pertinent actions • Archive audit records and purge audit trail • Automated Solutions • Triggers • FGA (Oracle)
