Chapter 12 Three Phase Circuits

Chapter 12 Three Phase Circuits. Chapter Objectives: Be familiar with different three-phase configurations and how to analyze them. Know the difference between balanced and unbalanced circuits Learn about power in a balanced three-phase system

baakir
Télécharger la présentation

Chapter 12 Three Phase Circuits

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Chapter 12Three Phase Circuits • Chapter Objectives: • Be familiar with different three-phase configurations and how to analyze them. • Know the difference between balanced and unbalanced circuits • Learn about power in a balanced three-phase system • Know how to analyze unbalanced three-phase systems • Be able to use PSpice to analyze three-phase circuits • Apply what is learnt to three-phase measurement and residential wiring Huseyin Bilgekul Eeng224 Circuit Theory II Department of Electrical and Electronic Engineering Eastern Mediterranean University

  2. Power in a Balanced System • The total instantaneous power in a balanced three phase system is constant.

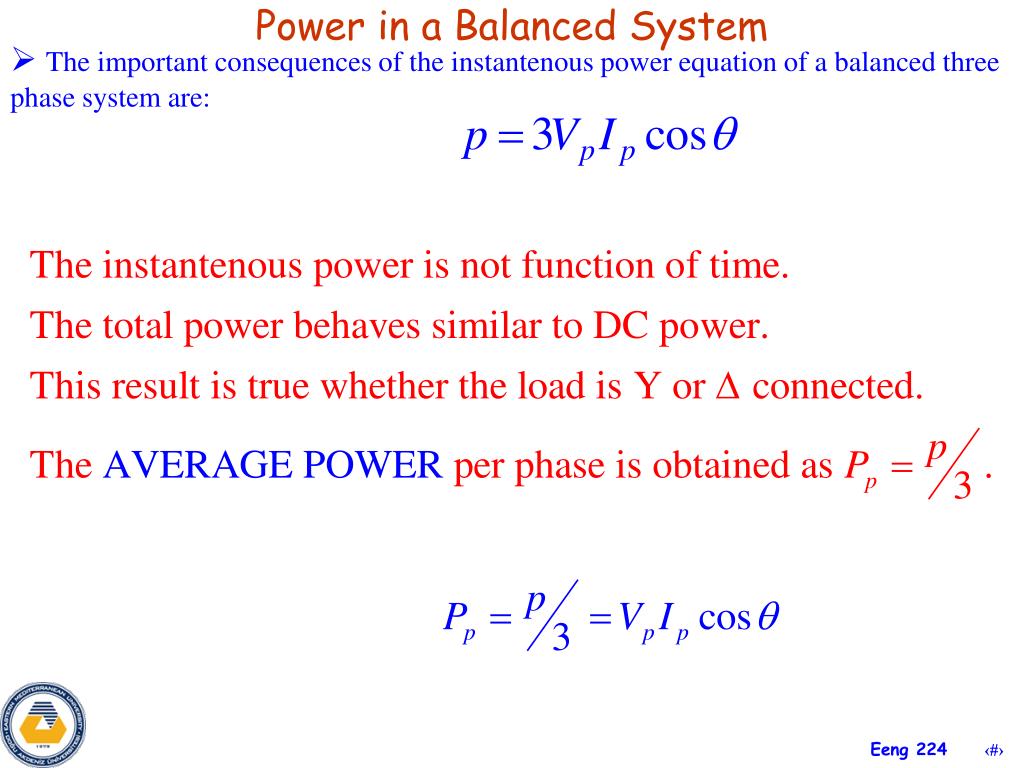

  3. Power in a Balanced System • The important consequences of the instantenous power equation of a balanced three phase system are:

  4. Power in a Balanced System • The complex power per phase is Sp. The total complex power for all phases is S.

  5. Power in a Balanced System • The complex power per phase is Sp. The total complex power for all phases is S.

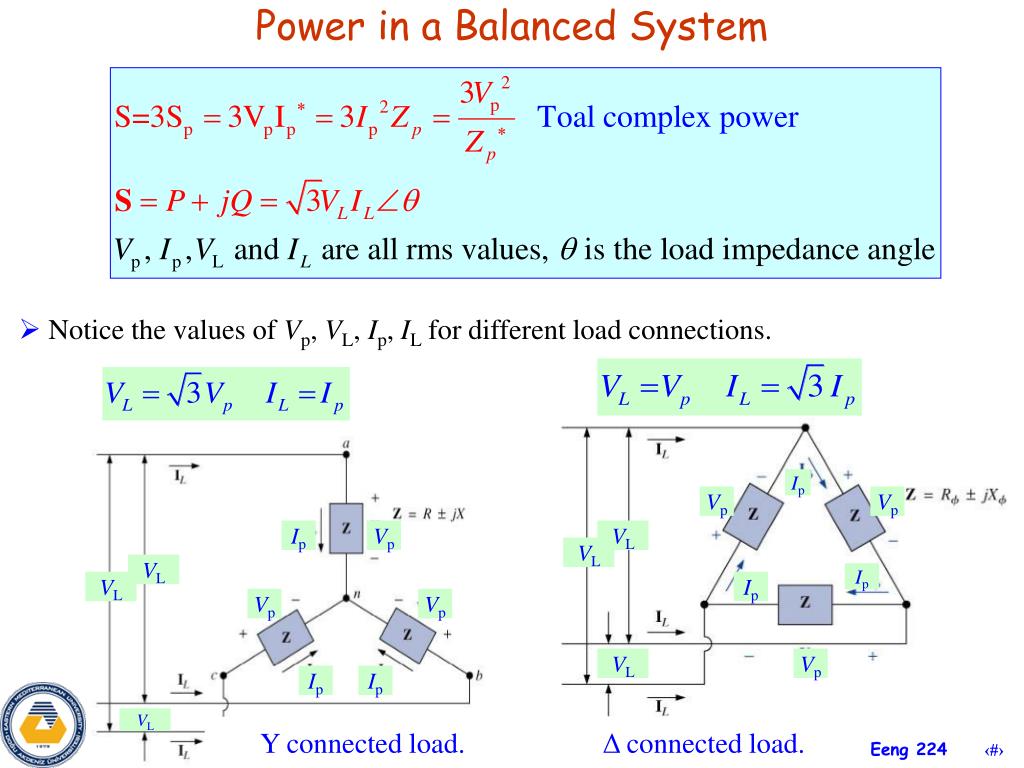

  6. Power in a Balanced System Ip Vp Vp Ip Vp VL VL VL VL Ip Vp Vp Ip Ip Ip VL Vp VL • Notice the values of Vp, VL, Ip, IL for different load connections. Y connected load. Δ connected load.

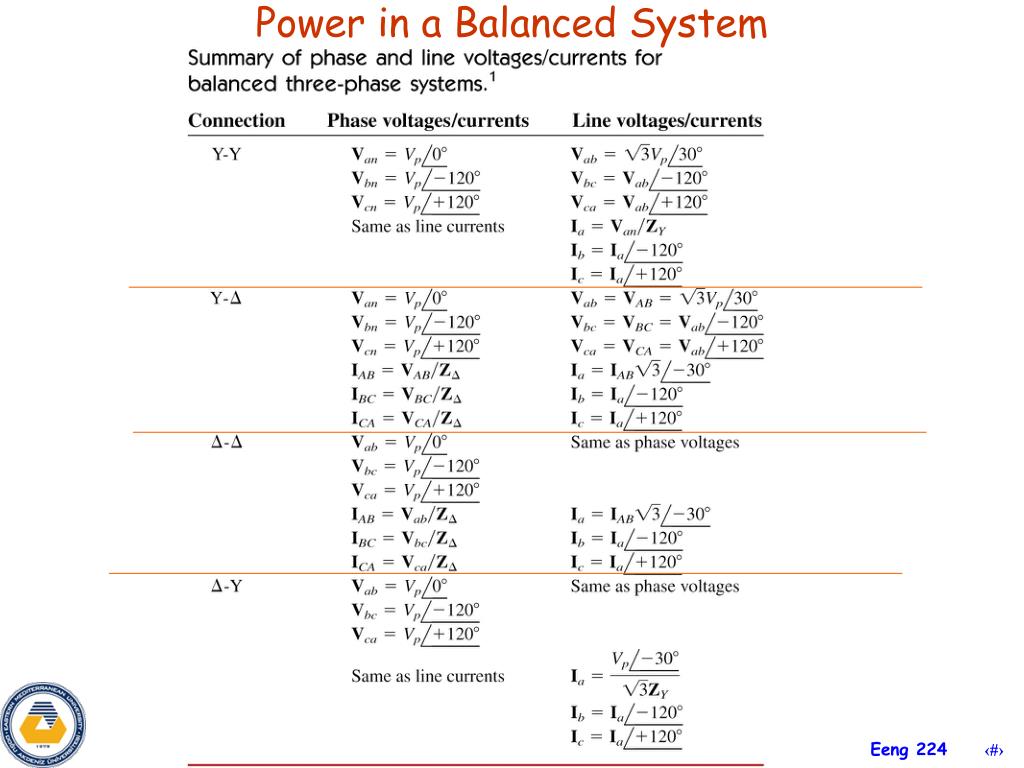

  7. Power in a Balanced System

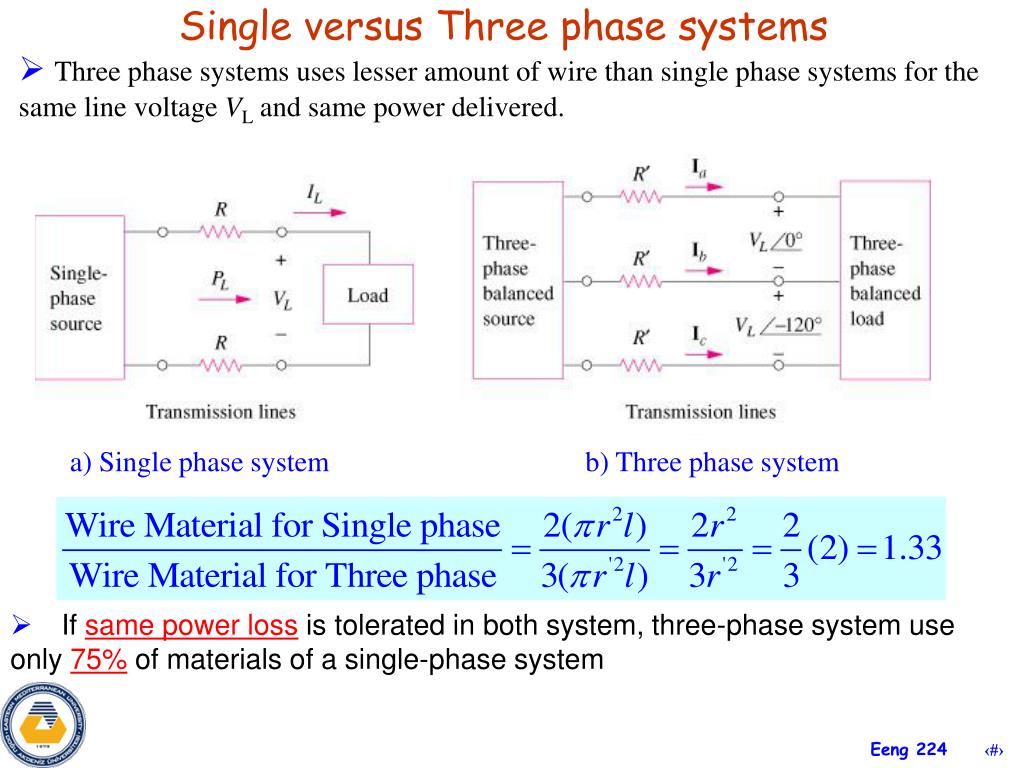

  8. Single versus Three phase systems • Three phase systems uses lesser amount of wire than single phase systems for the same line voltage VL and same power delivered. a) Single phase system b) Three phase system • If same power loss is tolerated in both system, three-phase system use only 75% of materials of a single-phase system

  9. VL=840 V (Rms) IL Capacitors for pf Correction

  10. Unbalanced Three Phase Systems • An unbalanced system is due to unbalanced voltage sources or unbalanced load.In a unbalanced system the neutral current is NOT zero. Unbalanced three phase Y connected load. Line currents DO NOT add up to zero. In= -(Ia+ Ib+ Ic) ≠ 0

  11. Three Phase Power Measurement Two-meter method for measuring three-phase power

  12. Residential Wiring Single phase three-wire residential wiring
