1 / 20

Find the distance between A (–3, 4), and B (5, 2). Round to the nearest tenth.

Find the distance between A (–3, 4), and B (5, 2). Round to the nearest tenth. A. 8.2 units B. 8.1 units C. 8.0 units D. 7.9 units. Splash Screen. You have learned about angles before (previous course). Examine relationships between pairs of angles.

barth
Télécharger la présentation

Find the distance between A (–3, 4), and B (5, 2). Round to the nearest tenth.

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Find the distance between A(–3, 4), and B(5, 2).Round to the nearest tenth. A. 8.2 units B. 8.1 units C. 8.0 units D. 7.9 units

  2. Splash Screen

  3. You have learned about angles before (previous course) • Examine relationships between pairs of angles. • Examine relationships of angles formed by parallel lines and a transversal. Then/Now

  4. perpendicular lines Lines that intersect to form right angles • vertical angles • adjacent angles • complementary angles • supplementary angles • parallel lines Two pairs of opposite angles formed by two intersecting lines. The angles are congruent. Two angles that have the same vertex, share a common side, and do not overlap Two angles whose sum is 90° Two angles whose sum is 180° Two lines in a same plane that do not intersect Vocabulary

  5. transversal A line that intersects two parallel lines to form eight angles • alternate interior angles • alternate exterior angles • corresponding angles Nonadjacent interior angles found on opposite sides of the transversal. In parallel lines, these are congruent. Nonadjacent exterior angles found on opposite sides of the transversal. In parallel lines, these are congruent. Angles that have the same position on two different parallel lines cut by a transversal. These angles are congruent. Vocabulary

  6. Concept A

  7. Find a Missing Angle Measure A. Jun is cutting a tile. Classify the relationship of a and b. Answer: The angles are complementary. The sum of their measures is 90°. Example 1 A

  8. Find a Missing Angle Measure B. If ma = 53°, what is the measure of b? mb + 53= 90Write the equation. mb + 53– 53= 90 – 53 Subtract 53 from each side. mb = 37 Simplify. Answer: mb = 37° Example 1 B

  9. A B C D a b A. Elisa is cutting a piece of fabric. What is the relationship between a and b? A. They are complementary. B. They are supplementary. C. They are congruent. D. They are obtuse. Example 1 CYP A

  10. A B C D a b B. If ma = 40°, what is mb? A. 140° B. 220° C. 50° D. 90° Example 1 CYP B

  11. Concept B

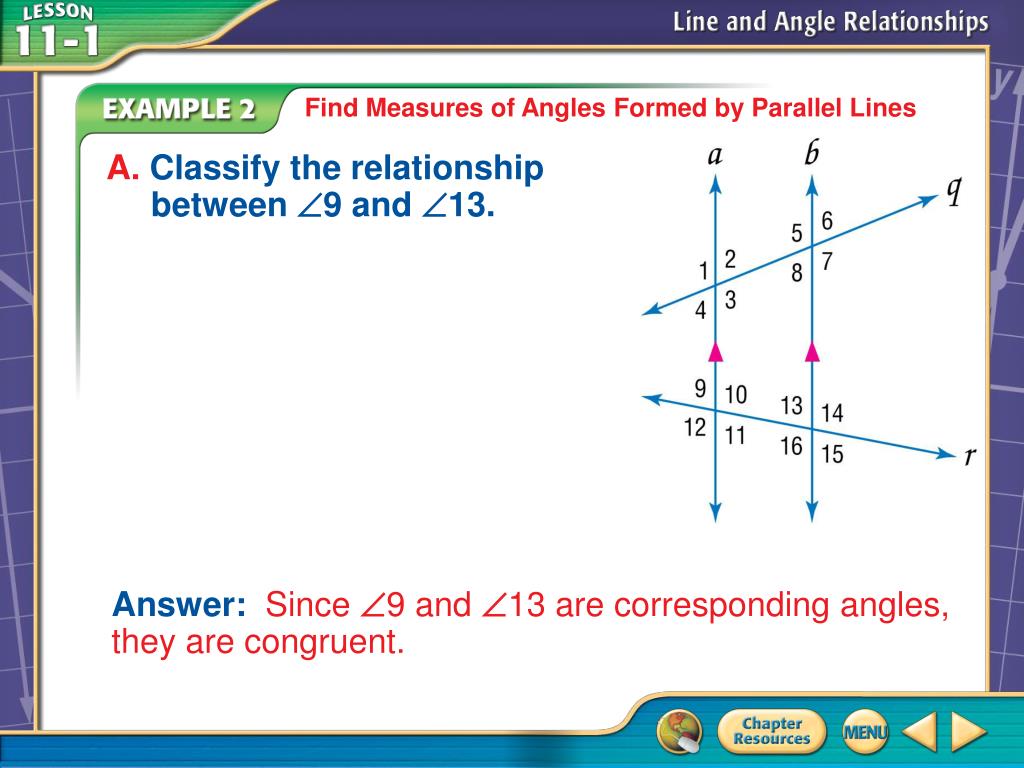

  12. Find Measures of Angles Formed by Parallel Lines A. Classify the relationship between 9 and 13. Answer: Since 9 and 13 are corresponding angles, they are congruent. Example 2 A

  13. Find Measures of Angles Formed by Parallel Lines B. If m13 is 75°, find m11 and m15. Since13and 11 are alternate interior angles, they are congruent. So, m11 = 75°. 11 and 15 are corresponding angles and are congruent. So, m15 = 75°. Answer: m11 = 75° and m15 = 75° Example 2

  14. A B C D A. What is the relationship between 1 and 5? A. They are corresponding and congruent. B. They are adjacent and supplementary. C. They are corresponding and supplementary. D. They are adjacent and congruent. Example 2 CYP A

  15. A B C D B. If m3 = 78°,what is m7? A. 12° B. 22° C. 78° D. 102° Example 2 CYP B

  16. Use Algebra to Find Missing Angle Measures ALGEBRA Angles DEF and WXY are complementary angles, with mDEF = 2x and mWXY = 3x – 20. Find the measures of DEF and WXY. Step 1 Find the value of x. mDEF + mWXY = 90 Complementary angles 2x+ 3x – 20 = 90 Replace mDEF with 2x and mWXY with 3x – 20. Example 3

  17. Use Algebra to Find Missing Angle Measures Combine like terms. Add 20 to each side. Simplify. Divide each side by 5. Simplify. Example 3

  18. Use Algebra to Find Missing Angle Measures Step 2 Replace x with 22 to find the measure of each angle. mDEF= 2xmWXY = 3x – 20 = 2(22) or 44 = 3(22) – 20 or 46 Answer: mDEF = 44° and mWXY = 46° Example 3

  19. A B C D Angles RST and ABC are complementary angles with mRST = 3x and mABC = x + 10. What are the measures of ABC and RST? A.mABC = 12° and mRST = 78° B.mABC = 20° and mRST = 70° C.mABC = 30° and mRST = 60° D.mABC = 30° and mRST = 70° Example 3

  20. End of the Lesson
