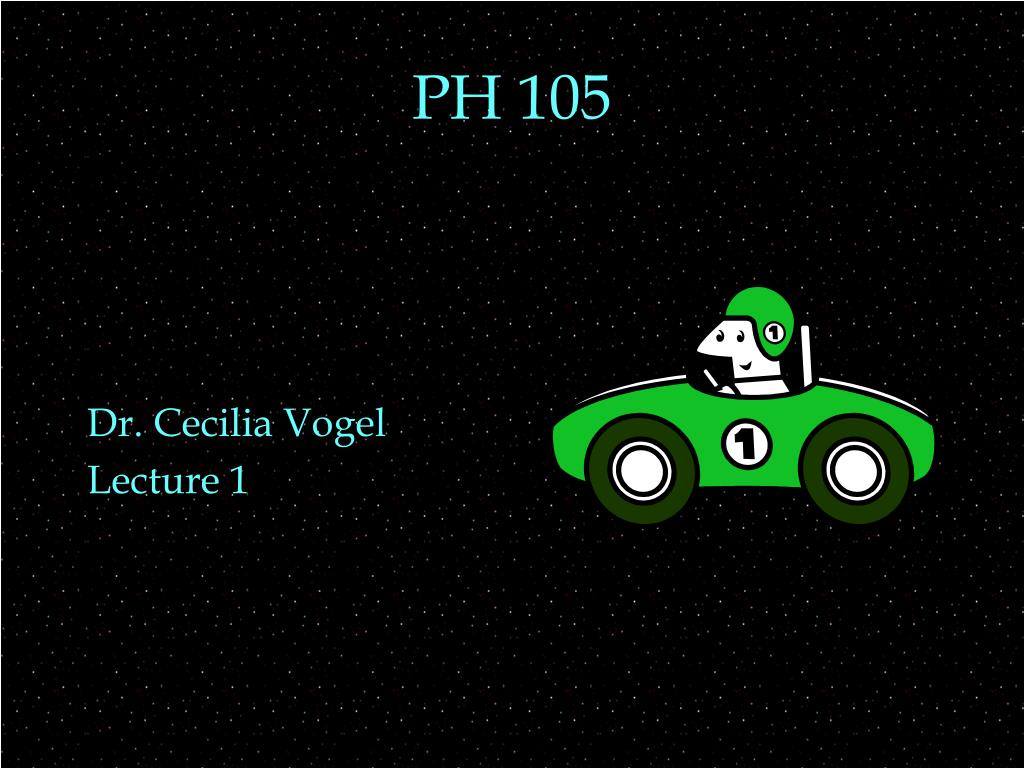

  1. PH 105 Dr. Cecilia Vogel Lecture 1

  2. OUTLINE • Intro & units • What is Sound? • Mechanics • speed • acceleration • force

  3. Units • In this class, we use SI or mks units • distance measured in meters (m) • mass measured in kilogram (kg) • time measured in seconds (s) • Get an intuition about size of m and kg • meter stick, kg weight • my mass: about 60 kg • my height: about 1.6 m

  4. Units Conversion • Units Conversions • conversion factors in appendix A2 • NEVER multiply by anything but 1 • For example, App A2 says 1 m is the same as 39.37 in, so

  5. Units Conversion Example • Take my height of 1.6 m • multiply by 1 • in such a way that the meters unit will cancel, and inches will be left

  6. Units • Units and variables: • variable names will be in italics • ex: ½ mv2 • m is mass variable, v is speed variable • units will not be in italics • ex: 9.8 m/s2 • m is meters unit, s is seconds unit

  7. Sound (or other material) • Sound in air • is a disturbance of air molecules • which propagates (moves) • Anything that disturbs the air suddenly makes a sound • anything that pushes air at rest • like guitar string, drum head • anything that disturbs the flow of moving air • like bassoon reed, branches in the wind

  8. Mechanics • To study sound, we need the language of mechanics • mechanics is the study of motion • Be careful, many physics terms have different meanings in everyday use. • speed, acceleration, force, work, energy, pressure

  9. Speed • Speed: how fast an object is moving • variable name, v • the distance it travels • divided by the time it takes to travel

  10. Constant Motion • If the speed and direction of motion of object doesn’t change, then • d = vt • “distance equals rate times time” • Only works if there is a single, constant value of speed, v, to plug in!

  11. Examples • A car travels 50 mph for one hour. How far does it go? • d = vt • d = (50 mi/hr)(1 hr) = 50 mi • A sound wave travels 343 m/s for one ms • d = vt • d = (343 m/s)(1 X 10-3 s) = 0.343 m • A car speeds up from rest to 30 mph in 10 s. How far does it go? • I don’t know!

  12. Acceleration • If an object’s motion is not constant • the object is accelerating • do not use d = vt • acceleration in physics includes: • speeding up • slowing down (also called deceleration) • changing direction • If the police officer is a physicist, won’t mind if you say, “I accelerated as I approaches the stop sign.”

  13. Constant Acceleration • If an object’s motion is not constant, • but the acceleration is constant • speed changing at a constant rate • like free-fall • then the change in v (delta-v)

  14. Force • Any acceleration, • i.e. any change in motion, • requires a force (push or pull). • Demo: Object at rest tends to stay at rest. How do you get it moving? • Object moving tends to keep moving. How do you speed it up? slow it down? stop it? change its direction?

  15. Equilibrium • Equilibrium means there is no force. • If there’s no force, there’s no acceleration, • there is no change in motion. • Demo: Pendulum at bottom feels no force. • What happens to it if it is at rest there? • What happens to if it is moving there?

  16. Mass • How much force does it take? • depends on the size of acceleration. • depends on object’s mass • F = ma • Demo: Spring compressed more exerts a larger force, so it will cause a greater acceleration (masses same). • What effect does that have on speed? • Springs exerting same force on different masses. • Which will be speeded up more?

  17. Example • What is the acceleration of a 3-kg cart, if it speeds up from 1 m/s to 5 m/s in 2 seconds? • What force is required to do this? Unit of force: 1 N = 1 kgm/s2

  18. Summary • Sound is propagating disturbance of molecules • Speed is how fast object moves • Acceleration is any change in motion • Acceleration requires a force • no force  no change in motion • greater force provides greater acceleration • greater force required for larger mass • Homework due Friday, Dec 2, before class • Chapter 1 • R1, 4, 6*, 9, 10*, 11, 14, Q3*, 4, E1, 3*, 4, 5*, D1, 3, 4, 6
