7.1 Applying the Pythagorean Theorem

7.1 Applying the Pythagorean Theorem. Things to remember:. Formula: a 2 +b 2 =c 2 Pythagorean Theorem is used to find lengths of the sides of a right triangle Side across from the right angle is called the hypotenuse and is always “c”. c. Pythagorean Triples and Multiples.

cain-mcconnell
Télécharger la présentation

7.1 Applying the Pythagorean Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

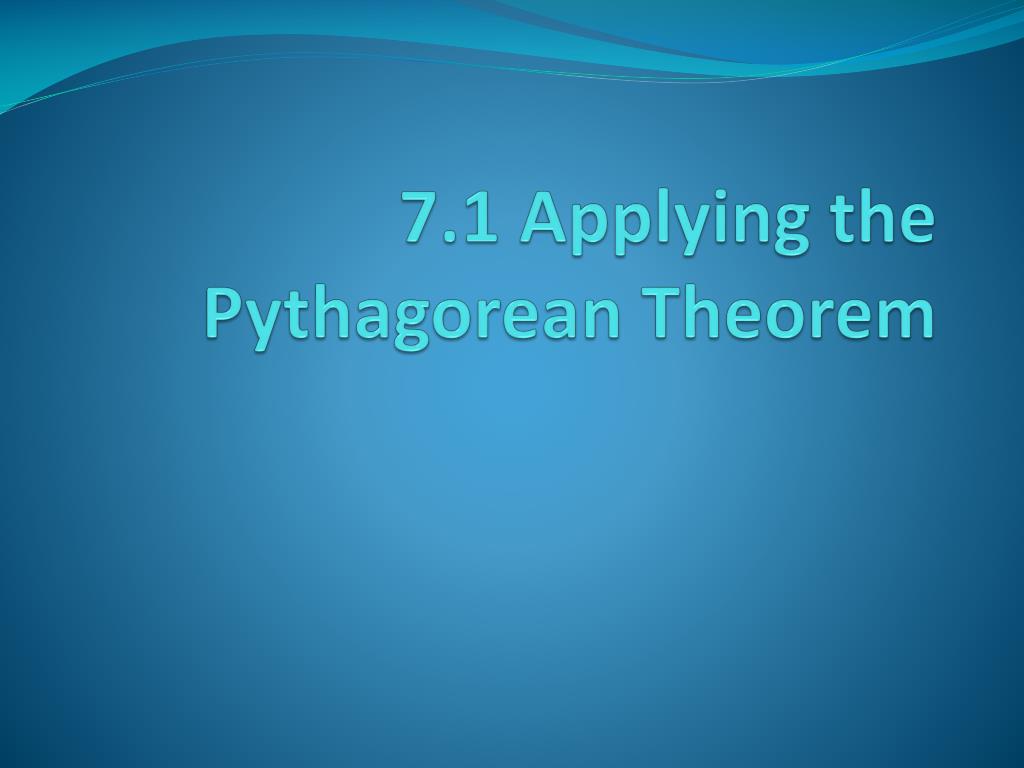

  1. 7.1 Applying the Pythagorean Theorem

  2. Things to remember: • Formula: a2+b2=c2 • Pythagorean Theorem is used to find lengths of the sides of a right triangle • Side across from the right angle is called the hypotenuse and is always “c” c

  3. Pythagorean Triples and Multiples Most common Pythagorean triples are across the top row. The other triples are the result of multiplying each integer in the top row by the same factor.

  4. Example 1 • Find the length of the hypotenuse of the right triangle. 48 m 36 m a = = b (48)2 + (36)2 = x2 2304 + 1296 = x2 c = x 3600 = x2 60 m = x

  5. Example 2 • Find the unknown leg length x. (4.9)2 + (x)2 = (5.7)2 c = 5.7 ft 24.01 + x2 = 32.49 4.9 ft a = -24.01 -24.01 x2 = 8.48 b = x x = 2.9 ft

  6. Example 3 • Find the area of the isosceles triangle Remember area of a triangle is A = ½ bh 17 c = a = 16/2 = 8 b = h First find h. Last find Area Base (b) = 16 m (8)2 + (h)2 = (17)2 Height (h)= 15 m 64 + h2 = 289 -64 -64 A = ½ (16)(15) A = 120 m h2 = 225 h = 15 m

  7. Example 4 • Find the unknown side length x. Write your answer in simplest radical form. First what information is missing? 5 c = Find y. Now Find x. a = 3 (4)2 + (7)2 = (x)2 b = y 16 + 49= x2 This is a Pythagorean Triple! This side is missing! 65 = x2 So y = 4 We’ll call it y x = ft

  8. Assignment Section 7.1 Pg 436; 1, 4-17, 24-27, 39-45, 49-50 Give answers in simplified radical form if they do not come out to whole numbers.
