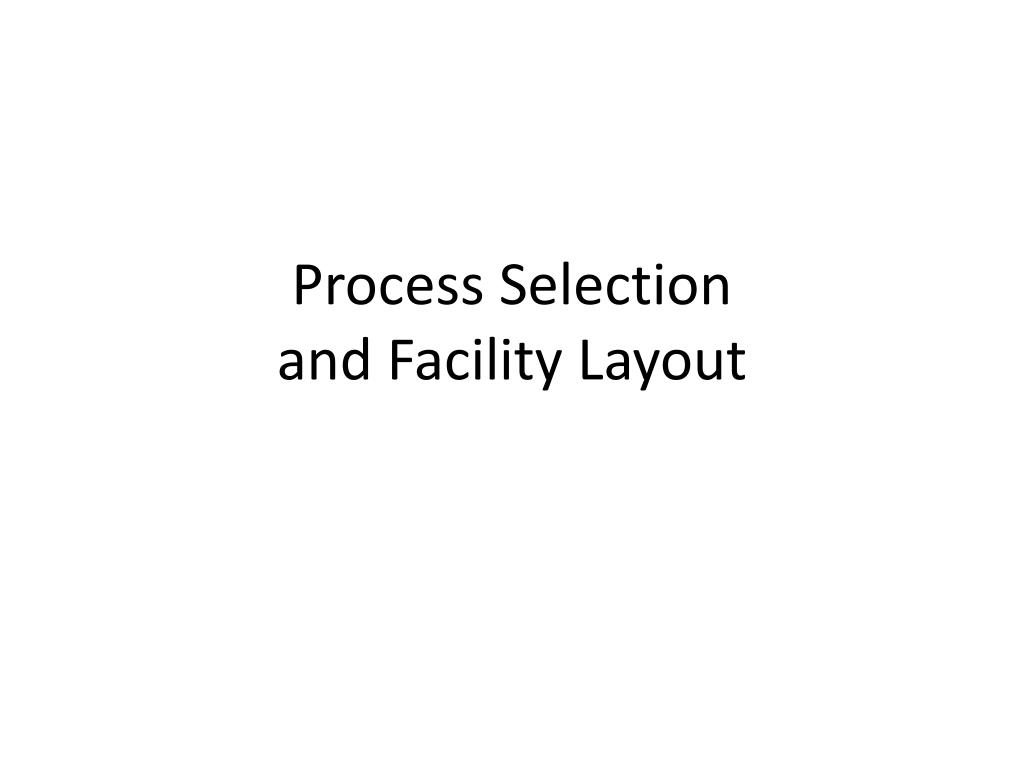

Process Selection and Facility Layout

1. Process Selection and Facility Layout

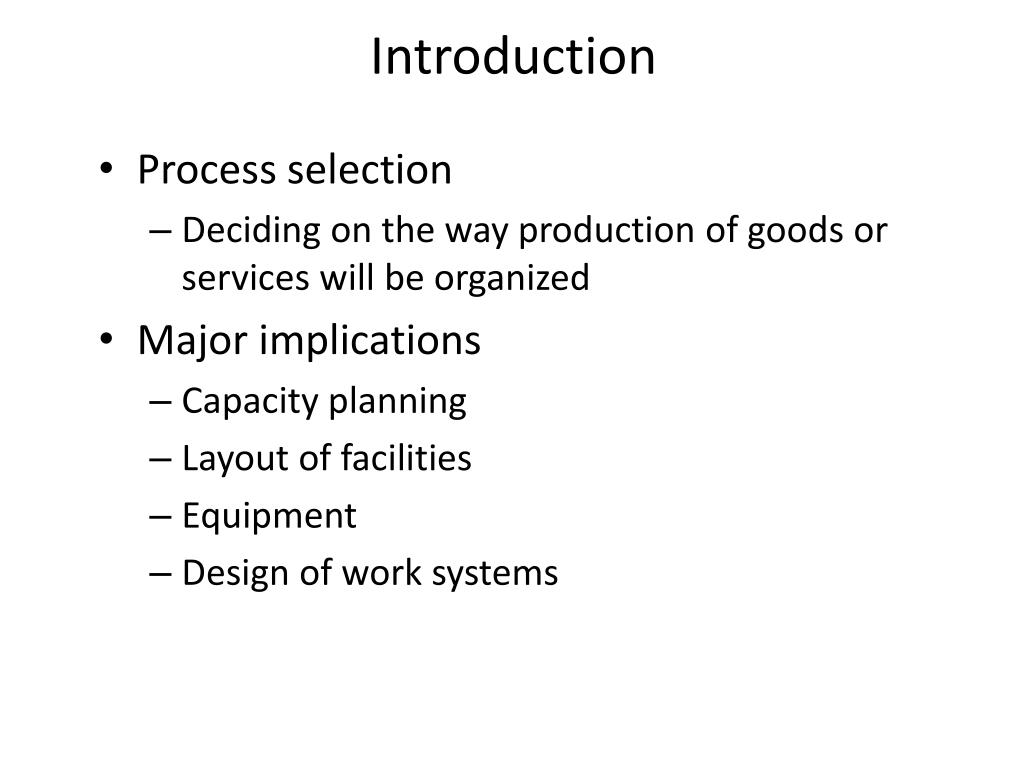

2. Introduction • Process selection • Deciding on the way production of goods or services will be organized • Major implications • Capacity planning • Layout of facilities • Equipment • Design of work systems

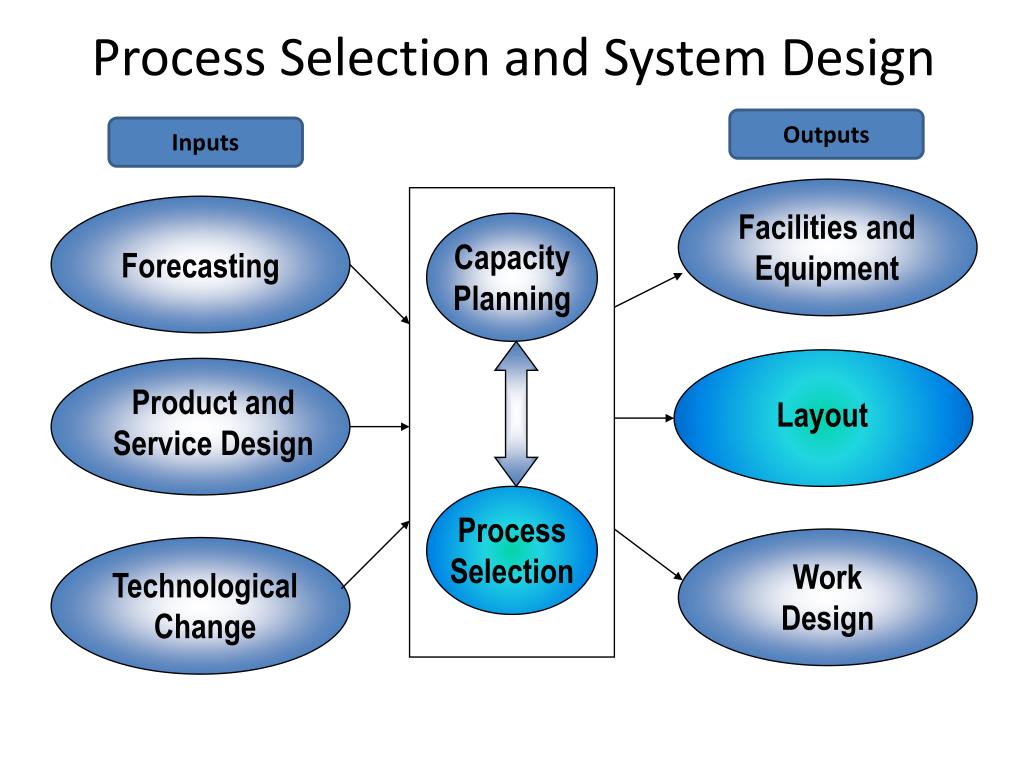

3. Facilities andEquipment CapacityPlanning Forecasting Layout Product andService Design ProcessSelection WorkDesign TechnologicalChange Process Selection and System Design Outputs Inputs

4. Process Strategy • Key aspects of process strategy • Capital intensive – equipment/labor • Process flexibility • Adjust to changes • Design • Volume • Technology

5. Process Selection • Variety • How much • Flexibility • What degree • Volume • Expected output Batch Job Shop Repetitive Continuous

6. Process types

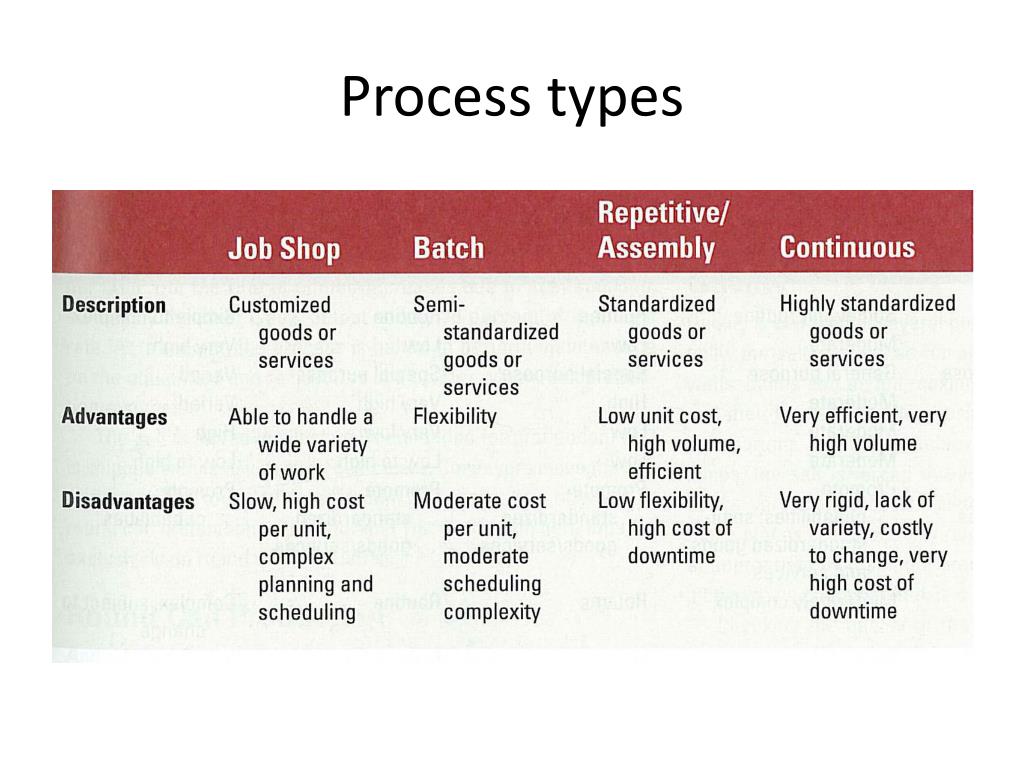

7. Process types and volume • Job shop • Small scale, widevariety of goods • Batch • Moderate volume, flexible • Repetitiveorassembly line • High volumes of standardized goods or services • Continuous • Very high volumes of non-discrete goods • Projects • Nonroutinework, uniqesetobobjectives, limited timeframe and resources

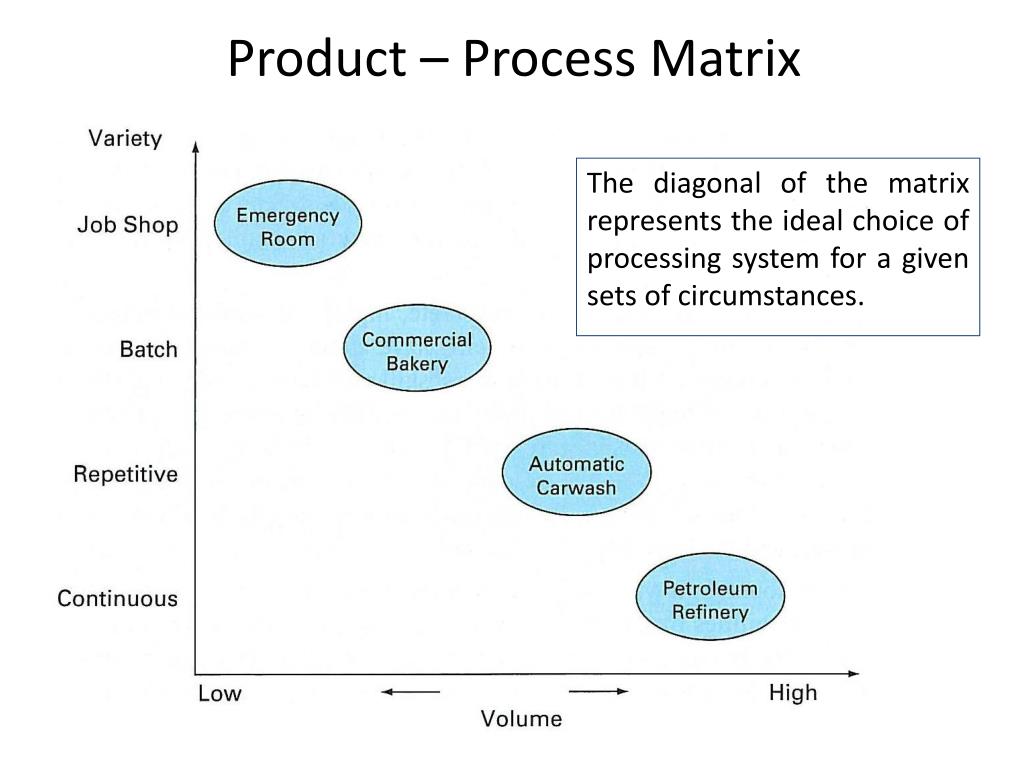

8. Product – Process Matrix The diagonal of thematrixrepresents the ideal choice of processing system for a given sets of circumstances.

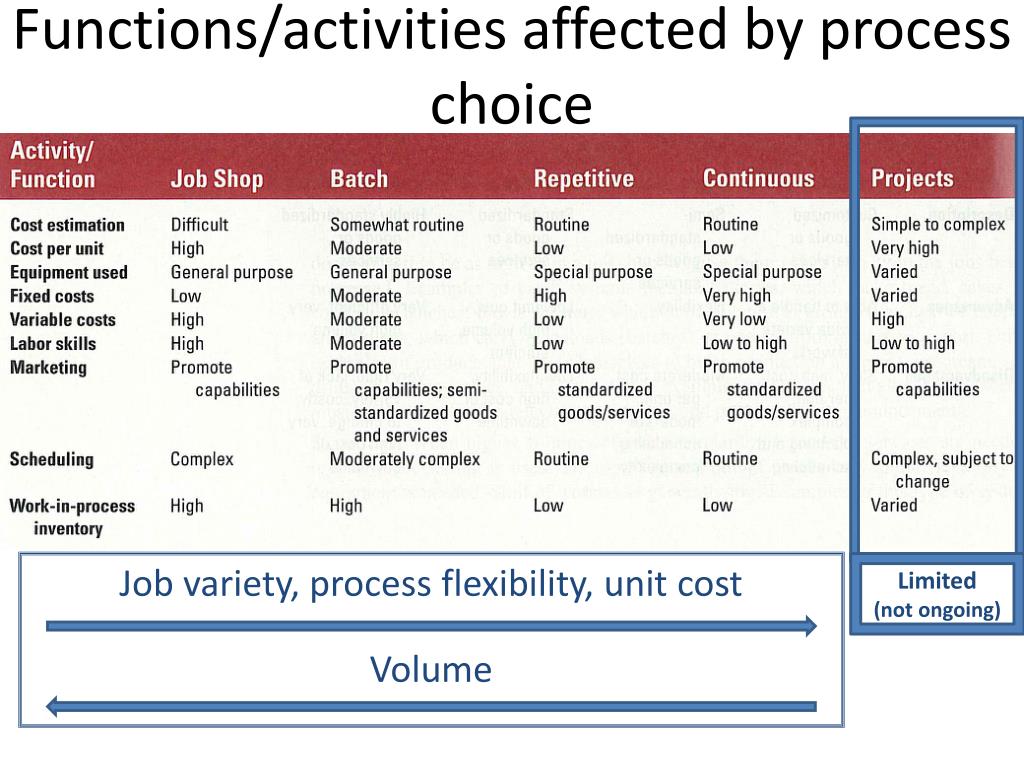

9. Functions/activities affected by process choice Job variety, process flexibility, unit cost Volume Limited(notongoing)

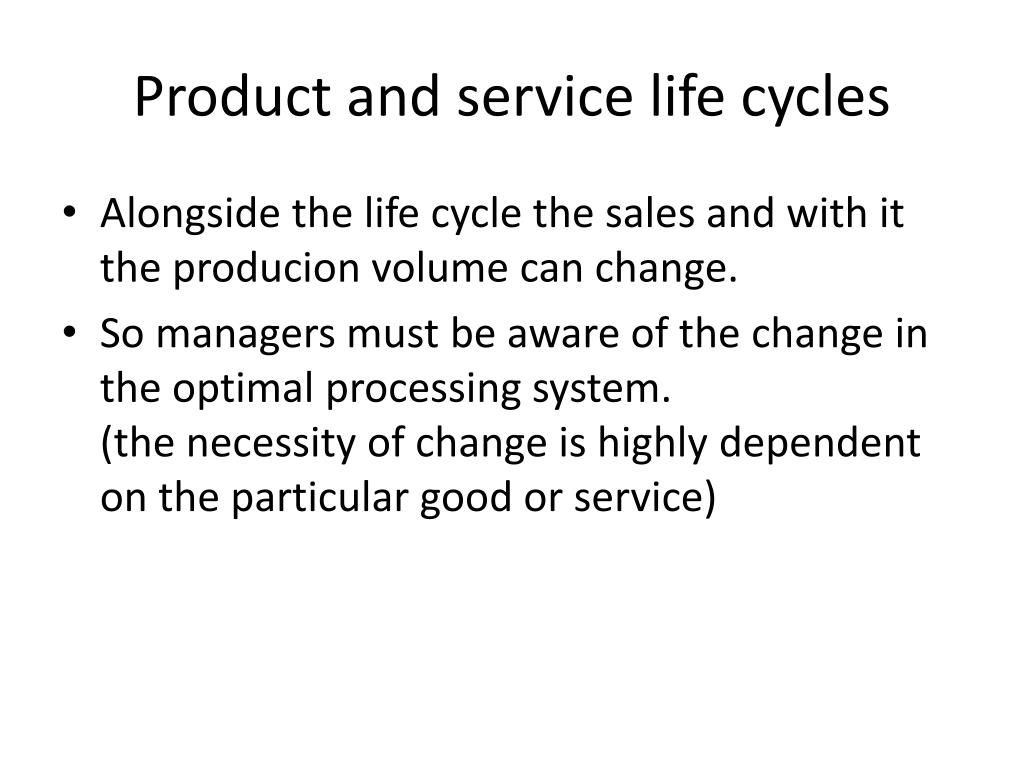

10. Product and service life cycles • Alongside the life cycle the sales and with it the producion volume can change. • So managers must be aware of the change in the optimal processing system. (the necessity of change is highly dependent on the particular good or service)

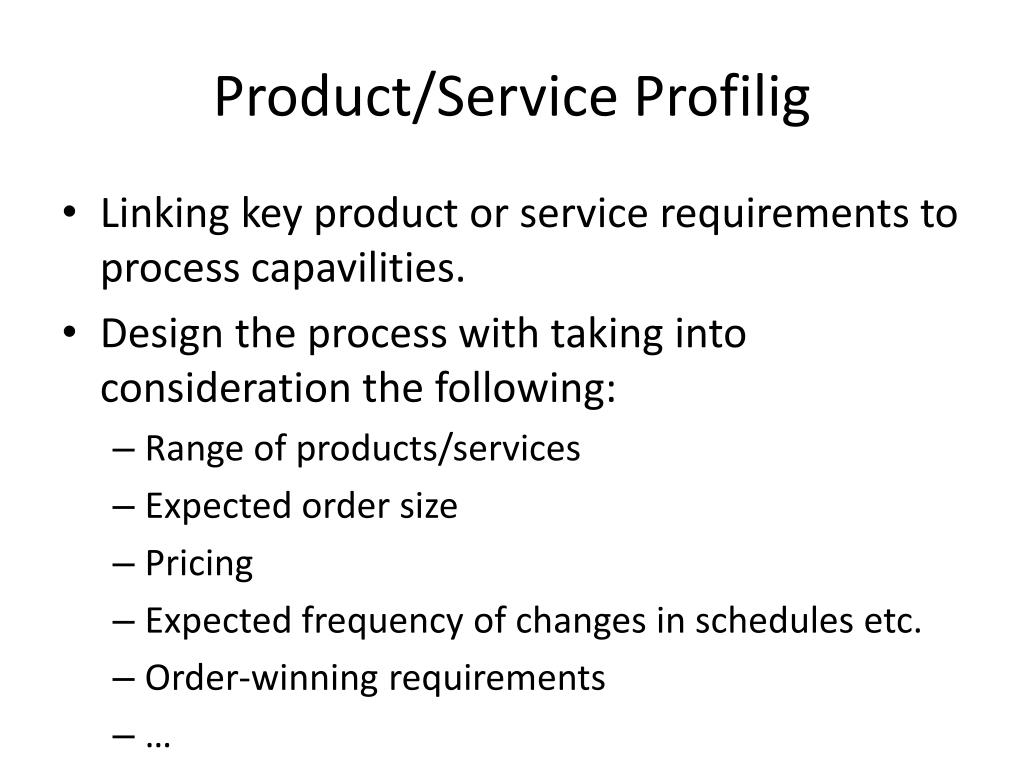

11. Product/Service Profilig • Linking key product or service requirements to process capavilities. • Design the process with taking into consideration the following: • Range of products/services • Expected order size • Pricing • Expected frequency of changes in schedules etc. • Order-winning requirements • …

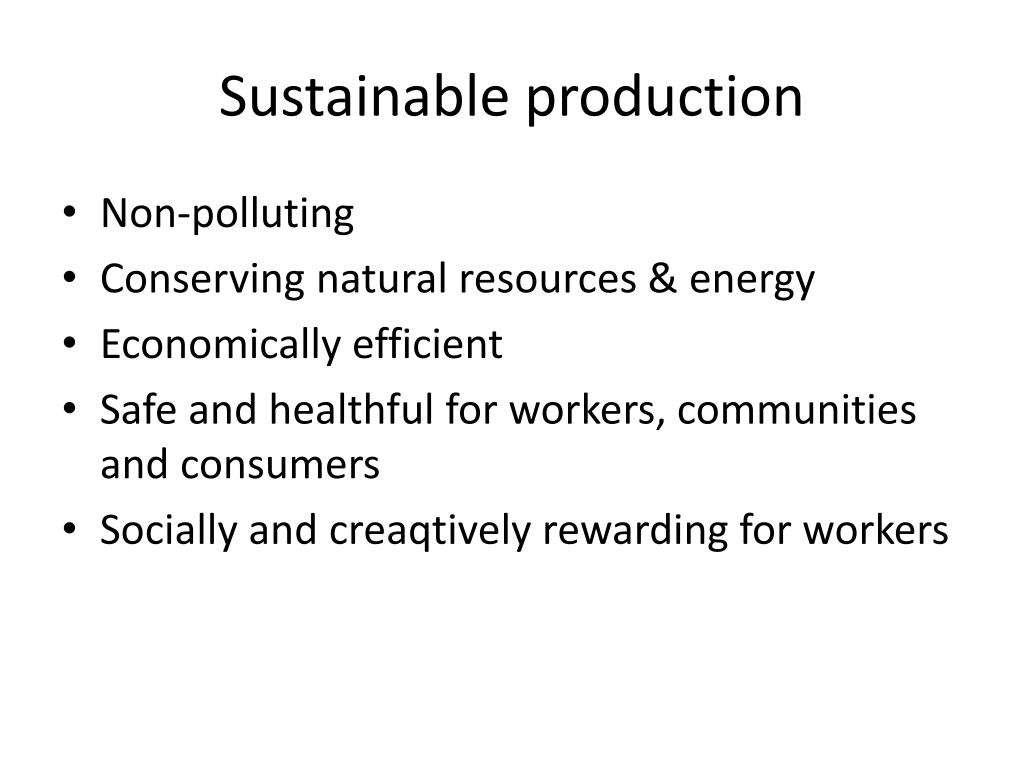

12. Sustainable production • Non-polluting • Conserving natural resources & energy • Economically efficient • Safe and healthful for workers, communities and consumers • Socially and creaqtively rewarding for workers

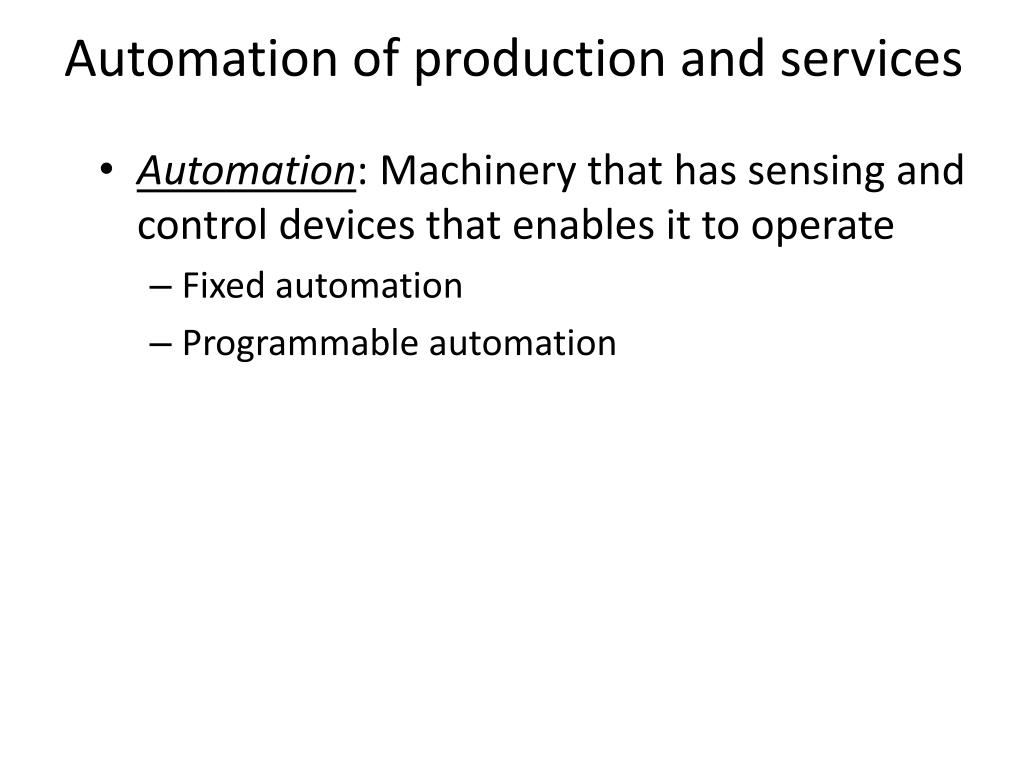

13. Automation of production and services • Automation: Machinery that has sensing and control devices that enables it to operate • Fixed automation • Programmable automation

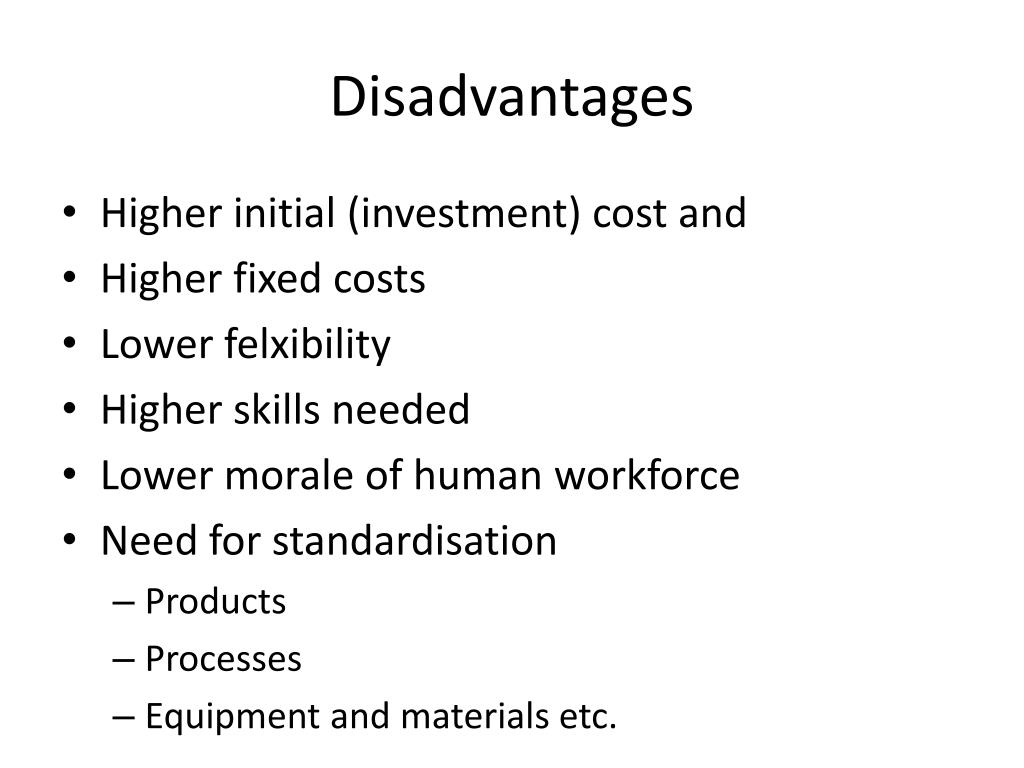

14. Advantages of automation • Low variability in performance and quality • Machines do not • get bored or distracted • go out on strike or ask for higher wages • lower variable costs

15. Disadvantages • Higher initial (investment) cost and • Higher fixed costs • Lower felxibility • Higher skills needed • Lower morale of human workforce • Need for standardisation • Products • Processes • Equipment and materials etc.

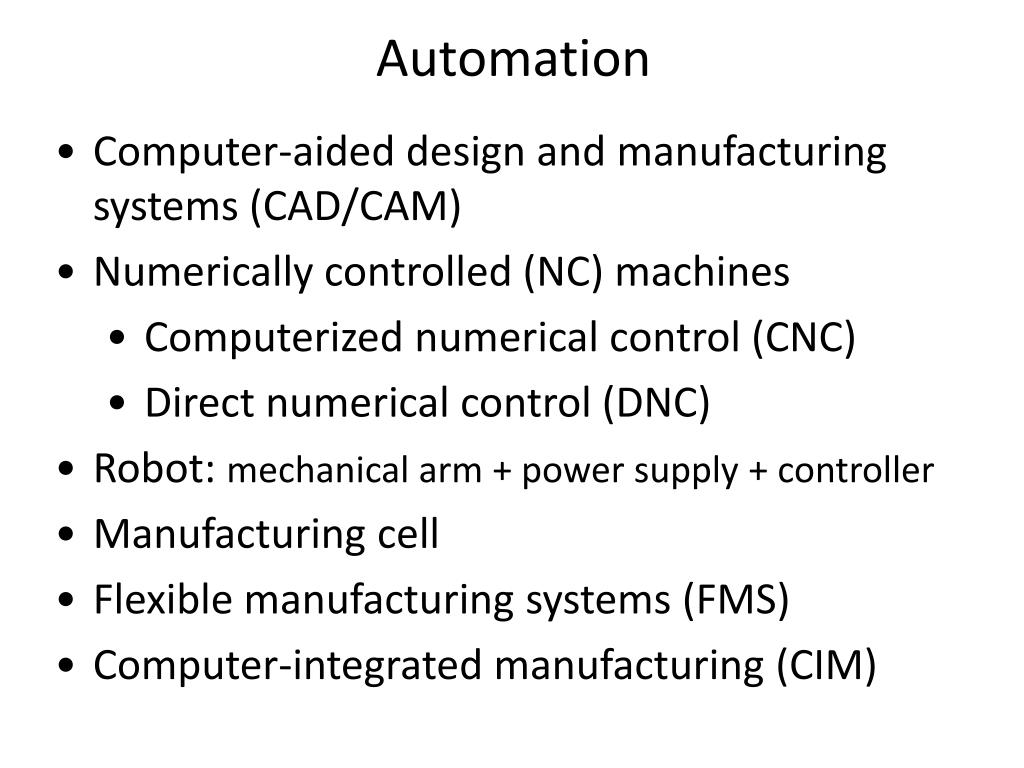

16. Automation • Computer-aided design and manufacturing systems (CAD/CAM) • Numerically controlled (NC) machines • Computerized numerical control (CNC) • Direct numerical control (DNC) • Robot: mechanical arm + power supply + controller • Manufacturing cell • Flexible manufacturing systems(FMS) • Computer-integrated manufacturing (CIM)

17. Facilities Layout • Layout: the configuration of departments, work centers, and equipment, with particular emphasis on movement of work (customers or materials) through the system

18. Importance of Layout Decisions • Requires substantial investments of money and effort • Involves long-term commitments • Has significant impact on cost and efficiency of short-term operations

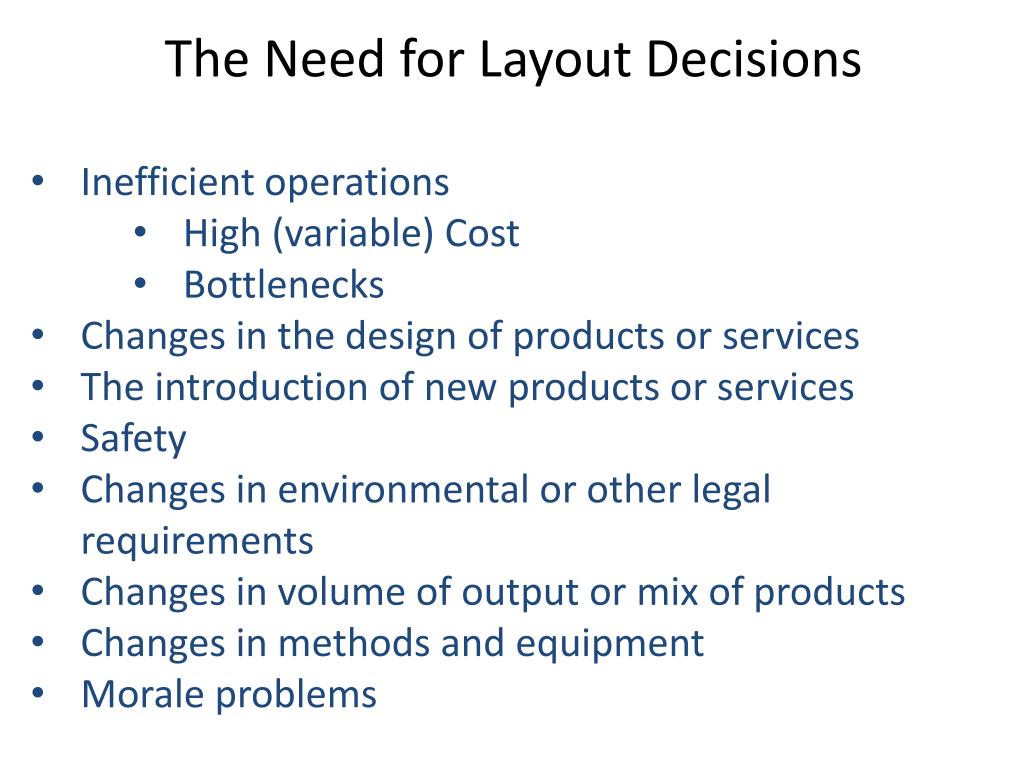

19. The Need for Layout Decisions • Inefficient operations • High (variable) Cost • Bottlenecks • Changes in the designof products or services • The introduction of newproducts or services • Safety • Changes inenvironmentalor other legalrequirements • Changes in volume ofoutput or mix ofproducts • Changes in methodsand equipment • Morale problems

20. Objectives of facility layout Main: smooth flow of work, material and information Supporting objectives:

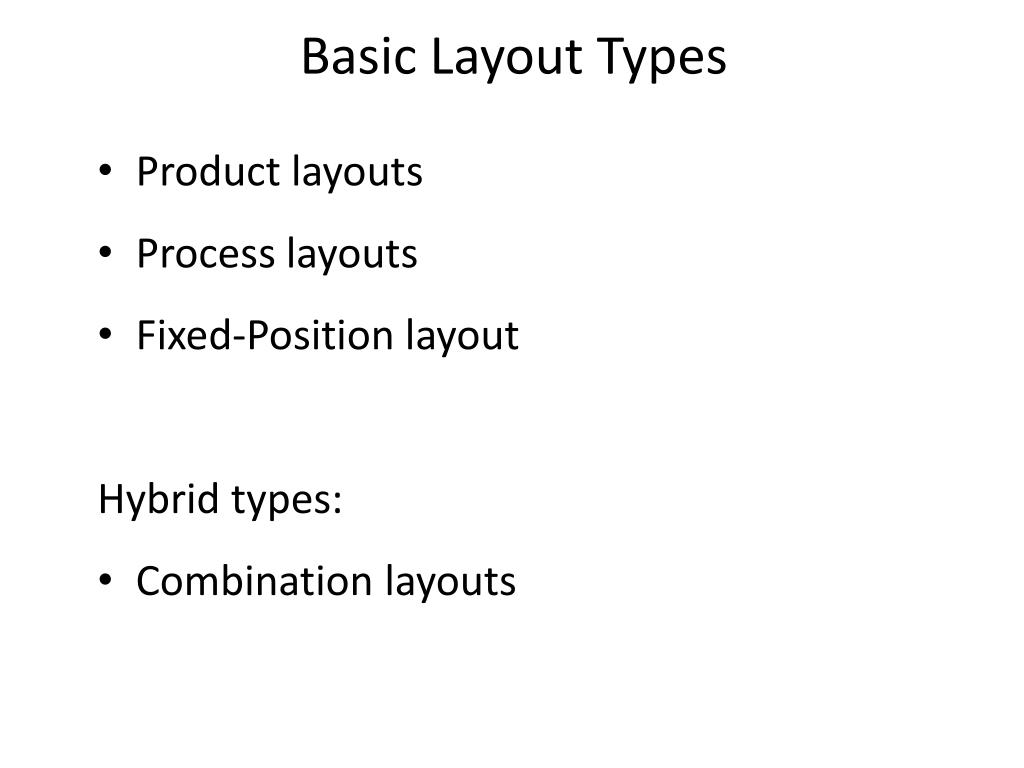

21. Basic Layout Types • Product layouts • Process layouts • Fixed-Position layout Hybrid types: • Combination layouts

22. Basic Layout Types • Product layout • Layout that uses standardized processing operations to achieve smooth, rapid, high-volume flow • Process layout • Layout that can handle varied processing requirements • Fixed Position layout • Layout in which the product or project remains stationary, and workers, materials, and equipment are moved as needed

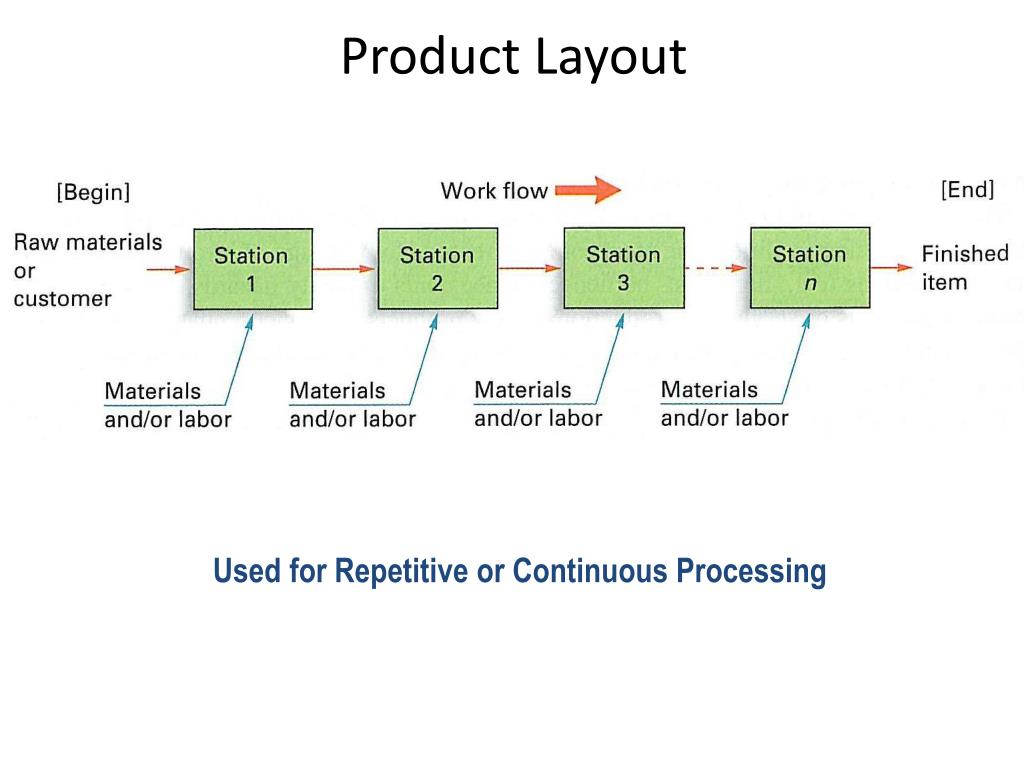

23. Product Layout Used for Repetitive or Continuous Processing

24. Advantages of Product Layout • High rate of output • Low unit cost • Labor specialization • Low material handling cost • High utilization of labor and equipment • Established routing and scheduling • Routing accounting and purchasing

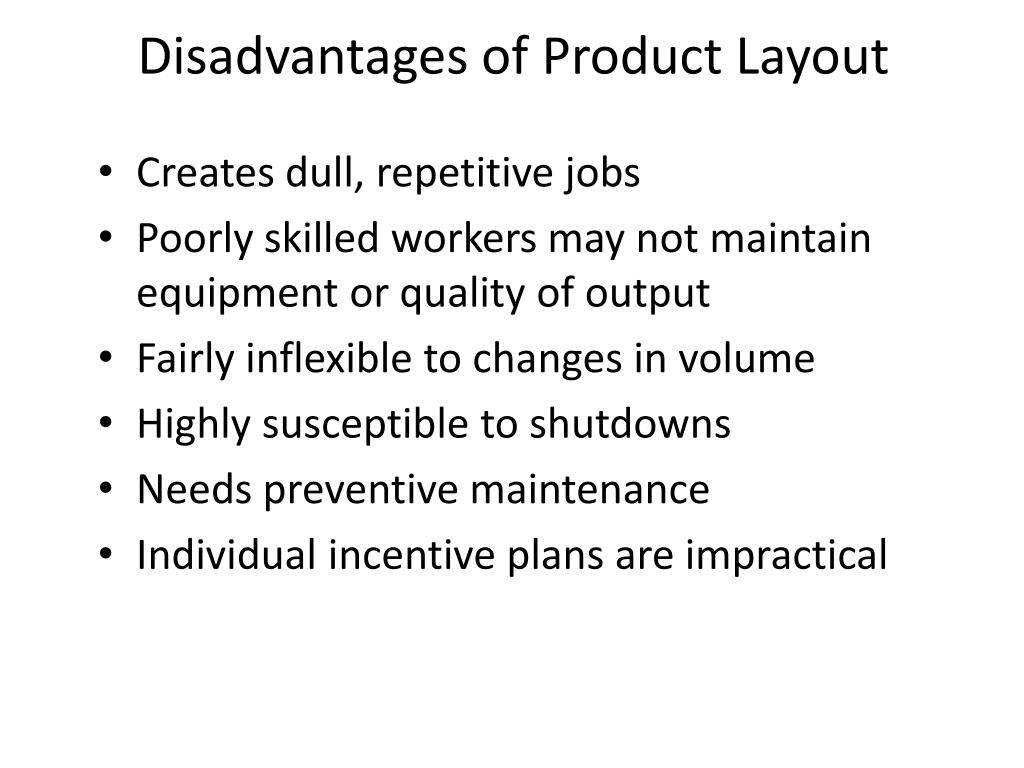

25. Disadvantages of Product Layout • Creates dull, repetitive jobs • Poorly skilled workers may not maintain equipment or quality of output • Fairly inflexible to changes in volume • Highly susceptible to shutdowns • Needs preventive maintenance • Individual incentive plans are impractical

26. A U-Shaped Production Line

27. Advantages/disadvantages of U-shaped lines • Shorter distances for workers & machines • Permits communication thus facilitates teamwork • More flexible work assignments • Optimal is the facility has the same entry and exit point • If lines are highly automated, there is no need for communication and travel • If entry points are on the opposite side as exit points • Noise and contamination factors are increased in the U-shape

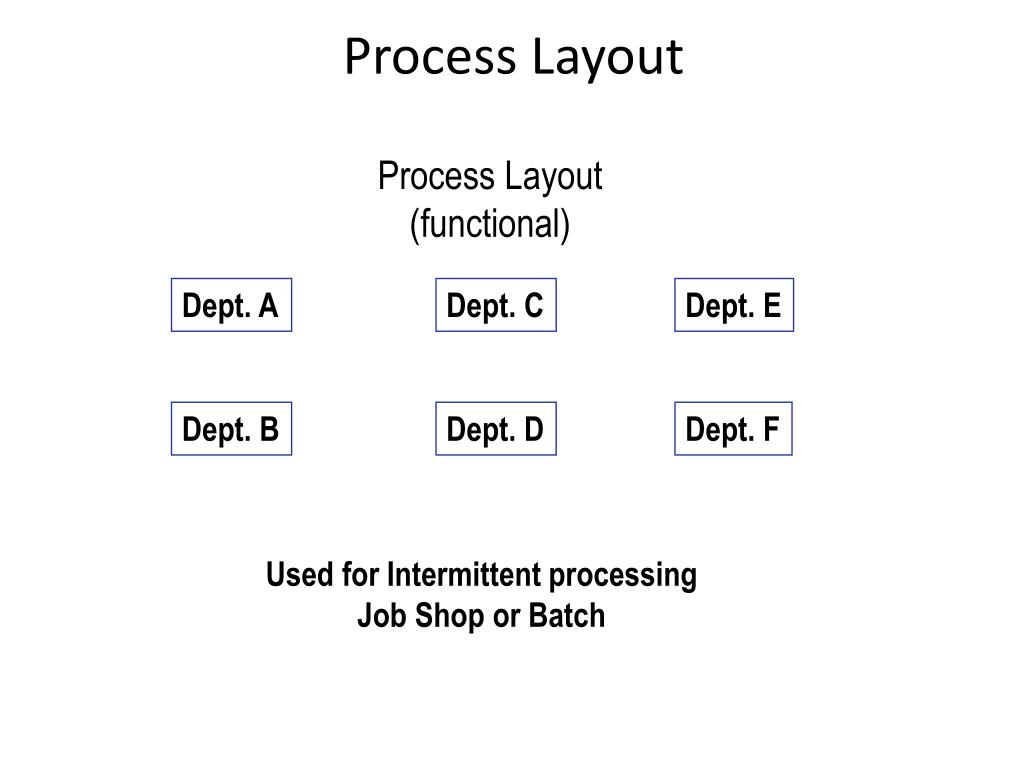

28. Dept. A Dept. C Dept. E Dept. B Dept. D Dept. F Process Layout Process Layout (functional) Used for Intermittent processing Job Shop or Batch

29. Work Station 1 Work Station 2 Work Station 3 Product Layout Product Layout (sequential) Used for Repetitive Processing Repetitive or Continuous

30. Advantages of Process Layouts • Can handle a variety of processing requirements • Not particularly vulnerable to equipment failures • Equipment used is less costly • Possible to use individual incentive plans

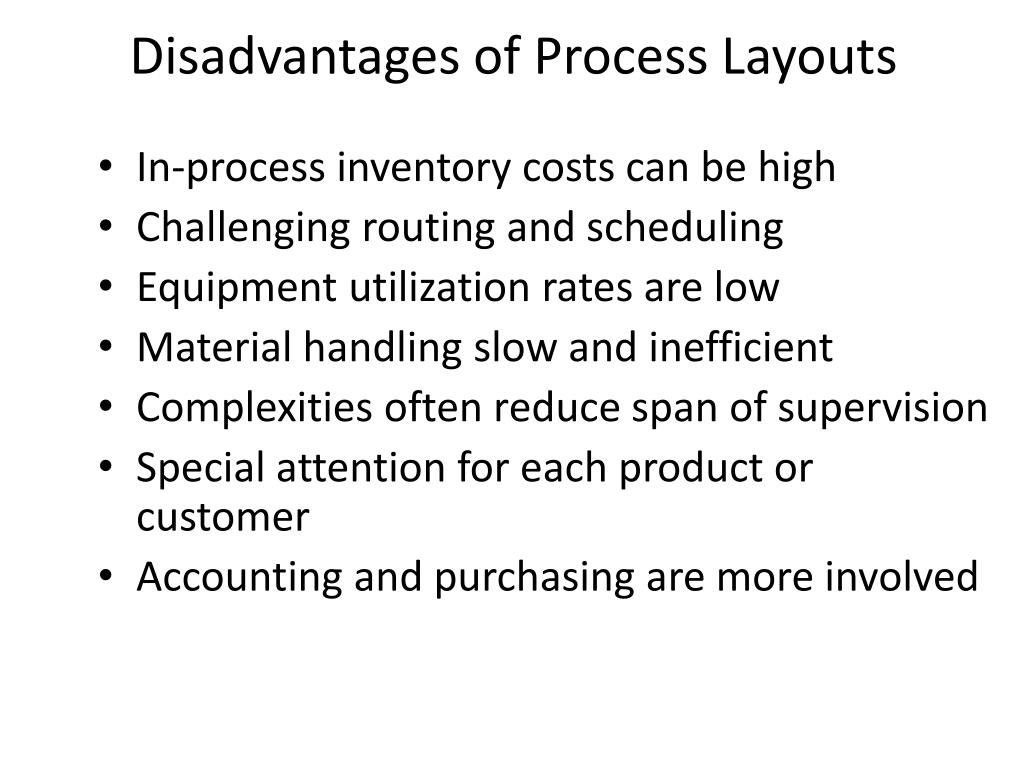

31. Disadvantages of Process Layouts • In-process inventory costs can be high • Challenging routing and scheduling • Equipment utilization rates are low • Material handling slow and inefficient • Complexities often reduce span of supervision • Special attention for each product or customer • Accounting and purchasing are more involved

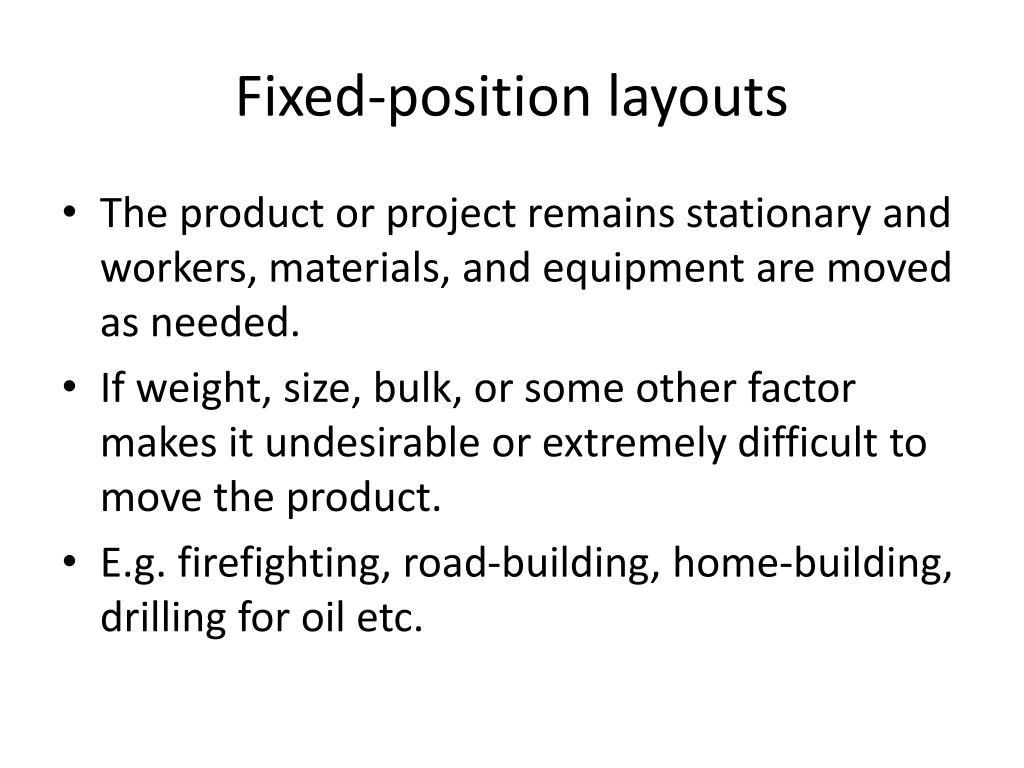

32. Fixed-position layouts • The product or project remains stationary and workers, materials, and equipment are moved as needed. • If weight, size, bulk, or some other factor makes it undesirable or extremely difficult to move the product. • E.g. firefighting, road-building, home-building, drilling for oil etc.

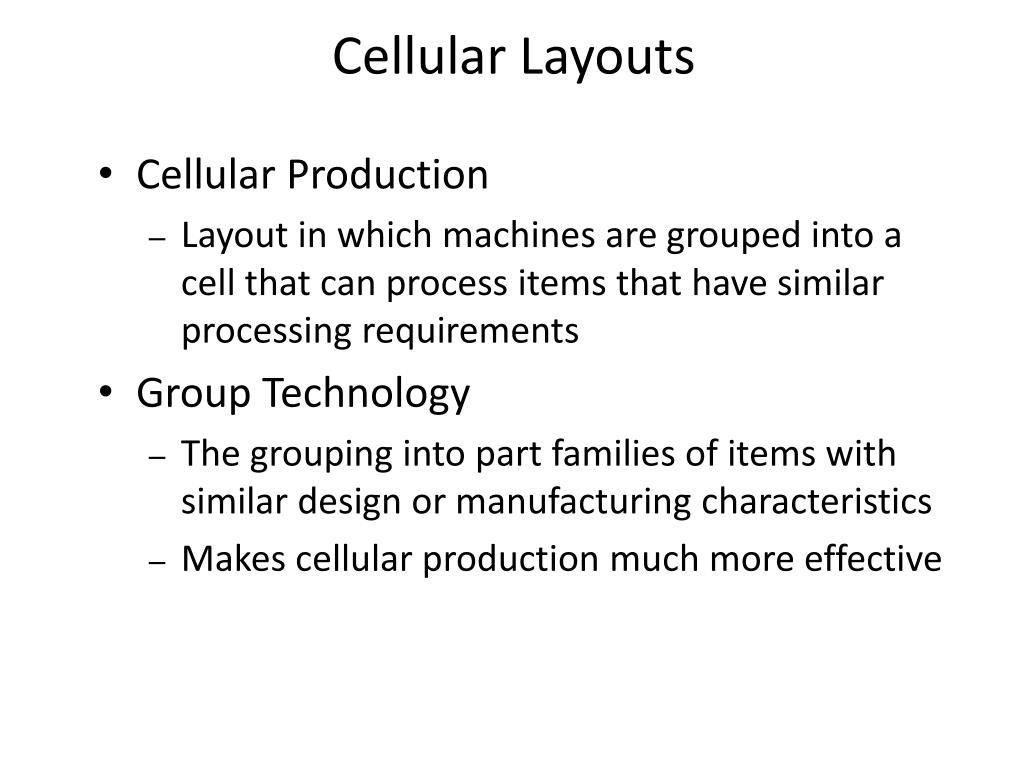

33. Cellular Layouts • Cellular Production • Layout in which machines are grouped into a cell that can process items that have similar processing requirements • Group Technology • The grouping into part families of items with similar design or manufacturing characteristics • Makes cellular production much more effective

34. Cellular layout Traditional process layout

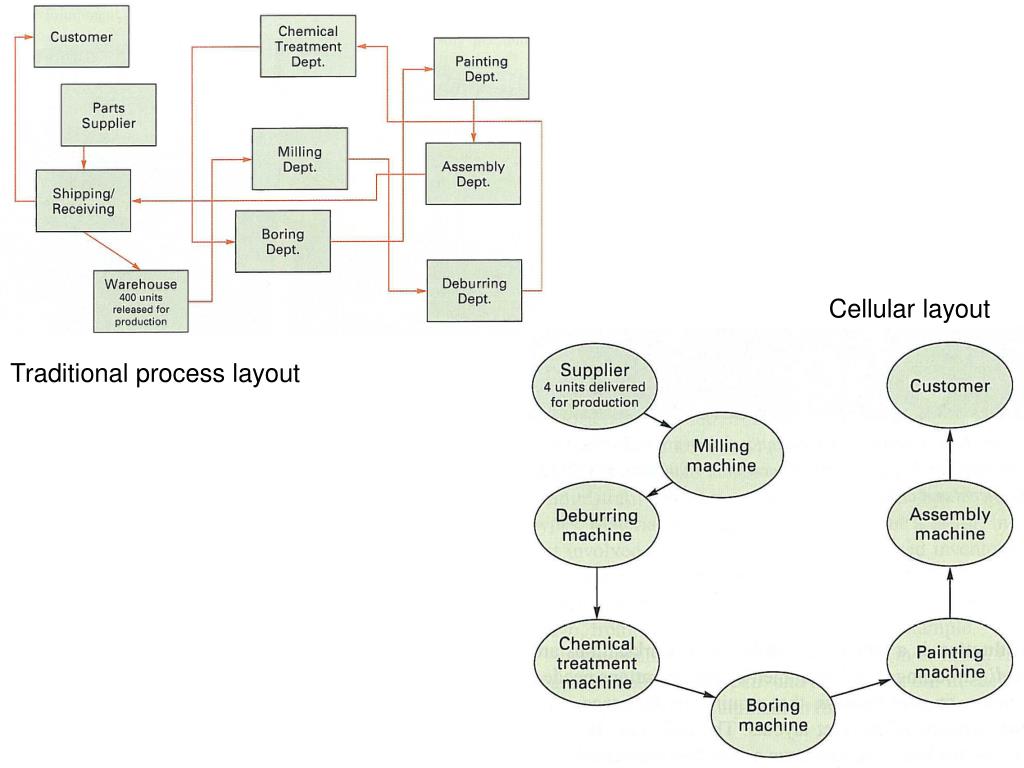

35. Functional vs. Cellular Layouts

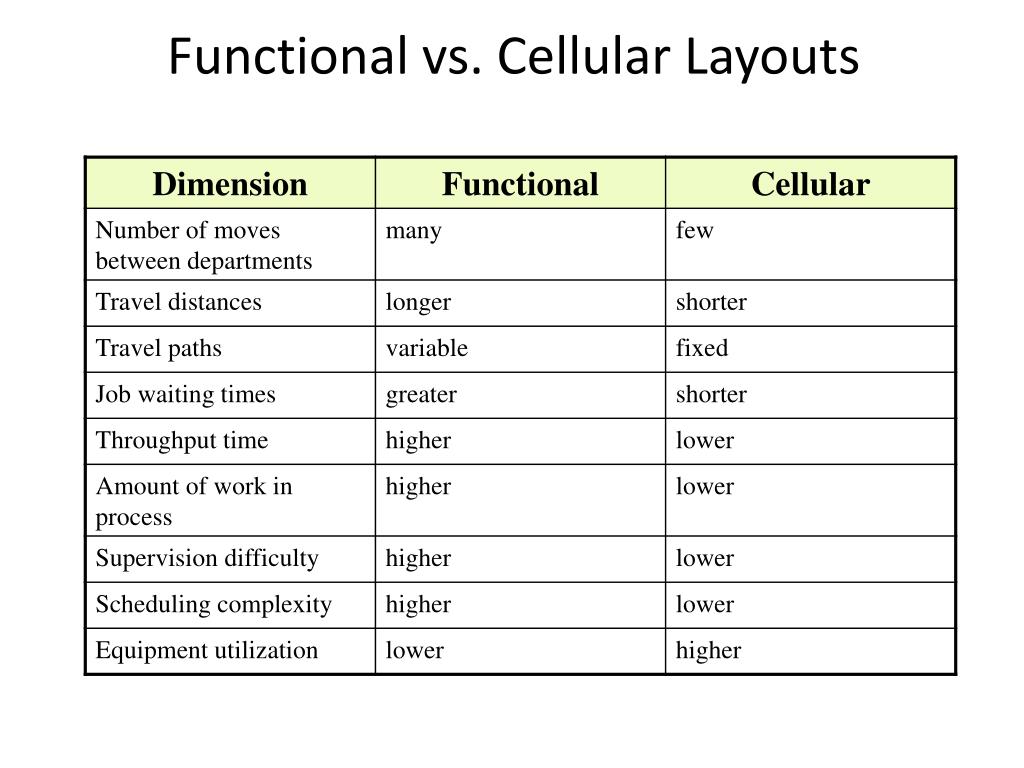

36. Other Solutions & Service Layouts • Use of flexible manufacturing systems Service layouts • Warehouse and storage layouts • Minimizing movement & picking time and cost • Retail layouts • Presence & influence of customers • Office layouts: • Information is computerized, image of openness

37. Design Product Layouts: Line Balancing Line Balancing is the process of assigning tasks to workstations in such a way that the workstations have approximately equal time requirements. This way the idle time will be minimized, utilization will be maximized Specialzation: dividing work into elematal tasks that can be performed quickly and routinely

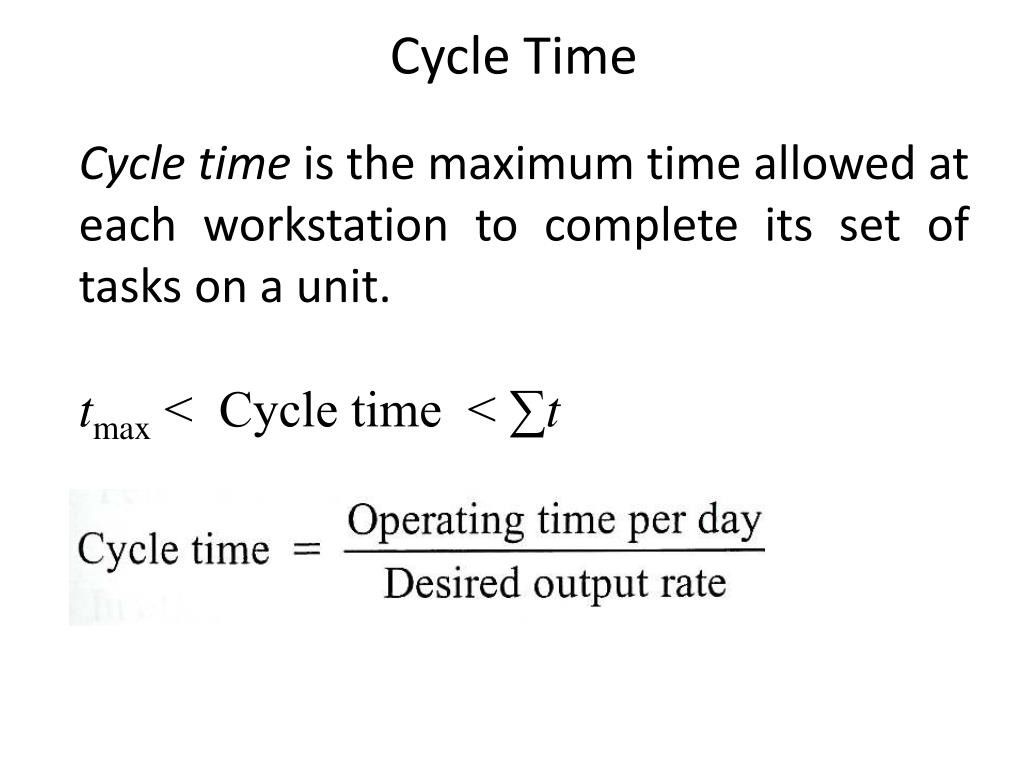

38. Cycle Time Cycle time is the maximum time allowed at each workstation tocomplete its set of tasks on a unit. tmax < Cycle time < ∑t

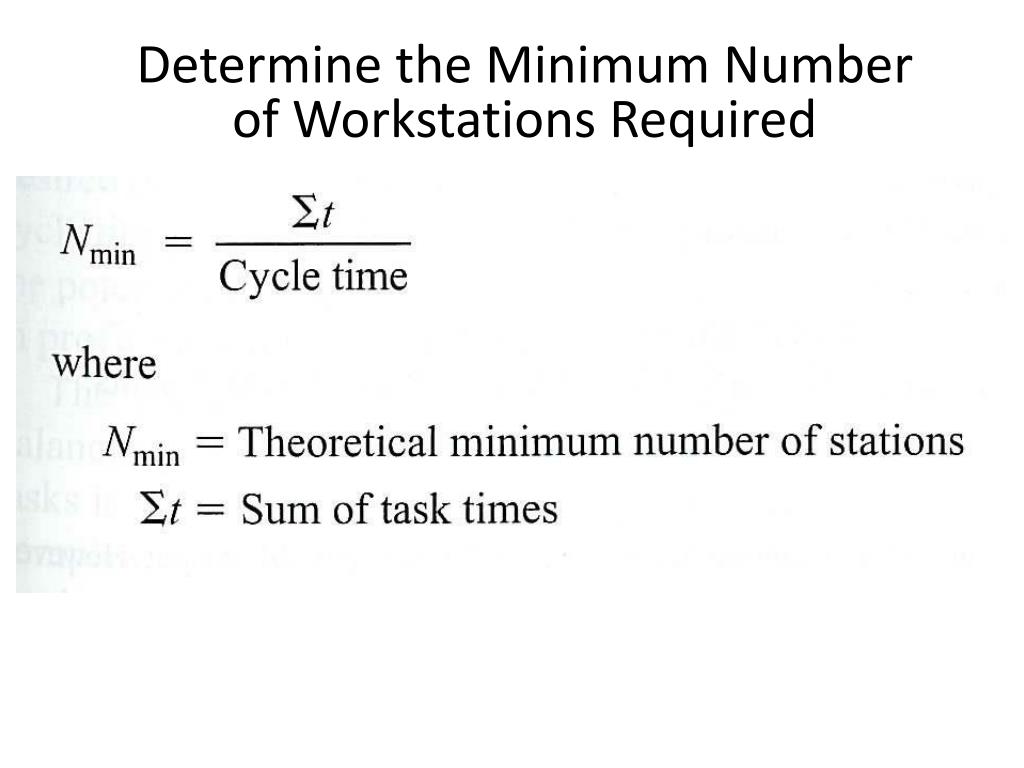

39. Determine the Minimum Number of Workstations Required

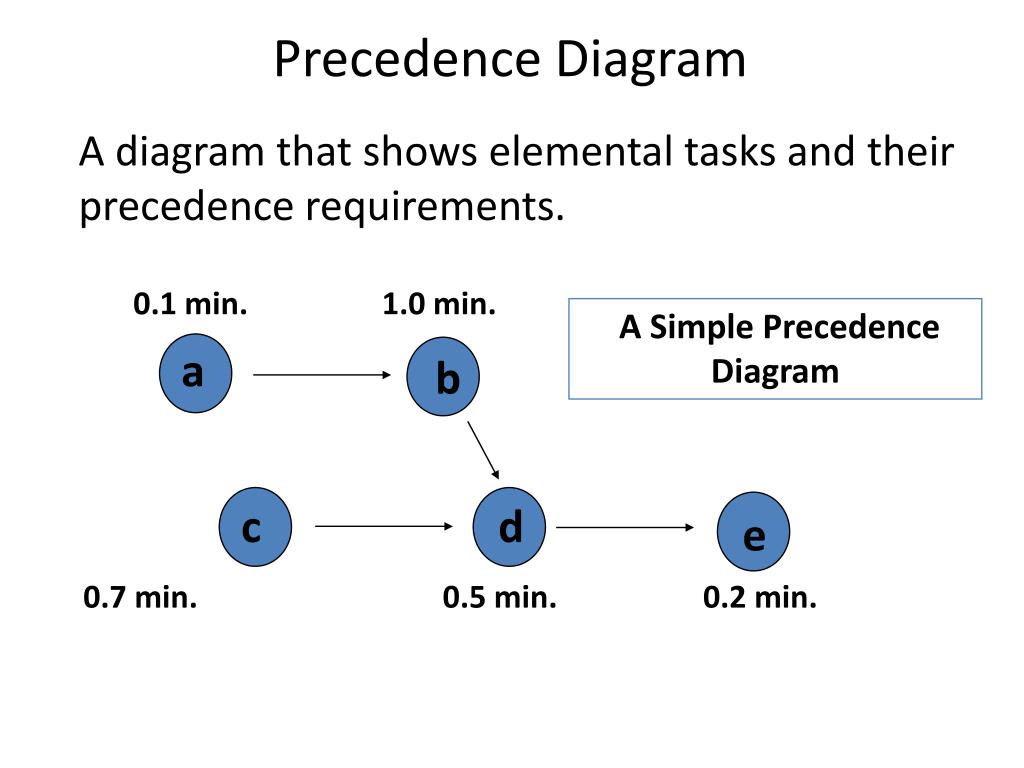

40. 0.1 min. 1.0 min. A Simple Precedence Diagram a b c d e 0.7 min. 0.5 min. 0.2 min. Precedence Diagram A diagram that shows elemental tasks and their precedence requirements.

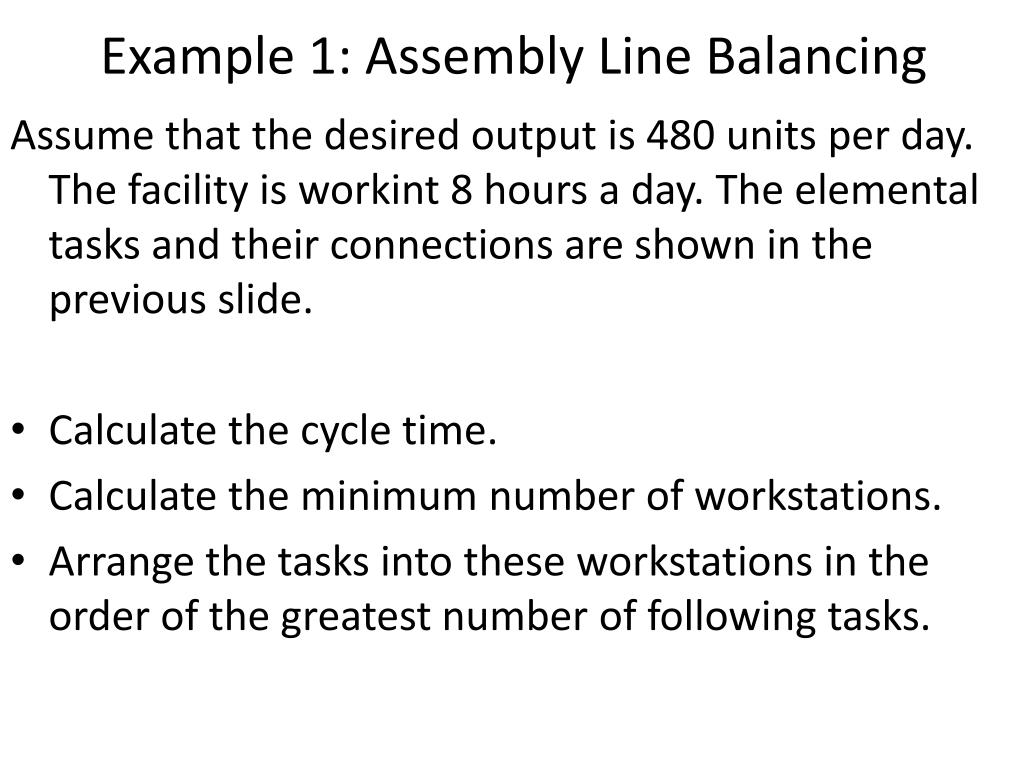

41. Example 1: Assembly Line Balancing Assume that the desired output is 480 units per day. The facility is workint 8 hours a day. The elemental tasks and their connections are shown in the previous slide. • Calculate the cycle time. • Calculate the minimum number of workstations. • Arrange the tasks into these workstations in the order of the greatest number of following tasks.

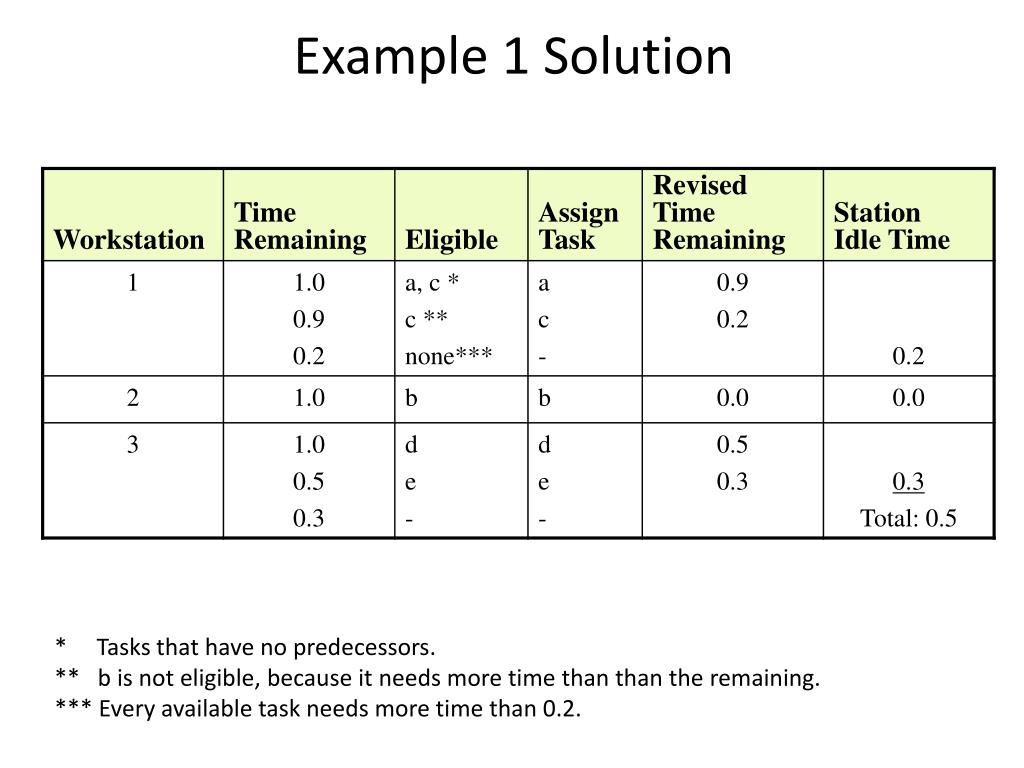

42. Example 1 Solution * Tasks that have no predecessors. ** b is not eligible, because it needs more time than than the remaining. *** Every available task needs more time than 0.2.

43. Calculate Percent Idle Time and efficiency Efficiency = 1 – Percent idle time

44. Line balancing procedure

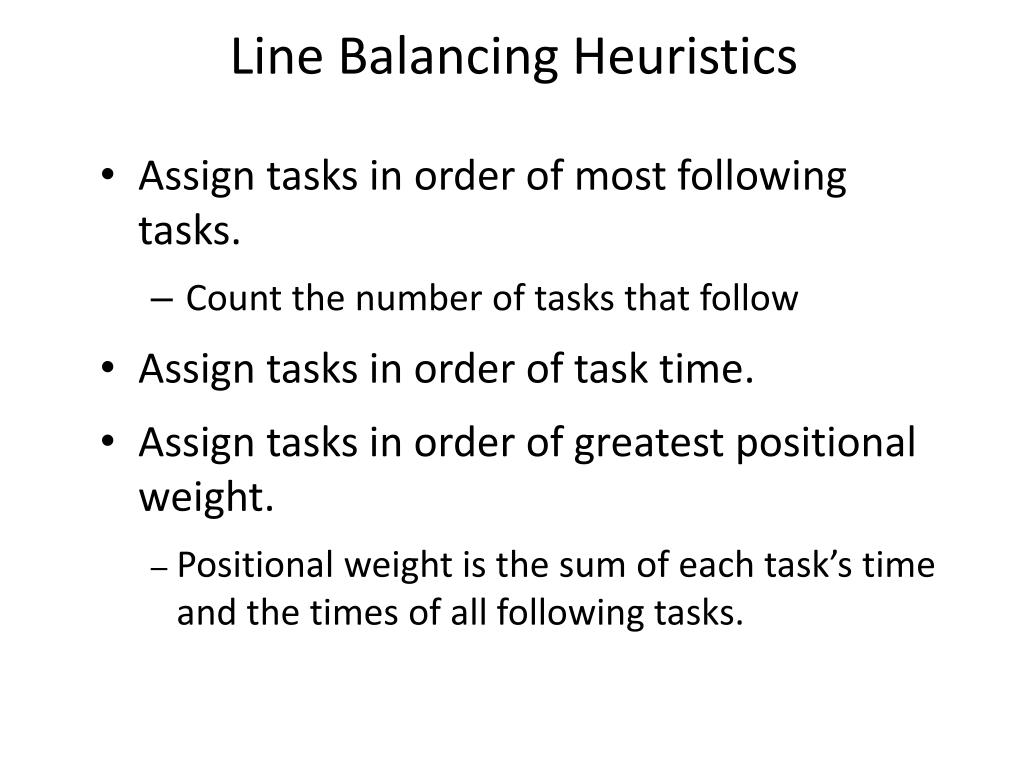

45. Line Balancing Heuristics • Assign tasks in order of most following tasks. • Count the number of tasks that follow • Assign tasks in order of task time. • Assign tasks in order of greatest positional weight. • Positional weight is the sum of each task’s time and the times of all following tasks.

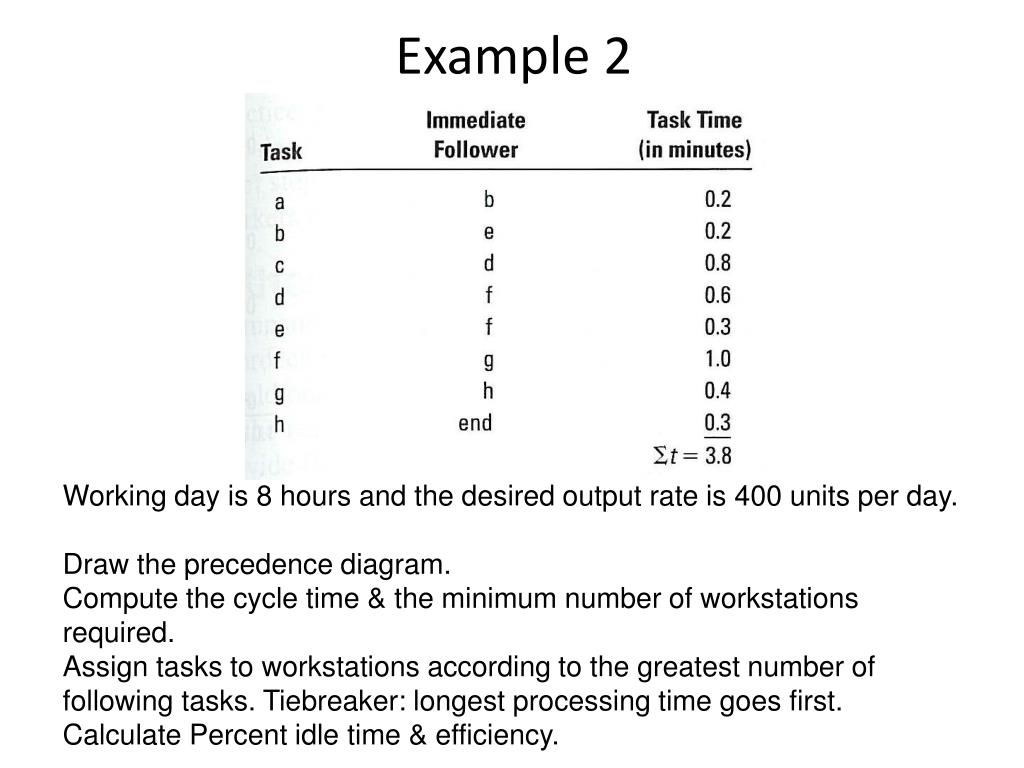

46. Example 2 Working day is 8 hours and the desired output rate is 400 units per day. Draw the precedence diagram. Compute the cycle time & the minimum number of workstations required. Assign tasks to workstations according to the greatest number of following tasks. Tiebreaker: longest processing time goes first. Calculate Percent idle time & efficiency.

47. Other approaches • Paralell workstations • Cross-train workers (dynamic line balancing) • Mixed model line (more product on the same line)

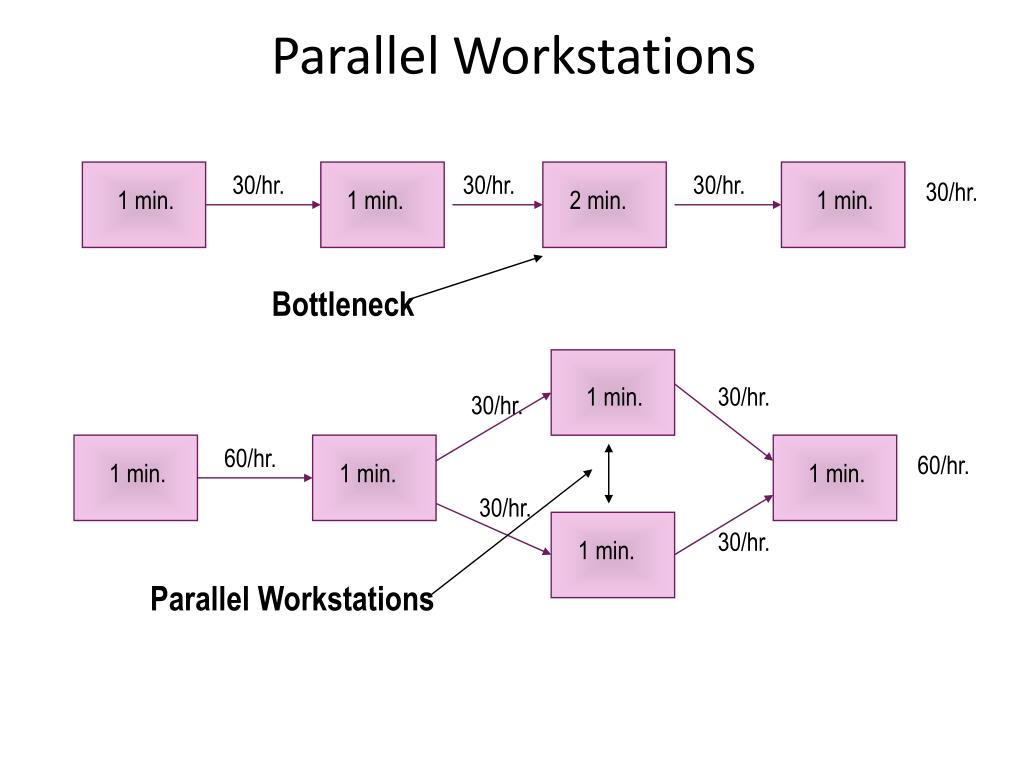

48. Parallel Workstations 30/hr. 30/hr. 30/hr. 30/hr. 1 min. 1 min. 2 min. 1 min. Bottleneck 1 min. 30/hr. 30/hr. 60/hr. 60/hr. 1 min. 1 min. 1 min. 30/hr. 30/hr. 1 min. Parallel Workstations

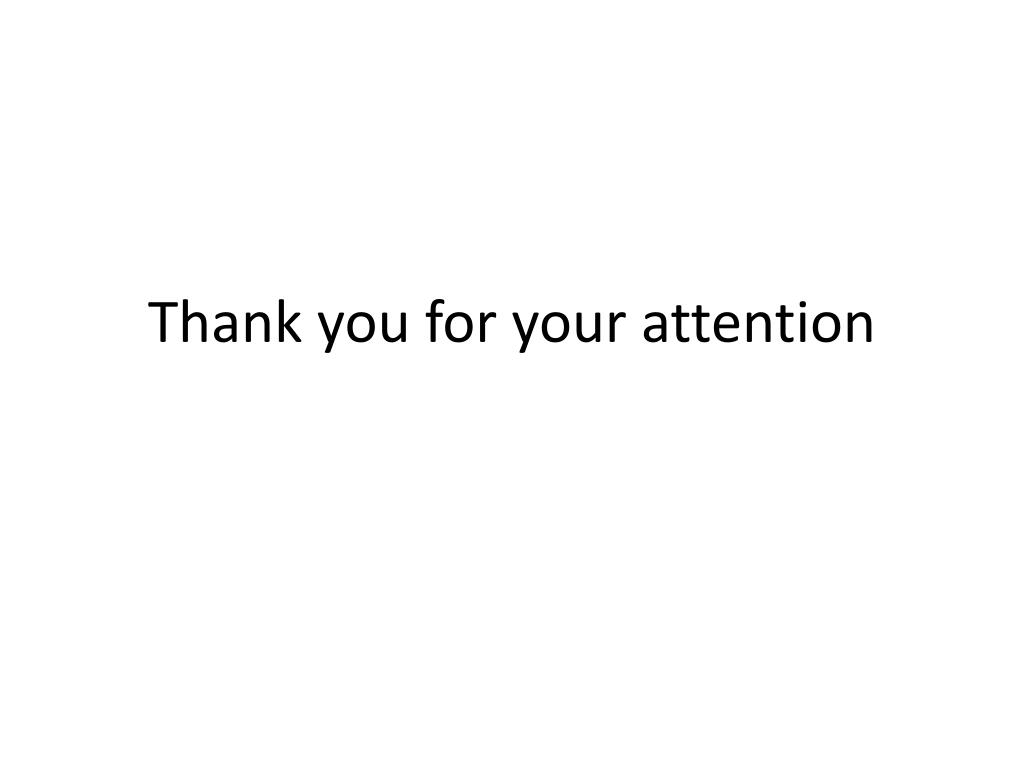

49. Thank you for your attention
