  1. Constraint Programming Peter van Beek University of Waterloo

  2. Applications • Reasoning tasks: • abductive, diagnostic, temporal, spatial • Cognitive tasks: • machine vision, natural language processing • Combinatorial tasks: • scheduling, sequencing, planning

  3. Constraint Programming • CP = solve problems by specifying constraints on acceptable solutions • Why CP? • constraints often a natural part of problems • once problem is modeled using constraints, wide selection of solution techniques available

  4. Constraint-based problem solving • Model problem • specify in terms of constraints on acceptable solutions • define variables (denotations) and domains • define constraints in some language • Solve model • define search space / choose algorithm • incremental assignment / backtracking search • complete assignments / stochastic search • design/choose heuristics • Verify and analyze solution

  5. Constraint-based problem solving • Model problem • specify in terms of constraints on acceptable solutions • define variables (denotations) and domains • define constraints in some language • Solve model • define search space / choose algorithm • incremental assignment / backtracking search • complete assignments / stochastic search • design/choose heuristics • Verify and analyze solution Constraint Satisfaction Problem

  6. Constraint satisfaction problem • A CSP is defined by • a set of variables • a domain of values for each variable • a set of constraints between variables • A solution is • an assignment of a value to each variable that satisfies the constraints

  7. Constraint-based problem solving • Model problem • specify in terms of constraints on acceptable solutions • define variables (denotations) and domains • define constraints in some language • Solve model • define search space / choose algorithm • incremental assignment / backtracking search • complete assignments / stochastic search • design/choose heuristics • Verify and analyze solution

  8. Example: Assembly line sequencing • What order should the cars be manufactured? • Constraints: • even distributions • changes in colors • run length constraints

  9. Example: Scheduling Four students, Algy, Bertie, Charlie, and Digby share a flat. Four newspapers are delivered. Each student reads the newspapers in a particular order and for a specified amount of time. Algy arises at 8:30, Bertie and Charlie at 8:45, Digby at 9:30. What is the earliest that they can all set of for school?

  10. Schedule Sun Express Guardian FT 8 am 9 10 11

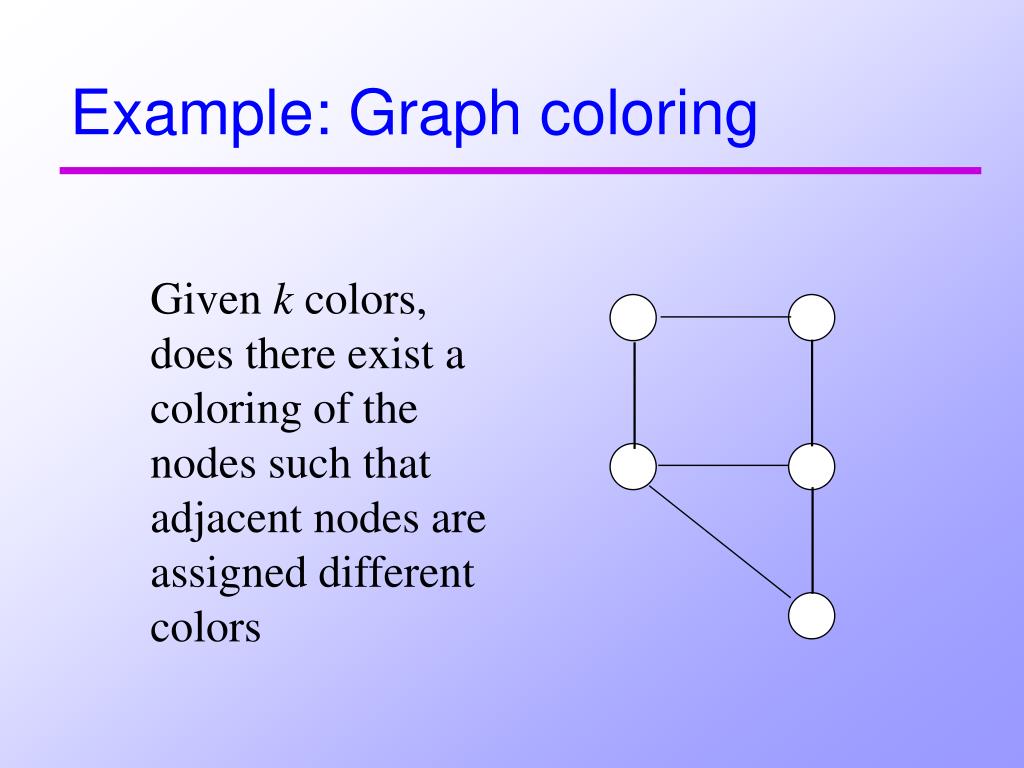

  11. Example: Graph coloring Given k colors, does there exist a coloring of the nodes such that adjacent nodes are assigned different colors

  12. Example: 3-coloring Variables: v1, v2 , v3 , v4 , v5 Domains: {1, 2, 3} Constraints: vi  vjif vi and vj are adjacent v2 v1 v4 v3 v5

  13. Example: 3-coloring One solution: v1  1 v2  2 v3  2 v4  1 v5  3 v2 v1 v4 v3 v5

  14. Example: Boolean satisfiability Given a Boolean formula, does there exist a satisfying assignment (an assignment of true or false to each variable such that the formula evaluates to true)

  15. Example: 3-SAT Variables: x1, x2 , x3 , x4 , x5 Domains: {True, False} Constraints: (x1  x2  x4), (x2  x4  x5), (x3  x4  x5) (x1  x2  x4)  (x2  x4  x5)  (x3  x4  x5)

  16. Example: 3-SAT One solution: x1  False x2  False x3  False x4  True x5  False (x1  x2  x4)  (x2  x4  x5)  (x3  x4  x5)

  17. Example: n-queens Place n-queens on an n  n board so that no pair of queens attacks each other

  18. Example: 4-queens Variables: x1, x2 , x3 , x4 Domains: {1, 2, 3, 4} Constraints: xi  xjand | xi - xj | | i- j| x1 x2 x3 x4 1 2 3 4

  19. Example: 4-queens x1 x2 x3 x4 One solution: x1  2 x2  4 x3  1 x4  3 1 Q 2 Q 3 Q Q 4

  20. Search tree for 4-queens x1 1 2 3 4 x2 x3 x4 (1,1,1,1) (2,4,1,3) (3,1,4,2) (4,4,4,4)

  21. Specification of forward checking Invariant: 1 i c, cj n, (xj, xi) is arc-consistent x1 xc-1 xc xc+1 xn past current future

  22. Forward checking 1 2 3 4 5 6 x1 {1,4,6} Q x4 x2 1 1 1 Q x3 1 Q 1 2 2 {2} {5} {3} {1,3,4} x4 1 2 3 1 x5 x1 x2 x3 x5 3 1 3 2 1 {3,4,6} x6 2 1 3 2 3 x6

  23. Enforcing arc-consistency < {a, b, c} {a, b, c} xj xi

  24. {a, b, c} {a, b, c} {a, b, c} xk xj xi Enforcing path-consistency < < <

  25. Search graph for 4-queens (1,1,1,2) (1,1,4,2) 4 (1,1,1,1) 1 6 (1,1,1,3) 3 (3,1,4,2) 0 (1,1,1,4) 4 (1,4,1,3) 1 (4,1,4,2) 1 (2,4,1,3) 0

  26. Pick queen in conflict x1 Q x2 2 1 Q 1 x3 Q x4 Q Move to min. conflicts Pick queen in conflict x1 x1 Q Q x2 Q x2 Q x3 Q x3 0 2 2 Q x4 Q x4 Q Stochastic search Initial assignment x1 Q x2 Q x3 Q x4 Q

  27. Tractability NP NP-Complete (SAT, TSP, ILP, CSP, …) P

  28. CSP 3-SAT binary CSP ILP (0,1)-ILP Reducibility NP-Complete

  29. Options CSP, binary CSP, SAT, 3-SAT, ILP, ... • Model and solve in one of these languages • Model in one language, translate into another to solve
