  1. Constraint Programming Toby Walsh UNSW and NICTA

  2. Overview • Constraint satisfaction • What is a constraint satisfaction problem? (aka “CSP”) • Constraint propagation (aka “inference”) • Search algorithms for solving CSPs • Modelling problems using CSPs • Some case studies • Auxiliary variables • Symmetry • Implied constraints • Dual models

  3. Resources • Course links • http://www.cse.unsw.edu.au/~tw/cp.html • Benchmark problems • www.csplib.org • Constraints solvers • Logic programming languages: ECLIPSE, BProlog • Functional languages: FaCiLe (OCaml), … • Imperative languages: Choco (Java), …

  4. Constraint programming • Ongoing “dream” of declarative programming • State the constraints • No two exams at the same time • Only 5 shifts in one week • Parcel picked up between 10am-noon • Black box solver finds a solution • Just like magic! • Paradigm of choice for many hard combinatorial problems • Scheduling, assignment, routing, …

  5. Constraints are everywhere! • No meetings before 10am • Network traffic < 100 Gbytes/sec • PCB width < 21cm • Salary > 45k Euros • No two exams at the same time • Only 5 shifts in one week • Parcel picked up before 10am …

  6. Constraint satisfaction • Constraint satisfaction problem (CSP) consists of: • Set of variables • Each variable has set of values • Usually assume finite domain • {true,false}, {red,blue,green}, [0,10], … • Set of constraints • Goal • Find assignment of values to variables to satisfy all the constraints

  7. Example CSP • Sudoku • Variable for each square • Domain: numbers 1 to 9 • Constraints • Row: • AllDifferent(X1,..X9) • AllDifferent(X10,..X18) • … • Column • AllDifferent(X1,X10,..) • … • Small square • AllDifferent(X1,..,X3,X10,..X12,..)

  8. Example CSP • Course timetabling • Variable for each course X1, X2 .. • Domain are possible times for course Wed9am, Fri10am, .. • Constraints: X1 \= Wed9am Capacity constraints: atmost(3,[X1,X2..],Wed9am) Lecturer constraints: alldifferent([X1,X5,…])

  9. Constraint optimization • CSP + objective function • E.g. objective is Profit = Income - Costs • Find assignment of values to variables that: • Satisfies constraints • Maximizes (minimizes) objective • Often solved as sequence of satisfaction problems Profit > 0, Profit > Ans1, Profit > Ans2, …

  10. Constraint programming v. Logic programming • Constraints declaratively specify problem • Logic programming natural approach Assert constraints, call “labelling” strategy (backtracking search predicate) • But can also define constraint satisfaction or optimization within an imperative of functional language • Popular toolkits in C++, Java, CAML, …

  11. Constraints • Constraints • Scope • list of variables to which constraint applies • Relation specifying allowed values (goods) • Extensionally specified: • (X=red, Y=blue) or (X=red, Y=green) or • (X=blue, Y=red) or (X=blue, Y=green) or • (X=green, Y=red) or (X=green, Y=blue) • Intensionally specified: • X =/= Y • X + 2Y - Z < 5 • Alldifferent(X,Y,Z) • AtLeast(1,[X,Y,Z],{red})

  12. Binary v non-binary • Binary constraint • Scope covers 2 variables • E.g. not-equals constraint: X1 =/= X2. • E.g. ordering constraint: X1 < X2 • Non-binary constraint • Scope covers 3 or more variables • E.g. alldifferent(X1,X2,X3). • E.g. tour(X1,X2,X3,X4). “Non-binary constraints” usually do not include unary constraints!

  13. Some non-binary examples • Timetabling • Variables: Lecture1, Lecture2, … • Values: time1, time2, … • Constraint that lectures taught by same lecturer do not conflict: alldifferent(Lecture1,Lecture5,…).

  14. Some non-binary examples • Scheduling • Variables: Job1. Job2, … • Values: machine1, machine2, … • Constraint on number of jobs on each machine: atmost(2,[Job1,Job2,…],machine1), atmost(1,[Job1,Job2,…],machine2).

  15. Why use non-binary constraints? • Binary constraints are NP-complete • Any non-binary constraint can be represented using binary constraints • E.g. alldifferent(X1,X2,X3) is “equivalent” to X1 =/= X2, X1 =/= X3, X2 =/= X3 • In theory therefore they’re not needed • But in practice, they are!

  16. Modelling with non-binary constraints • Benefits include: • Compact, declarative specifications (discussed next) • Efficient constraint propagation (discussed second)

  17. Consider writing your own alldifferent constraint: alldifferent([]). alldifferent([Head|Tail]):- onediff(Head,Tail), alldifferent(Tail). onediff(El,[]). onediff(El,[Head|Tail]):- El #\= Head, onediff(El,Tail). Modelling with non-binary constraints

  18. Constraint solvers • Two main approaches • Systematic, tree search algorithms • Local search or repair based procedures • Other more exotic possibilities • Hybrid algorithms • Quantum algorithms

  19. Systematic solvers • Tree search • Assign value to variable • Deduce values that must be removed from future/unassigned variables • Propagation to ensure some level of consistency • If future variable has no values, backtrack else repeat • Number of choices • Variable to assign next, value to assign Some important refinements like nogood learning, non-chronological backtracking, …

  20. Local search • Repair based methods • Generate complete assignment • Change value to some variable in a violated constraint • Number of choices • Violated constraint, variable within it, … Unable to exploit powerful constraint propagation techniques

  21. Constraint propagation • Arc-consistency (AC) • A binary constraint r(X1,X2) is AC iff for every value for X1, there is a consistent value (often called support) for X2 and vice versa • A problem is AC iff every constraint is AC

  22. Enforcing arc-consistency • Remove all values that are not AC (i.e. have no support) • May remove support from other values (often queue based algorithm) • Best AC algorithms (AC7, AC-2000) run in O(ed^2) • Optimal if we know nothing else about the constraints

  23. Enforcing arc-consistency • Consider 1st column • Binary not equals constraints: • X1=/=X10, X1=/=X19, .. • Consider 8th row • Look at domain of the 1st variable

  24. Properties of AC • Unique maximal AC subproblem • Or problem is unsatisfiable • Enforcing AC can process constraints in any order • But order does affect (average-case) efficiency

  25. Non-binary constraint propagation • Most popular is generalized arc-consistency (GAC) • A non-binary constraint is GAC iff for every value for a variable there are consistent values for all other variables in the constraint • We can again prune values that are not supported • GAC = AC on binary constraints

  26. GAC on alldifferent • AllDifferent on 6th row • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {8} • {9} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  27. GAC on alldifferent • AllDifferent on 1st col • {6,7} • {1,2,4,5,6,7} • {8} • {9} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  28. GAC on alldifferent • AllDifferent on 2nd col • {6,7} • {1,2,4,5} • {8} • {9} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  29. GAC on alldifferent • AllDifferent on 4th small square • {6,7} • {1,2,4} • {8} • {9} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  30. GAC on alldifferent • AllDifferent on 5th col • {6,7} • {1,2,4} • {8} • {9} • {1,2,5,6,7} • {1,2,4,5,6,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  31. GAC on alldifferent • AllDifferent on 6th col • {6,7} • {1,2,4} • {8} • {9} • {1,2,5,6,7} • {1,4,5,7} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  32. GAC on alldifferent • AllDifferent on 5th small square • {6,7} • {1,2,4} • {8} • {9} • {5,7} • {4,5} • {1,2,4,5,6,7} • {3} • {1,2,4,5,6,7}

  33. GAC on alldifferent • AllDifferent on 7th col • {6,7} • {1,2,4} • {8} • {9} • {5,7} • {4,5} • {1,7} • {3} • {1,2,4,5,6,7}

  34. GAC on alldifferent • AllDifferent on 9th col • {6,7} • {1,2,4} • {8} • {9} • {5,7} • {4,5} • {1,7} • {3} • {4,5,6}

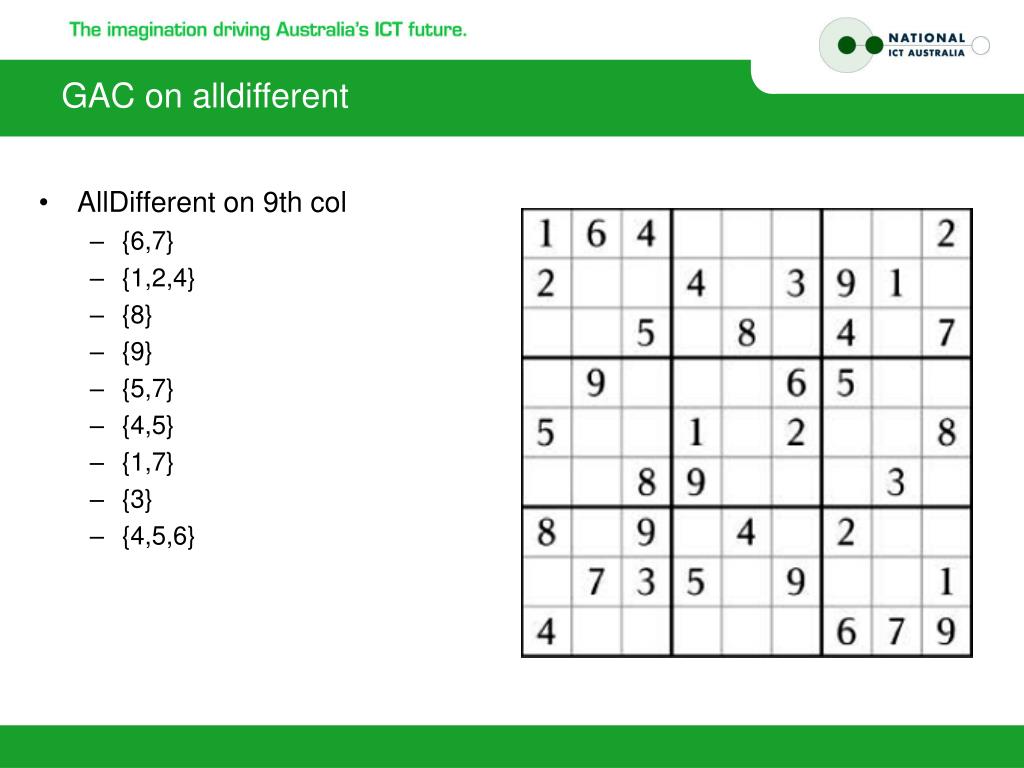

  35. GAC on alldifferent • AllDifferent on 6th small square • {6,7} • {1,2,4} • {8} • {9} • {5,7} • {4,5} • {1,7} • {3} • {4,6}

  36. Enforcing GAC • Enforcing GAC is expensive in general • GAC schema is O(d^k) On k-ary constraint on vars with domains of size d • Trick is to exploit semantics of constraints • Regin’s all-different algorithm • Achieves GAC in just O(k^2 d^2) On k-ary all different constraint with domains of size d Based on finding matching in “value graph”

  37. Other types of constraint propagation • (i,j)-consistency • Non-empty domains • Any consistent instantiation for i variables can be extended to j others • Describes many different consistency techniques

  38. (i,j)-consistency • Generalization of arc-consistency • AC = (1,1)-consistency • Path-consistency = (2,1)-consistency • Strong path-consistency = AC + PC • Path inverse consistency = (1,2)-consistency

  39. Enforcing (i,j)-consistency • problem is (1,1)-consistent (AC) • BUT is not (2,1)-consistent (PC) • X1=2, X2=3 cannot be extended to X3 • Need to add constraints: not(X1=2 & X2=3) not(X1=2 & X3=3) • Nor is it (1,2)-consistent (PIC) • X1=2 cannot be extended to X2 & X3 (so needs to be deleted) {1,2} X1 \= \= {2,3} {2,3} \= X2 X3

  40. Other types of constraint propagation • Bounds consistency (BC) • With ordered domains • Enforce AC just on max/min elements • Used often for arithmetic constraints (eg linear inequalities) • GAC is intractable on a sum constraints (= subset sum)

  41. Maintaining a local consistency property • Tree search • Assign value to variable • Enforce some level of local consistency • Remove values/add new constraints • If any future variable has no values, backtrack else repeat • Two popular algorithms • Maintaining arc-consistency (MAC) • Make the whole problem arc-consistent • Forward checking (very restricted form of AC maintained)

  42. Forward checking • Binary constraints (FC) • Make constraints involving current variable and one future variable arc-consistent • No need to look at any other constraints! • Non-binary constraints • Several choices as to how to do forward checking

  43. Forward checking with non-binary constraints nFC0 makes AC only those k-ary constraints with k-1 variables set nFC1 applies one pass of AC on constraints and projections involving current var and one future var nFC2 applies one pass of GAC on constraints involving current var and at least one future var nFC3 enforces GAC on this set nFC4 applies one pass of GAC on constraints involving at least one past and one future var nFC5 enforces GAC on this set

  44. n-queens problem • Put n-queens on a n by n chess board • Constraints: • No queen attacks another • Here n=8 • Studied by Carl Gauss and others (1850)

  45. n-queens problem • ILP formulation • Xij = 1 iff (i,j) square has queen on it • Row attack constraints • Col attack constraints • Diag attack constraints • Objective function (can only get n queens on board!)

  46. n-queens problem • CSP model • One variable for each row • Value is position of queen on that row • Constraints • Col attack • Diag attack • Here n=4

  47. Forward checking on n-queens problem • Assign Row1=col1 • Queen on 1st row placed on 1st column • Forward check prunes domains of future variables

  48. Forward checking on n-queens problem • Assign Row1=col1 • Queen on 1st row placed on 1st column • Forward checking prunes domains of future variables • Assign Row2=col3 • Queen on 2nd row placed on 3rd column • Forward checking prunes domains of future variables • Row3 has domain wipeout (no values left)

  49. Forward checking on n-queens problem • Assign Row1=col1 • Queen on 1st row placed on 1st column • Forward checking prunes domains of future variables • Assign Row2=col3 • Queen on 2nd row placed on 3rd column • Forward checking prunes domains of future variables • Row3 has domain wipeout (no values left) • Backtrack to last assignment and try some other value

  50. Forward checking on n-queens problem • Assign Row1=col1 • Queen on 1st row placed on 1st column • Forward checking prunes domains of future variables • Assign Row2=col4 • Queen on 2nd row placed on 4th column
