  1. Low-cost Field Server NARO National Agriculture and Food Research Organization Masayuki HIRAFUJI Haoming Hu

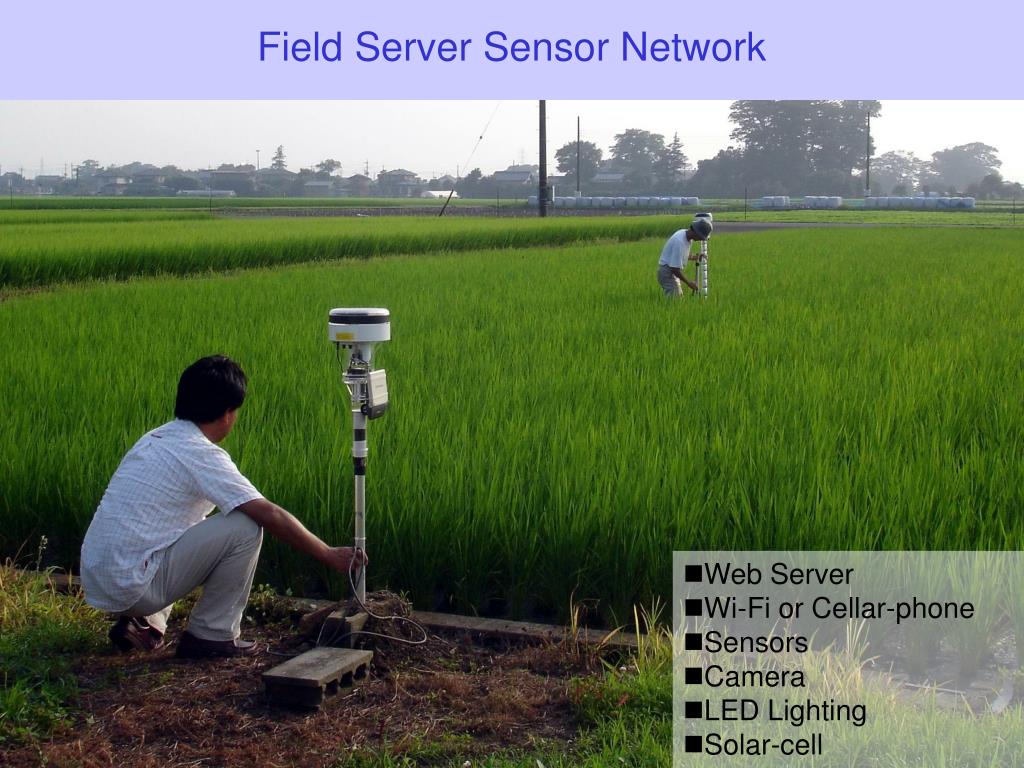

  2. Field Server Sensor Network • Web Server • Wi-Fi or Cellar-phone • Sensors • Camera • LED Lighting • Solar-cell

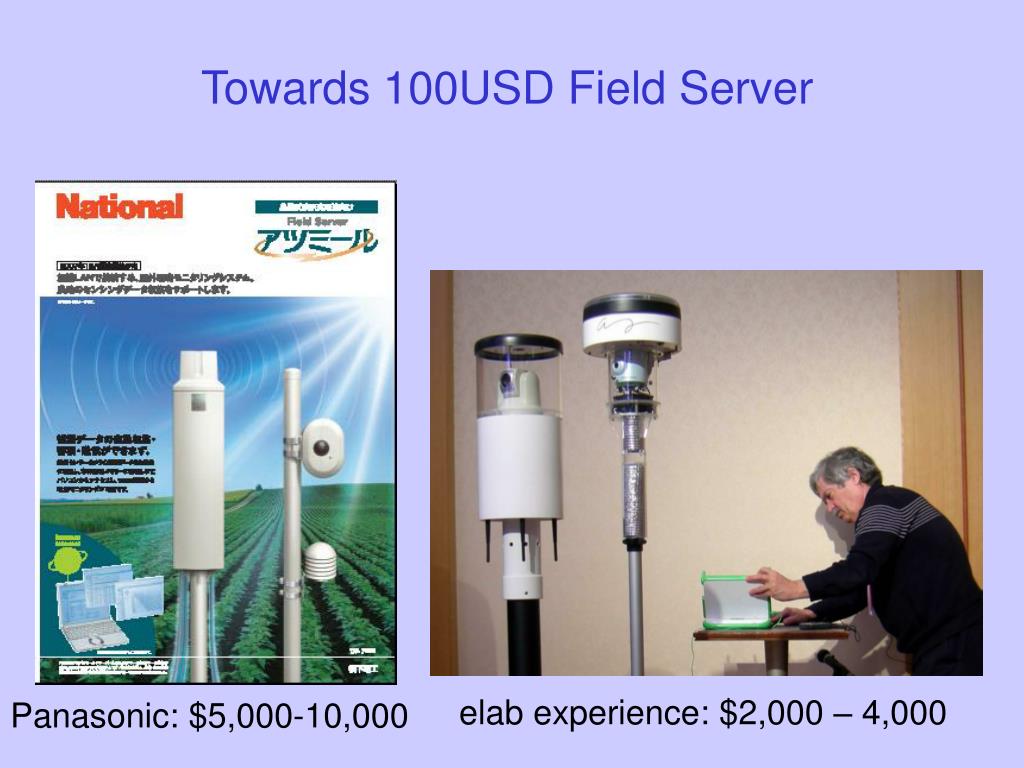

  3. Towards 100USD Field Server elab experience: $2,000 – 4,000 Panasonic: $5,000-10,000

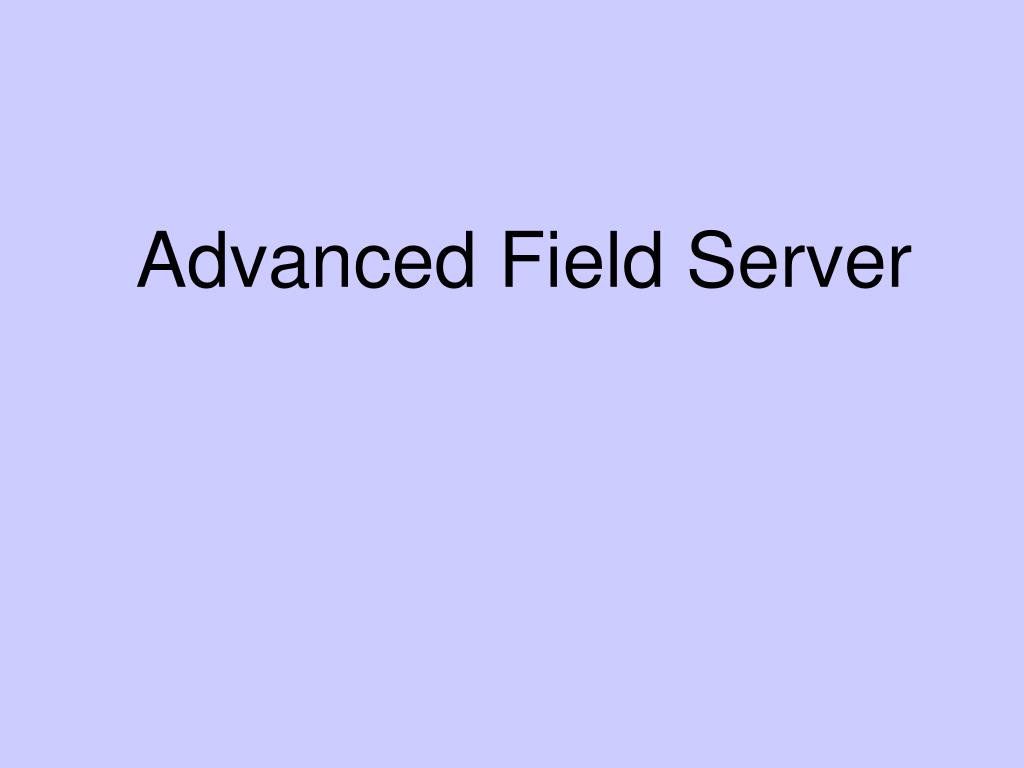

  4. Advanced Field Server

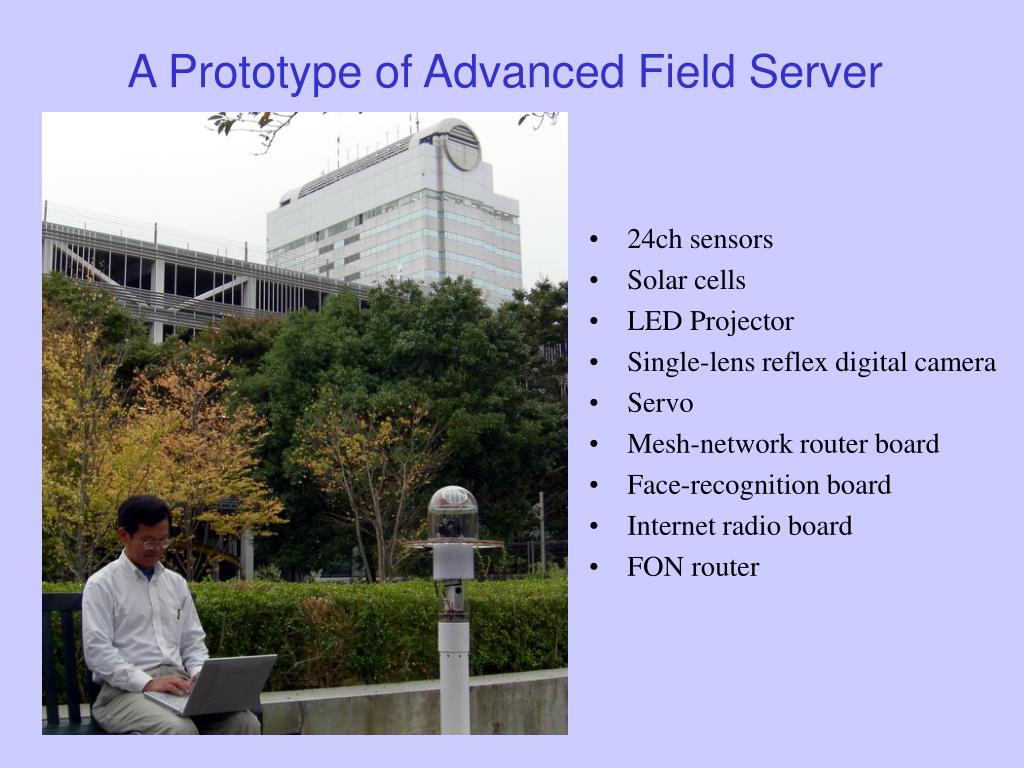

  5. A Prototype of Advanced Field Server • 24ch sensors • Solar cells • LED Projector • Single-lens reflex digital camera • Servo • Mesh-network router board • Face-recognition board • Internet radio board • FON router

  6. An Advanced Field Server with 9 Cameras Surveillance against Unlawful Dumping

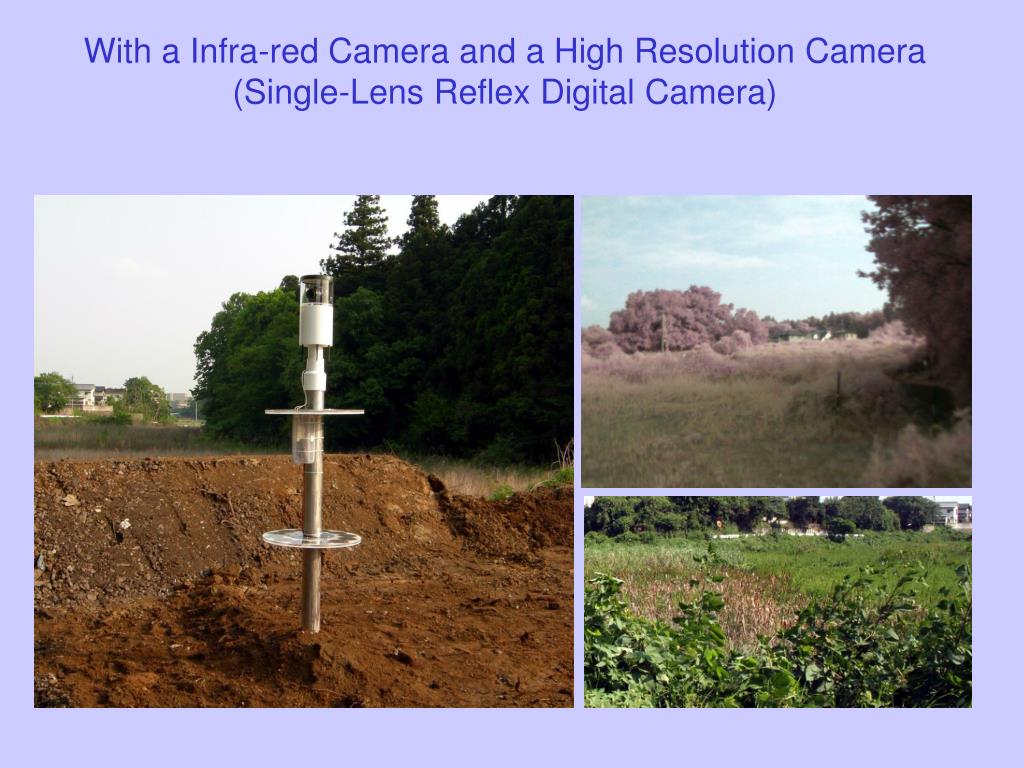

  7. With a Infra-red Camera and a High Resolution Camera (Single-Lens Reflex Digital Camera)

  8. A Image of a High Resolution Camera (EOS Kiss digital N)

  9. Parts of The Image

  10. Low-cost Field Server

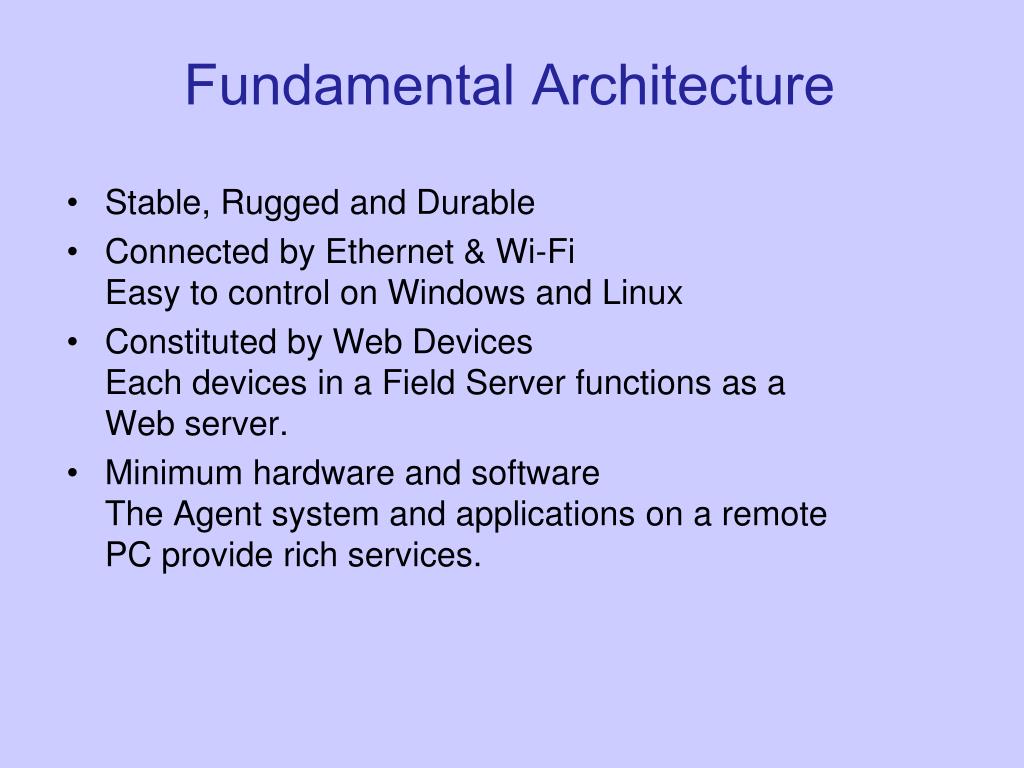

  11. Fundamental Architecture • Stable, Rugged and Durable • Connected by Ethernet & Wi-FiEasy to control on Windows and Linux • Constituted by Web DevicesEach devices in a Field Server functions as a Web server. • Minimum hardware and softwareThe Agent system and applications on a remote PC provide rich services.

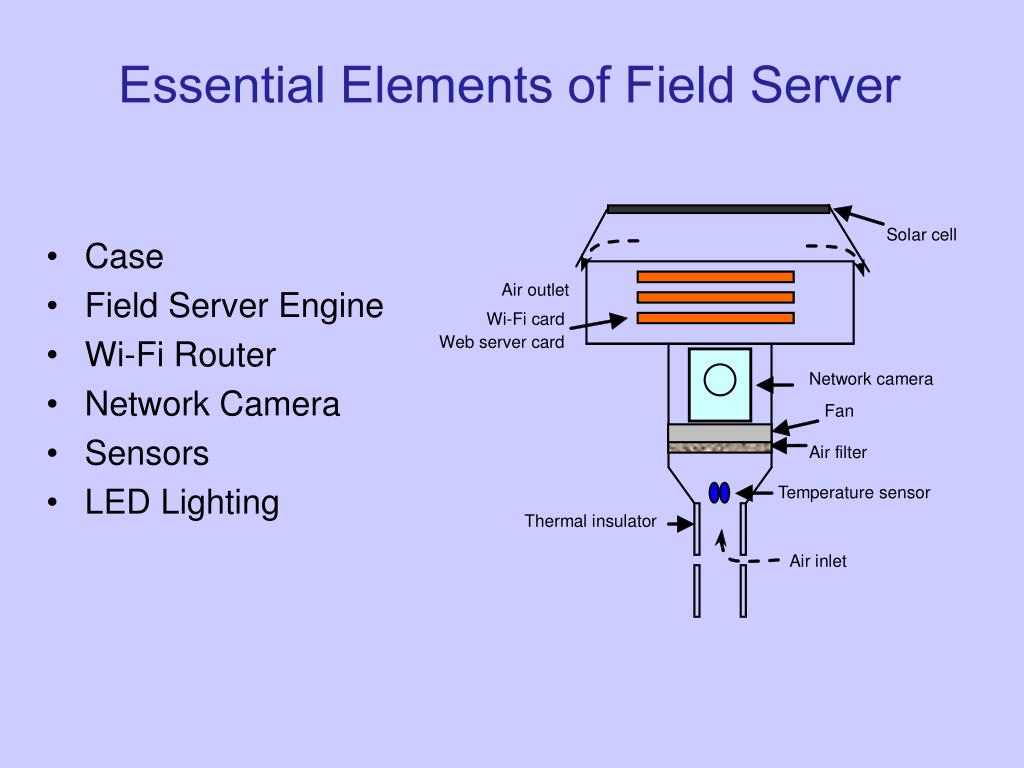

  12. Essential Elements of Field Server • Case • Field Server Engine • Wi-Fi Router • Network Camera • Sensors • LED Lighting

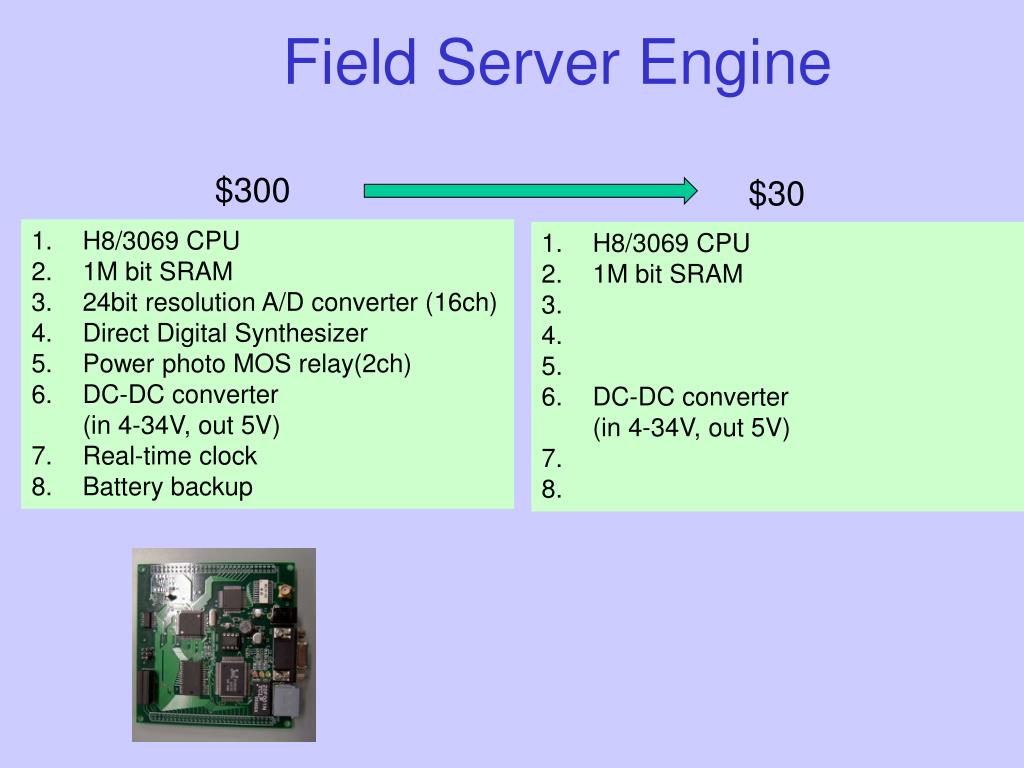

  13. Field Server Engine $300 $30 • H8/3069 CPU • 1M bit SRAM • 24bit resolution A/D converter (16ch) • Direct Digital Synthesizer • Power photo MOS relay(2ch) • DC-DC converter(in 4-34V, out 5V) • Real-time clock • Battery backup • H8/3069 CPU • 1M bit SRAM • DC-DC converter(in 4-34V, out 5V)

  14. Types of Wi-Fi Network • Mesh-network • WDS (Wireless Distribution System) • Wi-Fi/Ethernet Media Converter (Access Point, Client)

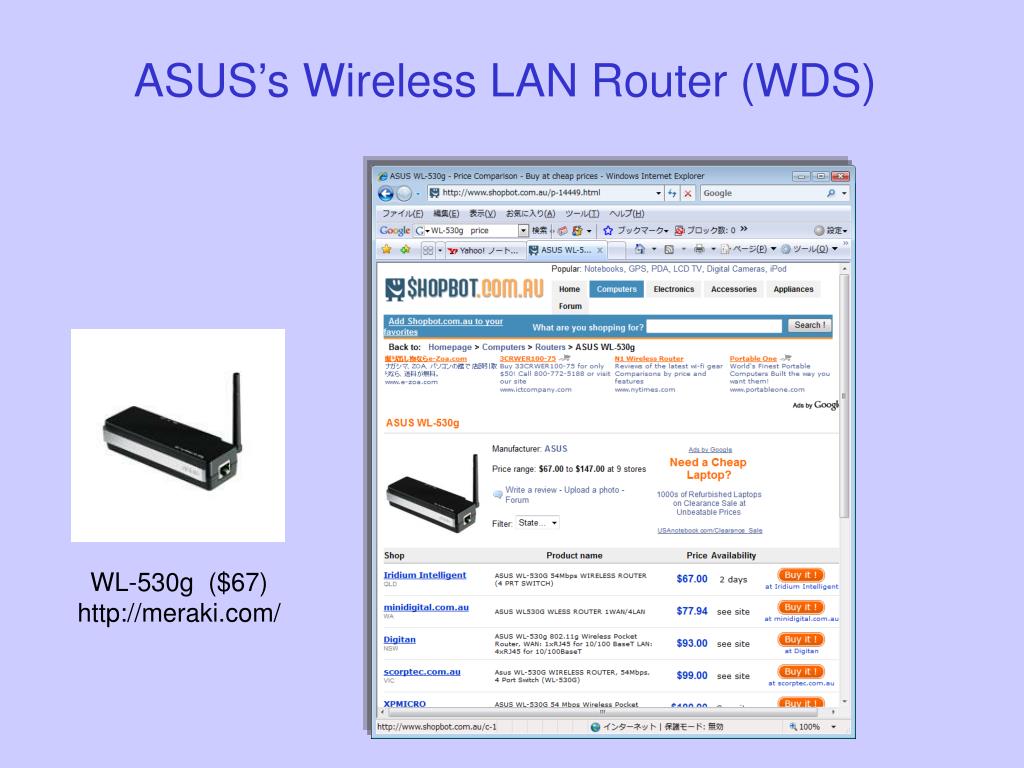

  15. ASUS’s Wireless LAN Router (WDS) WL-530g ($67) http://meraki.com/

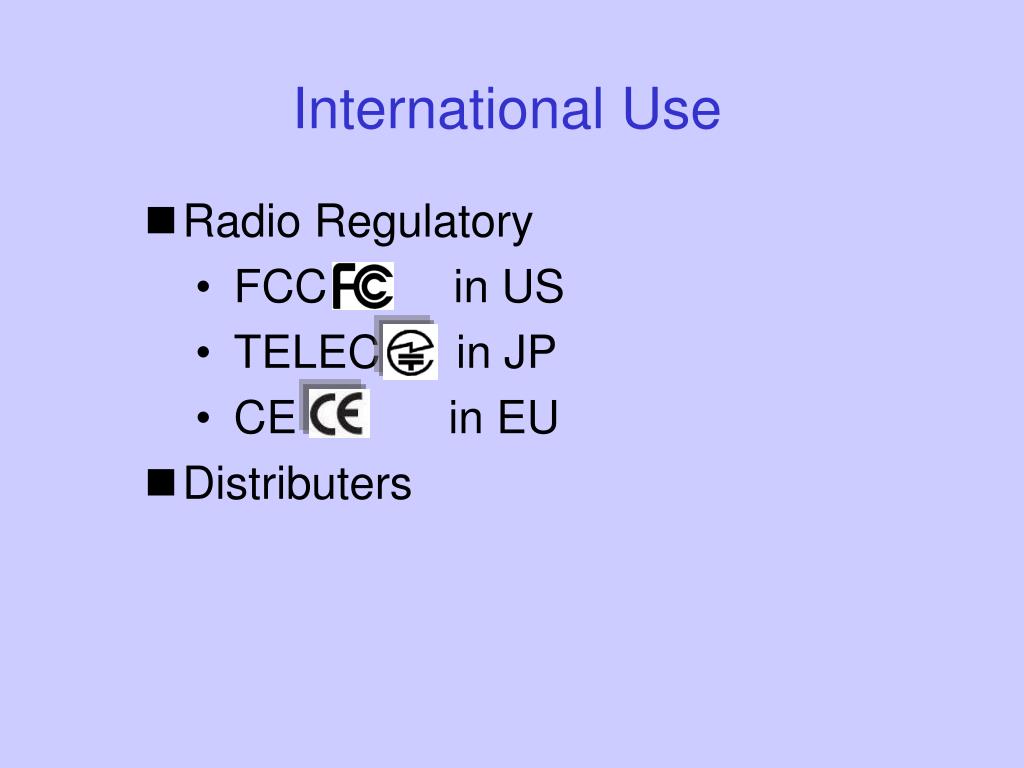

  16. International Use • Radio Regulatory • FCC in US • TELEC in JP • CE in EU • Distributers

  17. D-Link’s Wireless Access Point (WDS) DWL-2100AP ($75-$113) http://www.dlink.com/

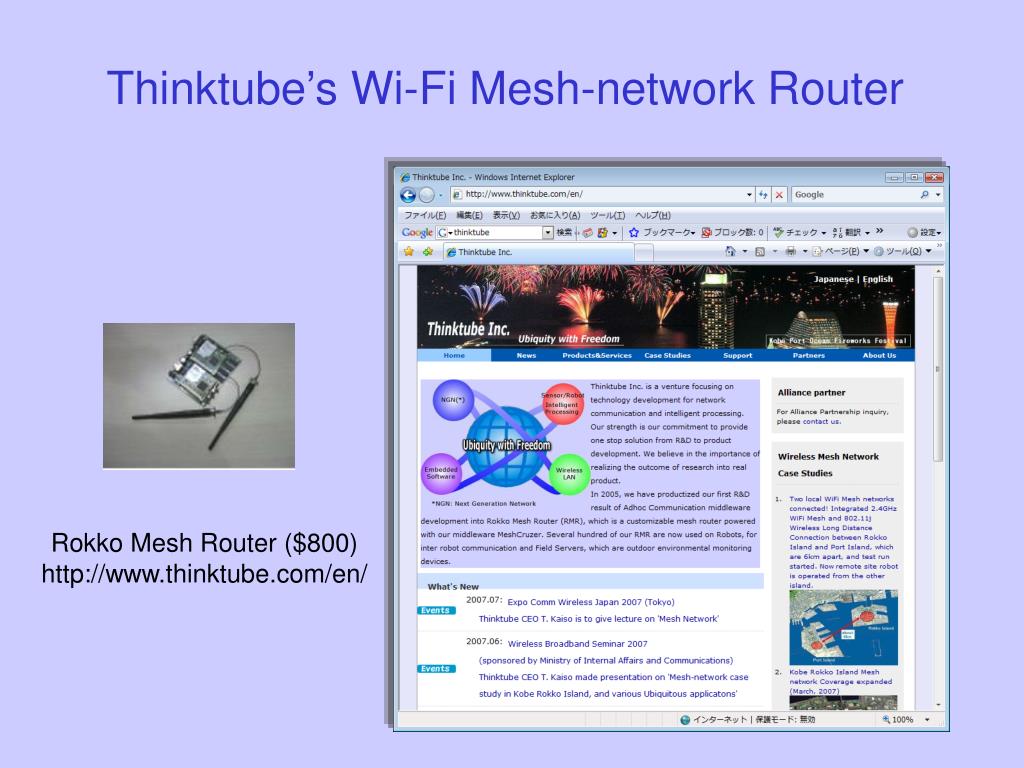

  18. Thinktube’s Wi-Fi Mesh-network Router Rokko Mesh Router ($800) http://www.thinktube.com/en/

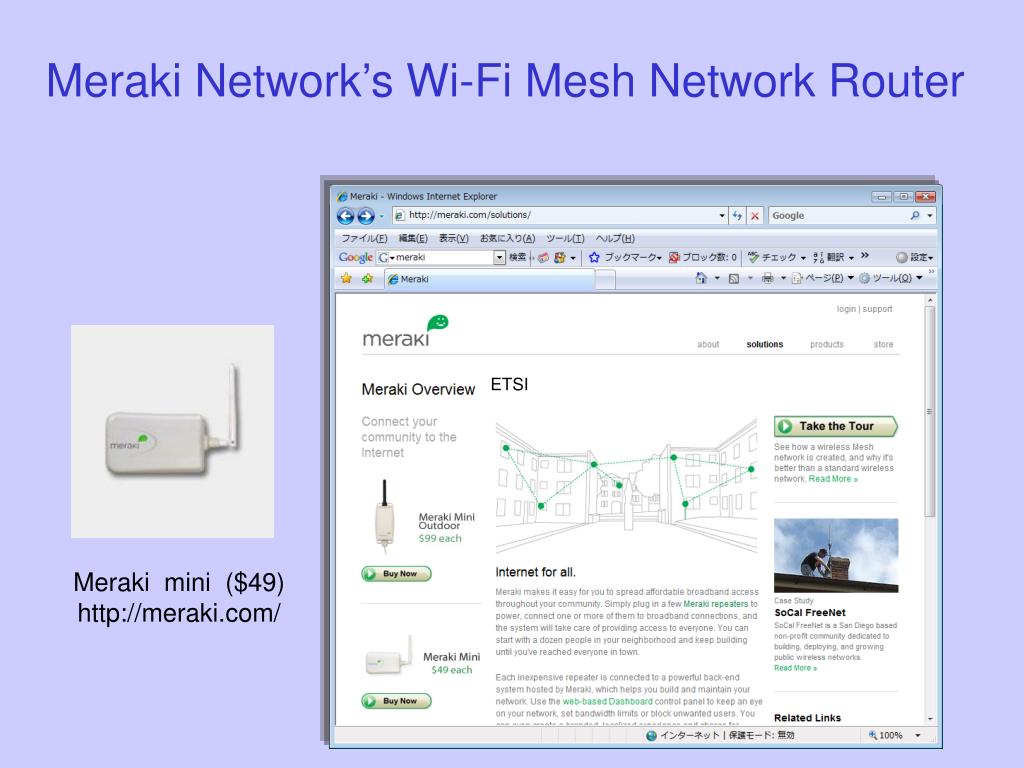

  19. Meraki Network’s Wi-Fi Mesh Network Router ETSI Meraki mini ($49) http://meraki.com/

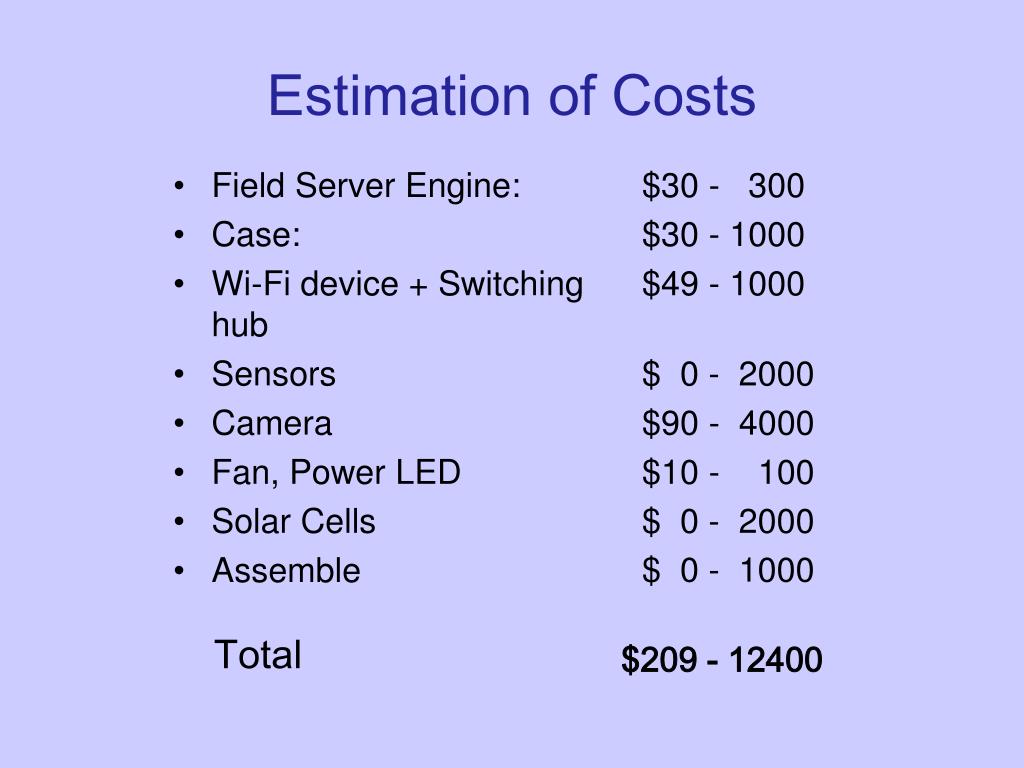

  20. Estimation of Costs Total $209 - 12400 $30 - 300 $30 - 1000 $49 - 1000 $ 0 - 2000 $90 - 4000 $10 - 100 $ 0 - 2000 $ 0 - 1000 • Field Server Engine: • Case: • Wi-Fi device + Switching hub • Sensors • Camera • Fan, Power LED • Solar Cells • Assemble

  21. Made-in-China: $1000 - 2000

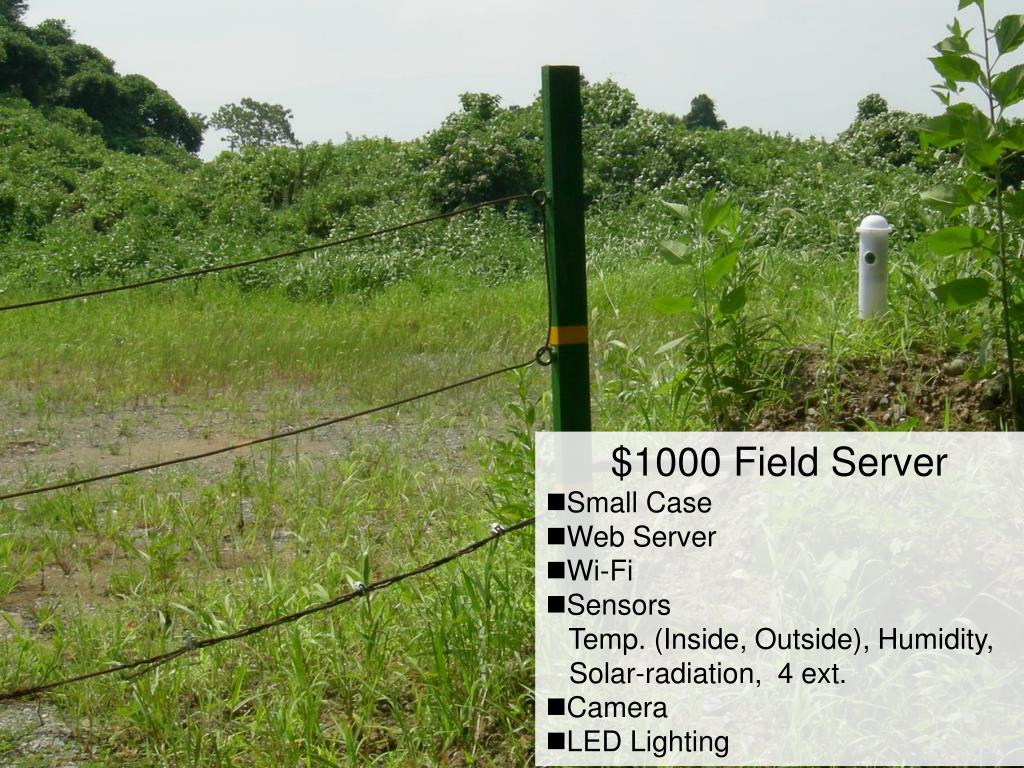

  22. $1000 Field Server • Small Case • Web Server • Wi-Fi • Sensors Temp. (Inside, Outside), Humidity, Solar-radiation, 4 ext. • Camera • LED Lighting
