  1. UWA Directory Services David Glance Strategic Projects

  2. Agenda • Requirements • Architecture • Client Requirements • Timeline

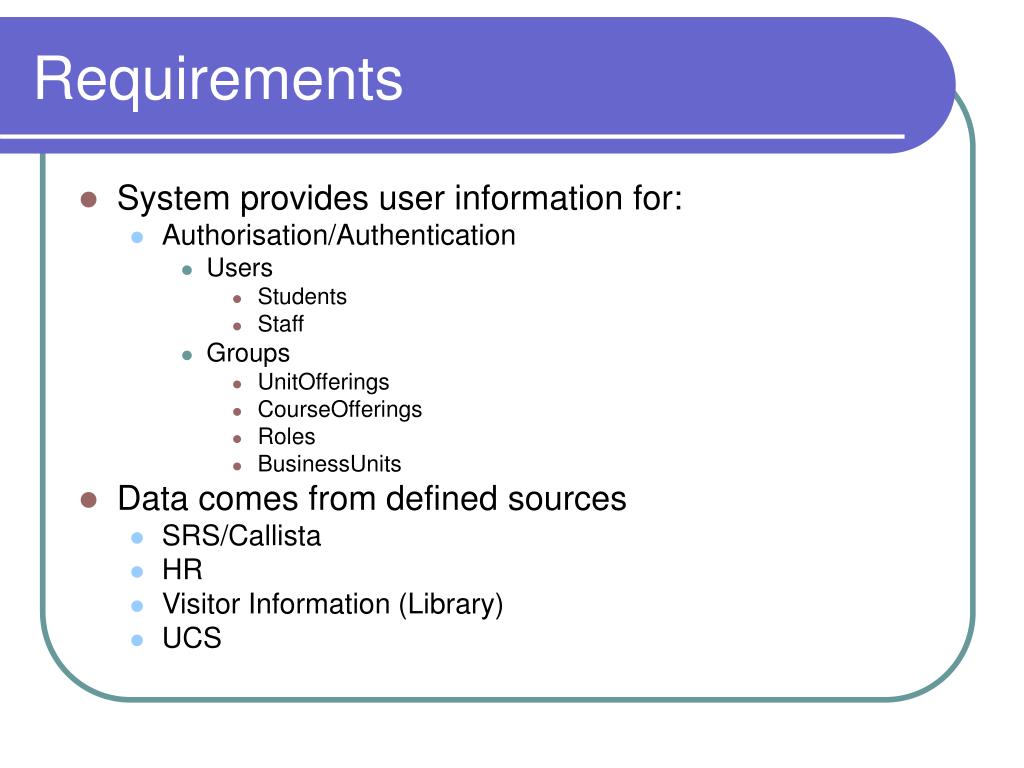

  3. Requirements • System provides user information for: • Authorisation/Authentication • Users • Students • Staff • Groups • UnitOfferings • CourseOfferings • Roles • BusinessUnits • Data comes from defined sources • SRS/Callista • HR • Visitor Information (Library) • UCS

  4. Requirements (cont…) • User accounts created • Password management controlled centrally through Account Management System (AMS) • Initial password generated

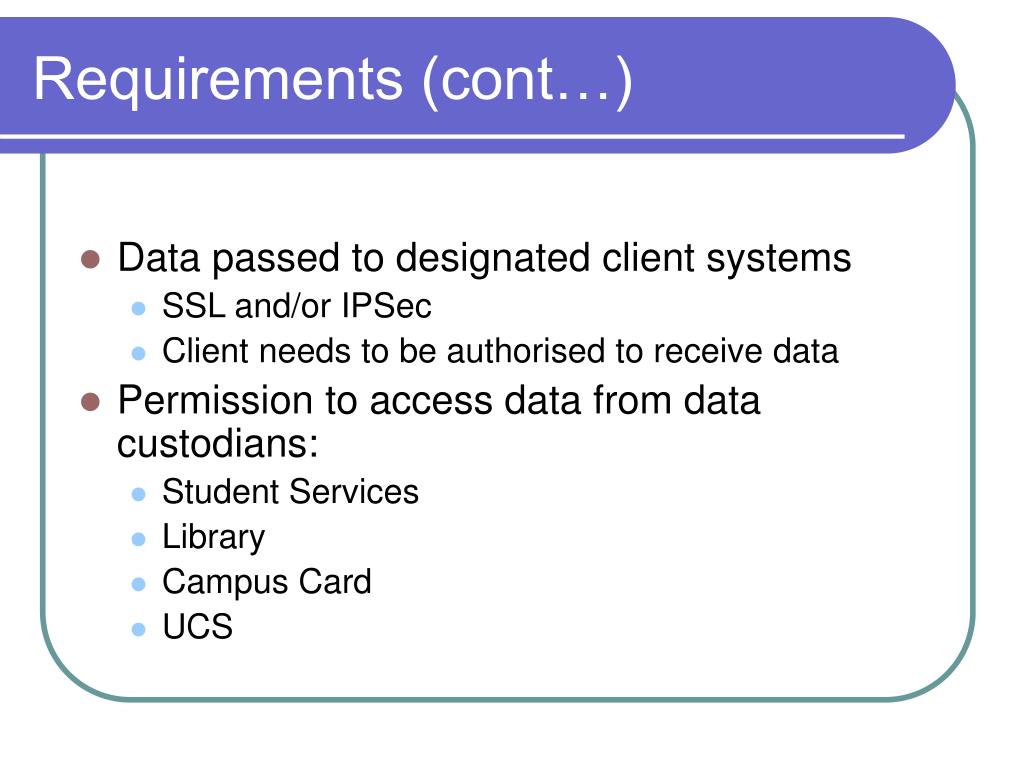

  5. Requirements (cont…) • Data passed to designated client systems • SSL and/or IPSec • Client needs to be authorised to receive data • Permission to access data from data custodians: • Student Services • Library • Campus Card • UCS

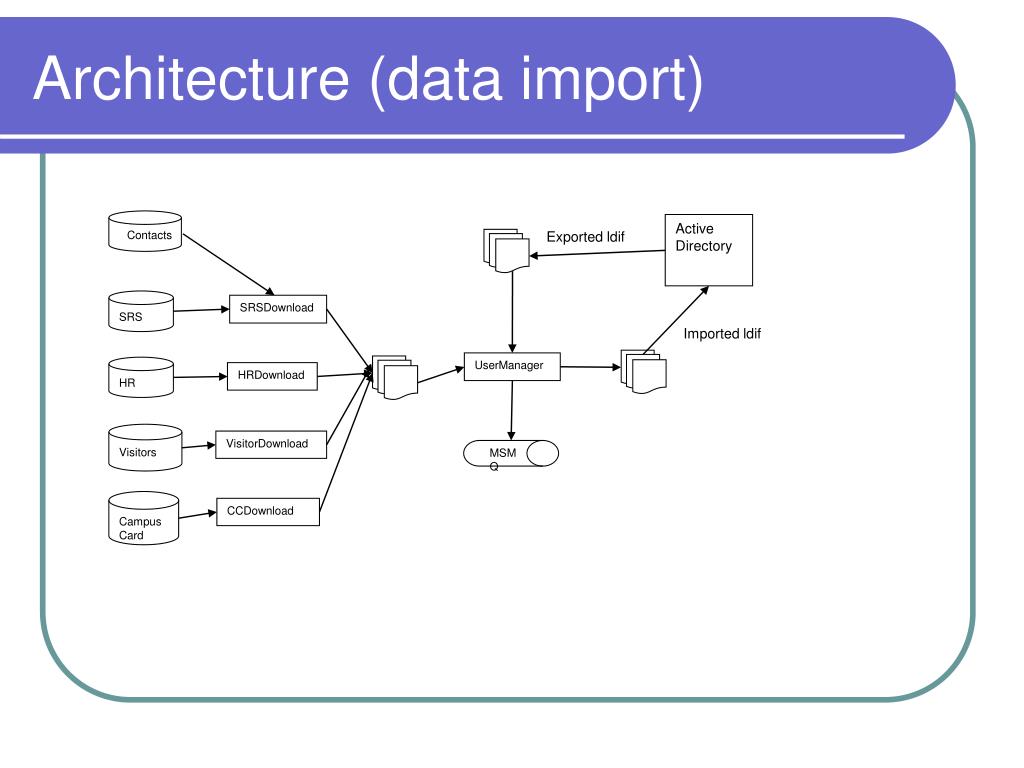

  6. Architecture (data import) Active Directory Contacts Exported ldif SRS SRSDownload Imported ldif UserManager HR HRDownload Visitors VisitorDownload MSMQ Campus Card CCDownload

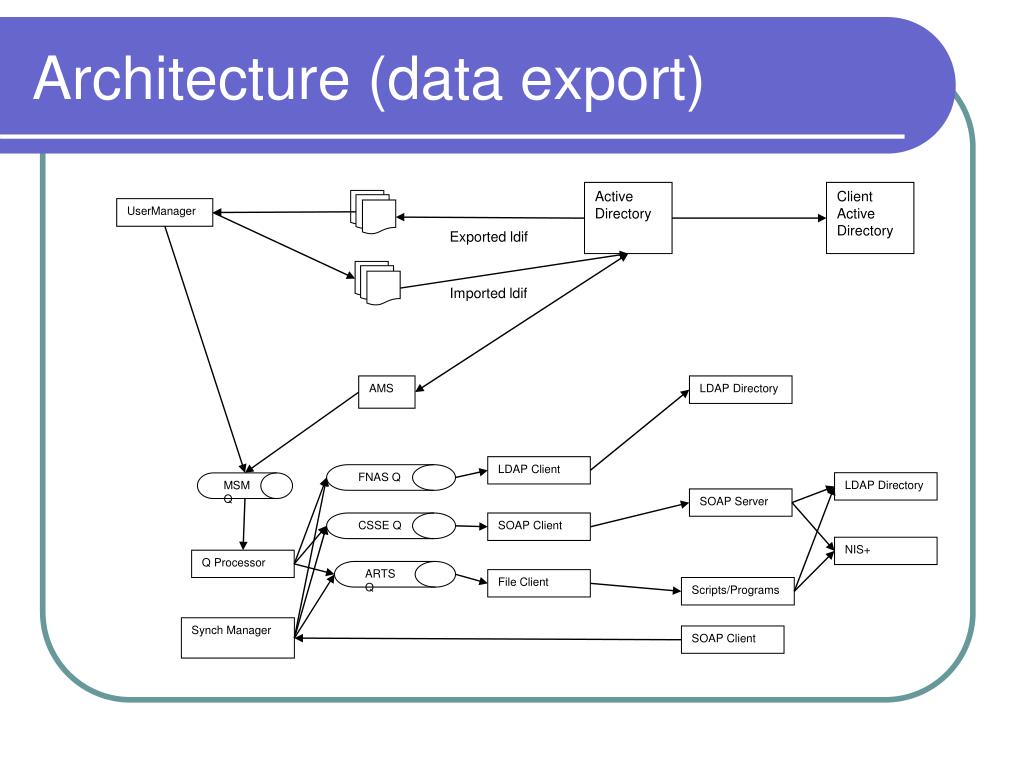

  7. Architecture (data export) Active Directory Client Active Directory UserManager Exported ldif Imported ldif AMS LDAP Directory LDAP Client FNAS Q LDAP Directory MSMQ SOAP Server CSSE Q SOAP Client NIS+ Q Processor ARTS Q File Client Scripts/Programs Synch Manager SOAP Client

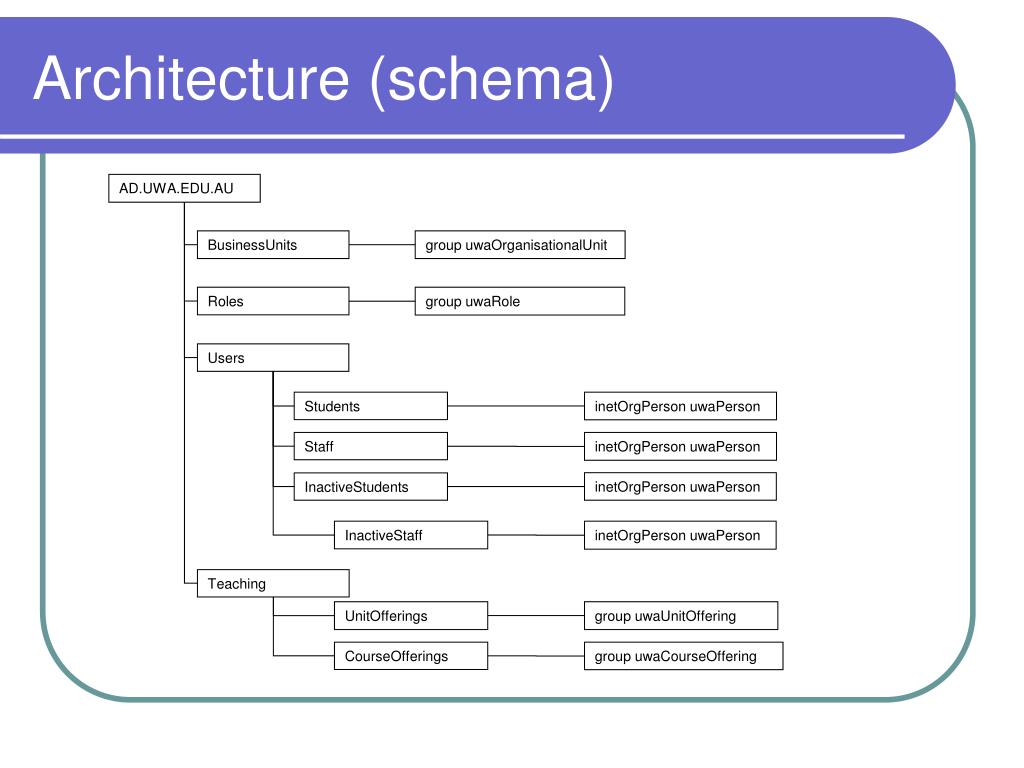

  8. Architecture (schema) AD.UWA.EDU.AU BusinessUnits group uwaOrganisationalUnit Roles group uwaRole Users Students inetOrgPerson uwaPerson Staff inetOrgPerson uwaPerson inetOrgPerson uwaPerson InactiveStudents InactiveStaff inetOrgPerson uwaPerson Teaching UnitOfferings group uwaUnitOffering CourseOfferings group uwaCourseOffering

  9. Architecture (AMS) • Account Management System • Prime requirement for web based interaction • No PIN? • May allow PIN as initial password • Use student number or username as account name. • User component • Initial password, change password, • Help desk • Reset password, disable, lock account

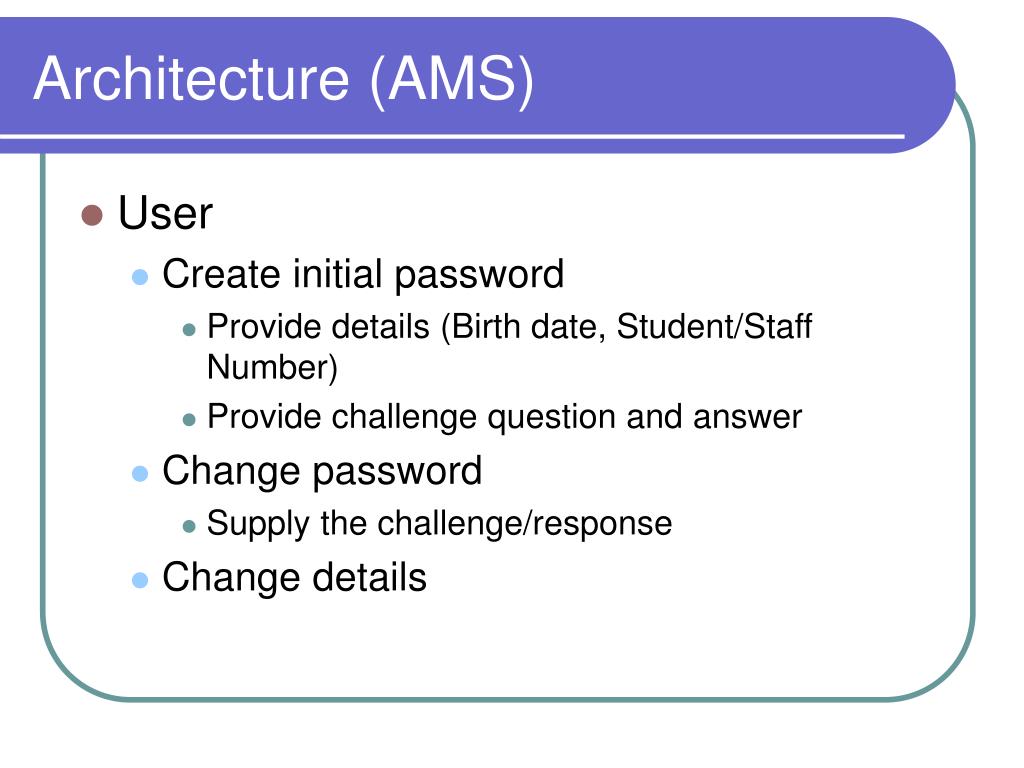

  10. Architecture (AMS) • User • Create initial password • Provide details (Birth date, Student/Staff Number) • Provide challenge question and answer • Change password • Supply the challenge/response • Change details

  11. Architecture (AMS) • Helpdesk • Search for users • Reset password • User provides answer to challenge • Disable/Lock account

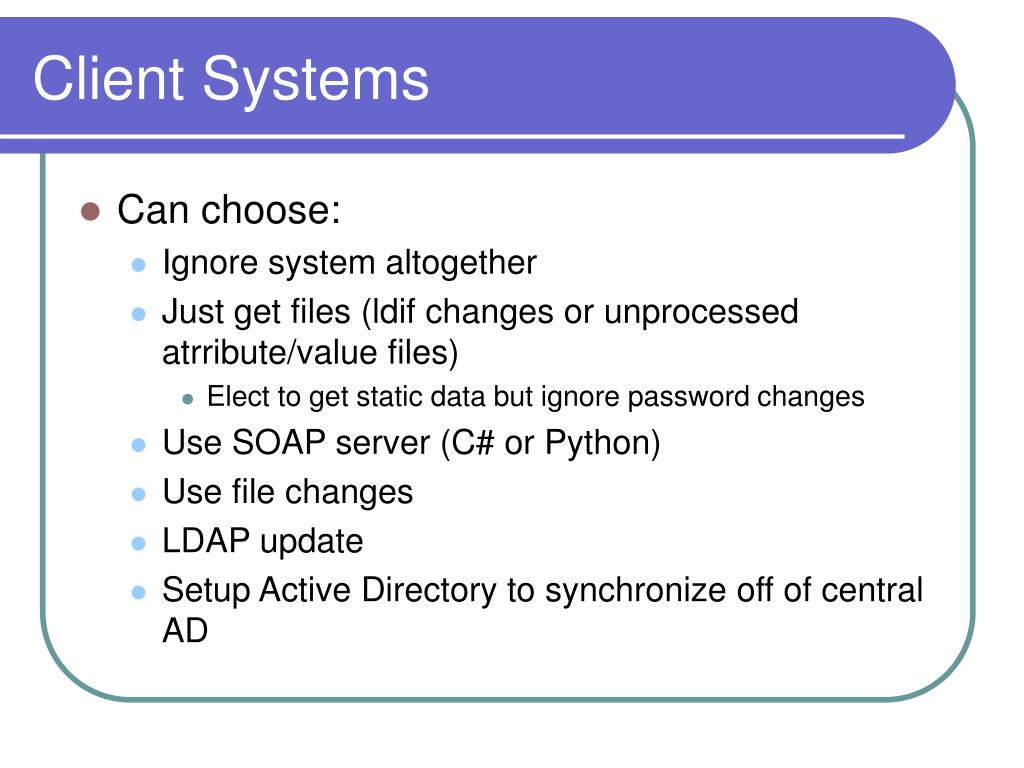

  12. Client Systems • Can choose: • Ignore system altogether • Just get files (ldif changes or unprocessed atrribute/value files) • Elect to get static data but ignore password changes • Use SOAP server (C# or Python) • Use file changes • LDAP update • Setup Active Directory to synchronize off of central AD

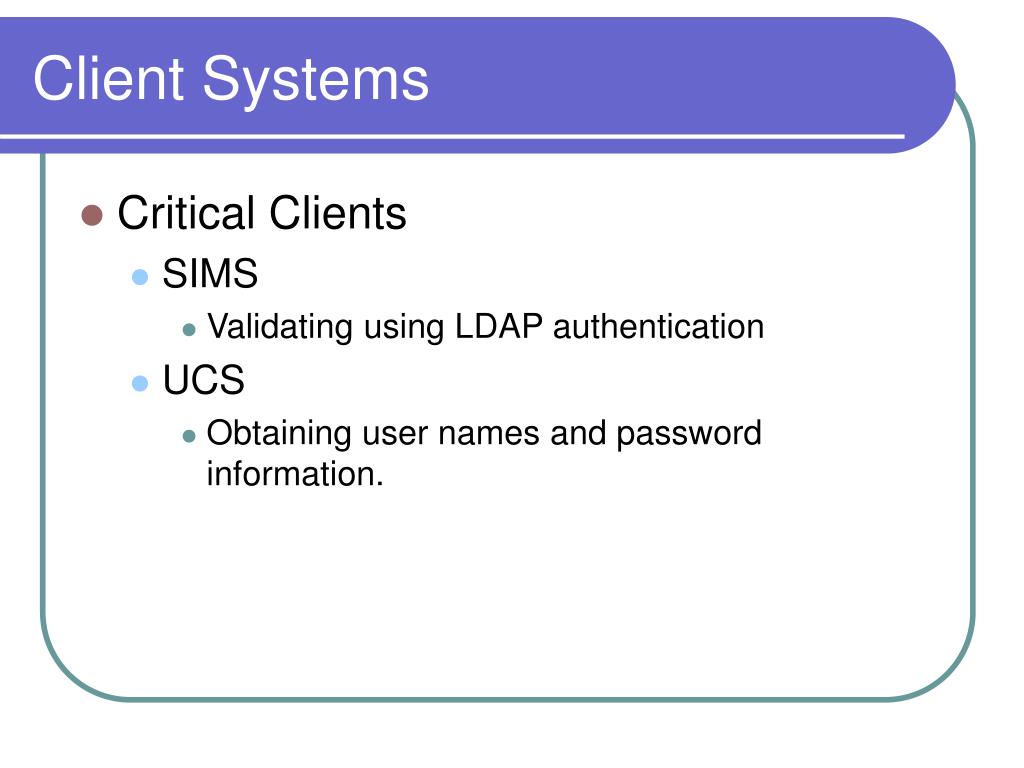

  13. Client Systems • Critical Clients • SIMS • Validating using LDAP authentication • UCS • Obtaining user names and password information.

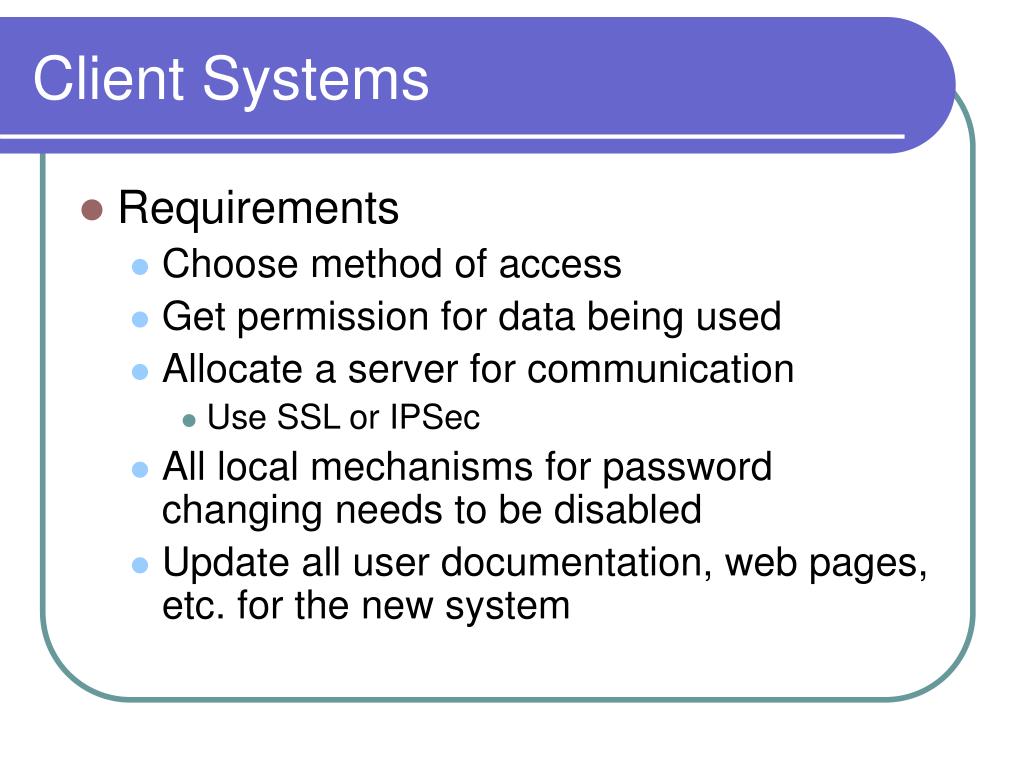

  14. Client Systems • Requirements • Choose method of access • Get permission for data being used • Allocate a server for communication • Use SSL or IPSec • All local mechanisms for password changing needs to be disabled • Update all user documentation, web pages, etc. for the new system

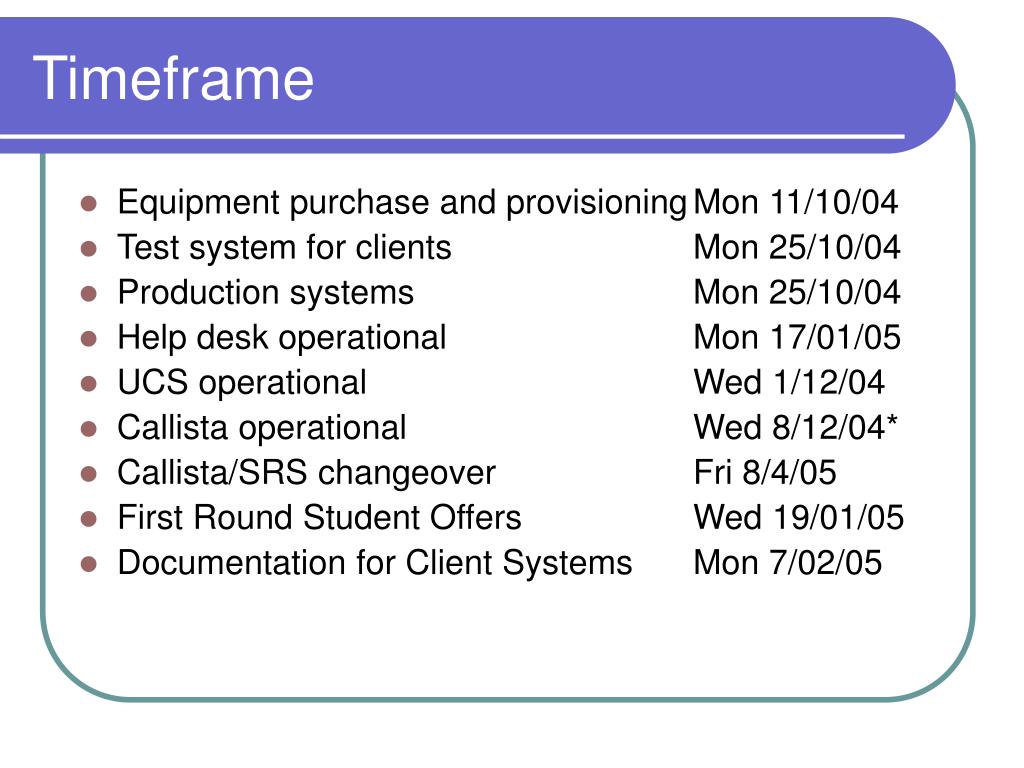

  15. Timeframe • Equipment purchase and provisioning Mon 11/10/04 • Test system for clients Mon 25/10/04 • Production systems Mon 25/10/04 • Help desk operational Mon 17/01/05 • UCS operational Wed 1/12/04 • Callista operational Wed 8/12/04* • Callista/SRS changeover Fri 8/4/05 • First Round Student Offers Wed 19/01/05 • Documentation for Client Systems Mon 7/02/05

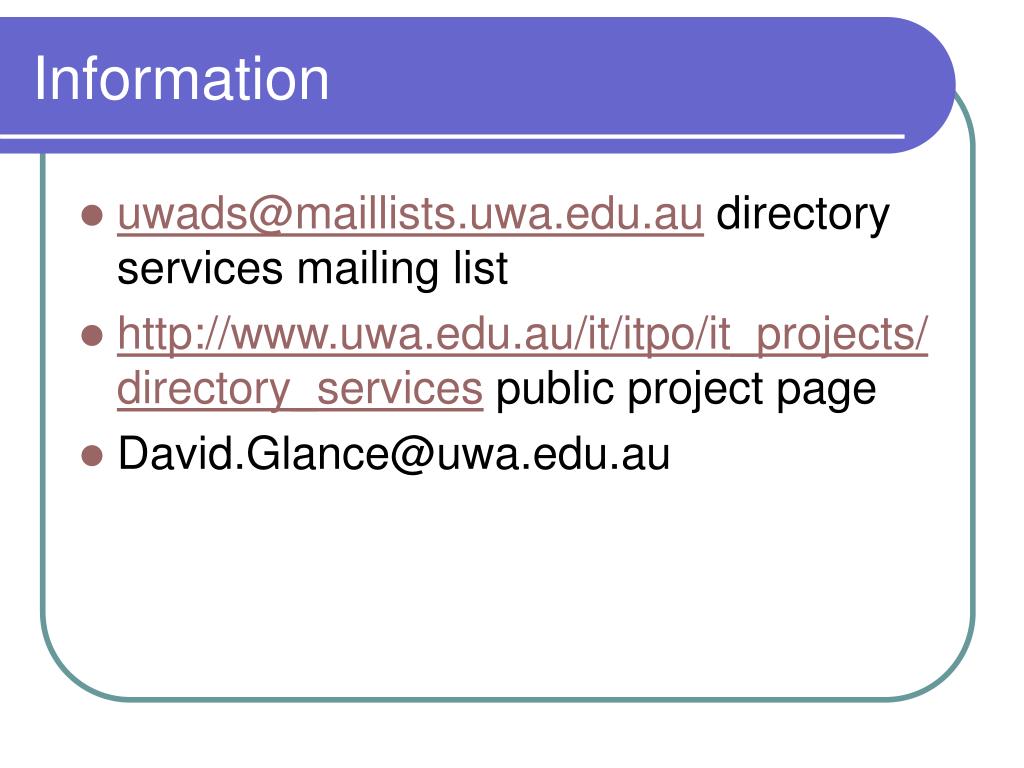

  16. Information • uwads@maillists.uwa.edu.au directory services mailing list • http://www.uwa.edu.au/it/itpo/it_projects/directory_services public project page • David.Glance@uwa.edu.au
