  1. Less Pain, Most of the Gain:Incrementally DeployableICN Seyed K. Fayazbakhsh, Yin Lin, Amin Tootoonchian, Ali Ghodsi, TeemuKoponen, Bruce Maggs, KC Ng, Vyas Sekar, Scott Shenker

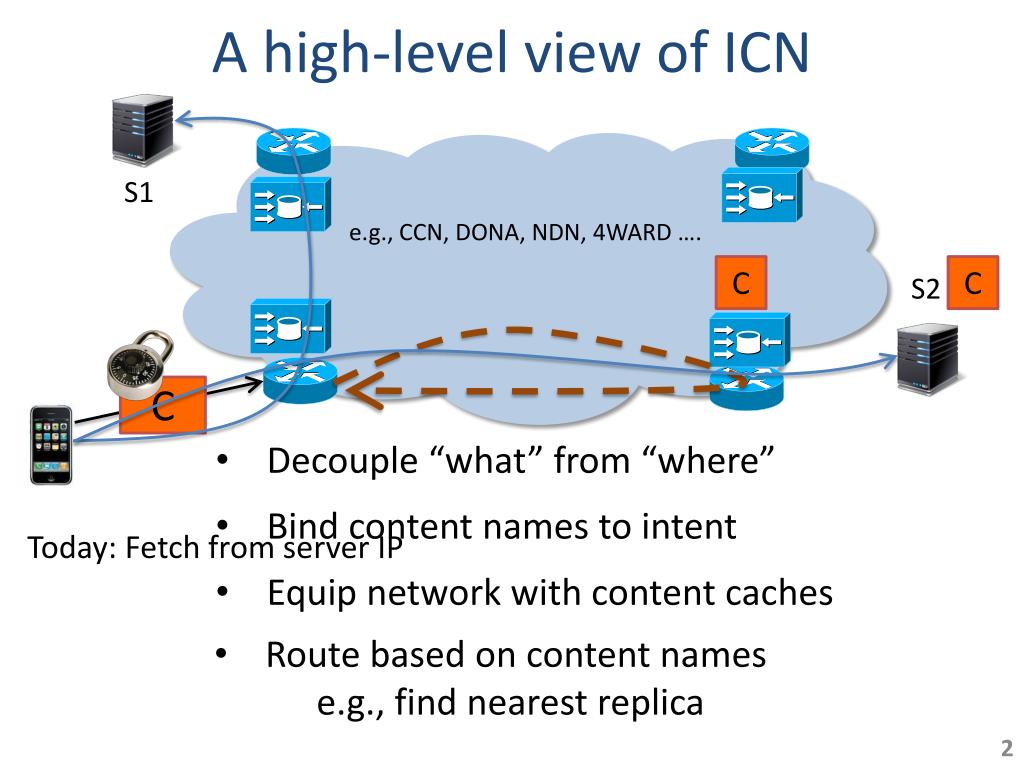

  2. A high-level view of ICN S1 e.g., CCN, DONA, NDN, 4WARD …. C C S2 C • Decouple “what” from “where” • Bind content names to intent Today: Fetch from server IP • Equip network with content caches • Route based on content names • e.g., find nearest replica

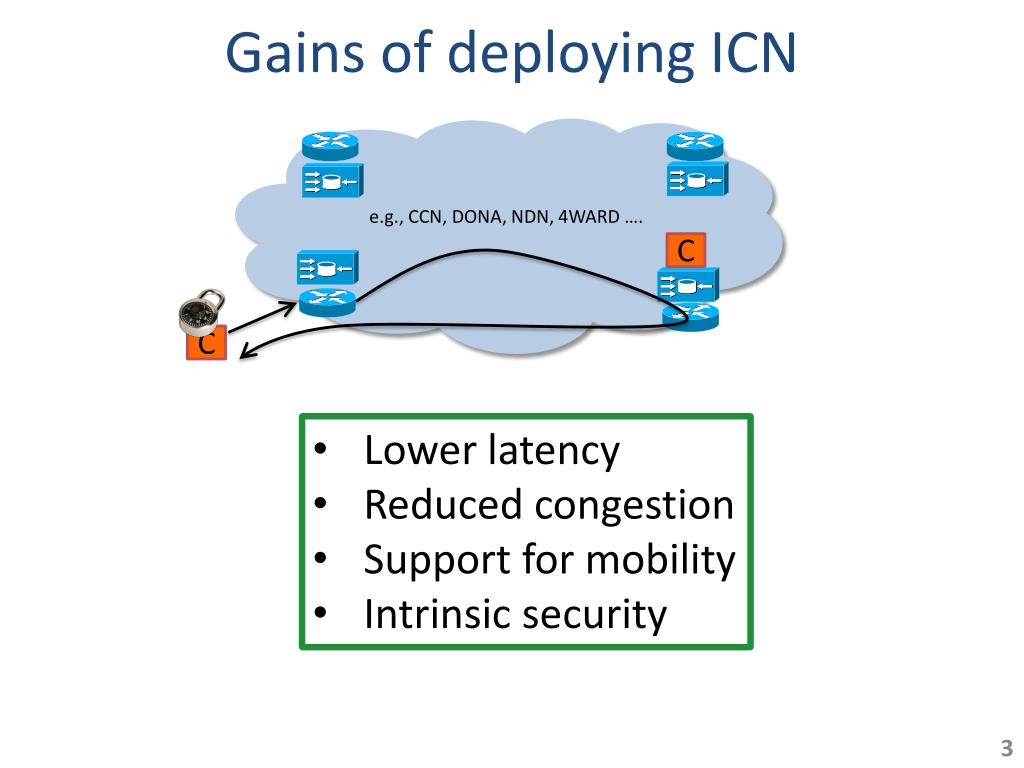

  3. Gains of deploying ICN e.g., CCN, DONA, NDN, 4WARD …. C • Lower latency • Reduced congestion • Support for mobility • Intrinsic security C

  4. Pains of deploying ICN e.g., CCN, DONA, NDN, 4WARD …. C • Routers need to be upgraded • Routing needs to be content based C

  5. Motivation for this work • Lower latency • Reduced congestion • Support for mobility • Intrinsic security Gains Can we get ICN gains without the pains? e.g., existing technologies? e.g., incrementally deployable? • Routers need to be upgraded with caches • Routing needs to be content based Pains

  6. Quantitative Approach: Attribute gains to tenets Qualitative • Lower latency • Reduced congestion • Support for mobility • Intrinsic security • Decouple “what” from “where” • Bind content names to intent • Equip network with content caches • Route based on content names

  7. Key Takeaways • To achieve quantitative benefits: • Just cache at the “edge” With Zipf-like workloads, pervasive caching and nearest-replica routing don’t add much • To achieve qualitative benefits: • Build on HTTP Basis for incrementally deployable ICN

  8. Outline • Background and Approach • Analyzing quantitative benefits • Qualitative benefits  Incrementally deployable ICN • Discussion

  9. Design space of caching • Quantiative benefits are largely due to caching • Two key dimensions to this design space: • Cache placement • E.g., everywhere? Edge? • Request routing • E.g., shortest path, nearest replica?

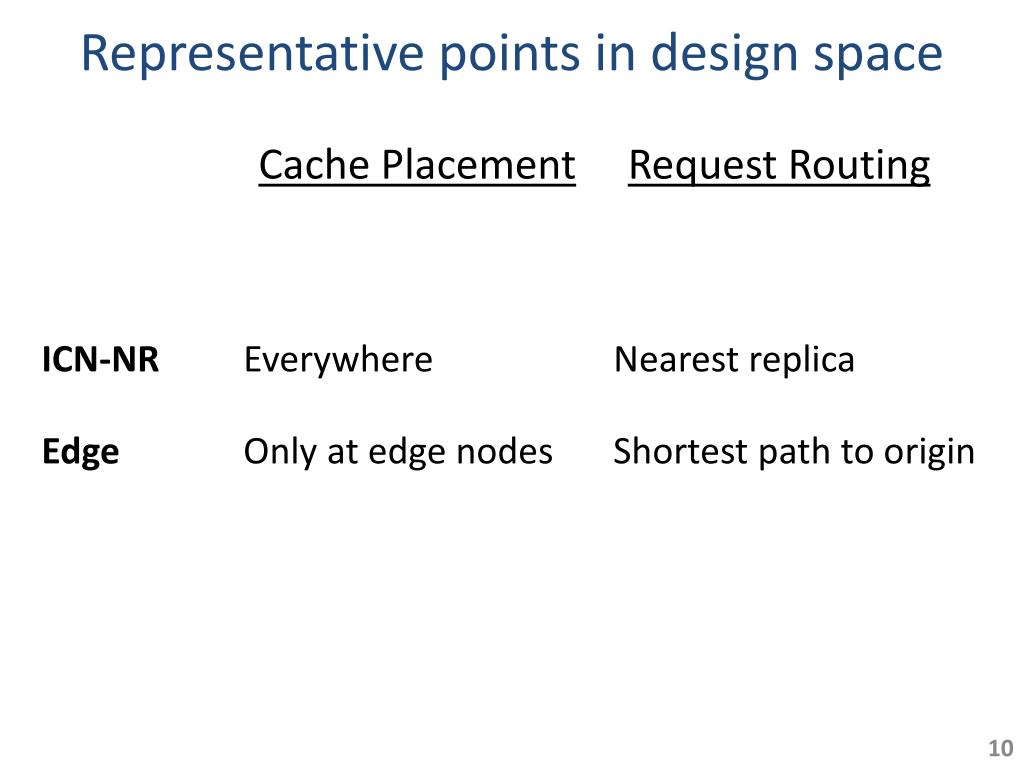

  10. Representative points in design space Cache PlacementRequest Routing

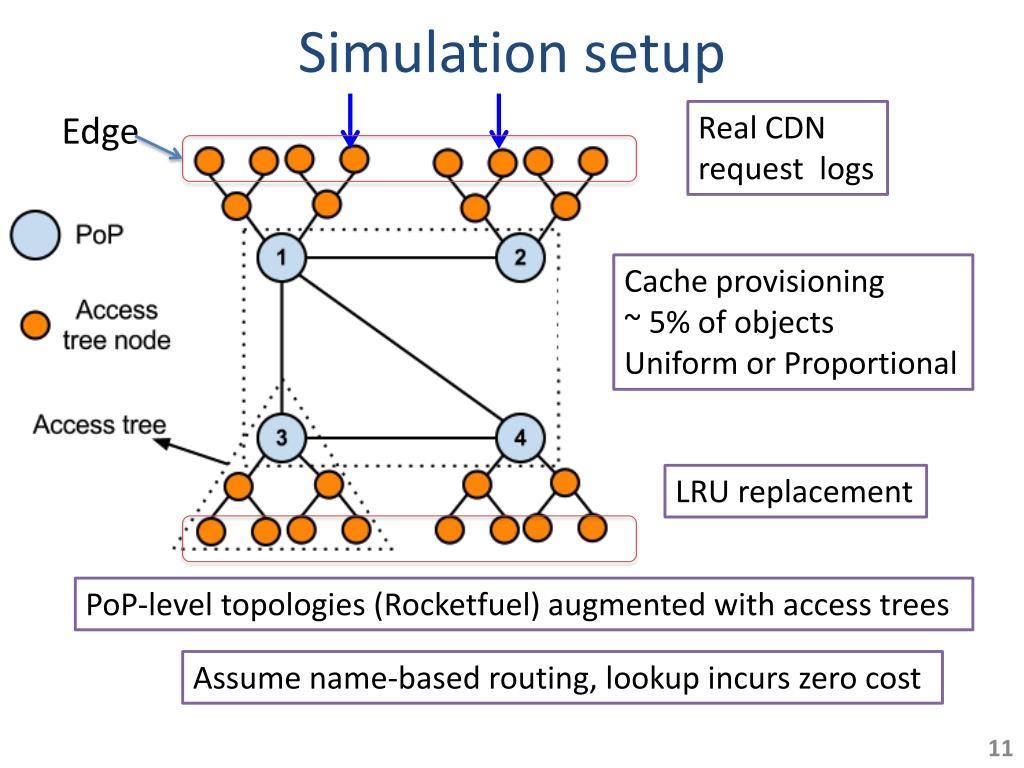

  11. Simulation setup Edge Real CDN request logs Cache provisioning ~ 5% of objects Uniform or Proportional LRU replacement PoP-level topologies (Rocketfuel) augmented with access trees Assume name-based routing, lookup incurs zero cost

  12. Request latency % improvement over “no-cache” Telstra Sprint Level3 AT&T Gap between architectures is small (< 10%) Similar results for congestion + server load

  13. Sensitivity Analysis % gap ICN-NR - Edge Best case Normalize Baseline Double Even in best case, ICN-NR is only 17% better Gap can be easily reduced

  14. Implications of Edge Caching • Incrementally deployable • Domains get benefits without relying on others • Incentive deployable • Domains’ users get benefits if domain deploys caches

  15. Outline • Background and motivation • Approach • Quantitative benefits of ICN • Qualitative benefits  Incrementally deployable ICN • Discussion

  16. Revisiting Qualitative Aspects • Decouple names from locations 2. Binding names to intents Build on HTTP • Can be viewed as providing “get-by-name” abstraction • Can reuse existing web protocols(e.g., proxy discovery) Use self-certifying names e.g., “Magnet” URI schemes Extend HTTP for “crypto” and other metadata

  17. idICN: Content Registration Name Resolution System Register L.P.idicn.org Reverse Proxy P = Hash of public key L = content label Publish content e.g., http://en.5671….fda627b.idicn.org/wiki/ Origin Server

  18. idICN: Client Configuration Name Resolution System Proxy Edge Cache Reverse Proxy Automatic Proxy Discovery e.g., WPAD Client Origin Server

  19. idICN: Content Delivery Name Resolution System Try it out: www.idicn.org 2. Name resolution 3. Rqst by address Reverse Proxy Proxy Edge Cache 5. Response + Metadata 1. RqstL.P.idicn.org 4. Fetch 6. Response Client Origin Server

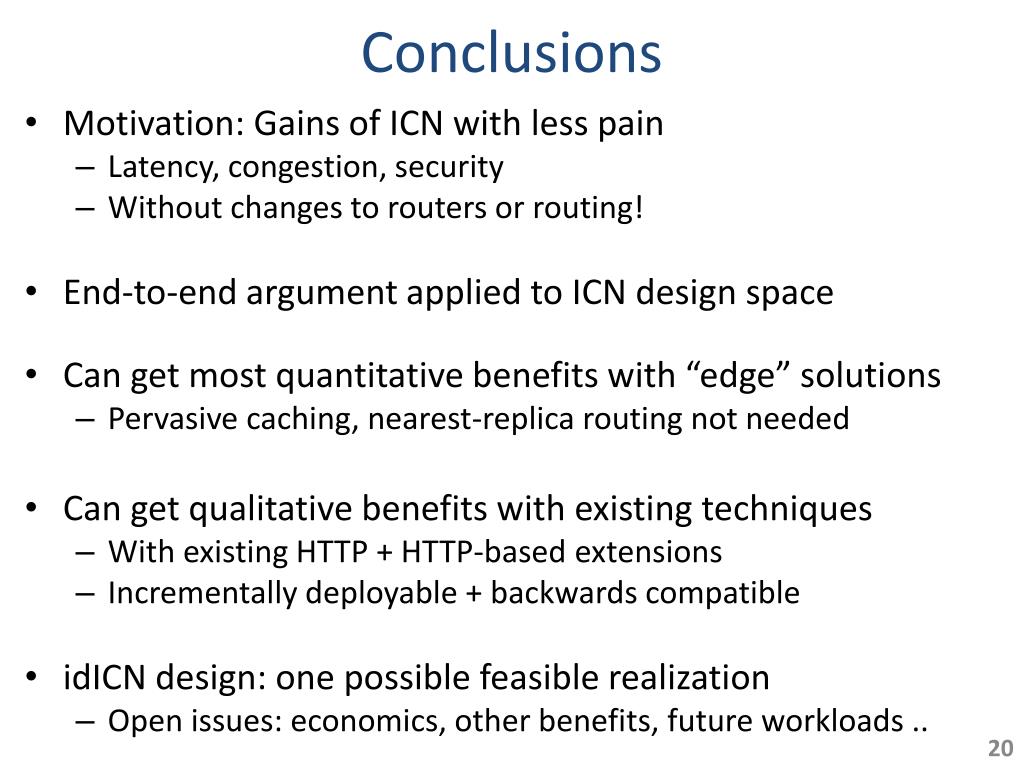

  20. Conclusions • Motivation: Gains of ICN with less pain • Latency, congestion, security • Without changes to routers or routing! • End-to-end argumentapplied to ICN design space • Can get most quantitative benefits with “edge” solutions • Pervasive caching, nearest-replica routing not needed • Can get qualitative benefits with existing techniques • With existing HTTP + HTTP-based extensions • Incrementally deployable + backwards compatible • idICN design: one possible feasible realization • Open issues: economics, other benefits, future workloads ..
