On Z 2  Z 2 -magic Graphs

1. On Z2Z2-magic Graphs Yihui Wen, Suzhou Science and Technology College Sin-Min Lee, San Jose State University Hsin-hao Su*, Stonehill College 40th SEICCGTC At Florida Atlantic University March 4, 2009

2. Labelings For any abelian group A written additively we denote A*=A-{0}. Any mapping l:E(G)  A* is called a labeling. Given a labeling on edge set of G we can induced a vertex set labeling l+: V(G) A as follows: l+(v)= {l(u,v) : (u,v) in E(G)}

3. A-magic A graph G is called A-magic if there is a labeling l: E(G) A* such that for each vertex v, the sum of the labels of the edges incident with v are all equal to the same constant; i.e., l+(v) = c for some fixed c in A. In general, G may admits more than one labeling to become a A-magic graph.

4. Klein-four group Z2Z2 • The Klein-four group V4 is the direct sum Z2Z2. Its multiplication looks like

5. Klein-four group V4 For simplicity, we denote (0,0), (0,1), (1,0) and (1,1) by 0, a, b and c, respectively. Thus, V4 is the group {0, a, b, c} with the operation + as:

6. Z2Z2–magic and Z2–magic • Theorem:The wheel graph Wn+1 = N1+Cn is both Z2Z2–magic and Z2–magic if n is odd.

7. Odd Graphs • Definition:A graph G is called an odd graph if its degree sequence <d1,d2,…, dn> has the property that di is odd for all i>1 . • Theorem: All odd graphs are both Z2Z2–magic and Z2–magic.

8. Example : K4 • K4 is Z2Z2–magic with sum 0 and Z2–magic with sum 1.

9. K4(a1,a2,a3) Definition:A graph K4(a1,a2,a3) where ai >1 for all i=1,2,3 is a graph which is formed by a K4 where V(Kn)={v0,v1,v2,v3} and for each vi, where i=1,2,3, there exists ai pendant edges.

10. K4(a1,a2,a3) Corollary: A K4(a1,a2,a3) where ai >1 for all i=1,2,3 is both Z2Z2–magic and Z2–magic if aiis even for all i=1,2,3.

11. Z2Z2–magic but not Z2-magic • Theorem:The wheel graph Wn+1 = N1+Cn is Z2Z2–magic, but not Z2–magic if n is even.

12. d(G) is Z2Z2–magic, but not Z2–magic. d(G)=<1,2,3>

13. We rename d(g) as (G,u). The amalgamation of copies of (G,u) is formed by gluing the pendent vertex u of each copy into a common vertex. We denote the amalgamation of n copies of (G,u) by Amal(n,(G,u)). Thus, (G,u) is Amal(1,(G,u)). Amalgamation of copies of d(g)

14. Amal(n,(G,u)) Theorem:The Amal(n,(G,u)) is Z2Z2–magic but not Z2–magic if n is odd.

15. Sub(C2n (∑), §) • Let C2n be a cycle with vertex-set V(C2n) ={c1,…,cn, c1*,…,cn*} and ∑ be a permutation of {1,2,…,n}. We construct a cubic graph C2n (∑) as follows: V(C2n (∑)) = V(C2n ) E(C2n (∑)) = E(C2n ) { ( ci,c∑(i)* ): i =1,2,…,n} • Now let § : E(C2n )→N be a mapping. If §(ei) = ai and ai not equal 0, then we subdivide the edge ei by insert ai new vertices in the edge ei. • If §(ei) = 0 , we do not add any vertex in ei.

16. Example

17. Sub(C2n (∑), §) Theorem:For any n > 2, and any ∑ , §, the subdivision graph Sub(C2n (∑),§) is Z2Z2–magic. It is not Z2–magic if § is not a zero mapping.

18. Comb(n) Definition:A graph Comb(n) where n is a positive integer which is greater than or equal to 3 is a graph formed by a path Pn and for each inside vertices vi, where i=2,3,…,n-1, there exists a pendant edge with a vertex. We call these pendant vertices by vi*.

19. Village(n, F) Definition:Let Pn be the path within a graph Comb(n). Let F: E(Pn)→N be a mapping. A graph Village(n,F) is a graph which is formed by a Comb(n) and glue a path PF(ei)+2 to vi* and vi+1* for all i=2,…,n-2 or to vi and vi+1* for i=1 or n-1.

20. Examples

21. Village(n, F) Theorem:For any n > 3, and any Comb(n) , and any F, the graph Village(n, F) is Z2Z2–magic, but not Z2–magic.

22. Village(n) Definition:Let Pn and Pn* be two paths of length n>2 where their vertices are named by v1,v2,…,vn and v1*,v2*,…,vn*, respectively. A graph Village(n) is a graph which is formed by Pn and Pn* with extra vertices r1,r2,…,rn-1 and extra edges (vi,vi*) for all i=1,…,n and (ri,vi*) and (ri, vi+1*) for all i=1,2,…,n-1

23. Village(n), n=2,3

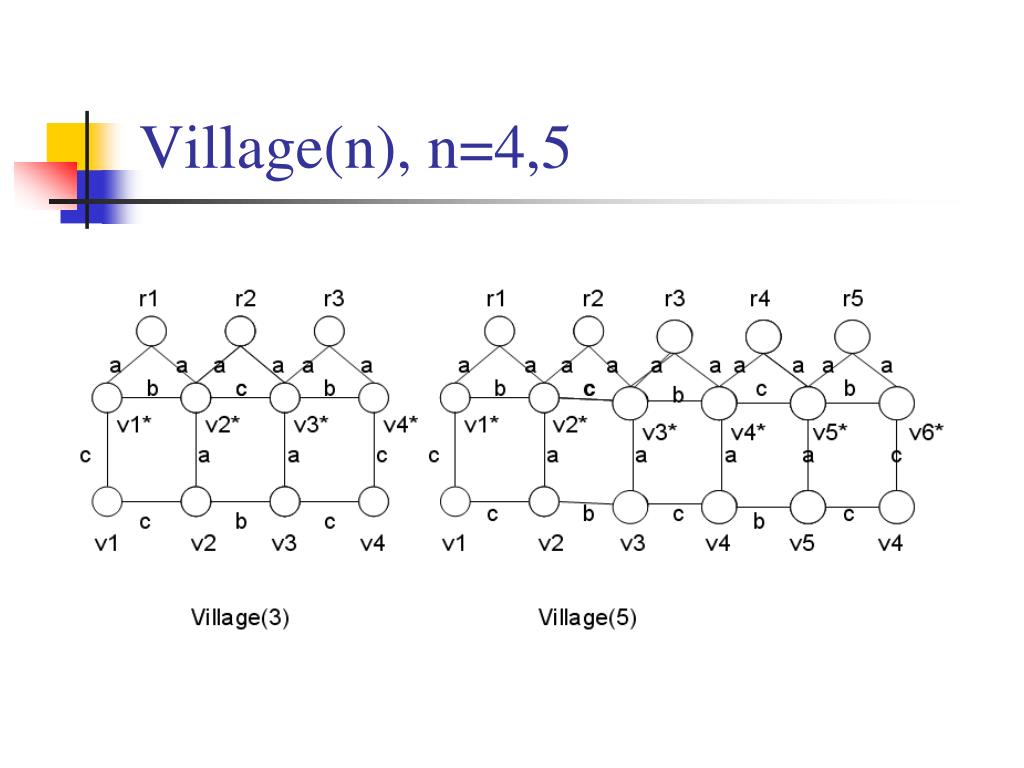

24. Village(n), n=4,5

25. Not Z2Z2–magic but Zk-magic Theorem:The Amal(n,(G,u)) is not Z2Z2–magic but Z3–magic if n is even

26. Pagoda(1) Definition:Pagoda(1) is a graph which combines one edge of 3-cycle C3 with one edge side of 4-cycle C4. Theorem (Chou and Lee):Pagoda(1) is is not Z3–magic.

27. Pagoda(n) Definition:Pagoda(2) is a graph which combines the bottom edge of Pagoda(1) with one edge of 4-cycle C4. Pagoda(n) is a graph which combines the bottom edge of Pagoda (n-1) with one edge of 4-cycle C4.

28. Pagoda(n) Theorem (Chou and Lee):Pagoda(n) is Z3–magic for all n > 1. Theorem:Pagoda(n) is Z2Z2–magic for all n.

29. Pagoda(n)

30. Mongolian Tent Definition:Mongolian Tent (1), or MT (1), is Pagoda (1). Definition:MT(2) is a graph which combines vertices and edges of the right hand side of a MT(1) with vertices and edges of the left hand side of another MT(1).

31. Mongolian Tent MT(n) Definition:MT(n) is a graph which combines vertices and edges of the right hand side of a MT(n-1) with vertices and edges of the left hand side of another MT(1), the corresponding vertices and edges are similar to the construction of MT(2).

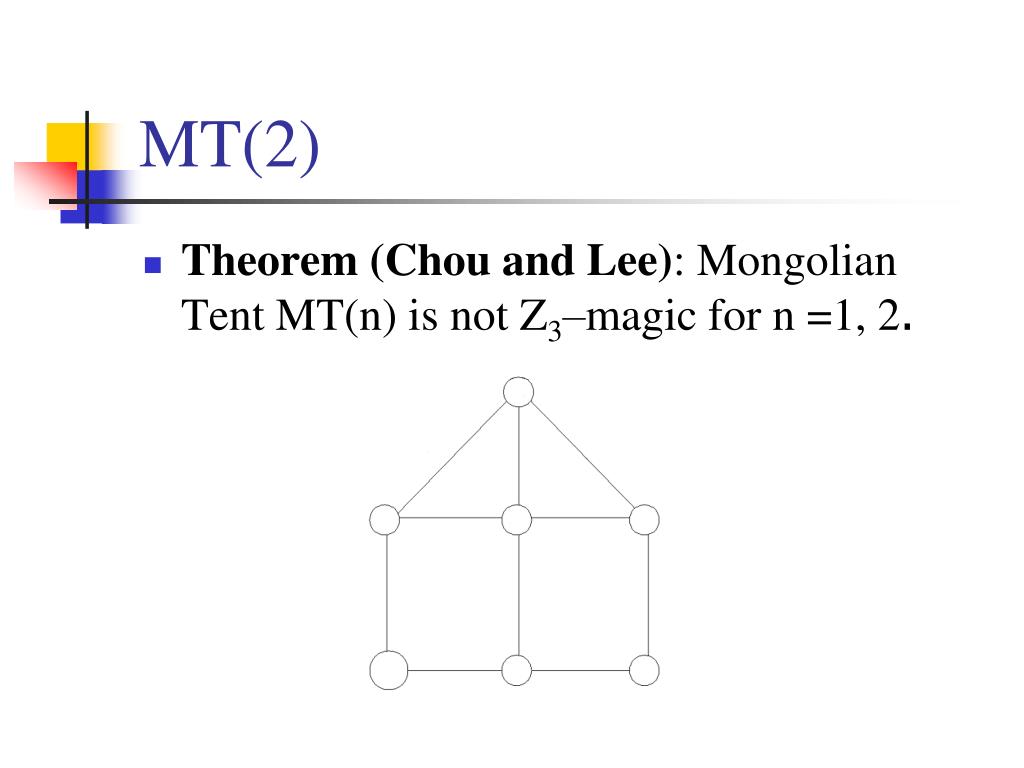

32. MT(2) Theorem (Chou and Lee):Mongolian Tent MT(n) is not Z3–magic for n =1, 2.

33. MT(n) Theorem (Chou and Lee):Mongolian Tent MT(n) is Z3–magic for all n > 2.

34. MT(n) Theorem:Mongolian Tent MT(n) is Z2Z2–magic for all n.

35. Womb Graphs Definition:A womb μ(n;a1,…,an) where n>3 is a unicyclic graph which is formed by a cycle Cn where V(Cn)={v1,v2,…,vn} and for each vi, there exists ai pendant edges.

36. μ(3;1,3,5) μ(3;1,3,5) is both Z2Z2–magic and Z2–magic.

37. μ(n;a1,…,an), ai are odd Theorem:The graph μ(n;a1,…,an) is Z2Z2–magic and Z2–magic if aiis odd and greater or equal to 1 for all i=1,2,…,n.
