  1. Directed Study in Image Processing Hurricane satellite image analysis using 2x2 and 3x3 wavelet transforms Dr. J. Derado Pedro J. Soto

  2. It all starts with Lena and Haar • We began the course with the Haar Transform and the picture of Lena.

  3. 2nd Level Haar Transform Lena, 2nd Level Haar Transform

  4. 3rd Level Haar Transform Lena, 3rd Level Haar Transform

  5. Haar Transform Histograms • We look at the histogram of the resulting images and we adjust the images in order to compress the range of brightness and exaggerate the details.

  6. Using thresholds • We then looked at the Haar transform when using a threshold. If the coefficient exceeds the threshold, we mark the pixel in pure white. Lena, Binary Haar Threshold 1.0

  7. Using thresholds Lena, Binary Haar Threshold 10.0

  8. Using thresholds Lena, Binary Haar Threshold 25.0

  9. Absolute value Haar transform (no offset) • We look at Haar transforms using the absolute value. We then proceed to exaggerate the results by multiplying the coefficients by a scalar value. Lena, Absolute Haar Scalar Multiplier 1.0

  10. Absolute value Haar transform (no offset) Lena, Absolute Haar Scalar Multiplier 2.5

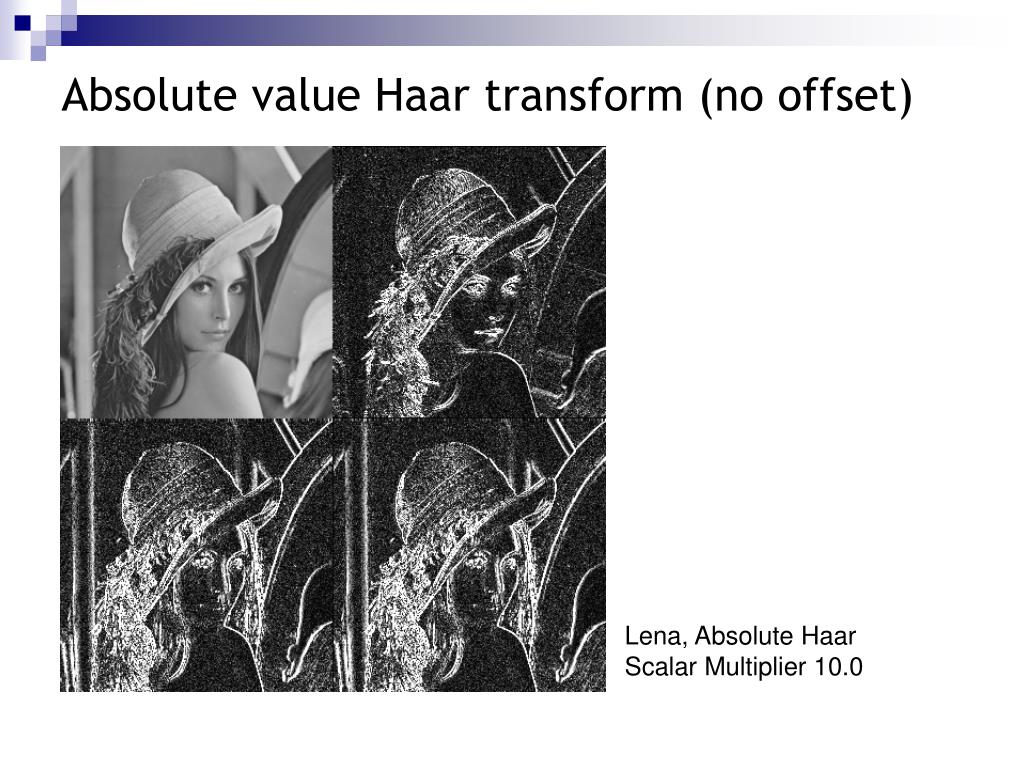

  11. Absolute value Haar transform (no offset) Lena, Absolute Haar Scalar Multiplier 10.0

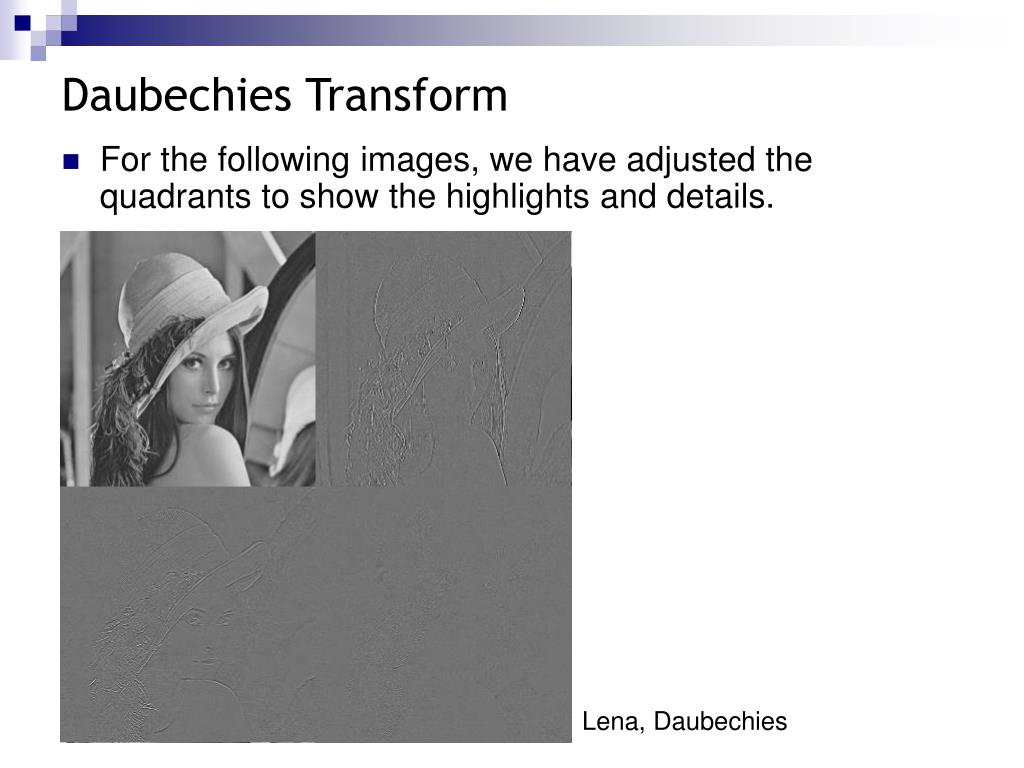

  12. Daubechies Transform • For the following images, we have adjusted the quadrants to show the highlights and details. Lena, Daubechies

  13. Daubechies Transform Lena, Daubechies Exaggerated

  14. 3x3 Transform • For the following images, we have adjusted the quadrants to show the highlights and details. Lena, 3x3 Transform

  15. 3x3 Transform Lena, 3x3 Transform Exaggerated

  16. Hurricane Images • Now we proceed to use the wavelet transform tools that we have developed to process hurricane satellite pictures. Hurricane Ivan, MODIS Haar Transform, Scalar Multiplier 5.0

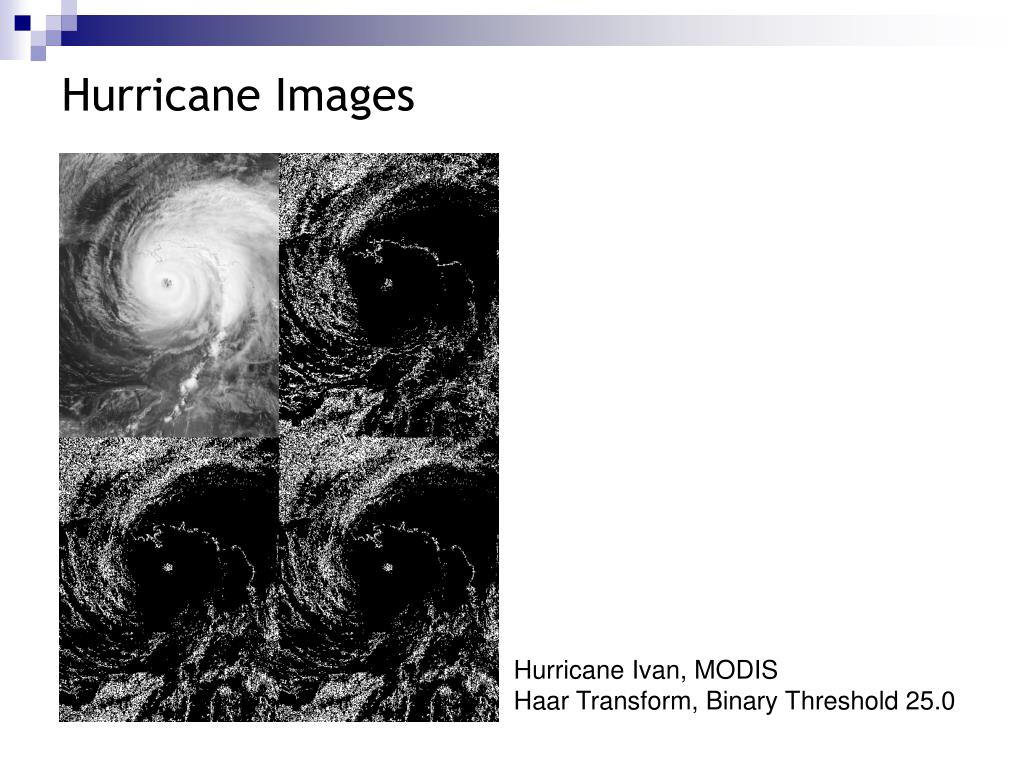

  17. Hurricane Images Hurricane Ivan, MODIS Haar Transform, Binary Threshold 25.0

  18. Hurricane Images Hurricane Ivan, MODIS Daubchies Transform, Exaggerated

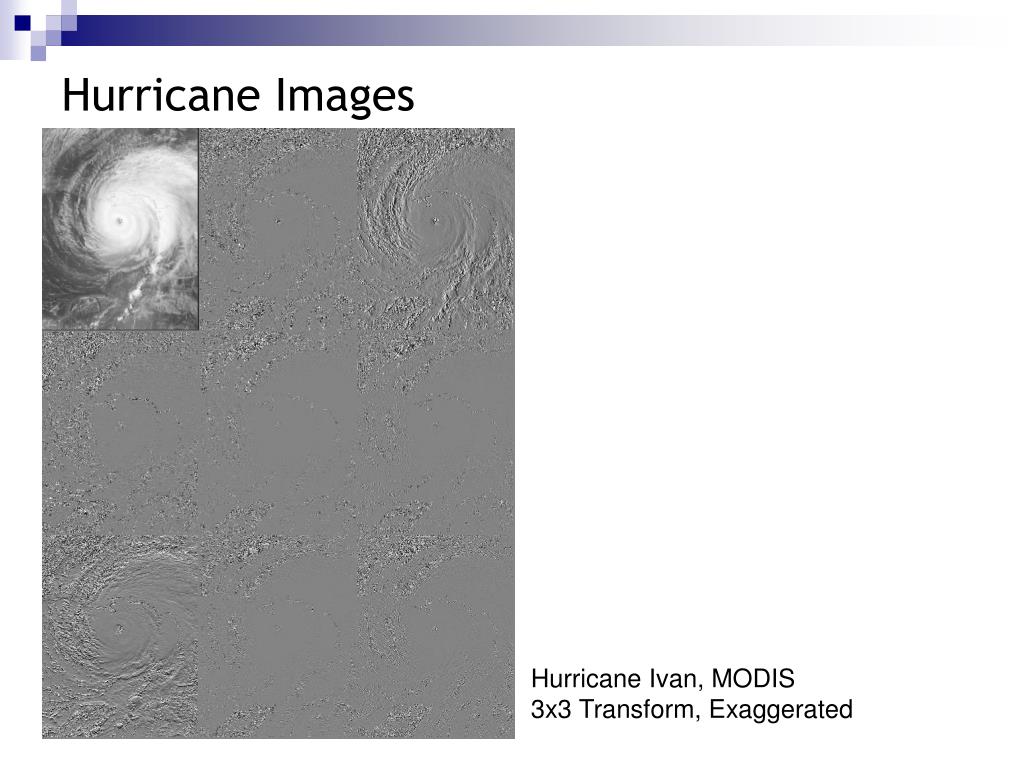

  19. Hurricane Images Hurricane Ivan, MODIS 3x3 Transform, Exaggerated

  20. Hurricane Images Hurricane Frances, MODIS Haar Transform, Scalar multiplier5.0

  21. Hurricane Images Hurricane Frances, MODIS Haar Transform, Binary Threshold 25.0

  22. Hurricane Images Hurricane Frances, MODIS Daubechie, Exaggerated

  23. Hurricane Images Hurricane Frances, MODIS 3x3 Transform, Exaggerated

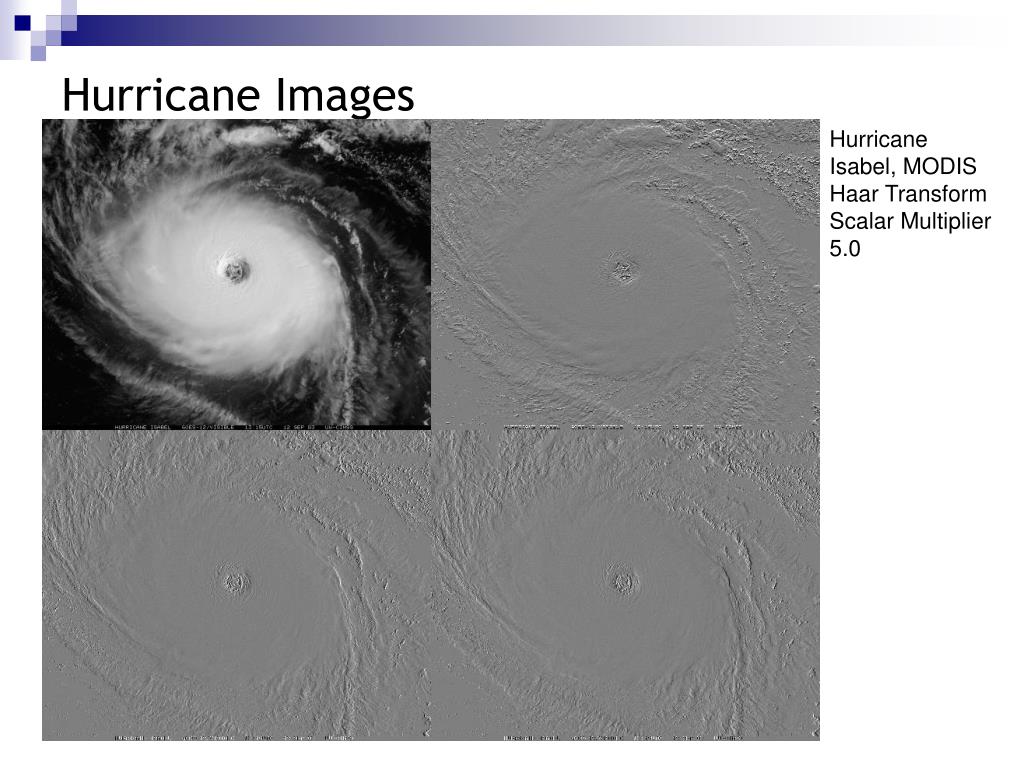

  24. Hurricane Images Hurricane Isabel, MODIS Haar Transform Scalar Multiplier 5.0

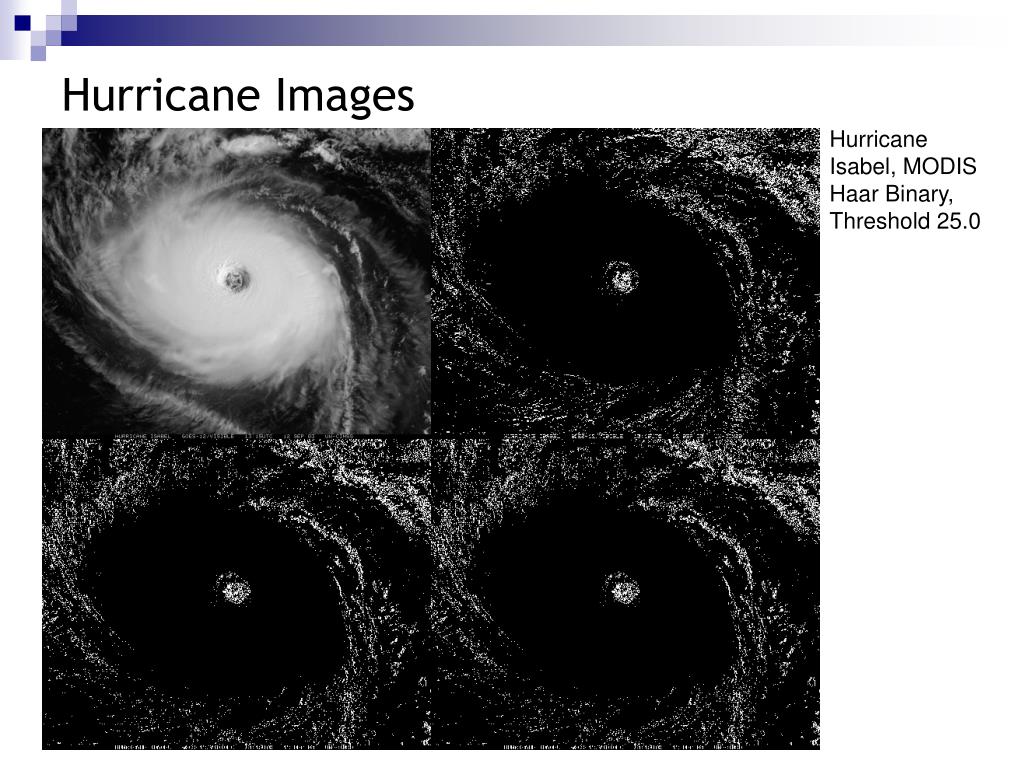

  25. Hurricane Images Hurricane Isabel, MODIS Haar Binary, Threshold 25.0

  26. Hurricane Images Hurricane Isabel, MODIS Daubechies Transform Exaggerated

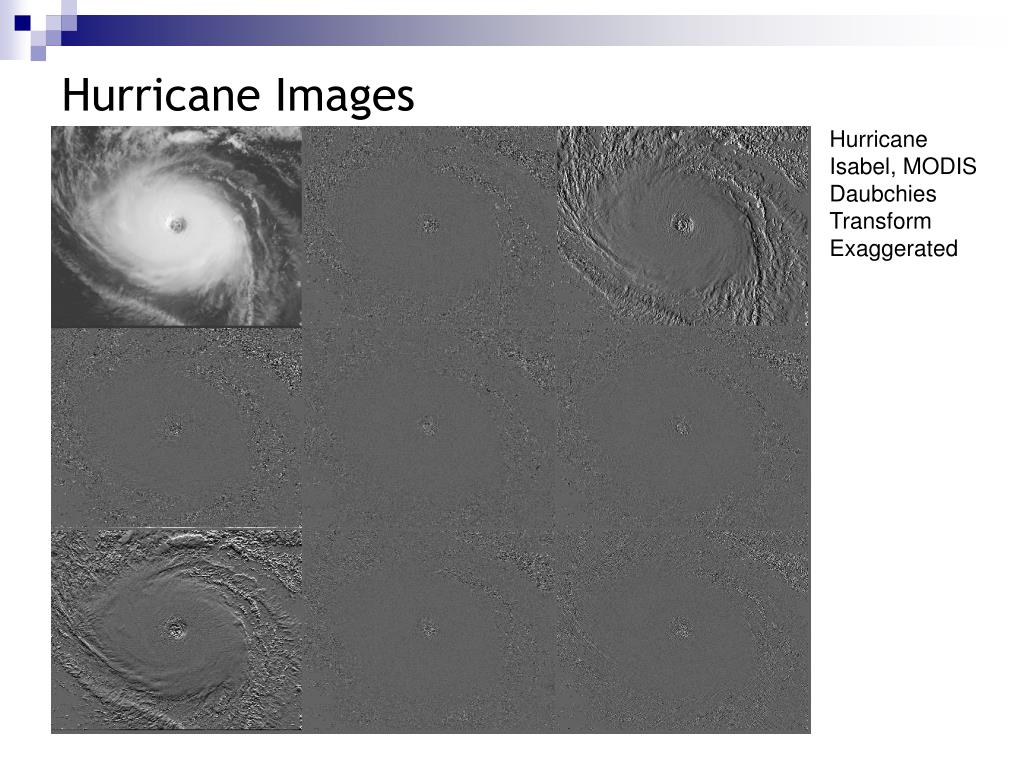

  27. Hurricane Images Hurricane Isabel, MODIS Daubchies Transform Exaggerated

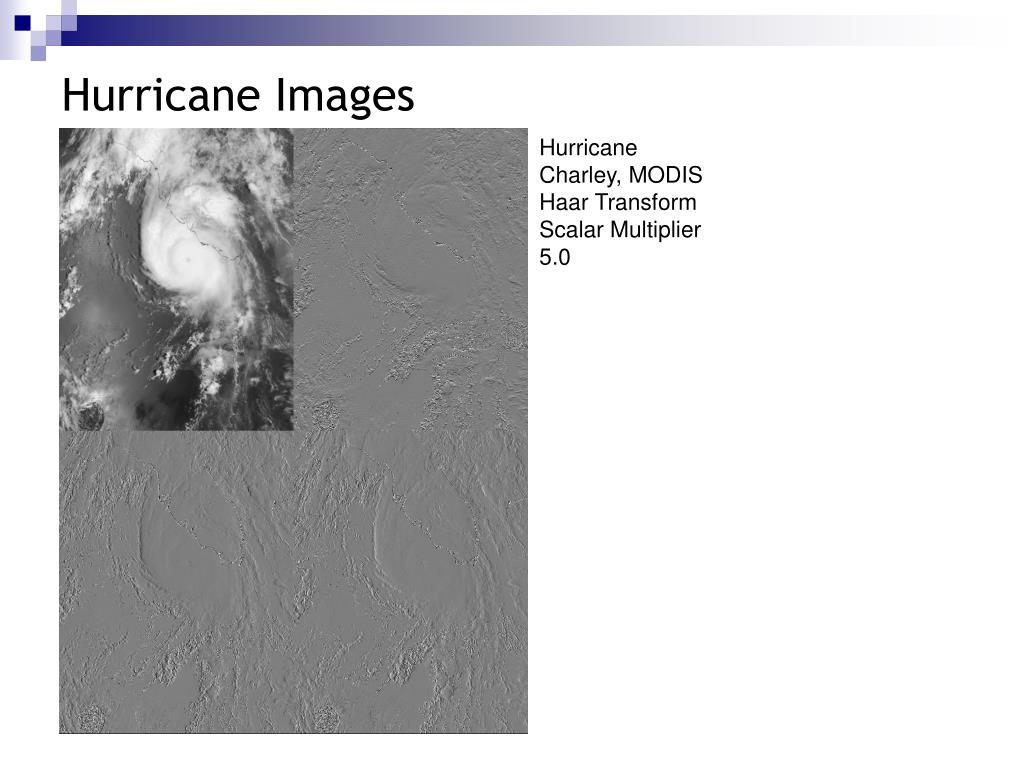

  28. Hurricane Images Hurricane Charley, MODIS Haar Transform Scalar Multiplier 5.0

  29. Hurricane Images Hurricane Charley, MODIS Haar Transform Binary, Threshold 25.0

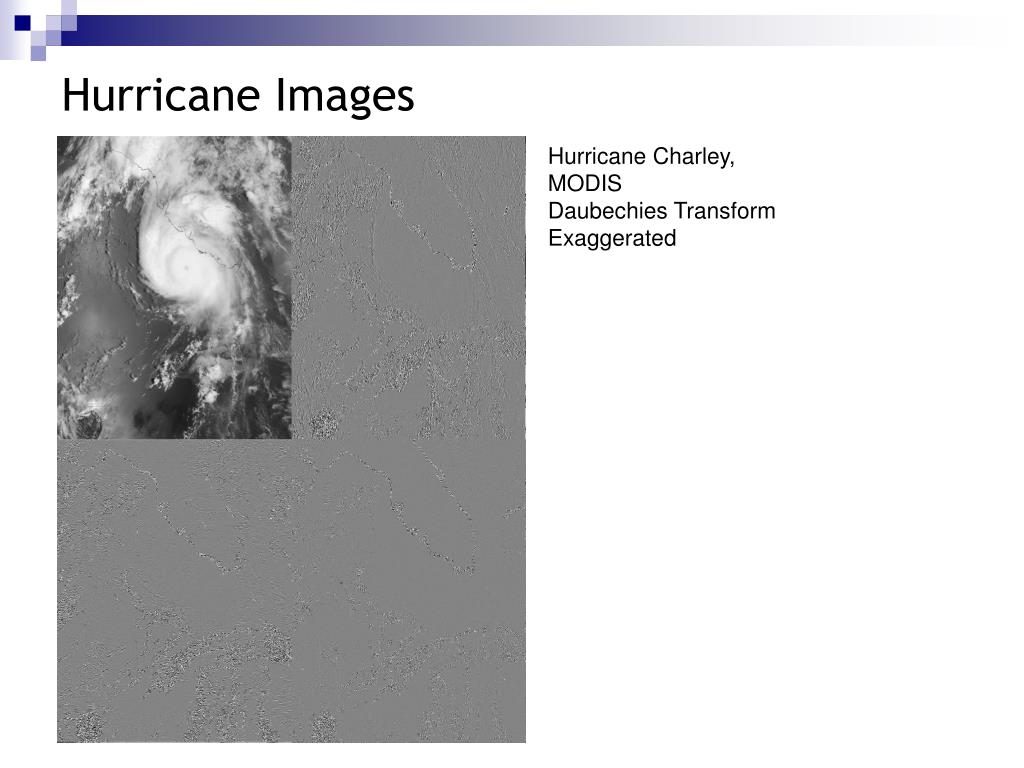

  30. Hurricane Images Hurricane Charley, MODIS Daubechies Transform Exaggerated

  31. Hurricane Images Hurricane Charley, MODIS 3x3 Transform Exaggerated

  32. Hurricane Images Hurricane Alex, MODIS Haar Transform Scalar Multiplier 5.0

  33. Hurricane Images Hurricane Alex, MODIS Haar Binary Threshold 25.0

  34. Hurricane Images Hurricane Alex, MODIS Daubechies Transform Exaggerated

  35. Hurricane Images Hurricane Alex, MODIS 3x3 Transform Exaggerated
