Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Pervasive Wireless Device Networks for Home, Environmental and Industrial Applications] Date Submitted: [December 2000] Source: [Ed Callaway] Company: [Motorola]
E N D

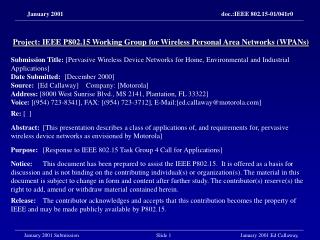

Project: IEEE P802.15 Working Group for Wireless Personal Area Networks (WPANs) Submission Title: [Pervasive Wireless Device Networks for Home, Environmental and Industrial Applications] Date Submitted: [December 2000] Source: [Ed Callaway] Company: [Motorola] Address: [8000 West Sunrise Blvd., MS 2141, Plantation, FL 33322] Voice: [(954) 723-8341], FAX: [(954) 723-3712], E-Mail:[ed.callaway@motorola.com] Re: [ ] Abstract: [This presentation describes a class of applications of, and requirements for, pervasive wireless device networks as envisioned by Motorola] Purpose: [Response to IEEE 802.15 Task Group 4 Call for Applications] Notice: This document has been prepared to assist the IEEE P802.15. It is offered as a basis for discussion and is not binding on the contributing individual(s) or organization(s). The material in this document is subject to change in form and content after further study. The contributor(s) reserve(s) the right to add, amend or withdraw material contained herein. Release: The contributor acknowledges and accepts that this contribution becomes the property of IEEE and may be made publicly available by P802.15.
Pervasive Wireless Device Networks for Home, Environmental and Industrial Applications: Submission to the IEEE 802.15 Wireless Personal Area Networks Task Group 4 Ed Callaway, Member of the Technical Staff Motorola Labs Phone: +1-954-723-8341 Fax: +1-954-723-3712 ed.callaway@motorola.com
Pervasive Wireless Device Network Applications Basic Requirement: Provide the low rate, wireless interconnection of ultra low cost sensor/actuator/processing devices to enable the cyber-world to sense and affect the real physical environment. • Applications: • Environmental and Health Monitoring • Home Entertainment and Toys • Security, Location and Asset Tracking • Emergency and Disaster Response

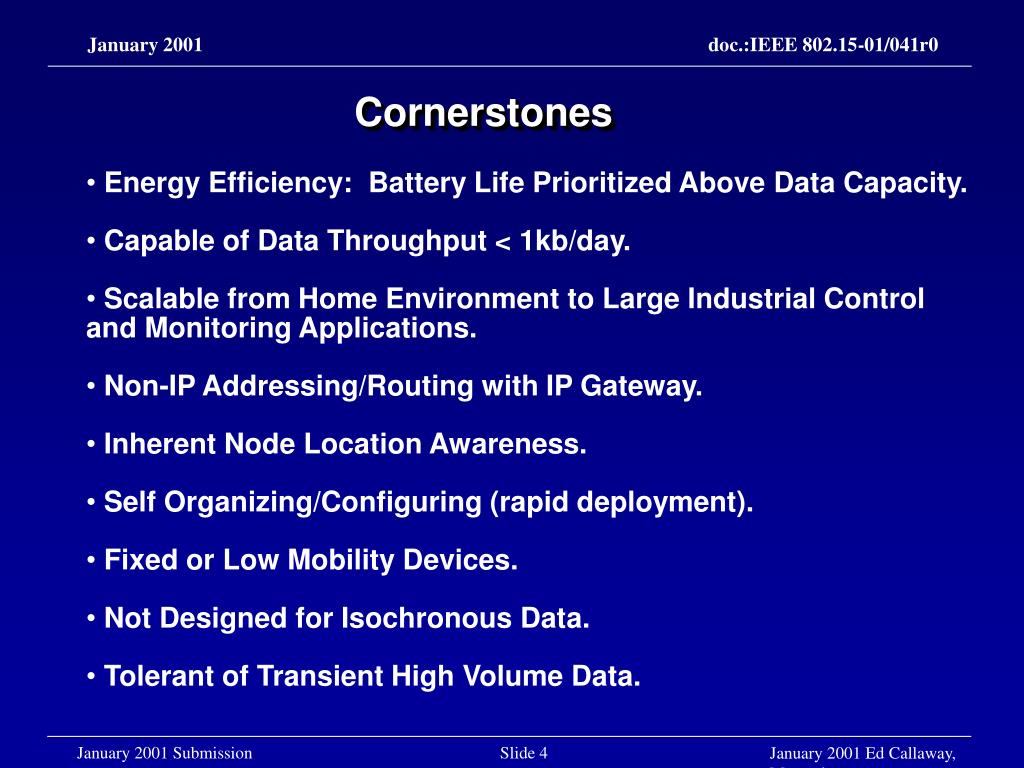

Cornerstones • Energy Efficiency: Battery Life Prioritized Above Data Capacity. • Capable of Data Throughput < 1kb/day. • Scalable from Home Environment to Large Industrial Control and Monitoring Applications. • Non-IP Addressing/Routing with IP Gateway. • Inherent Node Location Awareness. • Self Organizing/Configuring (rapid deployment). • Fixed or Low Mobility Devices. • Not Designed for Isochronous Data. • Tolerant of Transient High Volume Data.
Applications & Requirements • Industrial and Environmental Control and Monitoring • Reliable, distributed sensing and control with emphasis on energy efficiency – a sensor network with long latency tolerance (long life span) • Rapid Deployment with emphasis on self-organization, scalability and distributed management; coping with disaster prevention, control, big events and exploration of unknown territory (short life span) • Low Rate Consumer and SOHO Network • Low rate control and entertainment devices – a smaller network with low latency tolerance that remains energy efficient
