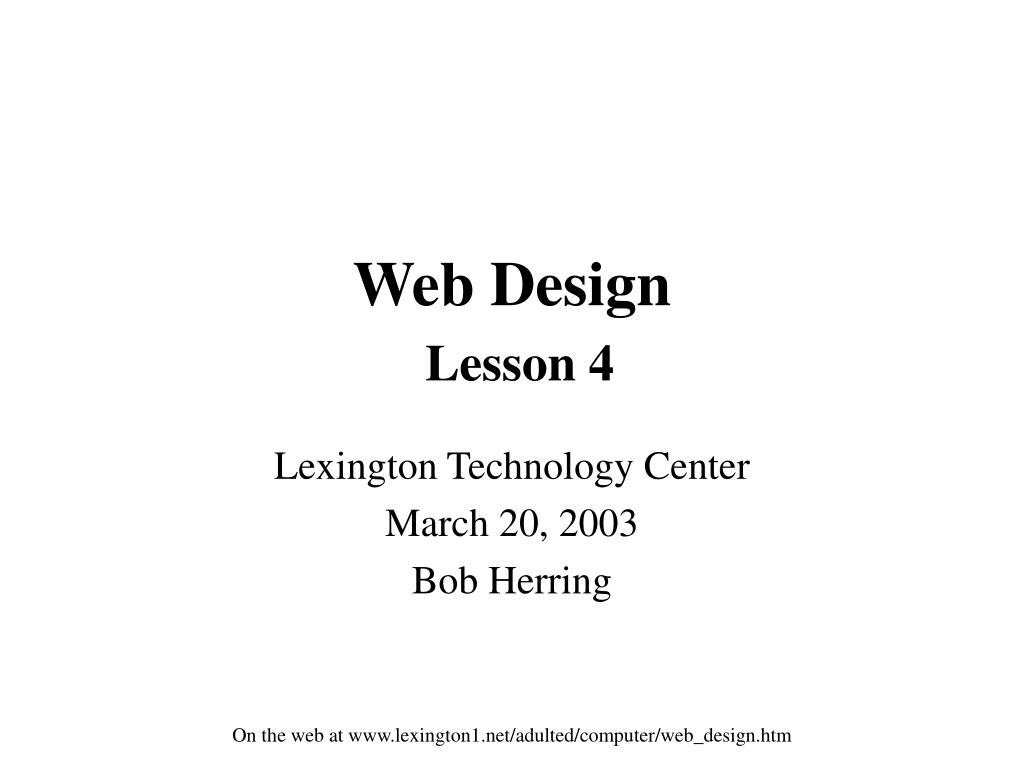

  1. Web DesignLesson 4 Lexington Technology Center March 20, 2003 Bob Herring On the web at www.lexington1.net/adulted/computer/web_design.htm

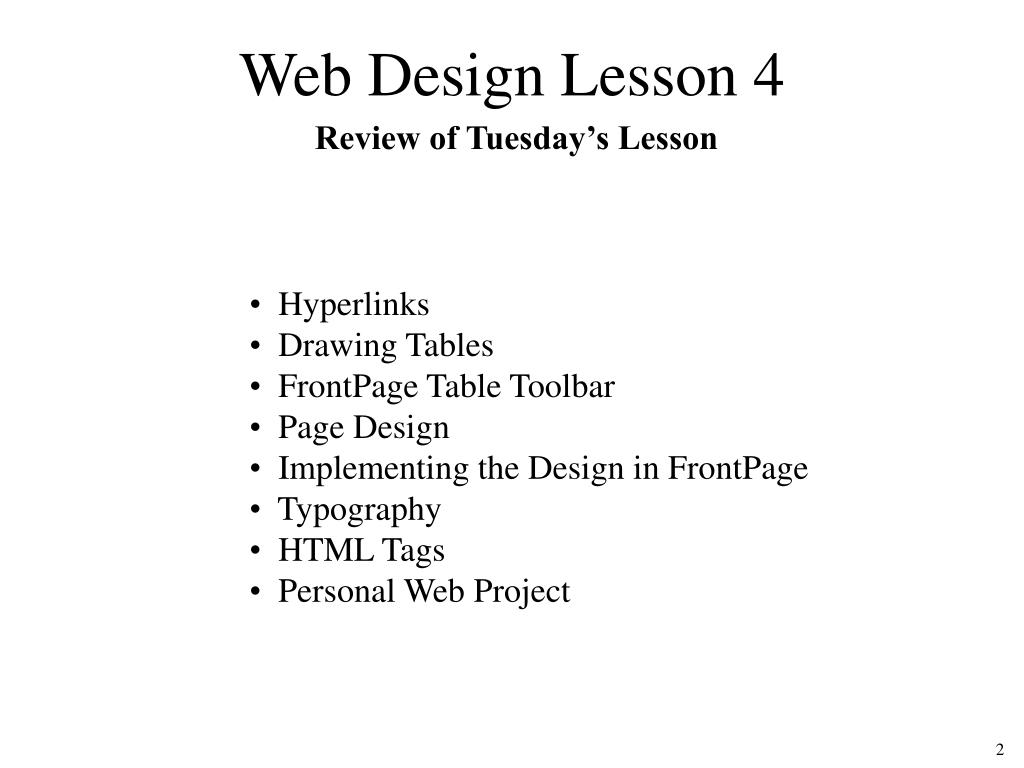

  2. Web Design Lesson 4 Review of Tuesday’s Lesson • Hyperlinks • Drawing Tables • FrontPage Table Toolbar • Page Design • Implementing the Design in FrontPage • Typography • HTML Tags • Personal Web Project 2

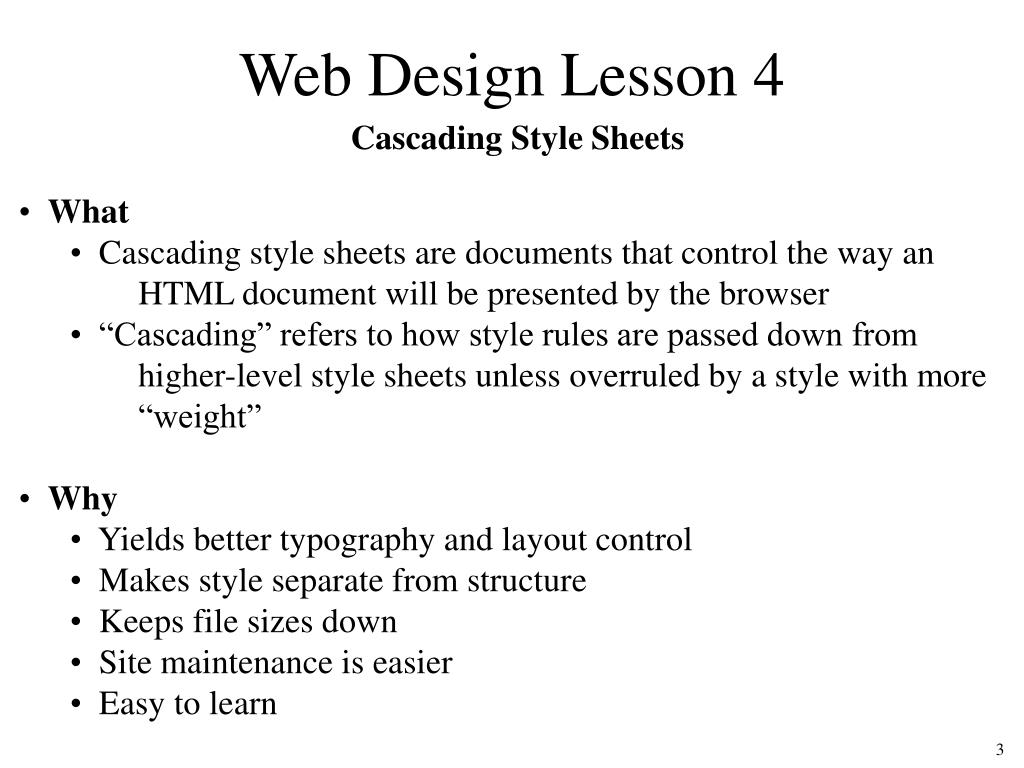

  3. Web Design Lesson 4 Cascading Style Sheets • What • Cascading style sheets are documents that control the way an • HTML document will be presented by the browser • “Cascading” refers to how style rules are passed down from • higher-level style sheets unless overruled by a style with more • “weight” • Why • Yields better typography and layout control • Makes style separate from structure • Keeps file sizes down • Site maintenance is easier • Easy to learn 3

  4. Web Design Lesson 4 Cascading Style Sheets • How • Define rules for your web pages • Always use end tags (e.g., </P>) -- styles require it • Styles can be set: • Inline • With an embedded style sheet • With a linked style sheet • With an imported style sheet • Styles are “inherited” -- elements at lower levels have the same • properties as their “parents” above them (e.g., a list and its items) selector {property: value} H1 {color: red} 4

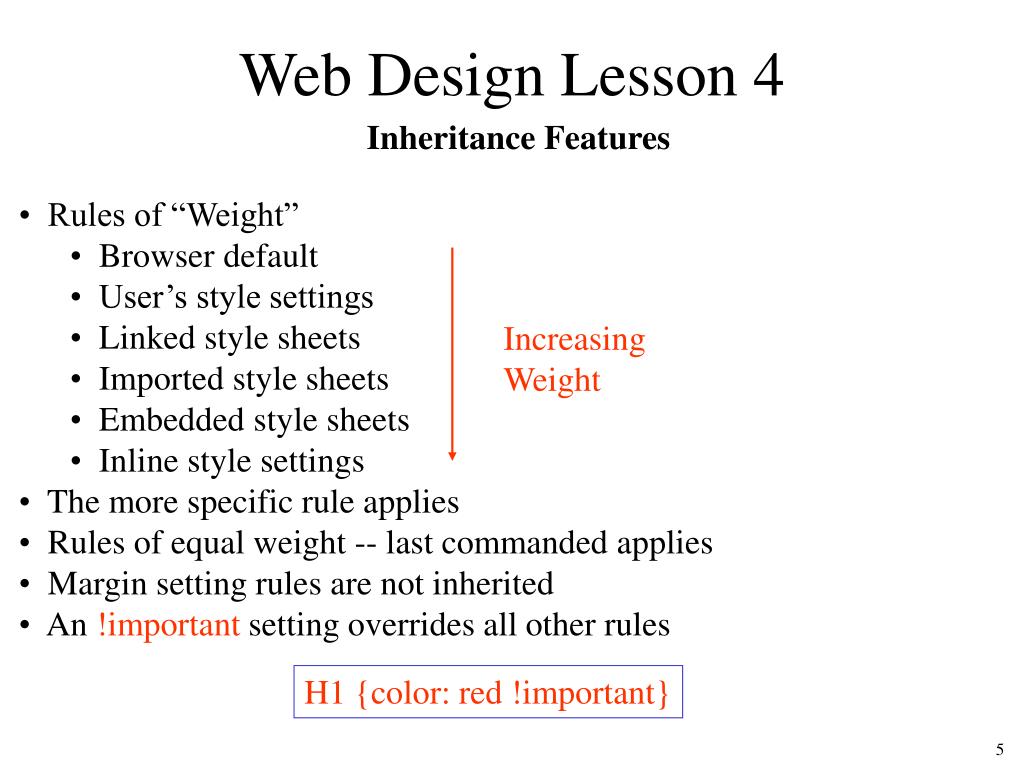

  5. Web Design Lesson 4 Inheritance Features • Rules of “Weight” • Browser default • User’s style settings • Linked style sheets • Imported style sheets • Embedded style sheets • Inline style settings • The more specific rule applies • Rules of equal weight -- last commanded applies • Margin setting rules are not inherited • An !important setting overrides all other rules Increasing Weight H1 {color: red !important} 5

  6. Web Design Lesson 4 Multiple Styles • Multiple selectors can be grouped in front of the property/value section • Separate selectors with commas • Multiple instances of the same selector are permitted • The last property/value combination mentioned takes precedence • Multiple styles can be be applied to the same selector • Separate styles with semicolons • Include a semicolon at the end of the list H1, H2, H3 {color: red} P {font-size: 12pt; font-family: verdana, sans-serif;} 6

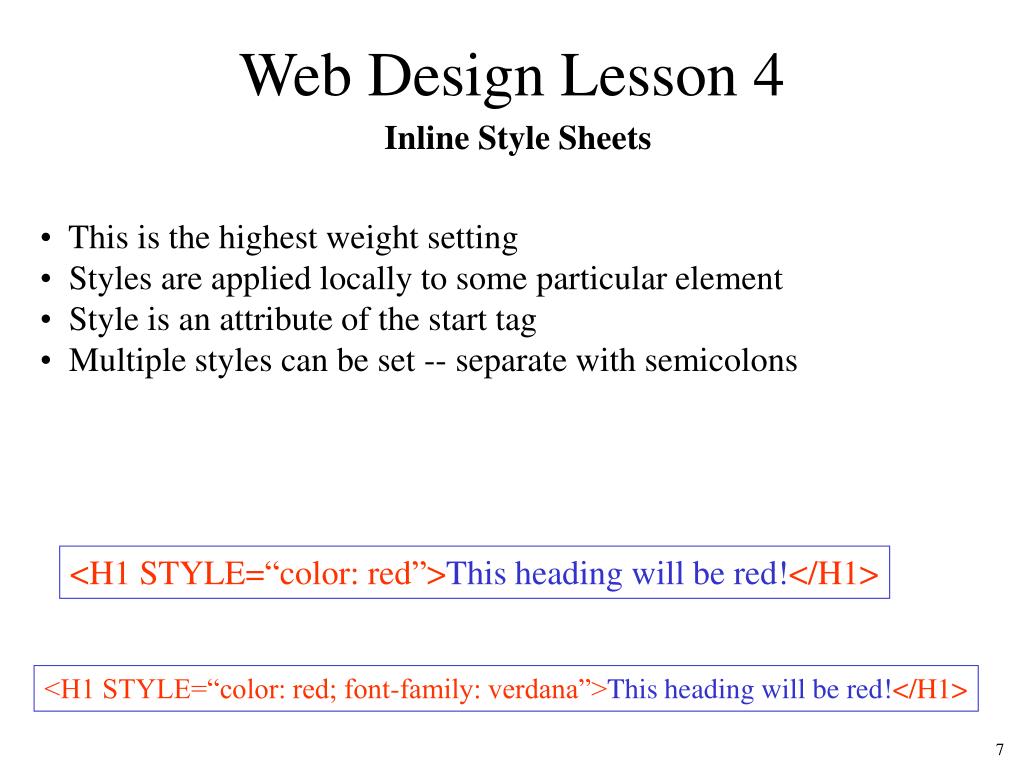

  7. Web Design Lesson 4 Inline Style Sheets • This is the highest weight setting • Styles are applied locally to some particular element • Style is an attribute of the start tag • Multiple styles can be set -- separate with semicolons <H1 STYLE=“color: red”>This heading will be red!</H1> <H1 STYLE=“color: red; font-family: verdana”>This heading will be red!</H1> 7

  8. Web Design Lesson 4 Inline Style Setting in HTML View • An inline style modifies the H1 start tag to cause the browser • to make the text red and set the Verdana font 8

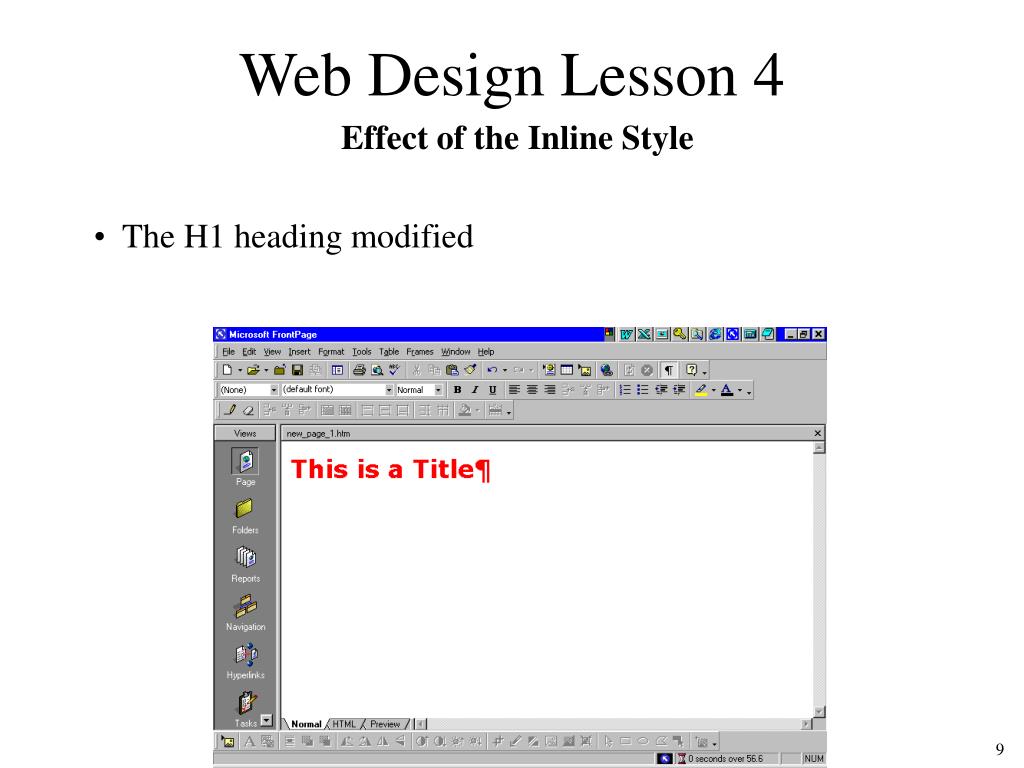

  9. Web Design Lesson 4 Effect of the Inline Style • The H1 heading modified 9

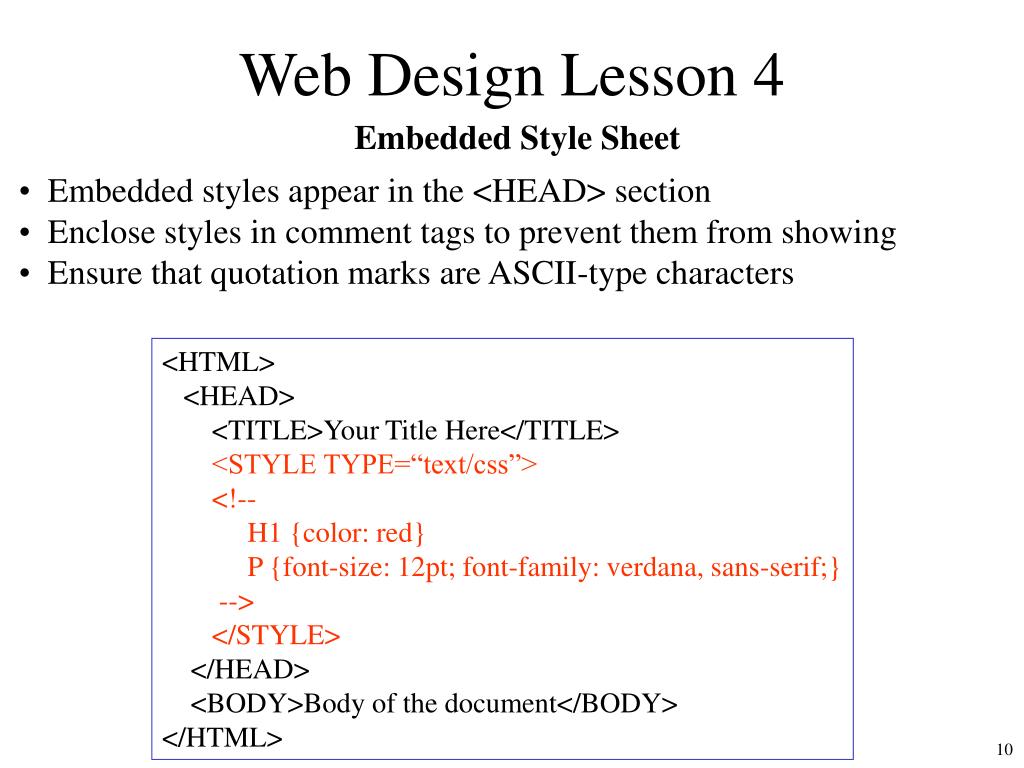

  10. Web Design Lesson 4 Embedded Style Sheet • Embedded styles appear in the <HEAD> section • Enclose styles in comment tags to prevent them from showing • Ensure that quotation marks are ASCII-type characters <HTML> <HEAD> <TITLE>Your Title Here</TITLE> <STYLE TYPE=“text/css”> <!-- H1 {color: red} P {font-size: 12pt; font-family: verdana, sans-serif;} --> </STYLE> </HEAD> <BODY>Body of the document</BODY> </HTML> 10

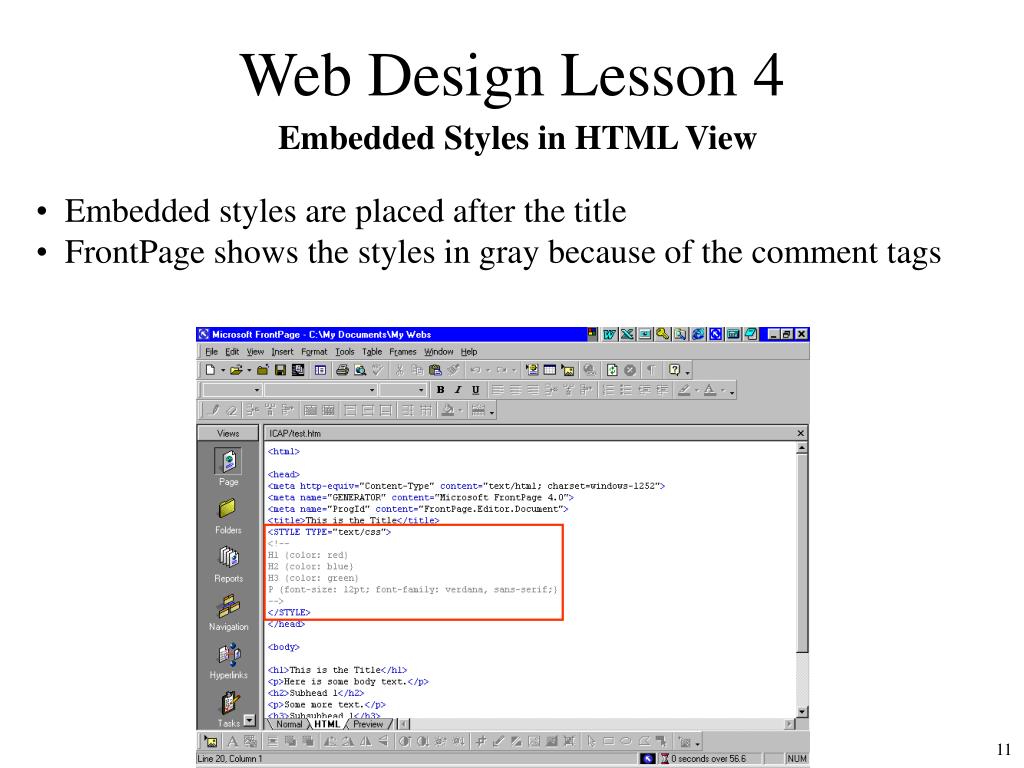

  11. Web Design Lesson 4 Embedded Styles in HTML View • Embedded styles are placed after the title • FrontPage shows the styles in gray because of the comment tags 11

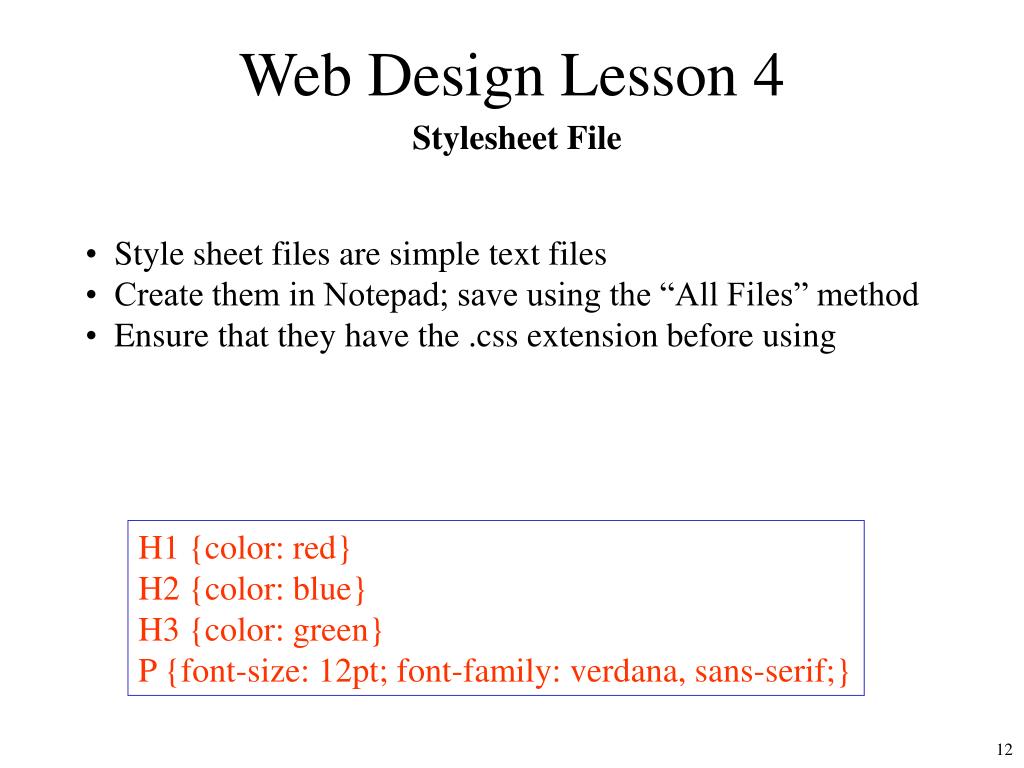

  12. Web Design Lesson 4 Stylesheet File • Style sheet files are simple text files • Create them in Notepad; save using the “All Files” method • Ensure that they have the .css extension before using H1 {color: red} H2 {color: blue} H3 {color: green} P {font-size: 12pt; font-family: verdana, sans-serif;} 12

  13. Web Design Lesson 4 Stylesheet File in Notepad • The style sheet in Notepad 13

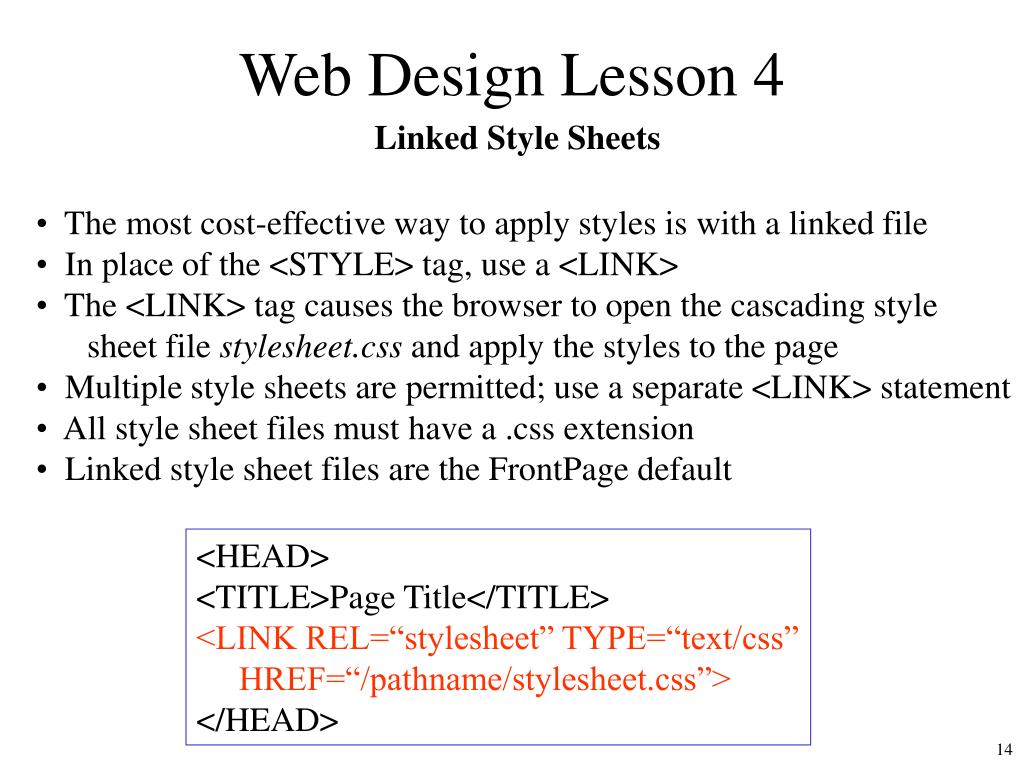

  14. Web Design Lesson 4 Linked Style Sheets • The most cost-effective way to apply styles is with a linked file • In place of the <STYLE> tag, use a <LINK> • The <LINK> tag causes the browser to open the cascading style • sheet file stylesheet.css and apply the styles to the page • Multiple style sheets are permitted; use a separate <LINK> statement • All style sheet files must have a .css extension • Linked style sheet files are the FrontPage default <HEAD> <TITLE>Page Title</TITLE> <LINK REL=“stylesheet” TYPE=“text/css” HREF=“/pathname/stylesheet.css”> </HEAD> 14

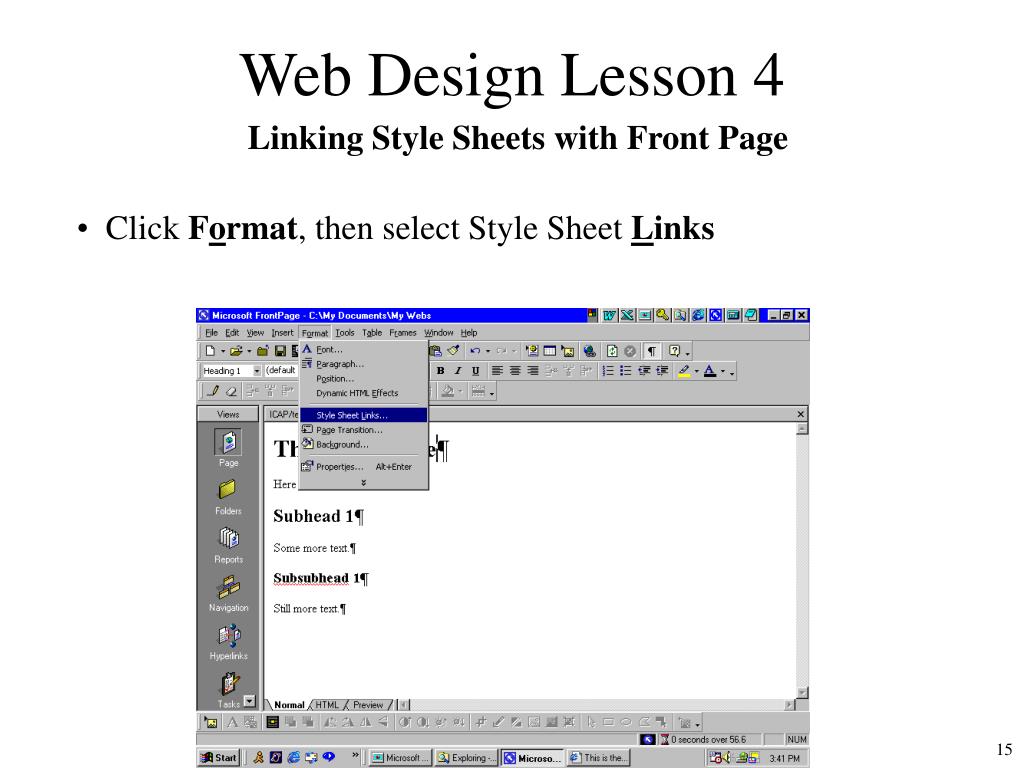

  15. Web Design Lesson 4 Linking Style Sheets with Front Page • Click Format, then select Style Sheet Links 15

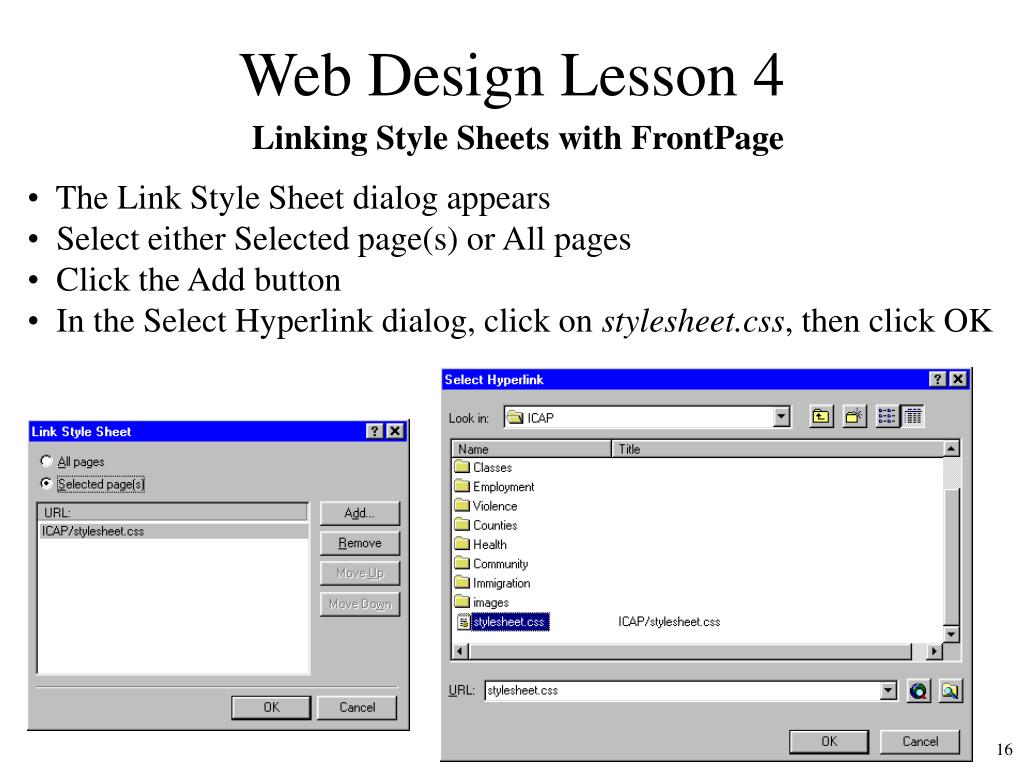

  16. Web Design Lesson 4 Linking Style Sheets with FrontPage • The Link Style Sheet dialog appears • Select either Selected page(s) or All pages • Click the Add button • In the Select Hyperlink dialog, click on stylesheet.css, then click OK 16

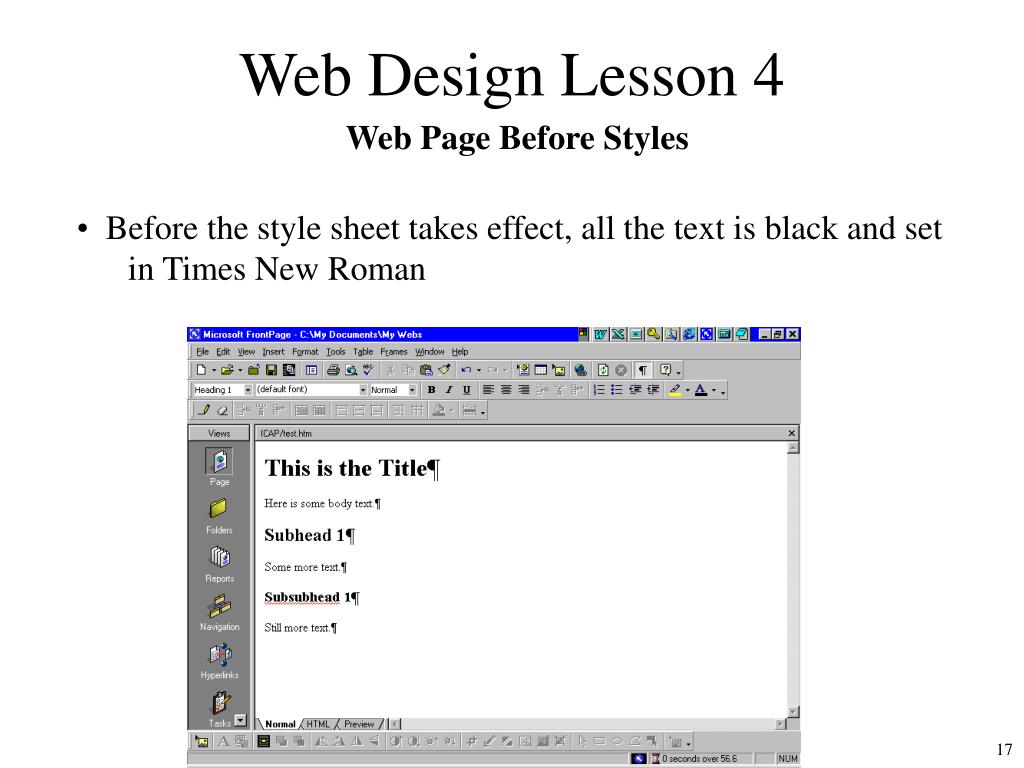

  17. Web Design Lesson 4 Web Page Before Styles • Before the style sheet takes effect, all the text is black and set • in Times New Roman 17

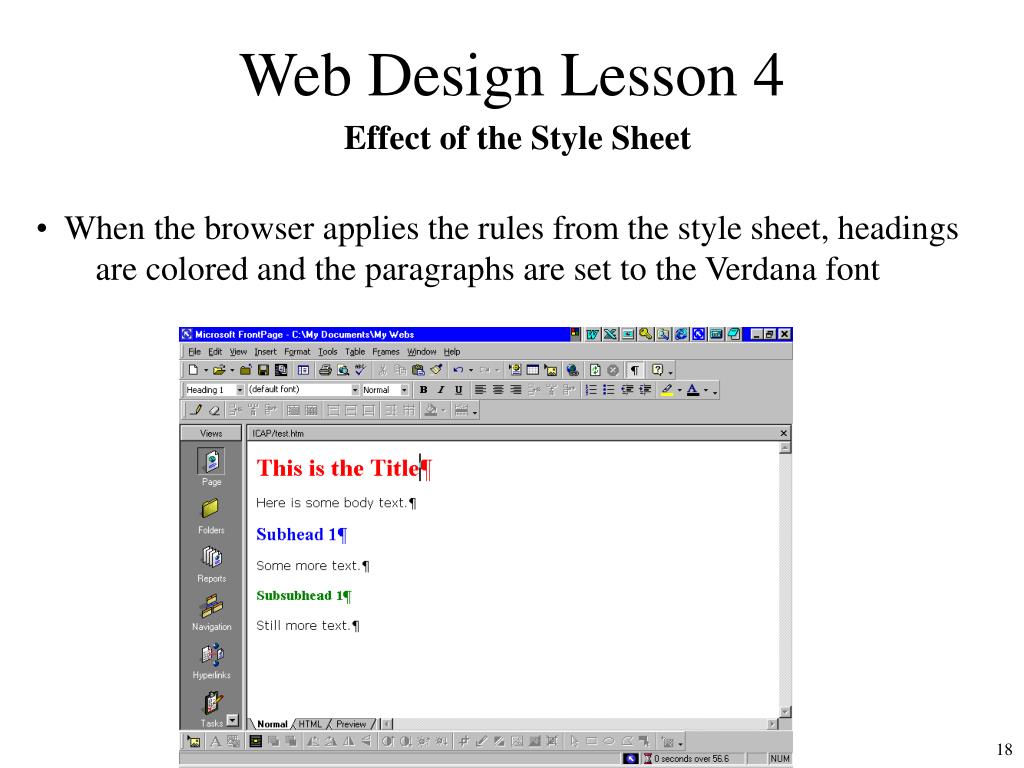

  18. Web Design Lesson 4 Effect of the Style Sheet • When the browser applies the rules from the style sheet, headings • are colored and the paragraphs are set to the Verdana font 18

  19. Web Design Lesson 4 Changing the Style Through the Style Sheet File • Open the stylesheet.css file again in Notepad (Select All Files) • change “verdana” to “courier new” • Save the file 19

  20. Web Design Lesson 4 Changed Style • When you return, the browser has picked up the new style and • changed the H1 heading’s font to Courier • The style sheet file is a powerful tool for making wholesale changes • to your web pages 20

  21. Web Design Lesson 4 Imported Style Sheets • Another way to access the stylesheet.css file is to import it • The @import statement goes in the style section of the <HEAD> • Imported files must precede all other style commands • Note that @import statements must end with a semicolon • The @import method can hide styles from lower-level browsers • Not well supported yet <STYLE TYPE=“text/css”> <!-- @import url(http://pathname/stylesheet.css); --> </STYLE> 21

  22. Web Design Lesson 4 @import Statement in HTML View • The @import statement takes the place of the link, but refers to • the same file as before (stylesheet.css) 22

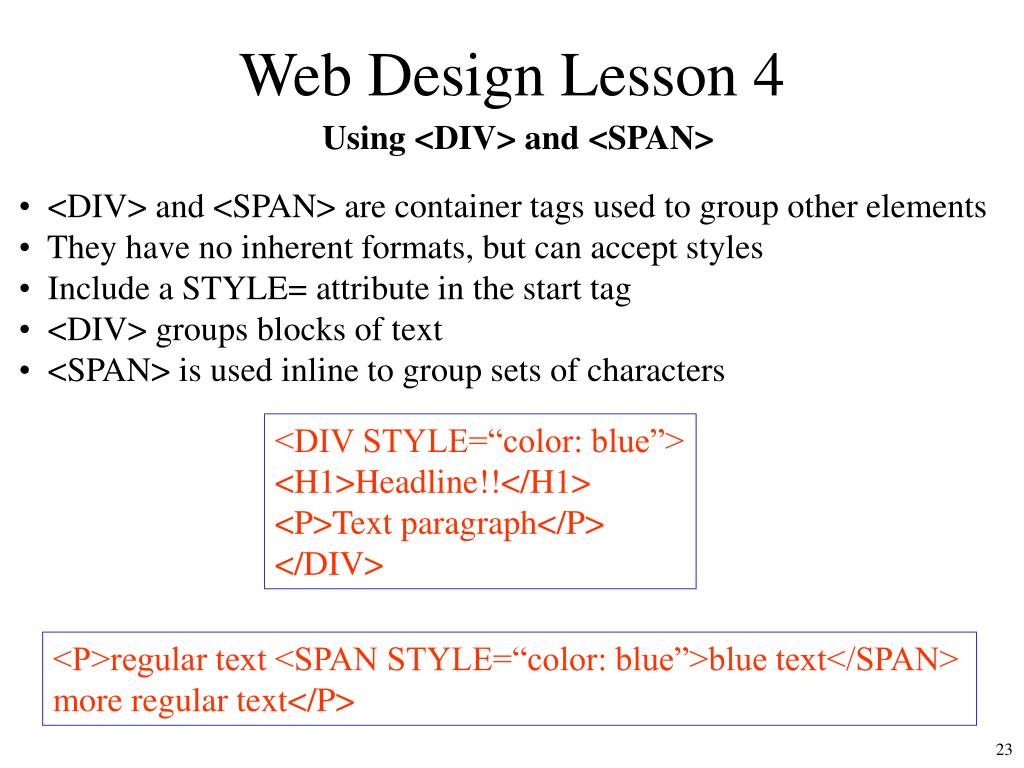

  23. Web Design Lesson 4 Using <DIV> and <SPAN> • <DIV> and <SPAN> are container tags used to group other elements • They have no inherent formats, but can accept styles • Include a STYLE= attribute in the start tag • <DIV> groups blocks of text • <SPAN> is used inline to group sets of characters <DIV STYLE=“color: blue”> <H1>Headline!!</H1> <P>Text paragraph</P> </DIV> <P>regular text <SPAN STYLE=“color: blue”>blue text</SPAN> more regular text</P> 23

  24. Web Design Lesson 4 Contextual Styles • Styles can be set to respond to specific conditions • In the example below, list item <LI> style is set to blue, but only if • it is bold <B>. The style responds to the context • The contextual style is indicated by the absence of a comma • For multiple selectors, group the contextual styles using commas • between the selectors LI B {color: blue} H1 B, H2 B, H3 B {color: blue} 24

  25. Web Design Lesson 4 Contextual Styles • When a list is inserted, the text is normal • With LI B {color: blue} in the style sheet, making the list item • bold also sets its color to blue 25

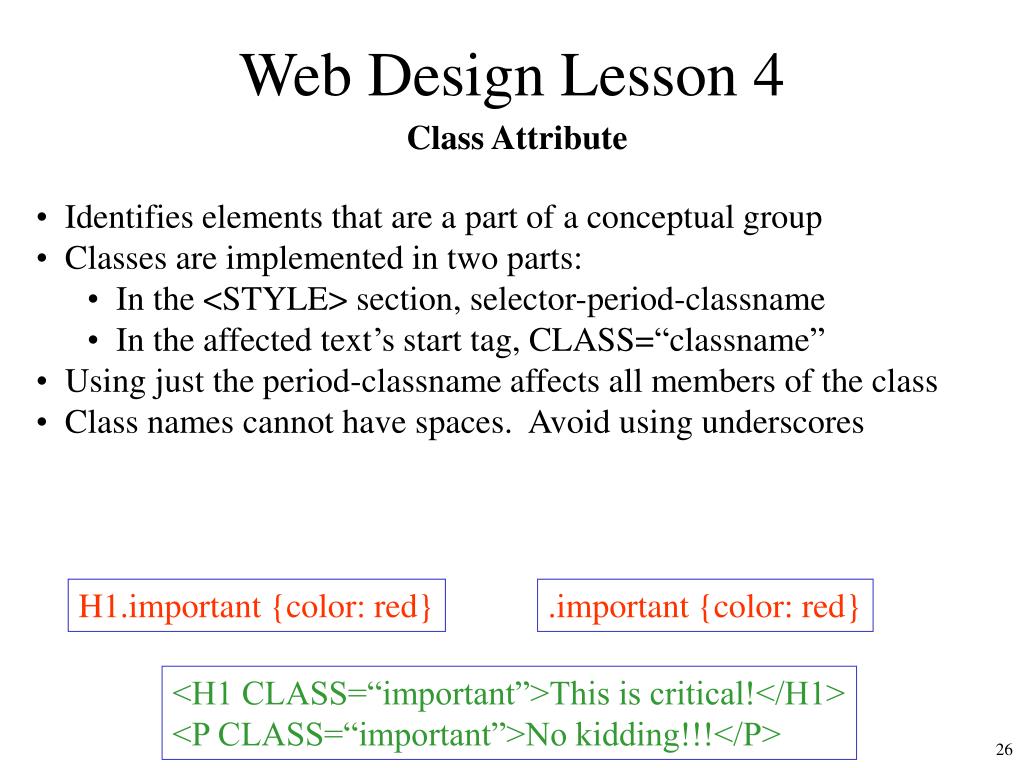

  26. Web Design Lesson 4 Class Attribute • Identifies elements that are a part of a conceptual group • Classes are implemented in two parts: • In the <STYLE> section, selector-period-classname • In the affected text’s start tag, CLASS=“classname” • Using just the period-classname affects all members of the class • Class names cannot have spaces. Avoid using underscores H1.important {color: red} .important {color: red} <H1 CLASS=“important”>This is critical!</H1> <P CLASS=“important”>No kidding!!!</P> 26

  27. Web Design Lesson 4 Drop Cap Style Using a Class • Use a class example below to make a dropped capital effect • The period before the class name tells the browser it’s a class <style type="text/css"> <!-- .dropcap {font: bold 400% sans-serif; color: teal; width: 24pt; float: left;} --> </style> 27

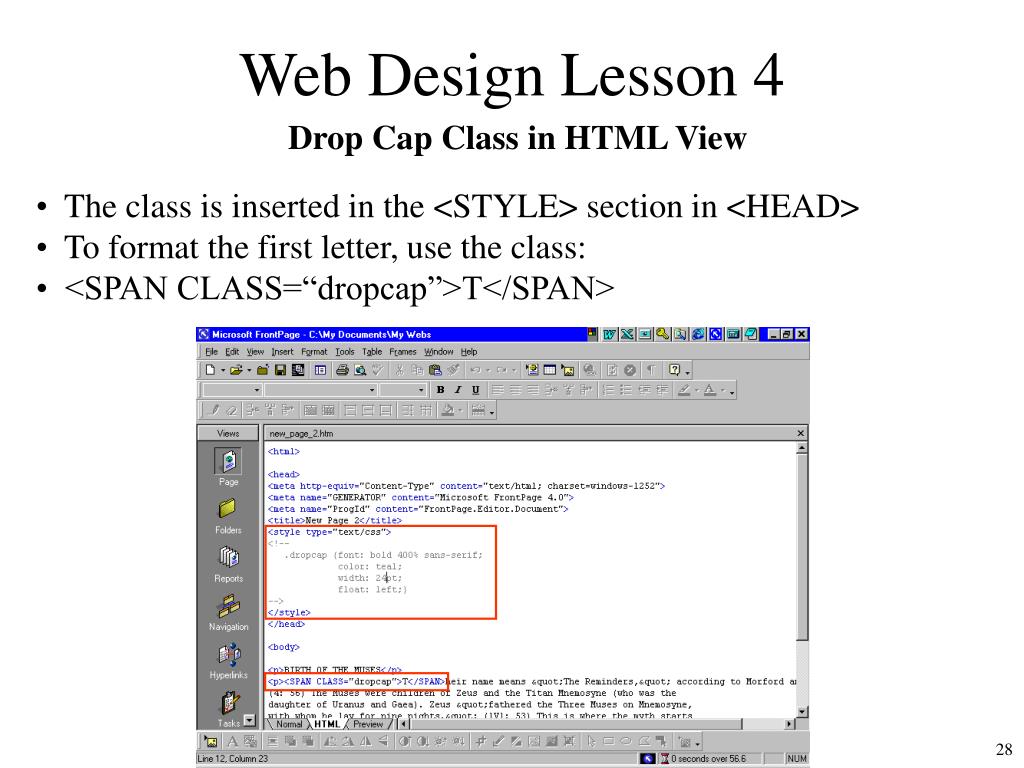

  28. Web Design Lesson 4 Drop Cap Class in HTML View • The class is inserted in the <STYLE> section in <HEAD> • To format the first letter, use the class: • <SPAN CLASS=“dropcap”>T</SPAN> 28

  29. Web Design Lesson 4 Drop Cap Class in Preview • Applying the .dropcap class does the following: • Makes the font bold, Arial, and 4 times the surrounding text • Sets the color to teal • Sets a width that causes the other text to flow around it 29

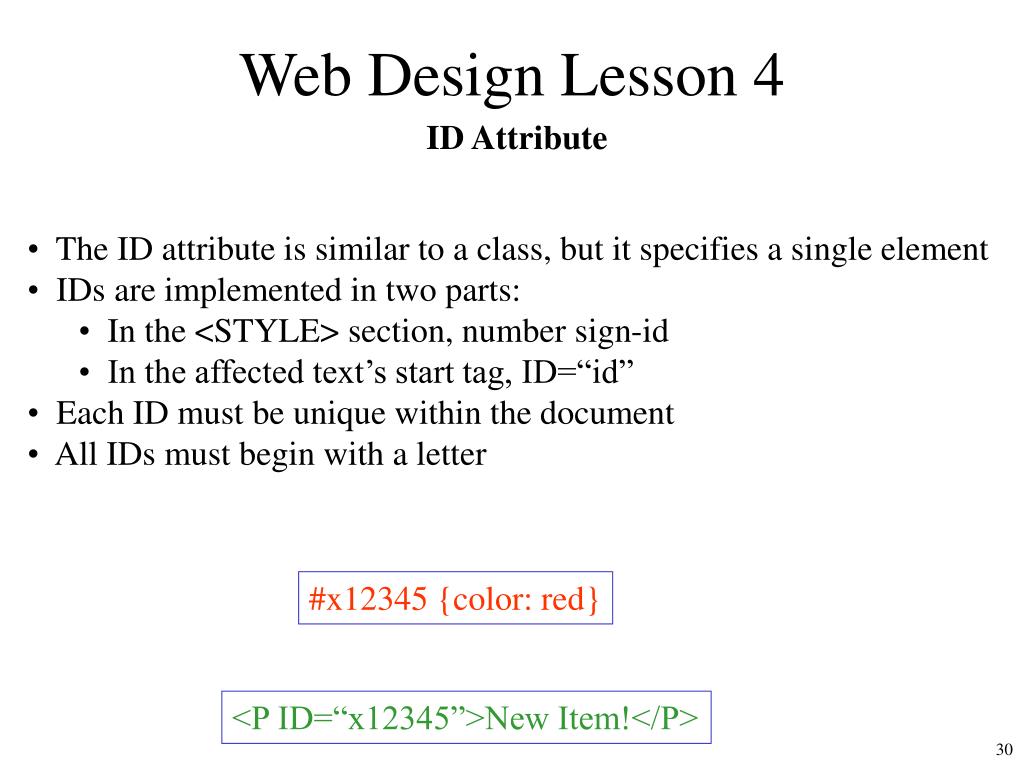

  30. Web Design Lesson 4 ID Attribute • The ID attribute is similar to a class, but it specifies a single element • IDs are implemented in two parts: • In the <STYLE> section, number sign-id • In the affected text’s start tag, ID=“id” • Each ID must be unique within the document • All IDs must begin with a letter #x12345 {color: red} <P ID=“x12345”>New Item!</P> 30

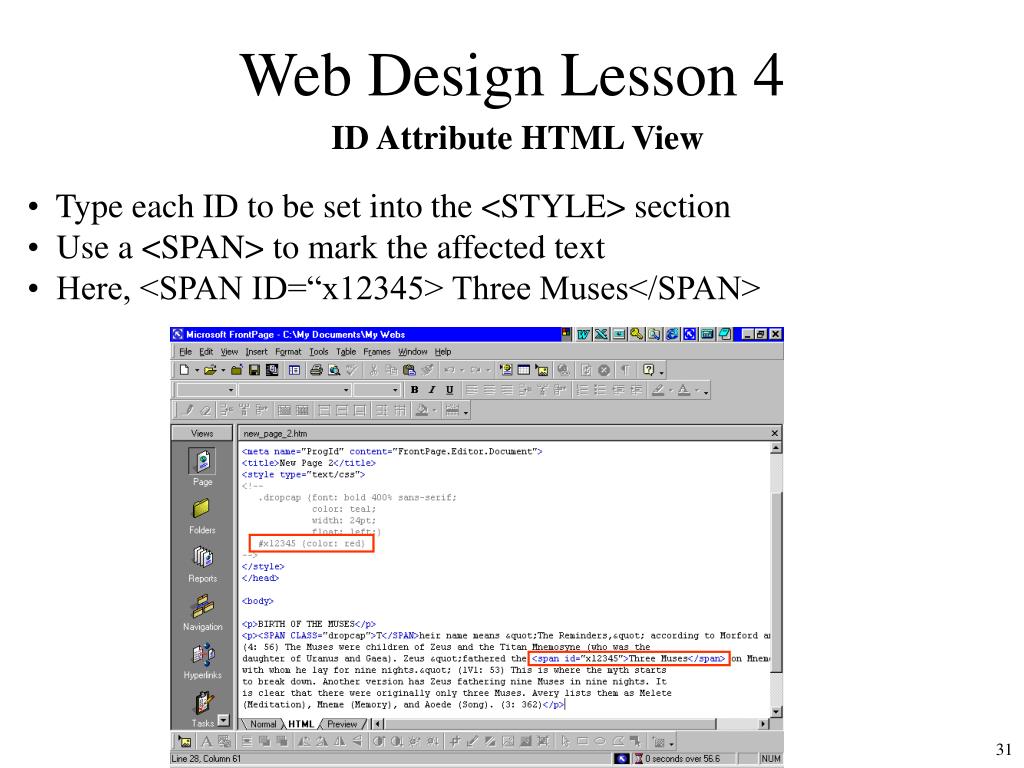

  31. Web Design Lesson 4 ID Attribute HTML View • Type each ID to be set into the <STYLE> section • Use a <SPAN> to mark the affected text • Here, <SPAN ID=“x12345> Three Muses</SPAN> 31

  32. Web Design Lesson 4 ID Attribute in Preview • An ID is good for text that may (or may not) need to be changed • When the change is needed, insert the ID into the style sheet file 32

  33. Web Design Lesson 4 Measurement Units • These are the units that can be used to specify properties • Try to use only ems and exes. Variation in screen sizes makes • specific measurements (pt, pc, in, mm, cm) hazardous • Use pixels only for pictures and objects 33

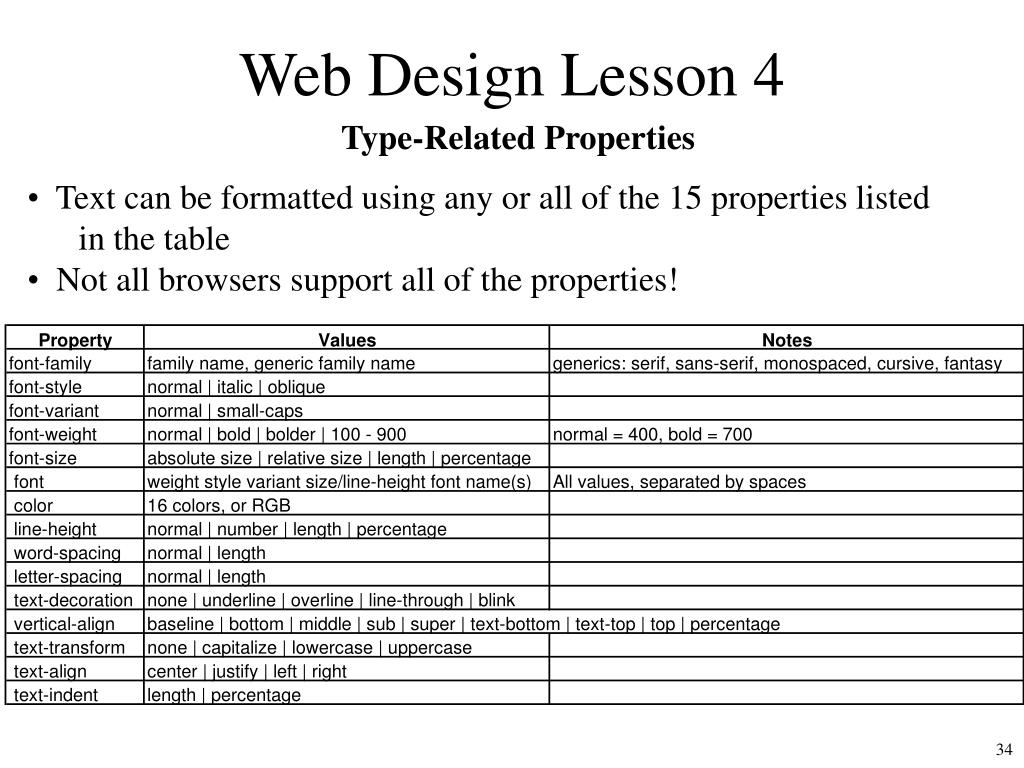

  34. Web Design Lesson 4 Type-Related Properties • Text can be formatted using any or all of the 15 properties listed • in the table • Not all browsers support all of the properties! 34

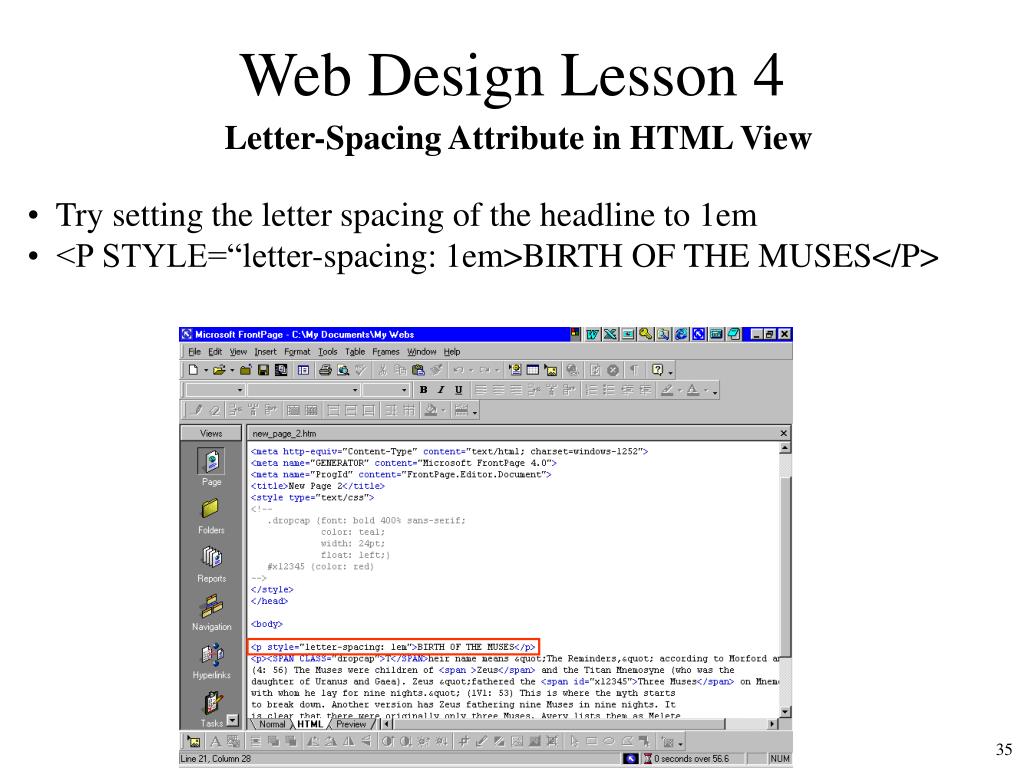

  35. Web Design Lesson 4 Letter-Spacing Attribute in HTML View • Try setting the letter spacing of the headline to 1em • <P STYLE=“letter-spacing: 1em>BIRTH OF THE MUSES</P> 35

  36. Web Design Lesson 4 Letter-Spacing Attribute in Preview • Letter spacing is good for column-spanning headlines 36

  37. Web Design Lesson 4 Review • Cascading Style Sheets • Inline Styles • Linked Style Sheets • Imported Style Sheets • Using <DIV> and <SPAN> • Contextual Styles • Class and ID Attributes • Measurement Units in HTML • Text Properties 37
