  1. VOLTAGE • Pressure • Potential Energy • EMF • Volt(s) • V • E

  2. AMPERAGE • Amp(s) “A” • Ampere(s) • Current • Flow • Intensity

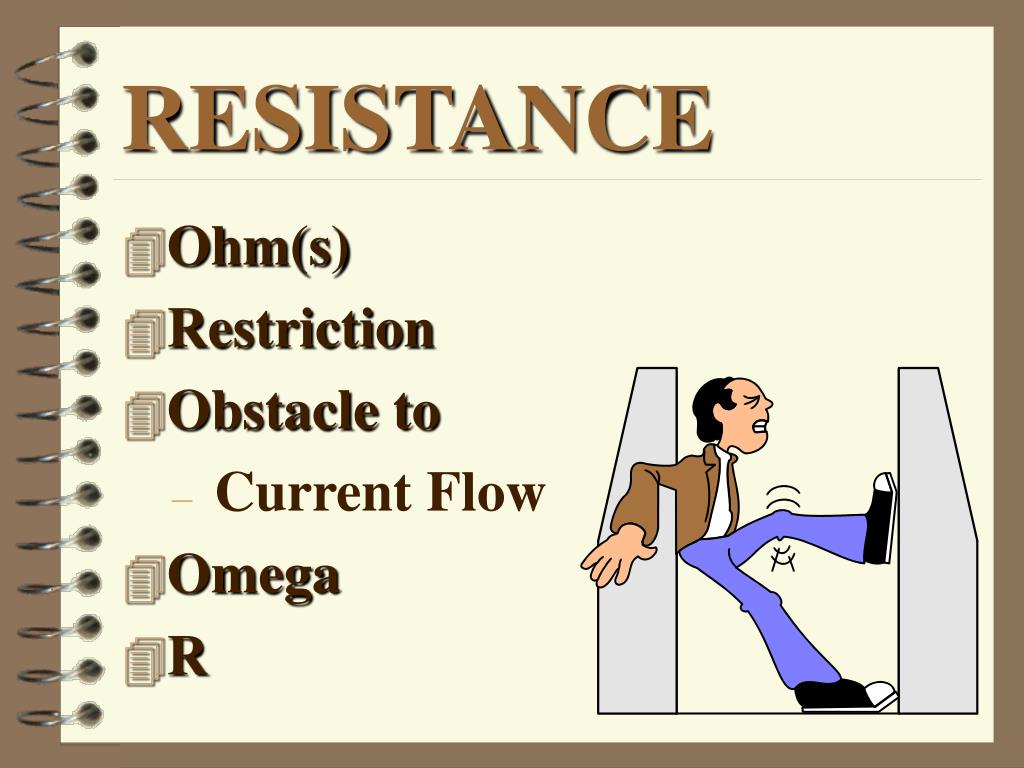

  3. RESISTANCE • Ohm(s) • Restriction • Obstacle to • Current Flow • Omega • R

  4. RELATIONSHIP OF VOLTS, AMPS AND OHMS

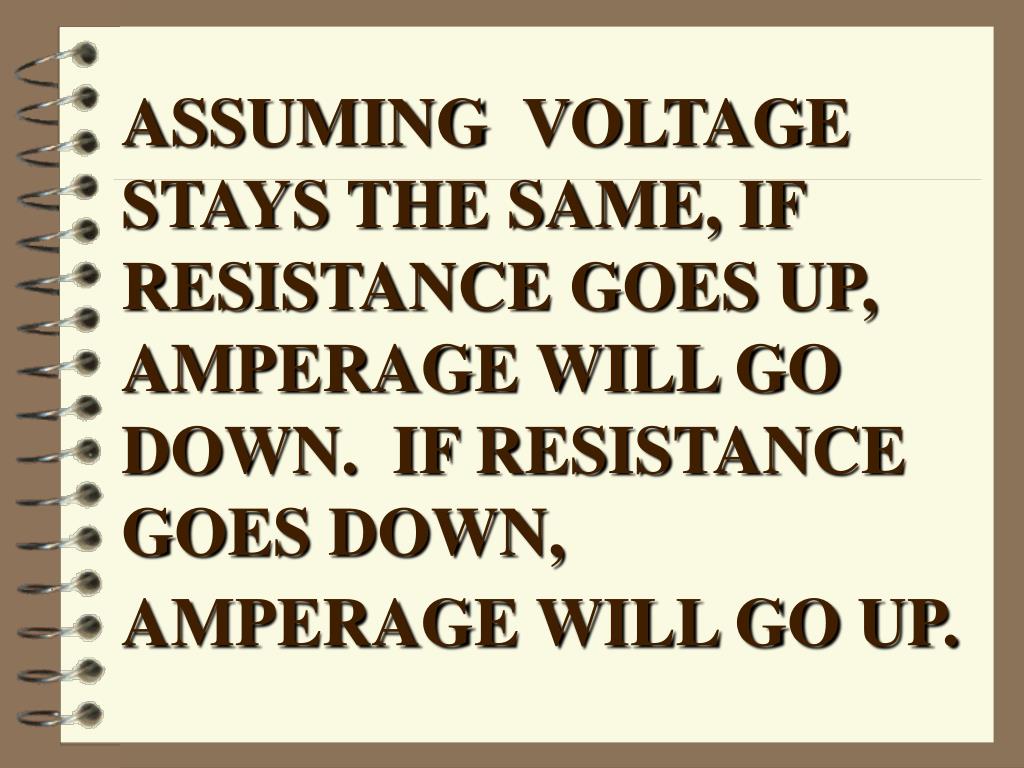

  5. ASSUMING VOLTAGE STAYS THE SAME, IF RESISTANCE GOES UP, AMPERAGE WILL GO DOWN. IF RESISTANCE GOES DOWN, AMPERAGE WILL GO UP.

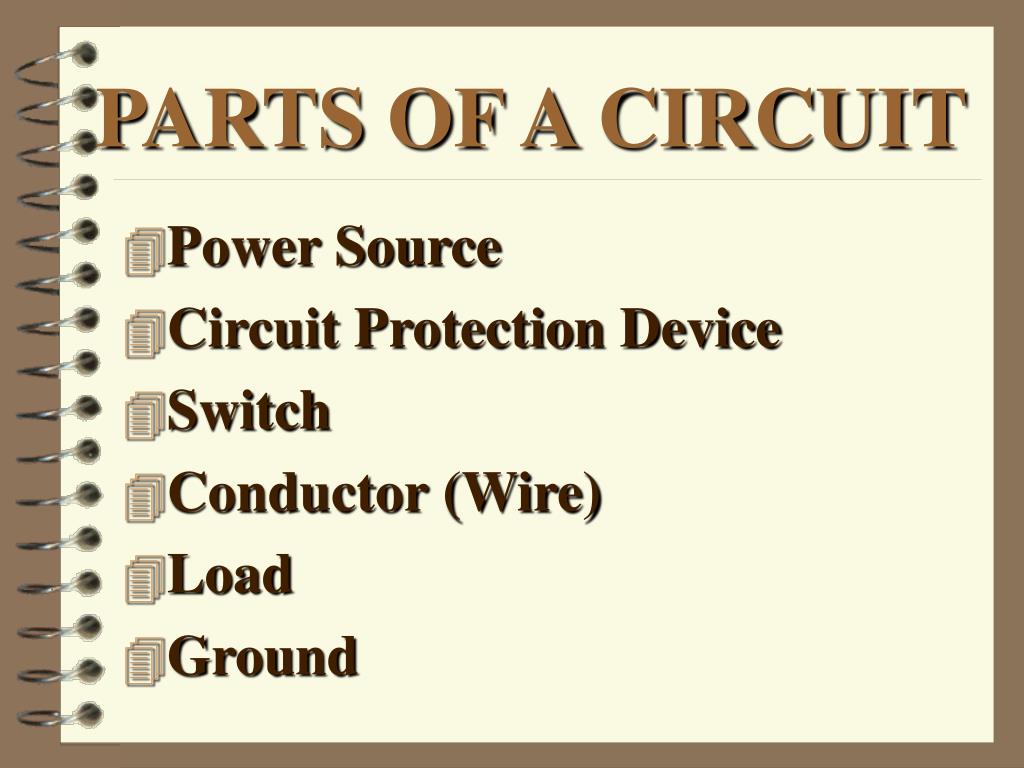

  6. PARTS OF A CIRCUIT • Power Source • Circuit Protection Device • Switch • Conductor (Wire) • Load • Ground

  7. ELECTRICAL CIRCUITS • Series Circuit • Parallel Circuit • Series Parallel Circuit

  8. THE END
