Gradient Descent Rule Tuning

Gradient Descent Rule Tuning. See pp. 207-210 in text book. Rules. Consider a rule base with M rules, r th rule has the form IF x 1 is T r,1 AND … AND x n is T r,n THEN y is y r (or y is y r + other stuff ) TSK fuzzy system has mathematical form. Membership function parameters

dalit
Télécharger la présentation

Gradient Descent Rule Tuning

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Gradient Descent Rule Tuning See pp. 207-210 in text book

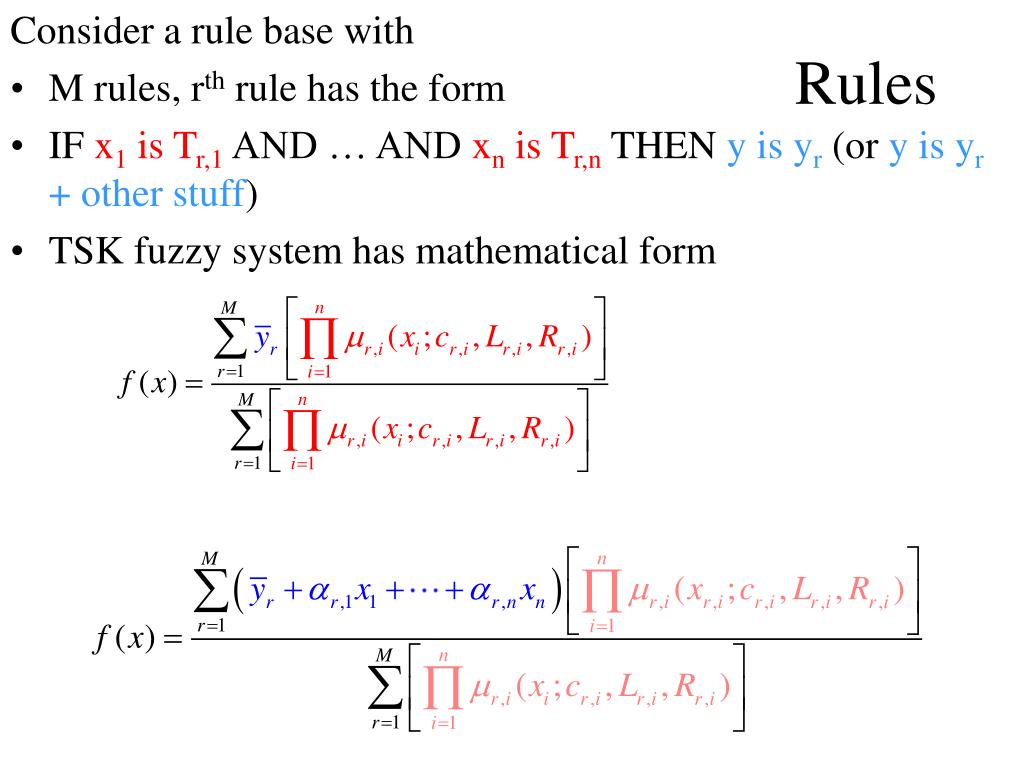

  2. Rules Consider a rule base with • M rules, rth rule has the form • IF x1 is Tr,1 AND … AND xn is Tr,n THEN y is yr (or y is yr + other stuff) • TSK fuzzy system has mathematical form

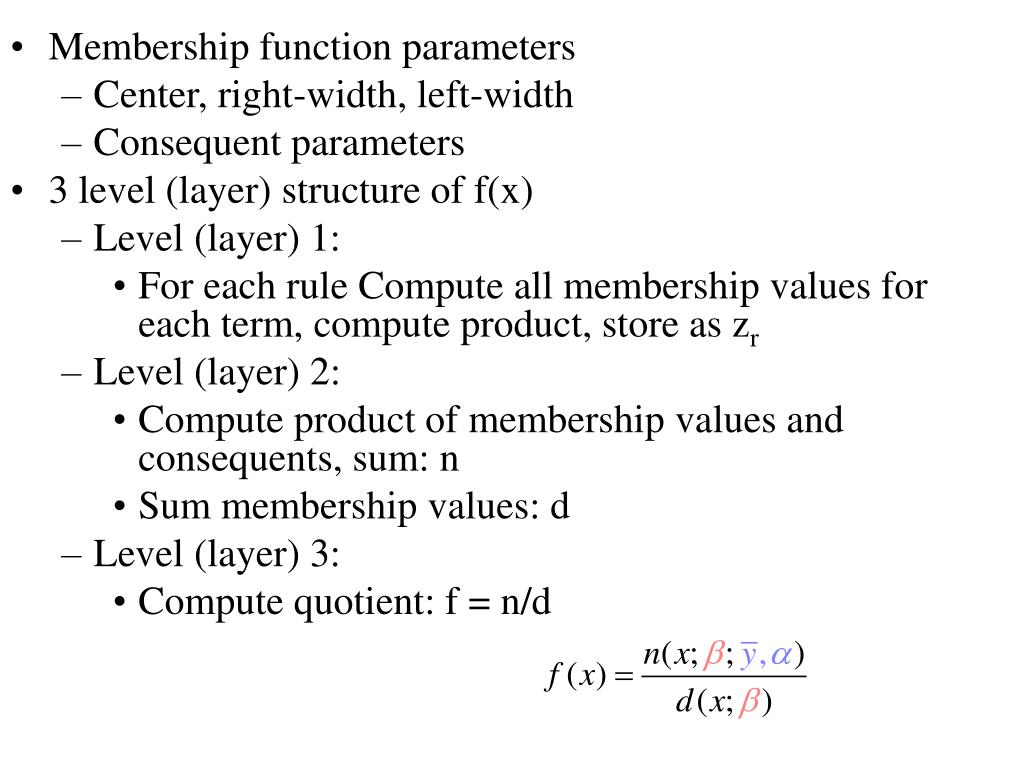

  3. Membership function parameters • Center, right-width, left-width • Consequent parameters • 3 level (layer) structure of f(x) • Level (layer) 1: • For each rule Compute all membership values for each term, compute product, store as zr • Level (layer) 2: • Compute product of membership values and consequents, sum: n • Sum membership values: d • Level (layer) 3: • Compute quotient: f = n/d

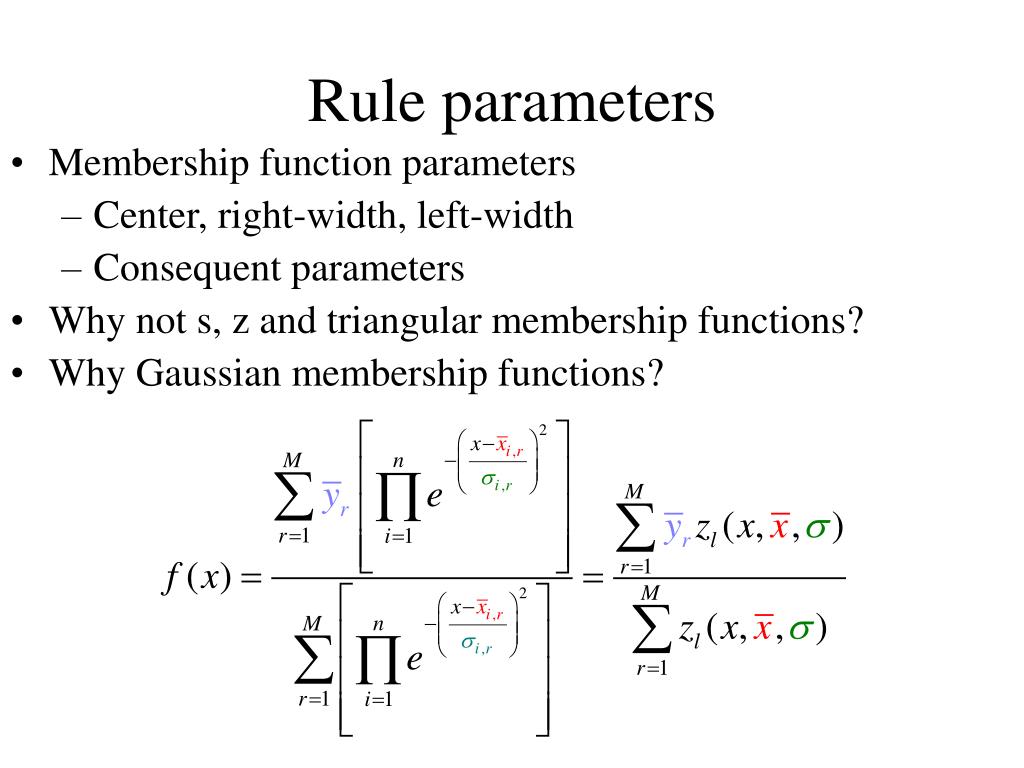

  4. Membership function parameters Center, right-width, left-width Consequent parameters Why not s, z and triangular membership functions? Why Gaussian membership functions? Rule parameters

  5. Choose parameters to minimize the error Corresponds to a blind person descending a mountain by finding the steepest descending slope and moving in that direction Slope is determined by differentiation (computing the “gradient”) Chain rule helps tremendously. Gradient Descent

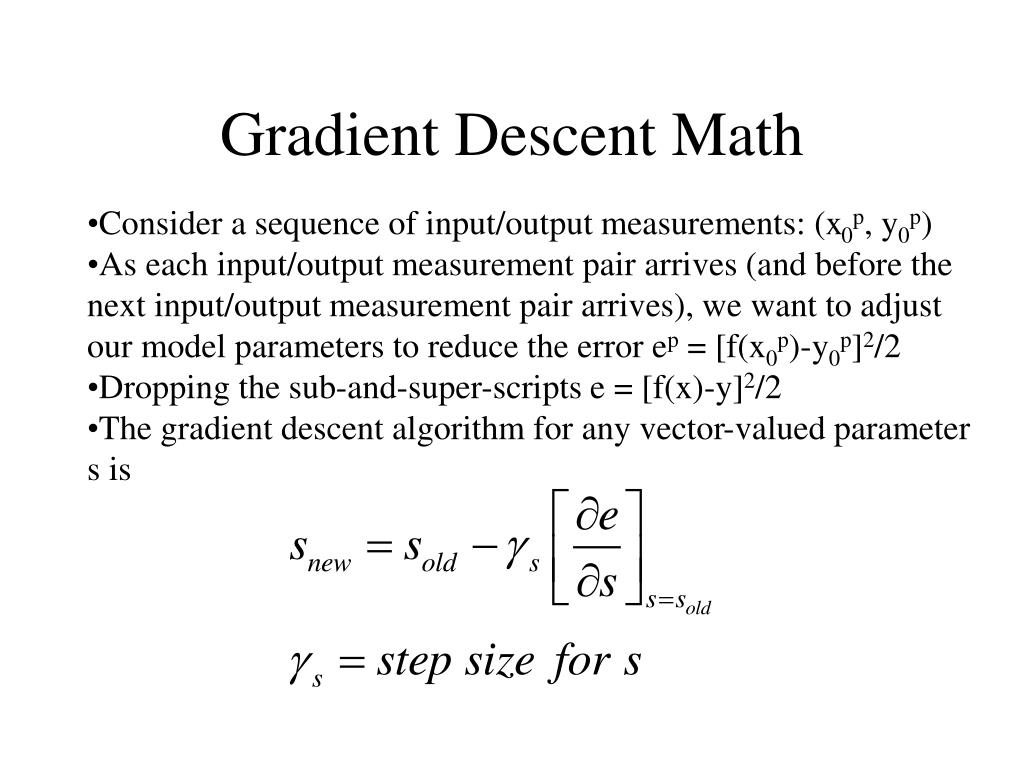

  6. Gradient Descent Math • Consider a sequence of input/output measurements: (x0p, y0p) • As each input/output measurement pair arrives (and before the next input/output measurement pair arrives), we want to adjust our model parameters to reduce the error ep = [f(x0p)-y0p]2/2 • Dropping the sub-and-super-scripts e = [f(x)-y]2/2 • The gradient descent algorithm for any vector-valued parameter s is

  7. Apply to:

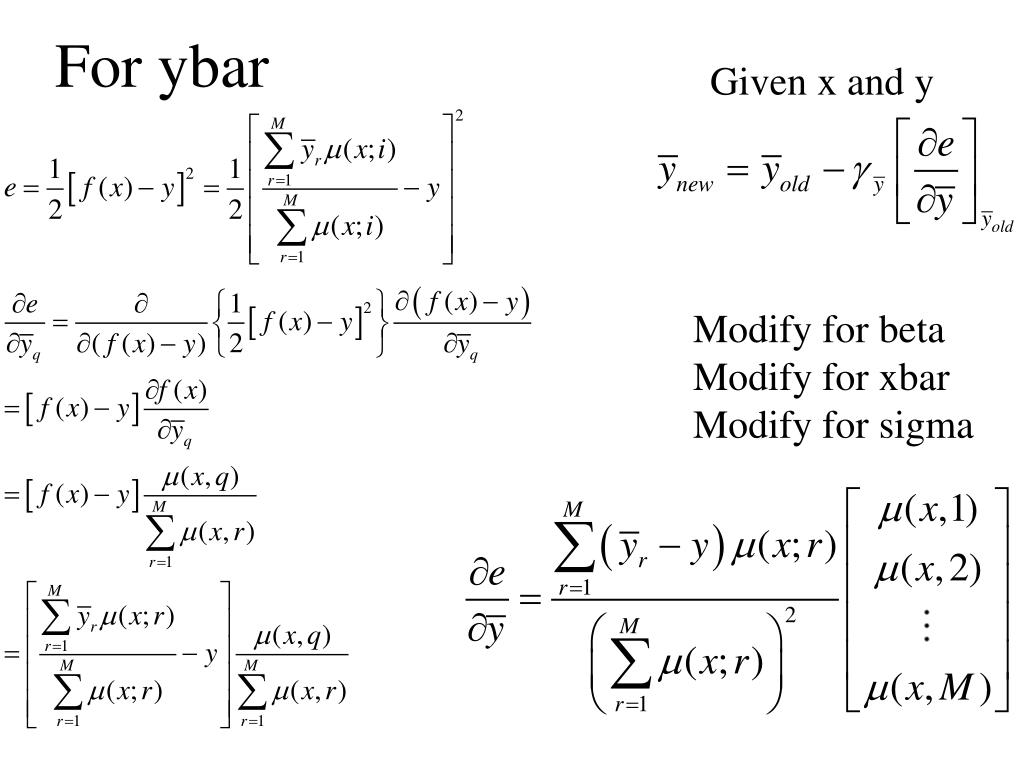

  8. Given x and y For ybar Modify for beta Modify for xbar Modify for sigma

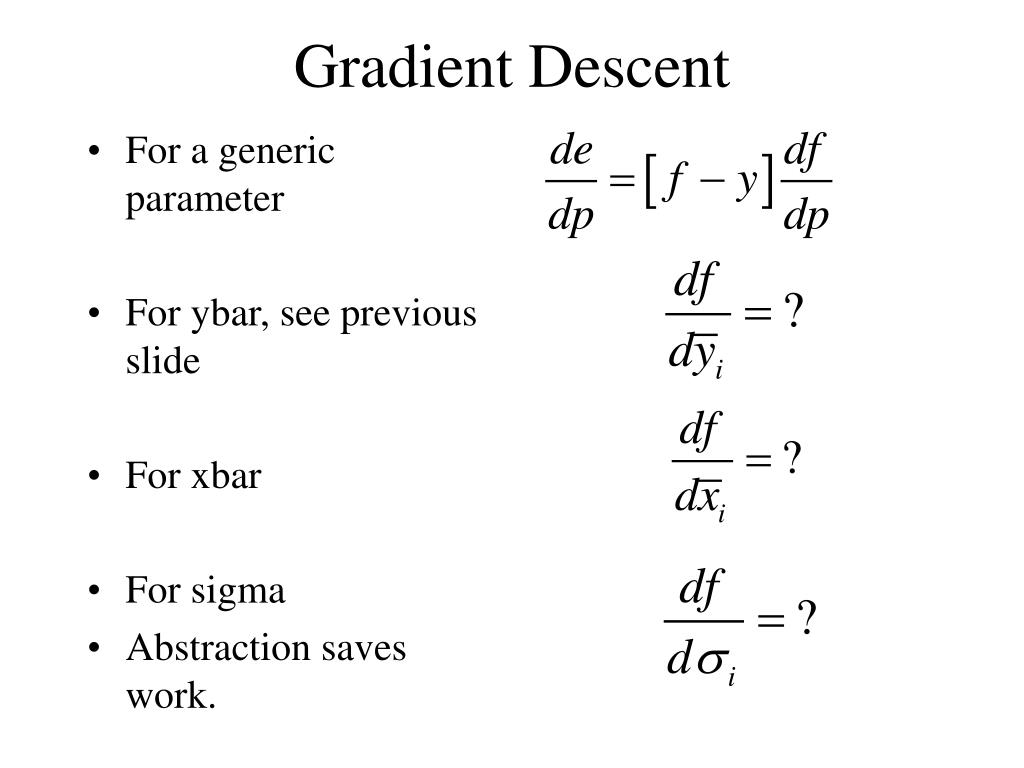

  9. Gradient Descent • For a generic parameter • For ybar, see previous slide • For xbar • For sigma • Abstraction saves work.

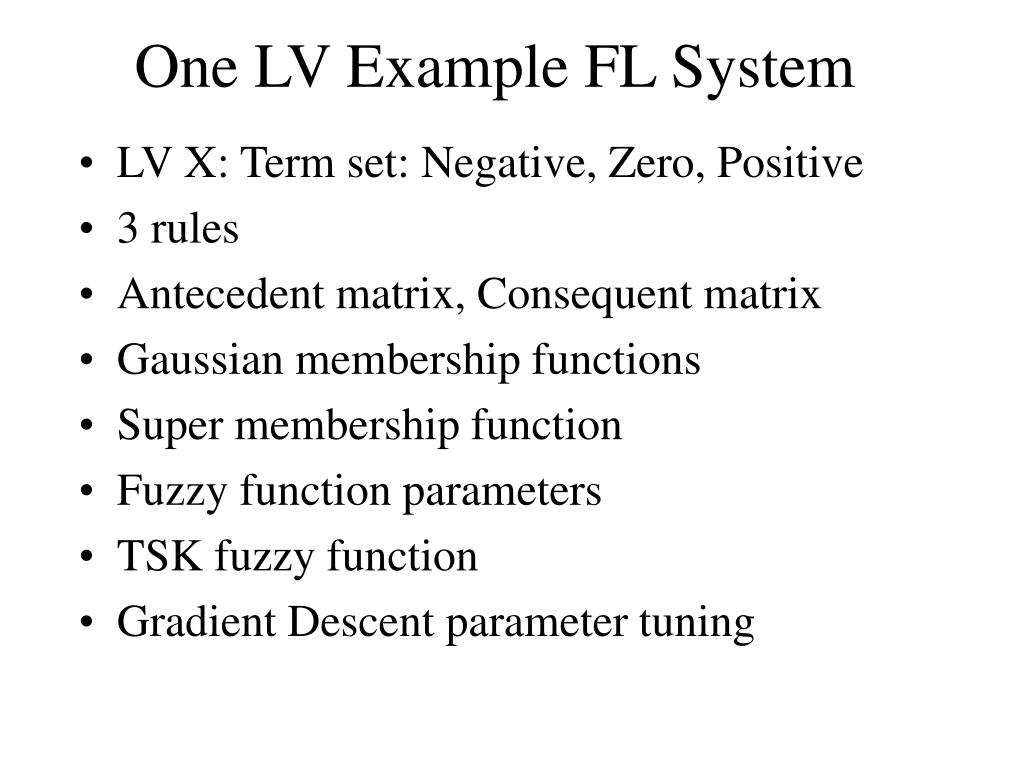

  10. One LV Example FL System • LV X: Term set: Negative, Zero, Positive • 3 rules • Antecedent matrix, Consequent matrix • Gaussian membership functions • Super membership function • Fuzzy function parameters • TSK fuzzy function • Gradient Descent parameter tuning

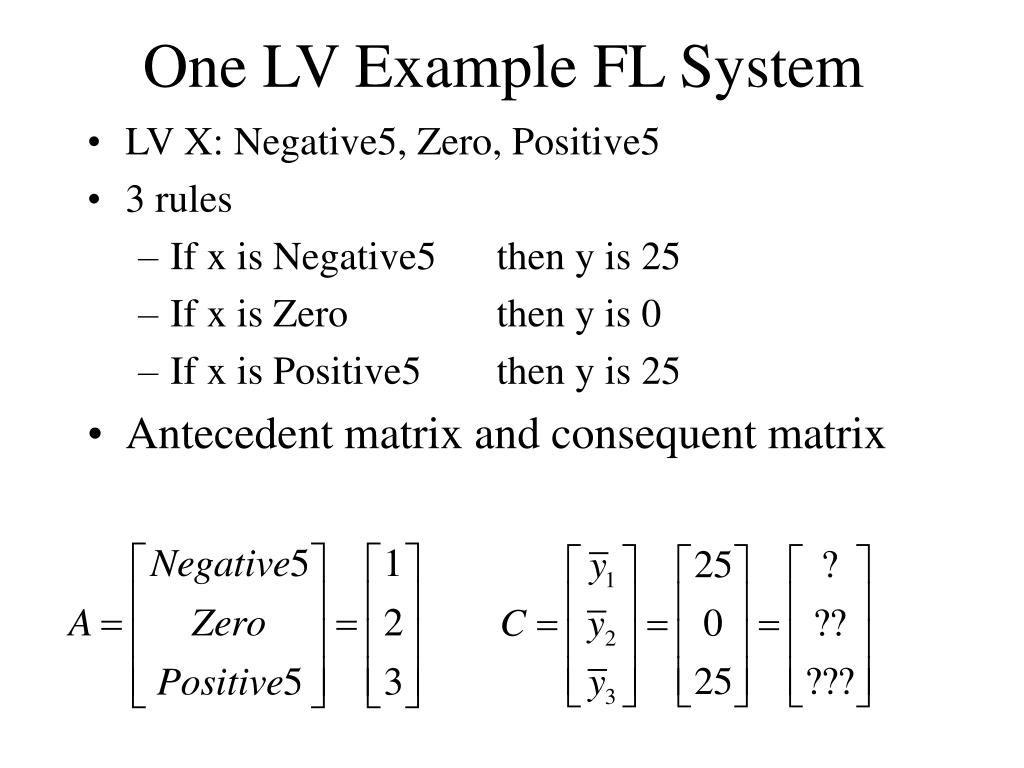

  11. One LV Example FL System • LV X: Negative5, Zero, Positive5 • 3 rules • If x is Negative5 then y is 25 • If x is Zero then y is 0 • If x is Positive5 then y is 25 • Antecedent matrix and consequent matrix

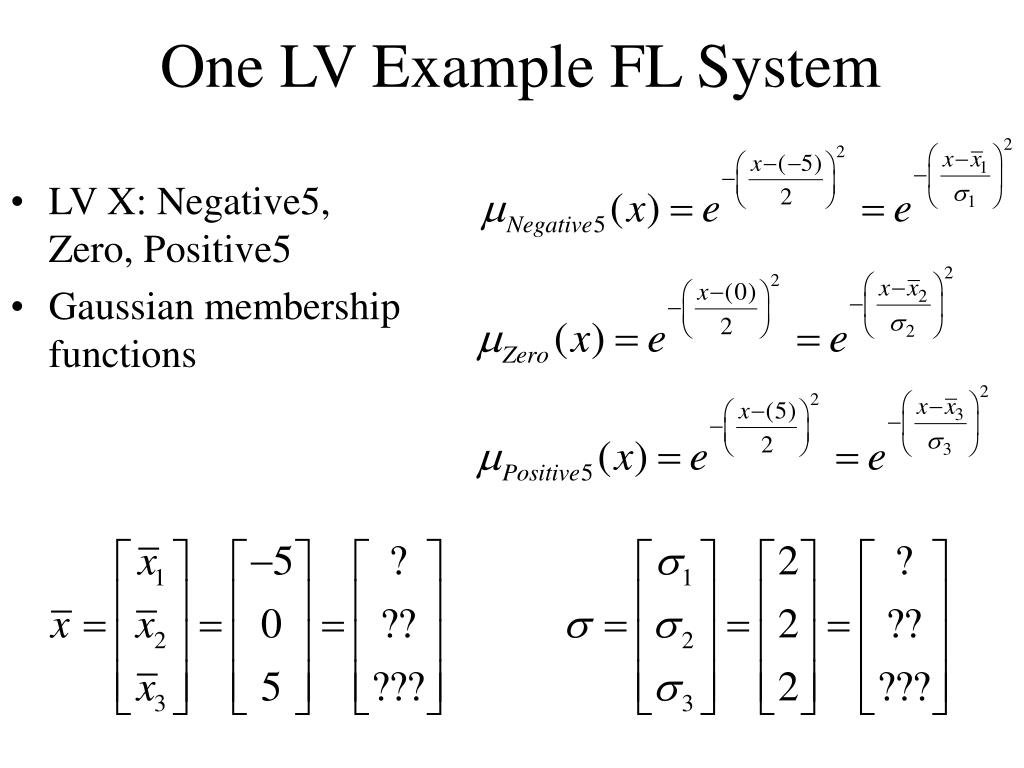

  12. One LV Example FL System • LV X: Negative5, Zero, Positive5 • Gaussian membership functions

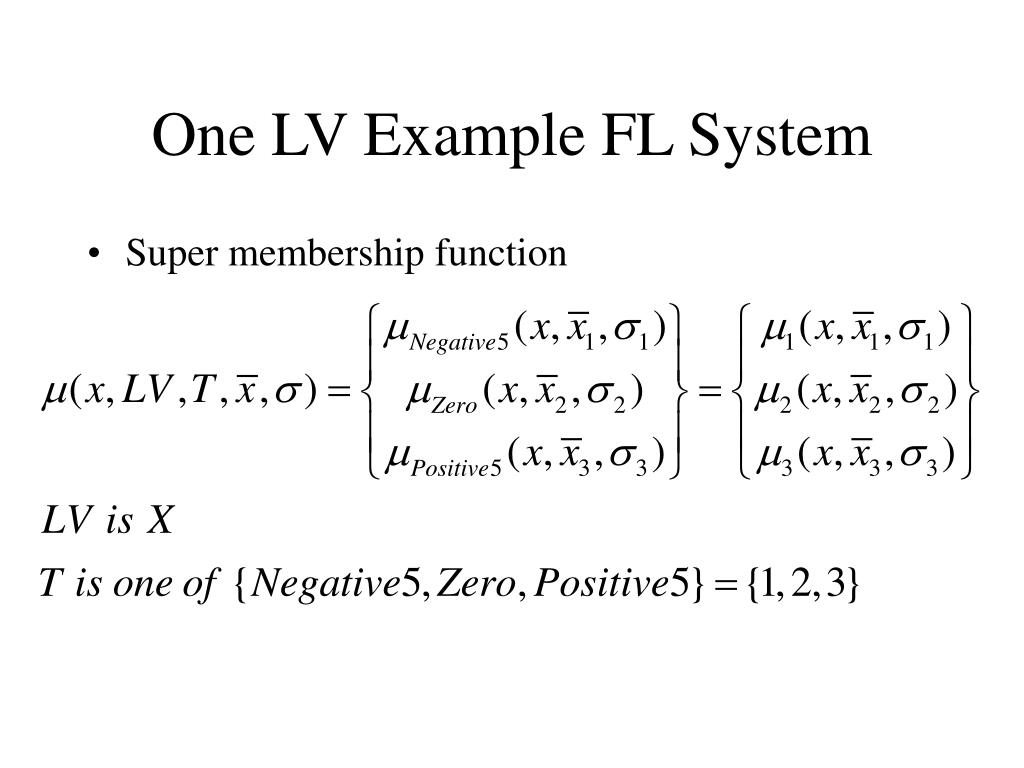

  13. One LV Example FL System • Super membership function

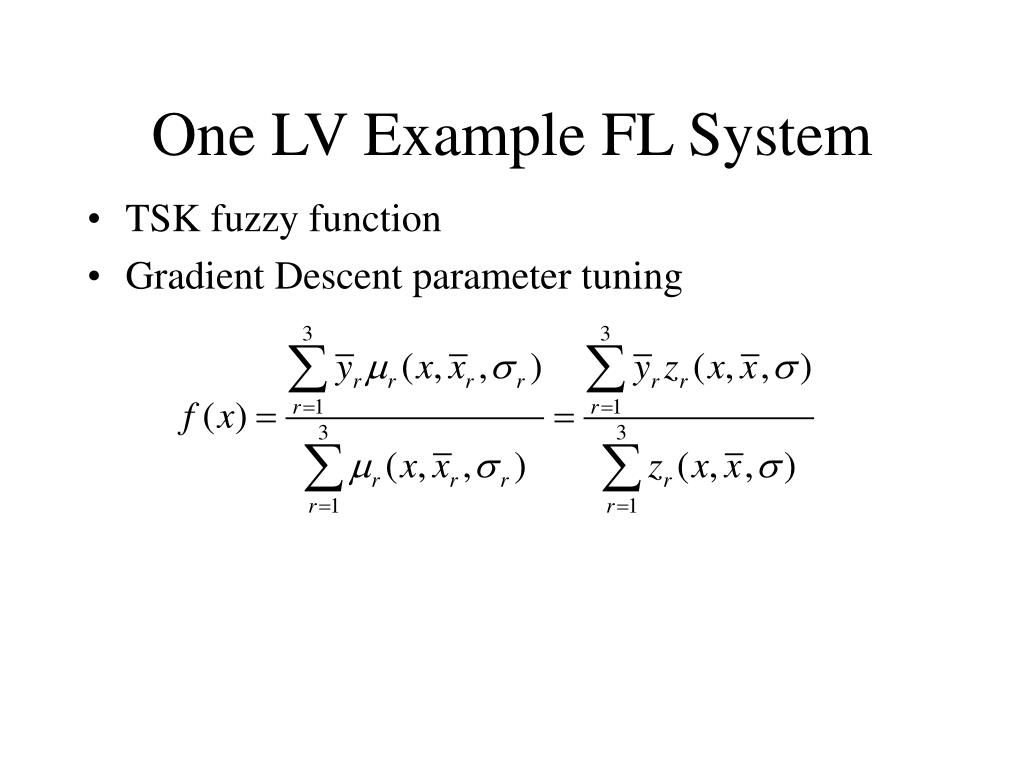

  14. One LV Example FL System • TSK fuzzy function • Gradient Descent parameter tuning

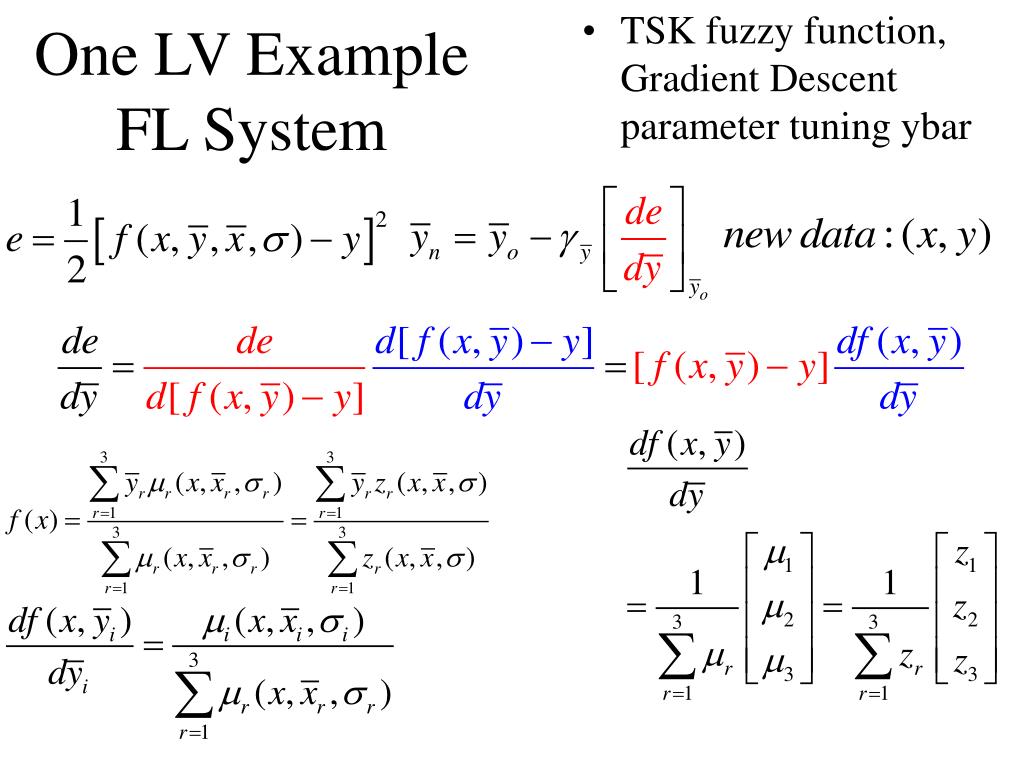

  15. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning ybar

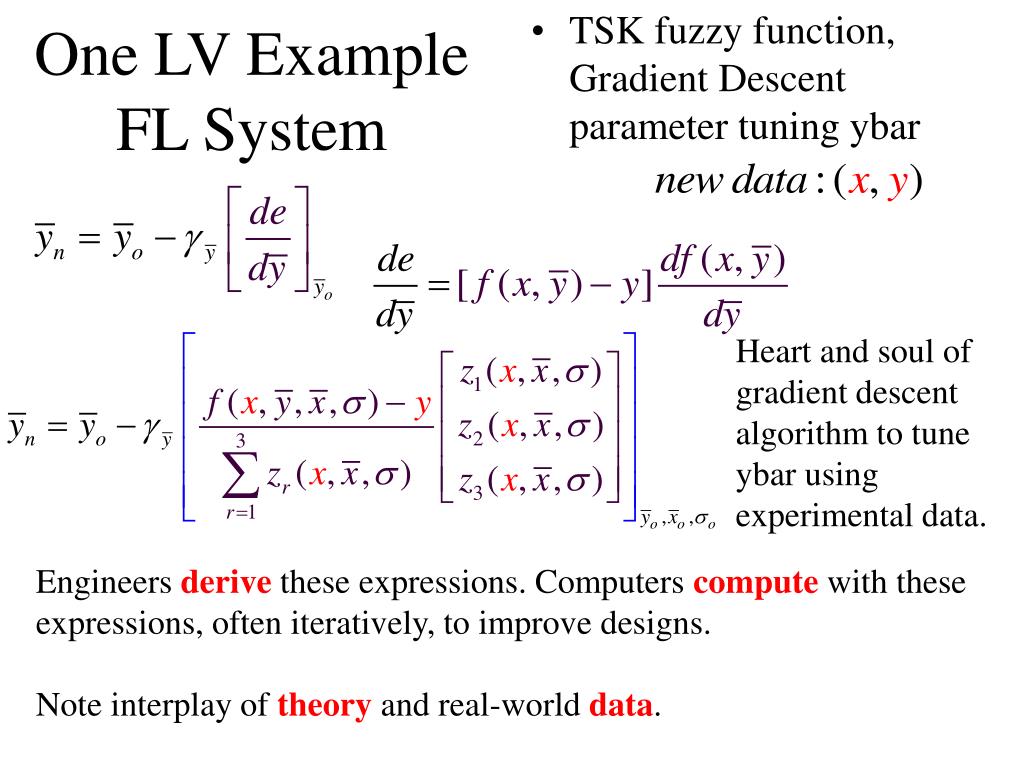

  16. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning ybar Heart and soul of gradient descent algorithm to tune ybar using experimental data. Engineers derive these expressions. Computers compute with these expressions, often iteratively, to improve designs. Note interplay of theory and real-world data.

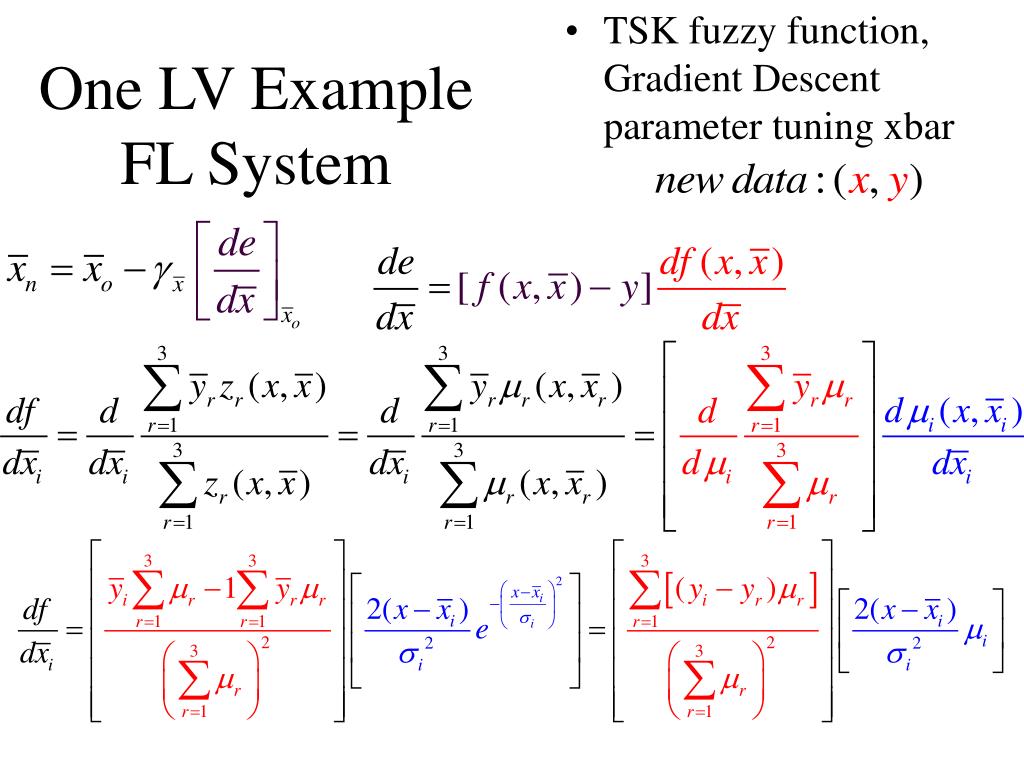

  17. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning xbar

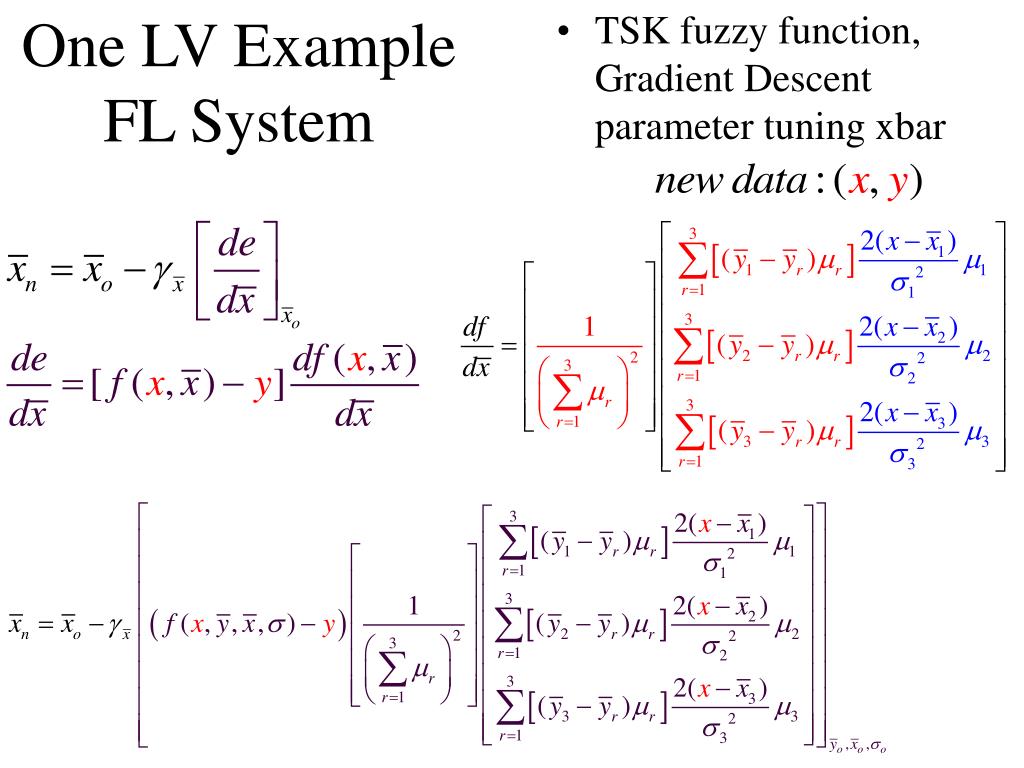

  18. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning xbar

  19. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning xbar

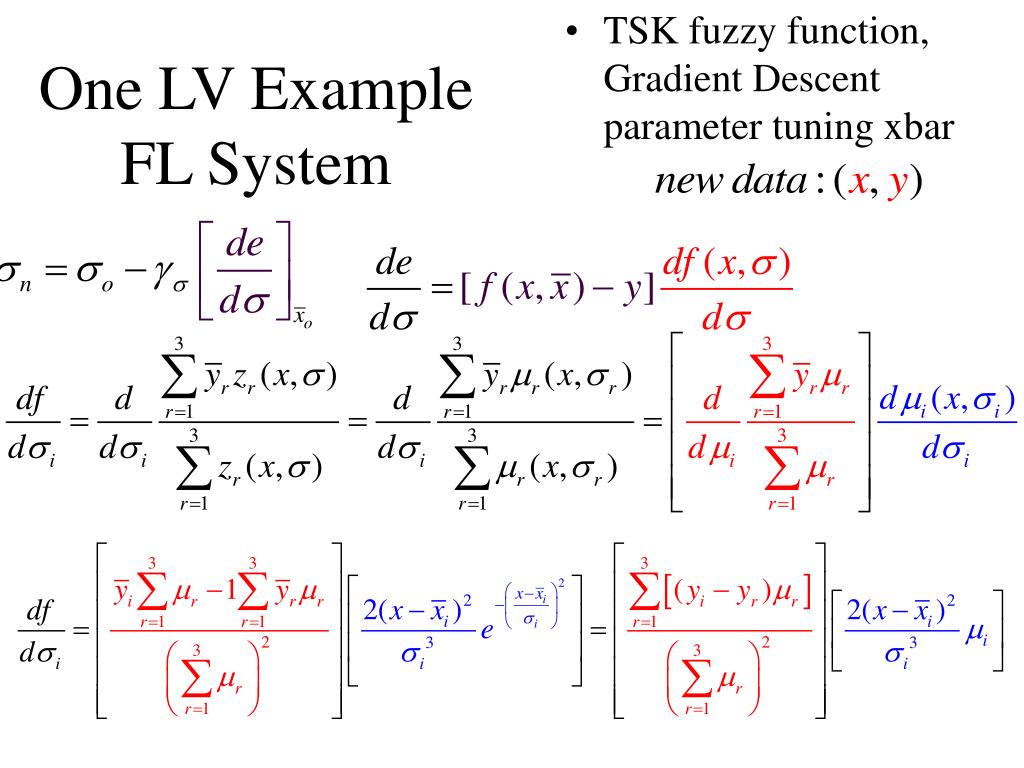

  20. One LV Example FL System • TSK fuzzy function, Gradient Descent parameter tuning xbar

  21. One LV: Gradient Descent Summary

  22. We are now ready to do gradient descent

  23. Two LV Example FL System • Temperature term set: Cold, Comfortable, Hot • Humidity term set: Wet, Dry • 6 rules • Antecedent matrix, Consequent matrix • Gaussian membership functions • Super membership function • Fuzzy function parameters • TSK Fuzzy Function • Gradient descent parameter tuning

  24. Two LV Example FL System • Temperature term set: Comfortable, Warm, Hot • Humidity term set: Wet, Dry • 6 rules • If T is Comfortable and H is Wet then HI is • If T is Comfortable and H is Dry then HI is • If T is Warm and H is Wet then HI is • If T is Warm and H is Dry then HI is • If T is Hot and H is Wet then HI is • If T is Hot and H is Dry then HI is

  25. Two LV Example FL System: Matrices • If T is Comfortable and H is Wet then HI is • If T is Comfortable and H is Dry then HI is • If T is Warm and H is Wet then HI is • If T is Warm and H is Dry then HI is • If T is Hot and H is Wet then HI is • If T is Hot and H is Dry then HI is

  26. Two LV Example FL System • Temperature term set: Cold, Comfortable, Hot • Humidity term set: Wet, Dry • Gaussian membership functions • Super membership function

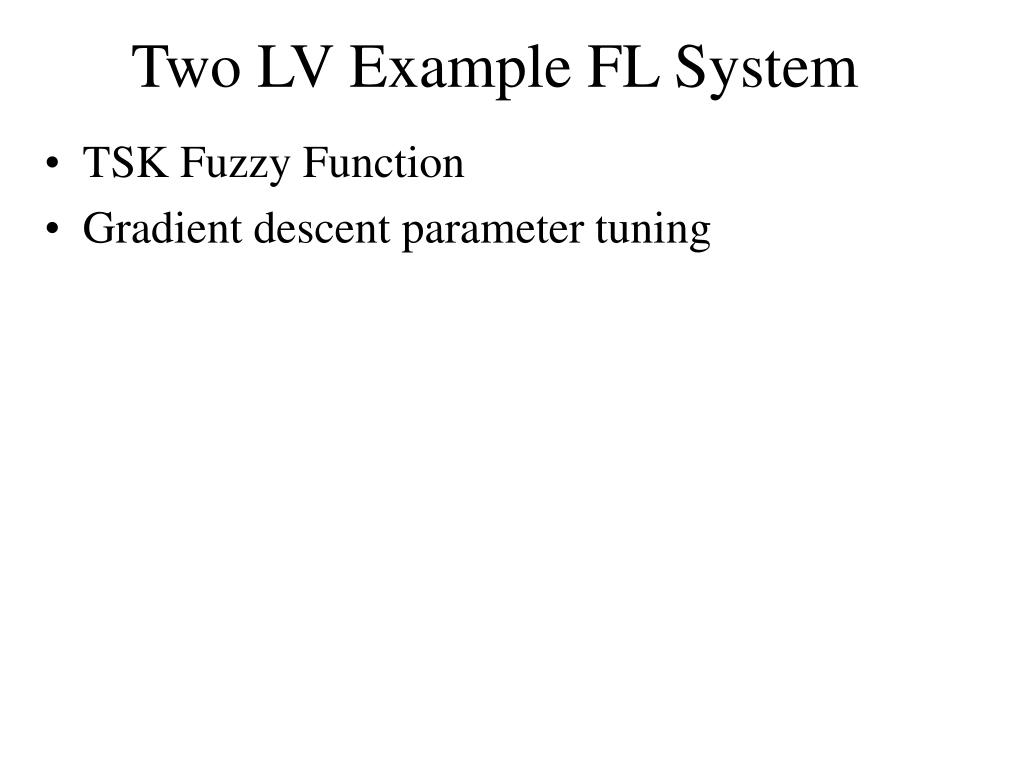

  27. Two LV Example FL System • TSK Fuzzy Function • Gradient descent parameter tuning

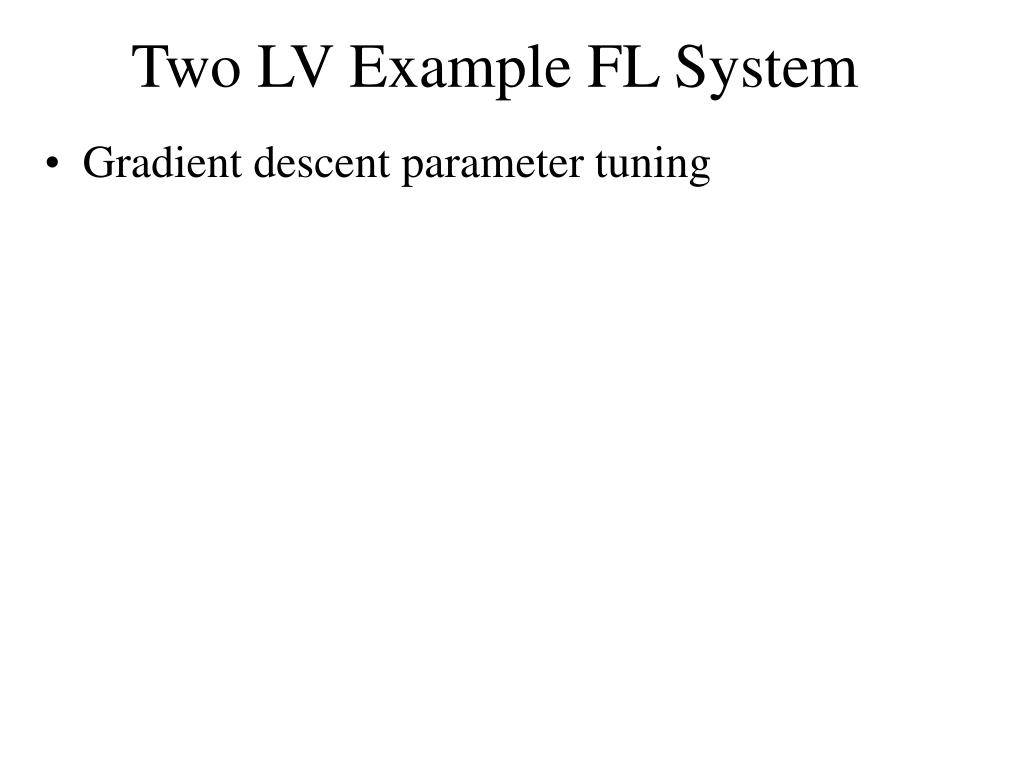

  28. Two LV Example FL System • Gradient descent parameter tuning
